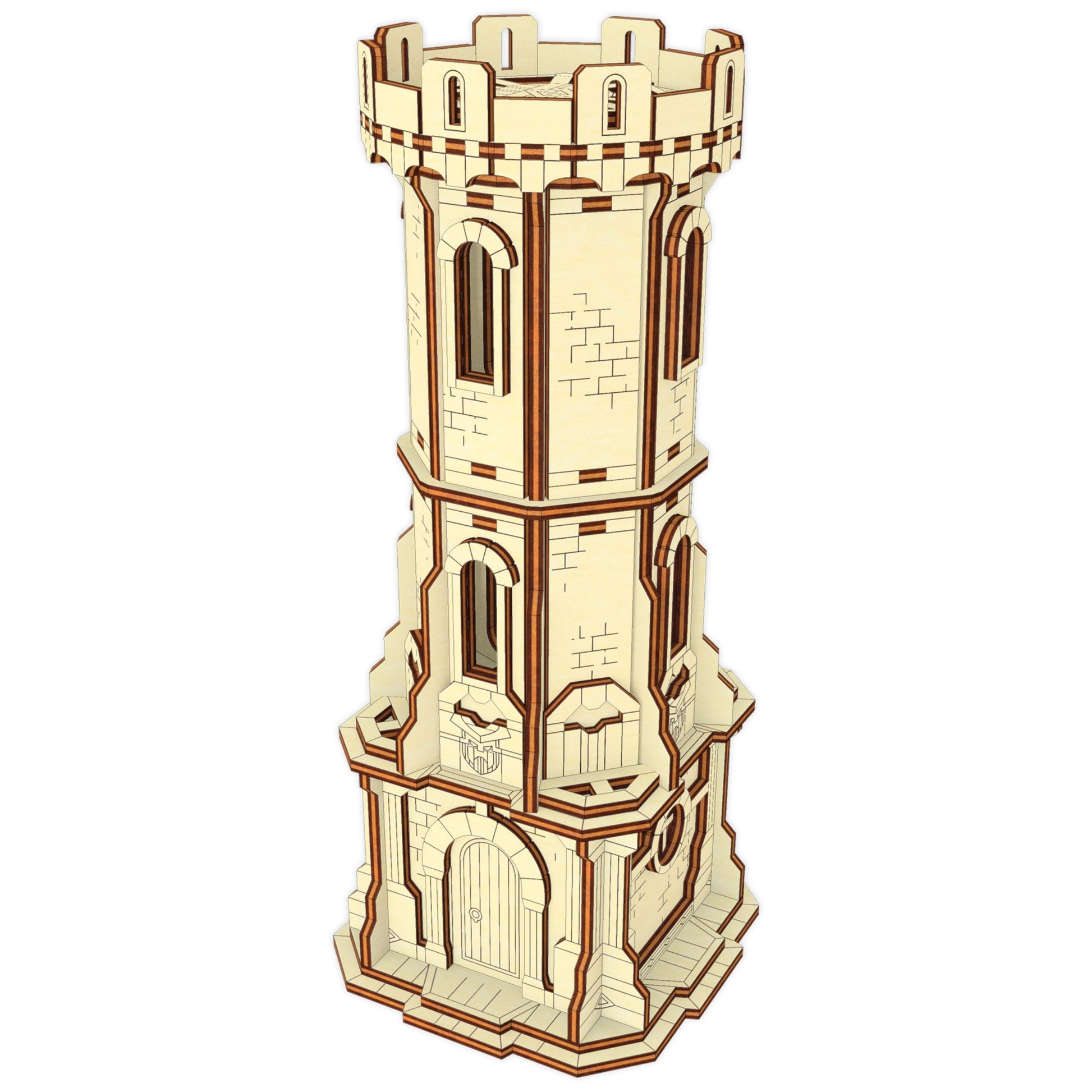

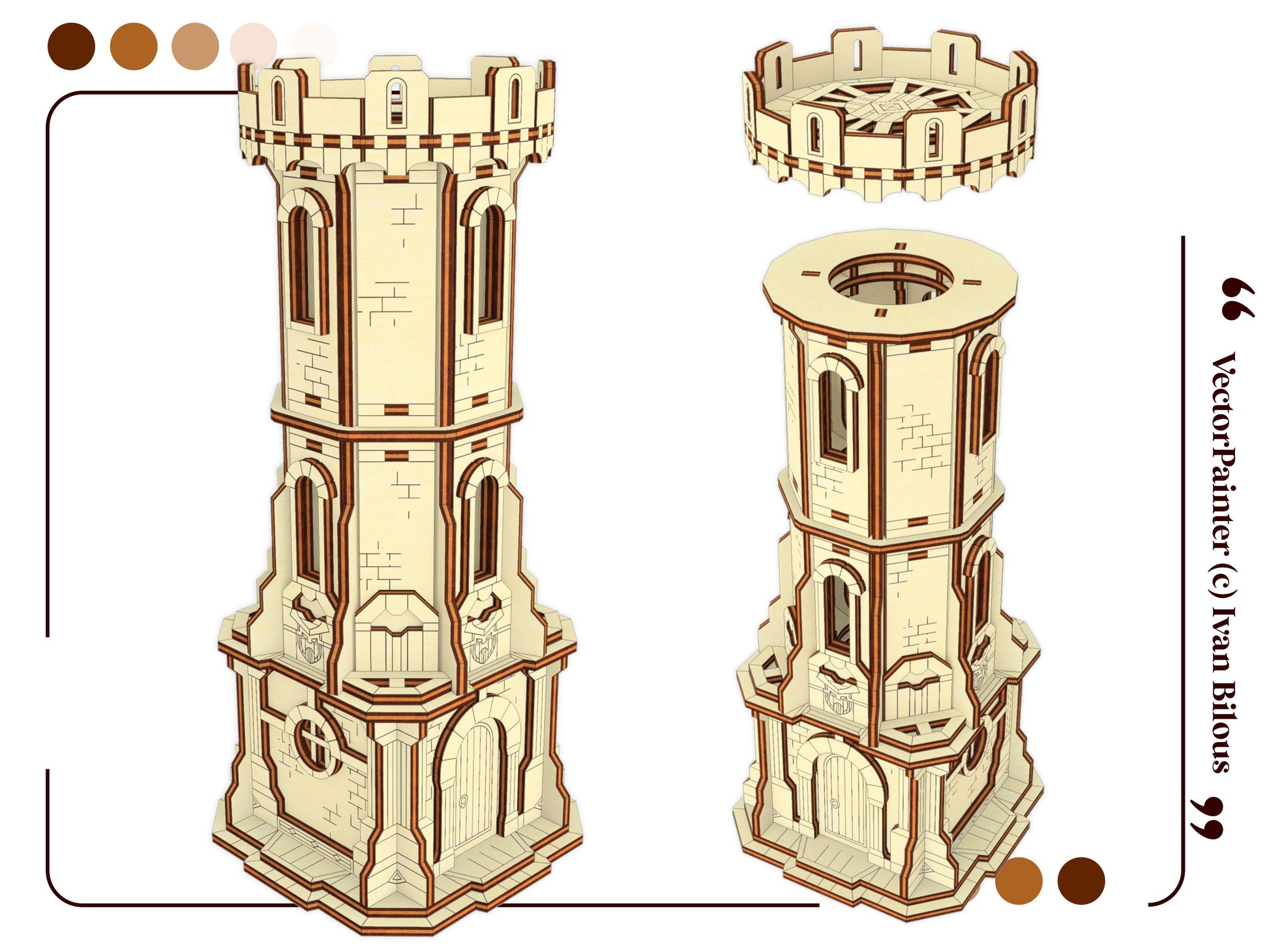

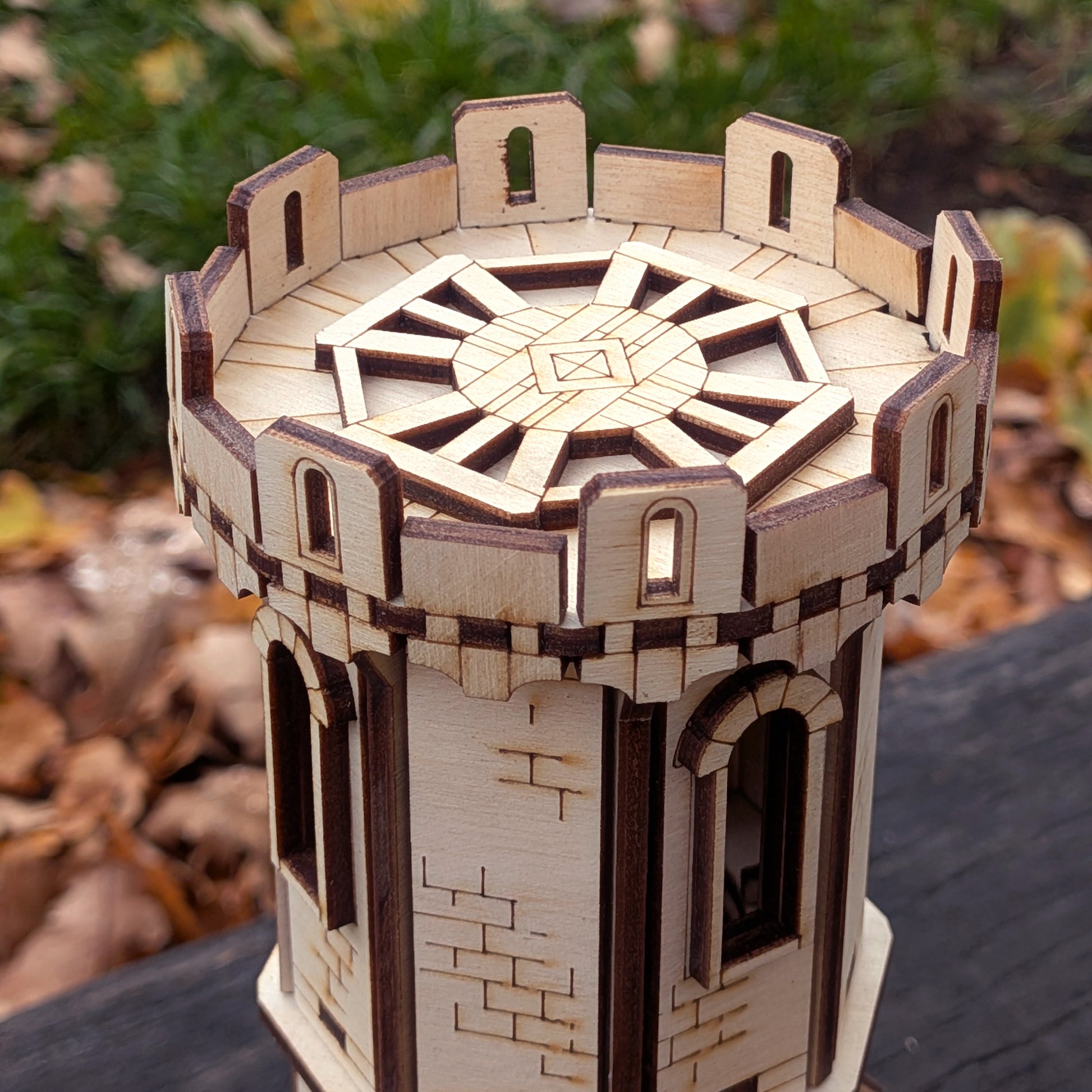

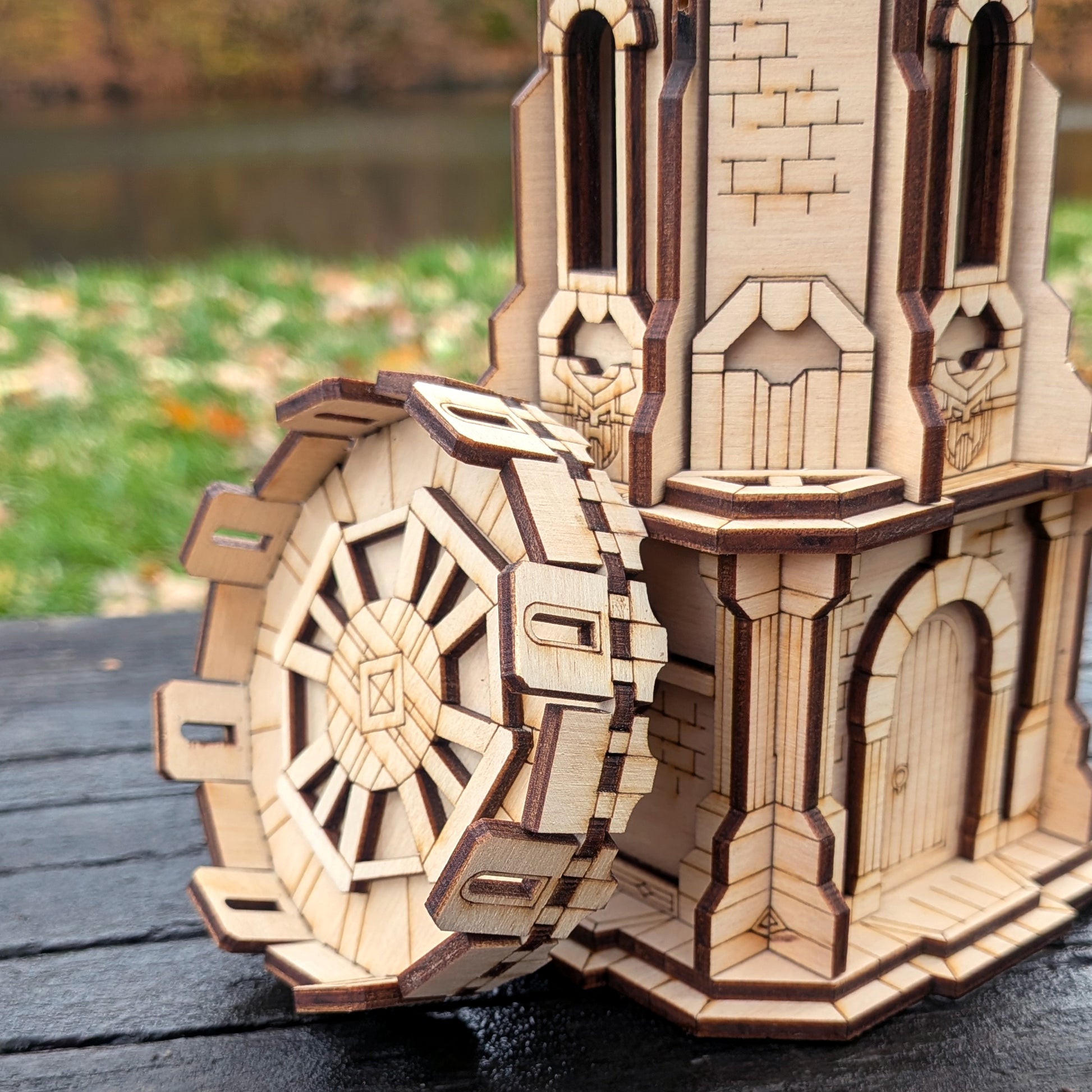

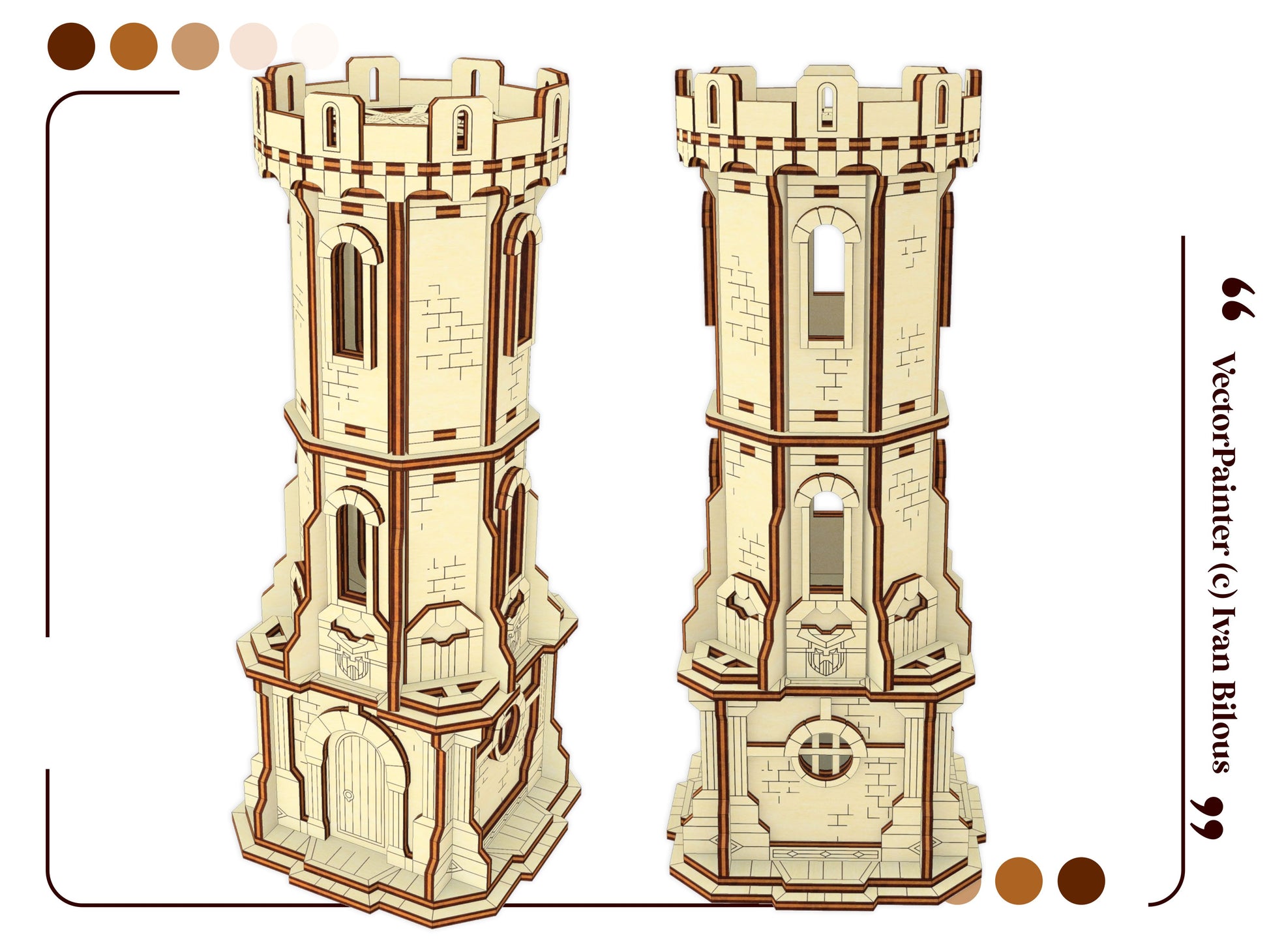

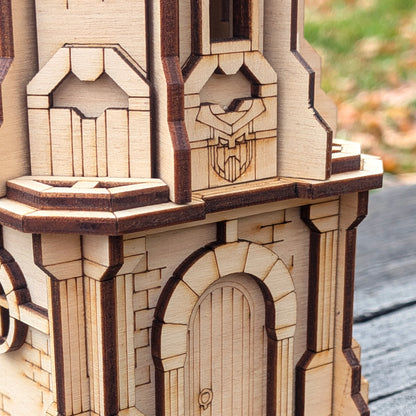

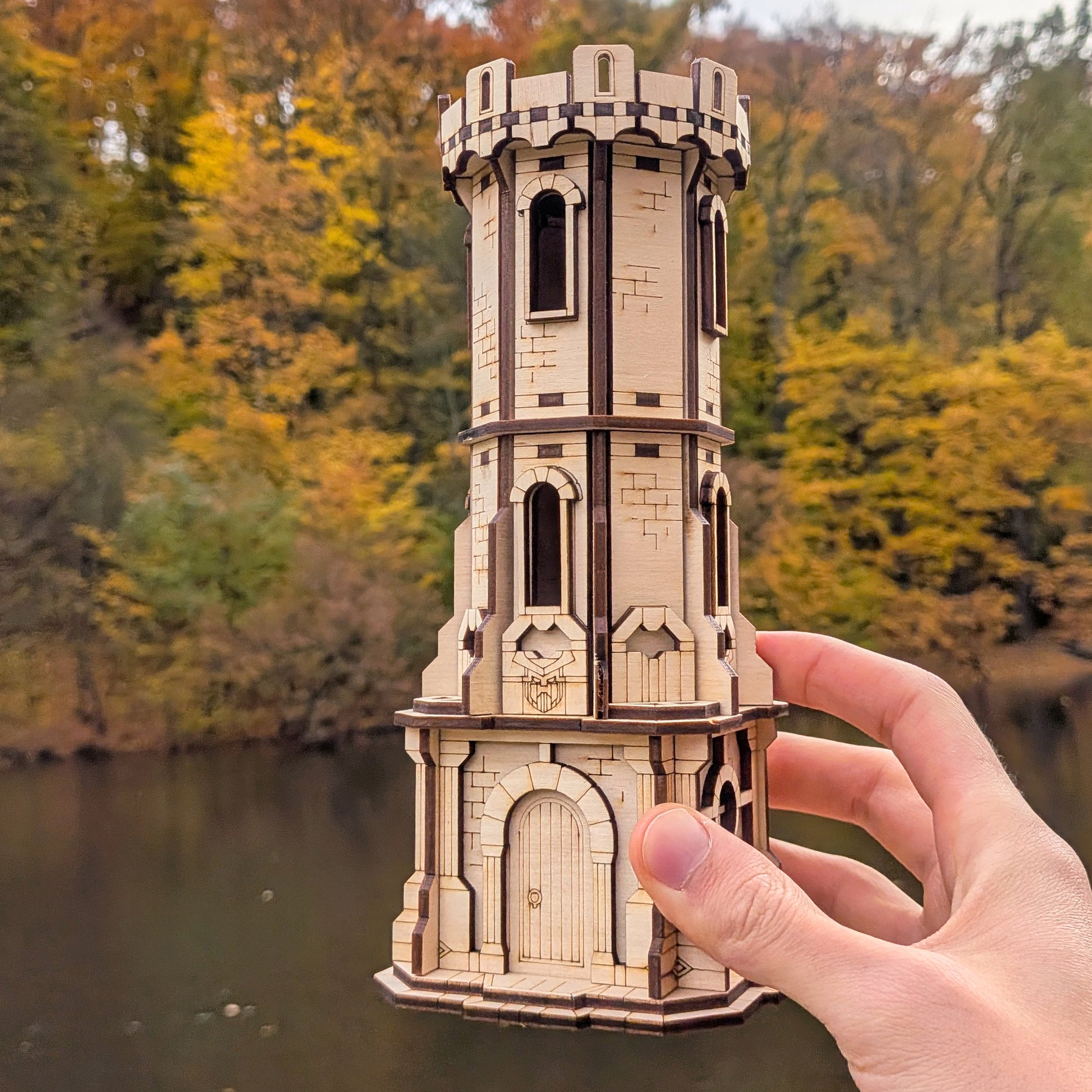

Watchtower

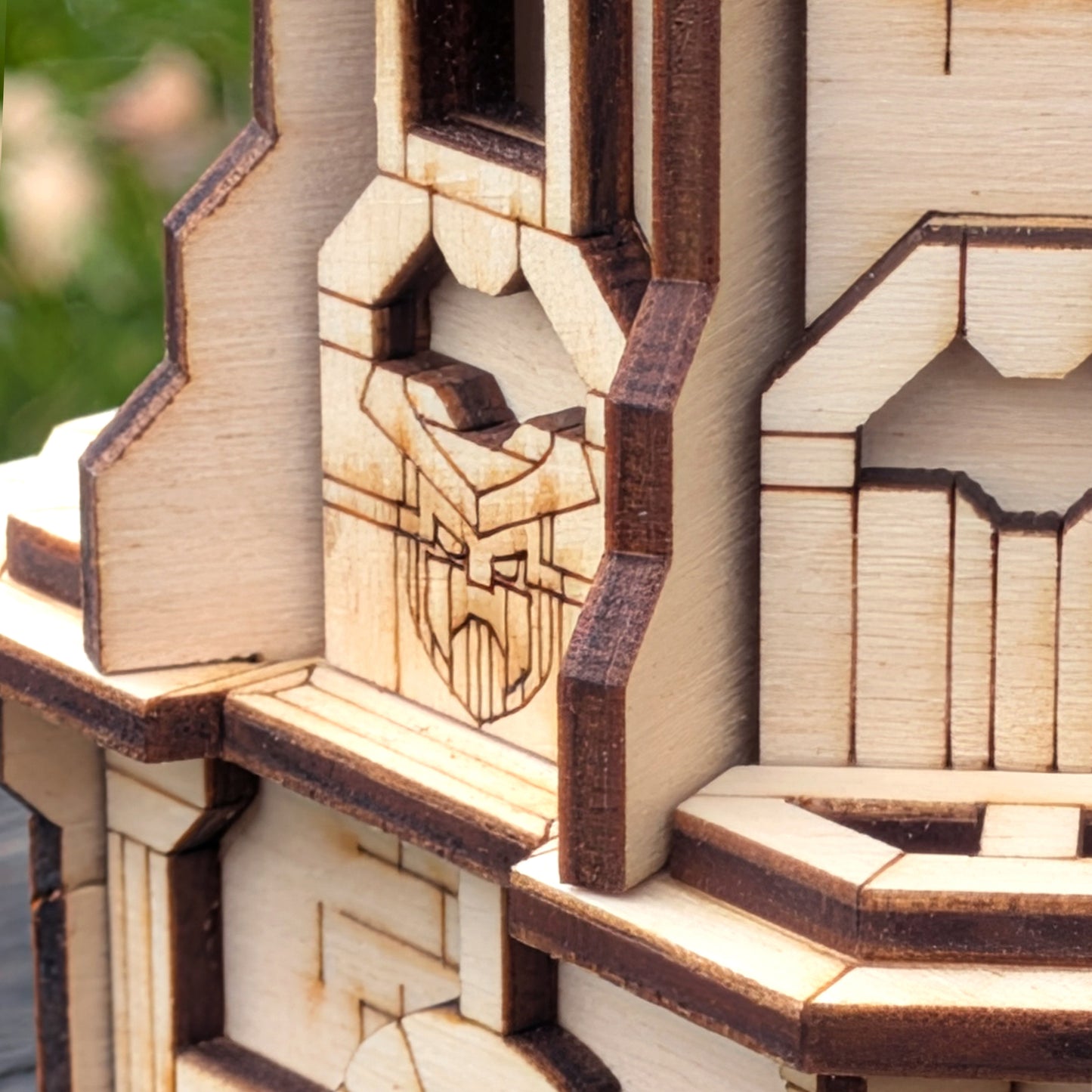

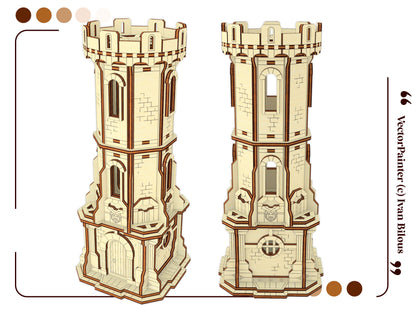

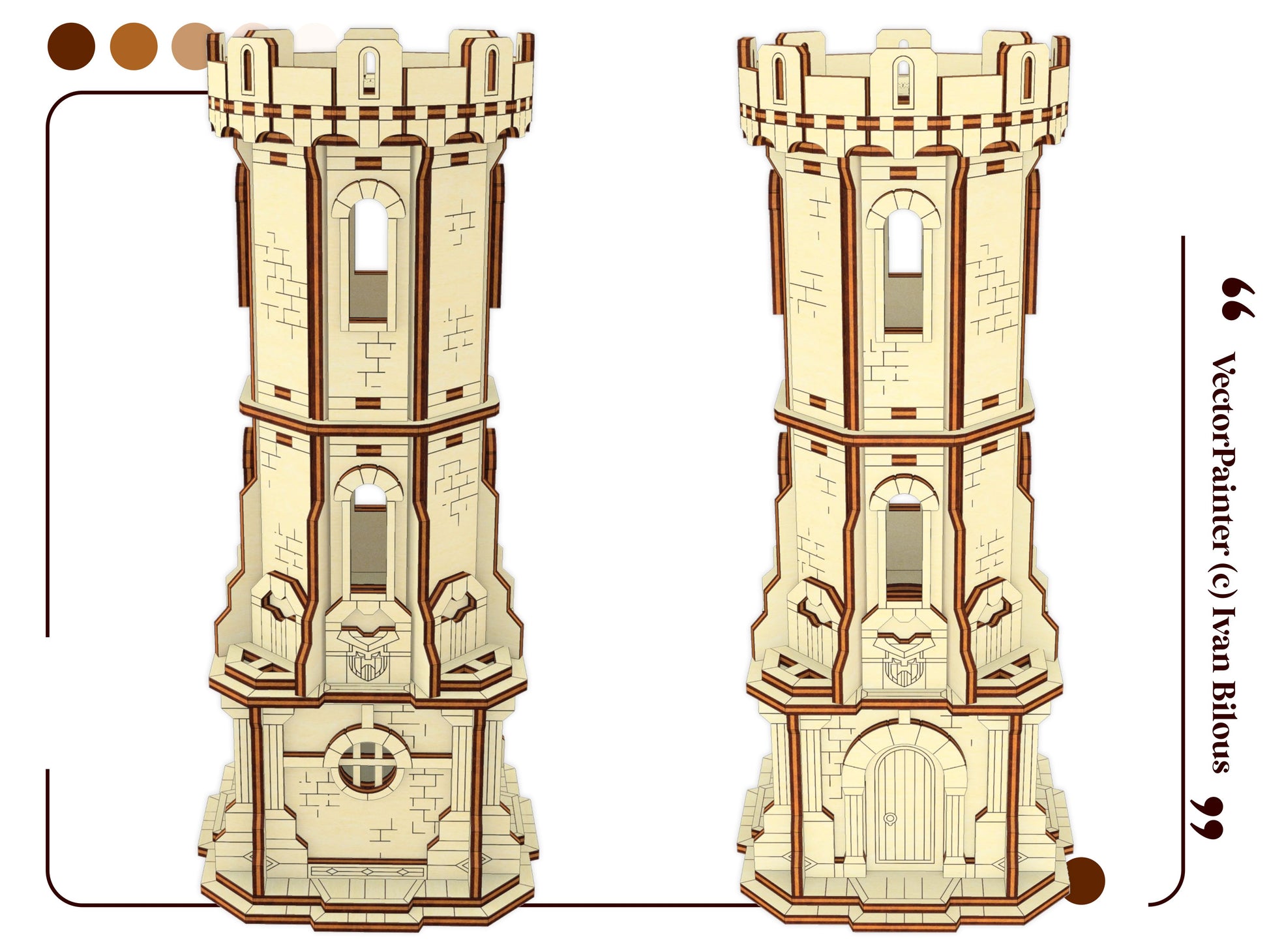

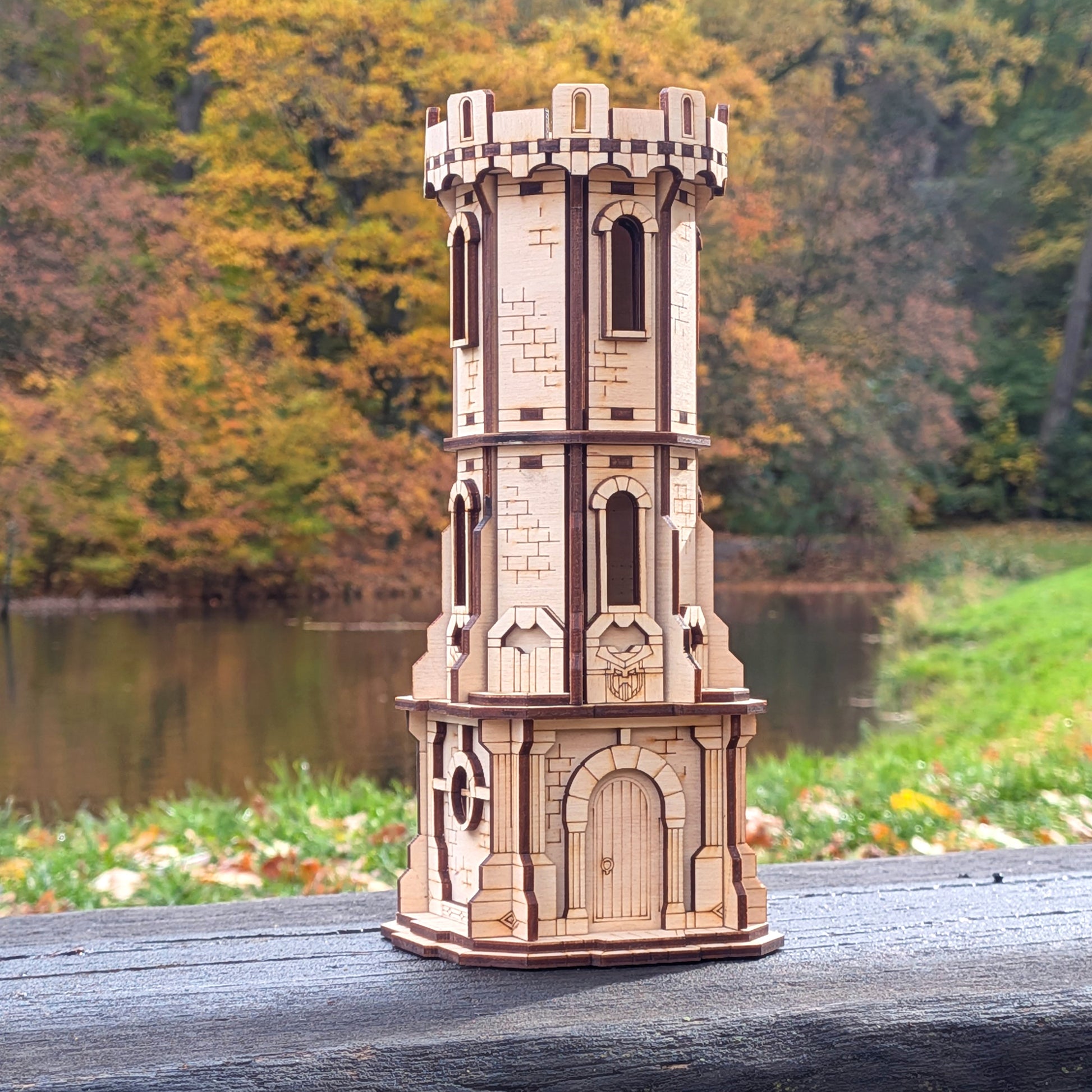

Watchtower laser cut file – digital SVG and DXF plan for creating a detailed miniature model from plywood or MDF. Inspired by medieval fortresses and fantasy worlds, this tower adds a touch of adventure to your collection. Perfect for tabletop gaming, dioramas, or unique home decor.

🎨 Laser cut design Watchtower 🎨
DIGITAL FILE for laser cutting machine

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

🤏Material thickness (versions of the files): 3 mm, 1/8'' (3.175 mm), 4 mm, 5 mm, 6 mm, 1/4'' (6.35 mm)

Level of assembly difficulty: ⚫⚫⚫⚪⚪
⚠️ Some parts are glued

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

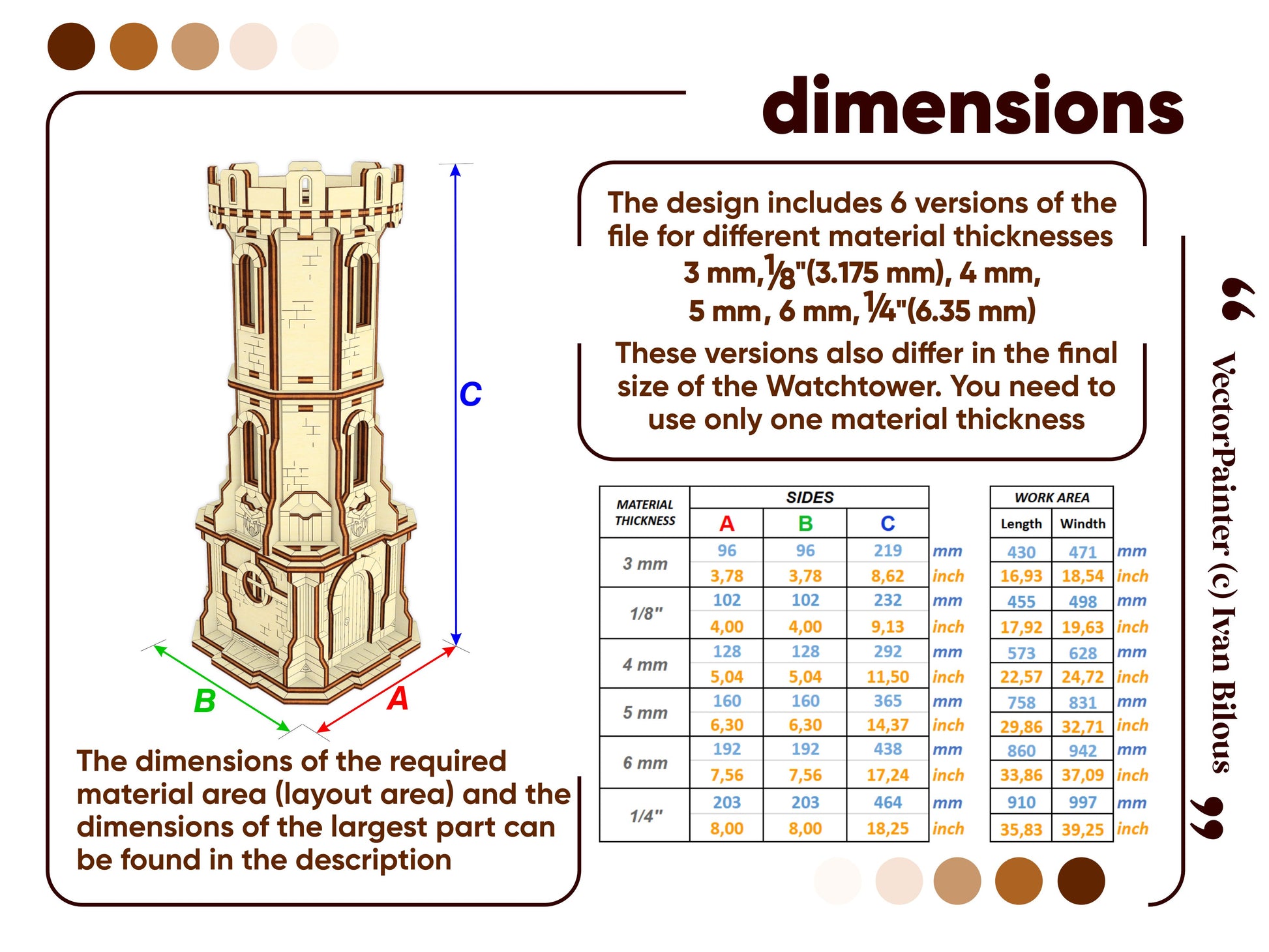

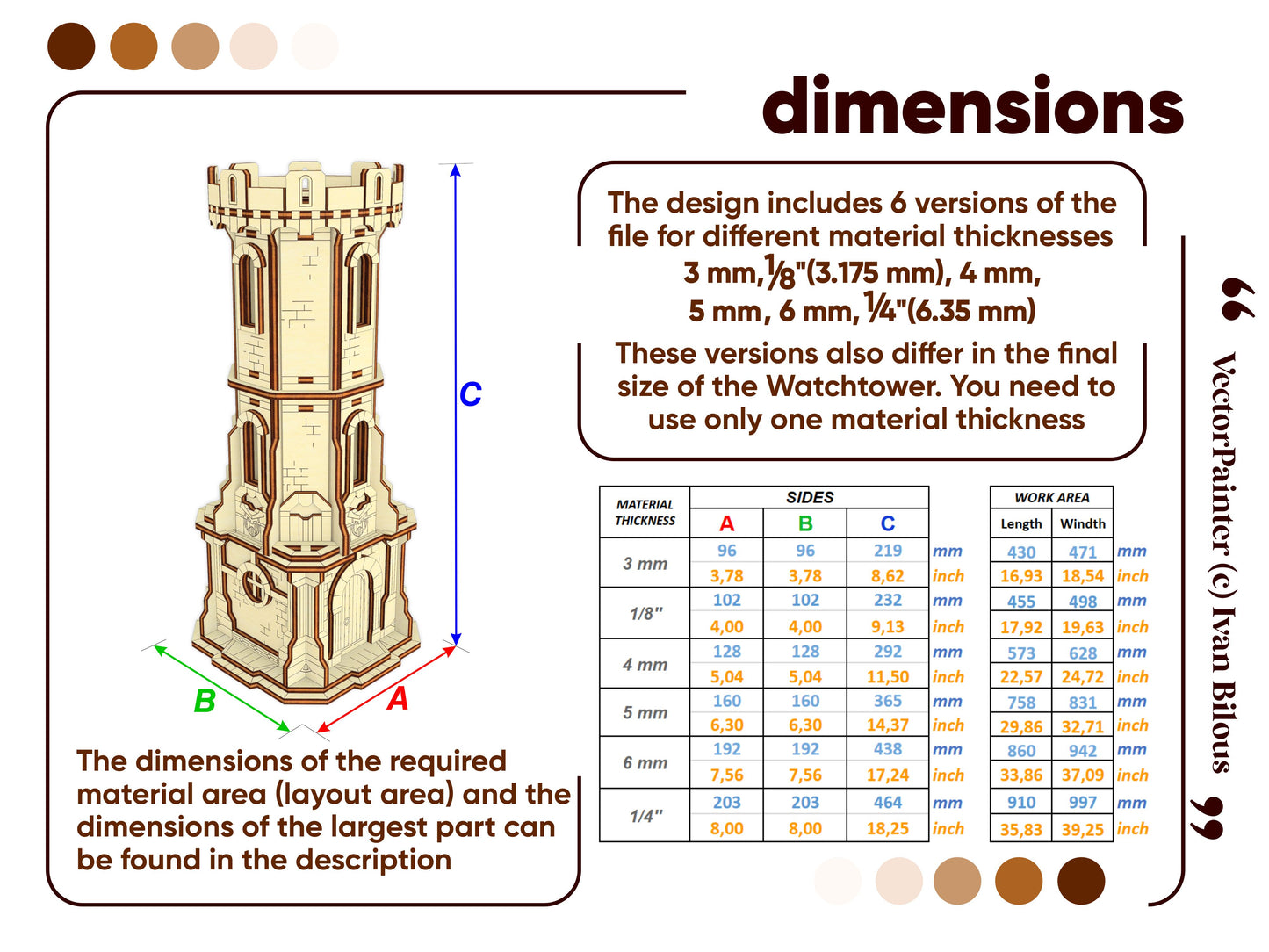

📏 Finished SIZE
3 mm thickness: 96 x 96 x 219 mm (3,78 x 3,78 x 8,62'')
1/8''(3.175mm) thickness: 102 x 102 x 232 mm (4,00 x 4,00 x 9,13'')
4 mm thickness: 128 x 128 x 292 mm (5,04 x 5,04 x 11,50'')
5 mm thickness: 160 x 160 x 365 mm (6,30 x 6,30 x 14,37'')
6 mm thickness: 192 x 192 x 438 mm (7,56 x 7,56 x 17,24'')
1/4''(6.35mm) thickness: 203 x 203 x 464 mm (8,00 x 8,00 x 18,25'')

📐WORK AREA - total area of wood required for cutting
3 mm thickness: 430 x 471 mm (16,93 x 18,54'')
1/8''(3.175mm) thickness: 455 x 498 mm (17,92 x 19,63'')
4 mm thickness: 573 x 628 mm (22,57 x 24,72'')
5 mm thickness: 758 x 831 mm (29,86 x 32,71'')
6 mm thickness: 860 x 942 mm (33,86 x 37,09'')
1/4''(6.35mm) thickness: 910 x 997 mm (35,83 x 39,25'')

🟧 LARGEST PART
3 mm thickness: 96 x 96 mm (3,78 x 3,78'')
1/8''(3.175mm) thickness: 102 x 102 mm (4,00 x 4,00'')
4 mm thickness: 128 x 128 mm (5,04 x 5,04'')
5 mm thickness: 169 x 169 mm (6,67 x 6,67'')
6 mm thickness: 192 x 192 mm (7,56 x 7,56'')
1/4''(6.35mm) thickness: 203 x 203 mm (8,00 x 8,00'')

⚠️ If you are using wood whose thickness is not included in the design, you can easily scale the file.
1) Import a file that is thicker than the thickness of your wood.
2) Multiply the width and length of the file by your actual thickness and divide by the thickness of the wood in the file.

For example, your wood is 4.5 mm thick.
Import the file for 5 mm. Multiply the width and length of the imported file by 4.5 and divide by 5.
This will give you a 4.5 mm file.

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

🛒WHAT YOU RECEIVE

🟢 ready made cutting files for 3 mm, 1/8'' (3.175 mm), 4mm, 5 mm, 6 mm, 1/4'' (6.35 mm) material thickness

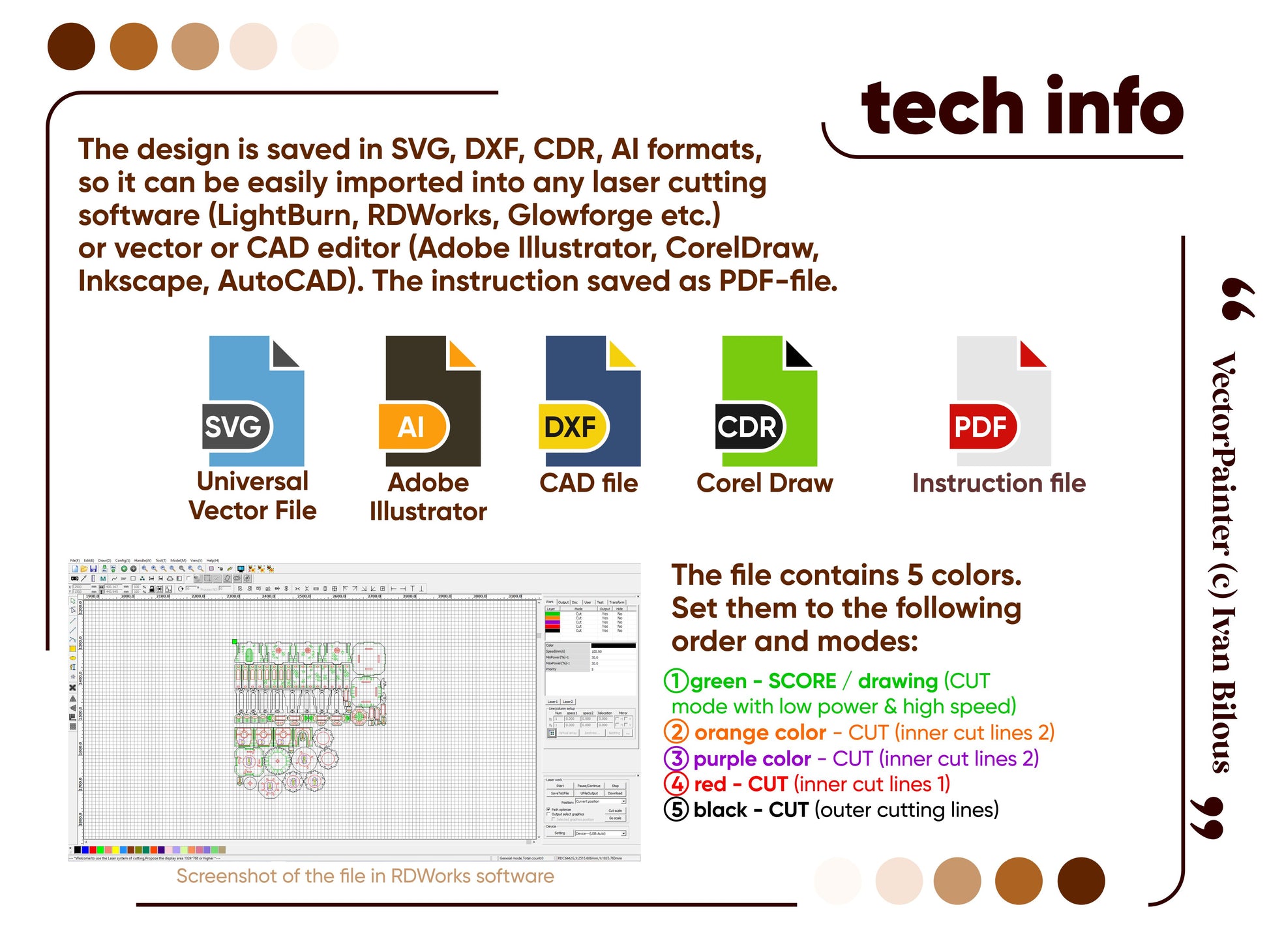

🟢 each file is saved in SVG, DXF, CDR, AI formats

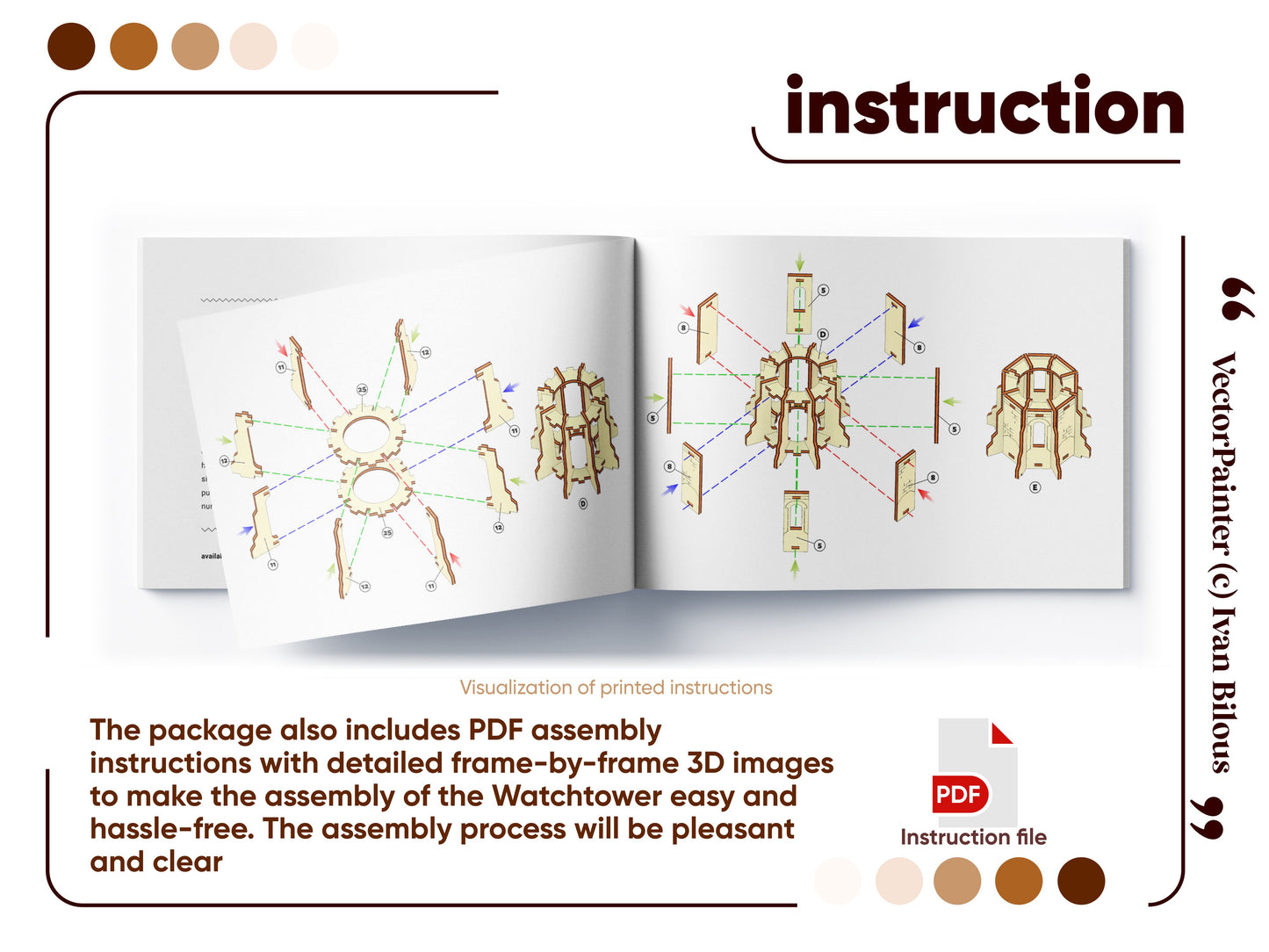

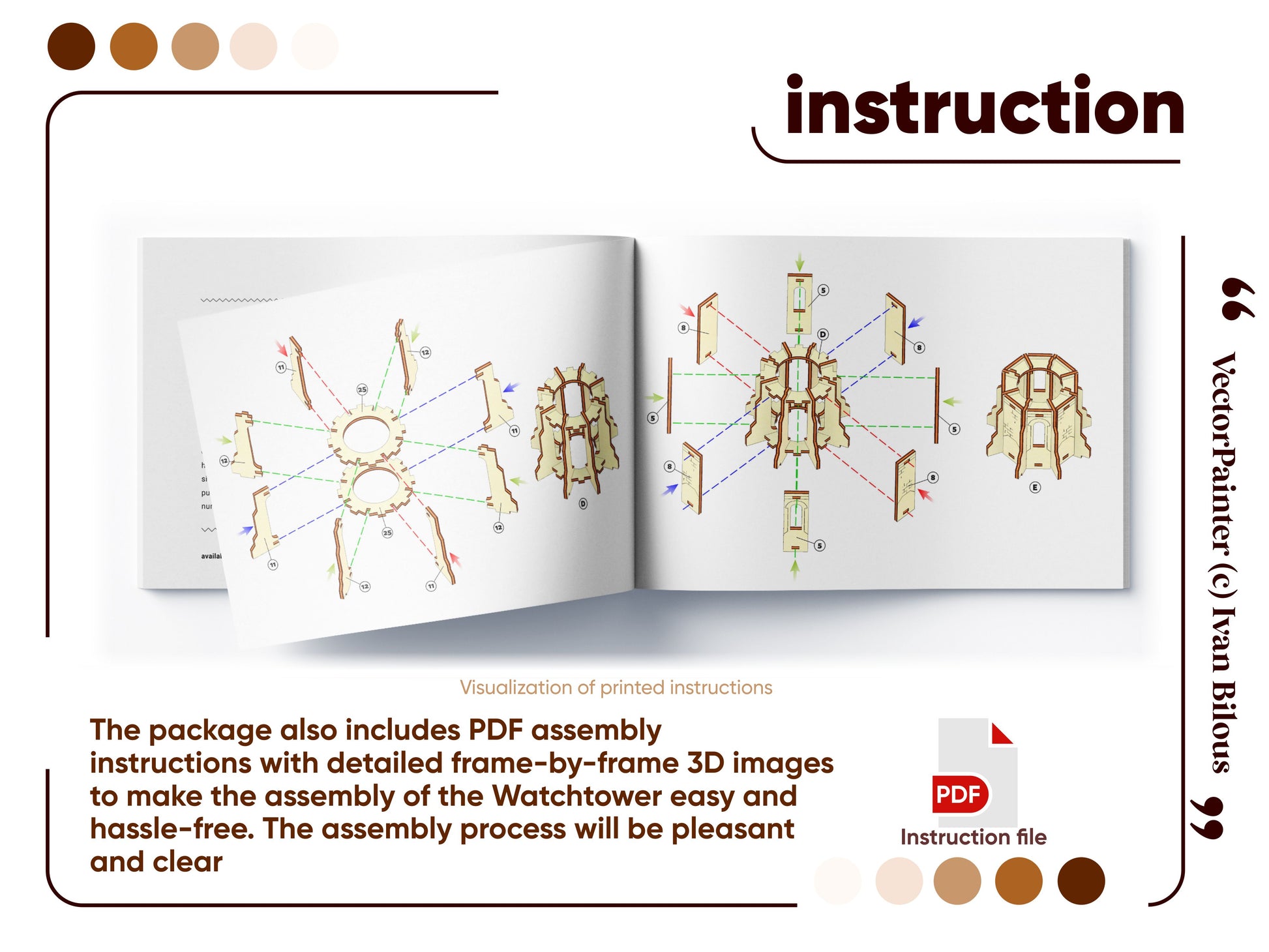

🟢 detailed PDF-instructions with 3D pictures
🟢 discounts on future purchases
🟢 free support consultations and small adjustments
🟢 wholesale prices when buying multiple files

📥The download link will be automatically sent to your email after purchase.

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

This model also available on Etsy here
