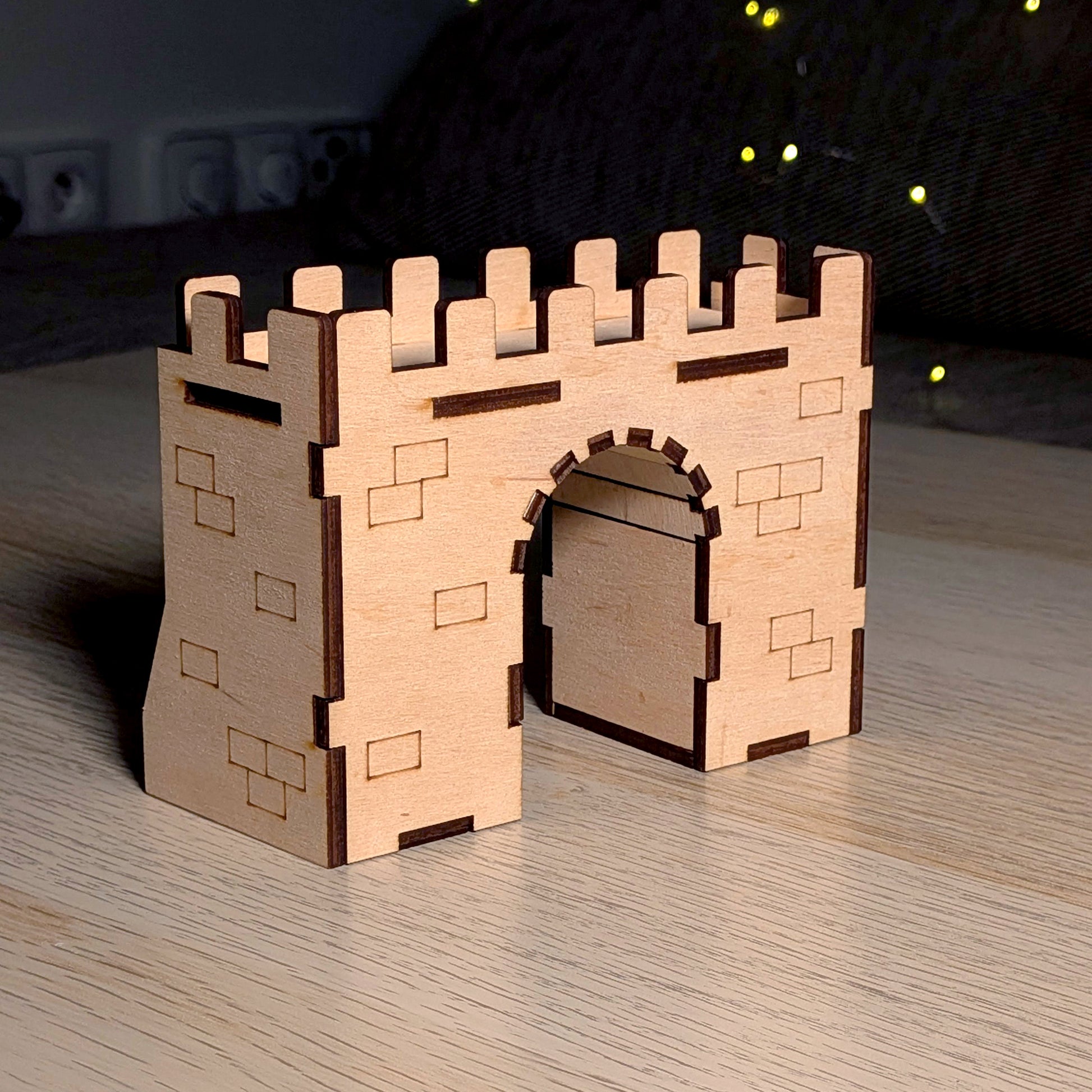

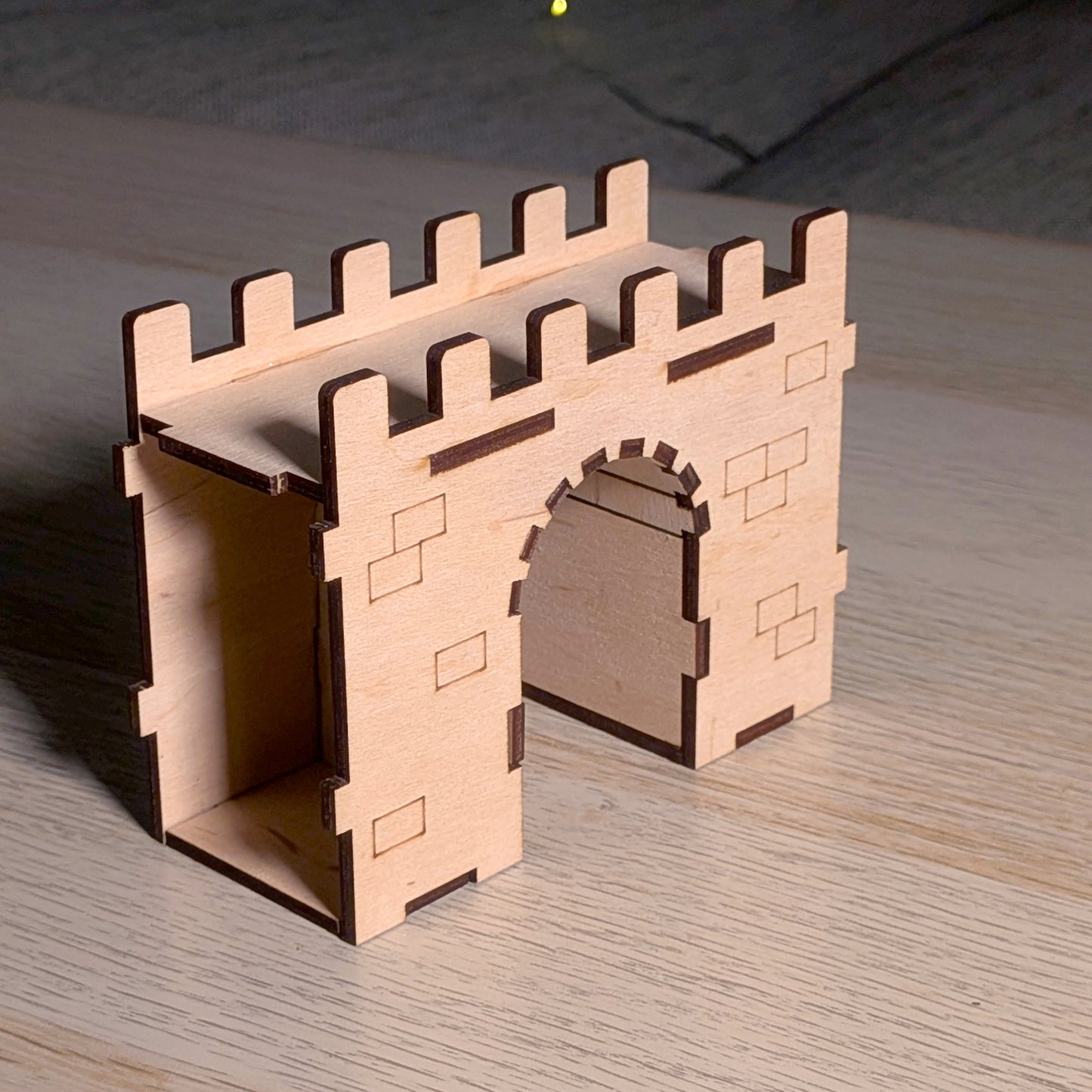

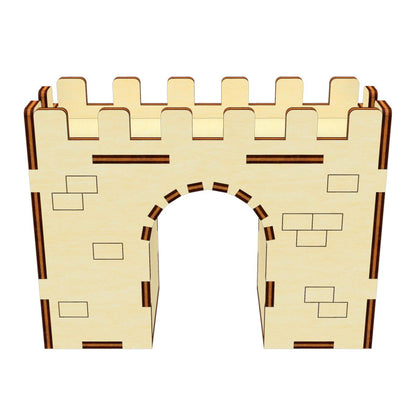

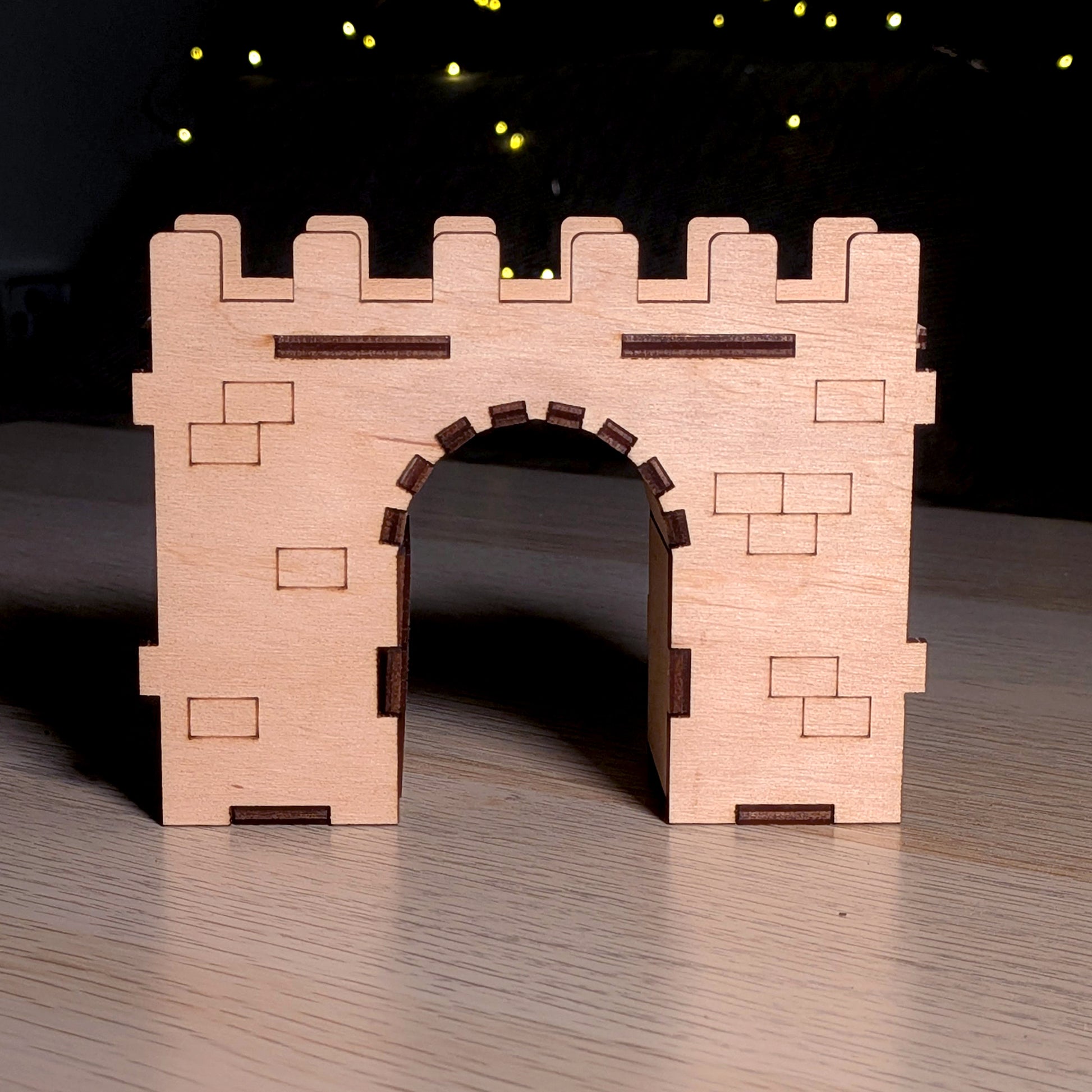

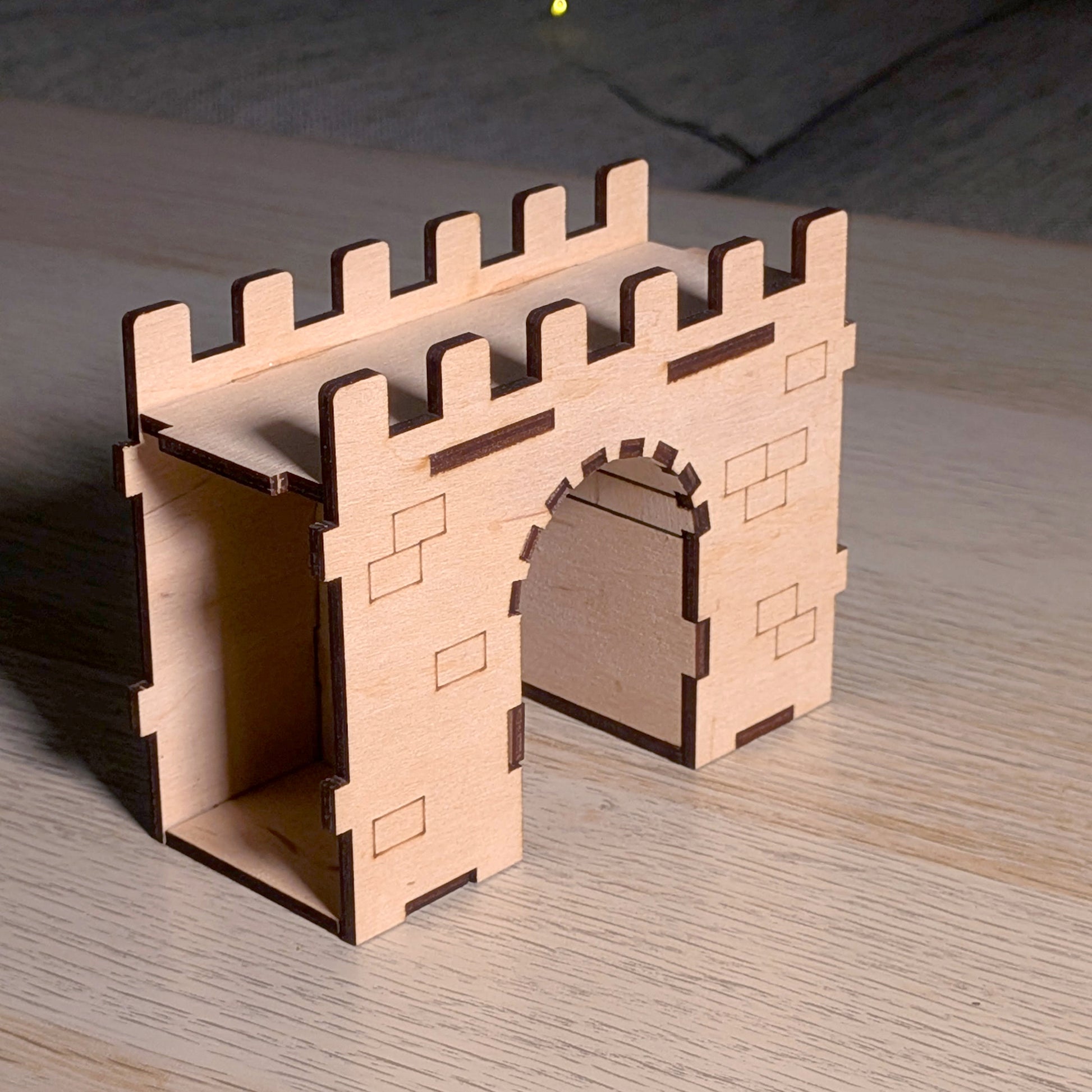

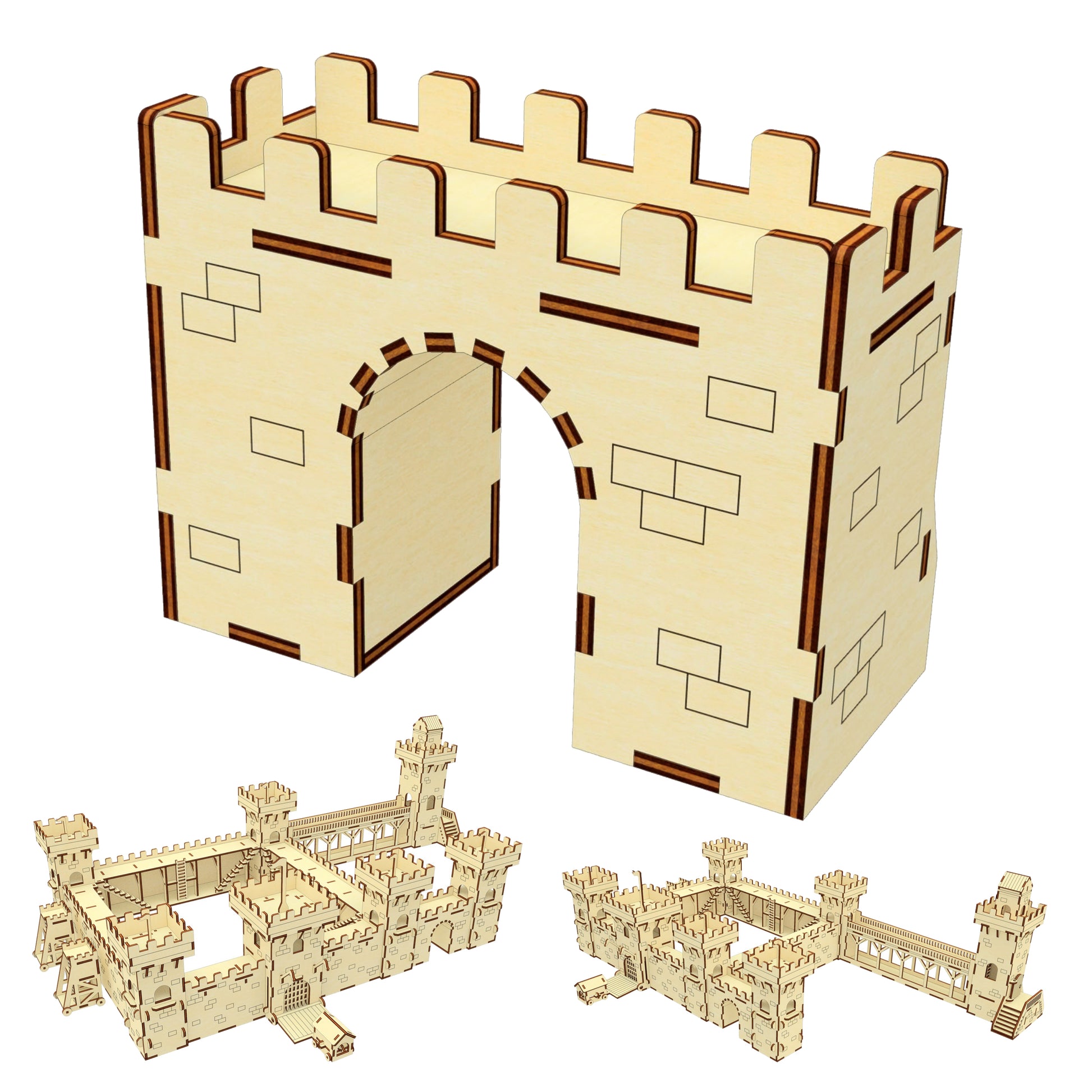

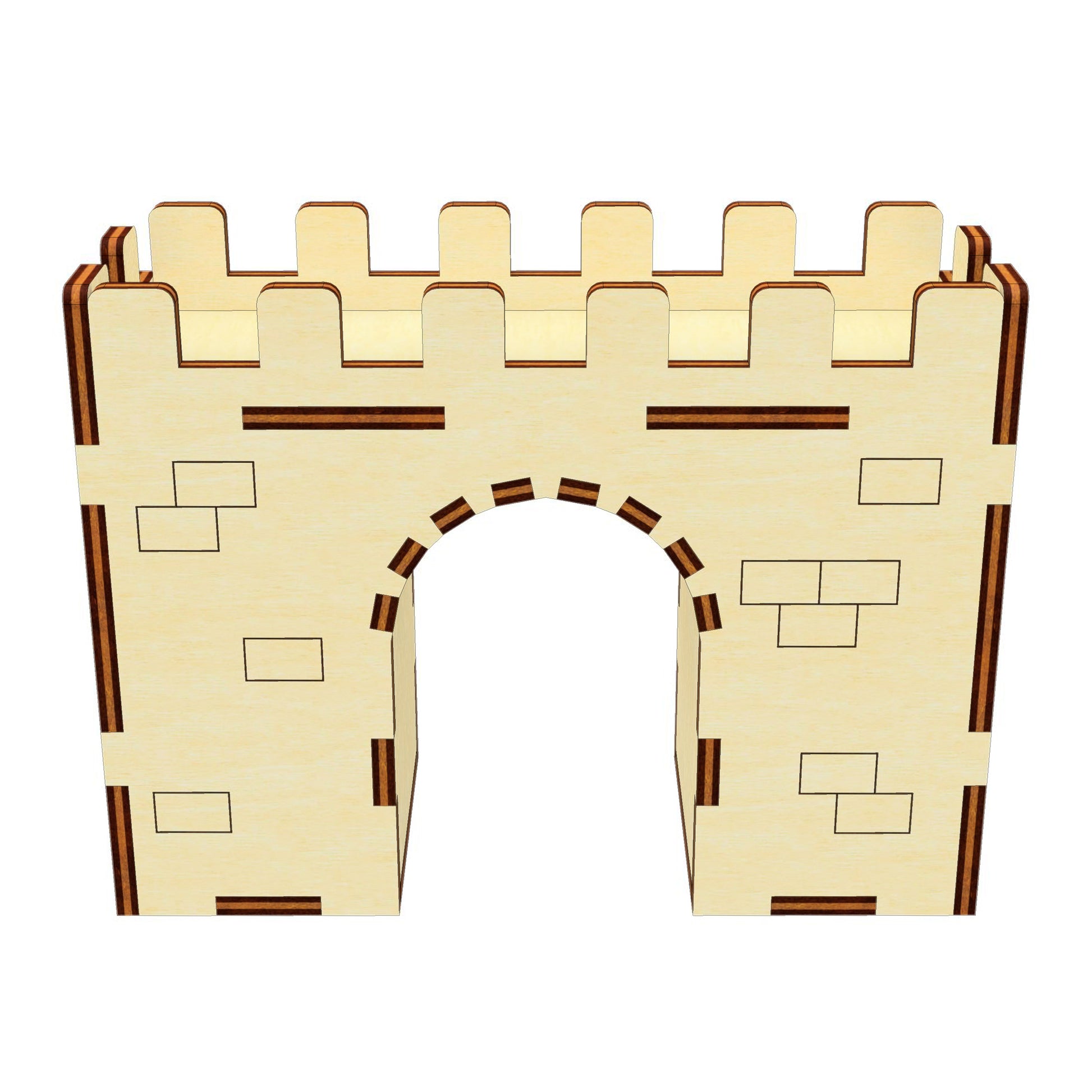

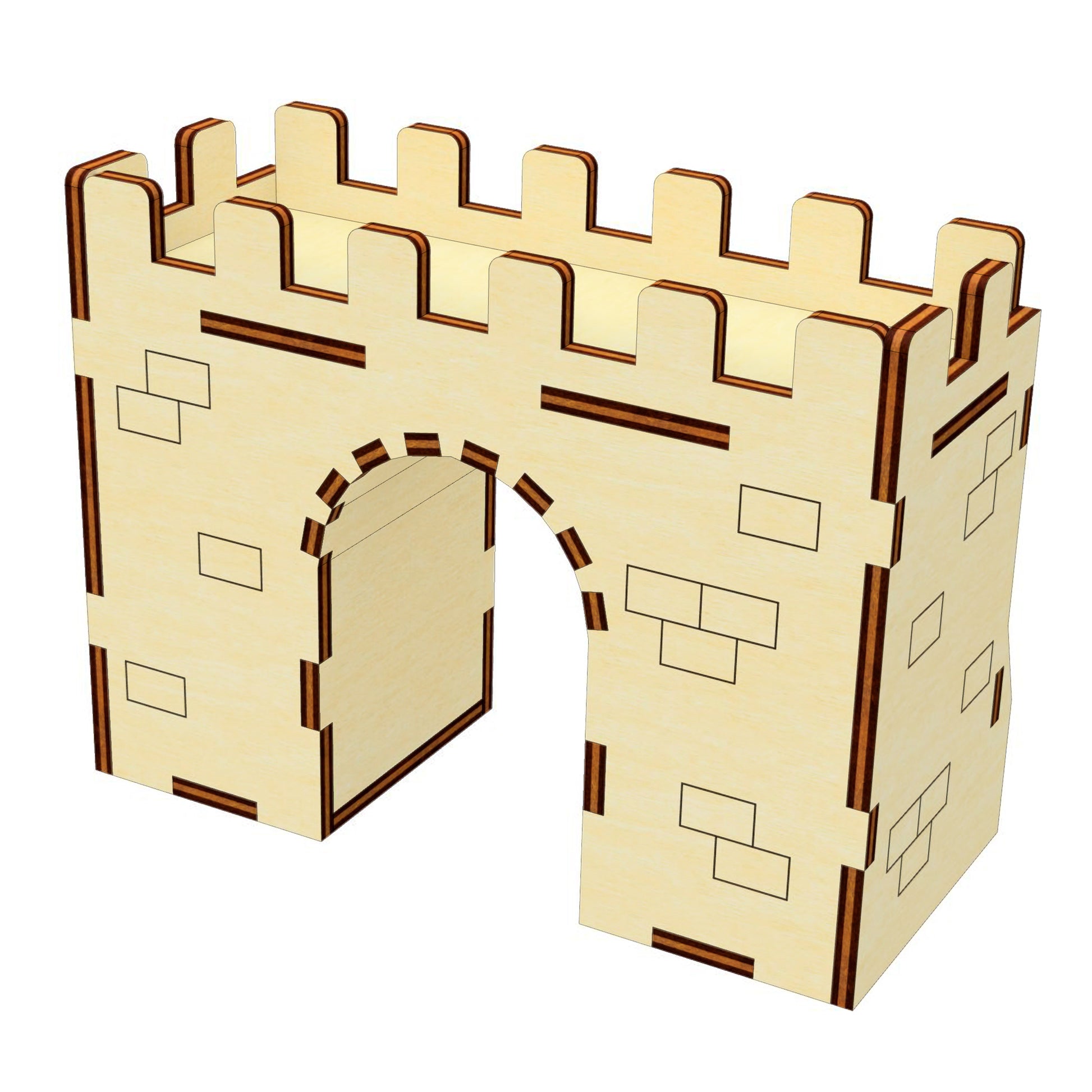

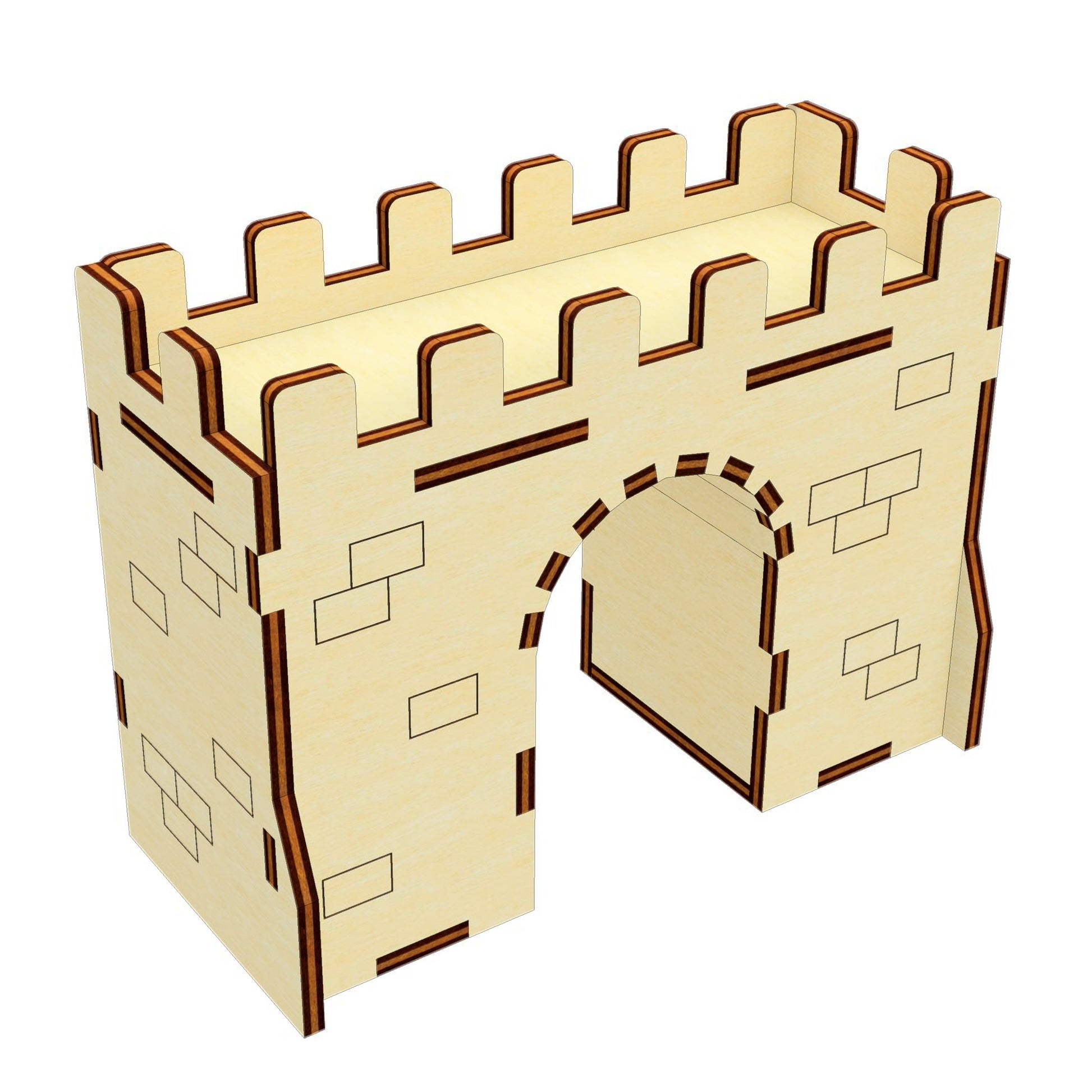

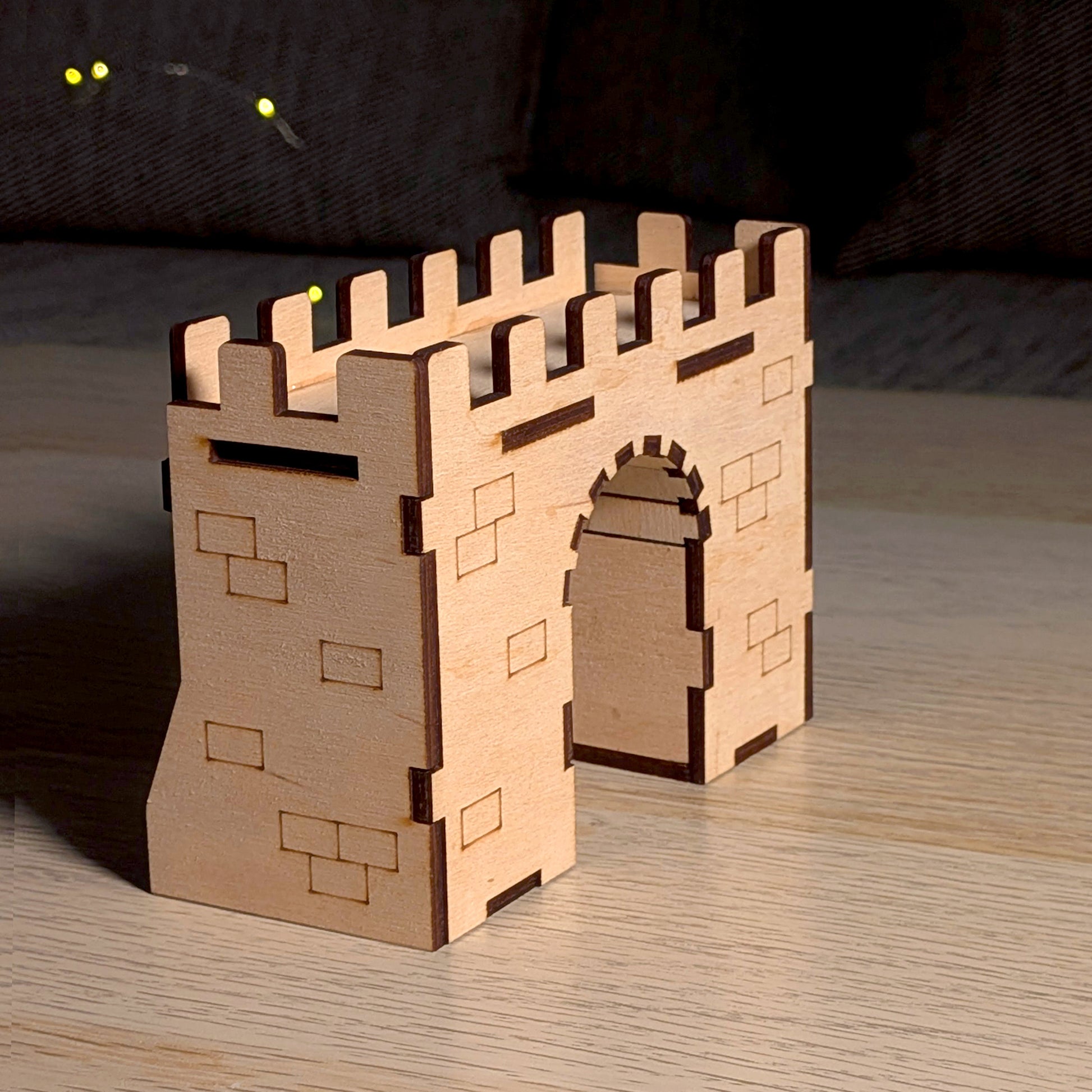

Wall Arc of the Castle Set

🎨 Laser cut design Wall Arc of the Castle Set 🎨
DIGITAL FILE for laser cutting machine, paper cutting machines, CNC

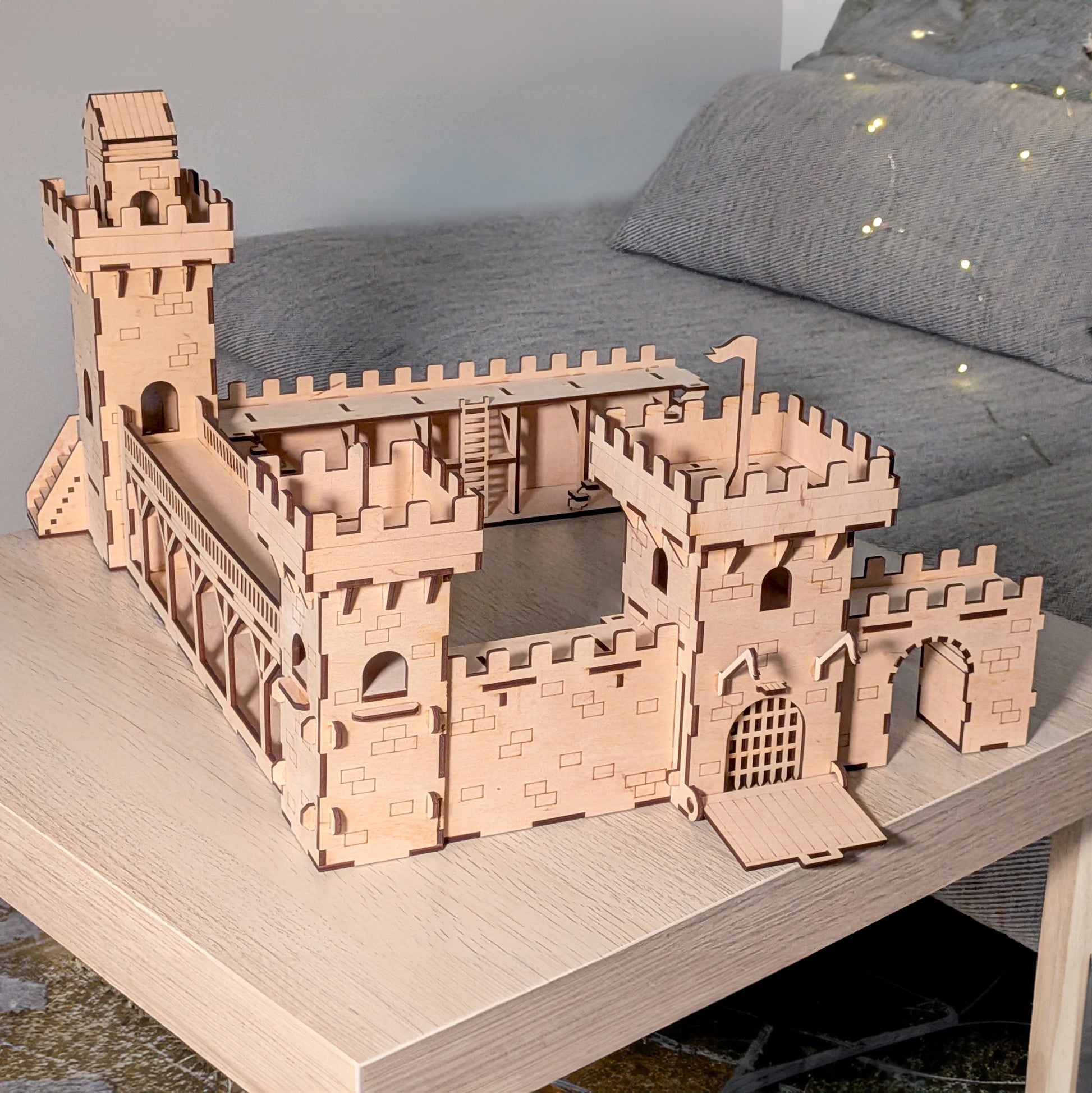

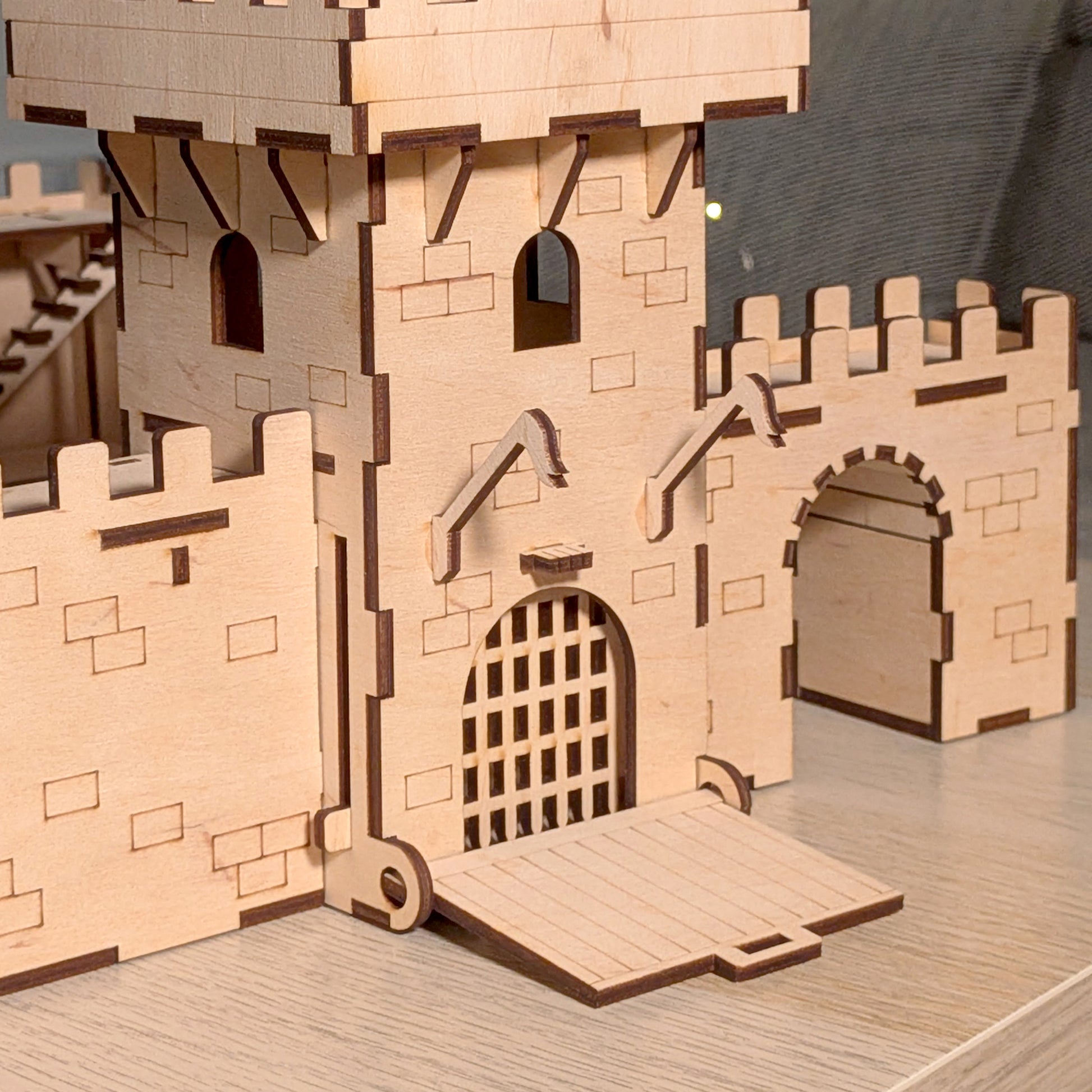

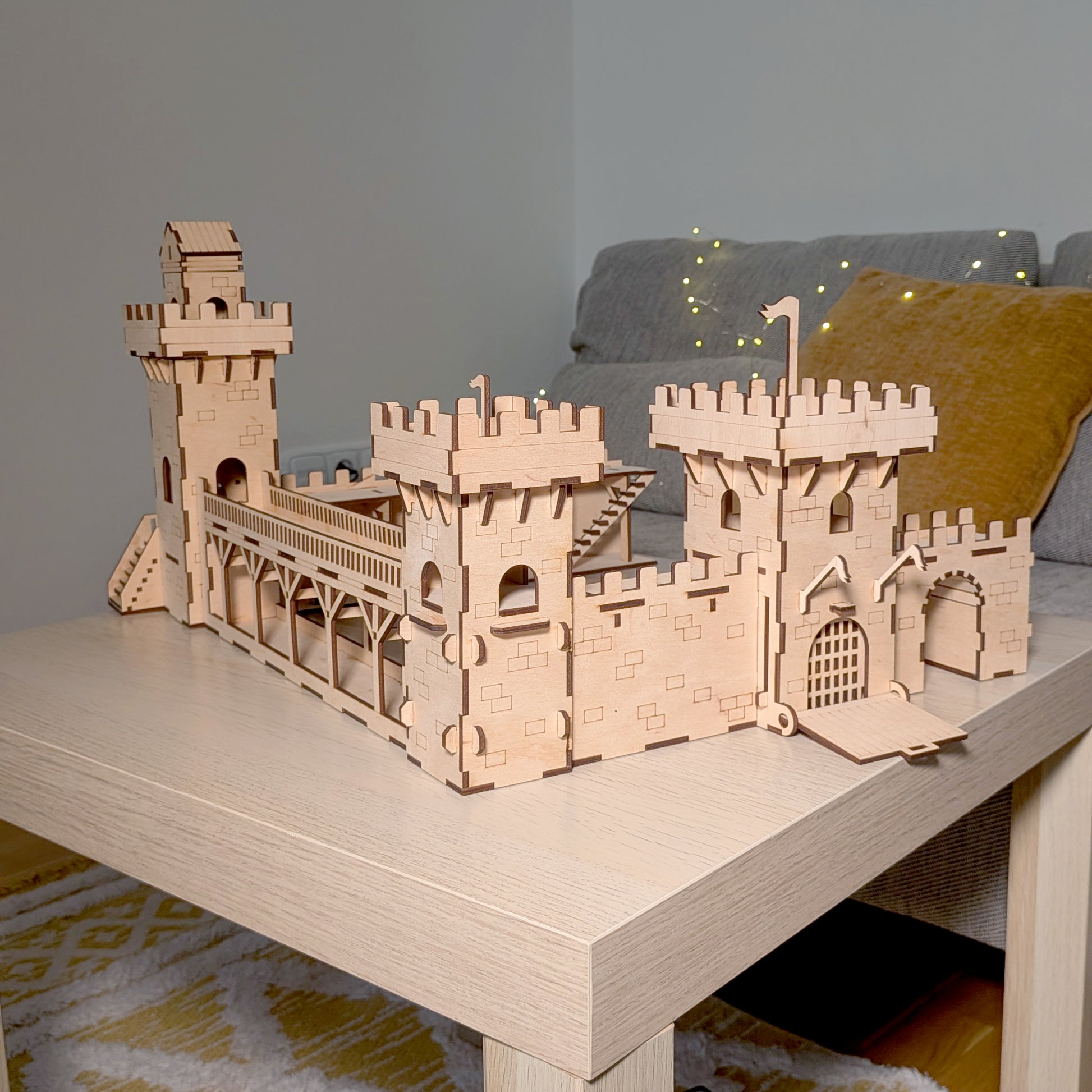

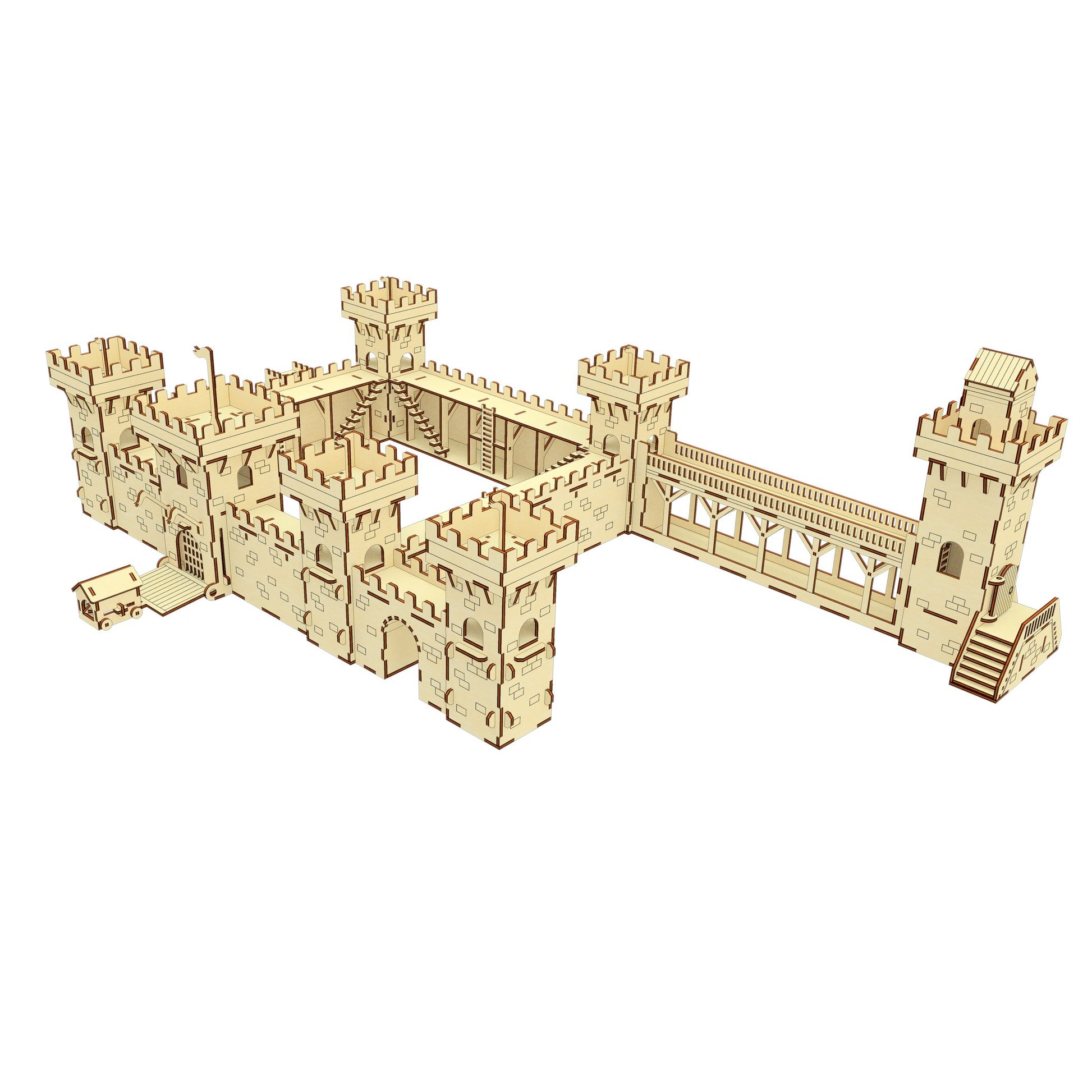

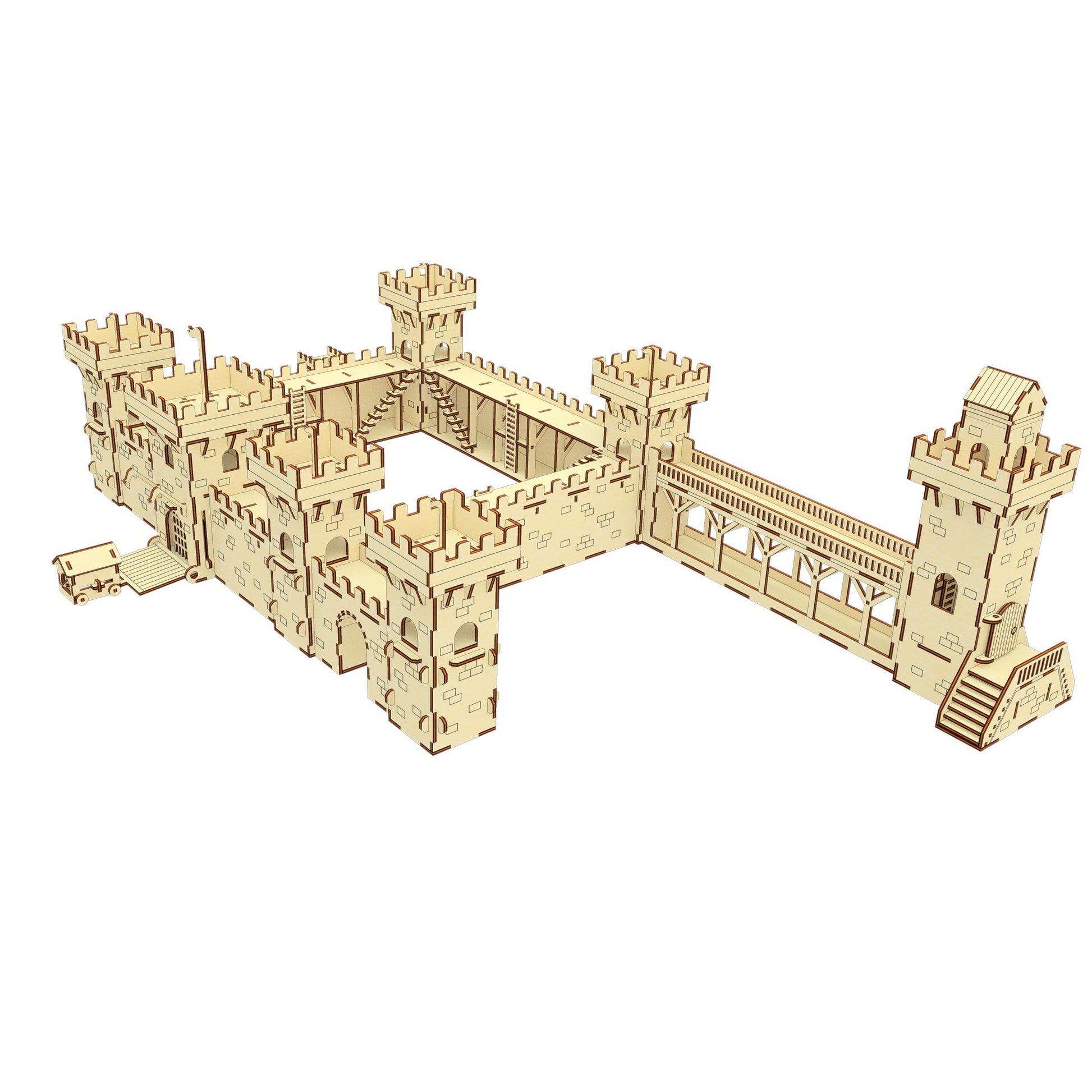

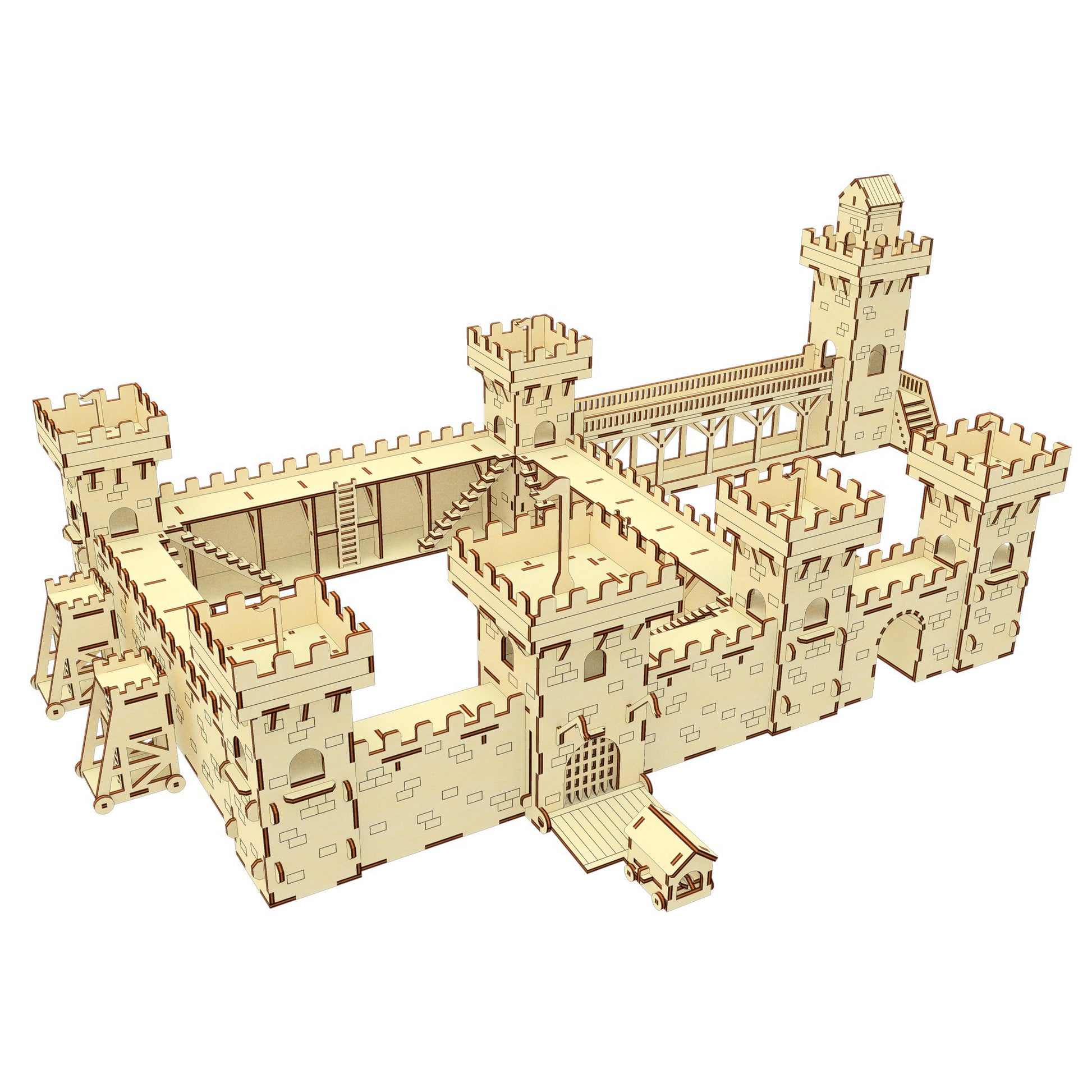

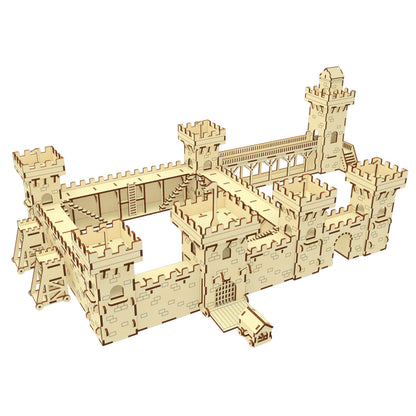

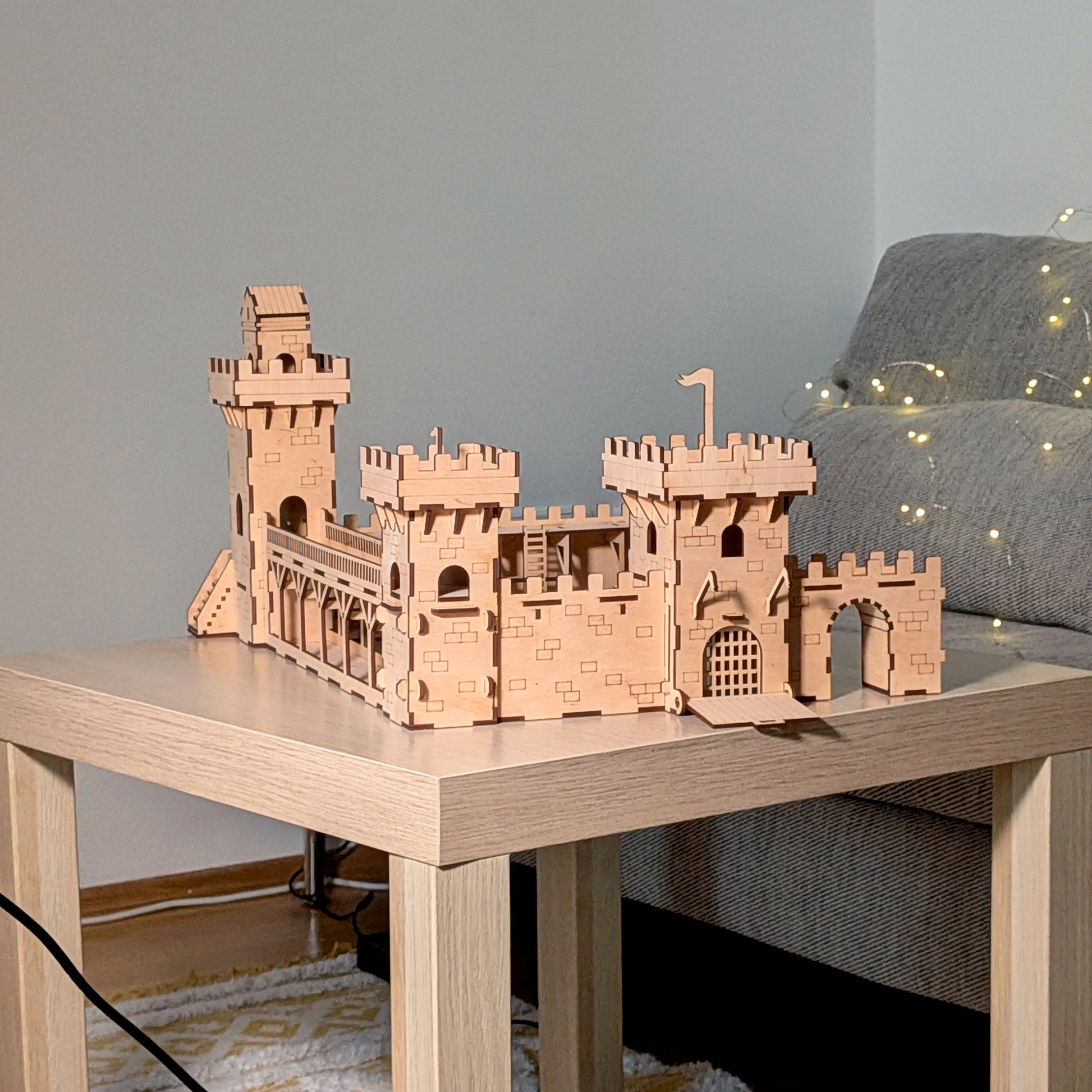

This is one of the blocks of the Castle. In the future, I plan to expand this design and create many additions for it (towers, walls, gates, bridges, etc.) that can be combined with each other.
You will be able to design and connect these blocks to create a wide variety of the castles.
Watch for new additions in my store in a separate category "Castle set" or just text in the search field "Castle" to see everything that is available at the moment

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

🤏Material thickness (versions of the files): 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

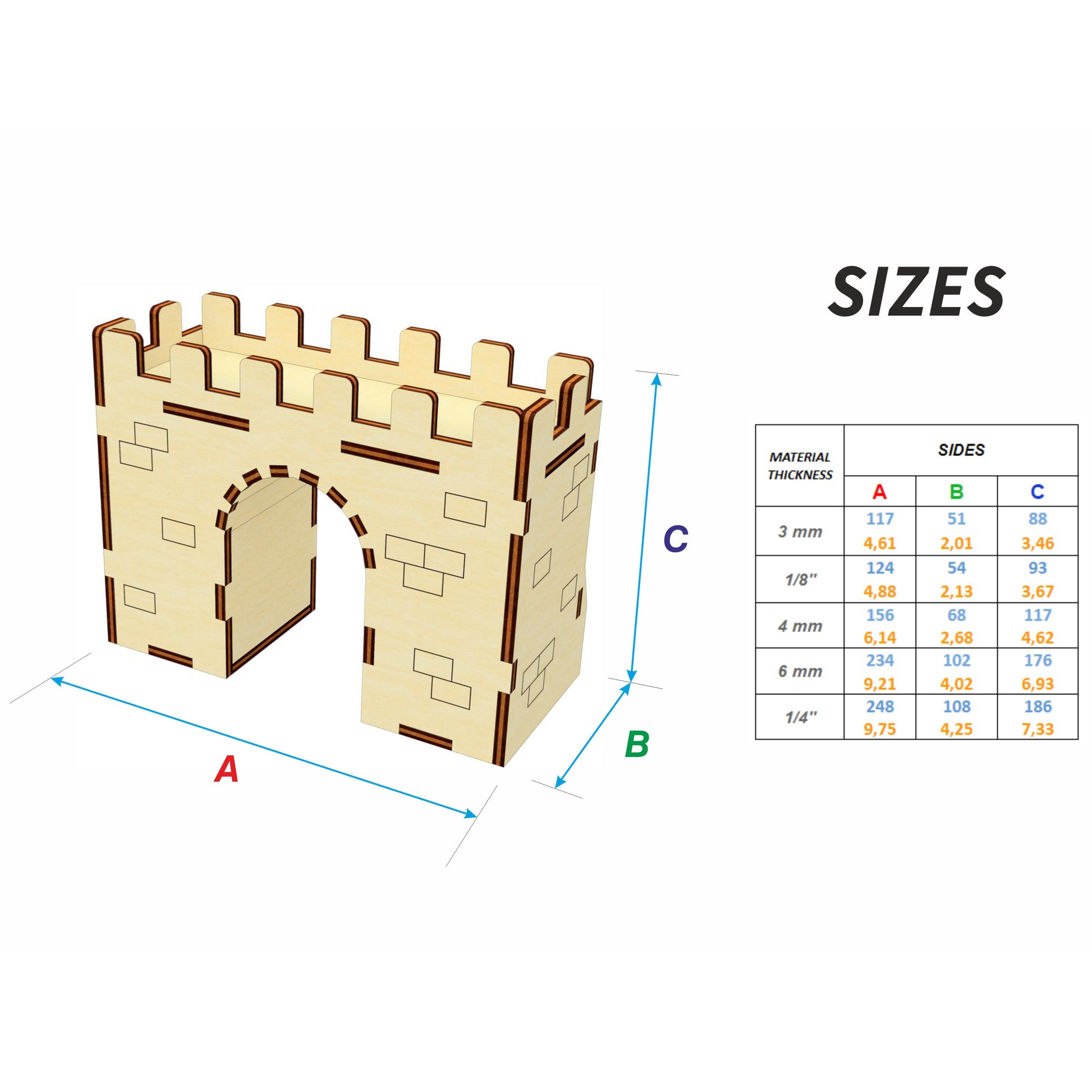

📏 Finished SIZE:
3 mm thickness: 117 x 51 x 88 mm (4,61 x 2,01 x 3,46'')
1/8''(3.175mm) thickness: 124 x 54 x 93 mm (4,88 x 2,13 x 3,67'')
4 mm thickness: 156 x 68 x 117 mm (6,14 x 2,68 x 4,62'')
6 mm thickness: 234 x 102 x 176 mm (9,21 x 4,02 x 6,93'')
1/4''(6.35mm) thickness: 248 x 108 x 186 mm (9,75 x 4,25 x 7,33'')

📐WORK AREA:
3 mm thickness: 347 x 137 mm (13,66 x 5,39'')
1/8''(3.175mm) thickness: 367 x 145 mm (14,46 x 5,71'')
4 mm thickness: 463 x 183 mm (18,22 x 7,19'')
6 mm thickness: 694 x 274 mm (27,32 x 10,79'')
1/4''(6.35mm) thickness: 734 x 290 mm (28,92 x 11,42'')

🟧 LARGEST PART:
3 mm thickness: 117 x 88 mm (4,61 x 3,46'')
1/8''(3.175mm) thickness: 124 x 93 mm (4,88 x 3,67'')
4 mm thickness: 156 x 117 mm (6,14 x 4,62'')
6 mm thickness: 234 x 176 mm (9,21 x 6,93'')
1/4''(6.35mm) thickness: 248 x 186 mm (9,75 x 7,33'')

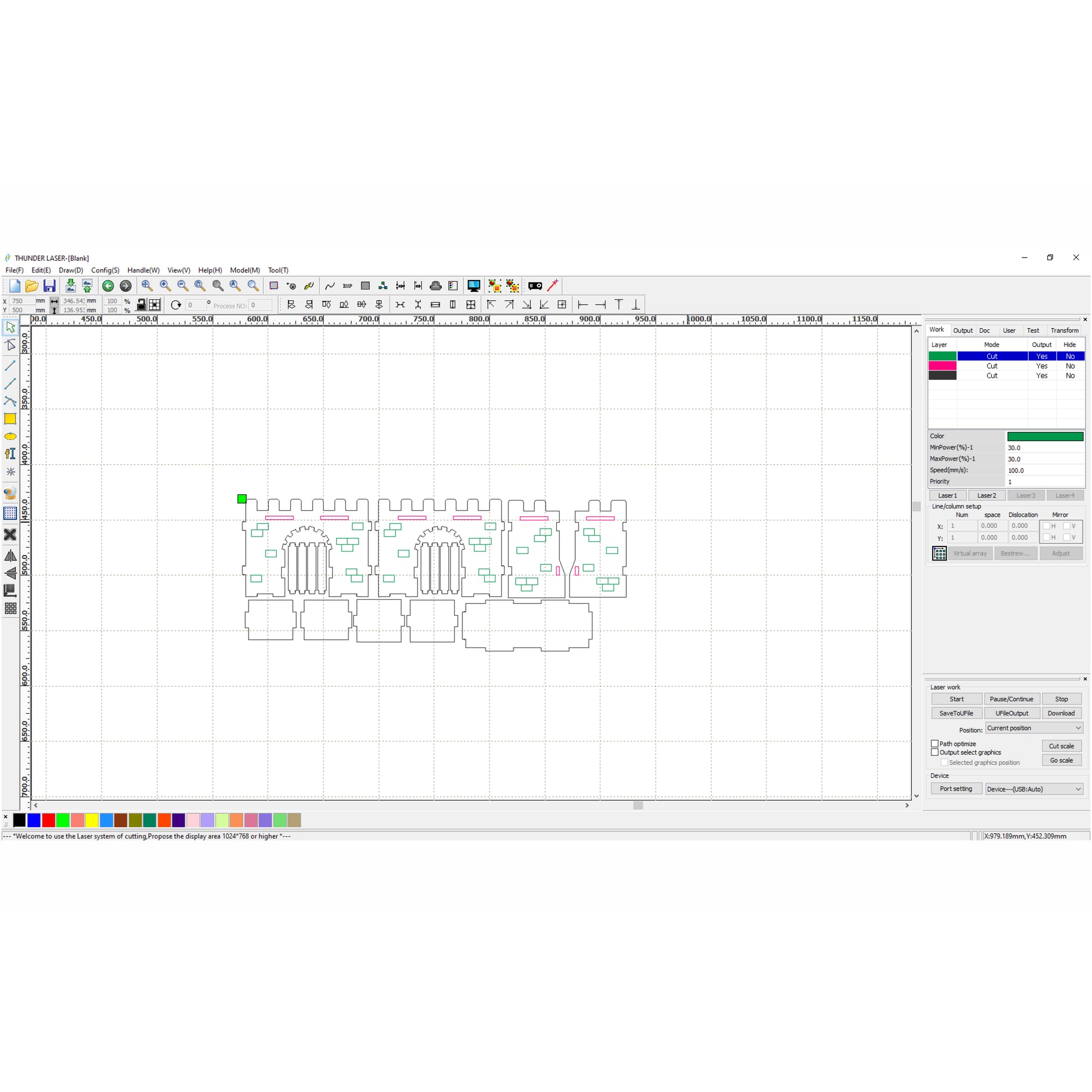

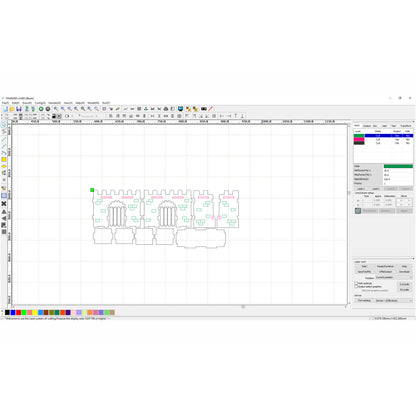

⚙️COLOR MODE SETTING:
green color - draw (cut with little power and big speed)
pink color - cut
black color - cut

This model also available on Etsy here
