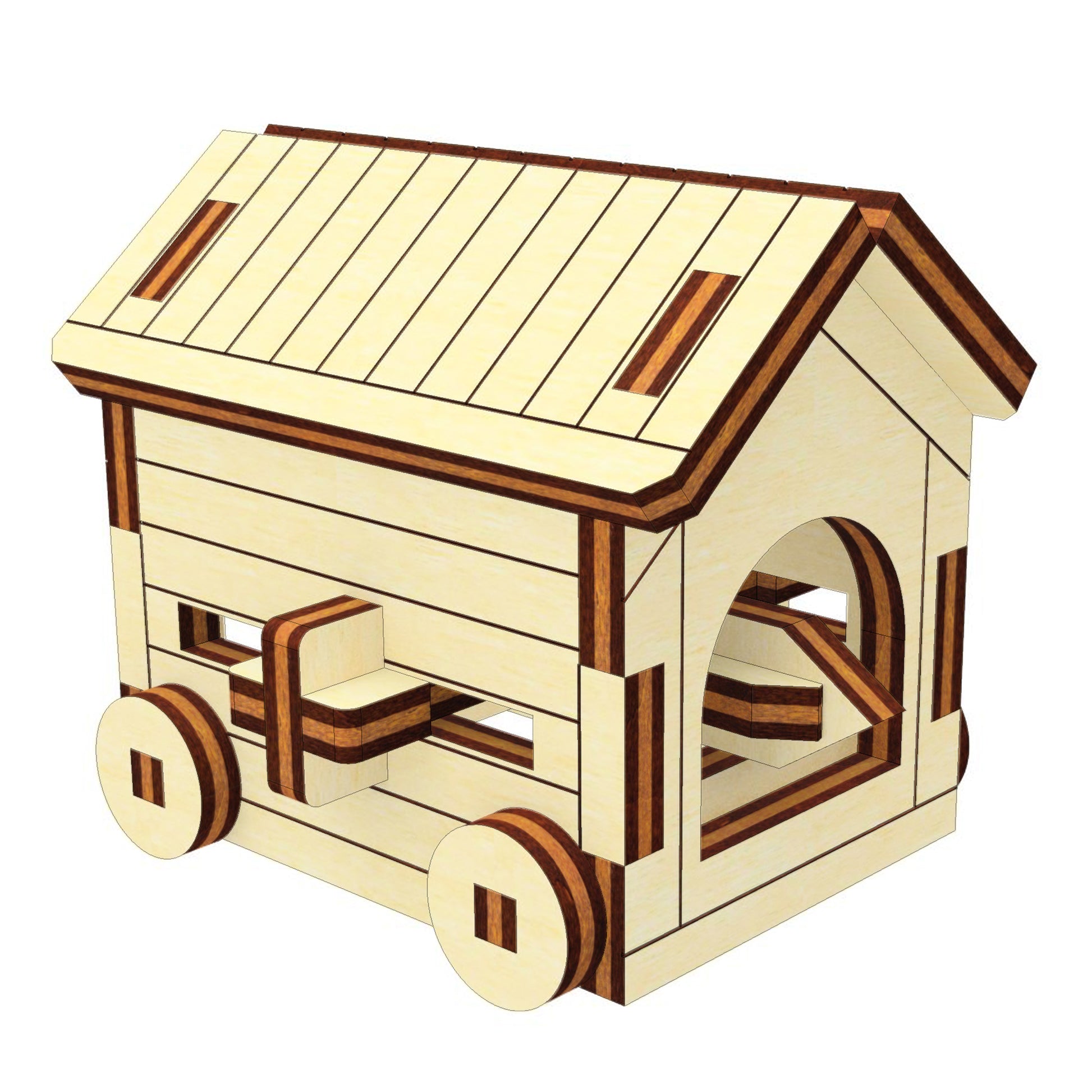

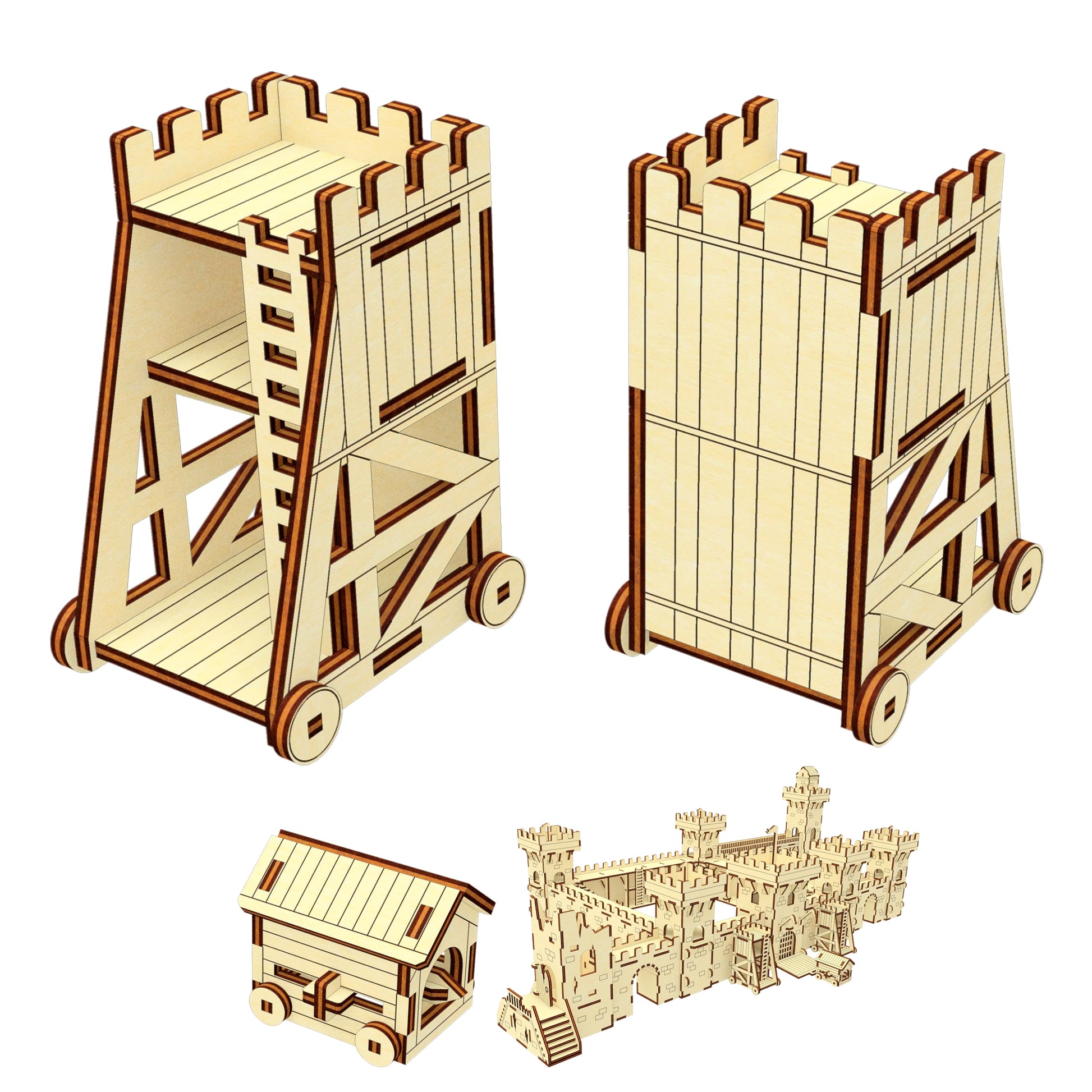

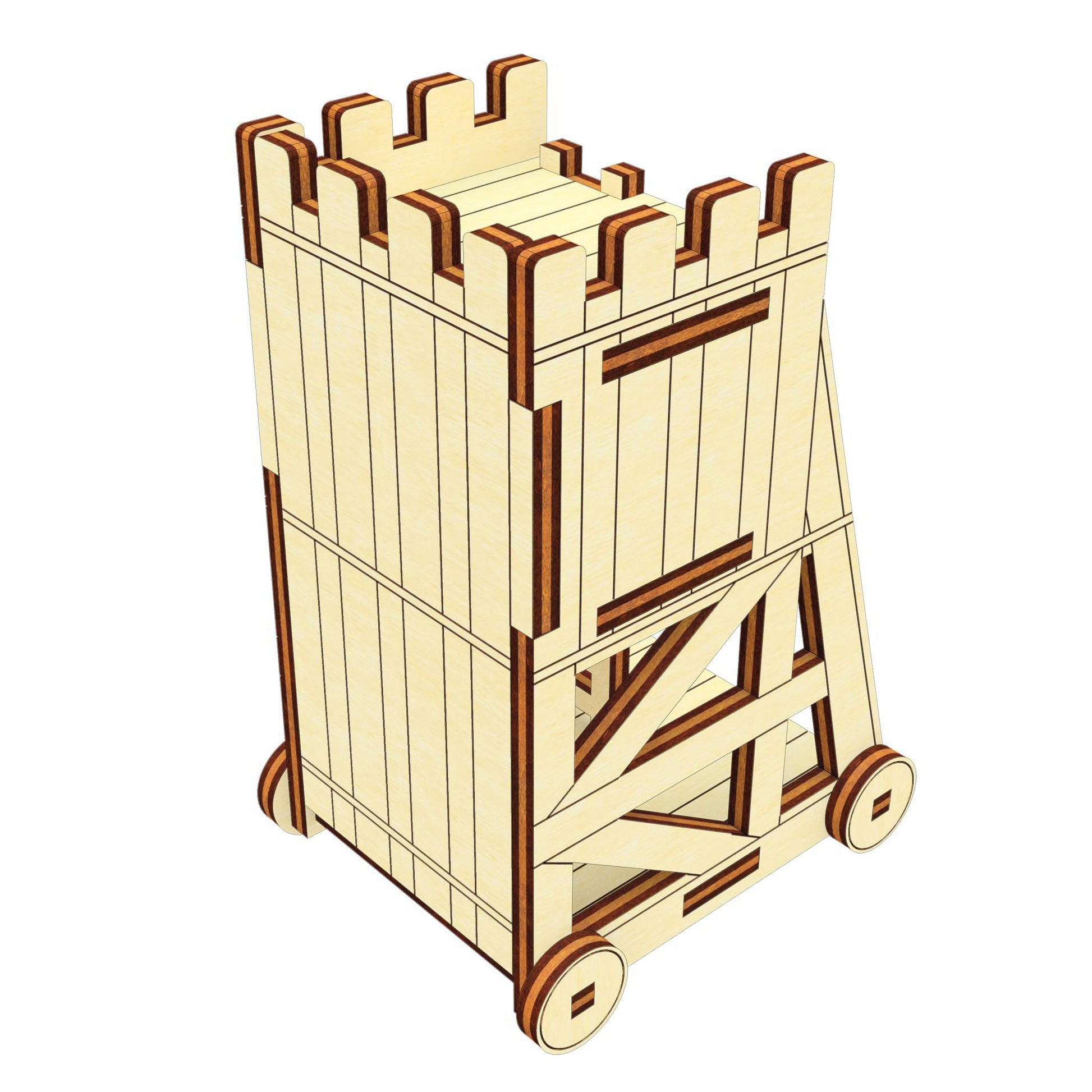

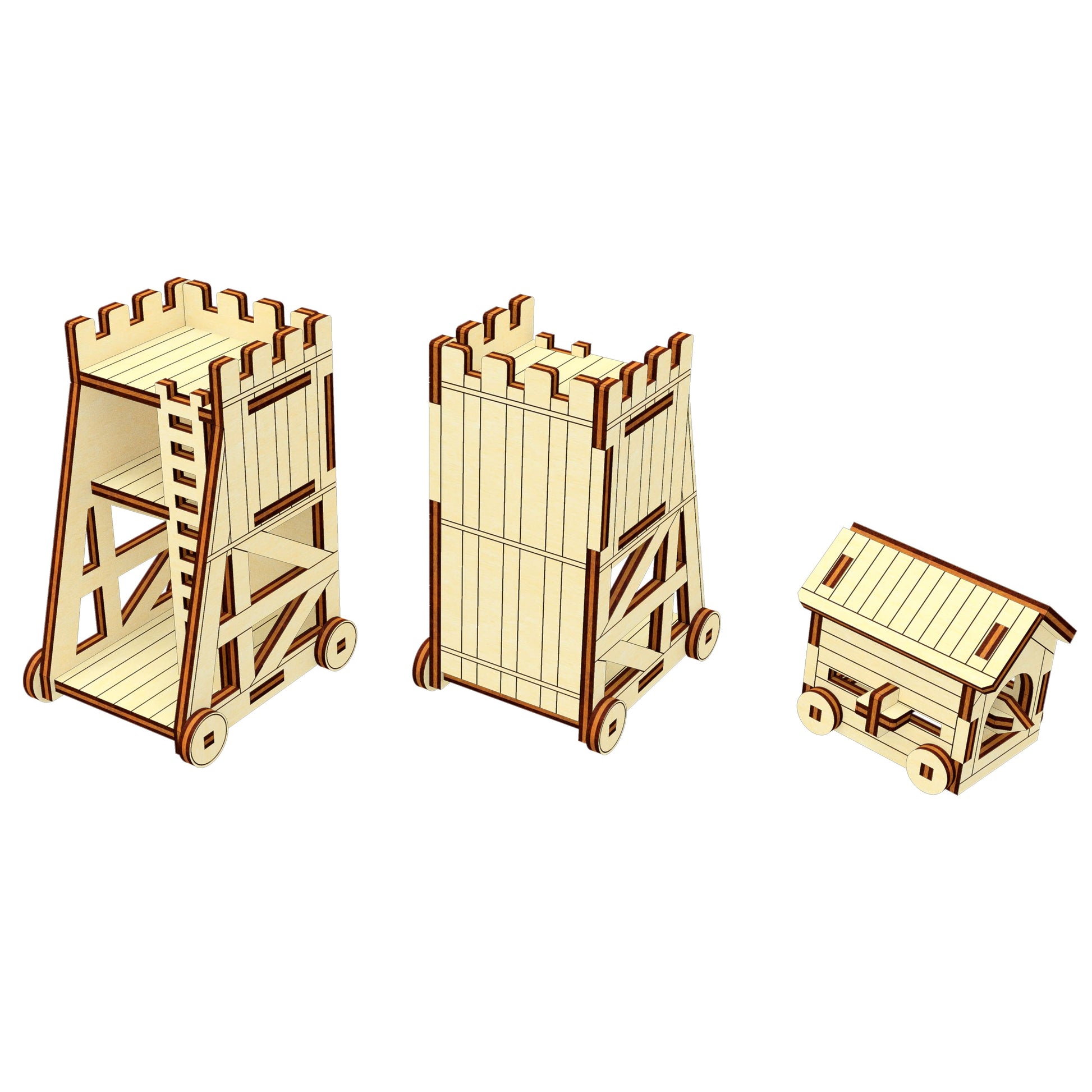

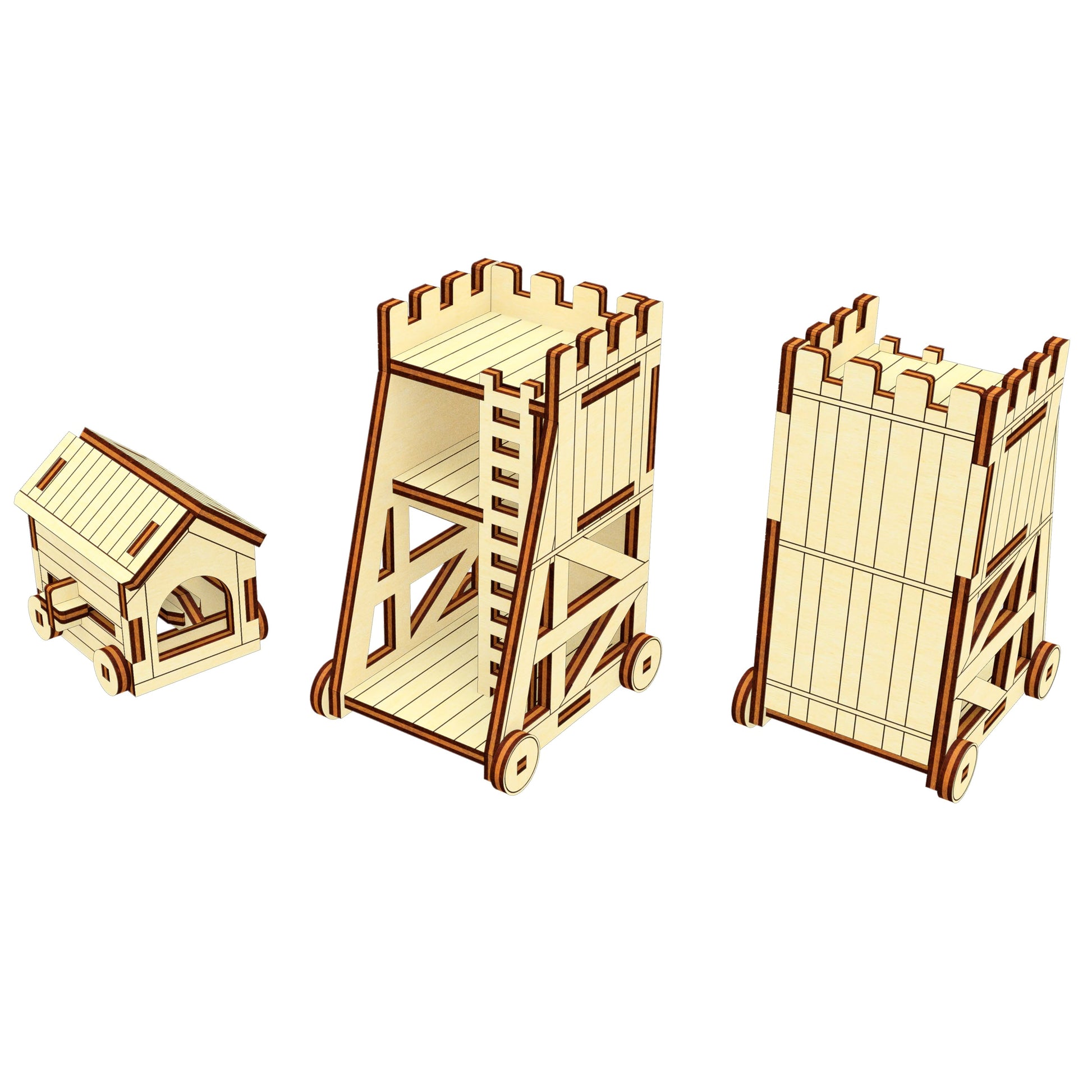

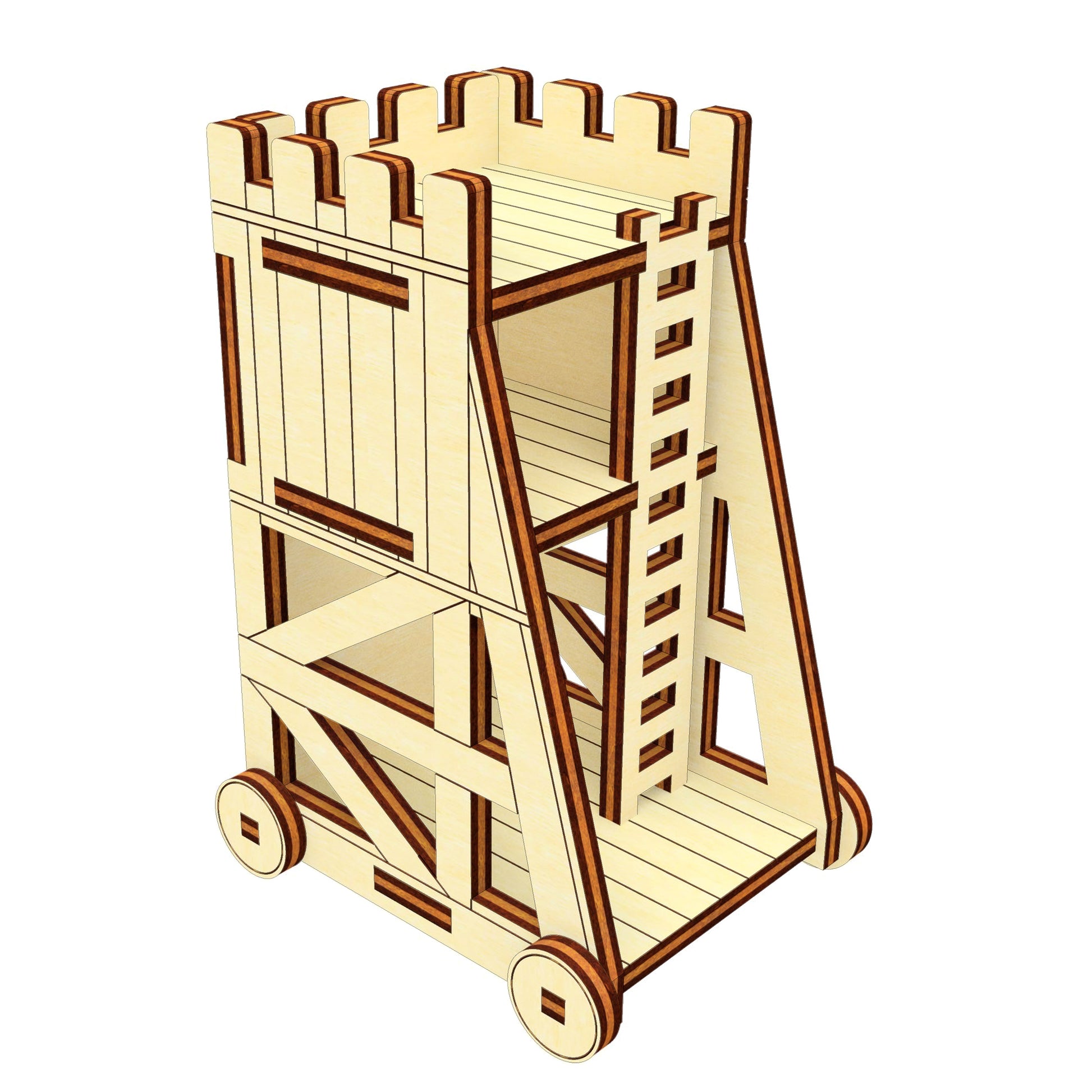

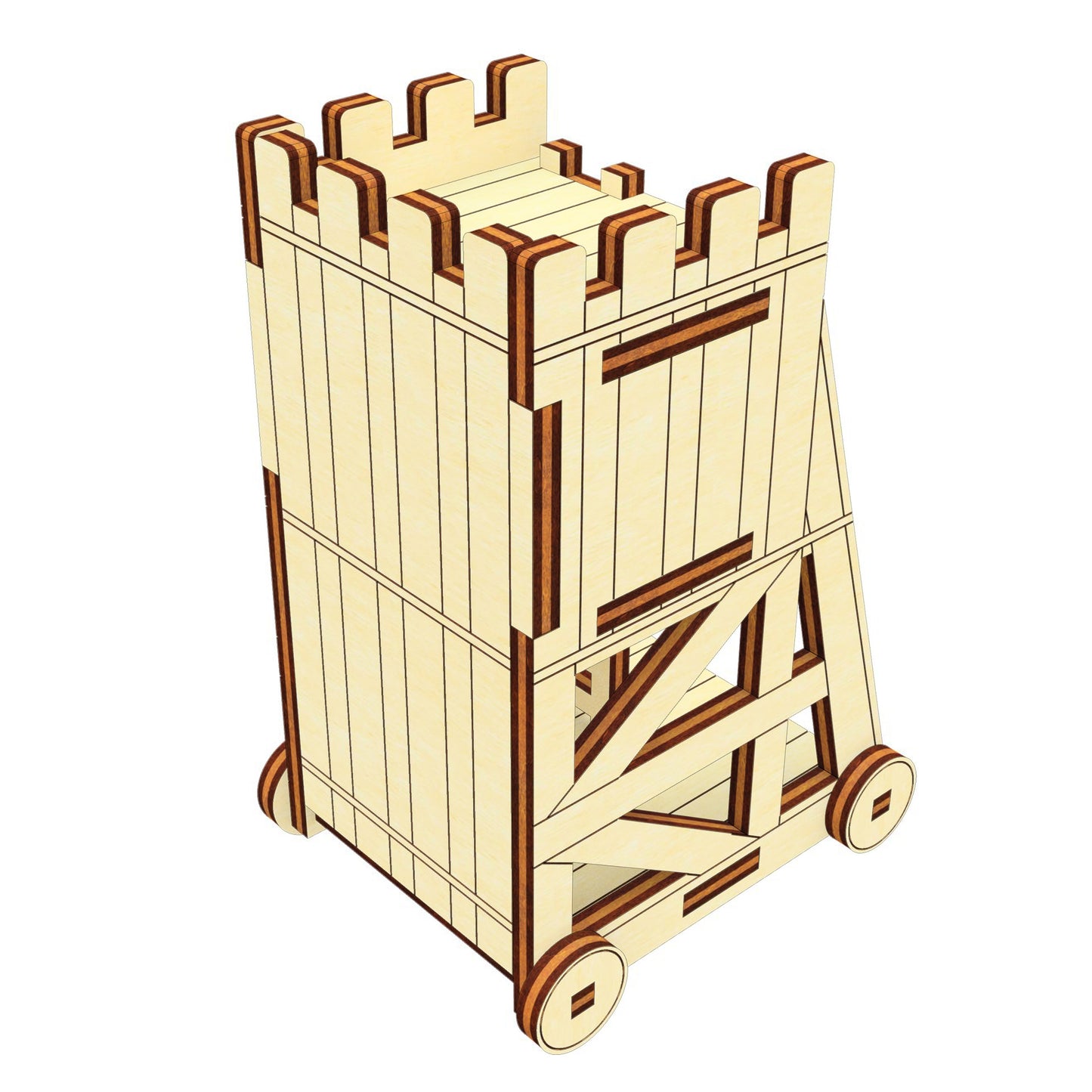

🎨 Laser cut design Siege weapons (Siege tower & ram) of the Castle Set 🎨
DIGITAL FILE for laser cutting machine, paper cutting machines, CNC

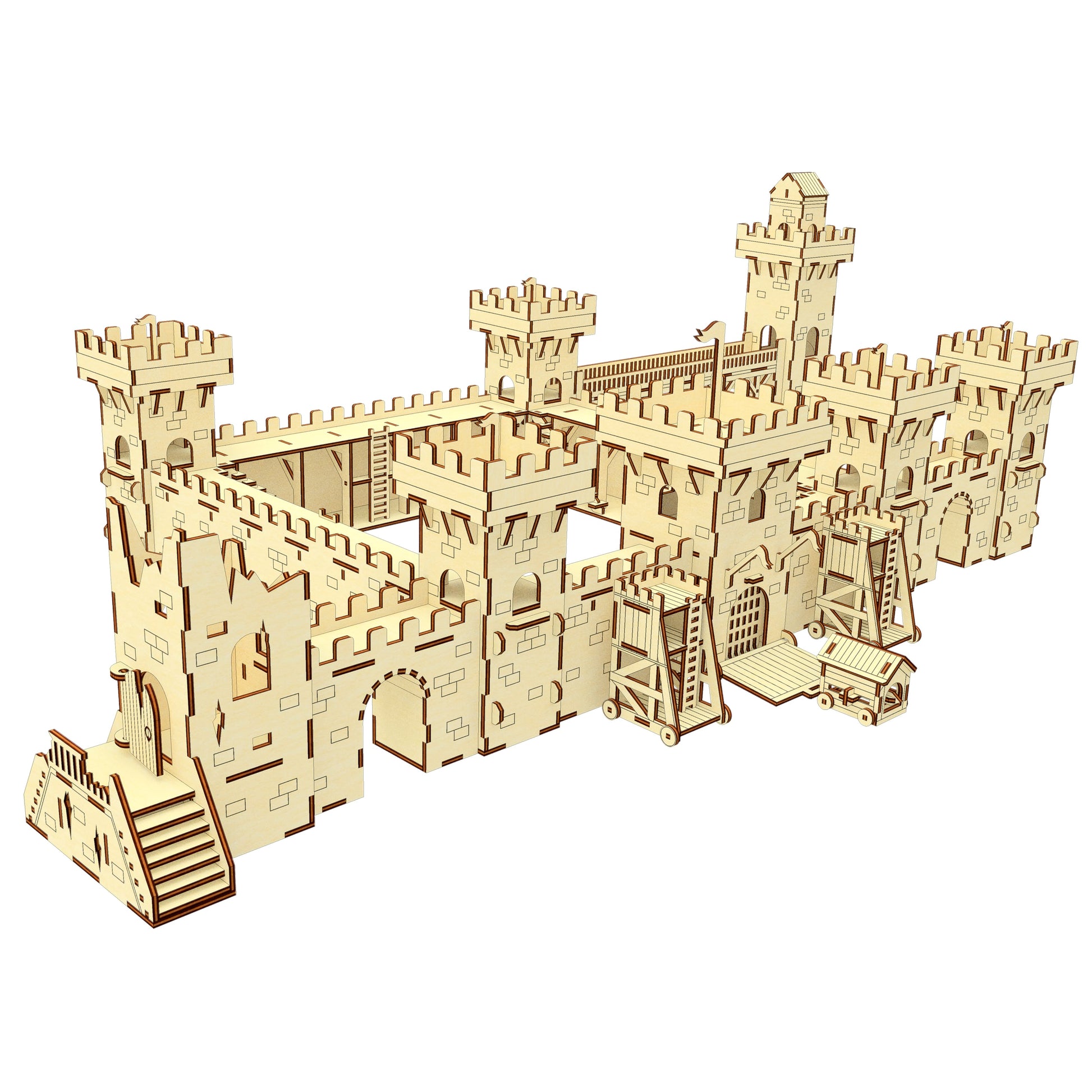

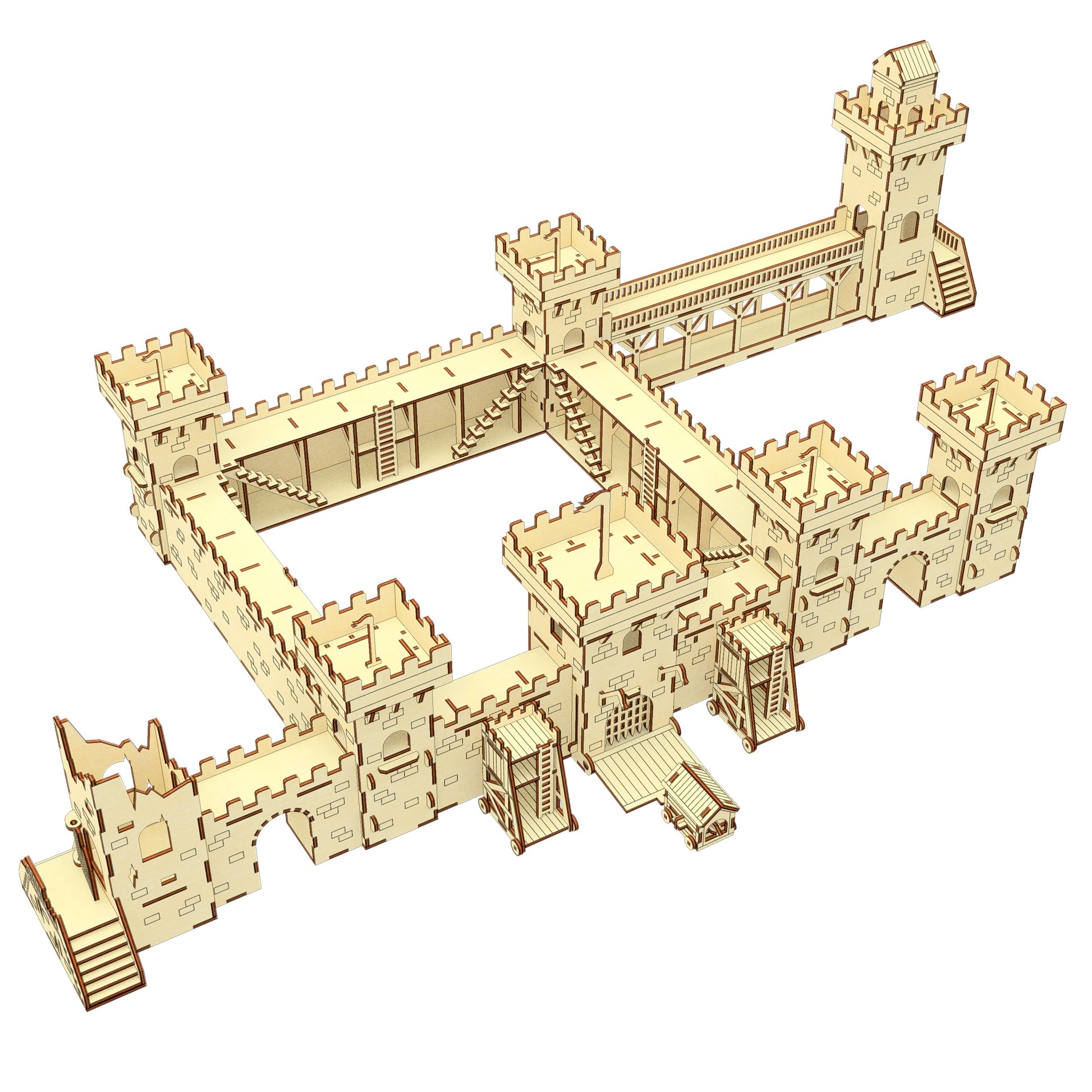

This is one of the blocks of the Castle. In the future, I plan to expand this design and create many additions for it (towers, walls, gates, bridges, etc.) that can be combined with each other.
You will be able to design and connect these blocks to create a wide variety of the castles.
Watch for new additions in my store in a separate category "Castle set" or just text in the search field "Castle" to see everything that is available at the moment

Also you can see full blocks of the Castle designs by this link

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

🤏Material thickness (versions of the files): 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

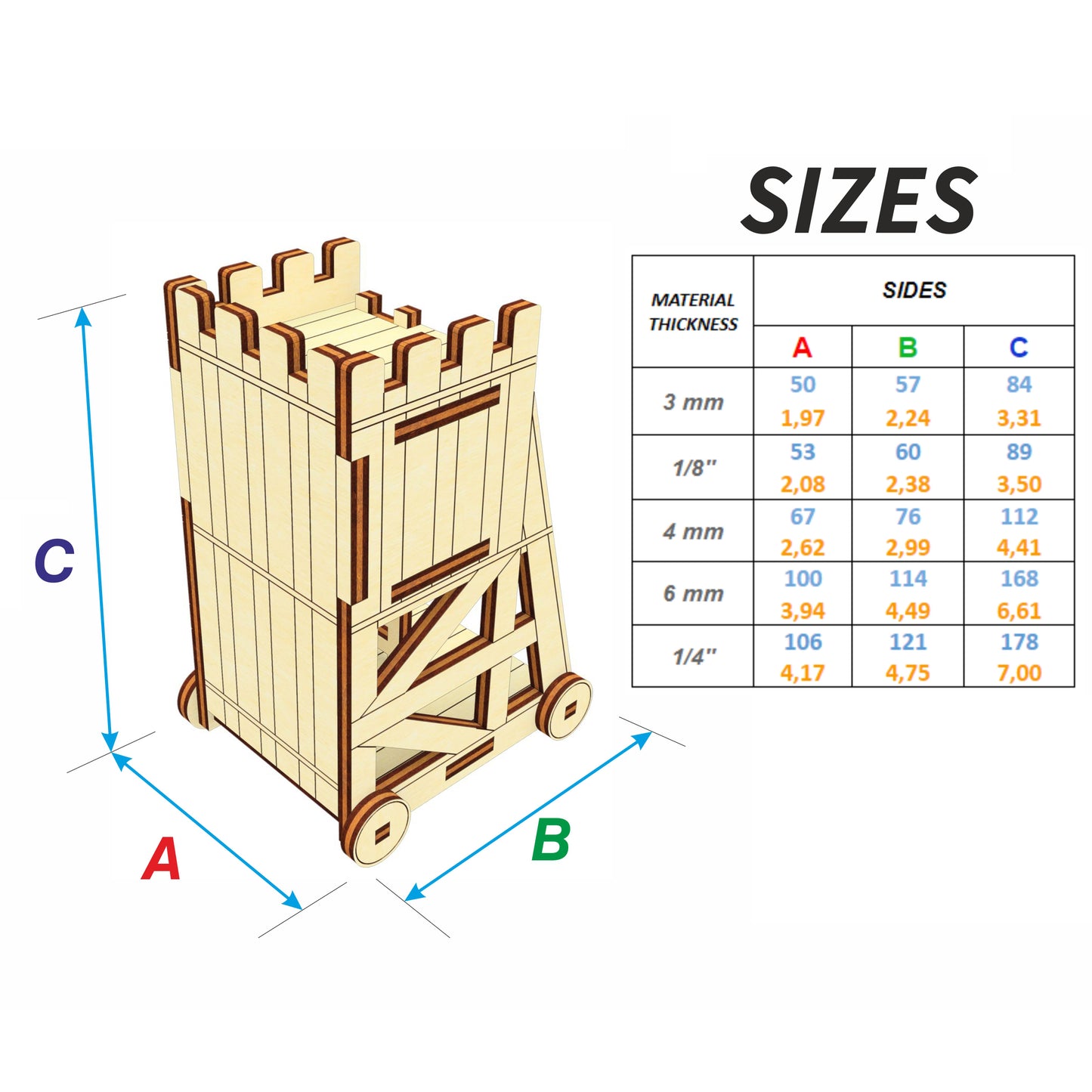

📏 Finished SIZE:
3 mm thickness: 50 x 57 x 84 mm (1,97 x 2,24 x 3,31'')
1/8''(3.175mm) thickness: 53 x 60 x 89 mm (2,08 x 2,38 x 3,50'')
4 mm thickness: 67 x 76 x 112 mm (2,62 x 2,99 x 4,41'')
6 mm thickness: 100 x 114 x 168 mm (3,94 x 4,49 x 6,61'')
1/4''(6.35mm) thickness: 106 x 121 x 178 mm (4,17 x 4,75 x 7,00'')

📐WORK AREA:
3 mm thickness: 387 x 83 mm (15,24 x 3,27'')
1/8''(3.175mm) thickness: 410 x 88 mm (16,13 x 3,46'')
4 mm thickness: 516 x 111 mm (20,31 x 4,36'')
6 mm thickness: 774 x 166 mm (30,47 x 6,54'')
1/4''(6.35mm) thickness: 819 x 176 mm (32,25 x 6,92'')

🟧 LARGEST PART:
3 mm thickness: 53 x 81 mm (2,09 x 3,19'')
1/8''(3.175mm) thickness: 56 x 86 mm (2,21 x 3,38'')
4 mm thickness: 71 x 108 mm (2,78 x 4,25'')
6 mm thickness: 106 x 162 mm (4,17 x 6,38'')
1/4''(6.35mm) thickness: 112 x 171 mm (4,42 x 6,75'')

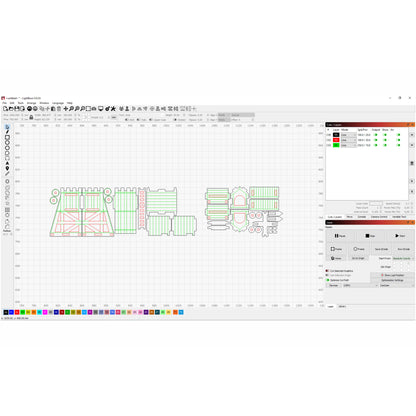

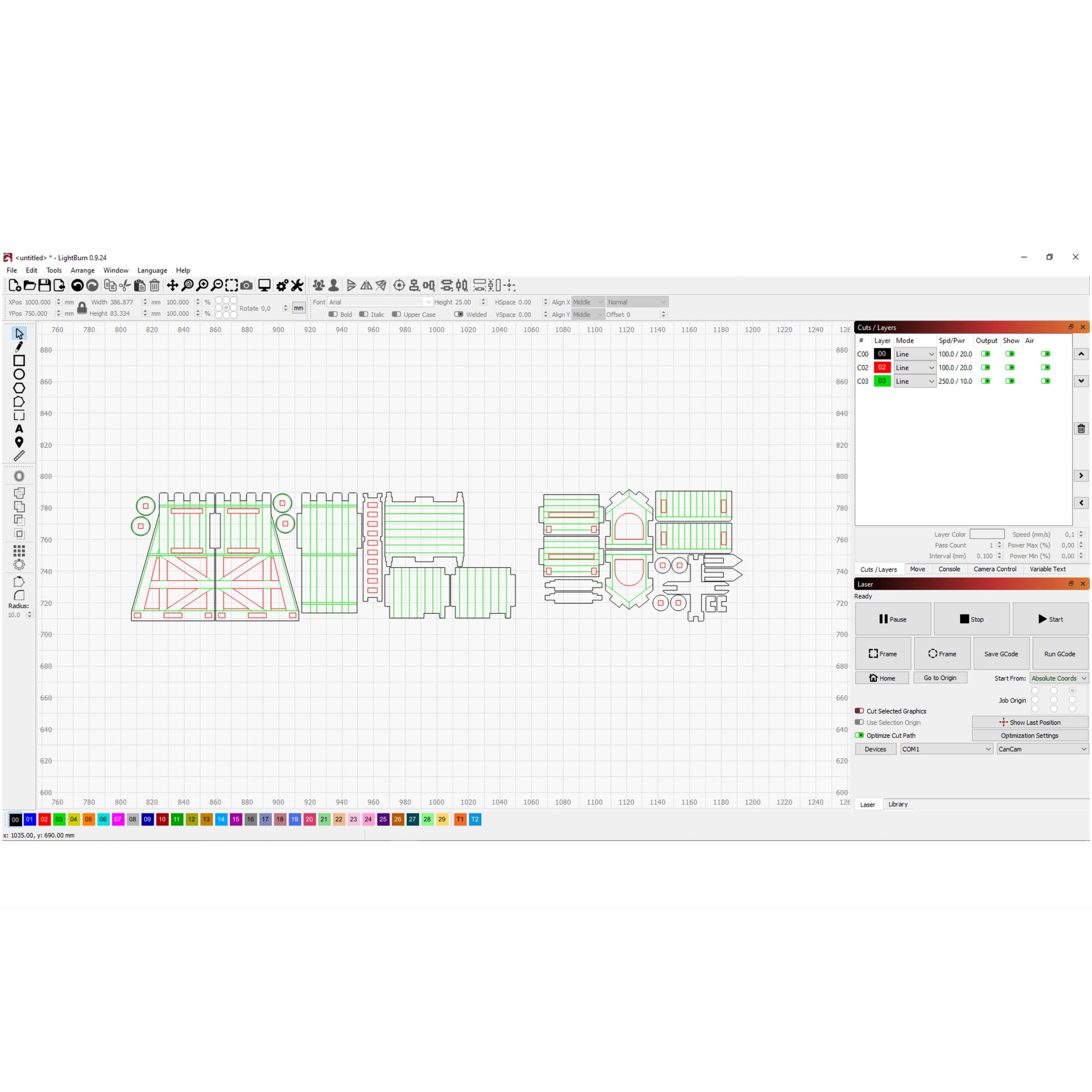

⚙️COLOR MODE SETTING:
green color - draw (cut with little power and big speed)
red color - cut
black color - cut

This model also available on Etsy here
