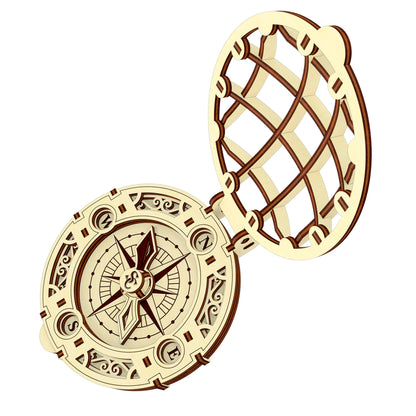

Santa's Compass Laser cut file for CNC laser machines in DXF CDR AI SVG

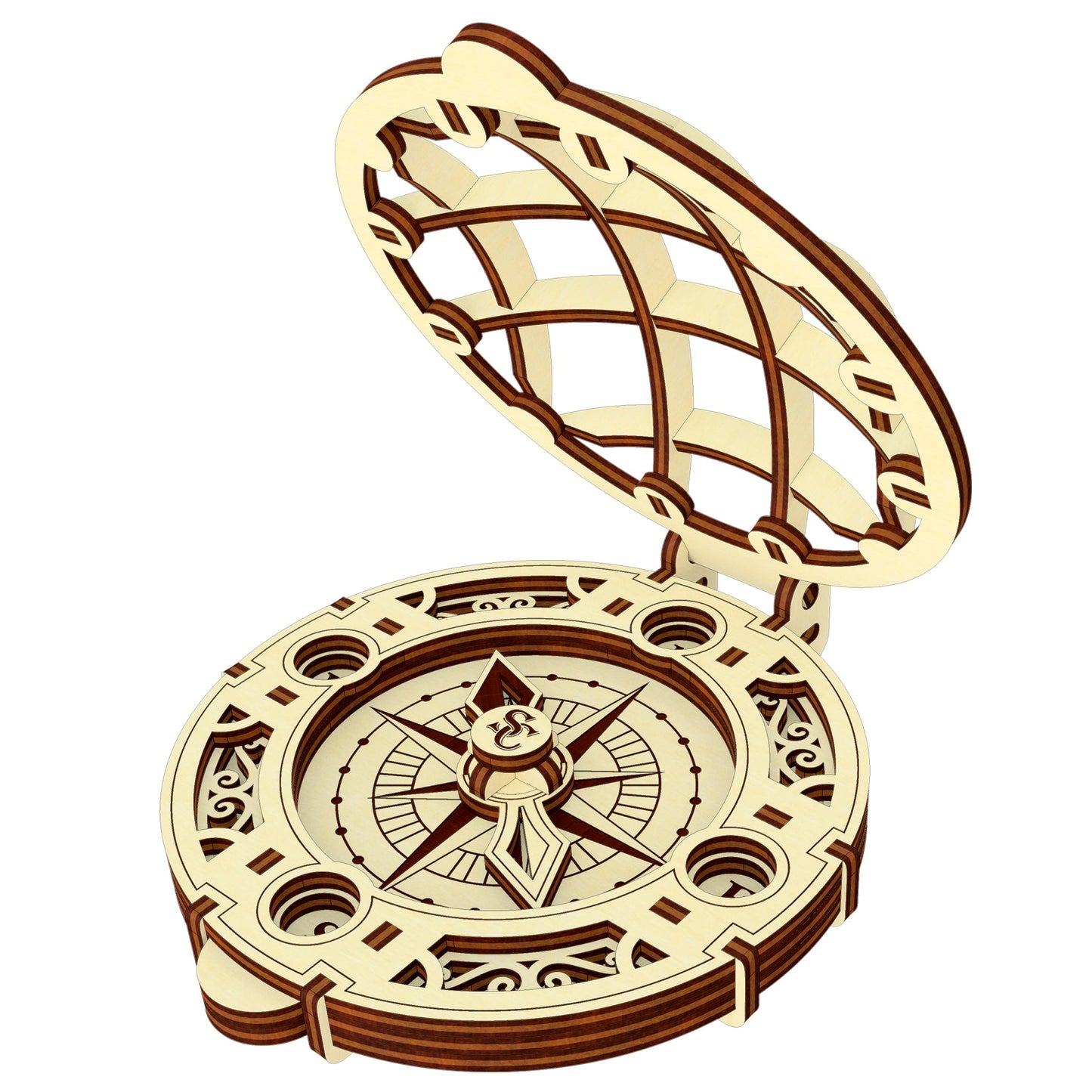

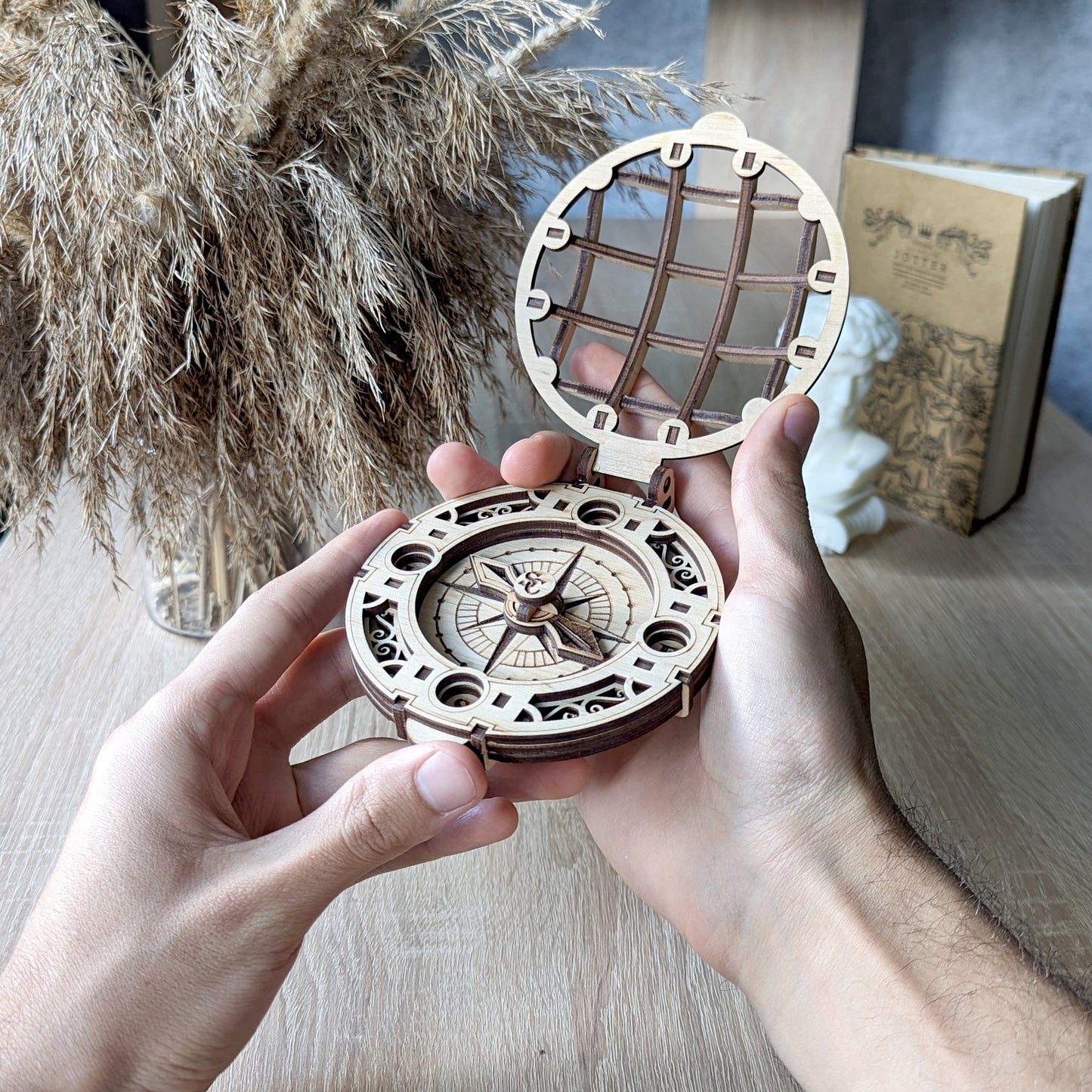

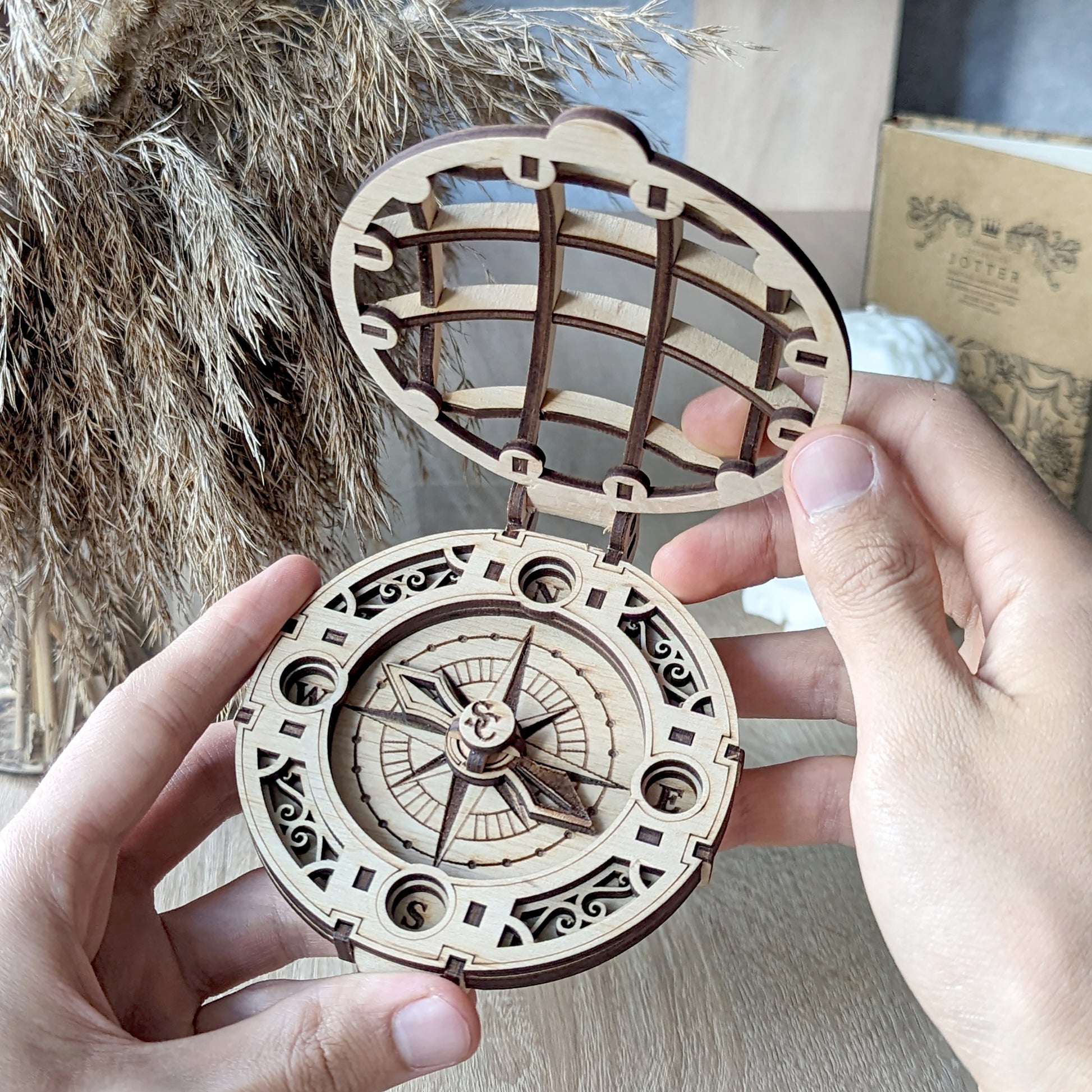

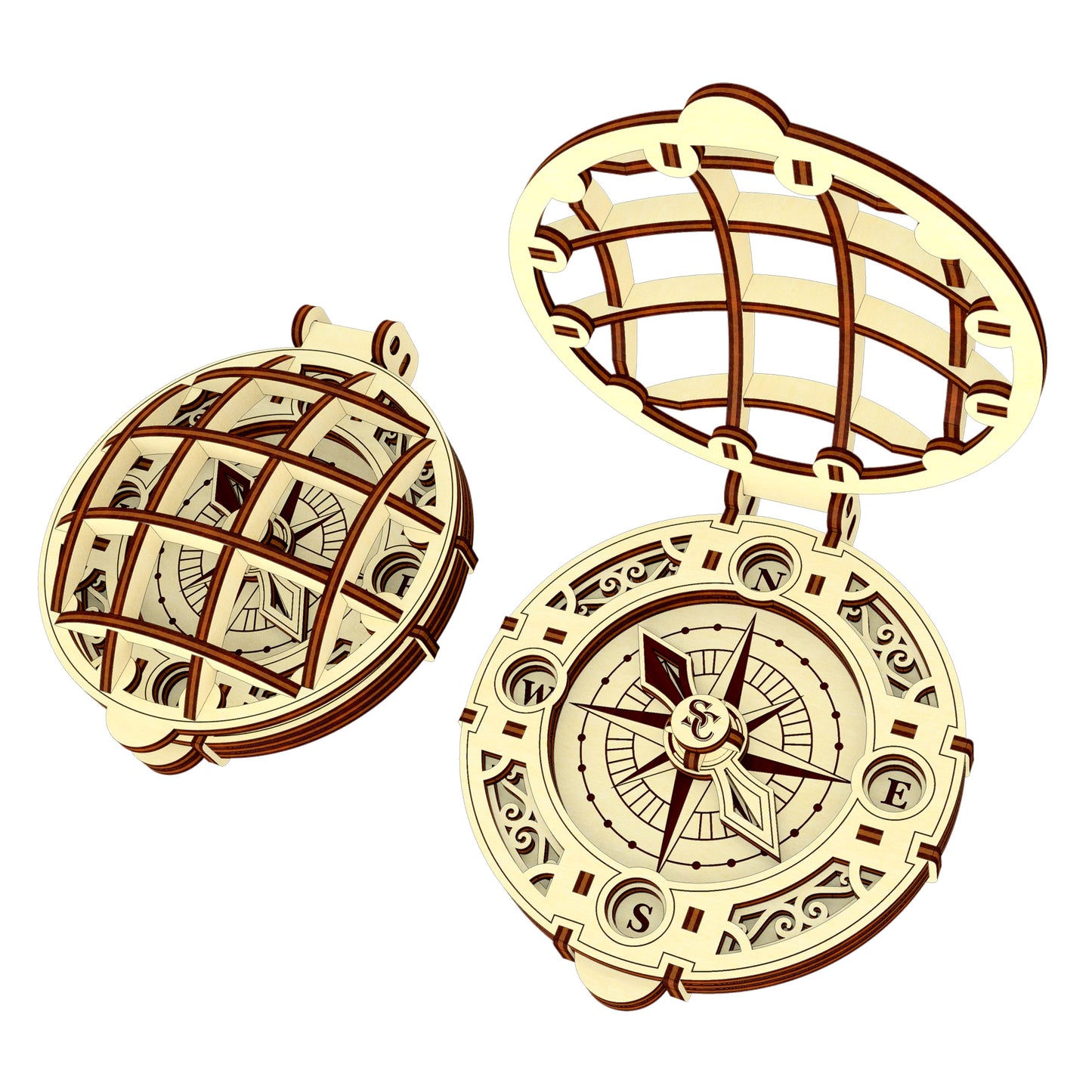

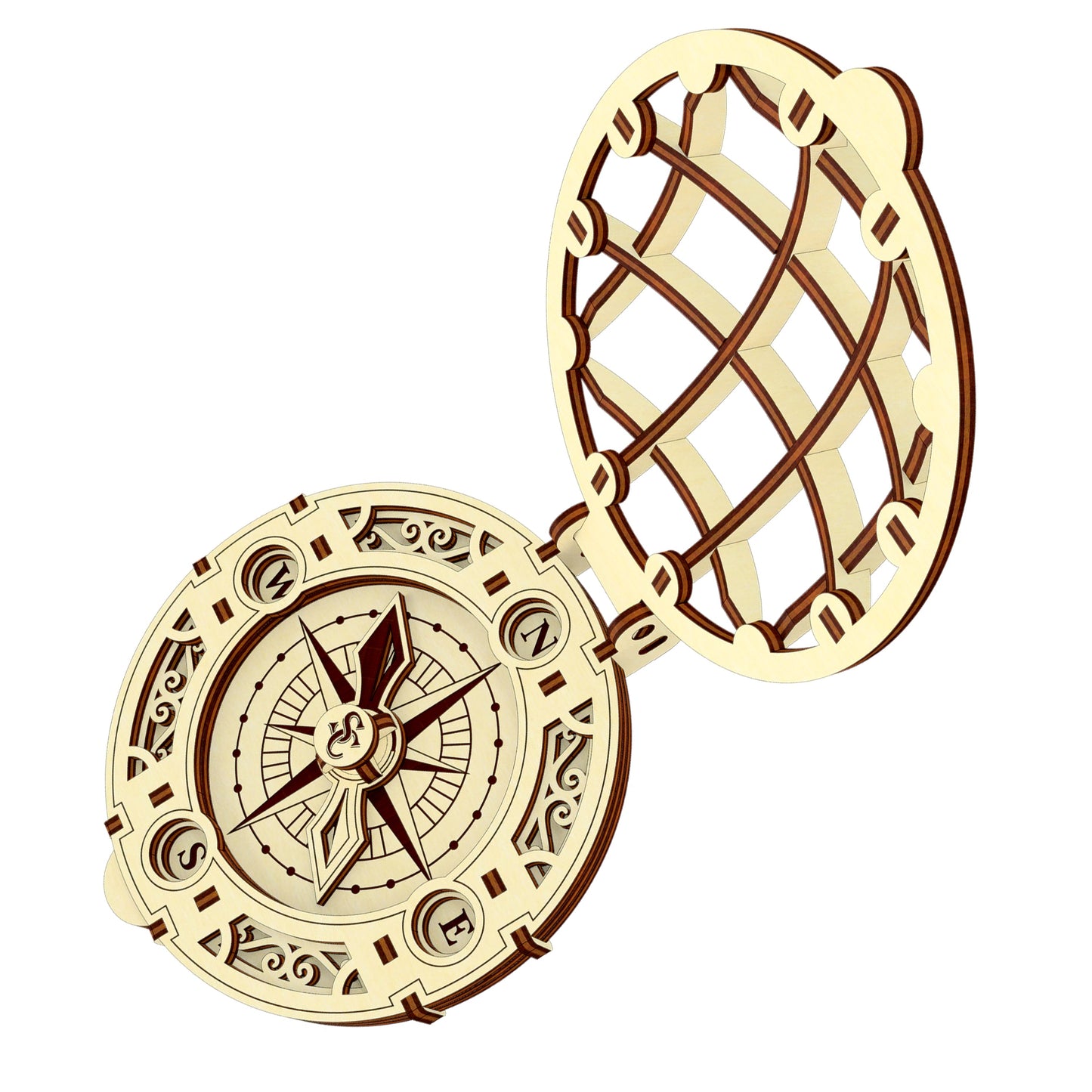

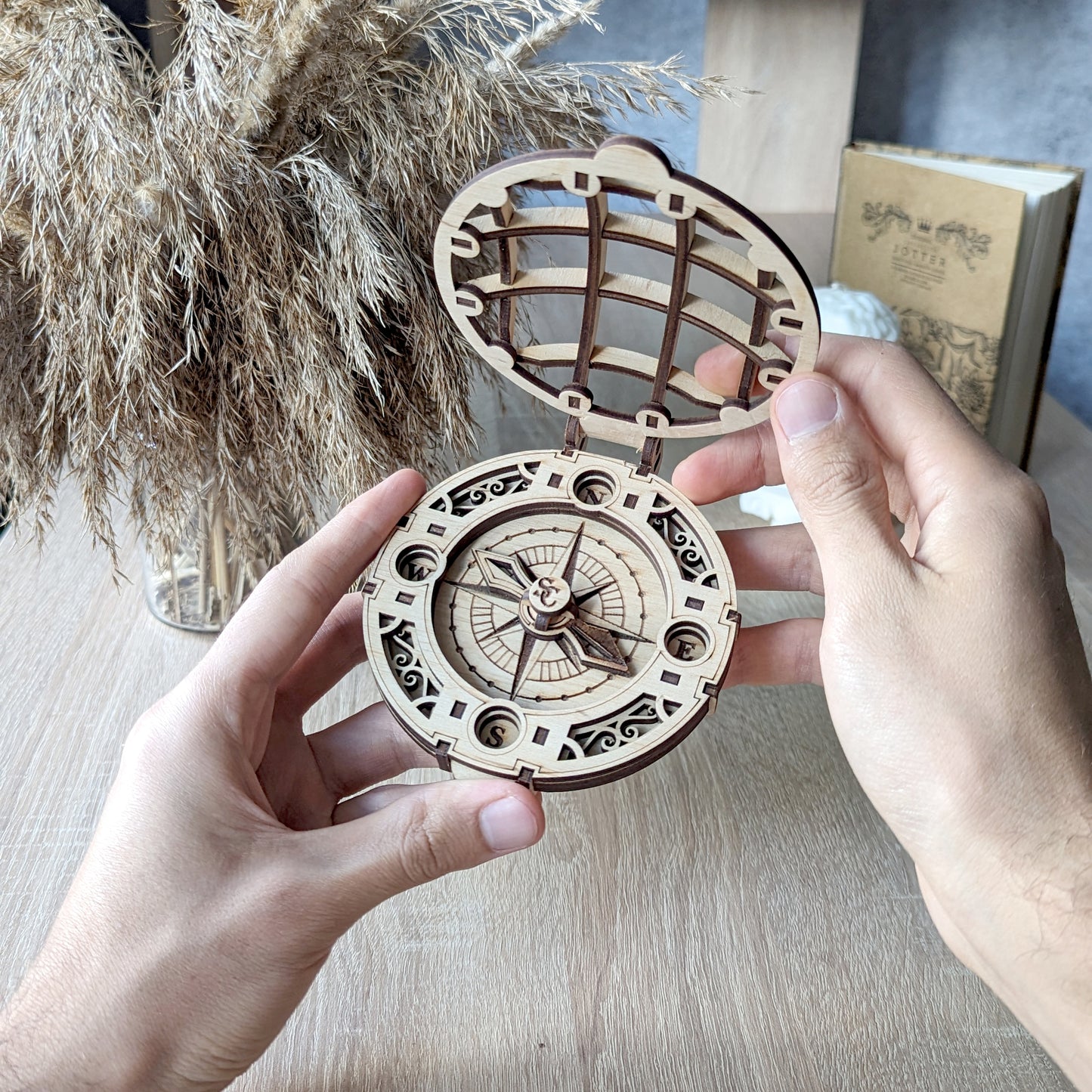

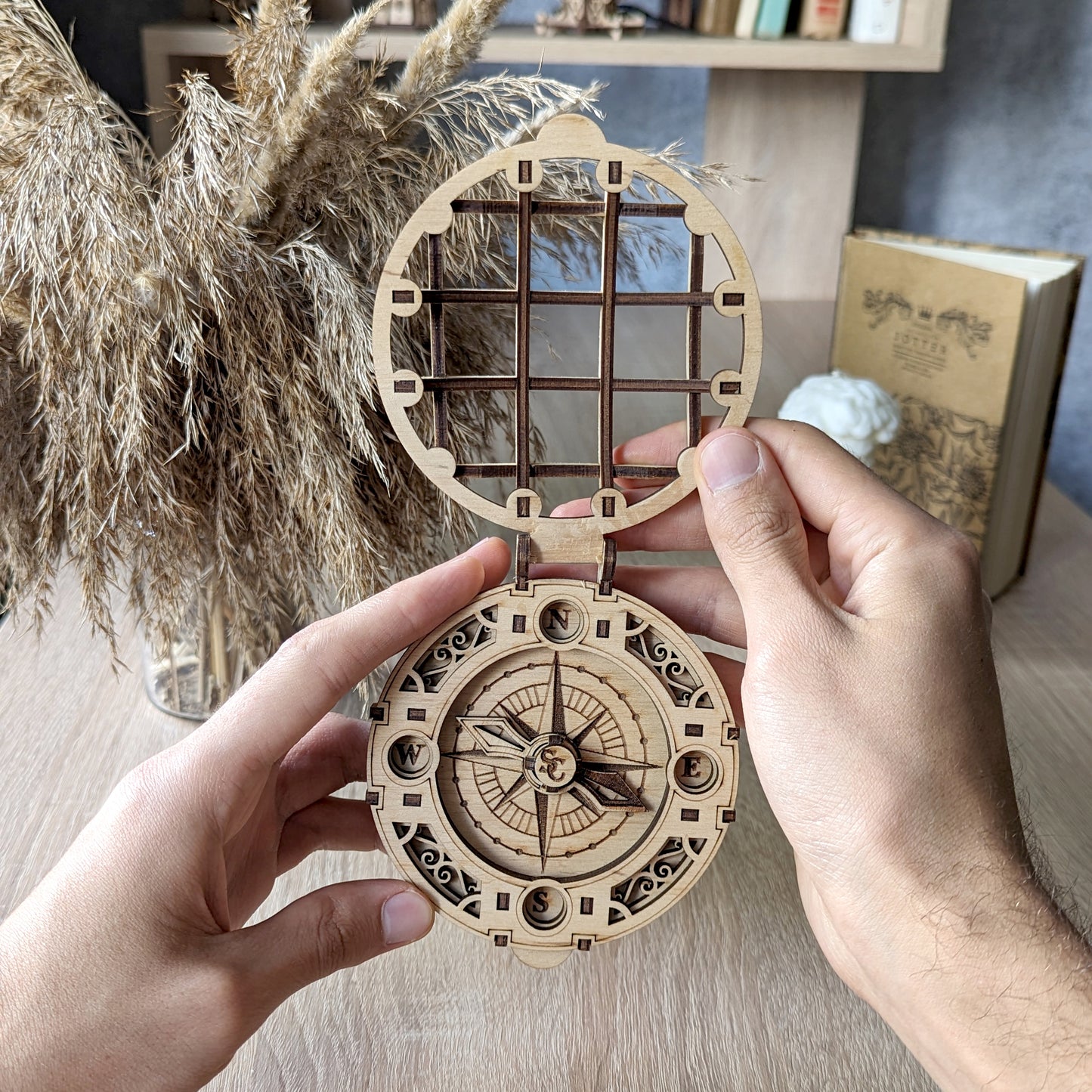

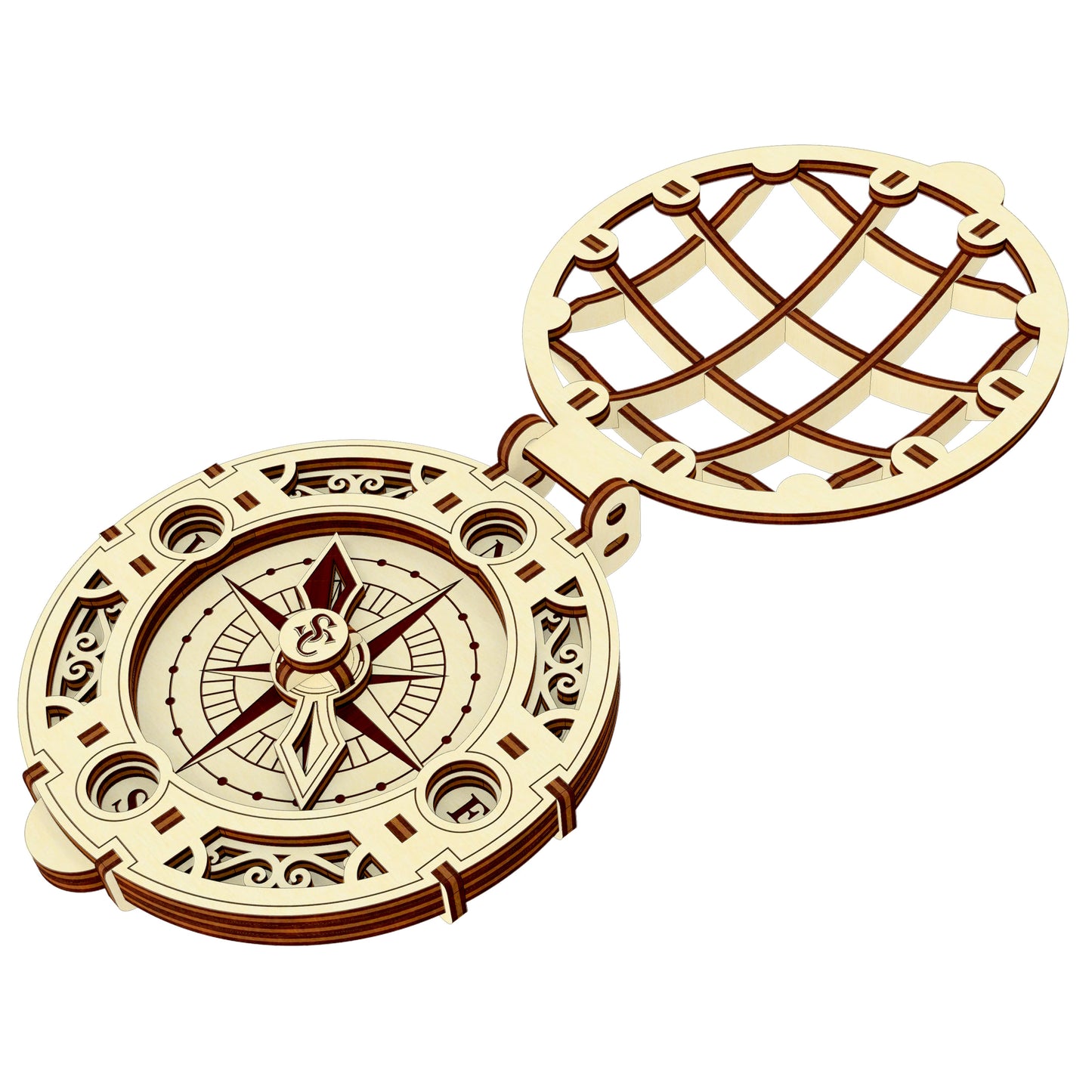

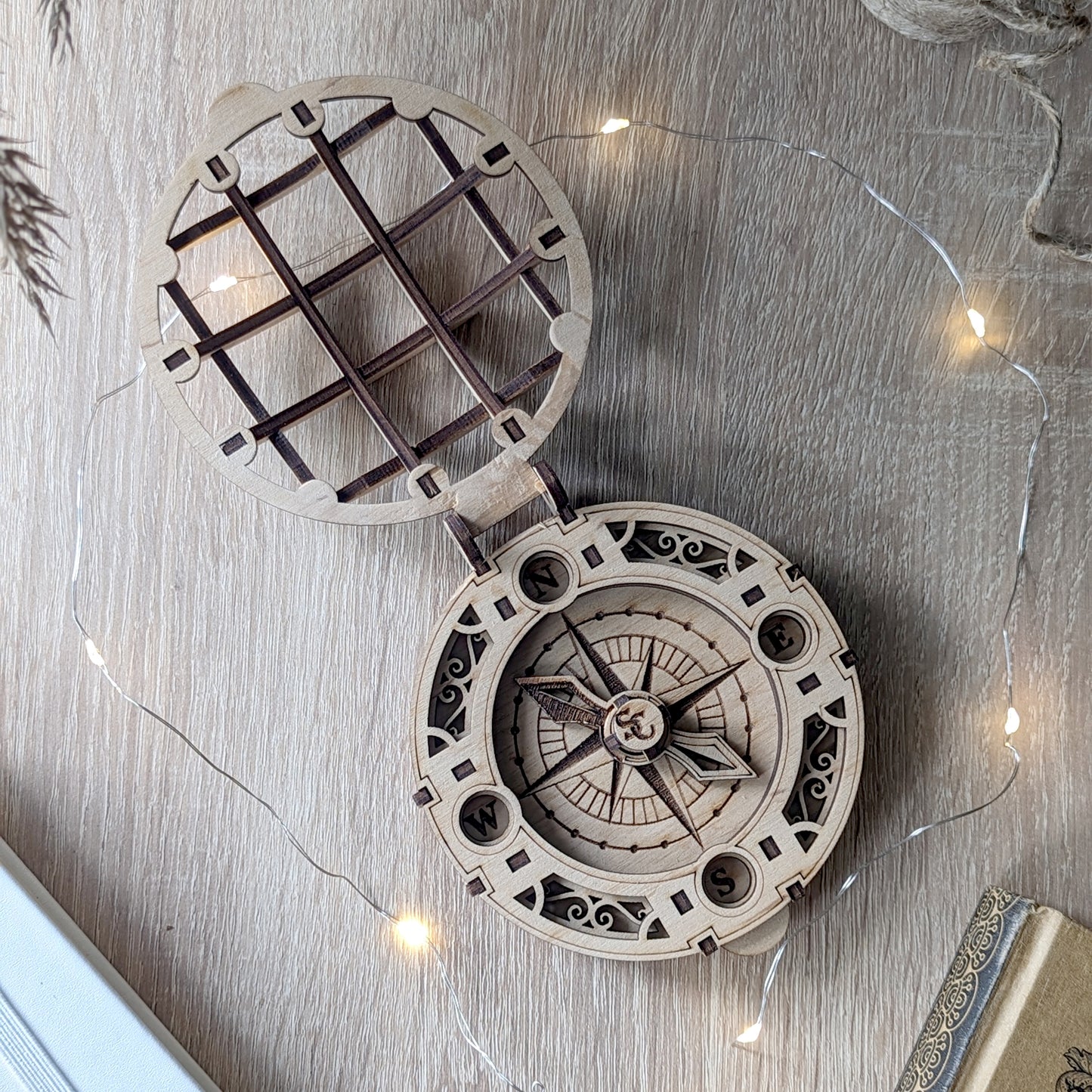

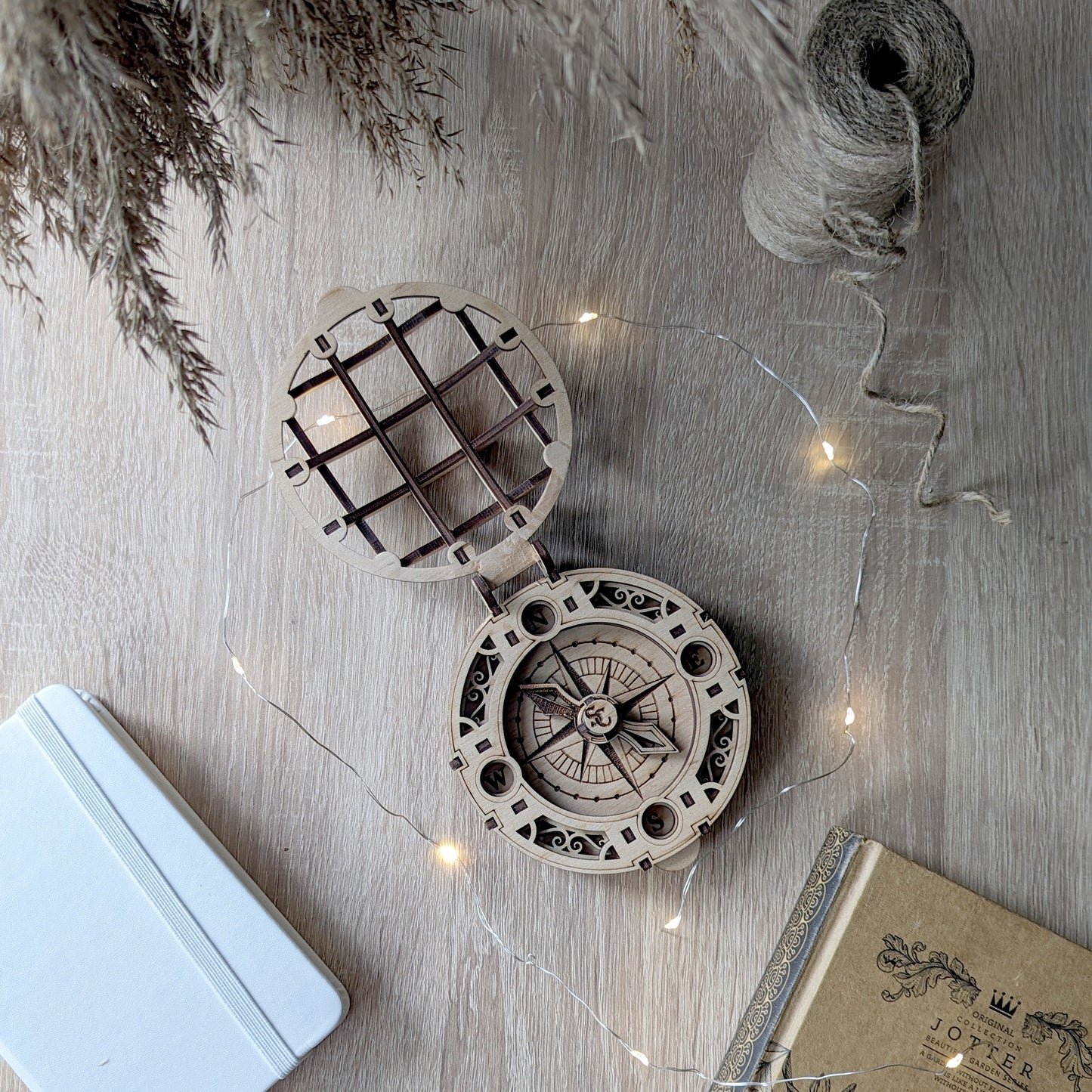

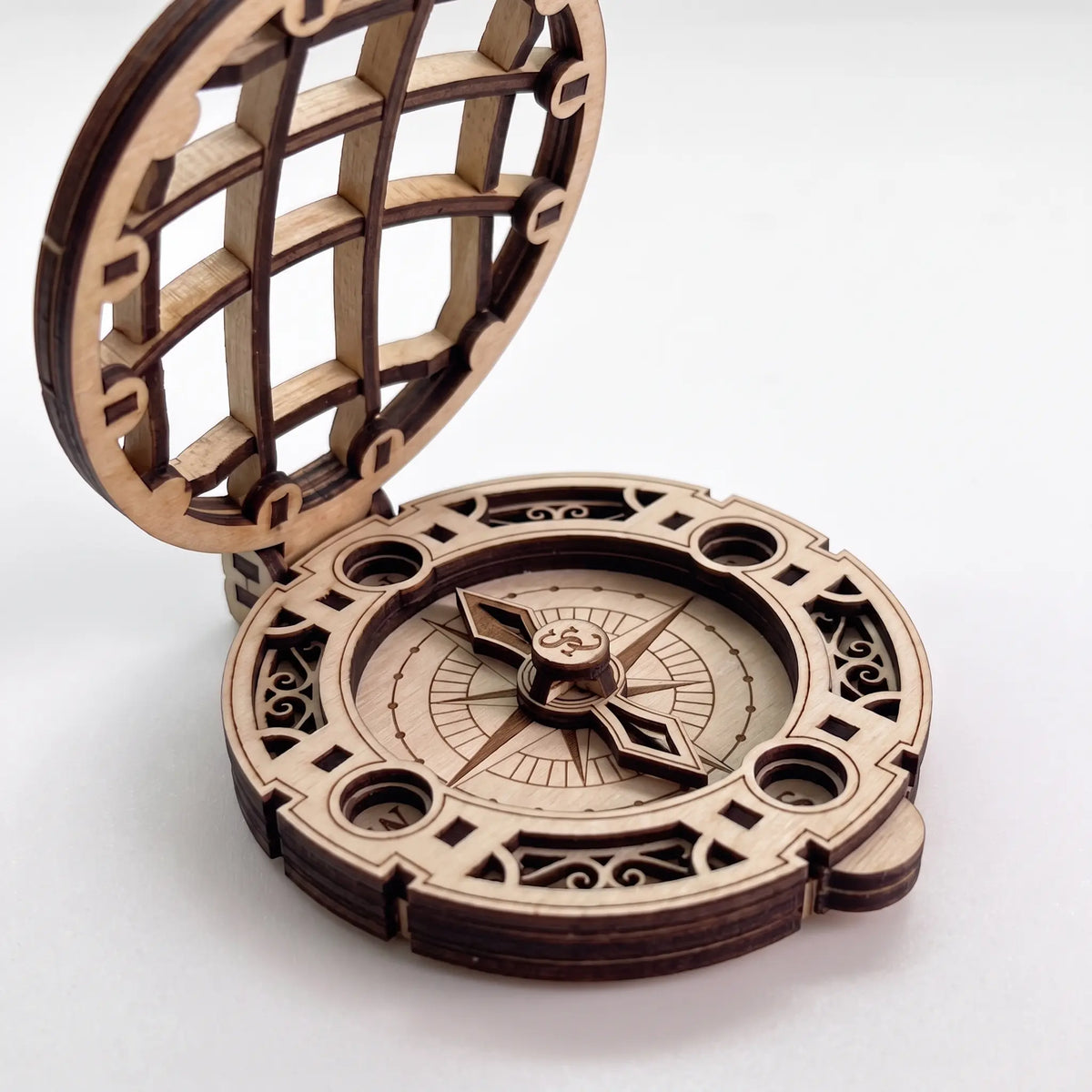

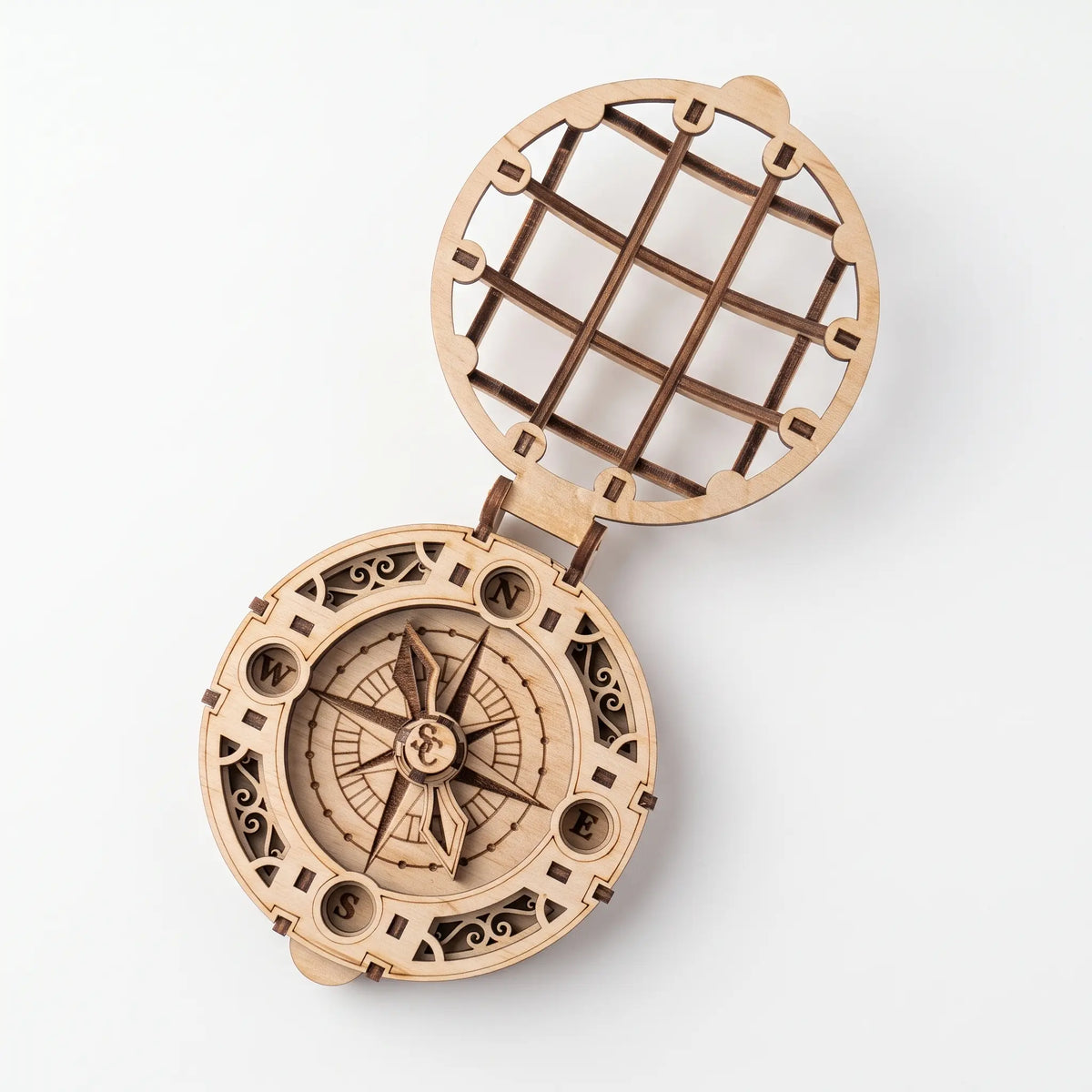

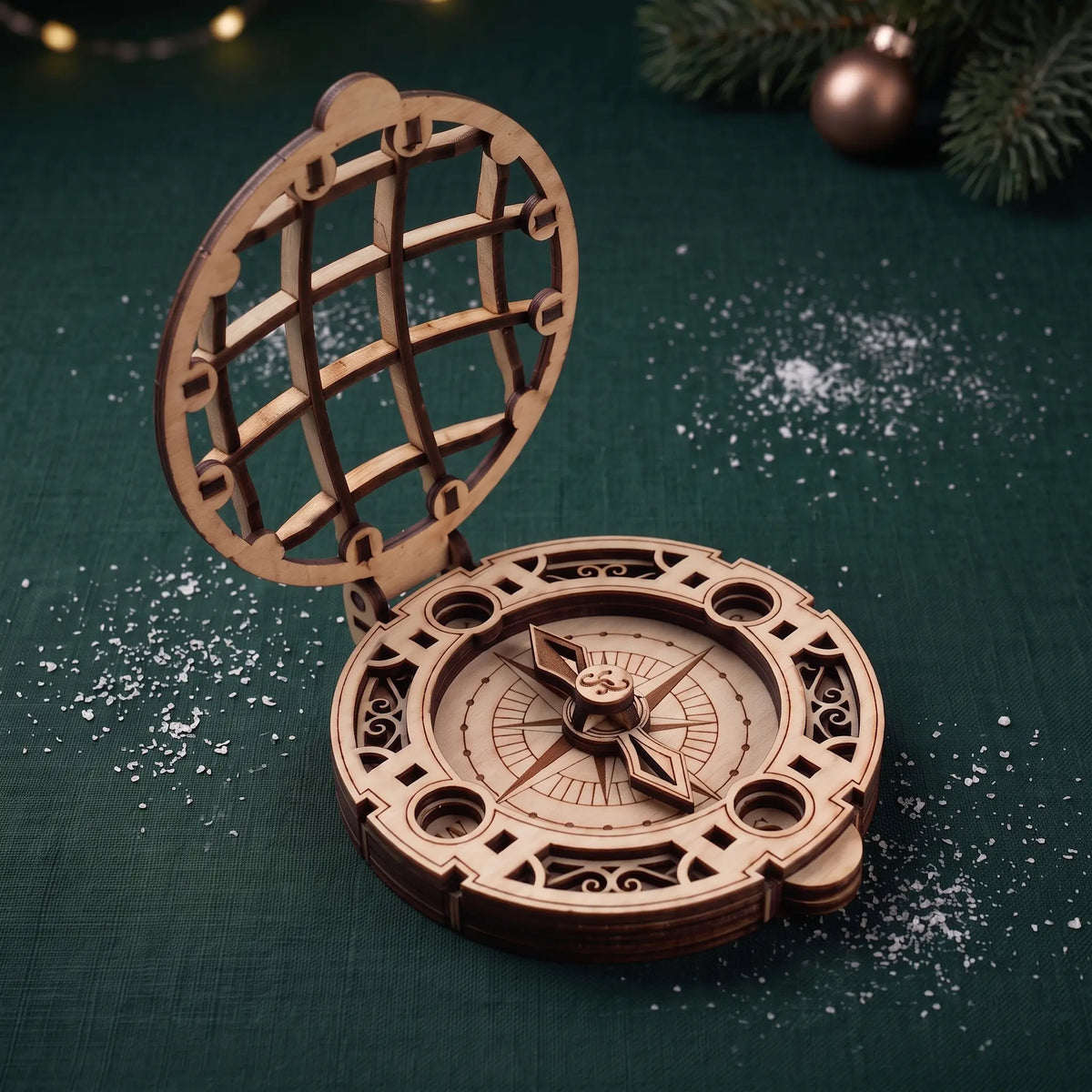

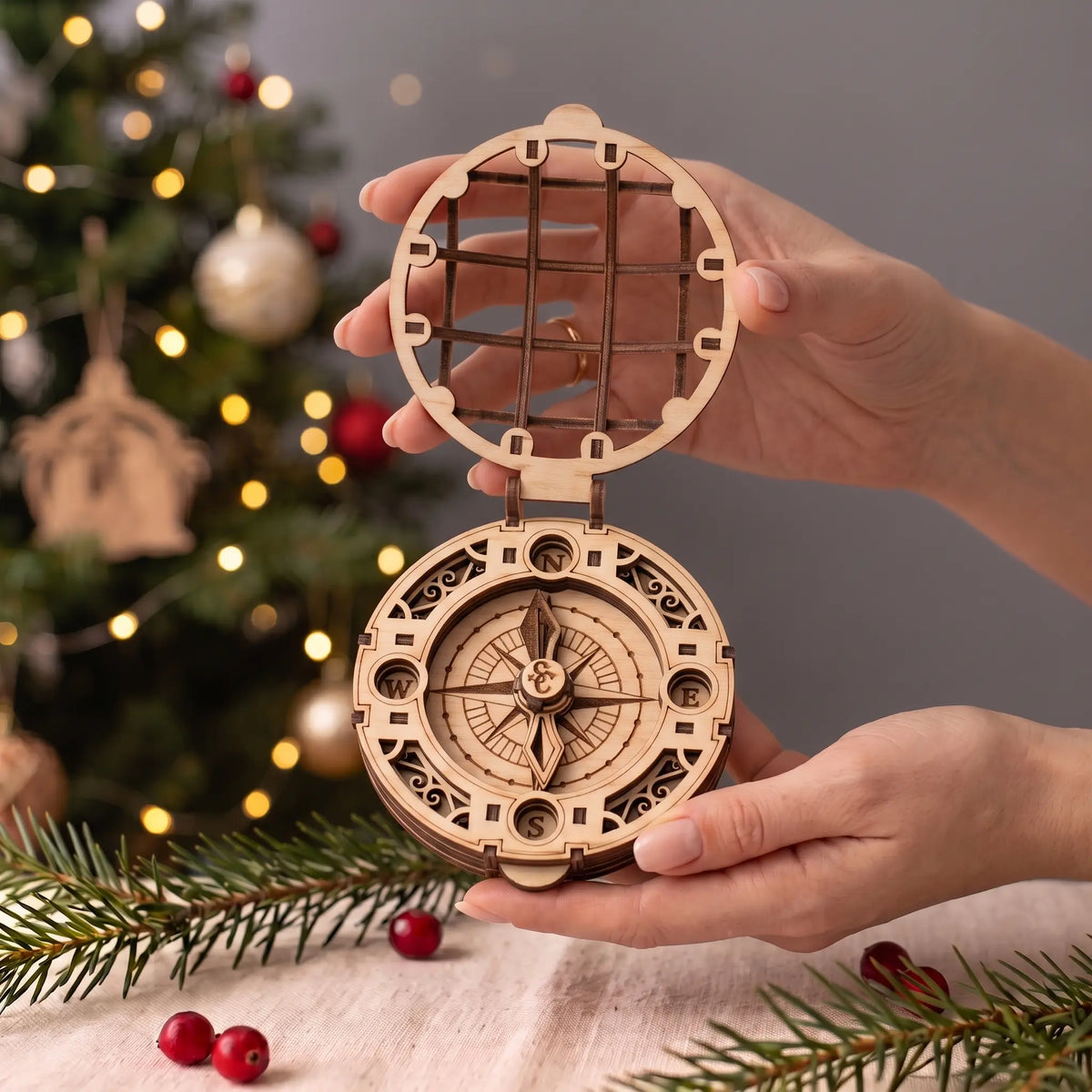

The compass opens, and inside it the arrow can rotate around its axis.

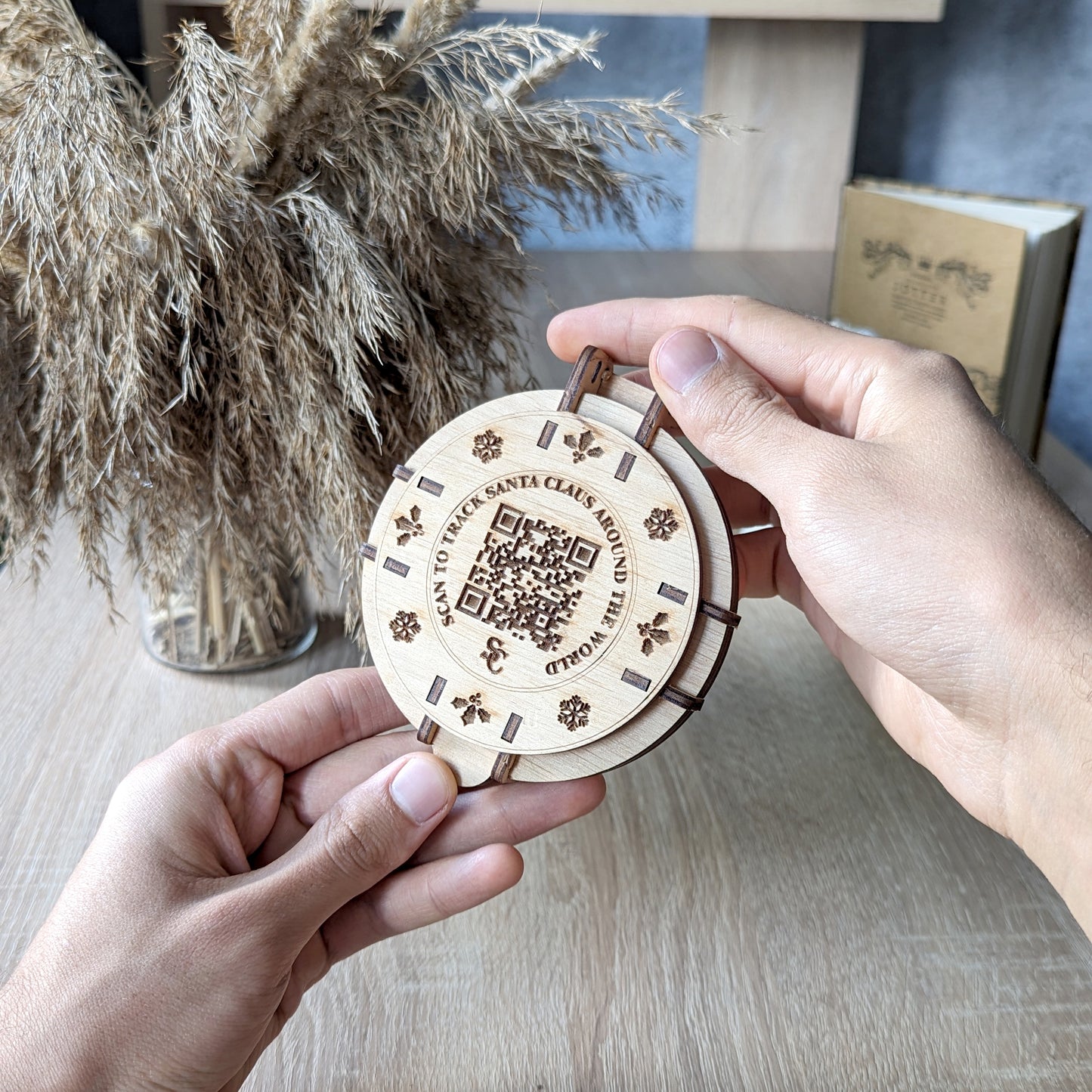

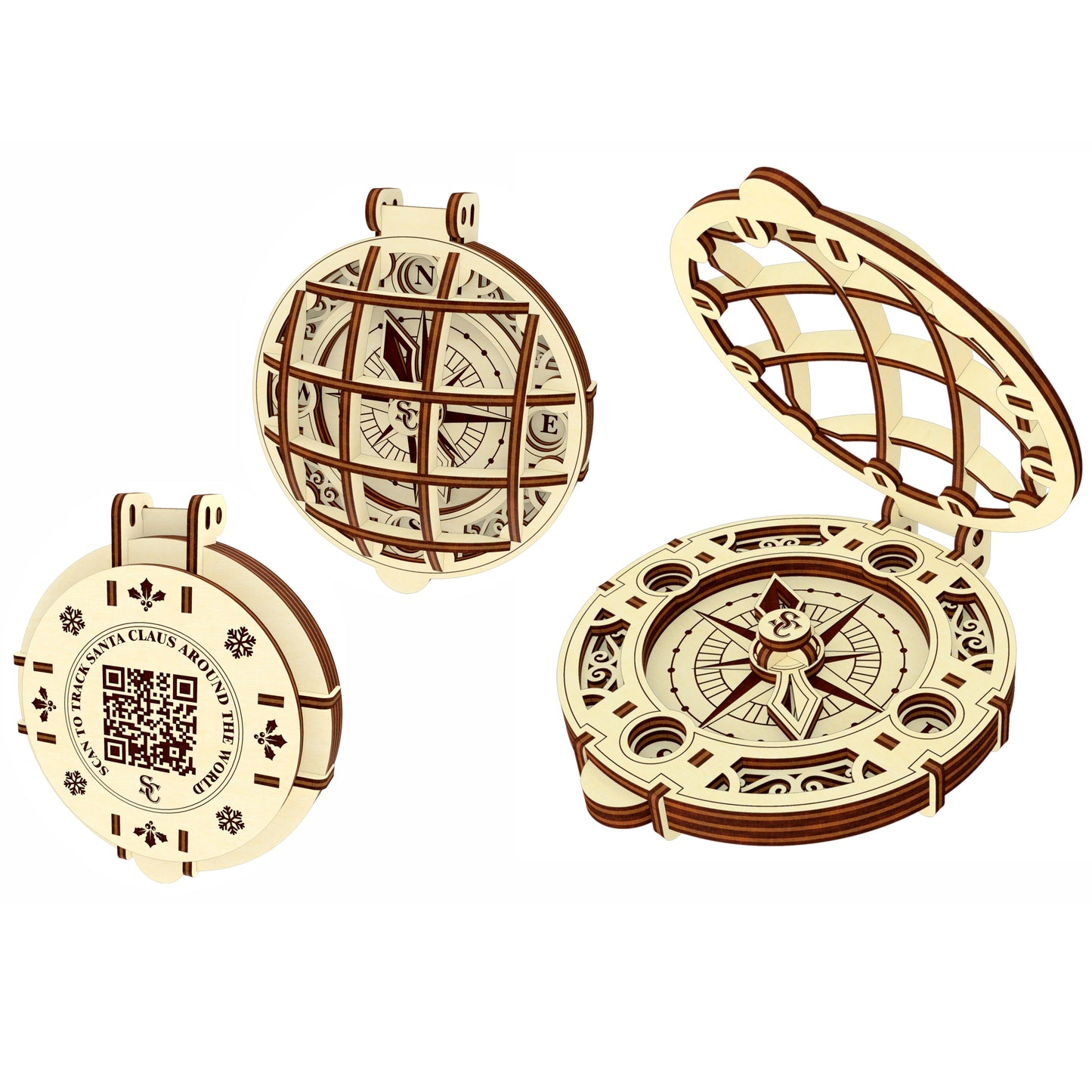

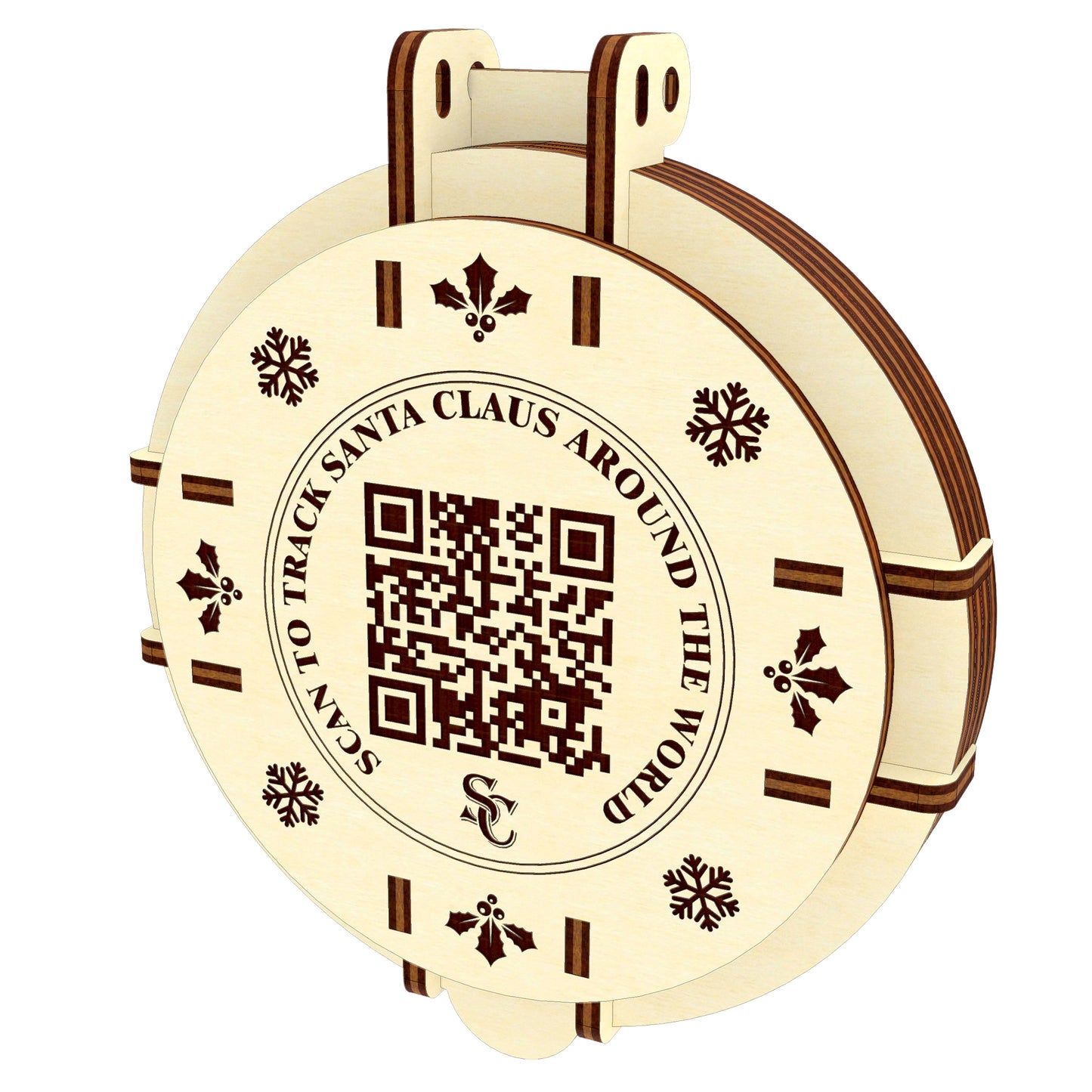

On the back of the compass I have a QR code for tracking Santa
https://santatracker.google.com/
Material thickness (versions of the files): 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

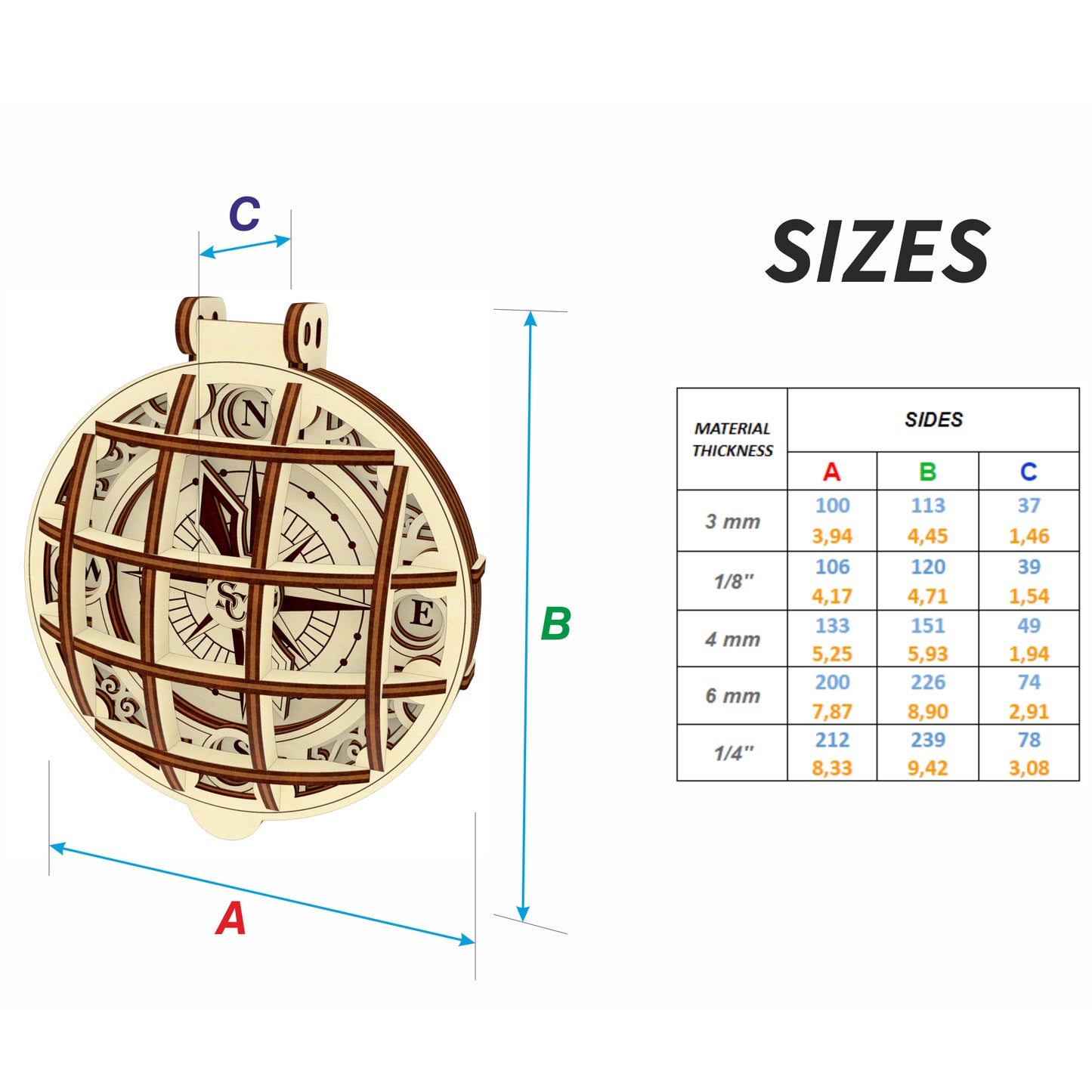

Sizes:
3 mm thickness: 100 x 113 x 37 mm (3,94 x 4,45 x 1,46'')
1/8''(3.175mm) thickness: 106 x 120 x 39 mm (4,17 x 4,71 x 1,54'')
4 mm thickness: 133 x 151 x 49 mm (5,25 x 5,93 x 1,94'')
6 mm thickness: 200 x 226 x 74 mm (7,87 x 8,90 x 2,91'')
1/4''(6.35mm) thickness: 212 x 239 x 78 mm (8,33 x 9,42 x 3,08'')
Work area:
3 mm thickness: 291 x 220 mm (11,46 x 8,66'')
1/8''(3.175mm) thickness: 308 x 233 mm (12,13 x 9,17'')
4 mm thickness: 388 x 293 mm (15,28 x 11,55'')
6 mm thickness: 582 x 440 mm (22,91 x 17,32'')
1/4''(6.35mm) thickness: 616 x 466 mm (24,25 x 18,33'')
Biggest part:
3 mm thickness: 100 x 113 mm (3,94 x 4,45'')
1/8''(3.175mm) thickness: 106 x 120 mm (4,17 x 4,71'')
4 mm thickness: 133 x 151 mm (5,25 x 5,93'')
6 mm thickness: 200 x 226 mm (7,87 x 8,90'')
1/4''(6.35mm) thickness: 212 x 239 mm (8,33 x 9,42'')
1/4''(6.35mm) thickness: 567 x 366 mm (22,33 x 14,42'')

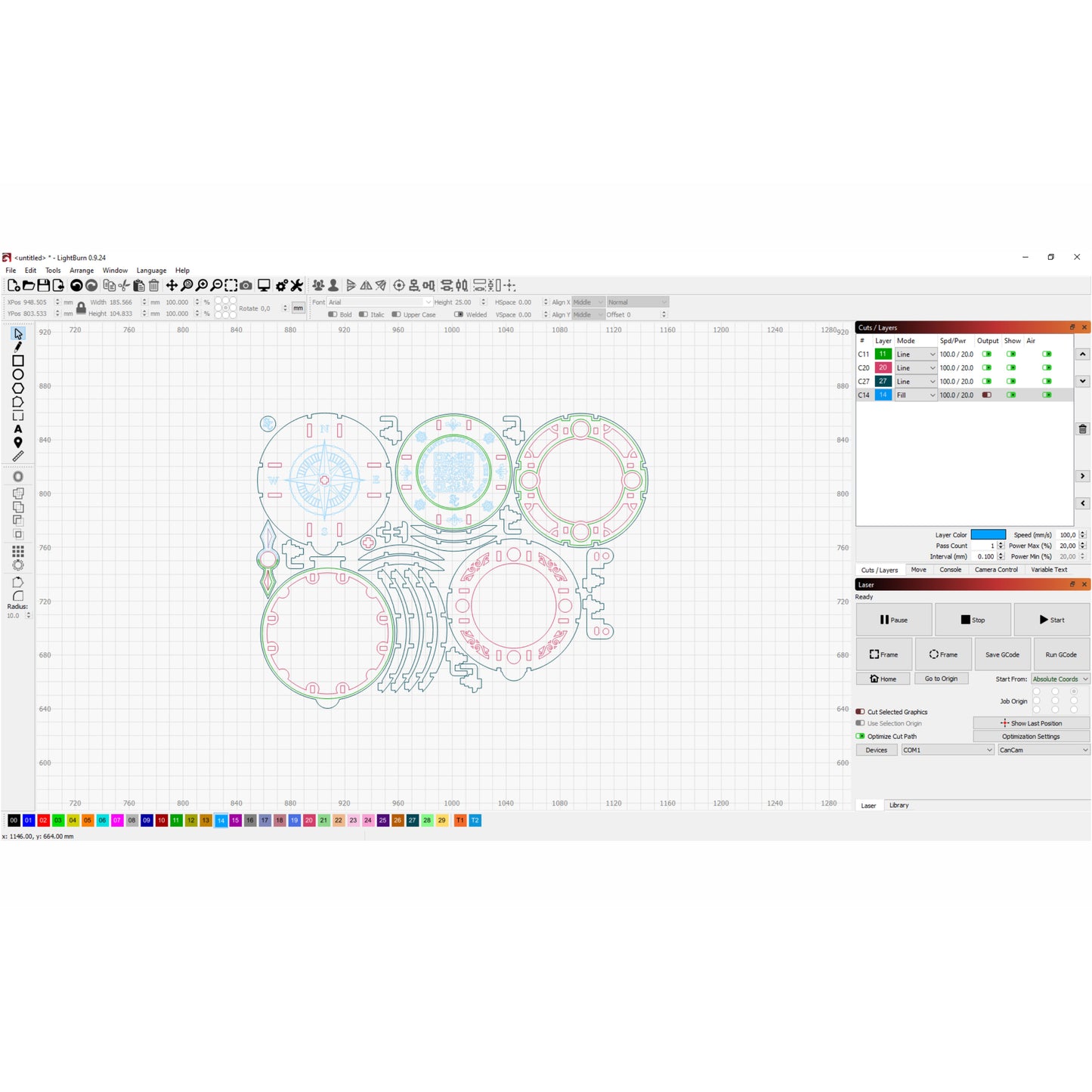

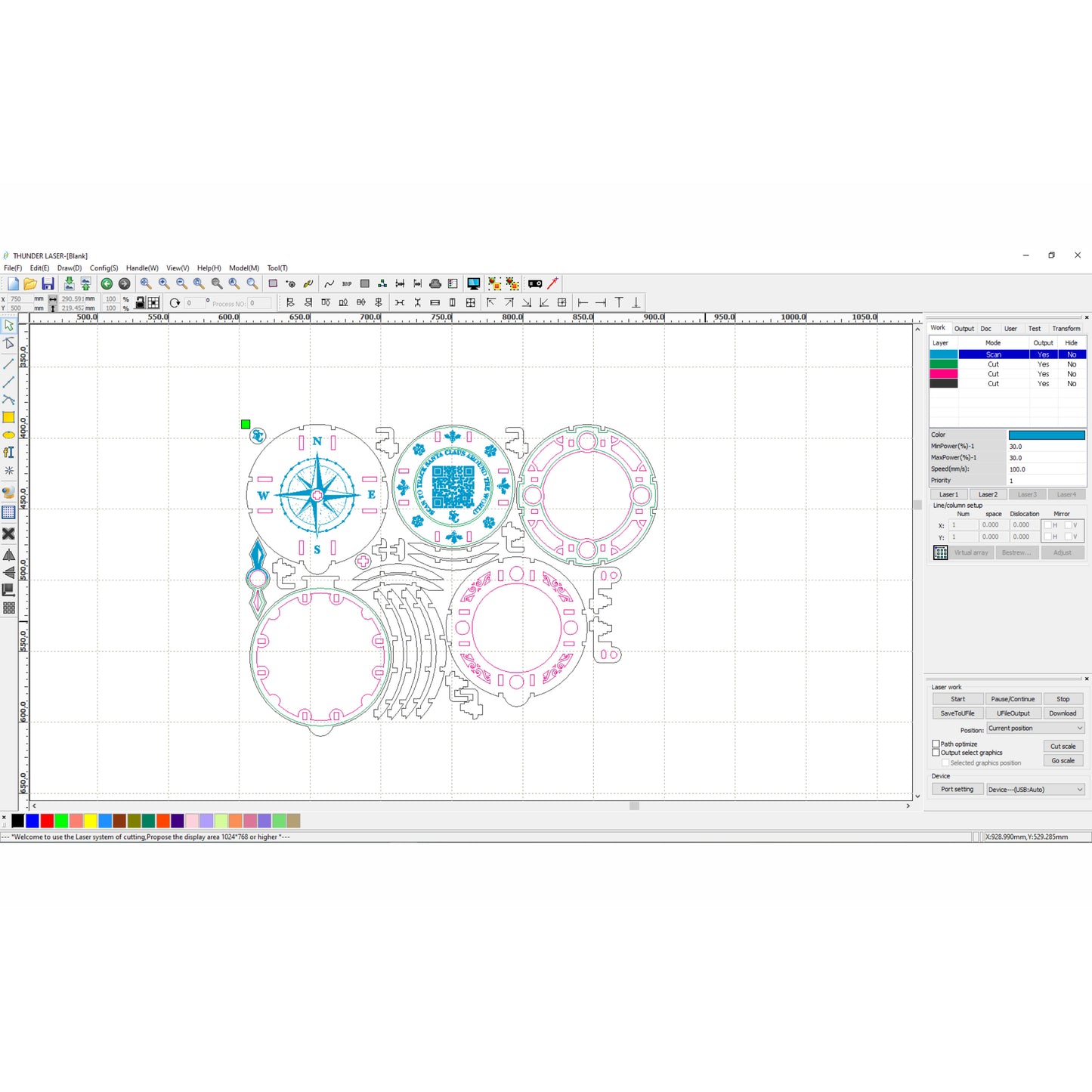

In the file:
green color - score/drawing (cut mode with low power and high speed)
blue color - engrave
pink color - cut
black color - cut
What you receive:
You will download 1 ZIP file containing the following:
the CDR, DXF, AI, SVG files with drawing for material thinkness 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) and PDF-assembly instruction
If you have any quastions feel free to contact us.
These files are vector-based and compatible with all laser cut software, milling machine, CNC plasma cutting machine, glowforge machines.
This is an Instant Digital Download
The item is non-refundable because it's not physical.
YOU CAN use the files for personal purposes and for your small business.
YOU CANNOT share, redistribute or resell the files.
Copyright is not transferable with the sale.
