Laser cut file for CNC laser machines in DXF CDR AI SVG

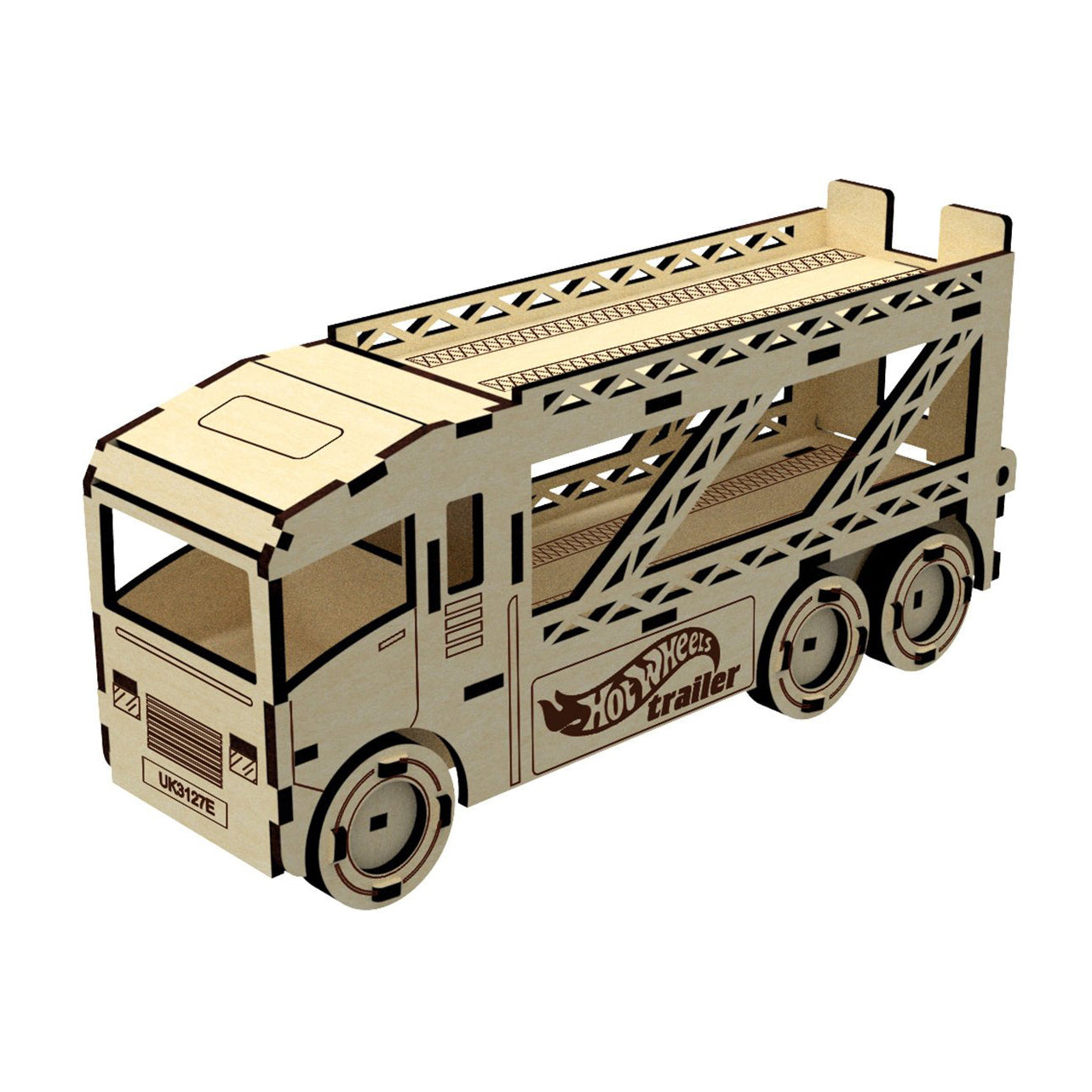

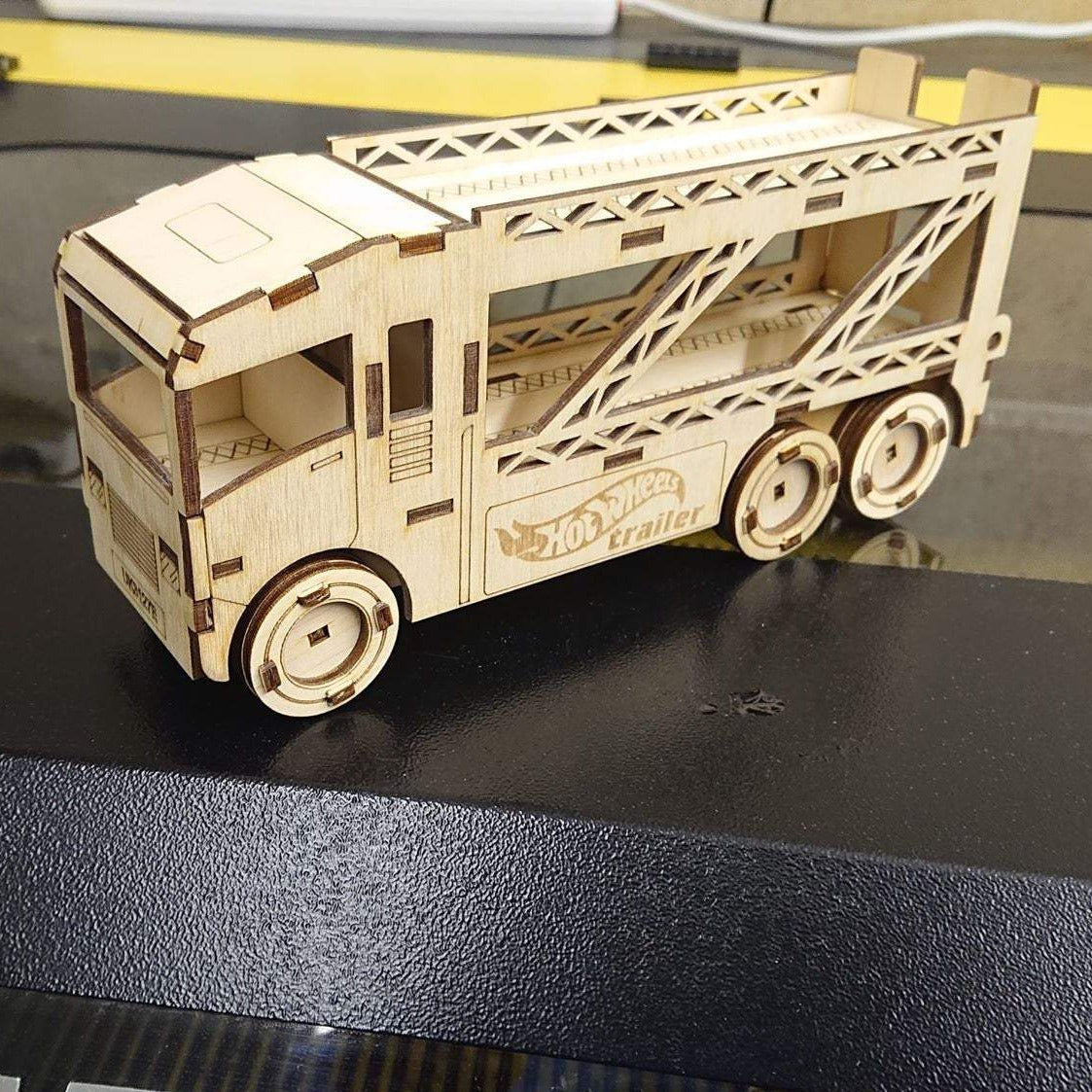

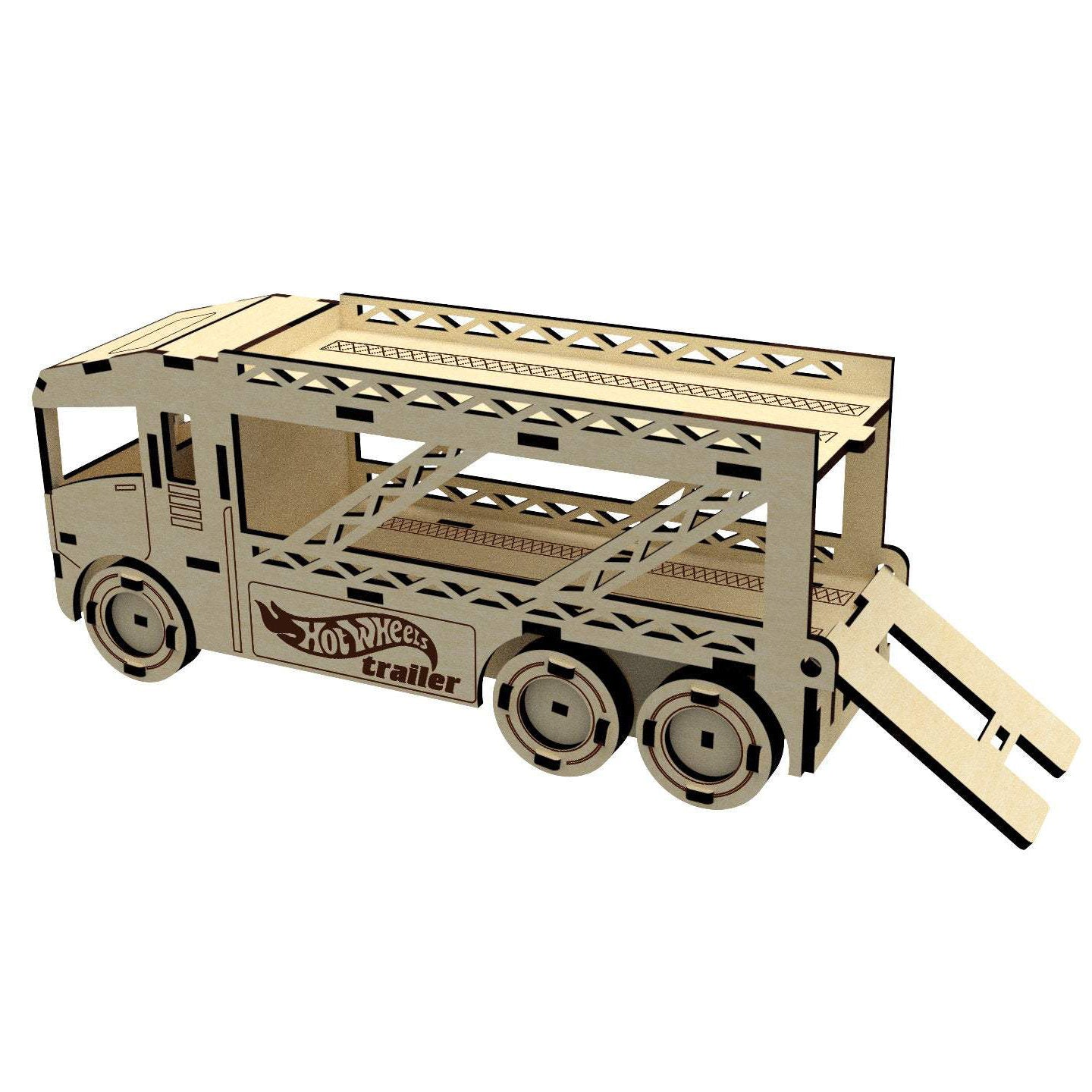

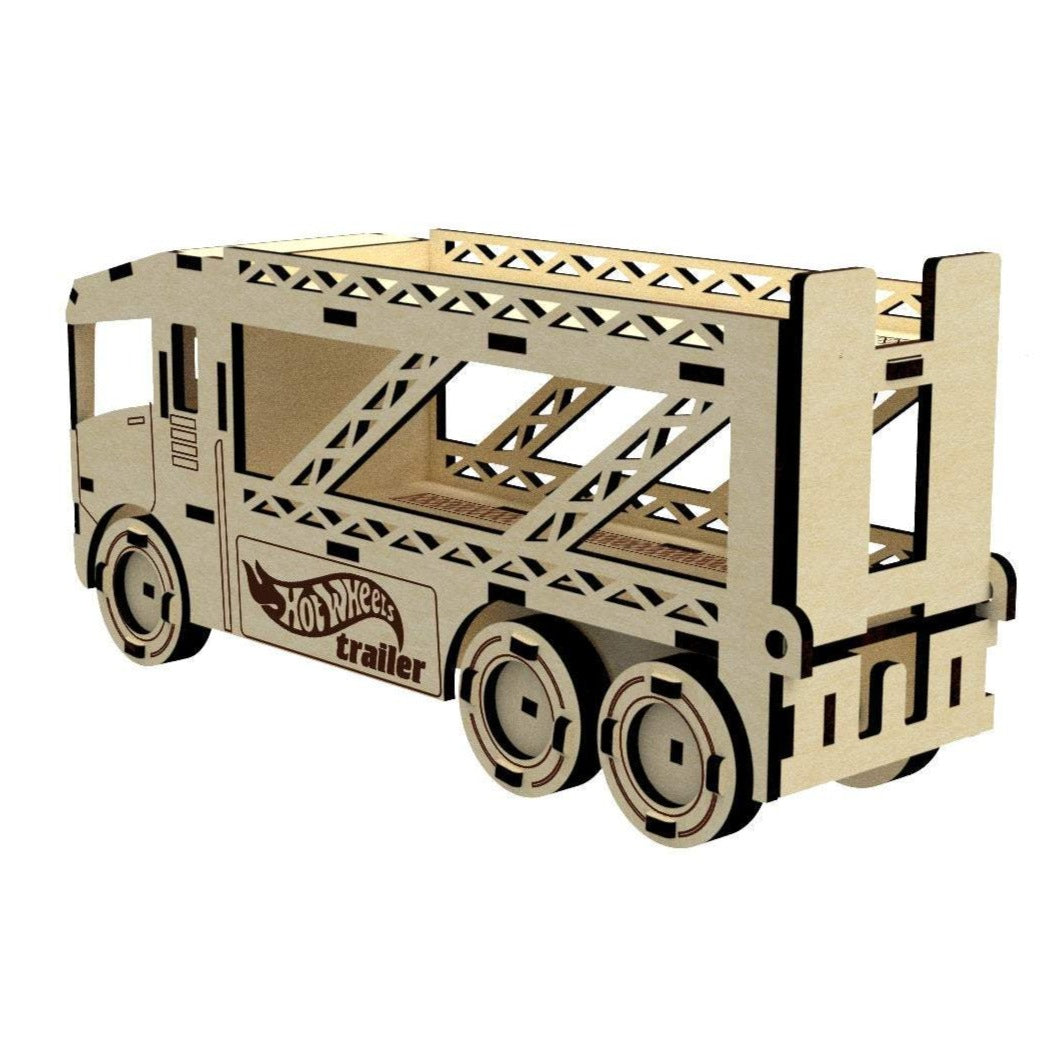

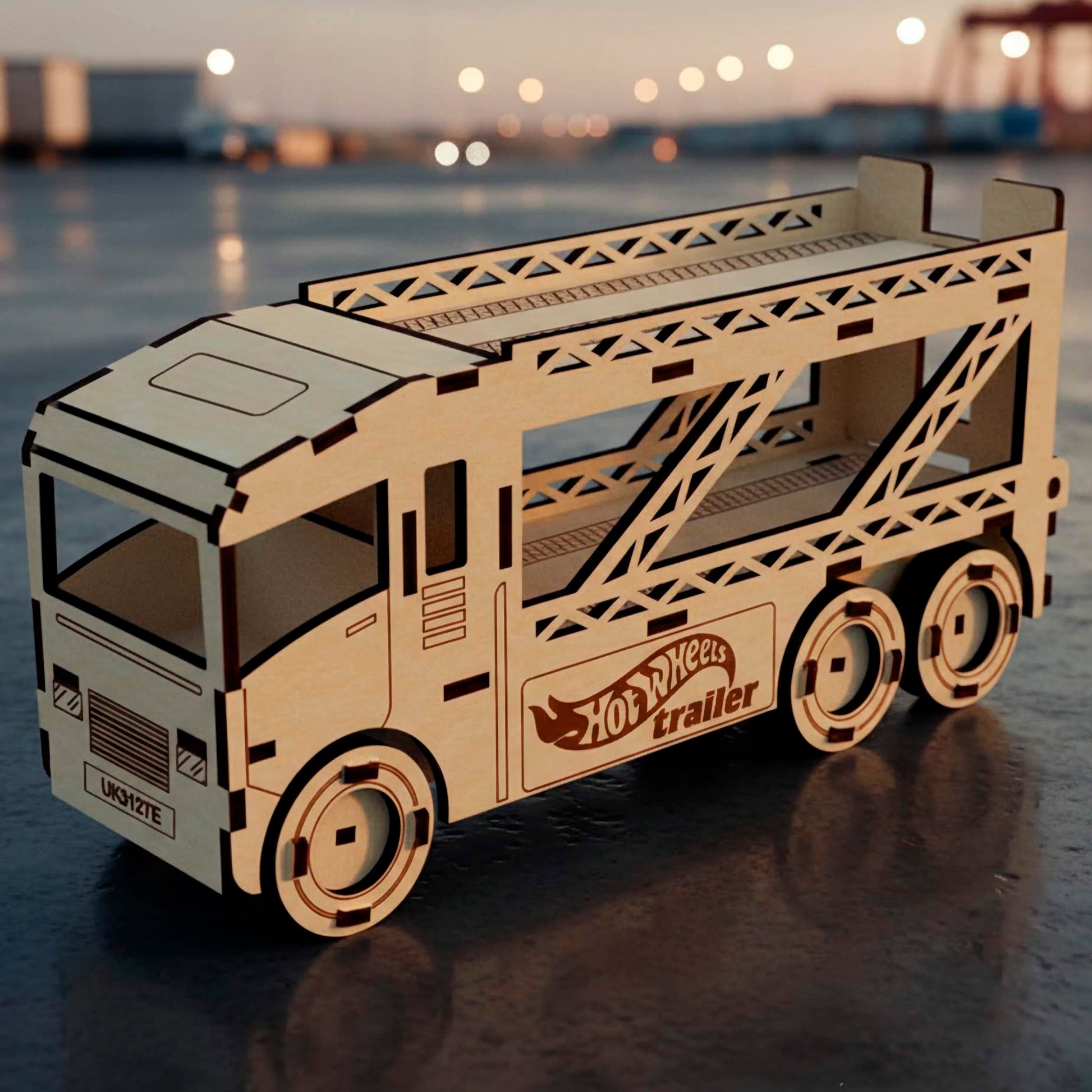

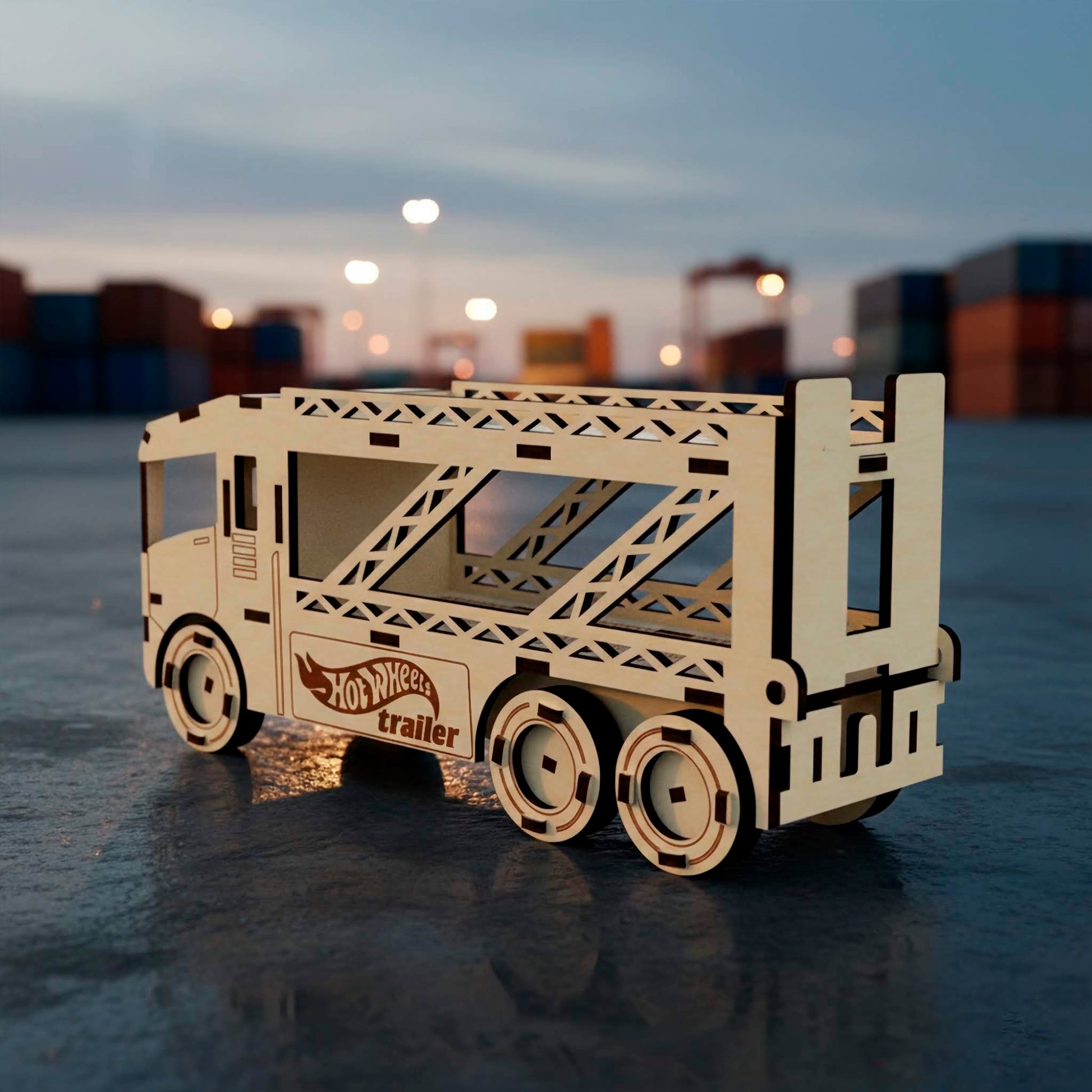

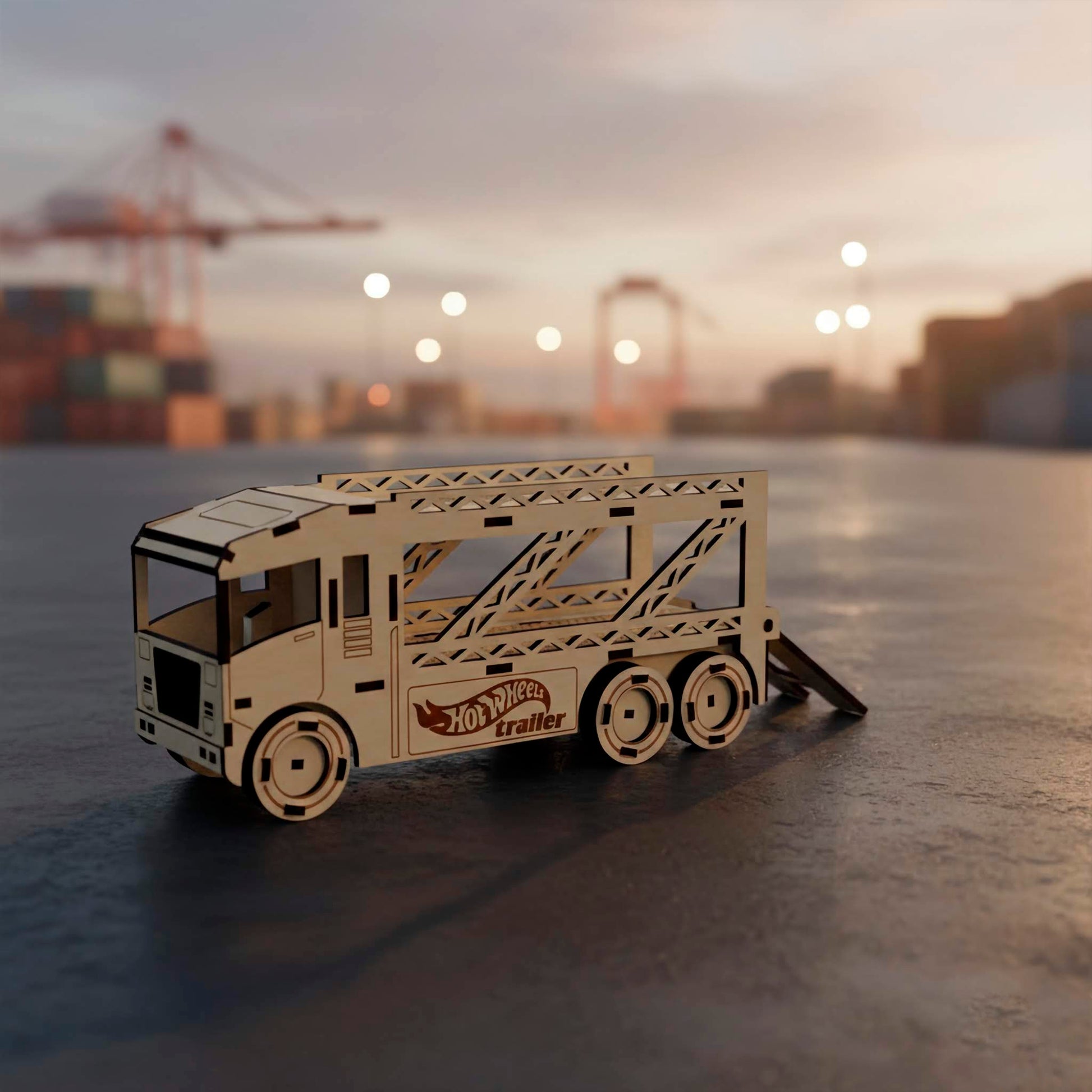

This model is part of a series for Small car models
other model
Material thickness: 3mm, 4mm, 6mm, 1/4in, 1/8in

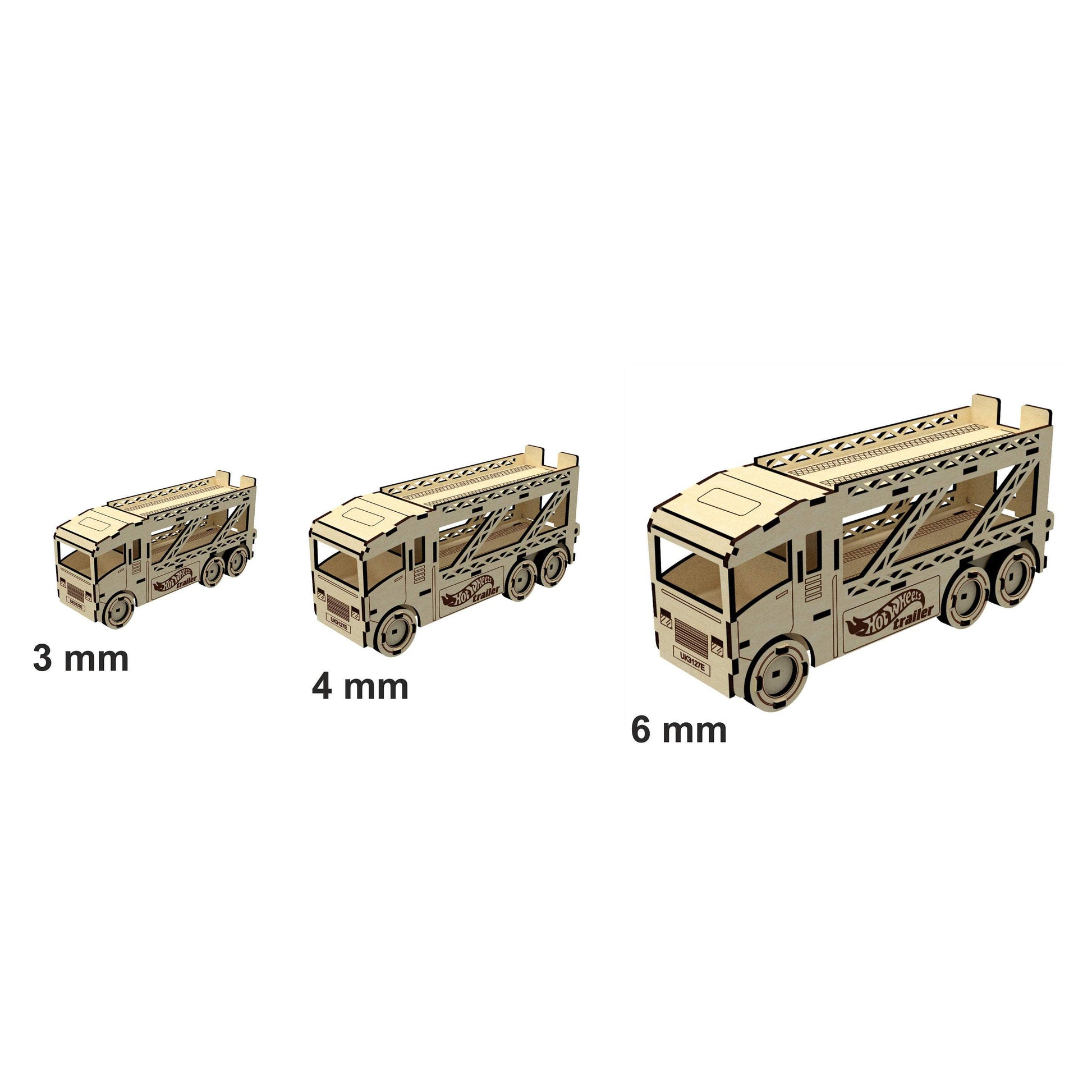

Sizes:

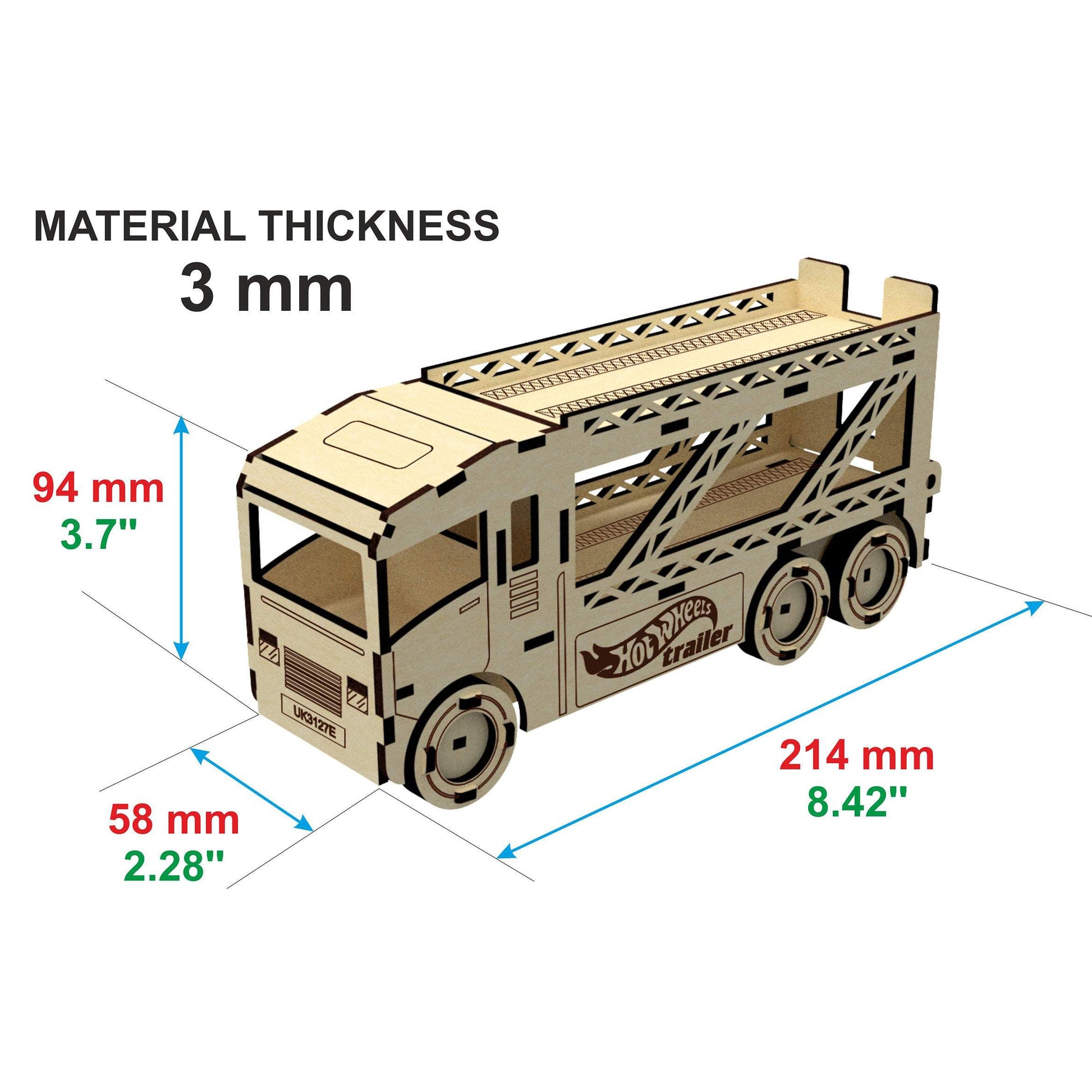

3 mm thickness: 214 x 94 x 58 mm (8,43 x 3,70 x 2,28'')
1/8''(3.175mm) thickness: 226 x 99 x 61 mm (8,92 x 3,92 x 2,42'')

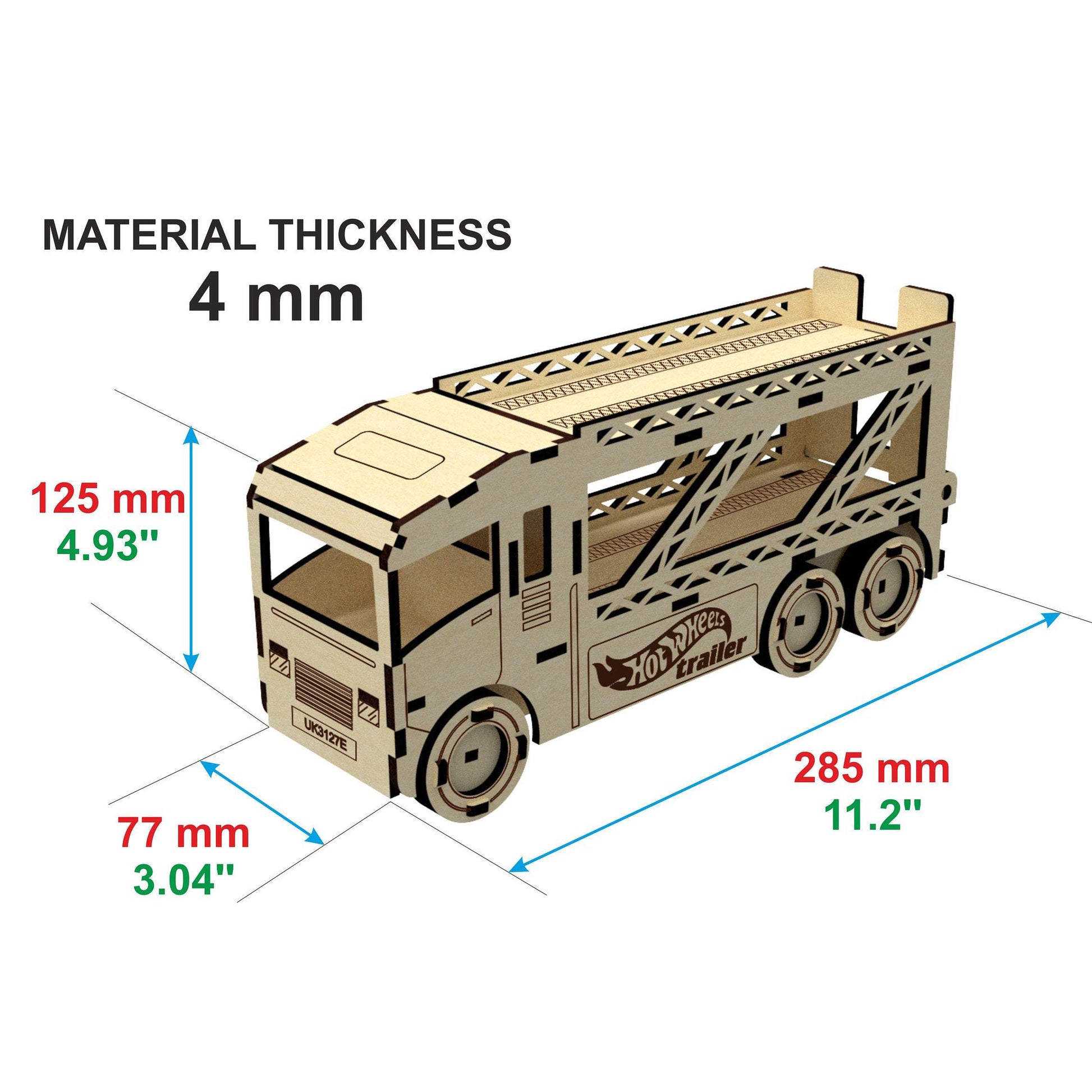

4 mm thickness: 285 x 125 x 77 mm (11,23 x 4,93 x 3,04'')

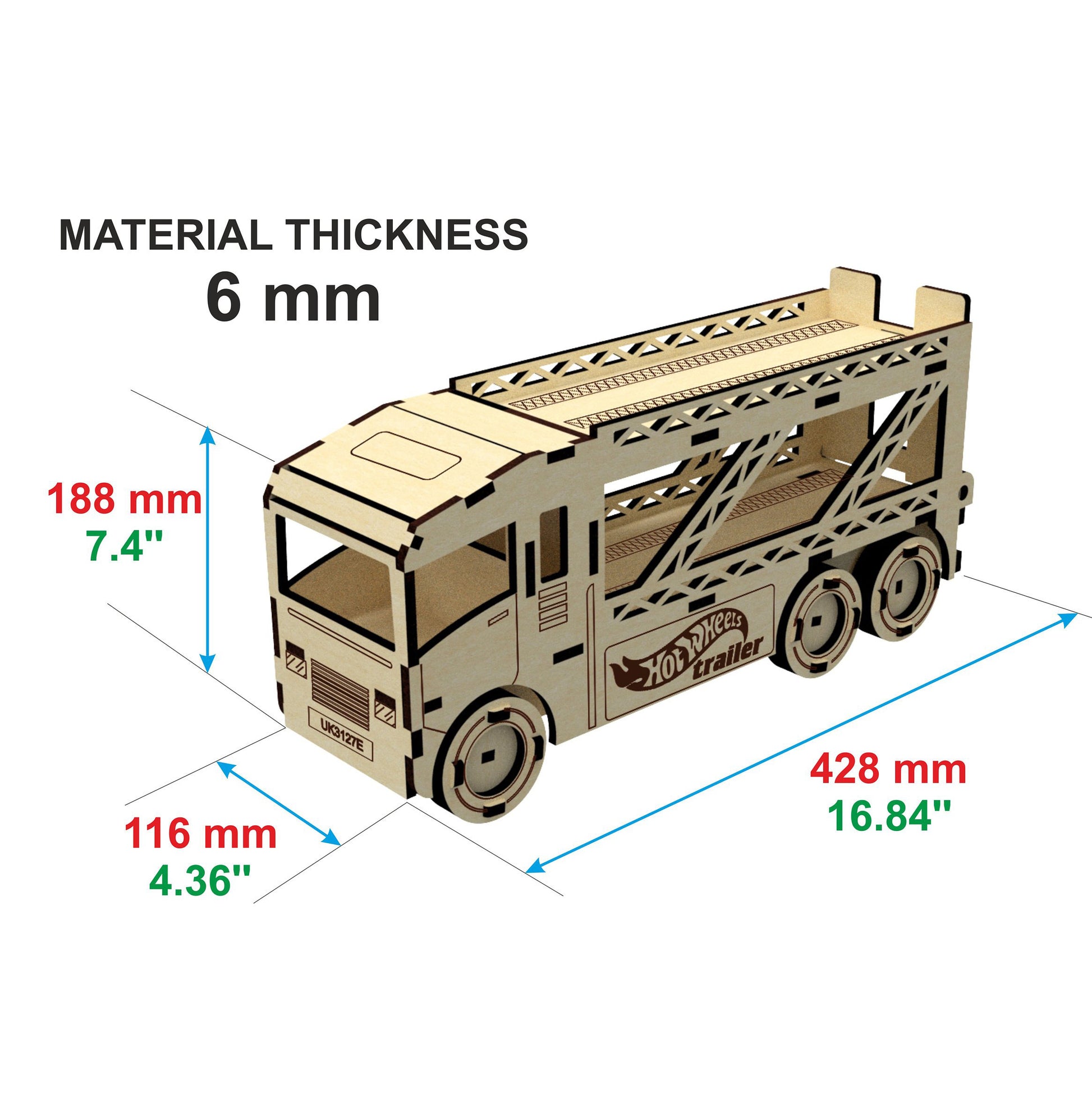

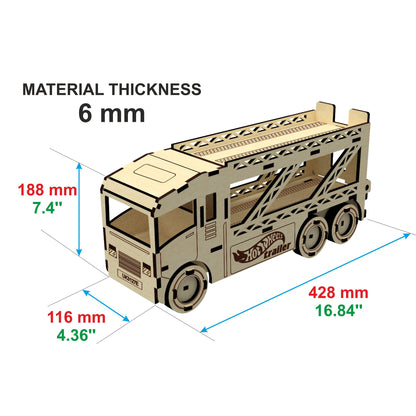

6 mm thickness: 428 x 188 x 116 mm (16,85 x 7,40 x 4,57'')
1/4''(6.35mm) thickness: 453 x 199 x 123 mm (17,83 x 7,83 x 4,83'')
Work area:
3 mm thickness: 635 x 222 mm (25,00 x 8,74'')
1/8''(3.175mm) thickness: 672 x 235 mm (26,46 x 9,25'')
4 mm thickness: 847 x 296 mm (33,33 x 11,65'')
6 mm thickness: 1270 x 444 mm (50,00 x 17,48'')
1/4''(6.35mm) thickness: 1344 x 470 mm (52,92 x 18,50'')
Biggest part:
3 mm thickness: 214 x 81 mm (8,43 x 3,19'')
1/8''(3.175mm) thickness: 226 x 86 mm (8,92 x 3,38'')
4 mm thickness: 285 x 108 mm (11,23 x 4,25'')
6 mm thickness: 428 x 162 mm (16,85 x 6,38'')
1/4''(6.35mm) thickness: 453 x 171 mm (17,83 x 6,75'')

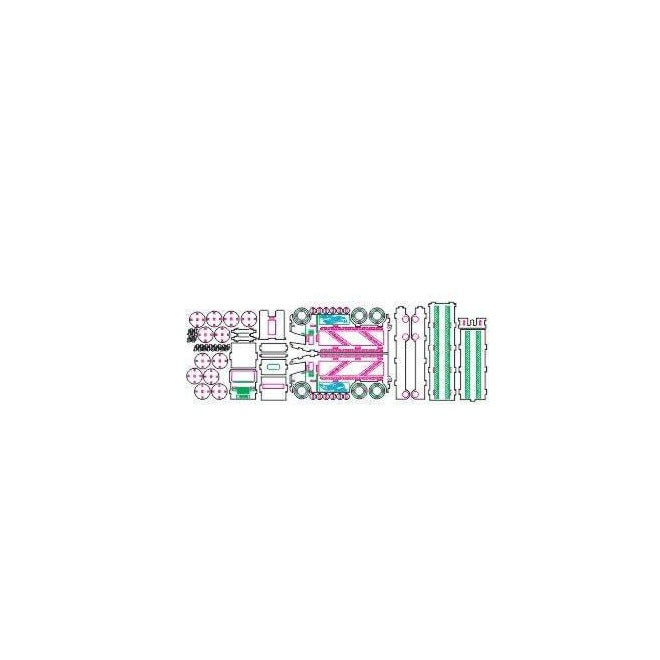

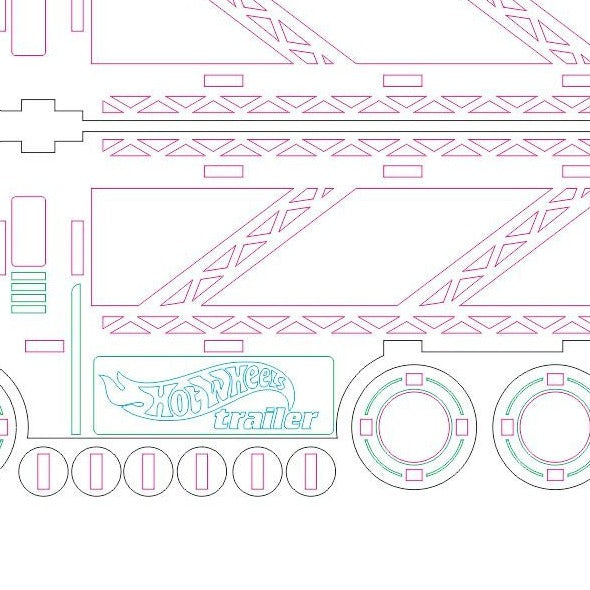

In the file:
blue color - engrave
green color - draw
pink color - cut
black color - cut
What you receive:
You will download 1 ZIP files for 3mm, 4mm and 6mm containing the following:
the CDR, DXF, AI and SVG file for laser cutting and PDF-file with assembly instructions
If you have any questions feel free to contact us.
We also can change the file for your material thickness free.
These files are vector-based and compatible with all laser cut software, milling machine, CNC plasma cutting machine
This is an Instant Digital Download
The item is non-refundable because it's not physical.
YOU CAN use the files for personal purposes and for your small business. For commercial use, indicate my authorship "Designed by Ivan Bilous"
YOU CANNOT share, redistribute or resell the files.
Copyright is not transferable with the sale.
Wholesale cheaper
Use promocodes for discount
3 files - WHOLESALE3 - 15%
5 files - WHOLESALE5 - 20%
10 files - WHOLESALE10 - 30%
This model also available on Etsy here
