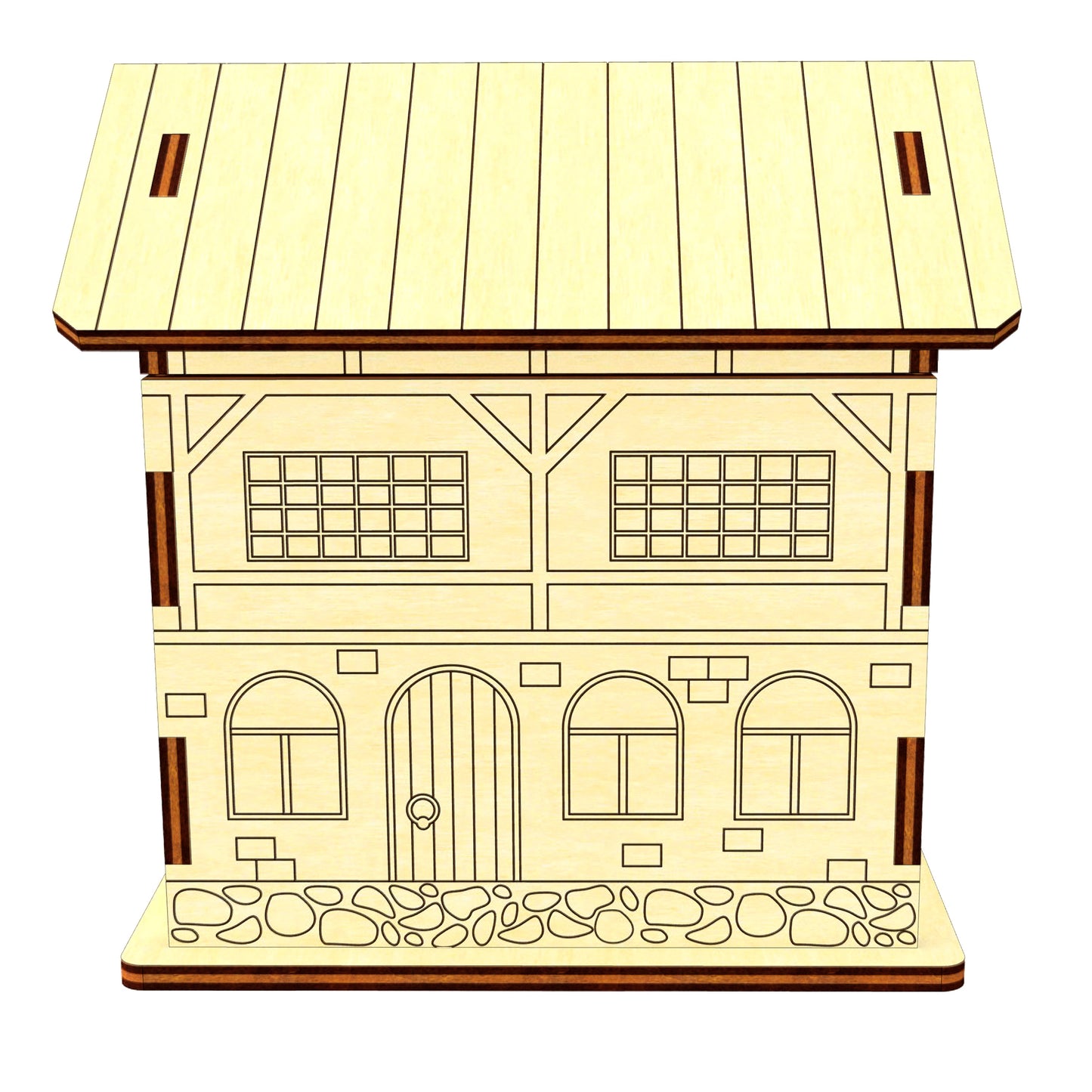

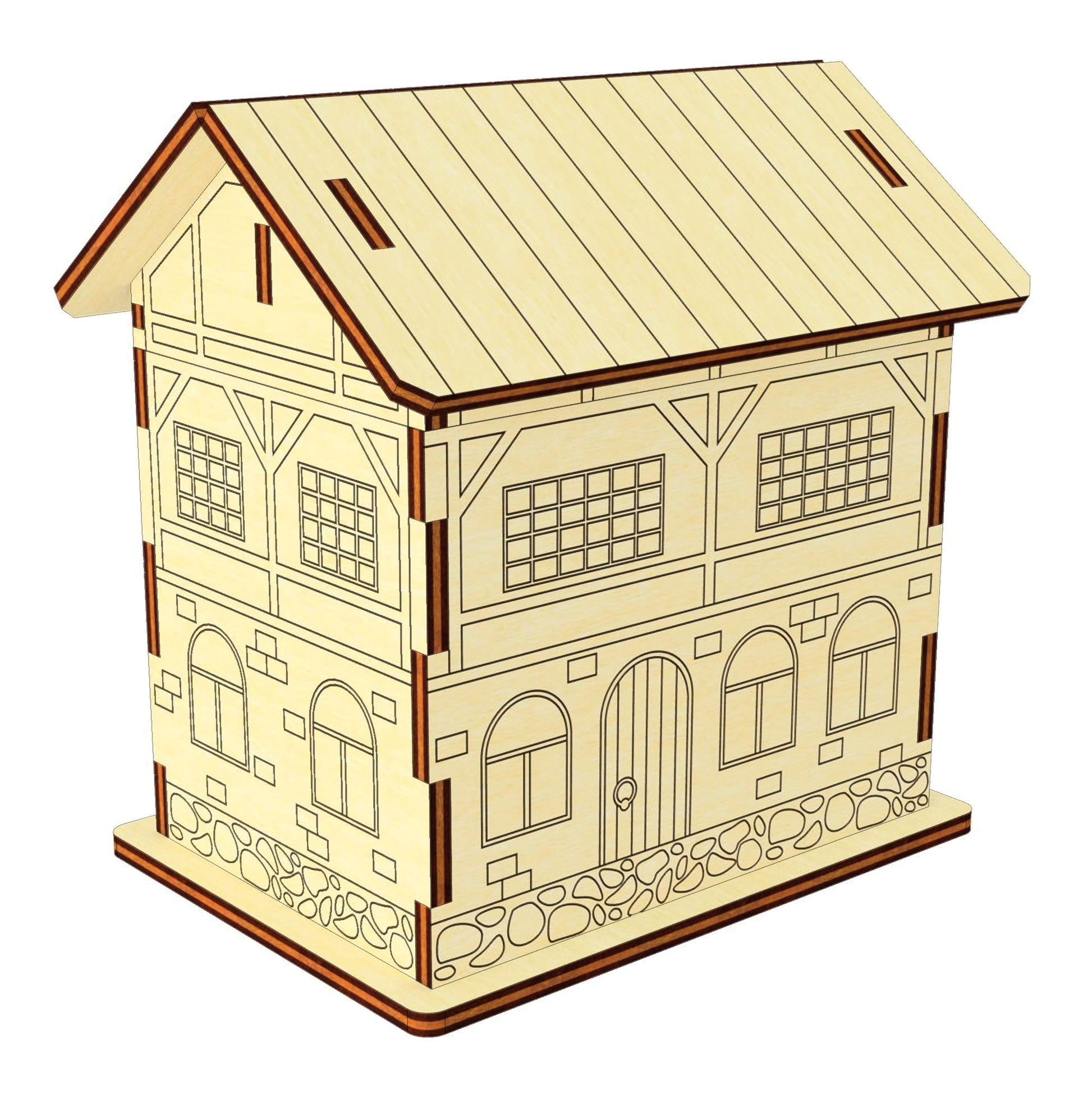

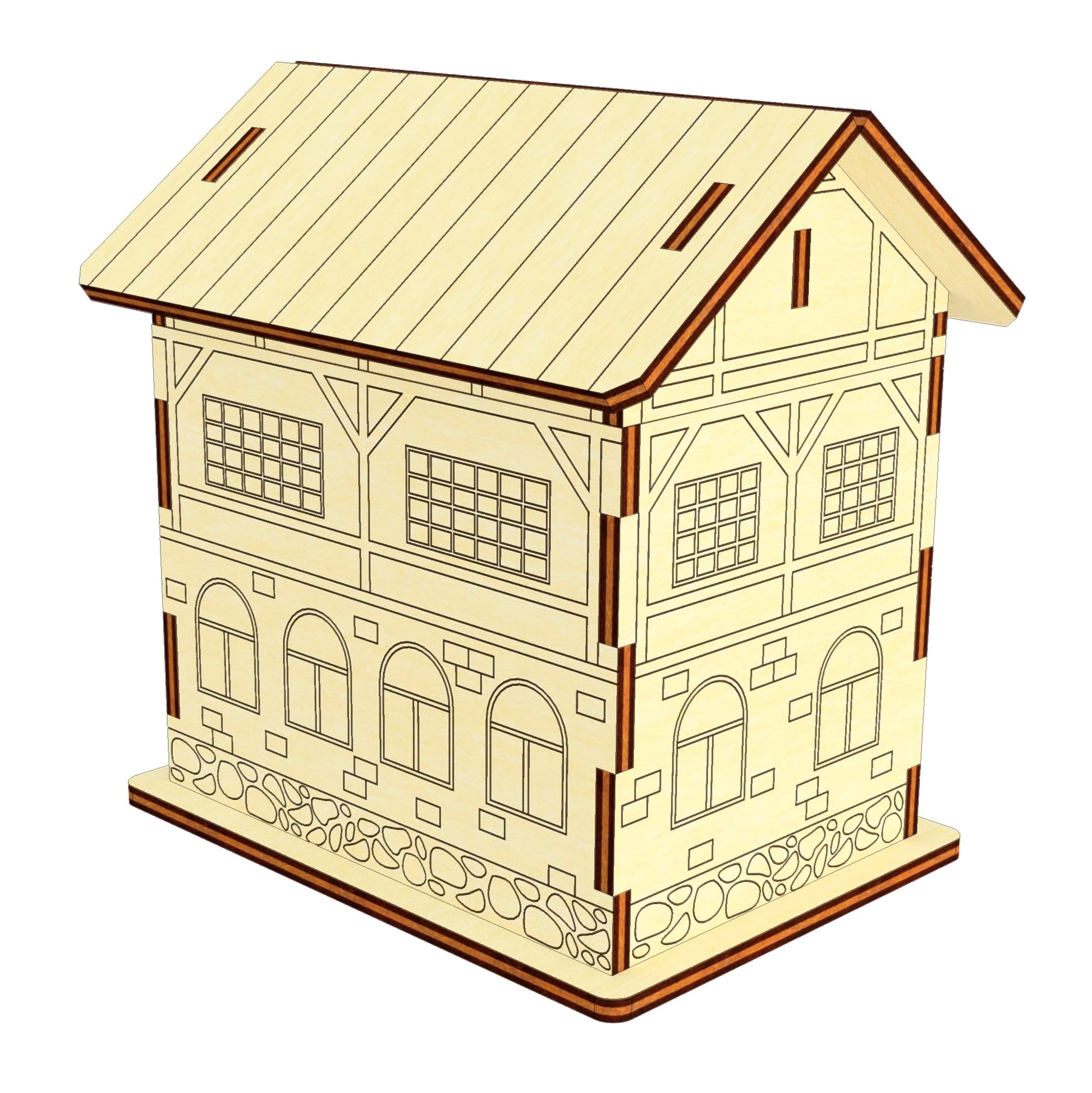

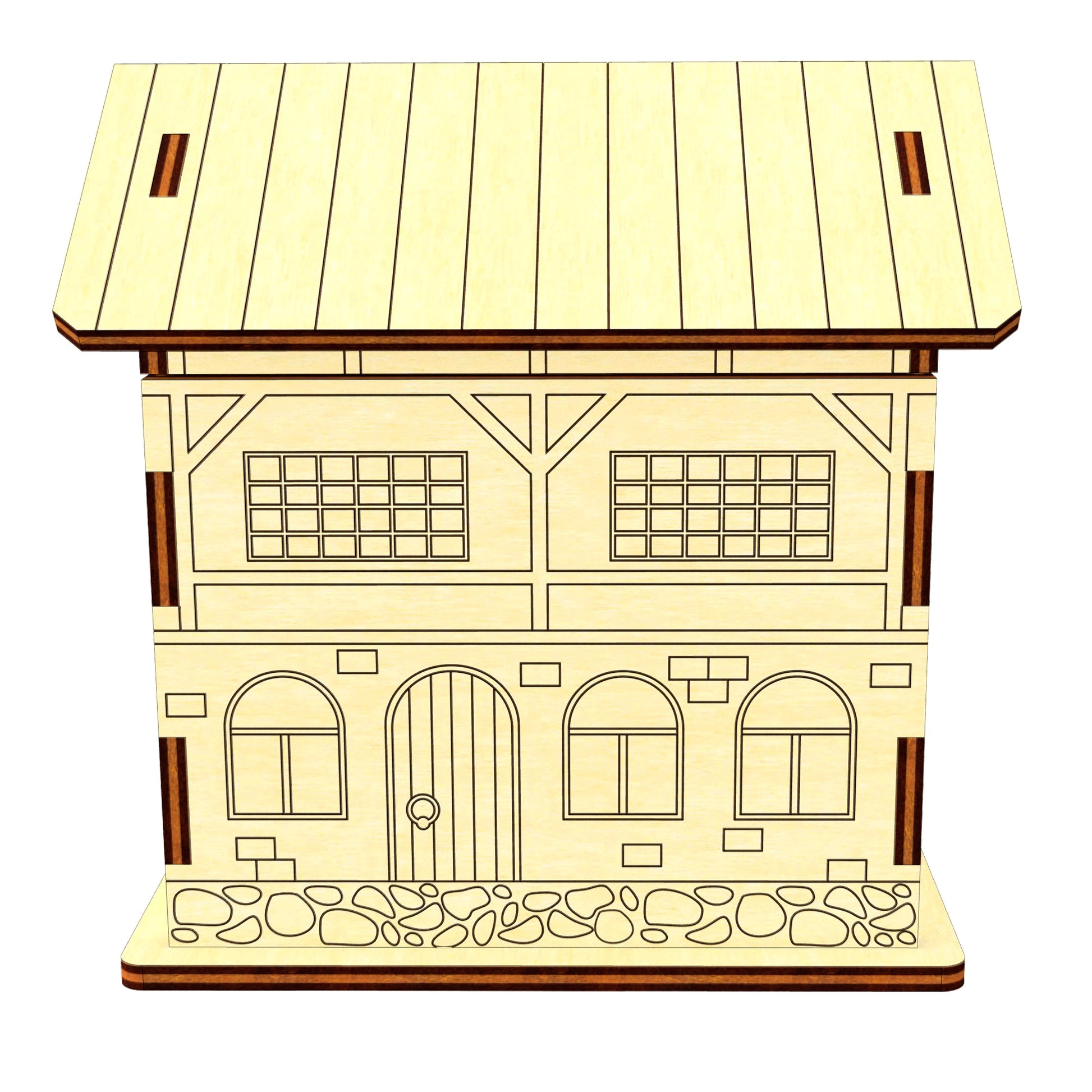

House of the Castle

🎨 Laser cut design House of the Castle 🎨
DIGITAL FILE for laser cutting machine, paper cutting machines, CNC

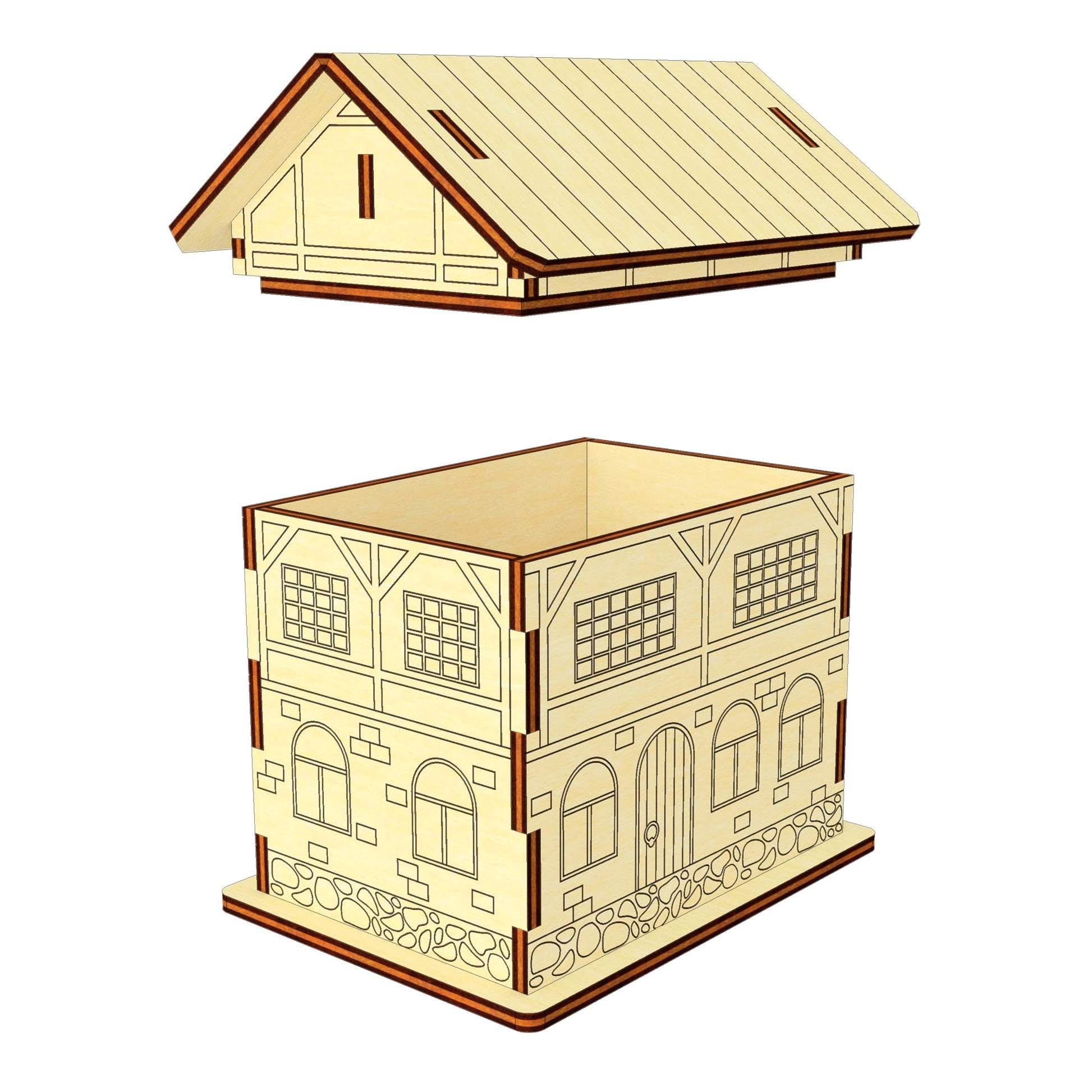

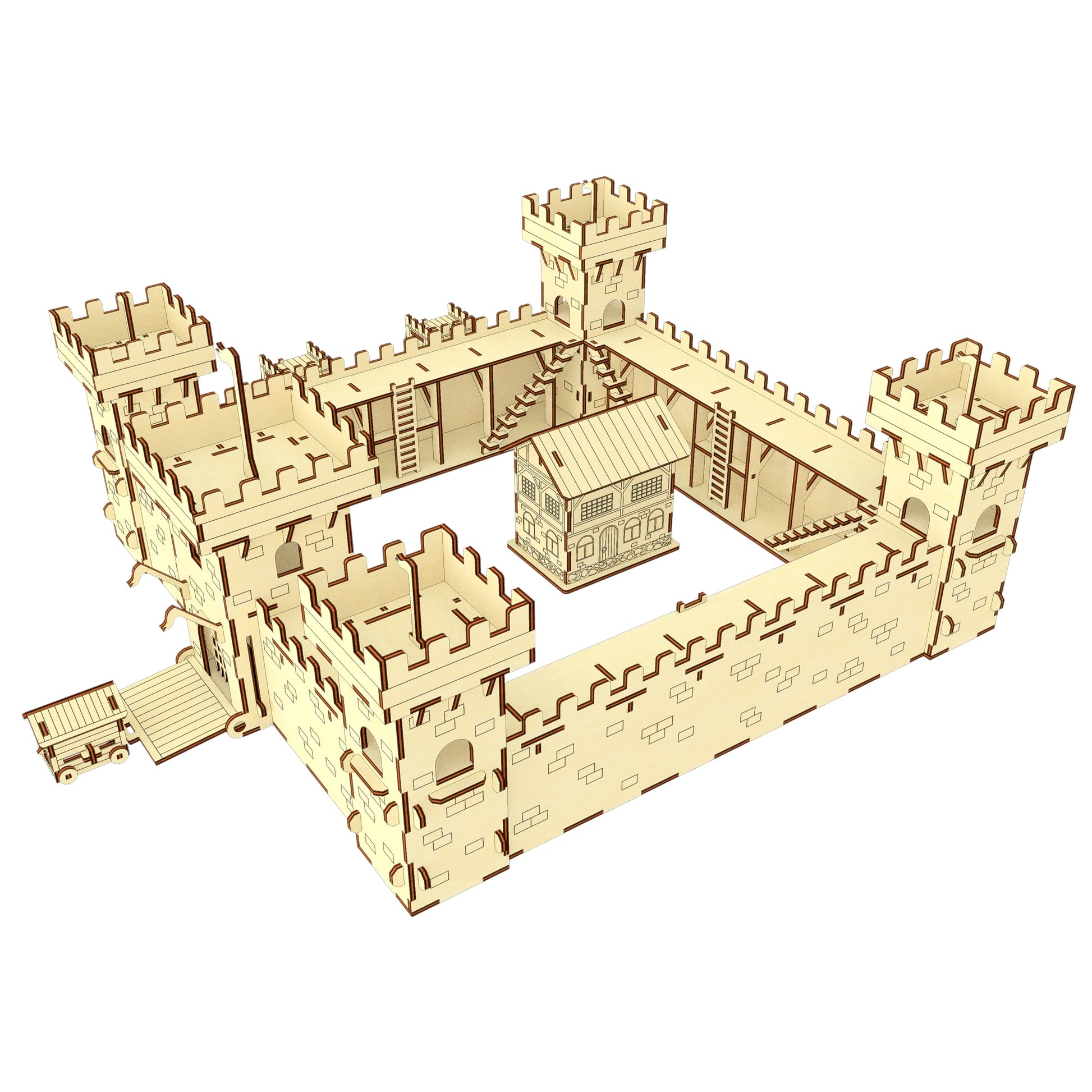

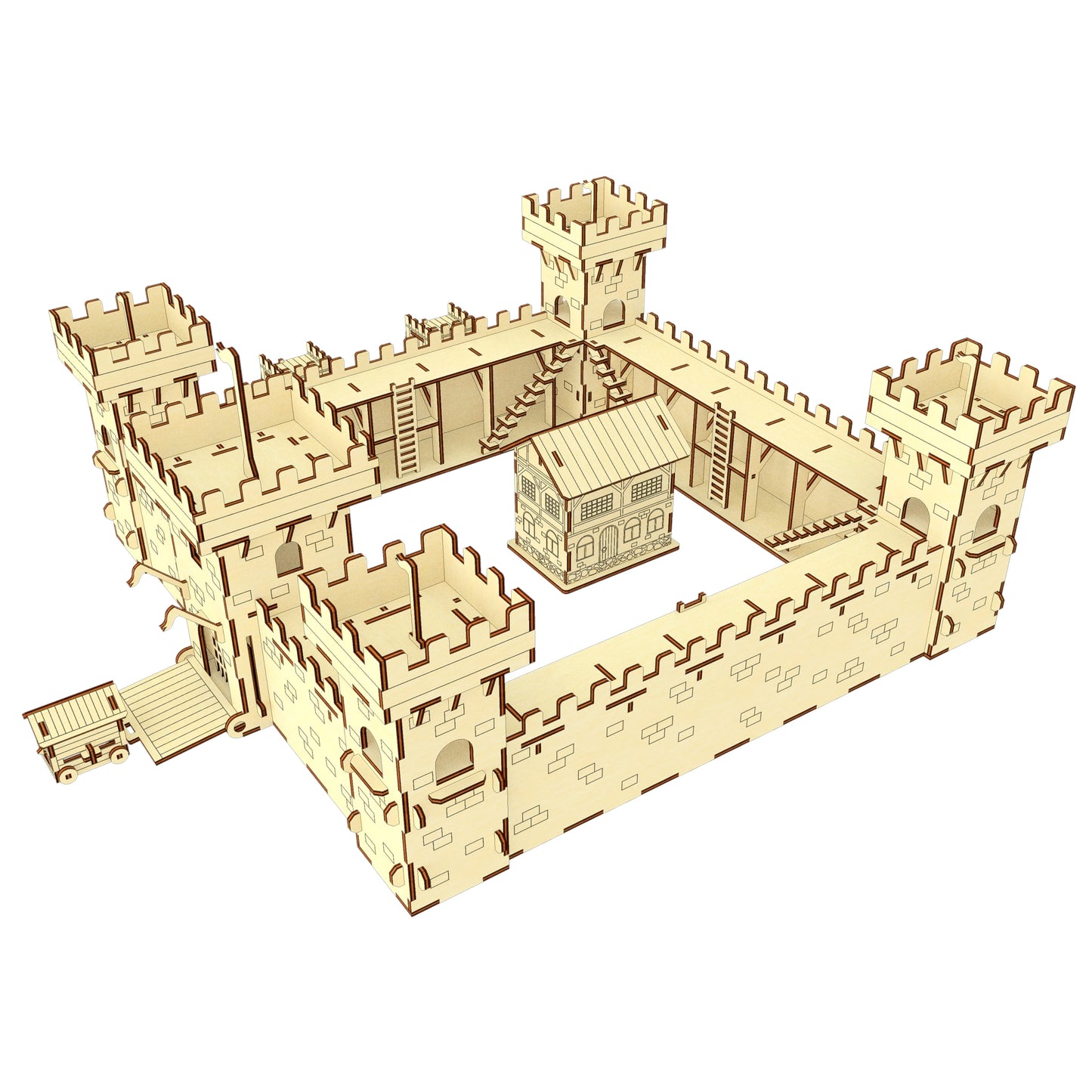

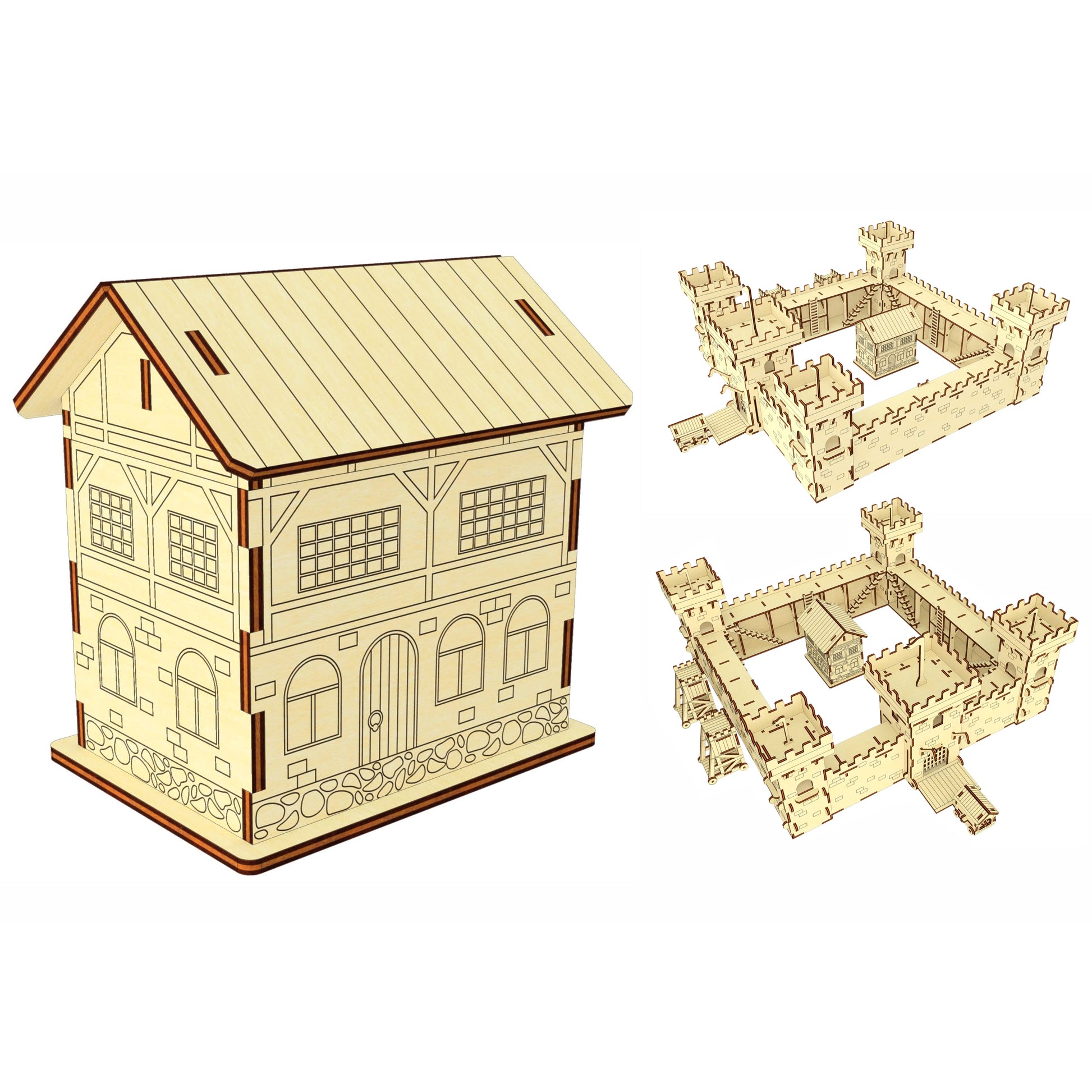

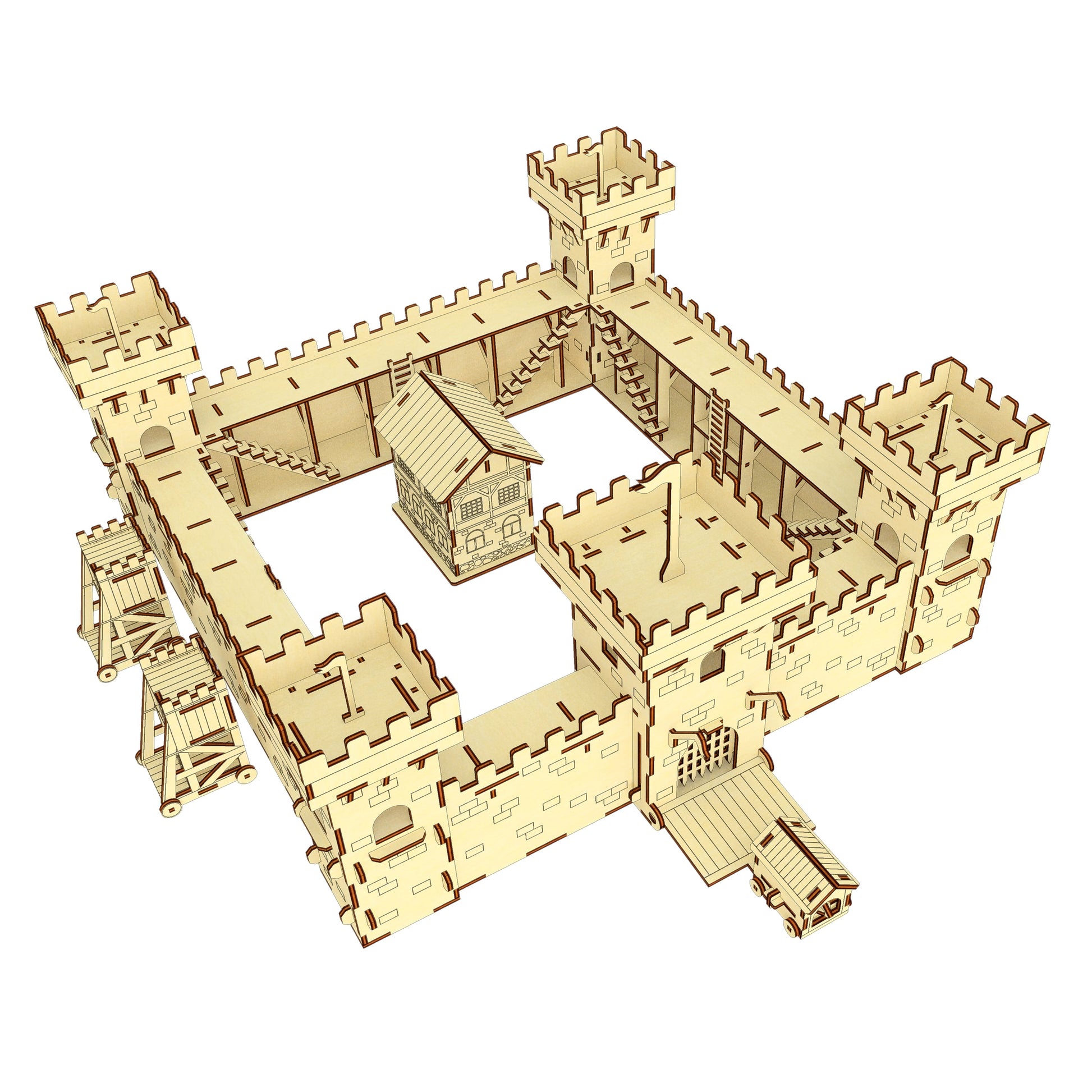

This is one of the blocks of the castle. In the future, I plan to expand this design and create many additions for it (towers, walls, gates, bridges, etc.) that can be combined with each other.

You will be able to design and connect these blocks to create a wide variety of the castles.

Watch for new additions in my store in a separate category "Castle set" or just text in the search field "Castle" to see everything that is available at the moment

Also you can see full blocks of the Castle designs by this link

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

🤏Material thickness (versions of the files): 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

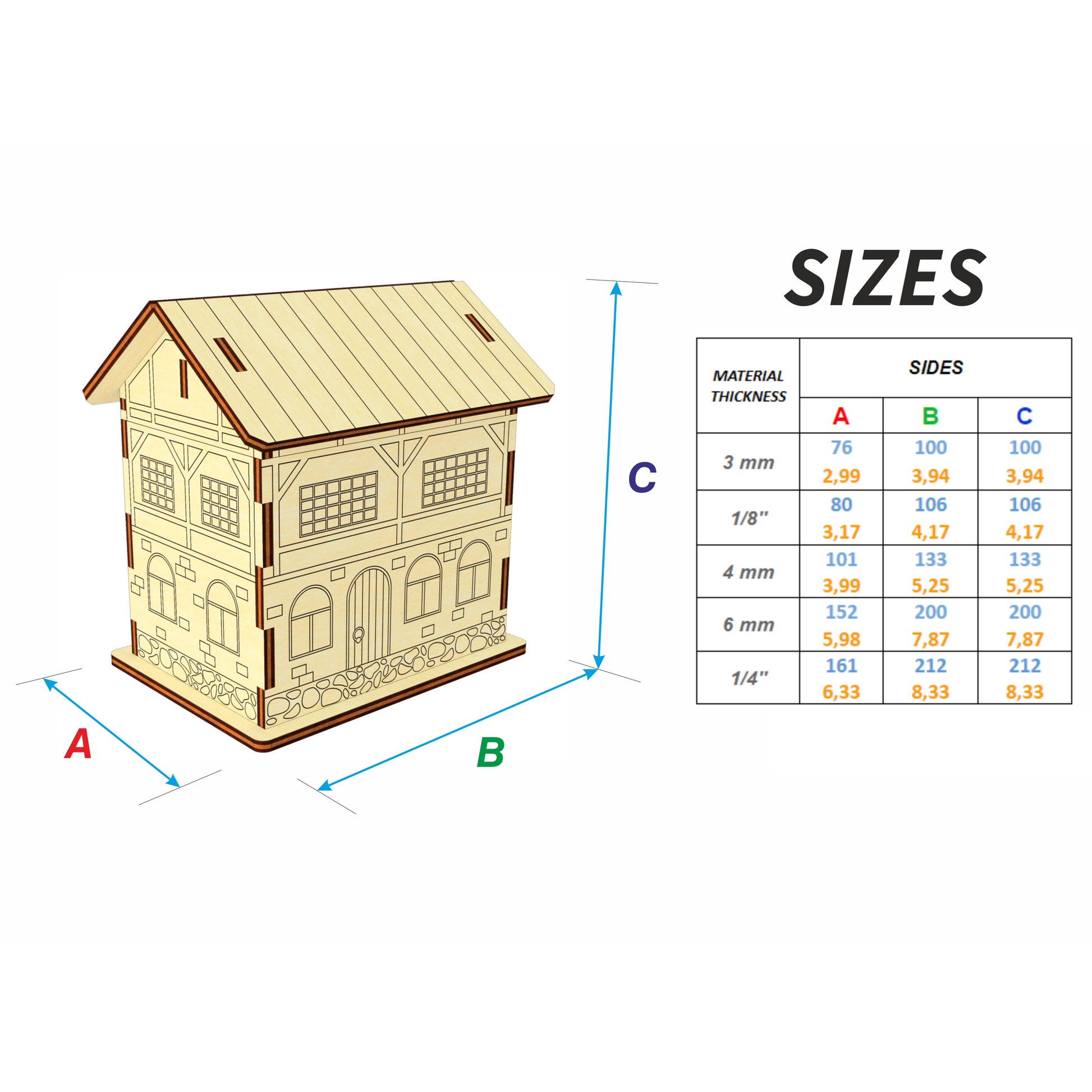

📏 Finished SIZE:
3 mm thickness: 76 x 100 x 100 mm (2,99 x 3,94 x 3,94'')
1/8''(3.175mm) thickness: 80 x 106 x 106 mm (3,17 x 4,17 x 4,17'')
4 mm thickness: 101 x 133 x 133 mm (3,99 x 5,25 x 5,25'')
6 mm thickness: 152 x 200 x 200 mm (5,98 x 7,87 x 7,87'')
1/4''(6.35mm) thickness: 161 x 212 x 212 mm (6,33 x 8,33 x 8,33'')

📐WORK AREA:
3 mm thickness: 267 x 231 mm (10,51 x 9,09'')
1/8''(3.175mm) thickness: 283 x 244 mm (11,13 x 9,63'')
4 mm thickness: 356 x 308 mm (14,02 x 12,13'')
6 mm thickness: 534 x 462 mm (21,02 x 18,19'')
1/4''(6.35mm) thickness: 565 x 489 mm (22,25 x 19,25'')

🟧 LARGEST PART:
3 mm thickness: 95 x 70 mm (3,74 x 2,76'')
1/8''(3.175mm) thickness: 101 x 74 mm (3,96 x 2,92'')
4 mm thickness: 127 x 93 mm (4,99 x 3,67'')
6 mm thickness: 190 x 140 mm (7,48 x 5,51'')
1/4''(6.35mm) thickness: 201 x 148 mm (7,92 x 5,83'')

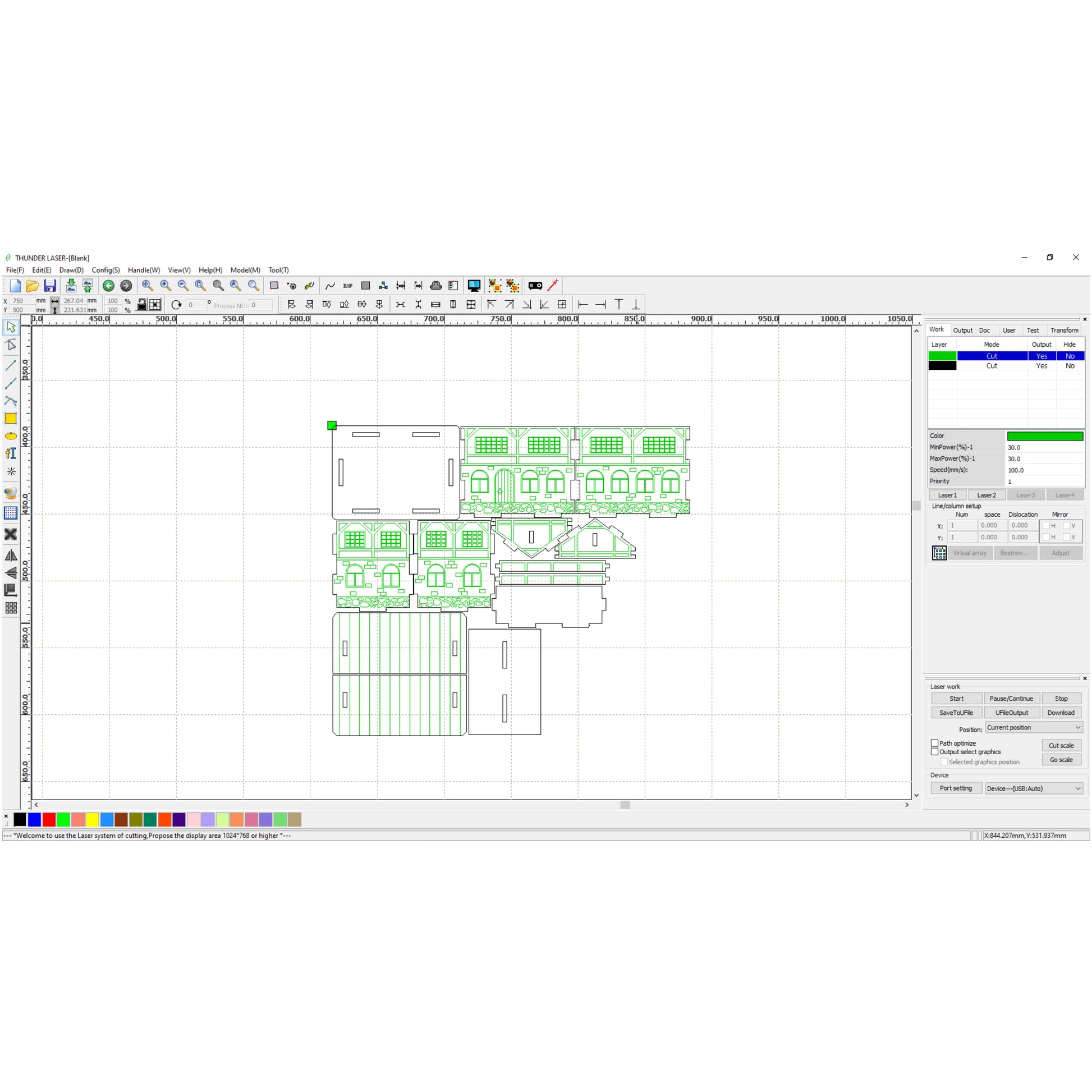

⚙️COLOR MODE SETTING:
green color - score / draw (cut with low power and high speed)
black color - cut

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

This model also available on Etsy here
