Grill BBQ Miniature

$5.00 USD

Sale Sold out

Instant digital download.

This is a digital product that will be automatically sent to your email address after purchase

License Starter Commercial License (up to 30) Personal License Commercial License (up to 100) Extended Commercial License (unlimited)

Special commercial offer

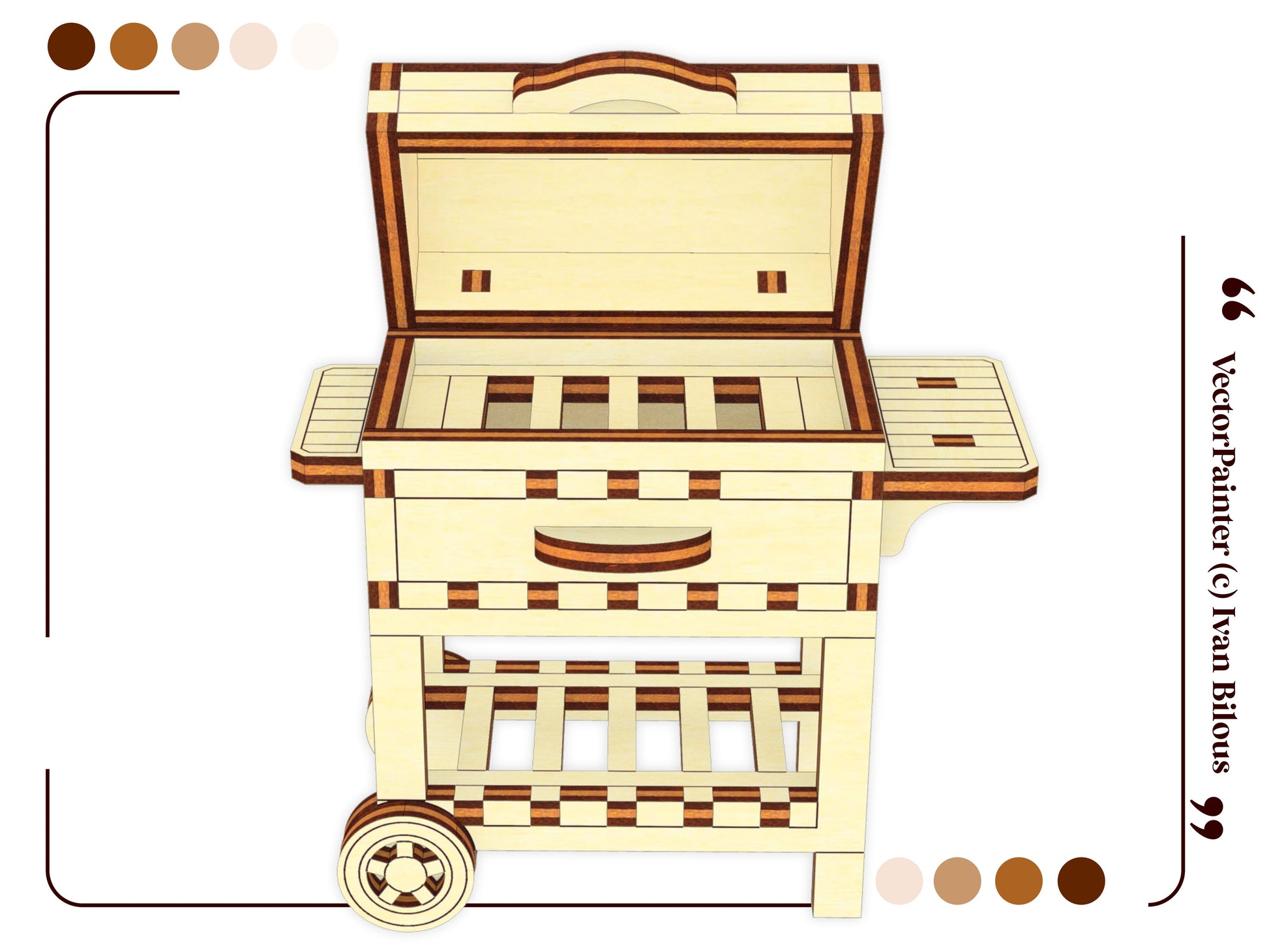

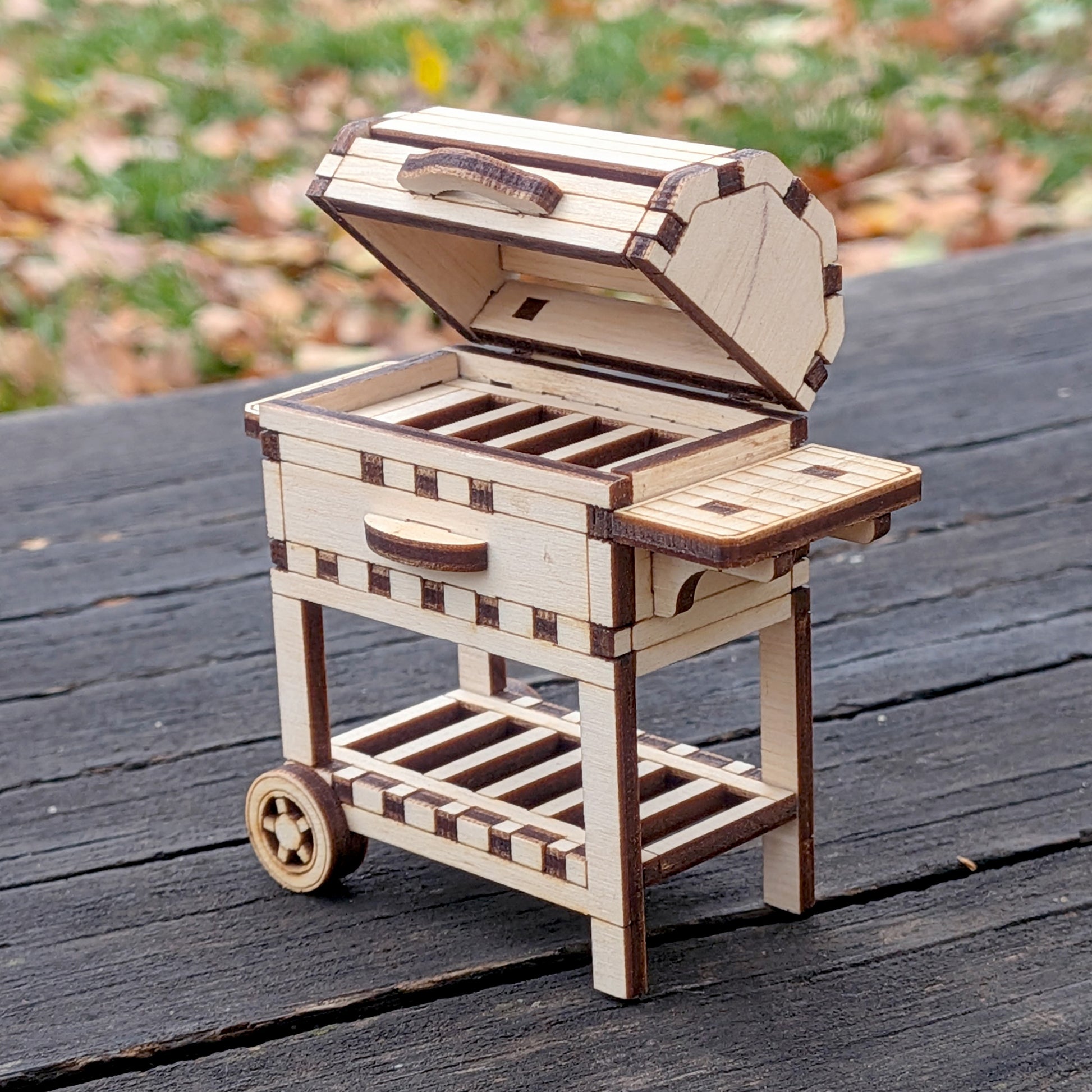

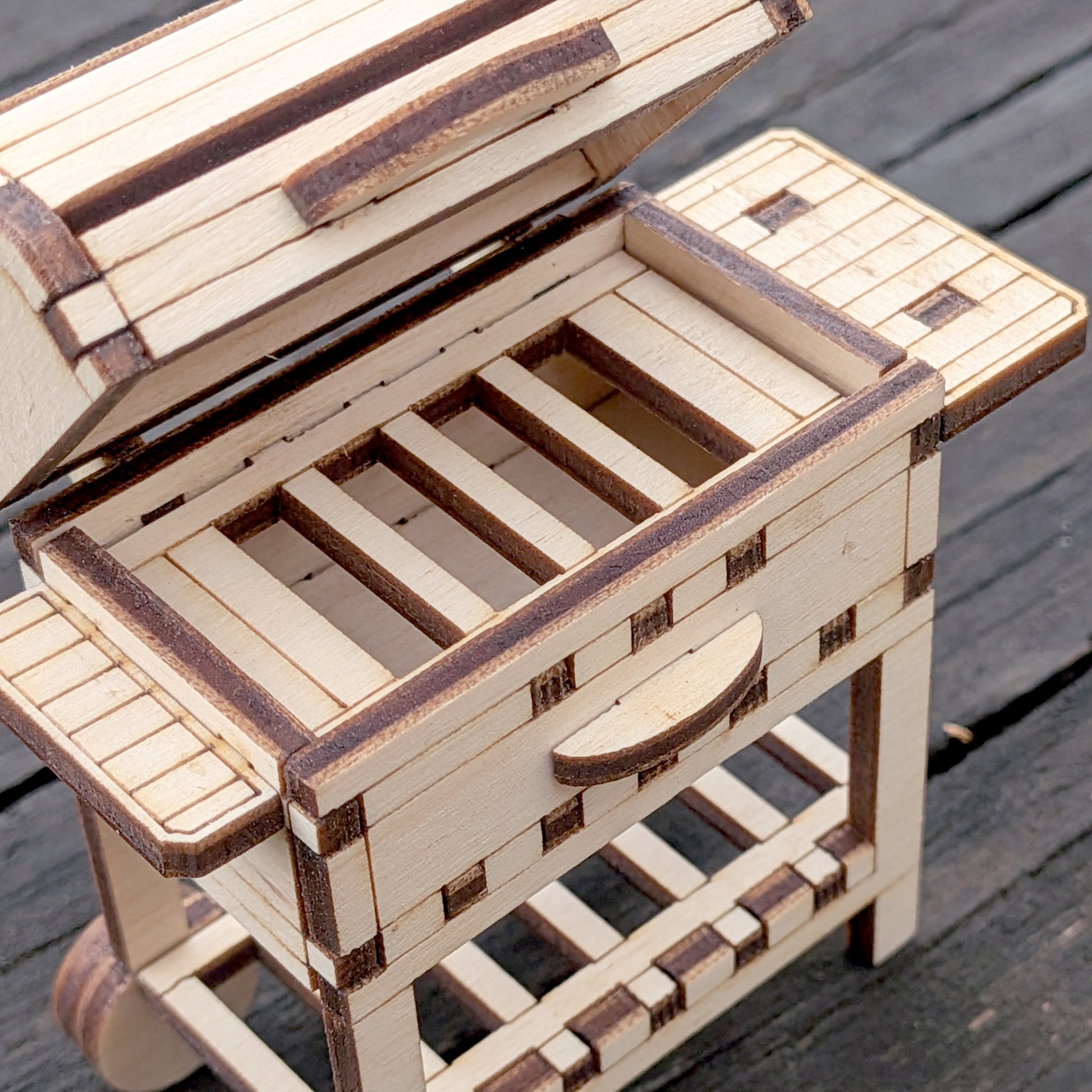

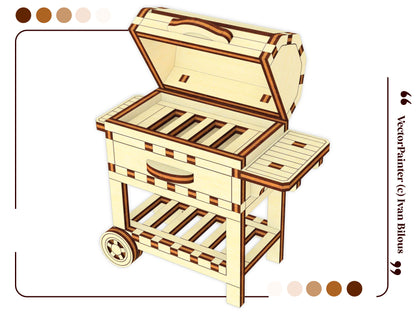

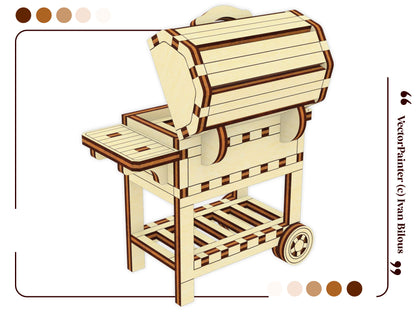

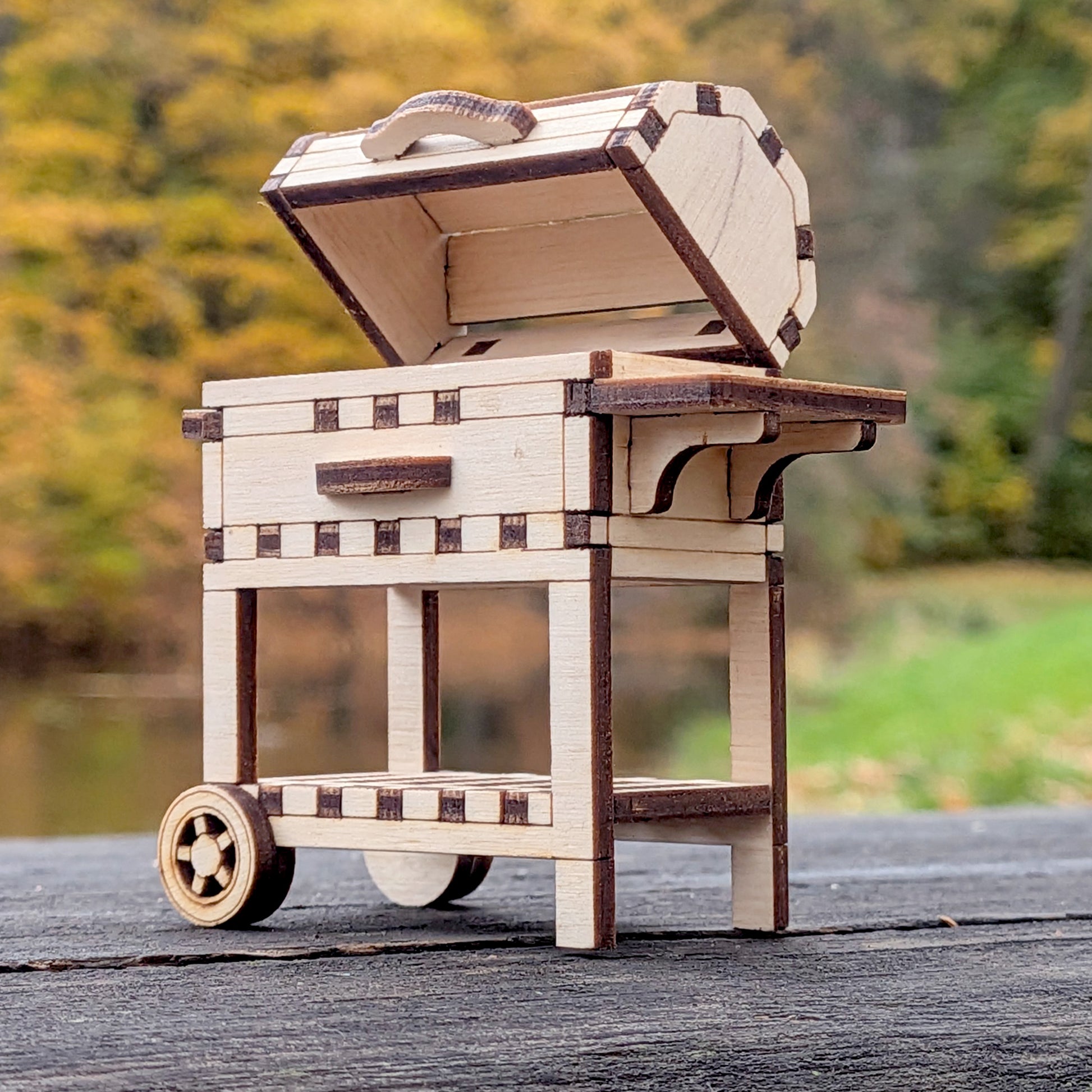

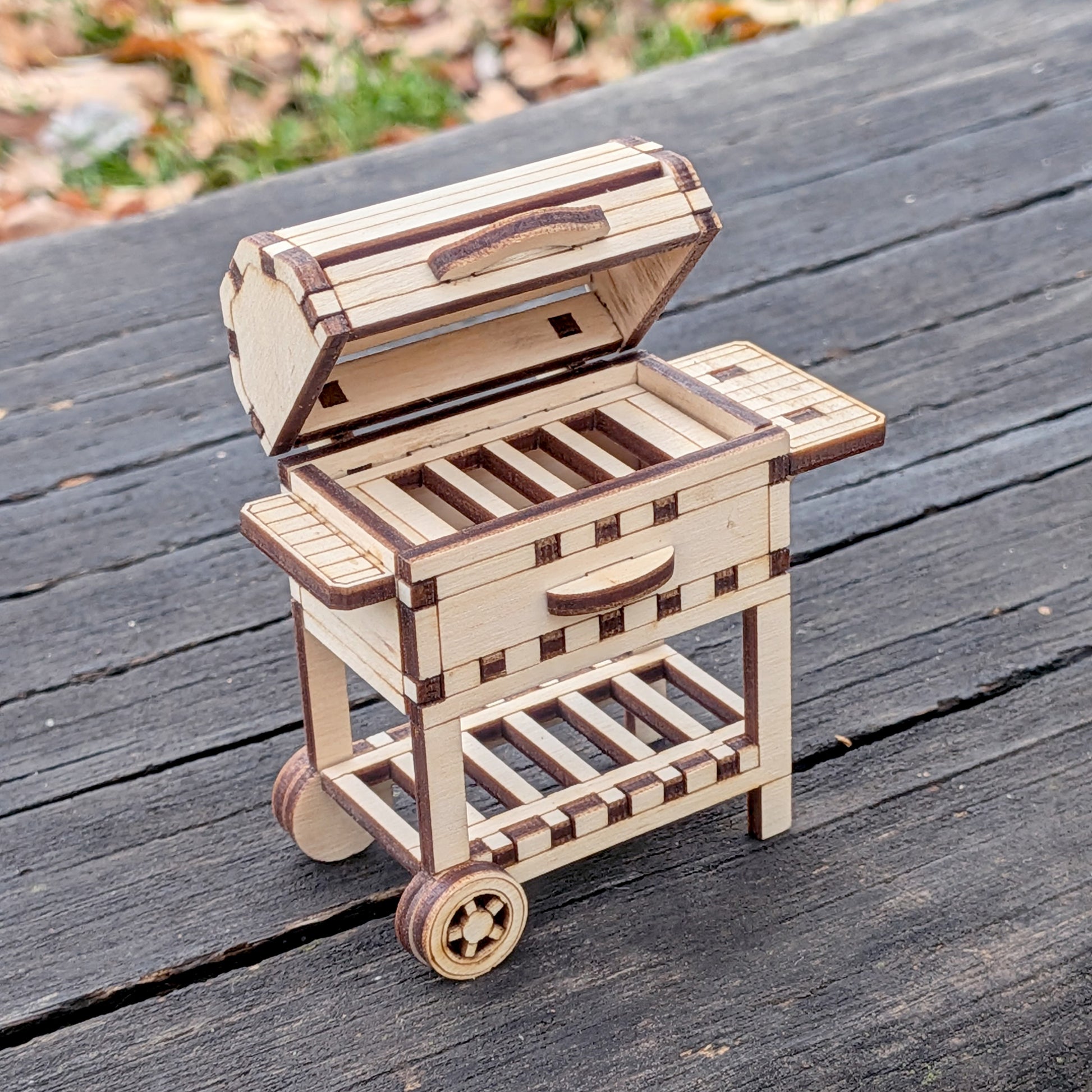

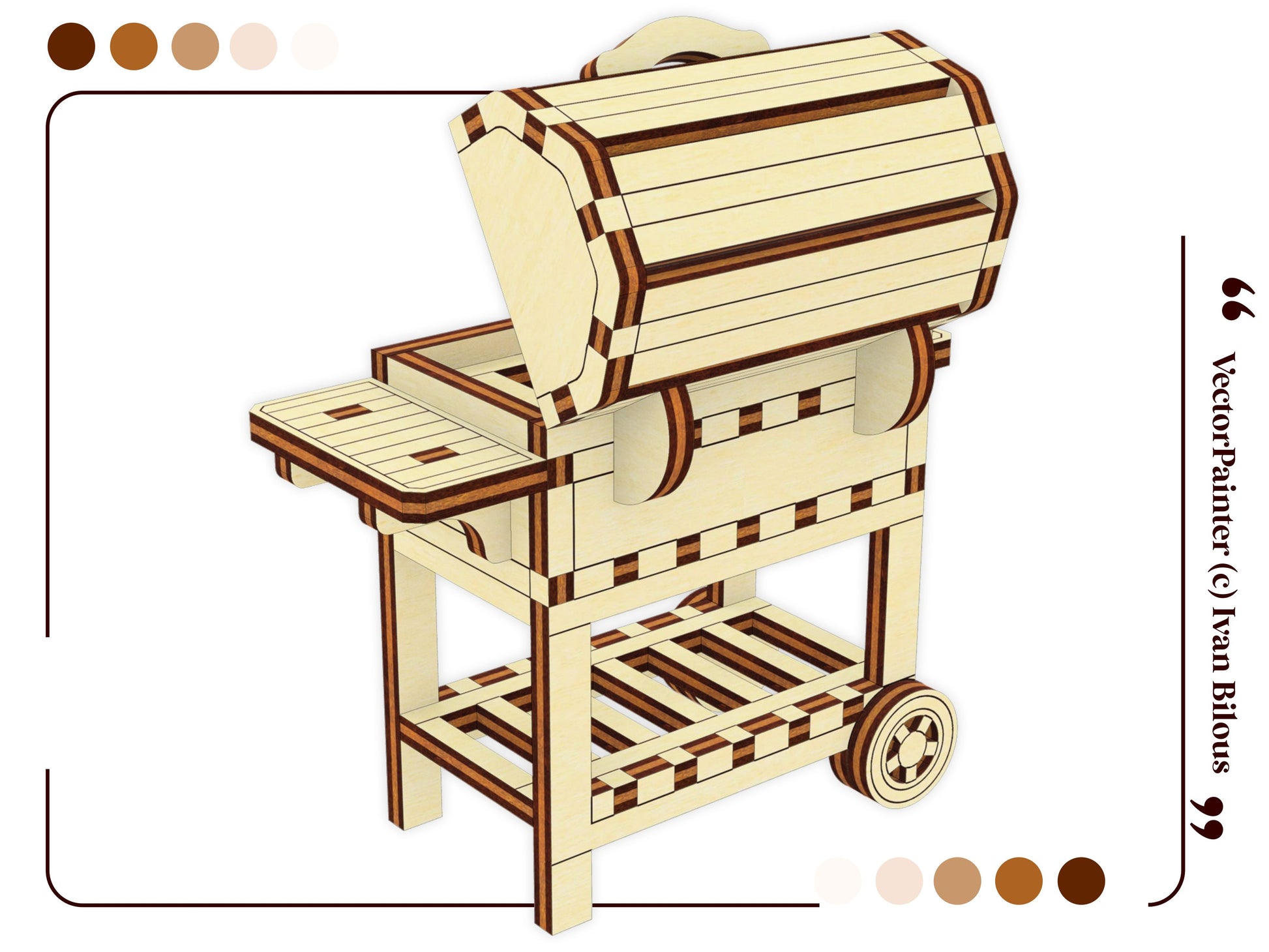

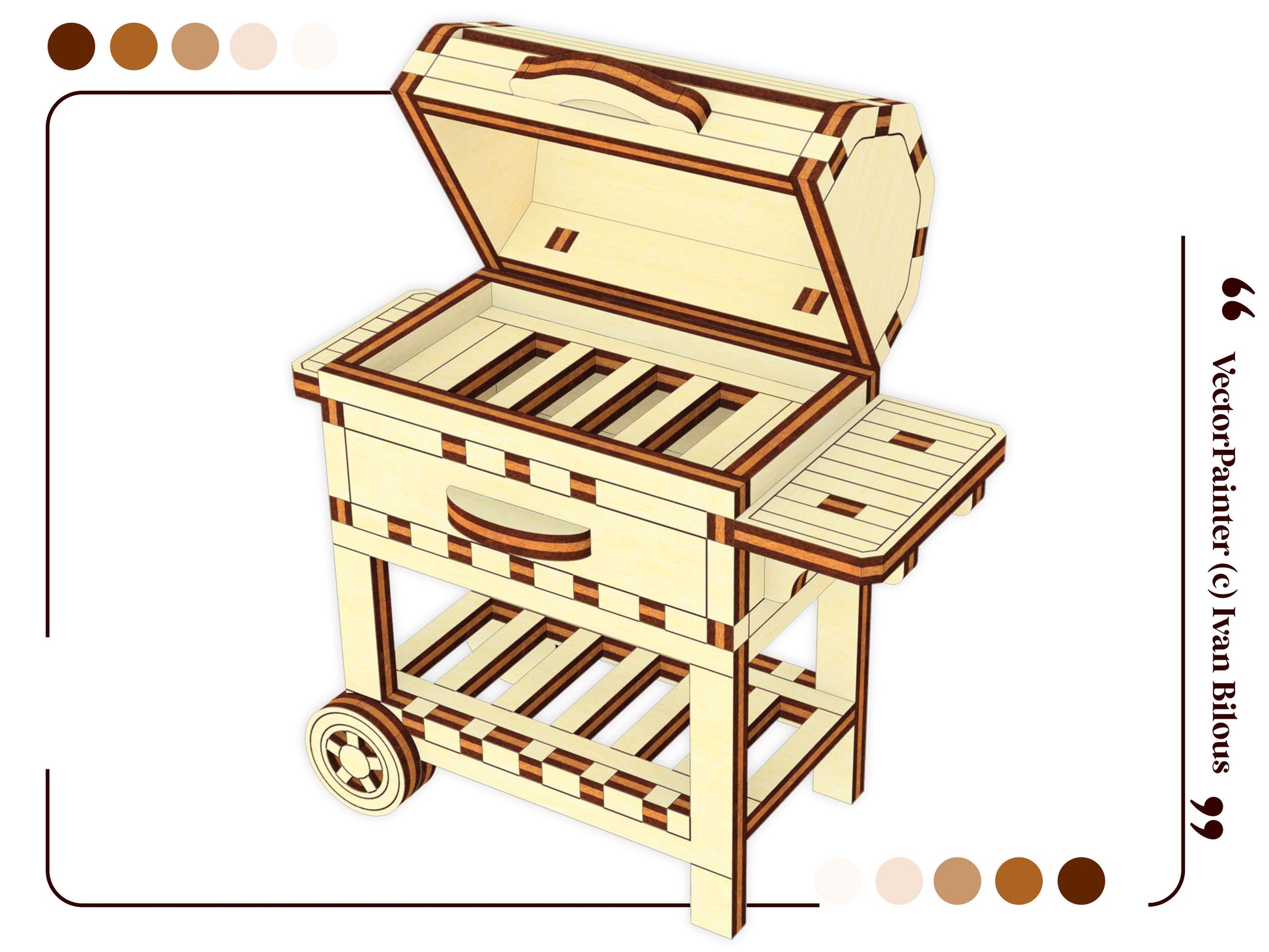

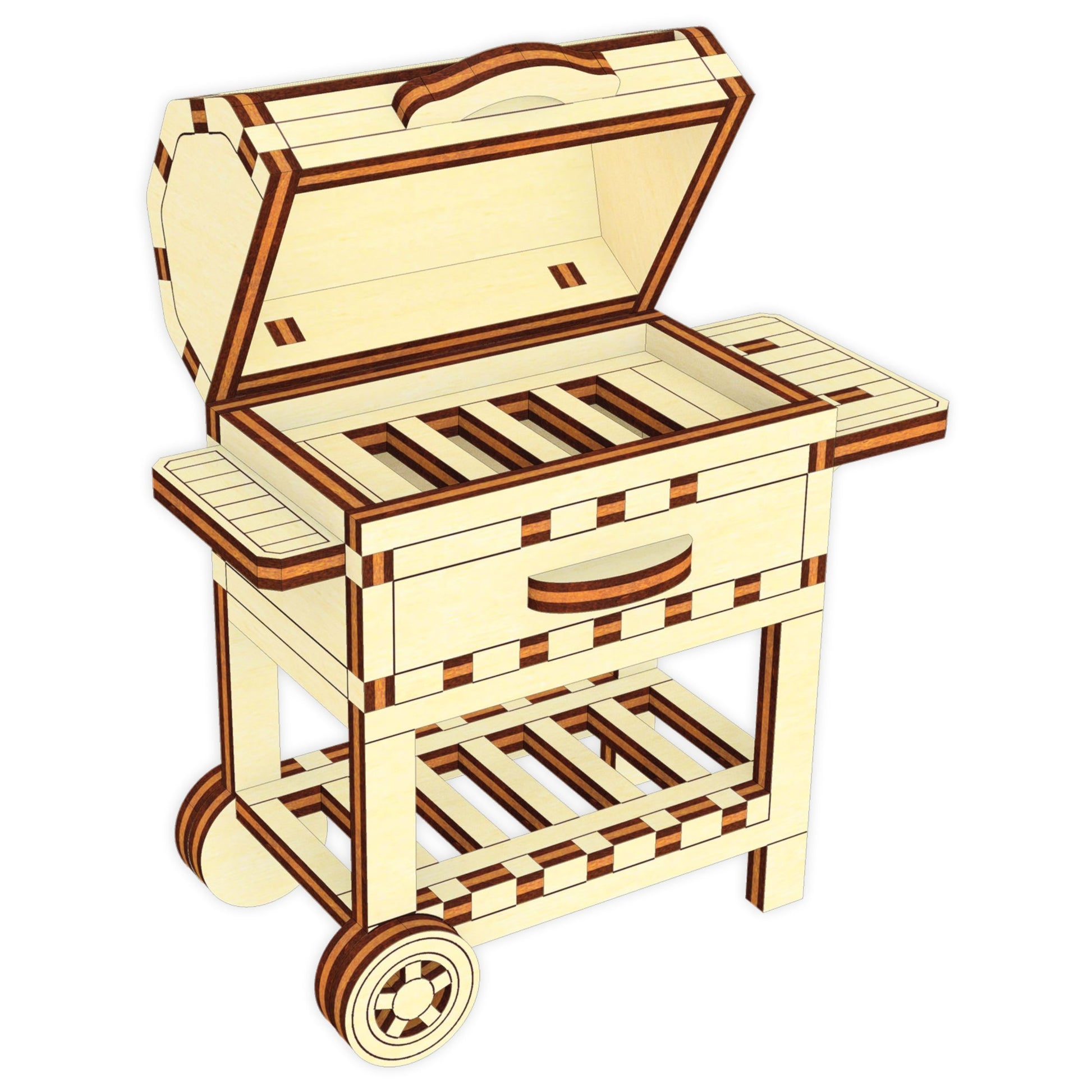

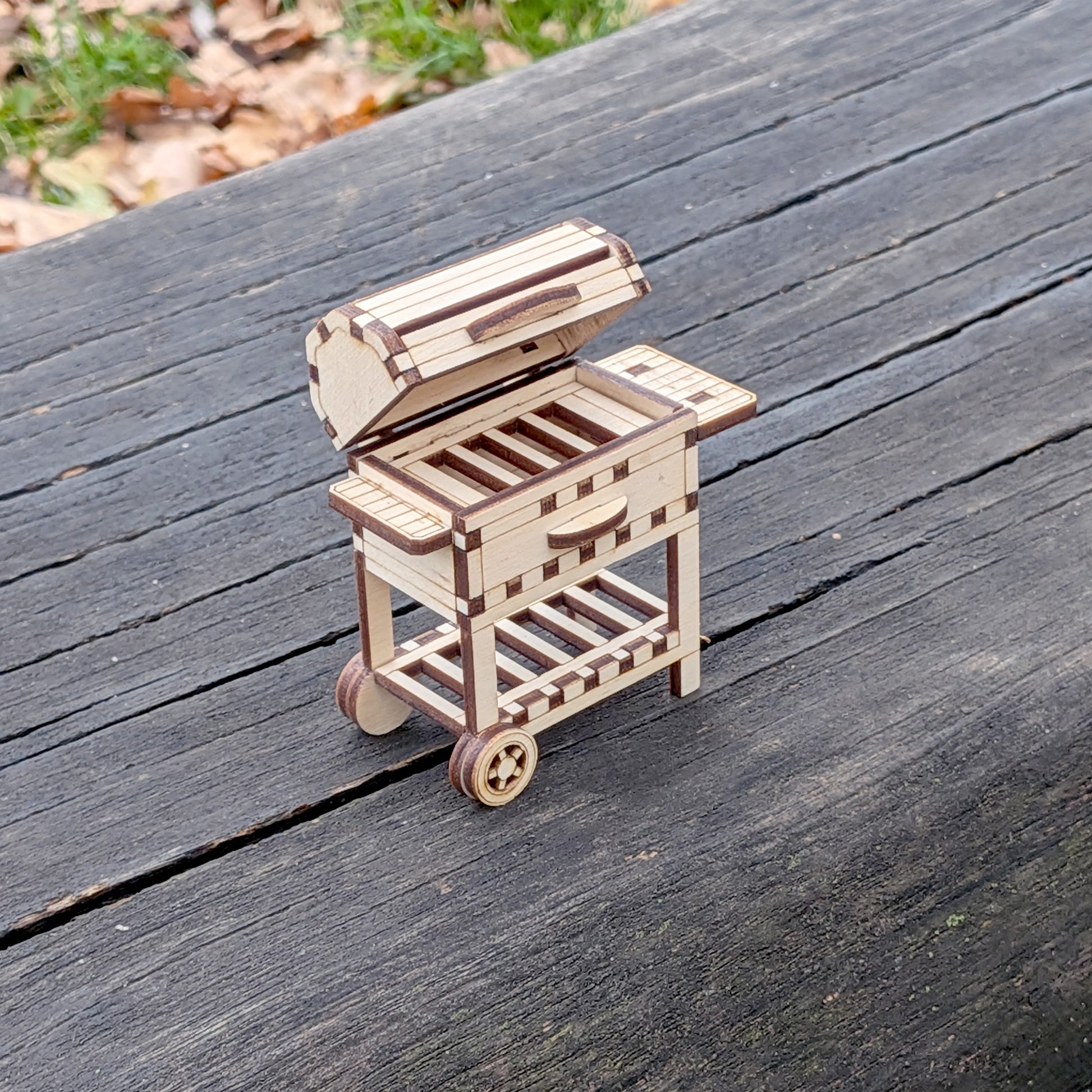

Laser cut file – Miniature Grill BBQ model for plywood crafting. Inspired by classic outdoor cookouts, this tiny grill brings fun and charm to any miniature or dollhouse scene. Designed for laser cutting machines, this digital plan includes layered parts and realistic details like a lid, grate, and handles. A perfect project for DIY lovers and collectors, it also makes a great gift or display piece.

🎨 Laser cut design Grill Miniature 🎨
DIGITAL FILE for laser cutting machine

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

🤏Material thickness (versions of the files): 3 mm, 1/8'' (3.175 mm), 4 mm, 5 mm, 6 mm, 1/4'' (6.35 mm)

Level of assembly difficulty: ⚫⚫⚪⚪⚪
⚠️ Contains small parts
⚠️ Some parts are glued

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

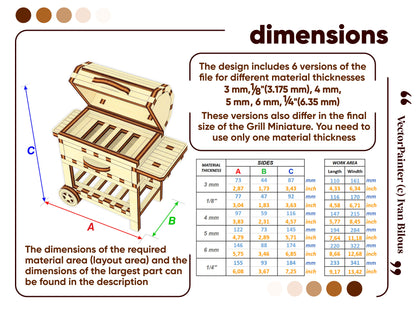

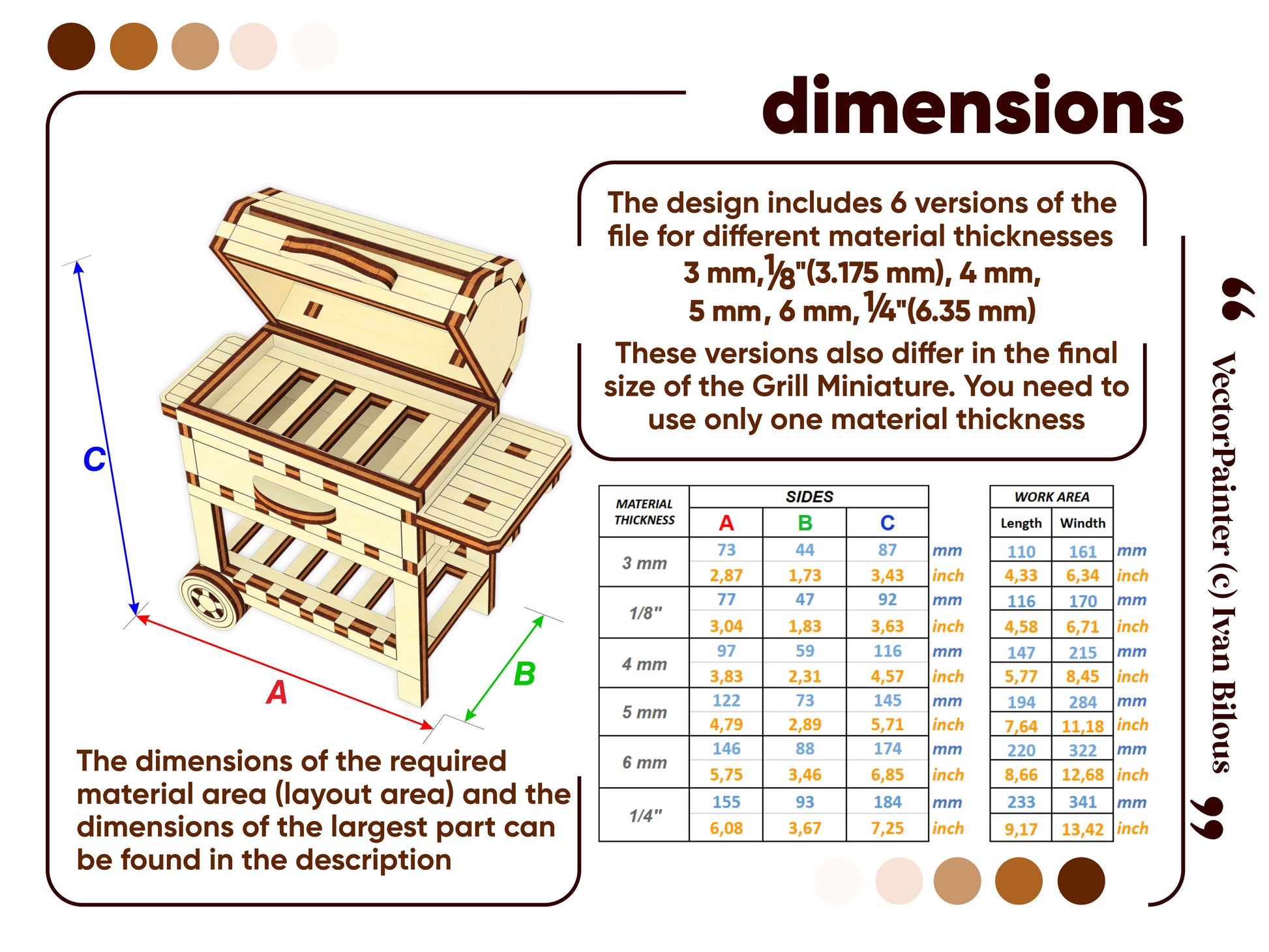

📏 Finished SIZE
3 mm thickness: 73 x 44 x 87 mm (2,87 x 1,73 x 3,43'')
1/8''(3.175mm) thickness: 77 x 47 x 92 mm (3,04 x 1,83 x 3,63'')
4 mm thickness: 97 x 59 x 116 mm (3,83 x 2,31 x 4,57'')
5 mm thickness: 122 x 73 x 145 mm (4,79 x 2,89 x 5,71'')
6 mm thickness: 146 x 88 x 174 mm (5,75 x 3,46 x 6,85'')
1/4''(6.35mm) thickness: 155 x 93 x 184 mm (6,08 x 3,67 x 7,25'')

📐WORK AREA - total area of wood required for cutting
3 mm thickness: 110 x 161 mm (4,33 x 6,34'')
1/8''(3.175mm) thickness: 116 x 170 mm (4,58 x 6,71'')
4 mm thickness: 147 x 215 mm (5,77 x 8,45'')
5 mm thickness: 194 x 284 mm (7,64 x 11,18'')
6 mm thickness: 220 x 322 mm (8,66 x 12,68'')
1/4''(6.35mm) thickness: 233 x 341 mm (9,17 x 13,42'')

🟧 LARGEST PART
3 mm thickness: 54 x 54 mm (2,13 x 2,13'')
1/8''(3.175mm) thickness: 57 x 57 mm (2,25 x 2,25'')
4 mm thickness: 72 x 72 mm (2,83 x 2,83'')
5 mm thickness: 95 x 95 mm (3,75 x 3,75'')
6 mm thickness: 108 x 108 mm (4,25 x 4,25'')
1/4''(6.35mm) thickness: 114 x 114 mm (4,50 x 4,50'')

⚠️ If you are using wood whose thickness is not included in the design, you can easily scale the file.

1) Import a file that is thicker than the thickness of your wood.

2) Multiply the width and length of the file by your actual thickness and divide by the thickness of the wood in the file.

For example, your wood is 4.5 mm thick.

Import the file for 5 mm. Multiply the width and length of the imported file by 4.5 and divide by 5.

This will give you a 4.5 mm file.

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

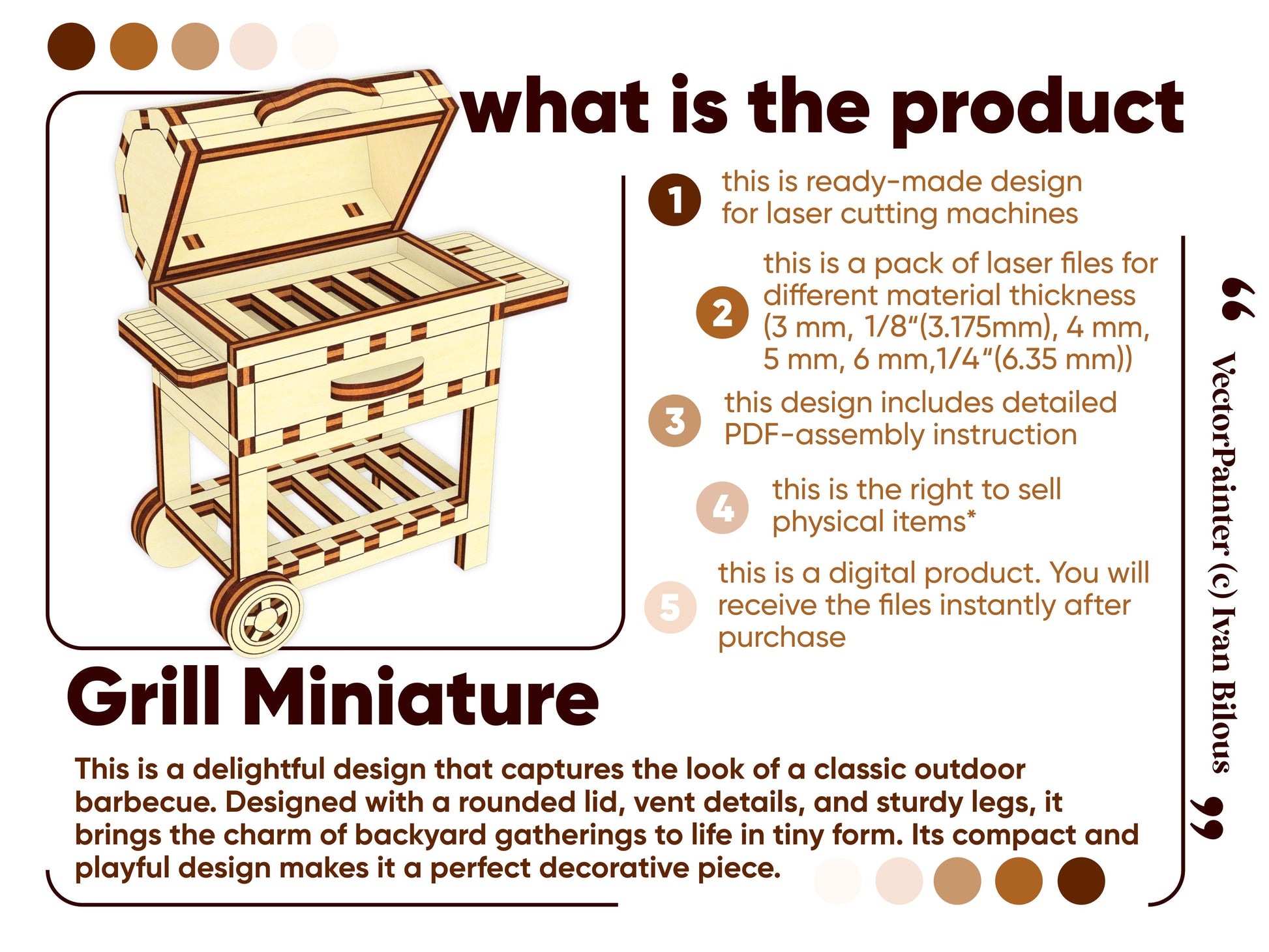

🛒WHAT YOU RECEIVE

🟢 ready made cutting files for 3 mm, 1/8'' (3.175 mm), 4mm, 5 mm, 6 mm, 1/4'' (6.35 mm) material thickness

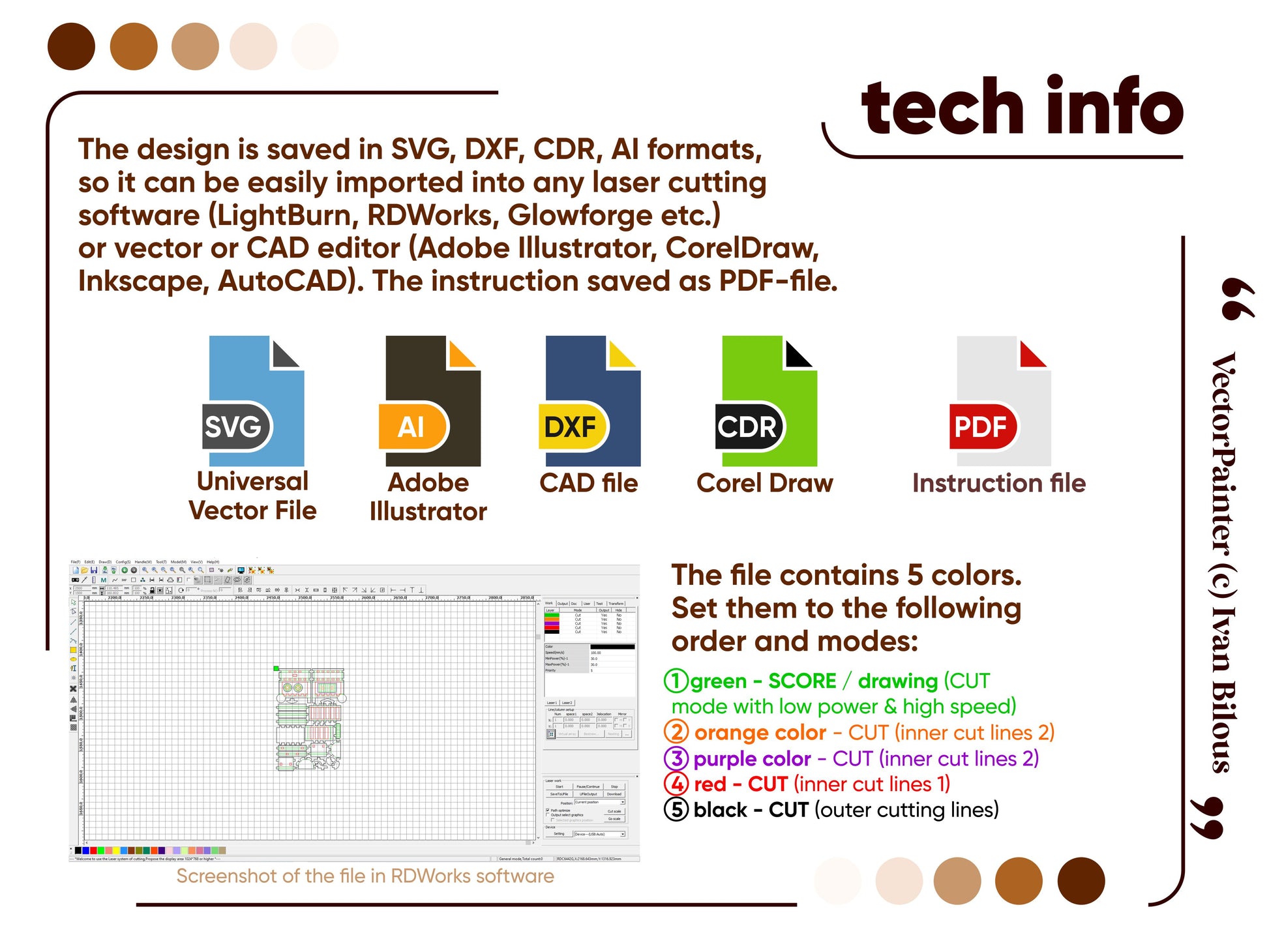

🟢 each file is saved in SVG, DXF, CDR, AI formats

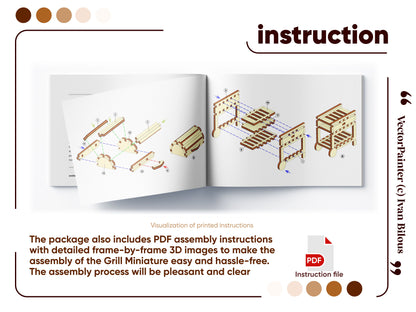

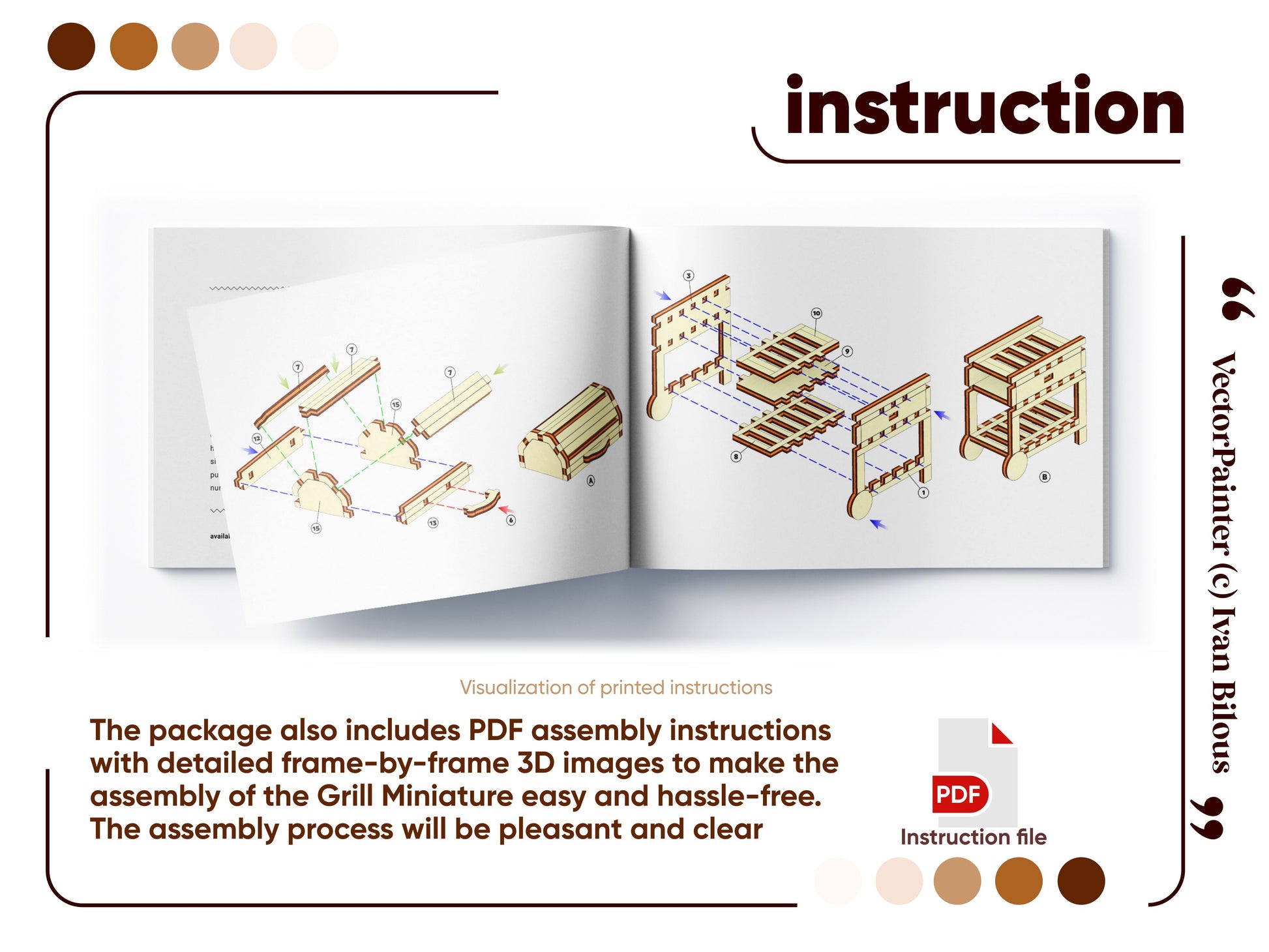

🟢 detailed PDF-instructions with 3D pictures

🟢 discounts on future purchases
