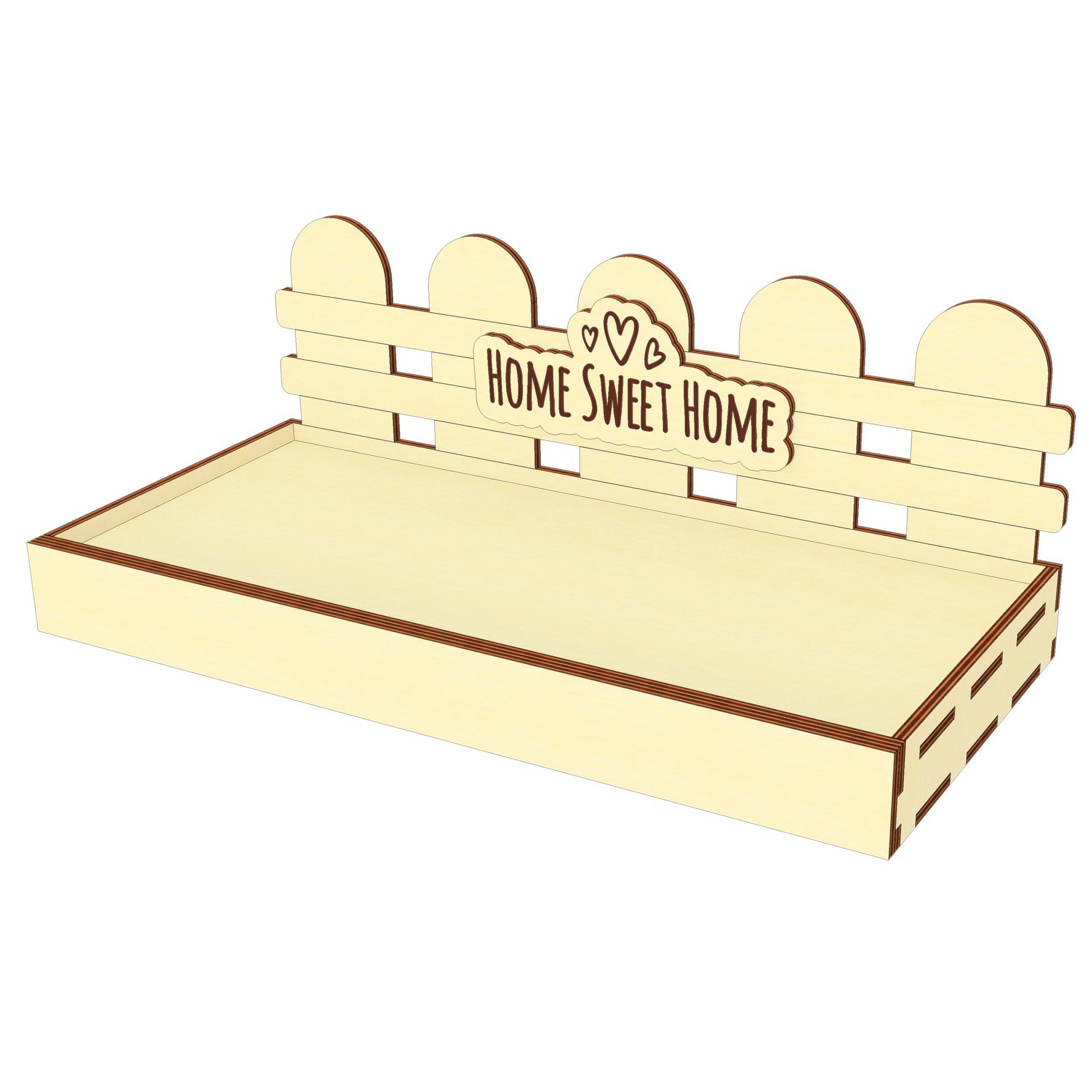

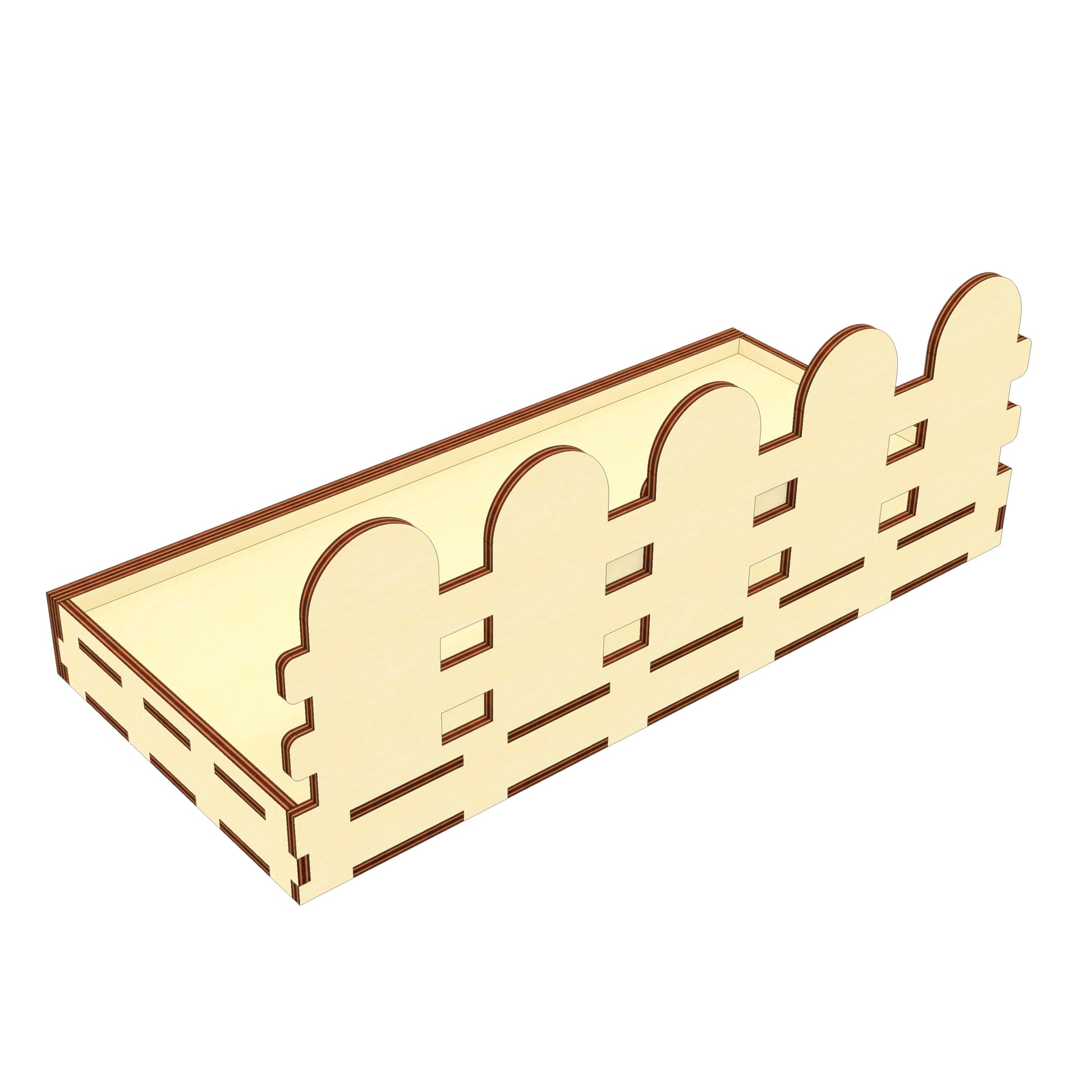

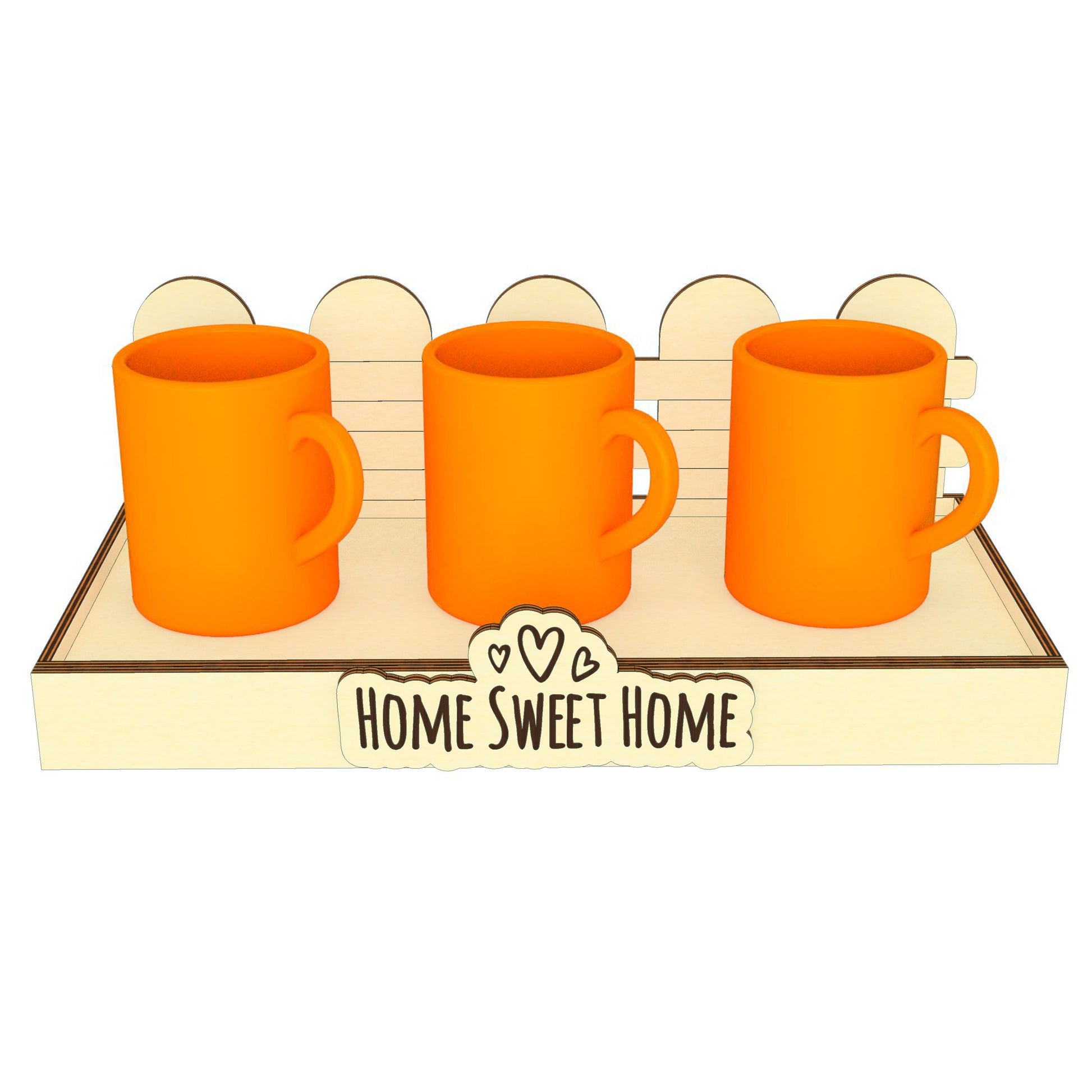

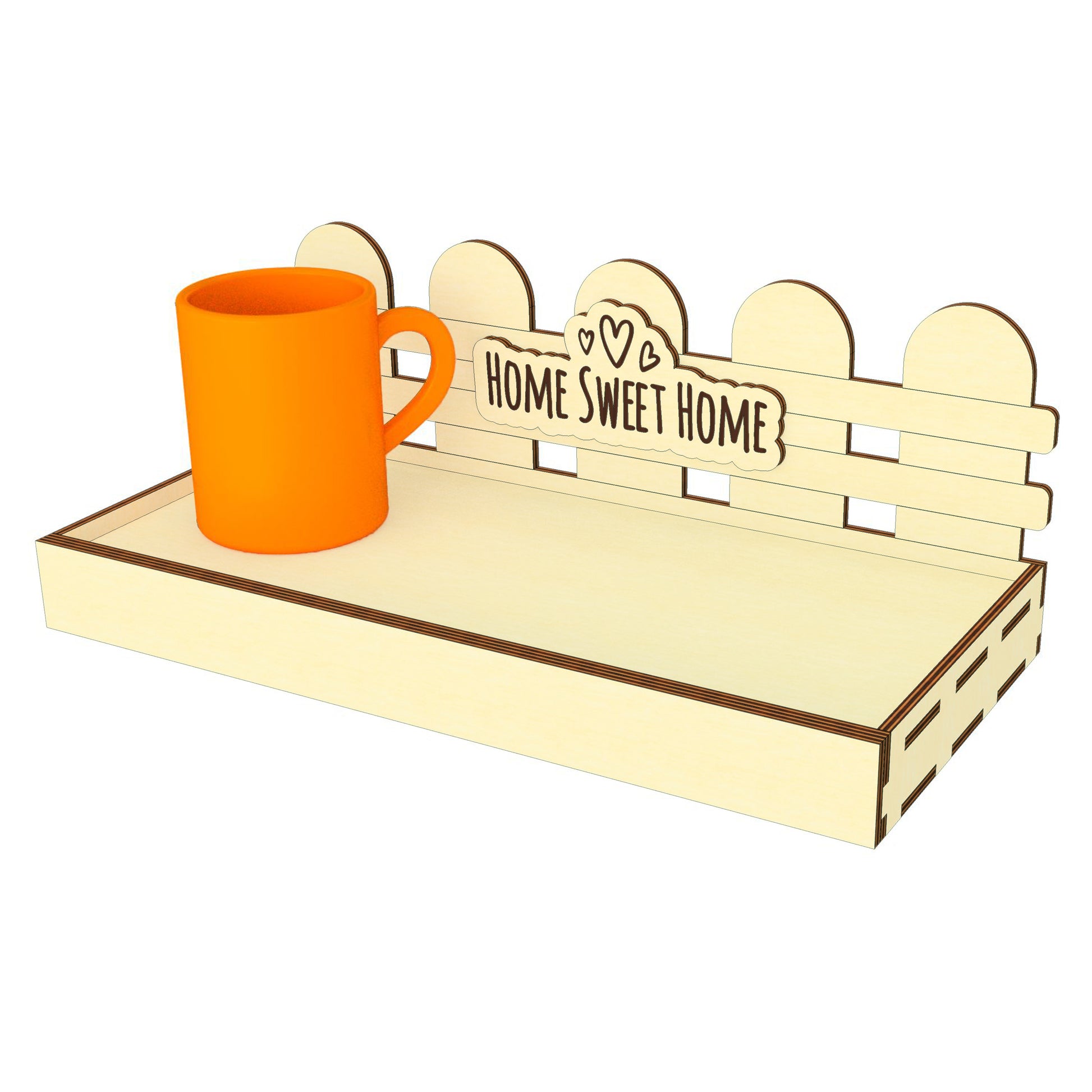

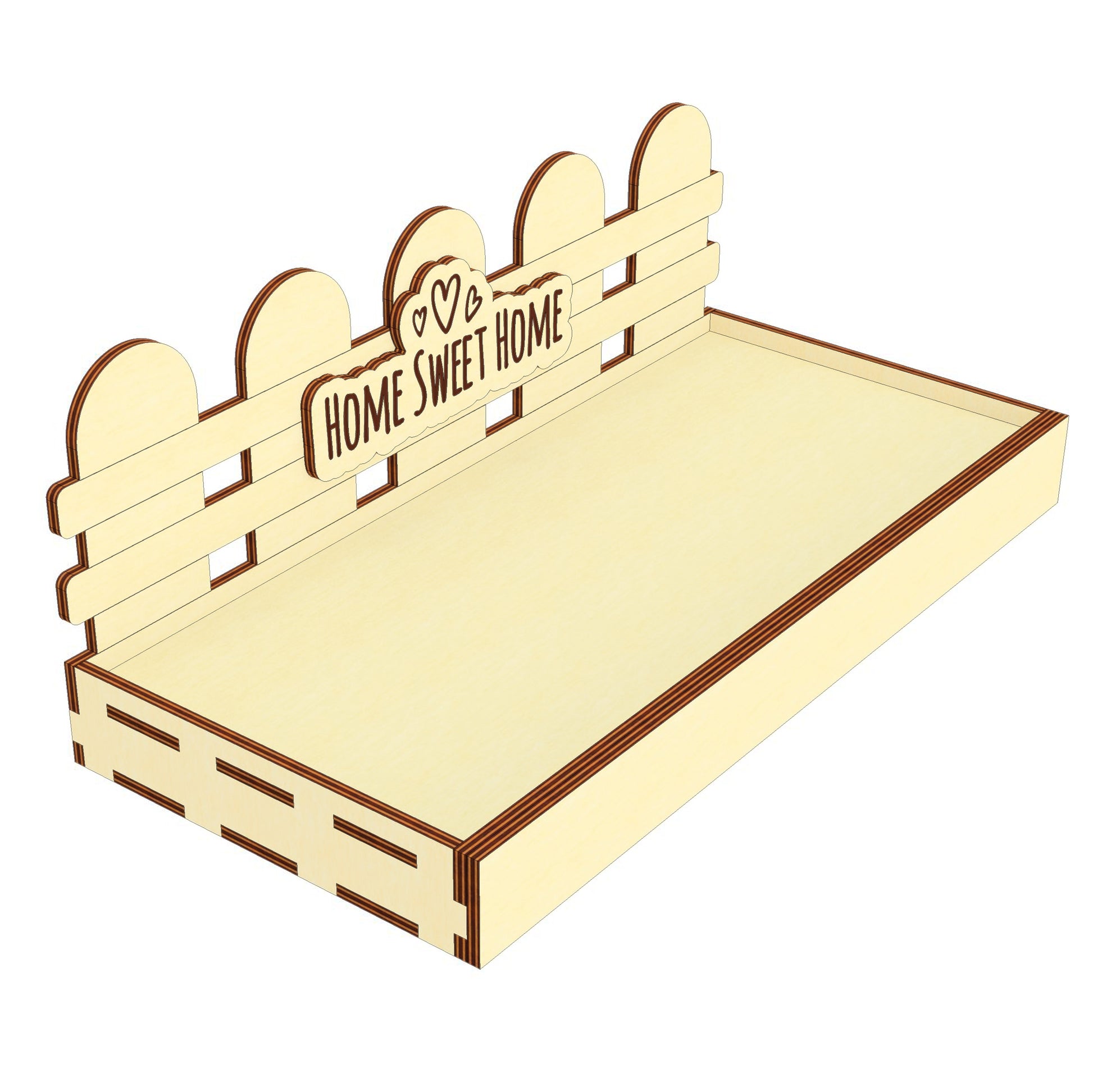

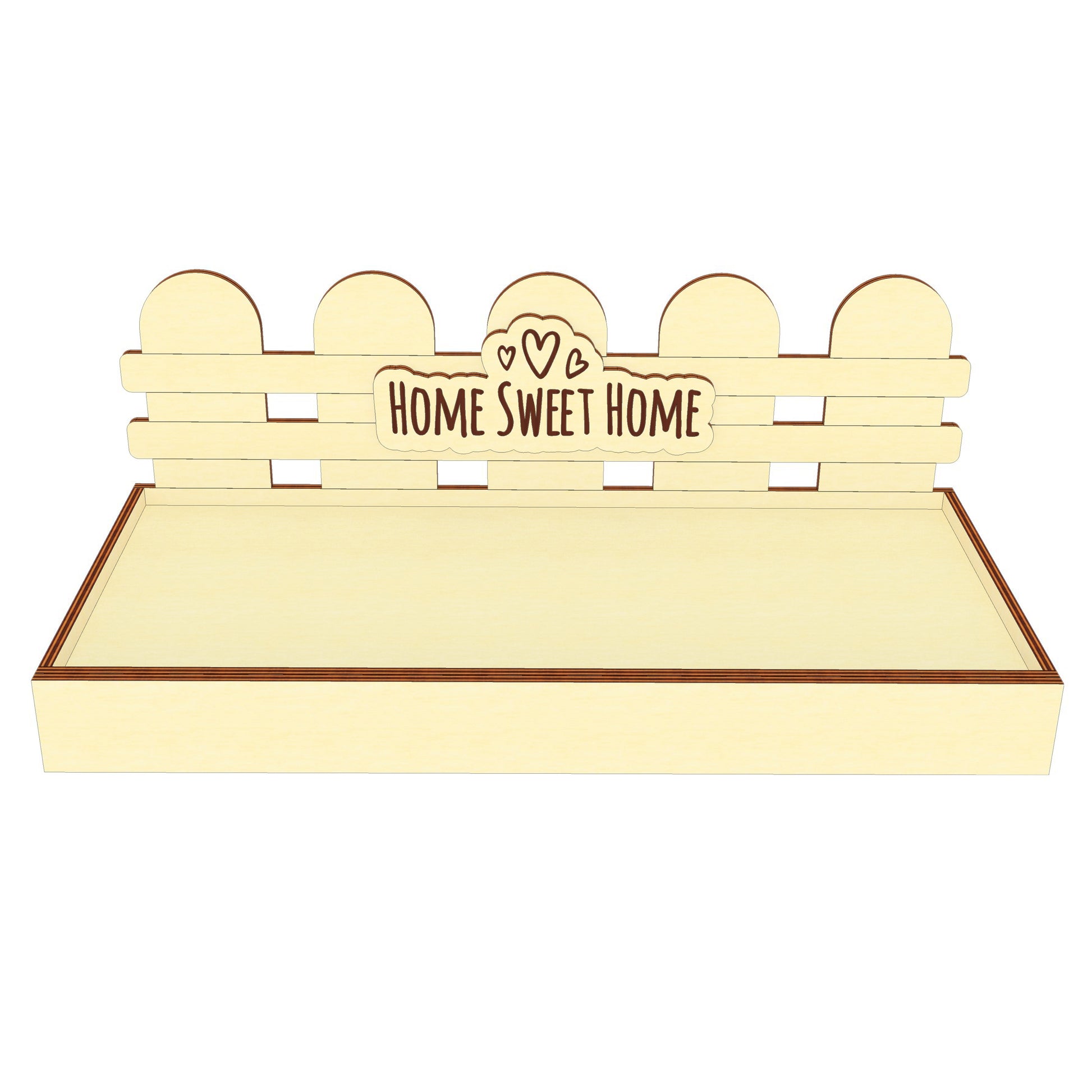

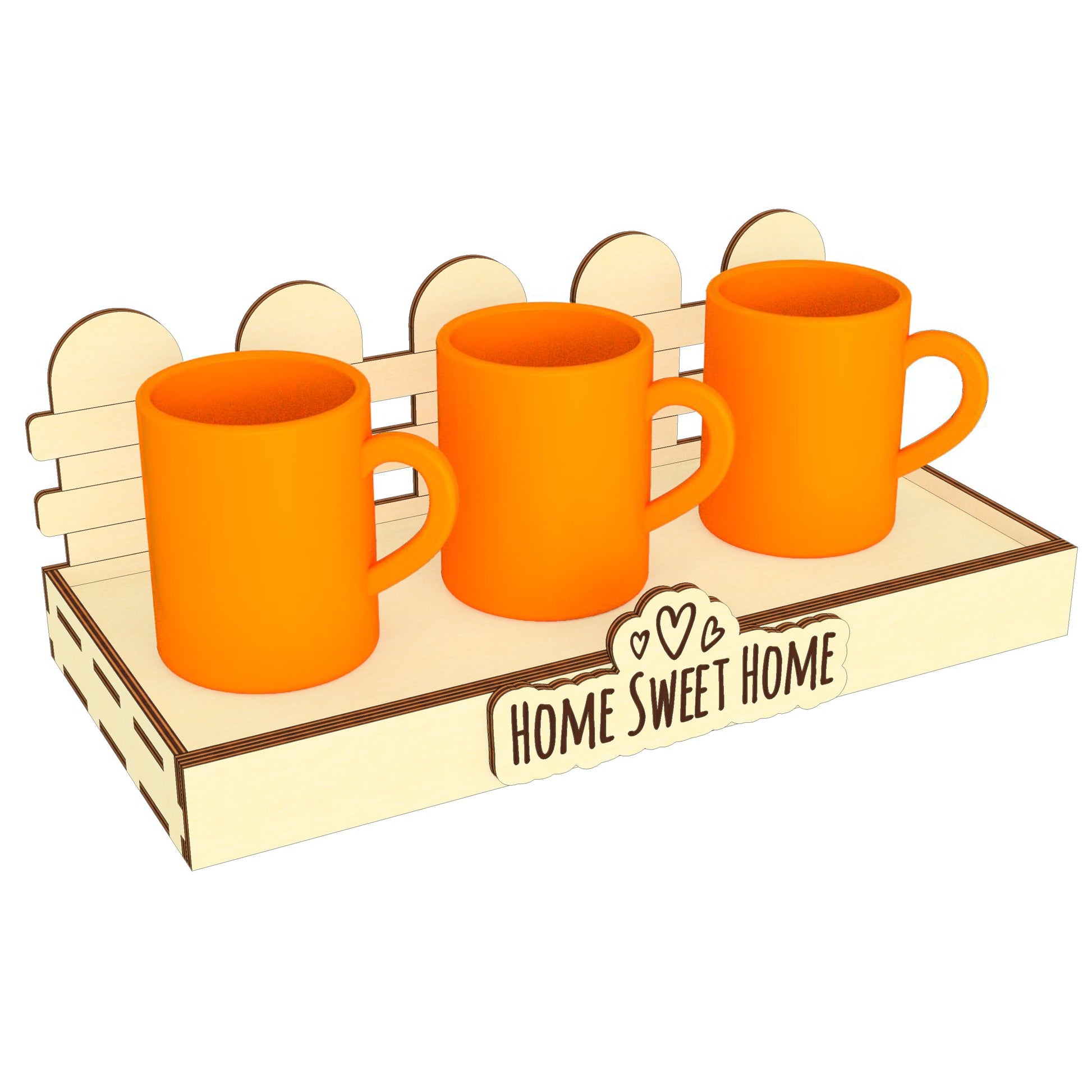

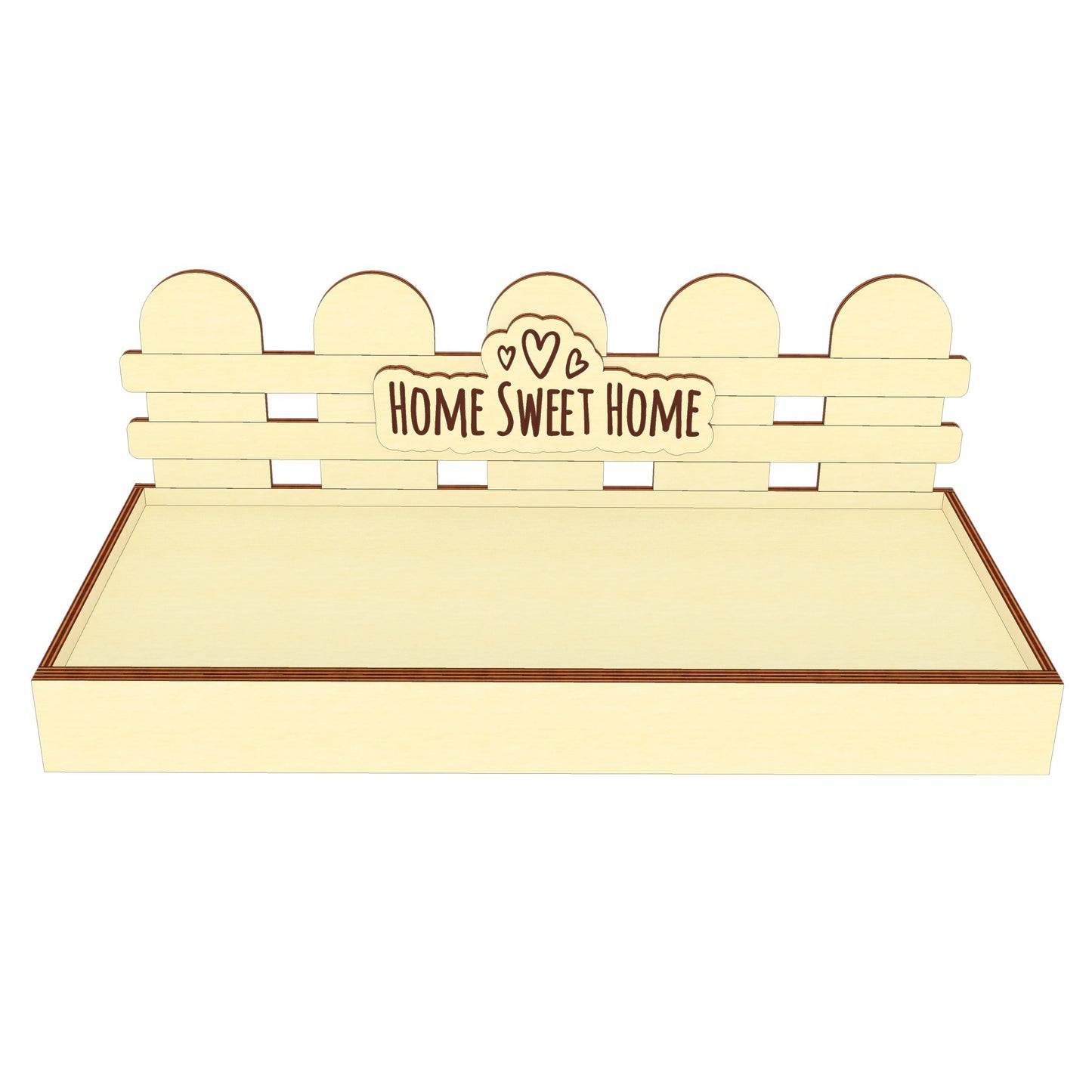

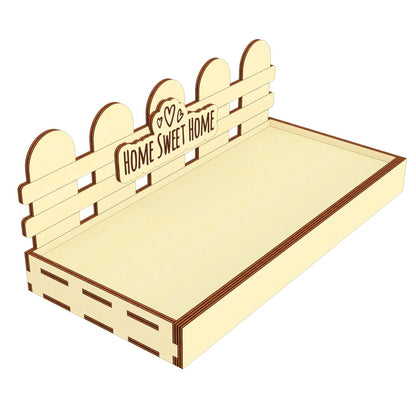

Cup Stand Laser cut file for CNC laser machines in DXF CDR AI SVG
Material thickness (versions of the files): 3mm, 1/8''(3.175mm), 4mm

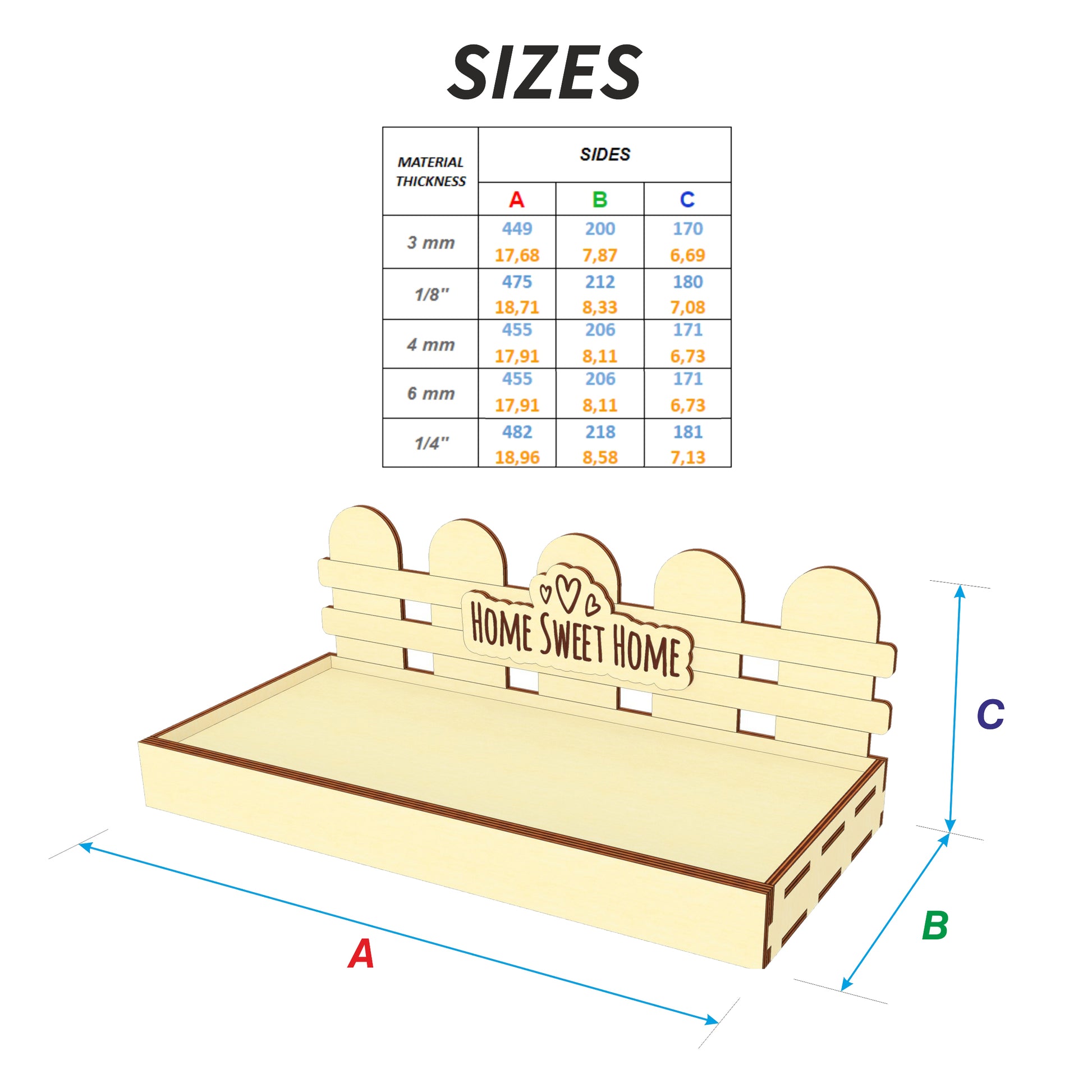

Sizes:
3 mm thickness: 449 x 200 x 170 mm (17,68 x 7,87 x 6,69'')
1/8''(3.175mm) thickness: 475 x 212 x 180 mm (18,71 x 8,33 x 7,08'')
4 mm thickness: 455 x 206 x 171 mm (17,91 x 8,11 x 6,73'')
6 mm thickness: 455 x 206 x 171 mm (17,91 x 8,11 x 6,73'')
1/4''(6.35mm) thickness: 482 x 218 x 181 mm (18,96 x 8,58 x 7,13'')
Work area:
3 mm thickness: 905 x 428 mm (35,63 x 16,85'')
1/8''(3.175mm) thickness: 958 x 453 mm (37,71 x 17,83'')
4 mm thickness: 914 x 436 mm (35,98 x 17,17'')
6 mm thickness: 914 x 436 mm (35,98 x 17,17'')
1/4''(6.35mm) thickness: 967 x 461 mm (38,08 x 18,17'')
Biggest part:
3 mm thickness: 449 x 200 mm (17,68 x 7,87'')
1/8''(3.175mm) thickness: 475 x 212 mm (18,71 x 8,33'')
4 mm thickness: 449 x 200 mm (17,68 x 7,87'')
6 mm thickness: 449 x 200 mm (17,68 x 7,87'')
1/4''(6.35mm) thickness: 475 x 212 mm (18,71 x 8,33'')

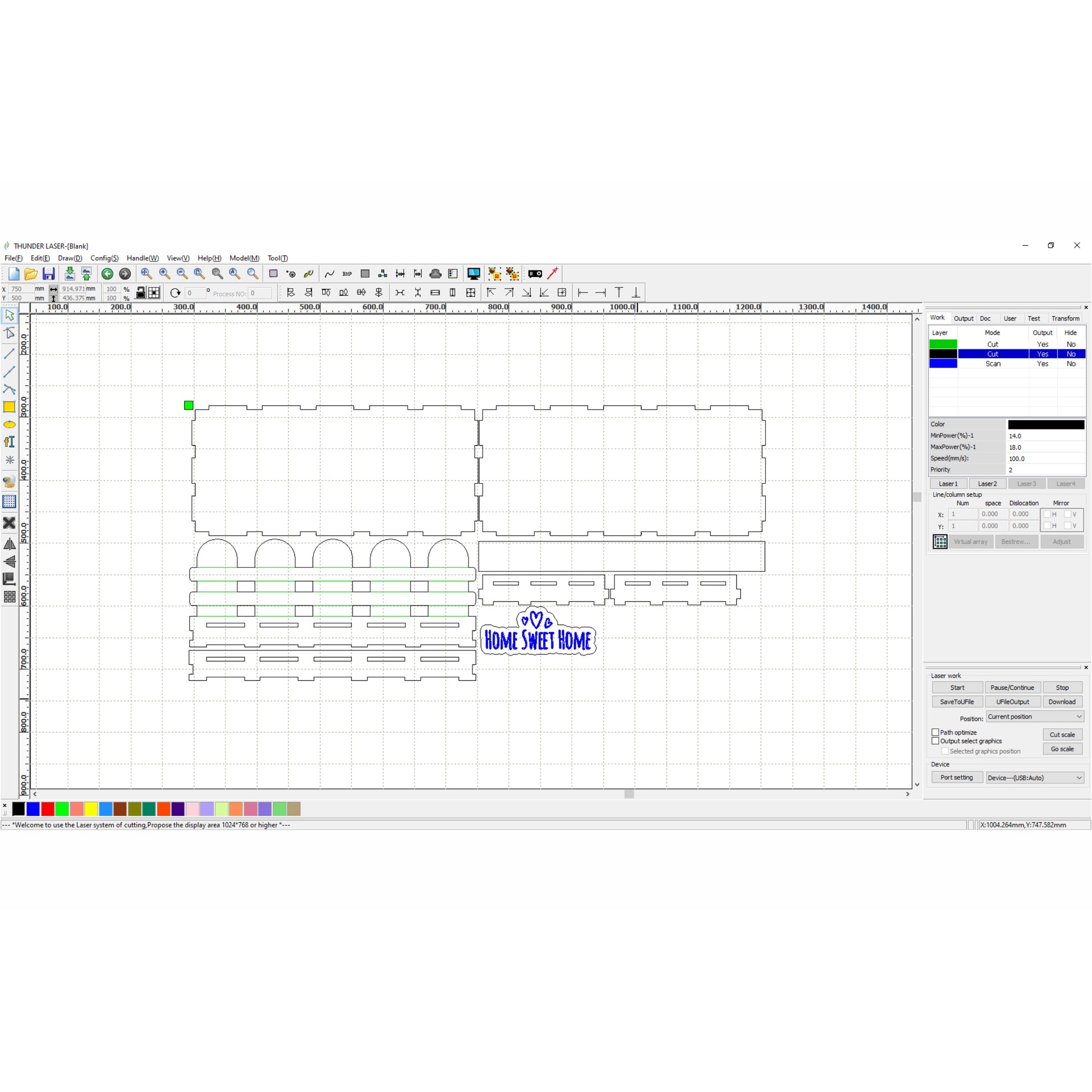

In the file:
blue color - engrave
green color - score / drawing (cut mode with low power and high speed)
black color - cut (outer cut lines)
What you receive:
You will download 1 ZIP file containing the following:
the CDR, DXF, AI, SVG files with drawing for material thinkness 3mm, 1/8''(3.175mm), 4mm and PDF-assembly instruction
If you have any quastions feel free to contact us.
These files are vector-based and compatible with all laser cut software, milling machine, CNC plasma cutting machine, glowforge machines.
This is an Instant Digital Download
The item is non-refundable because it's not physical.
YOU CAN use the files for personal purposes and for your small business.
YOU CANNOT share, redistribute or resell the files.
Copyright is not transferable with the sale.
Wholesale cheaper
Use promocodes for discount
3 files - WHOLESALE3 - 15%
5 files - WHOLESALE5 - 20%
10 files - WHOLESALE10 - 30%
This model also available on Etsy here
