Clock Tower - Laser Cut File SVG & DXF

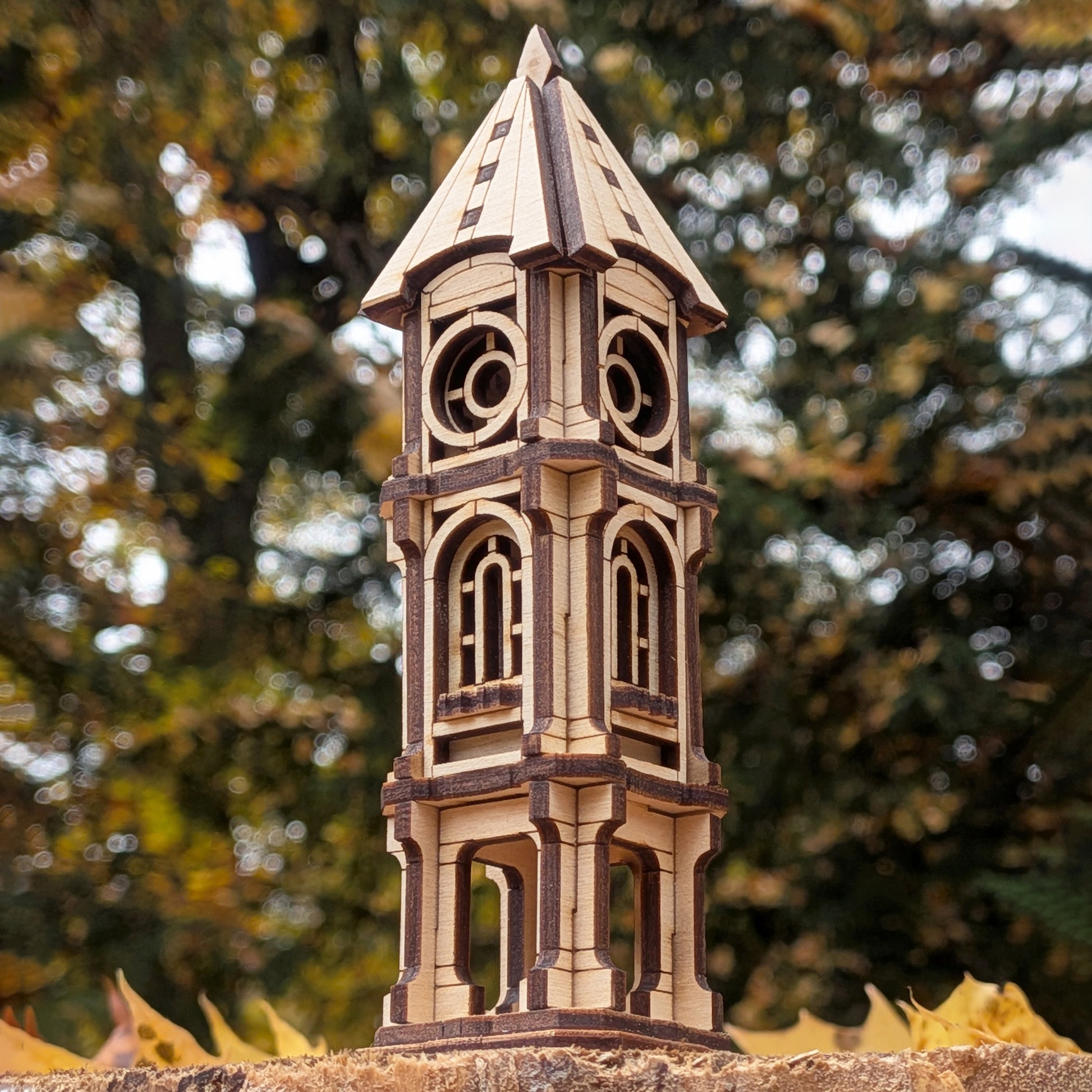

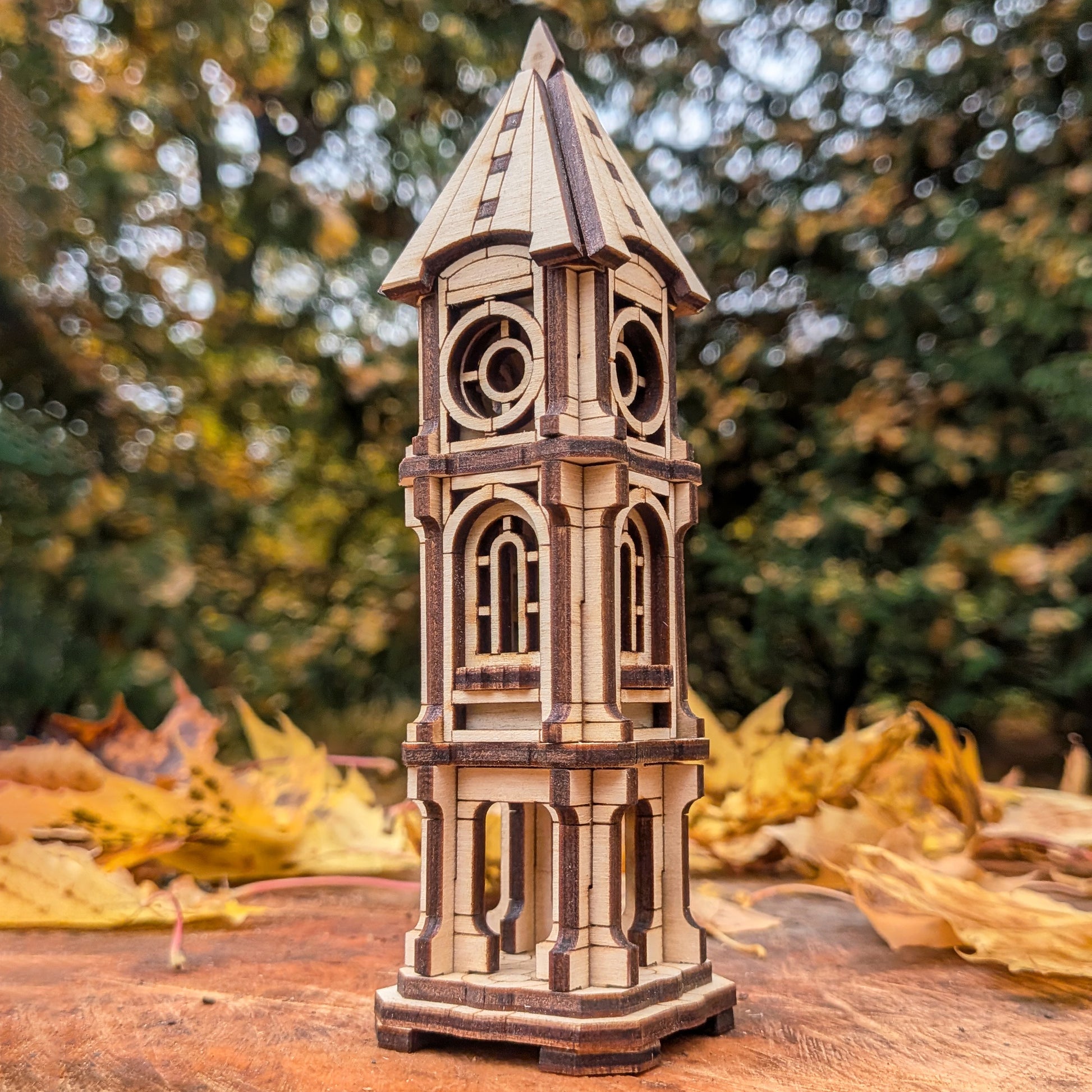

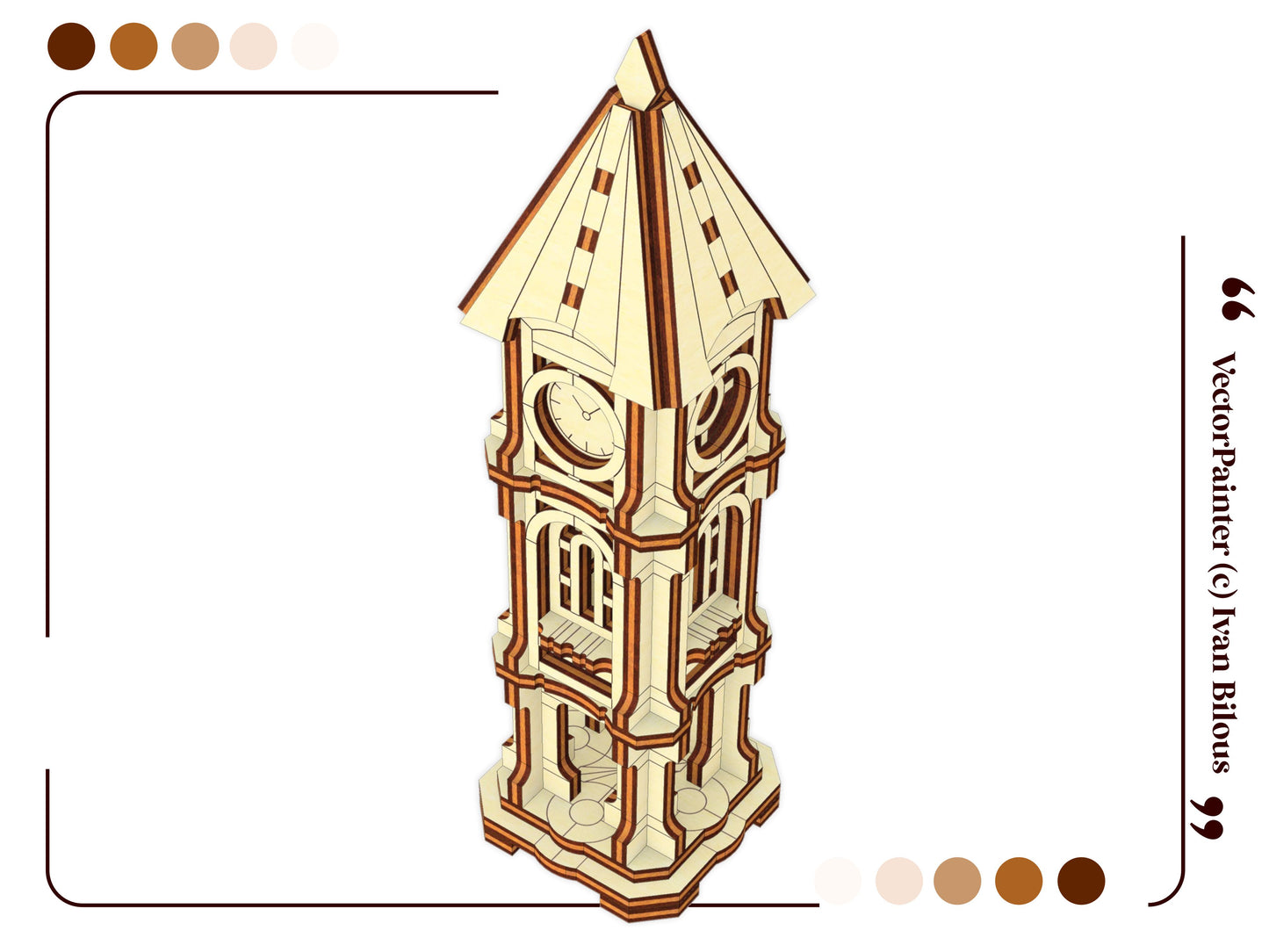

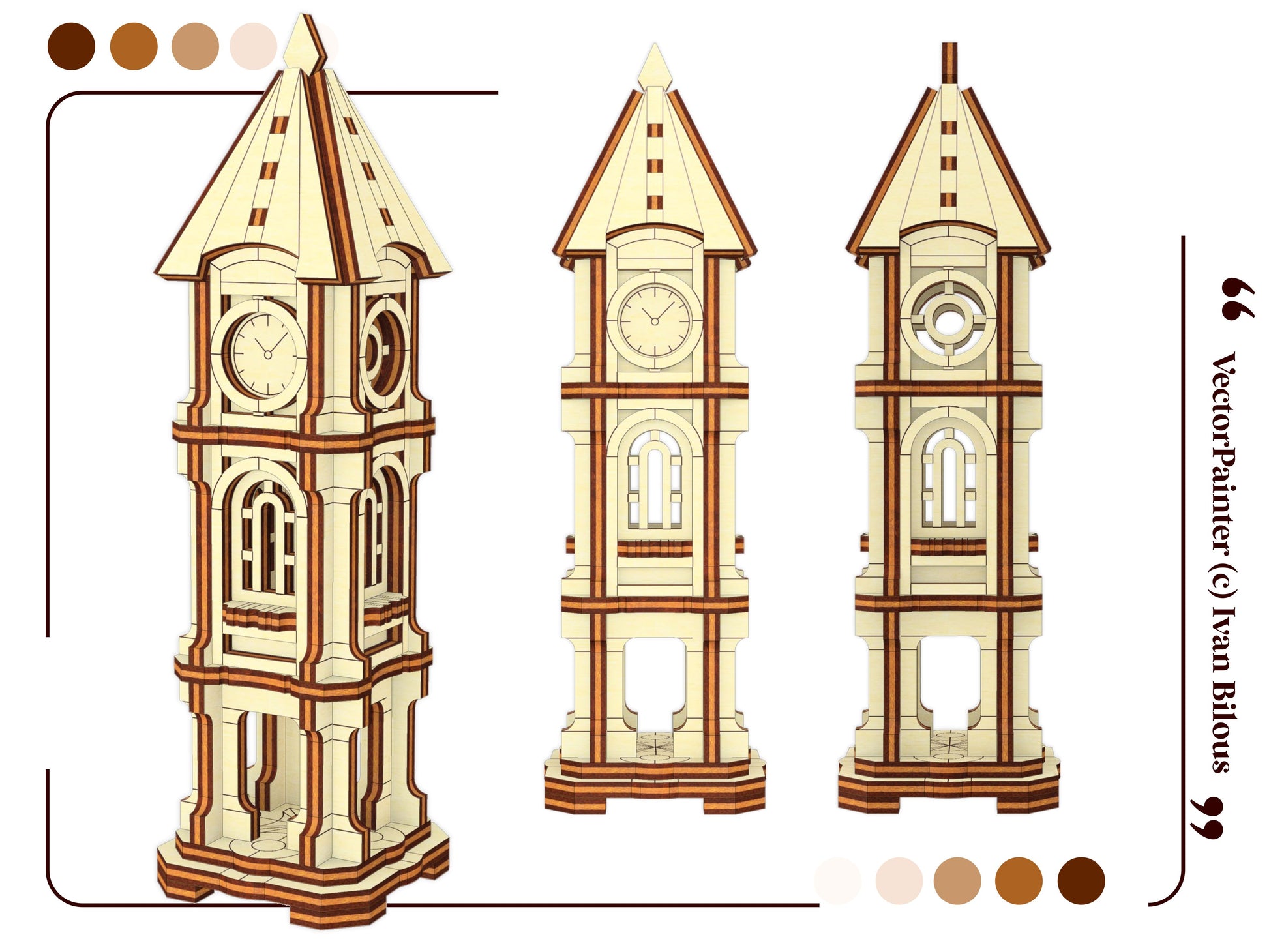

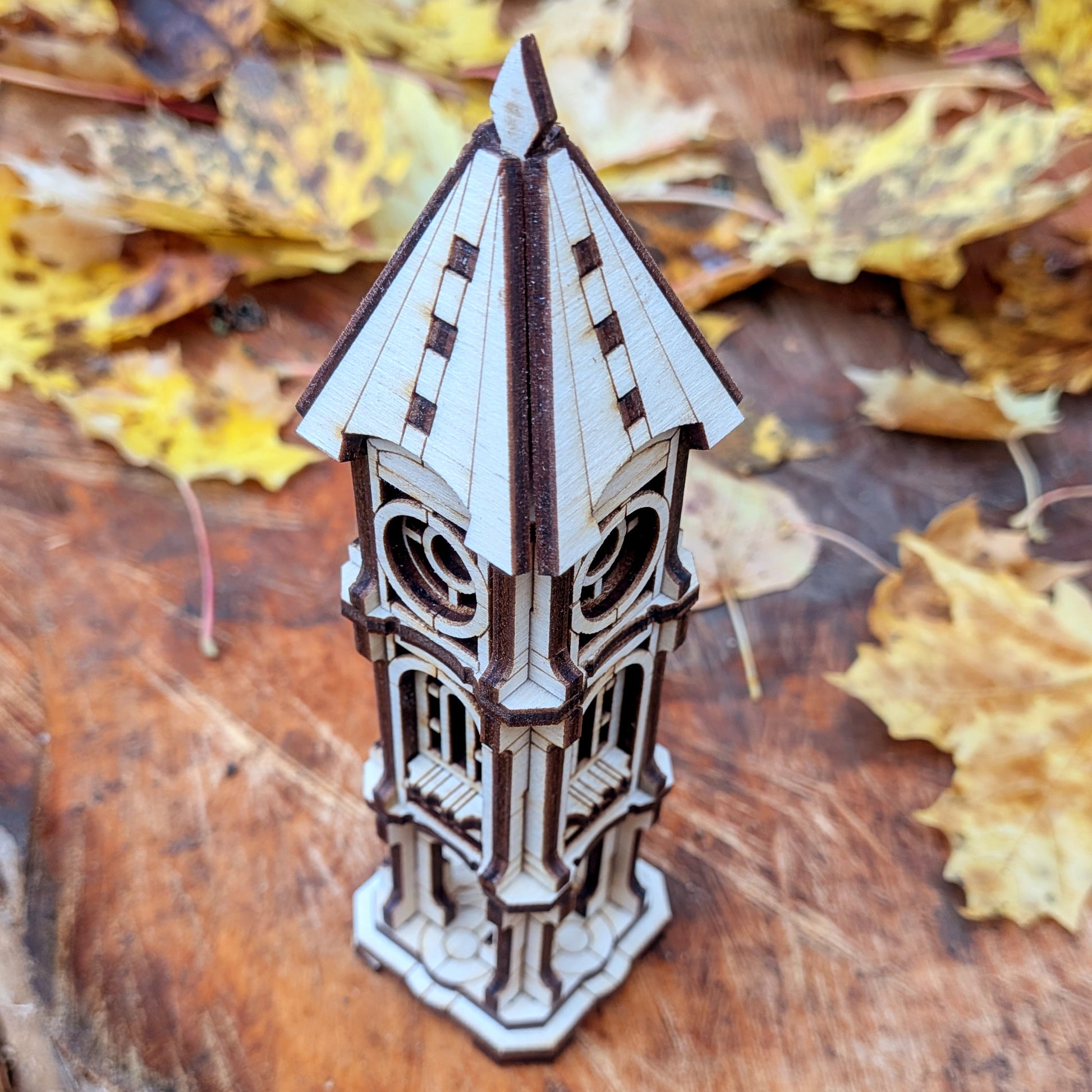

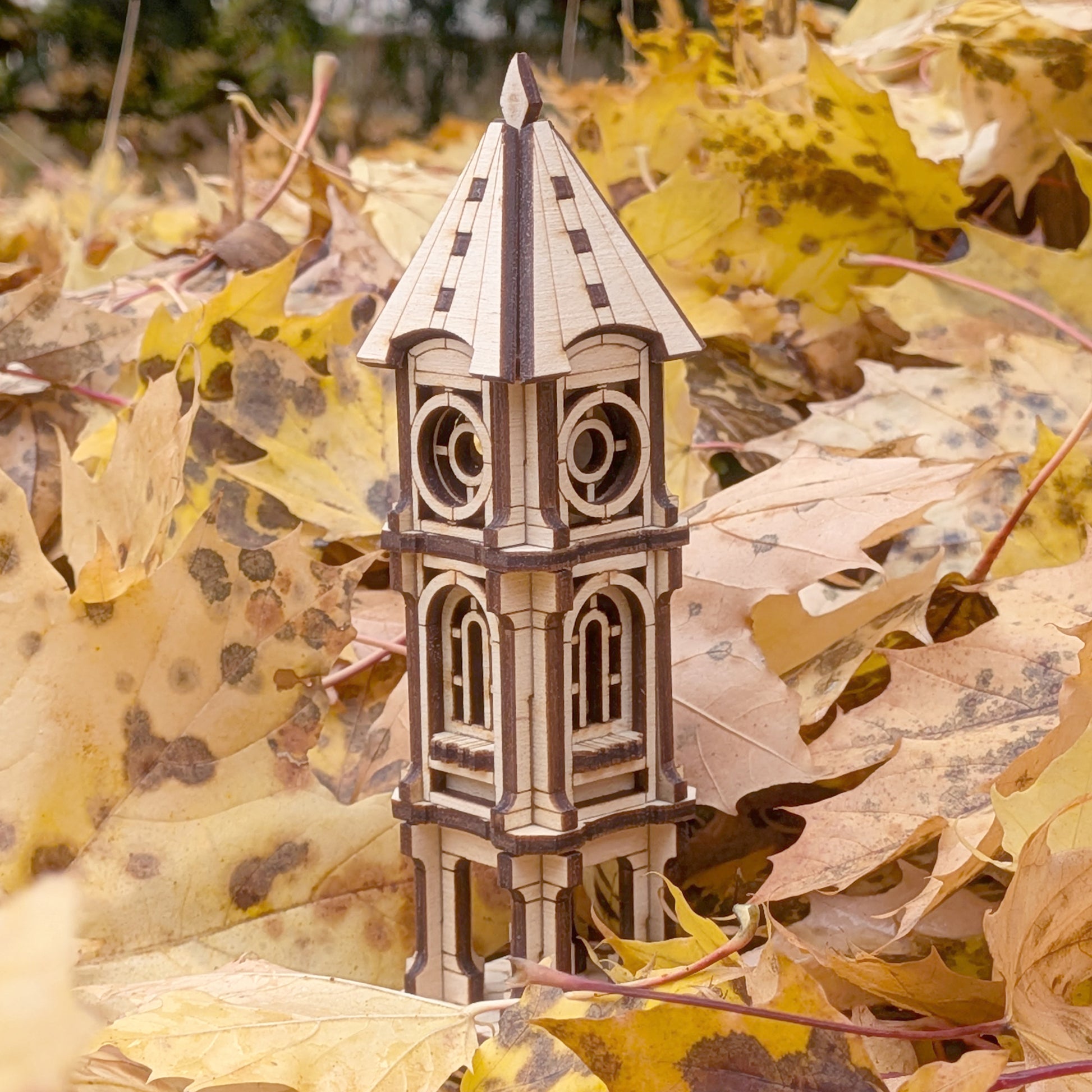

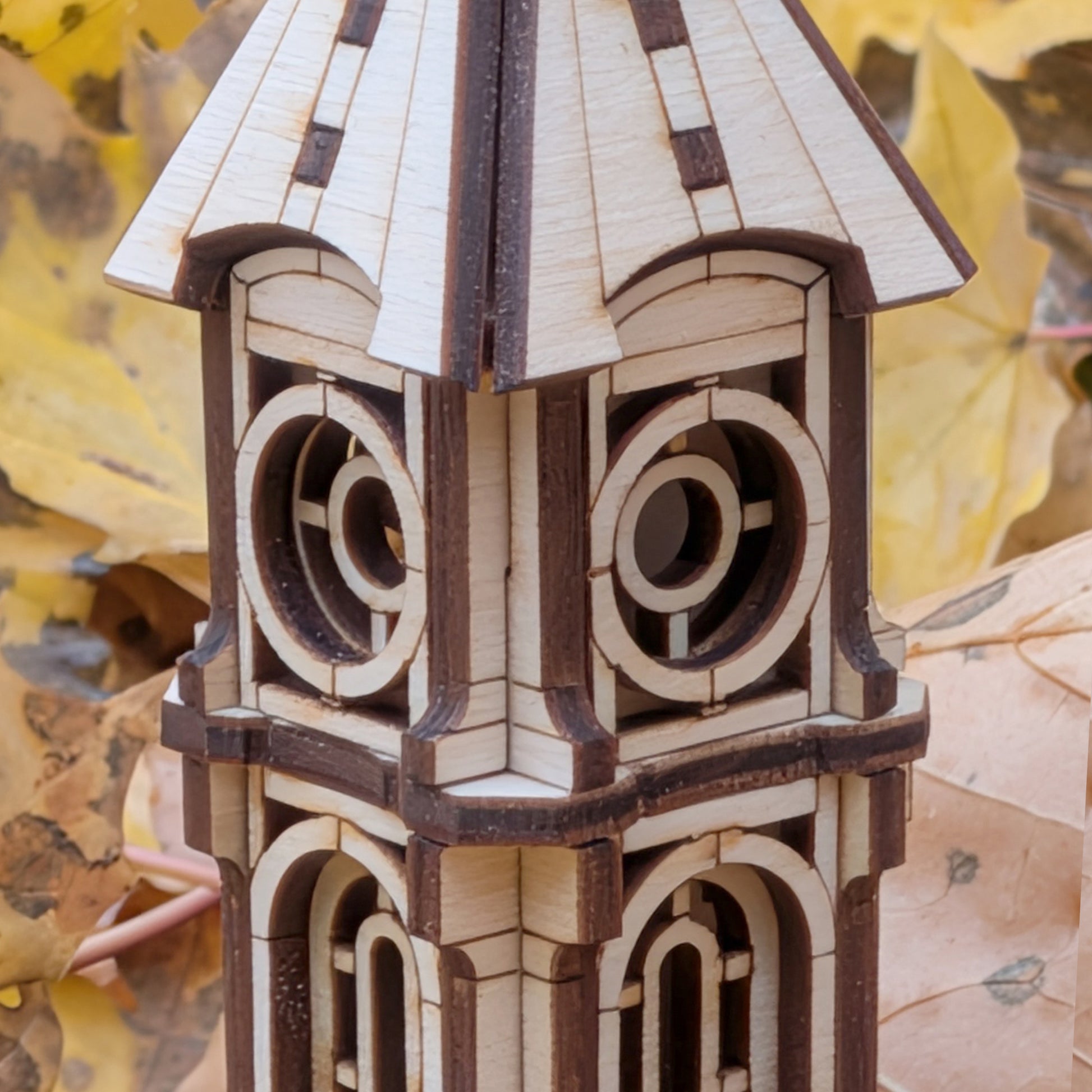

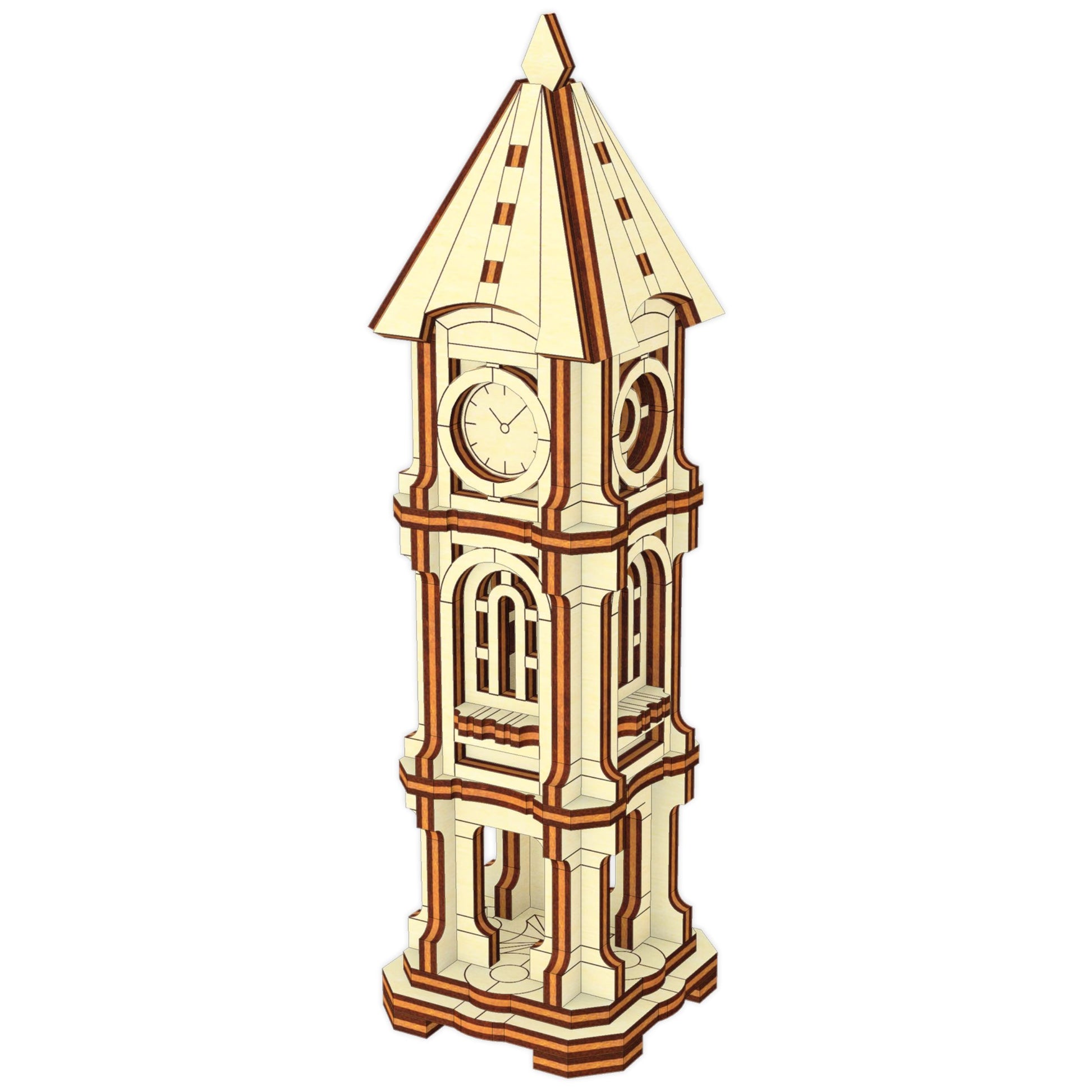

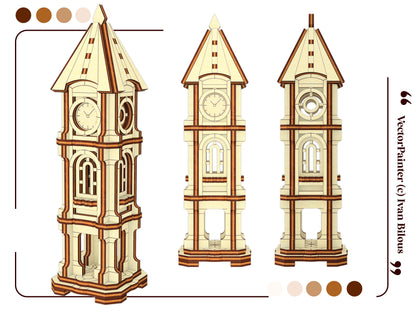

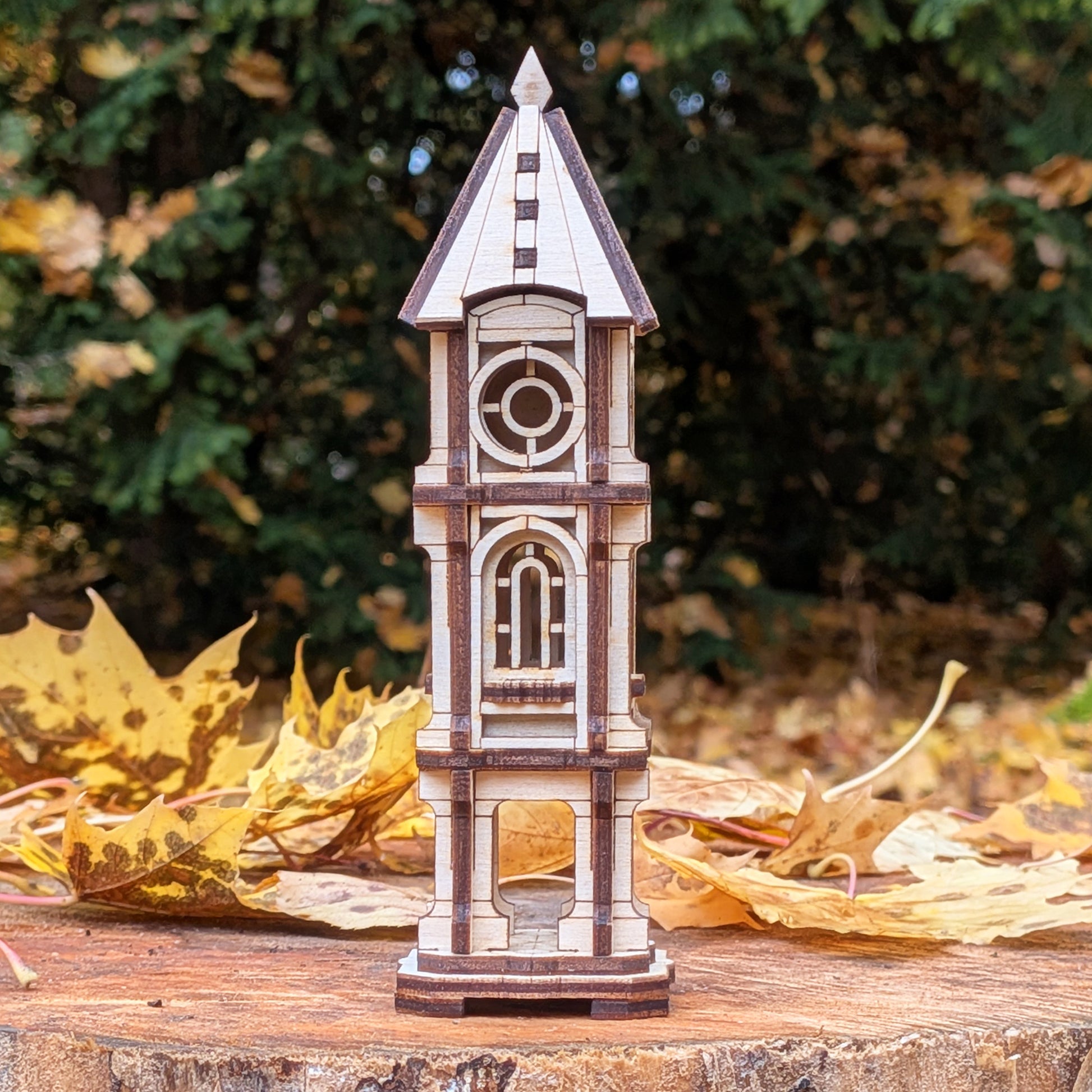

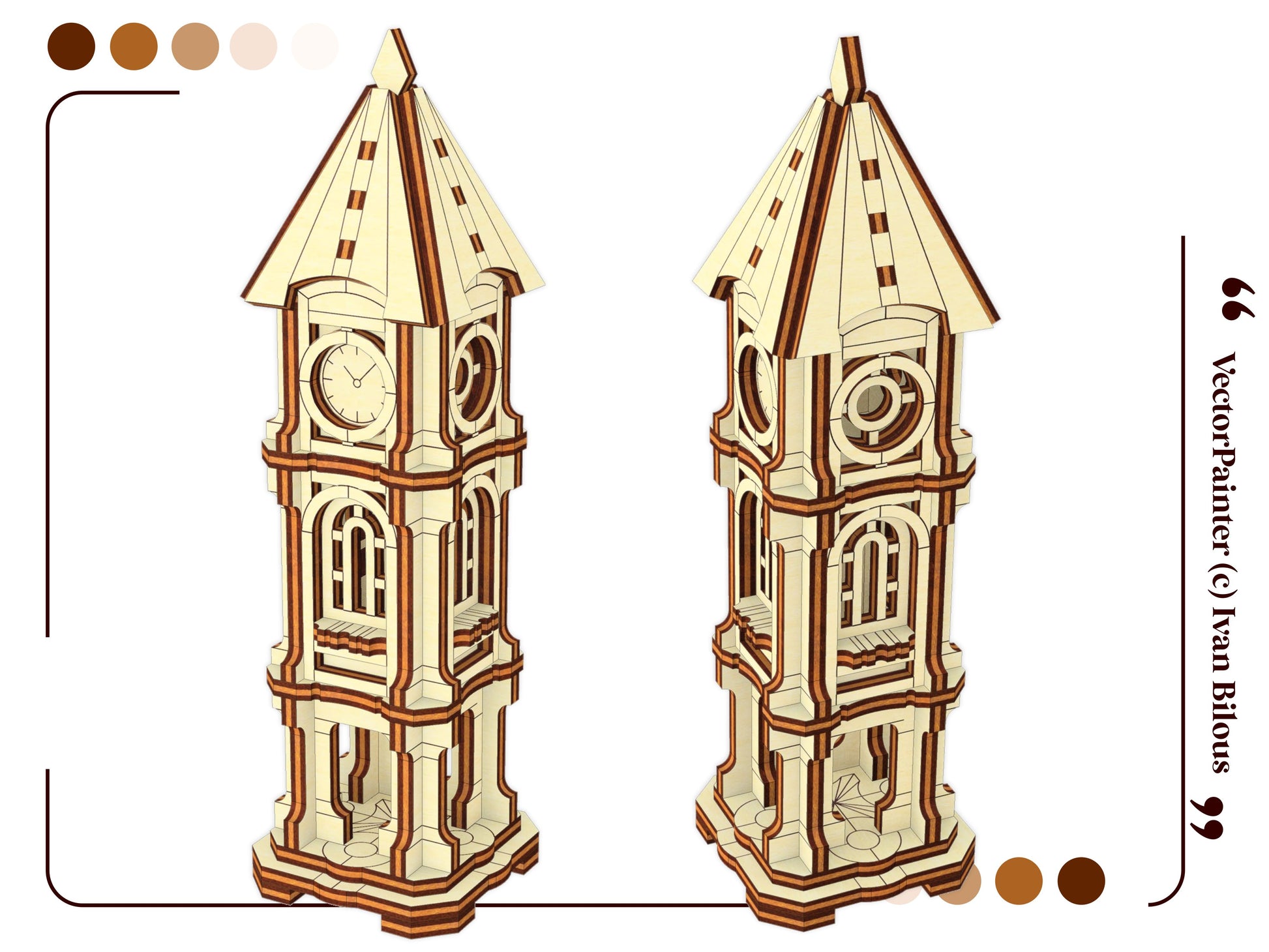

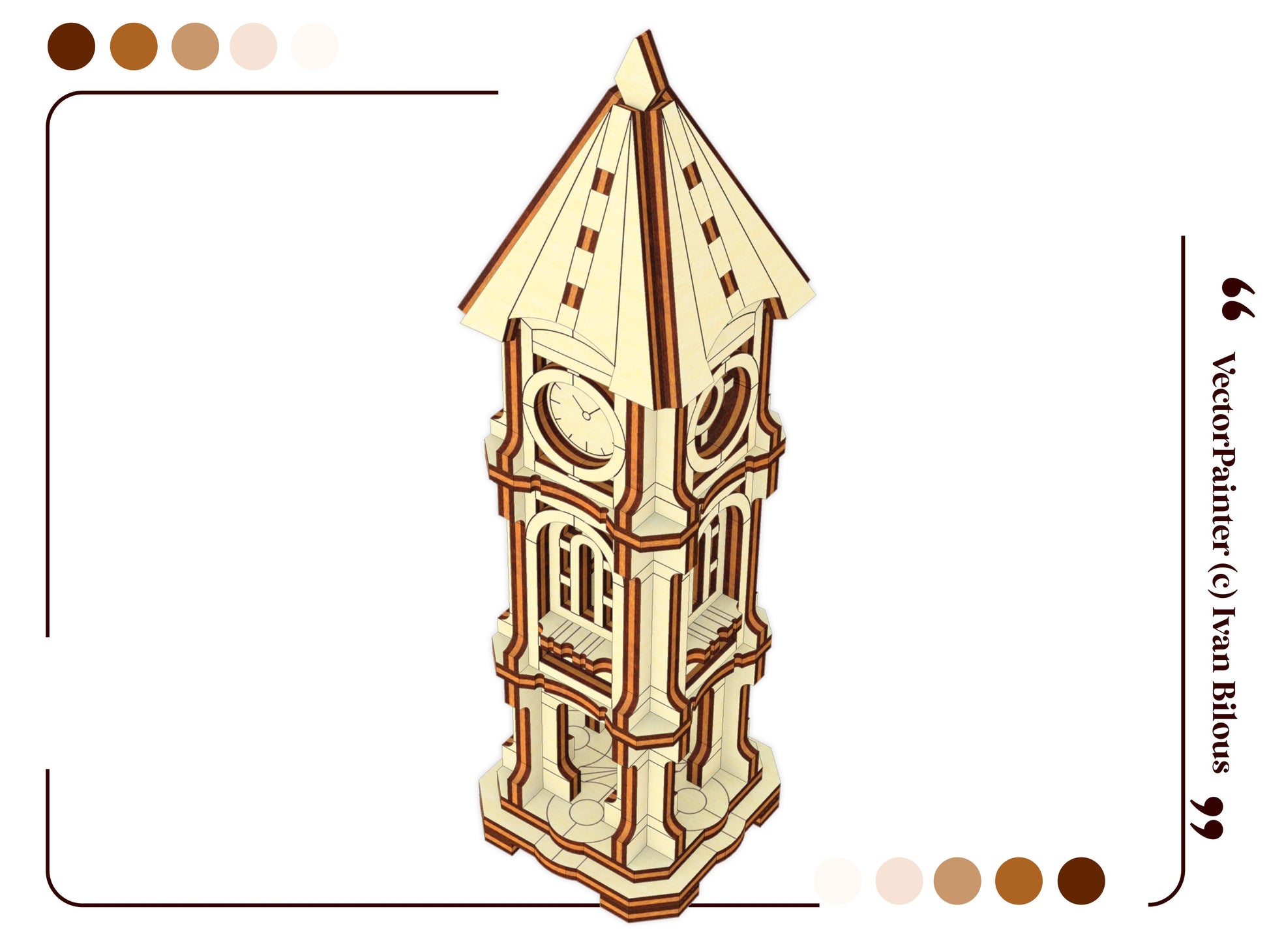

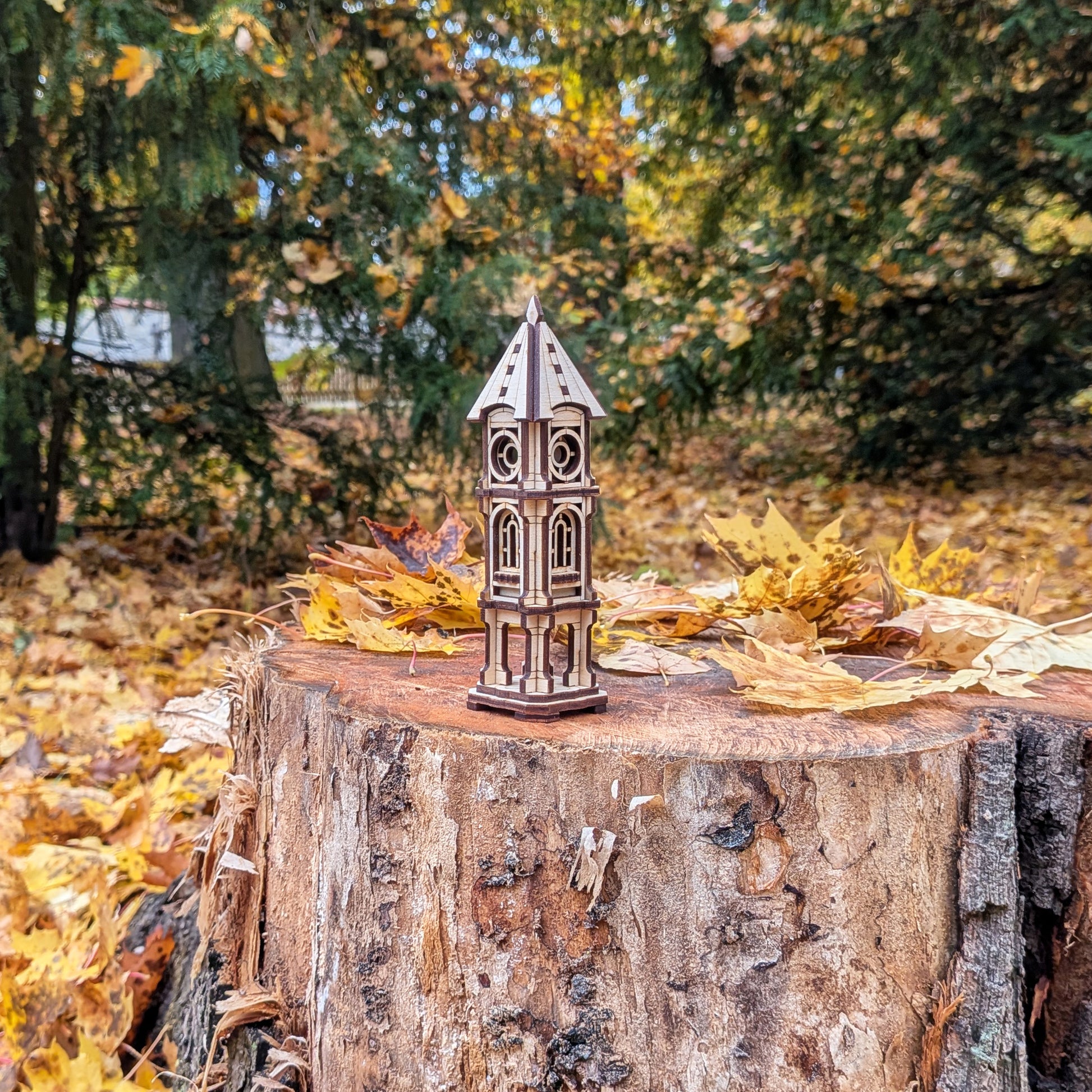

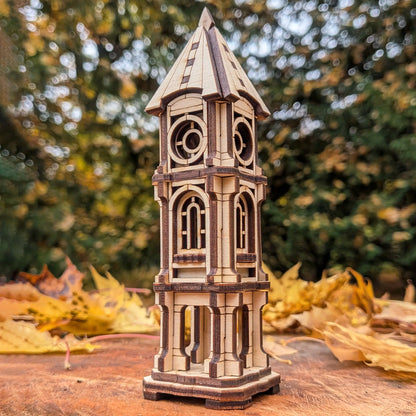

Clock Tower laser cut file – SVG and DXF digital plan for laser cutting machines. Inspired by vintage cityscapes and steampunk architecture, this miniature model features intricate windows, layered façade details, and a charming rooftop clock. Perfect for dioramas, home decor, or creative craft projects using plywood or MDF.

🎨 Laser cut design Clock Tower 🎨
DIGITAL FILE for laser cutting machine

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

🤏Material thickness (versions of the files): 3 mm, 1/8'' (3.175 mm), 4 mm, 5 mm, 6 mm, 1/4'' (6.35 mm)

Level of assembly difficulty: ⚫⚫⚪⚪⚪
⚠️ Some parts are glued

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

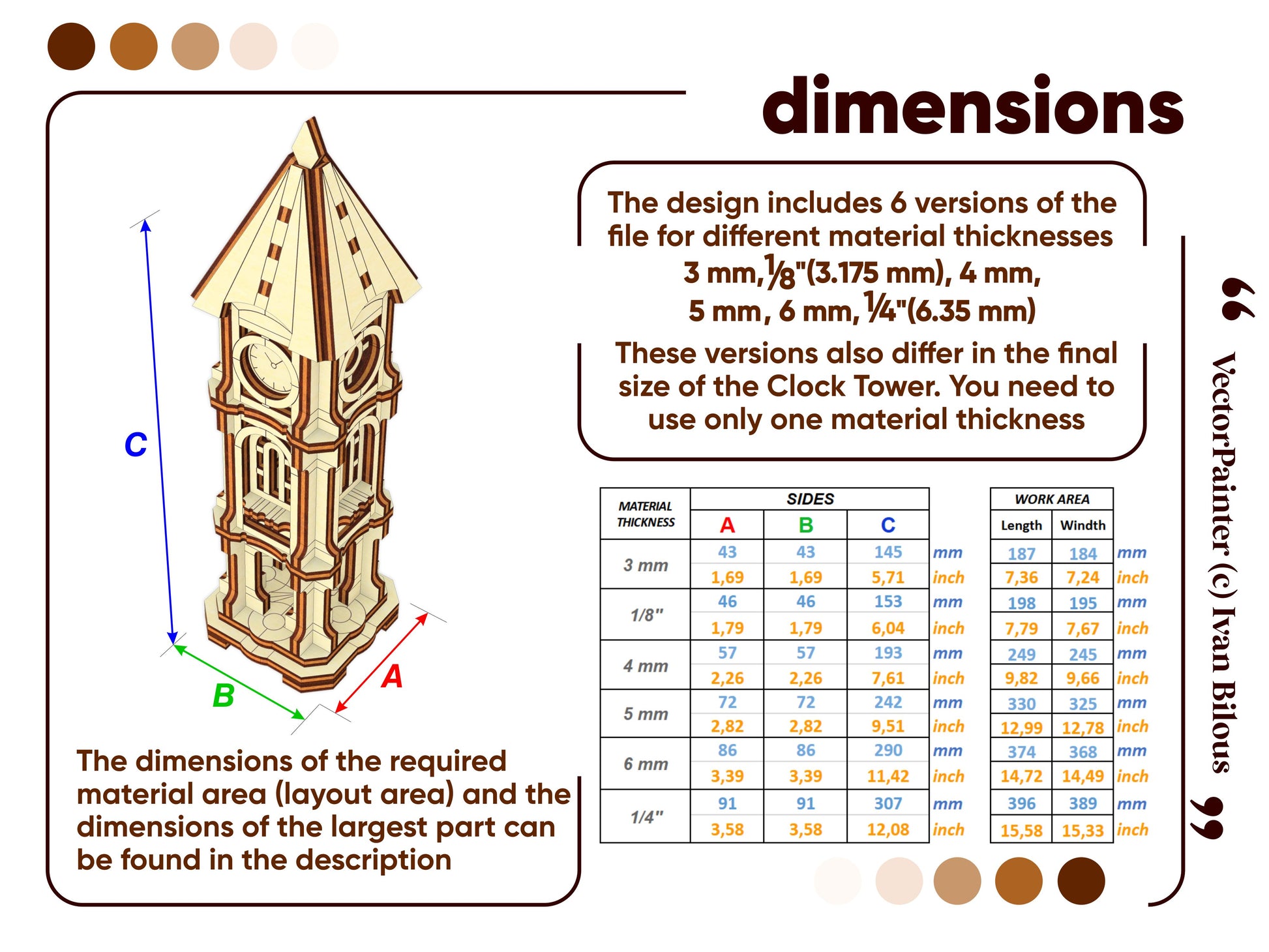

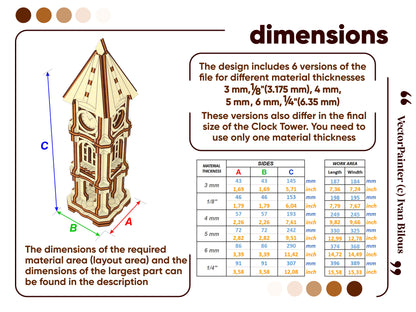

📏 Finished SIZE
3 mm thickness: 43 x 43 x 145 mm (1,69 x 1,69 x 5,71'')
1/8''(3.175mm) thickness: 46 x 46 x 153 mm (1,79 x 1,79 x 6,04'')
4 mm thickness: 57 x 57 x 193 mm (2,26 x 2,26 x 7,61'')
5 mm thickness: 72 x 72 x 242 mm (2,82 x 2,82 x 9,51'')
6 mm thickness: 86 x 86 x 290 mm (3,39 x 3,39 x 11,42'')
1/4''(6.35mm) thickness: 91 x 91 x 307 mm (3,58 x 3,58 x 12,08'')

📐WORK AREA - total area of wood required for cutting
3 mm thickness: 187 x 184 mm (7,36 x 7,24'')
1/8''(3.175mm) thickness: 198 x 195 mm (7,79 x 7,67'')
4 mm thickness: 249 x 245 mm (9,82 x 9,66'')
5 mm thickness: 330 x 325 mm (12,99 x 12,78'')
6 mm thickness: 374 x 368 mm (14,72 x 14,49'')
1/4''(6.35mm) thickness: 396 x 389 mm (15,58 x 15,33'')

🟧 LARGEST PART
3 mm thickness: 35 x 43 mm (1,38 x 1,69'')
1/8''(3.175mm) thickness: 37 x 46 mm (1,46 x 1,79'')
4 mm thickness: 47 x 57 mm (1,84 x 2,26'')
5 mm thickness: 62 x 76 mm (2,43 x 2,99'')
6 mm thickness: 70 x 86 mm (2,76 x 3,39'')
1/4''(6.35mm) thickness: 74 x 91 mm (2,92 x 3,58'')

⚠️ If you are using wood whose thickness is not included in the design, you can easily scale the file.
1) Import a file that is thicker than the thickness of your wood.
2) Multiply the width and length of the file by your actual thickness and divide by the thickness of the wood in the file.

For example, your wood is 4.5 mm thick.
Import the file for 5 mm. Multiply the width and length of the imported file by 4.5 and divide by 5.
This will give you a 4.5 mm file.

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

🛒WHAT YOU RECEIVE

🟢 ready made cutting files for 3 mm, 1/8'' (3.175 mm), 4mm, 5 mm, 6 mm, 1/4'' (6.35 mm) material thickness

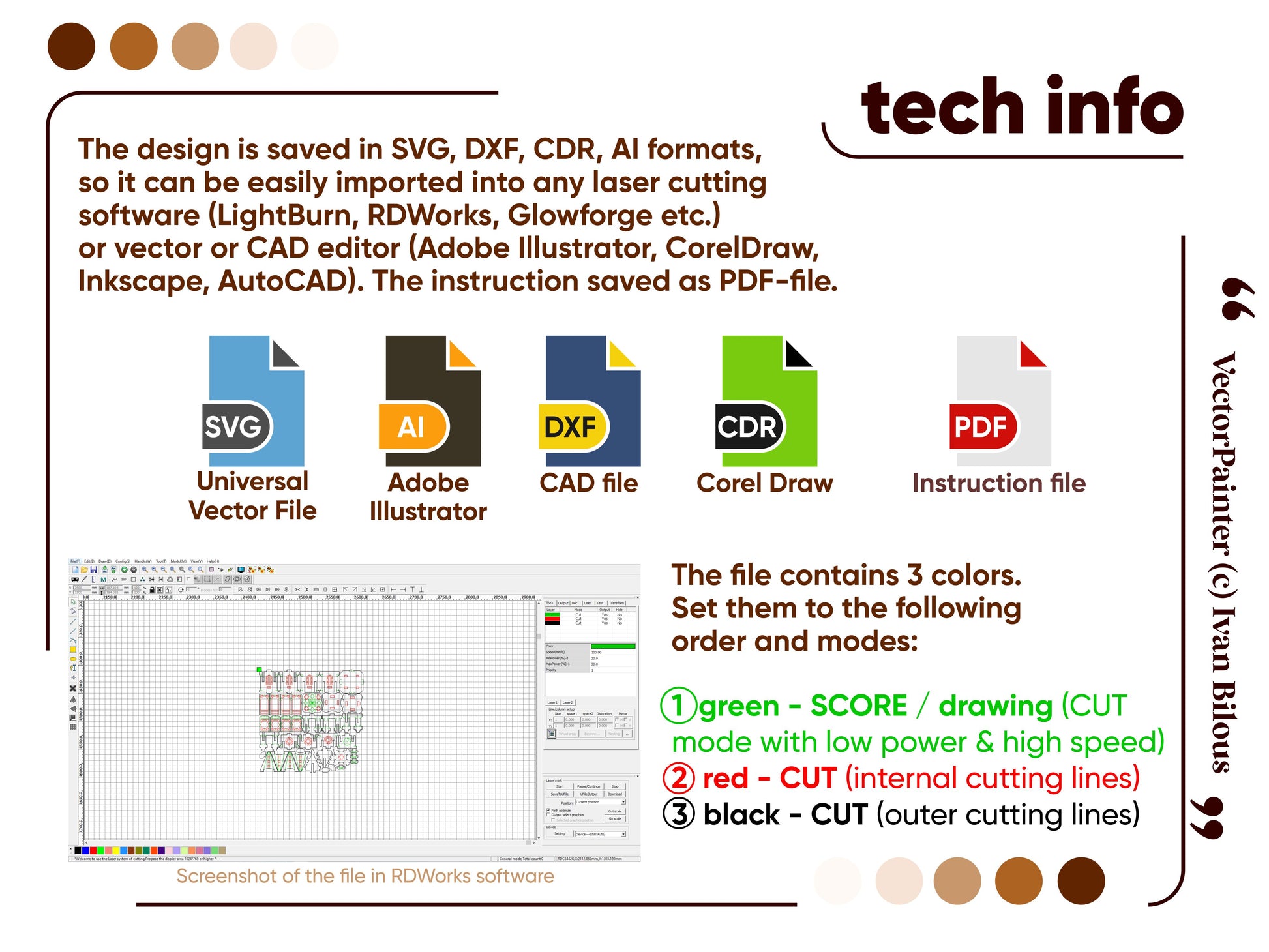

🟢 each file is saved in SVG, DXF, CDR, AI formats

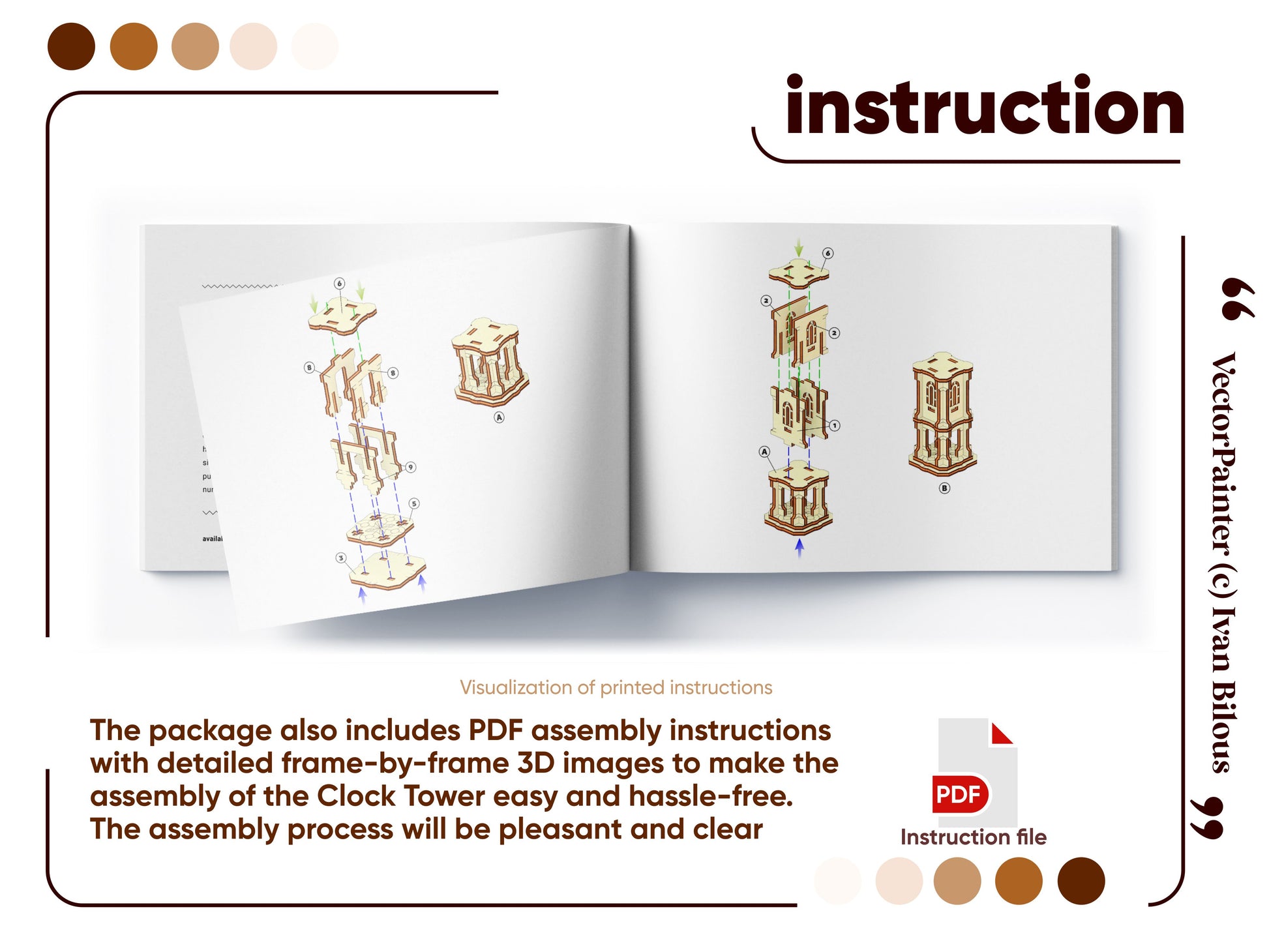

🟢 detailed PDF-instructions with 3D pictures
🟢 discounts on future purchases
🟢 free support consultations and small adjustments
🟢 wholesale prices when buying multiple files

📥The download link will be automatically sent to your email after purchase.

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

This model also available on Etsy here
