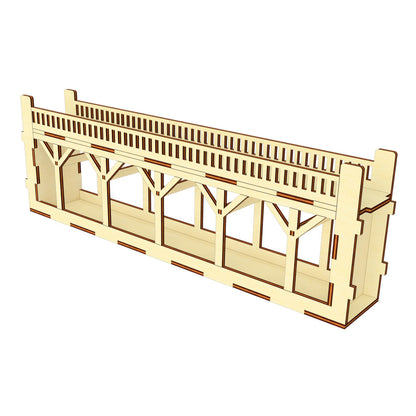

Bridge of the Castle Set
Bridge of the Castle Set
This is a digital product that will be automatically sent to your email address after purchase
Couldn't load pickup availability

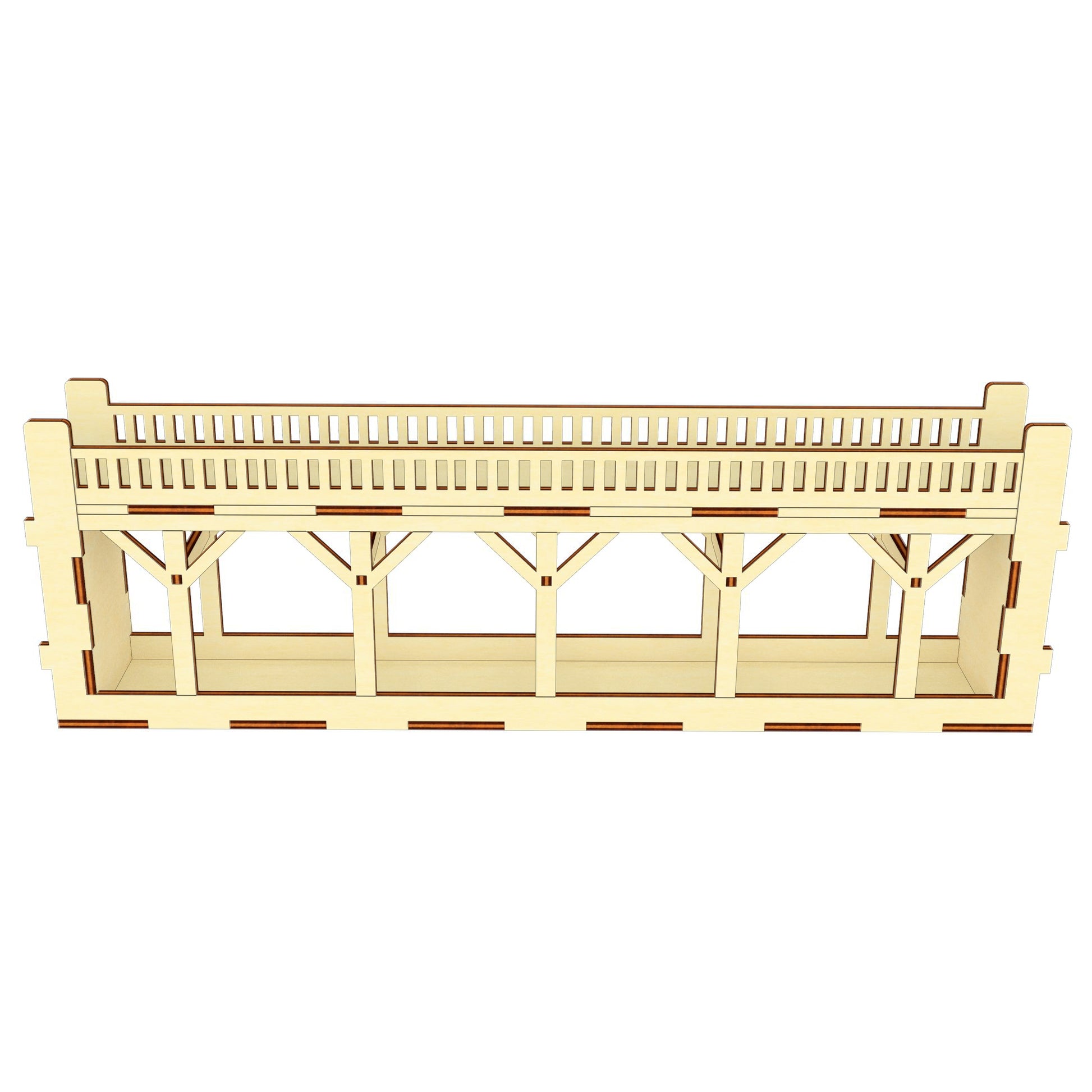

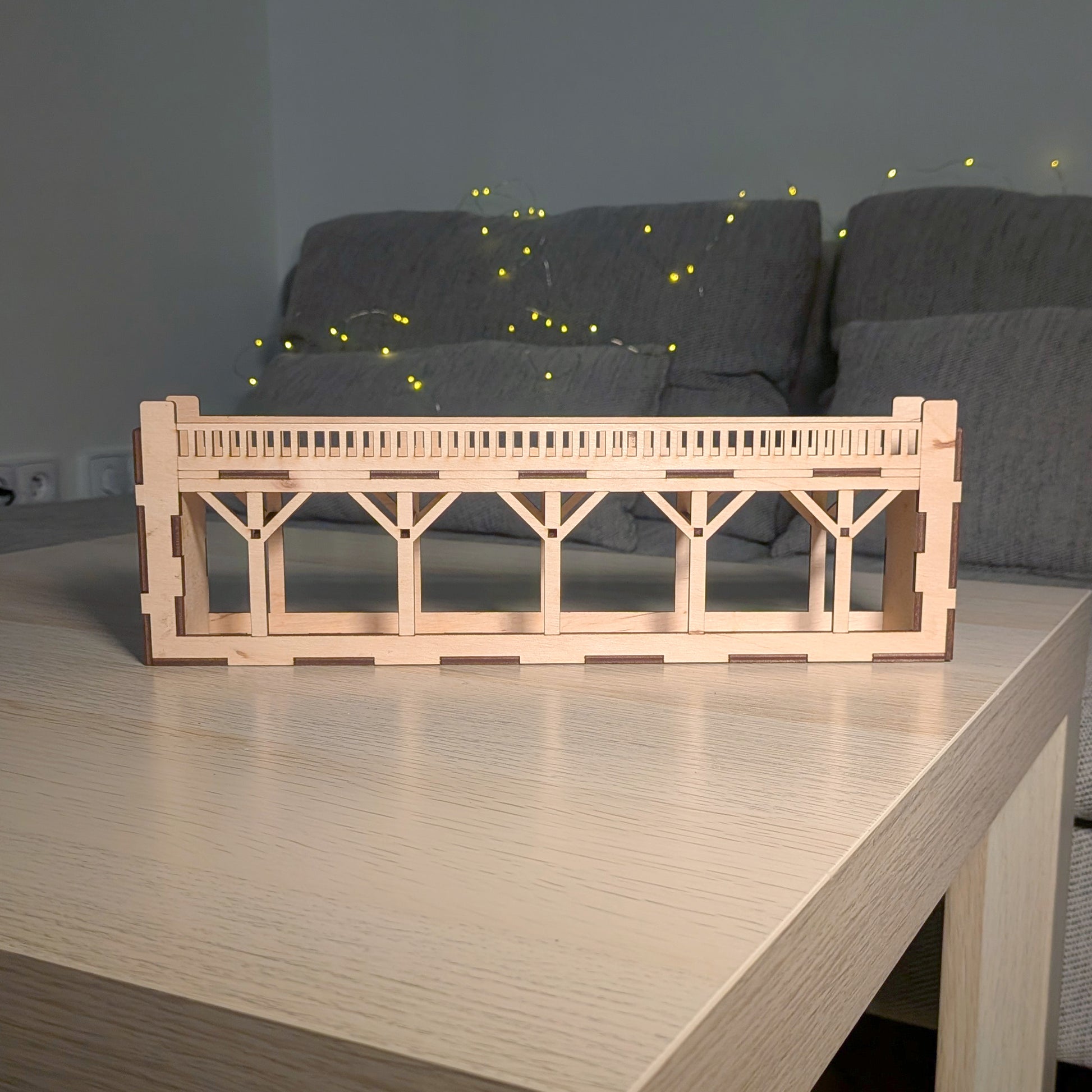

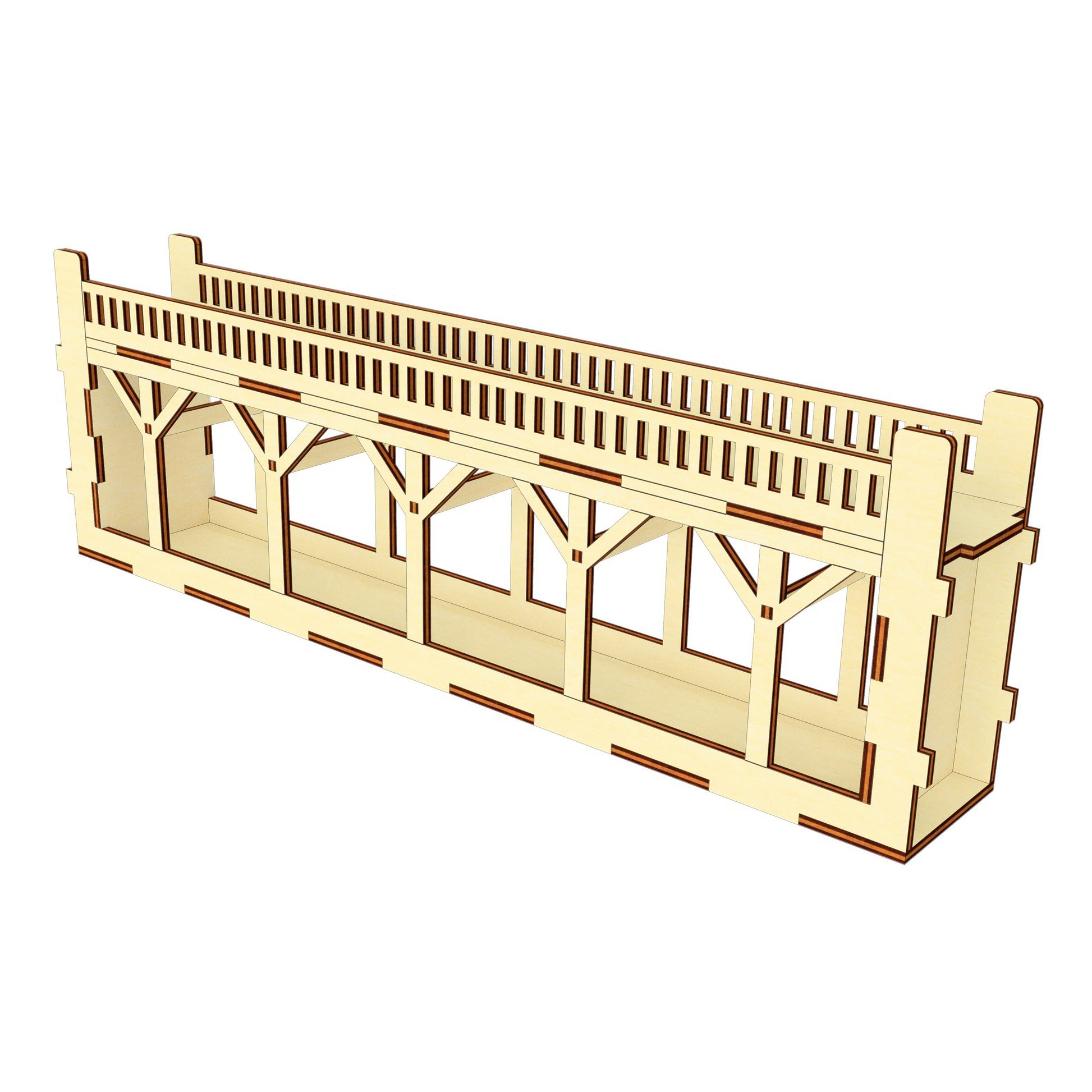

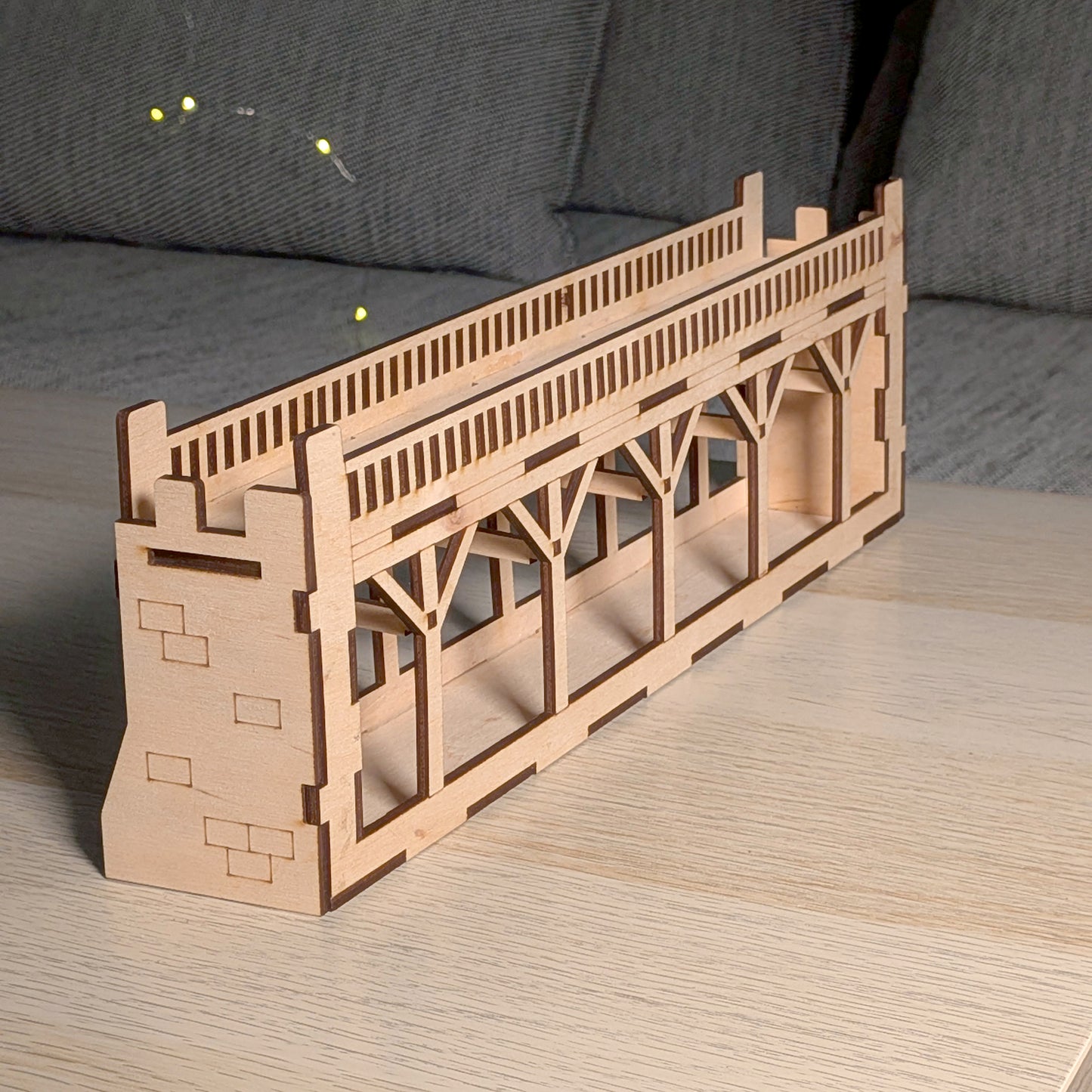

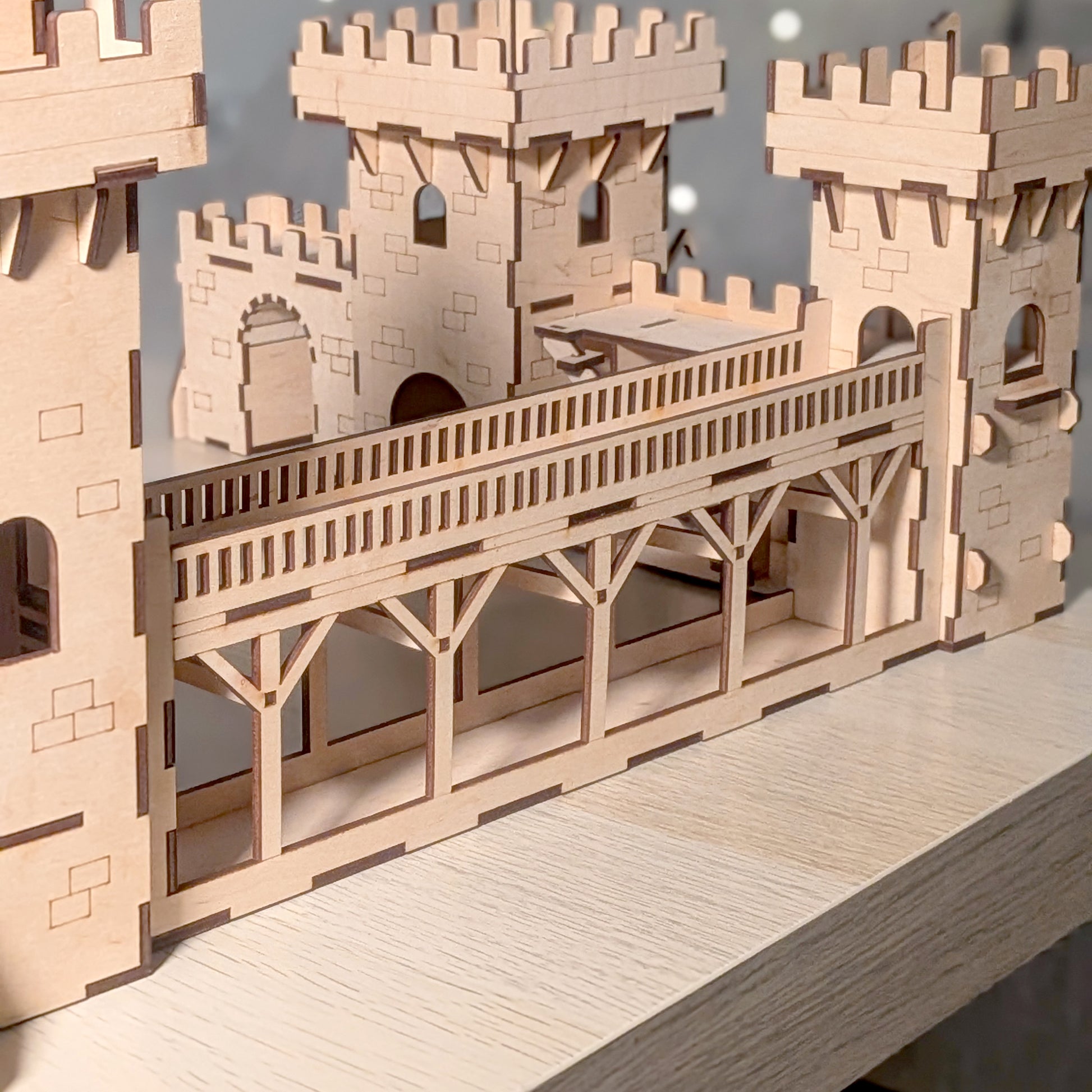

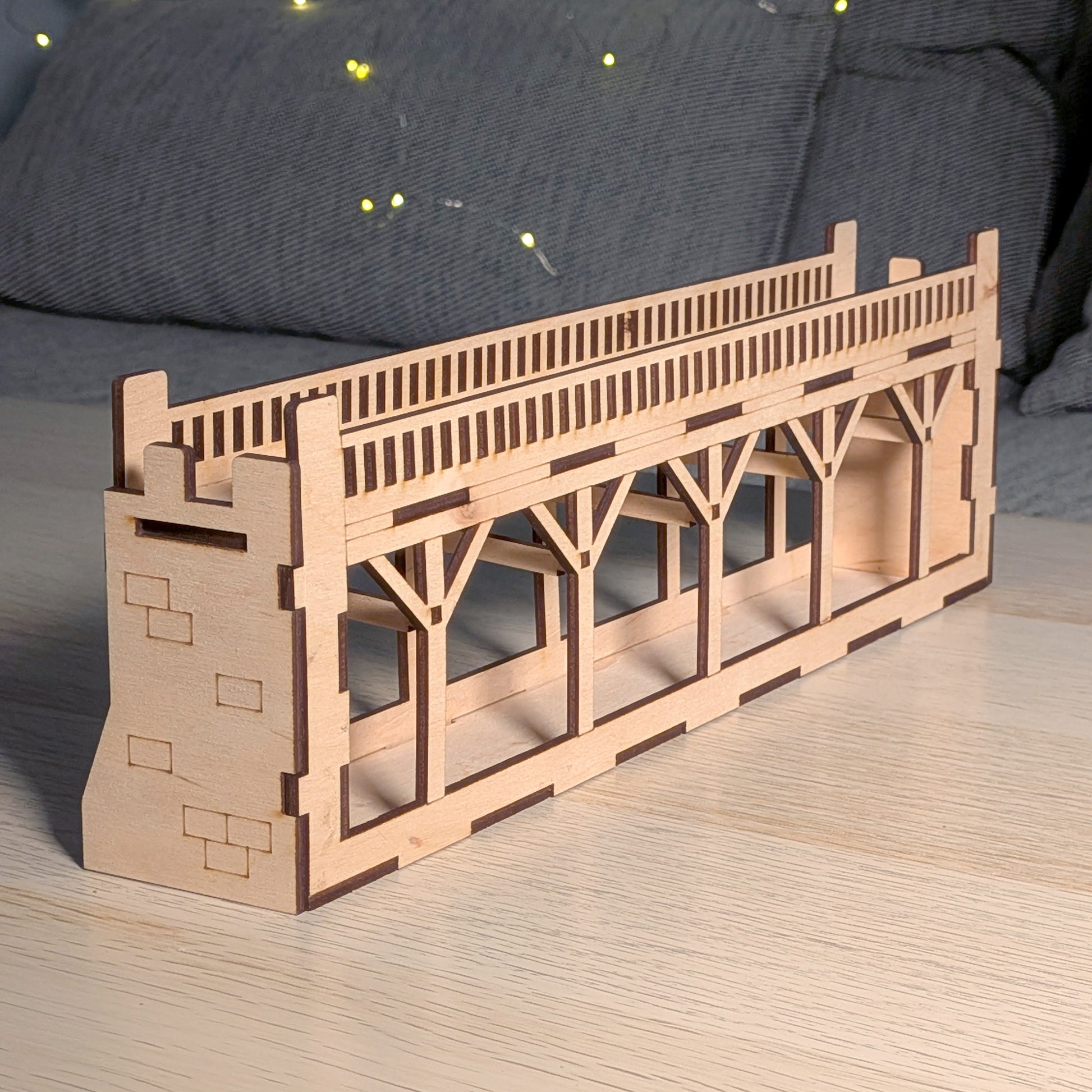

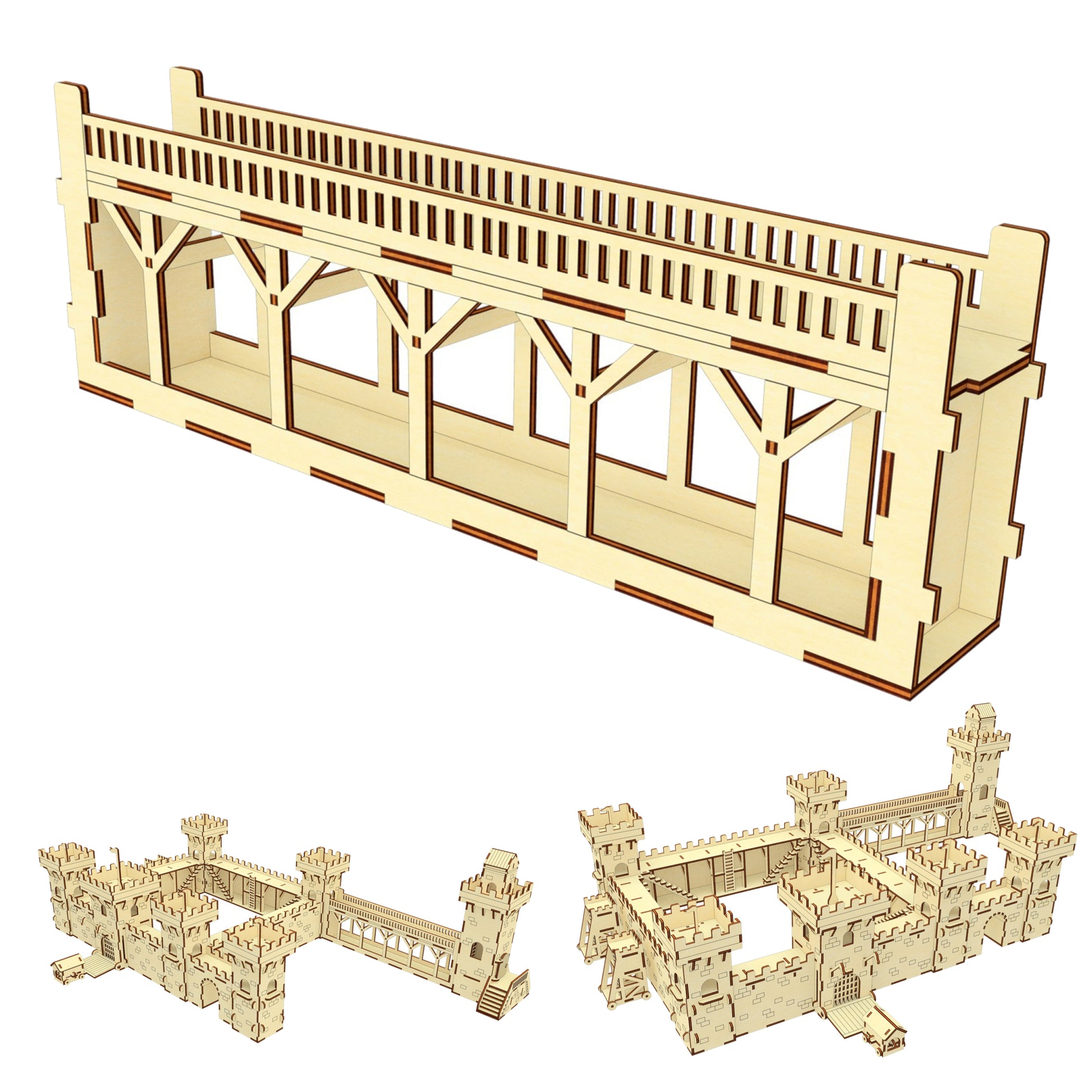

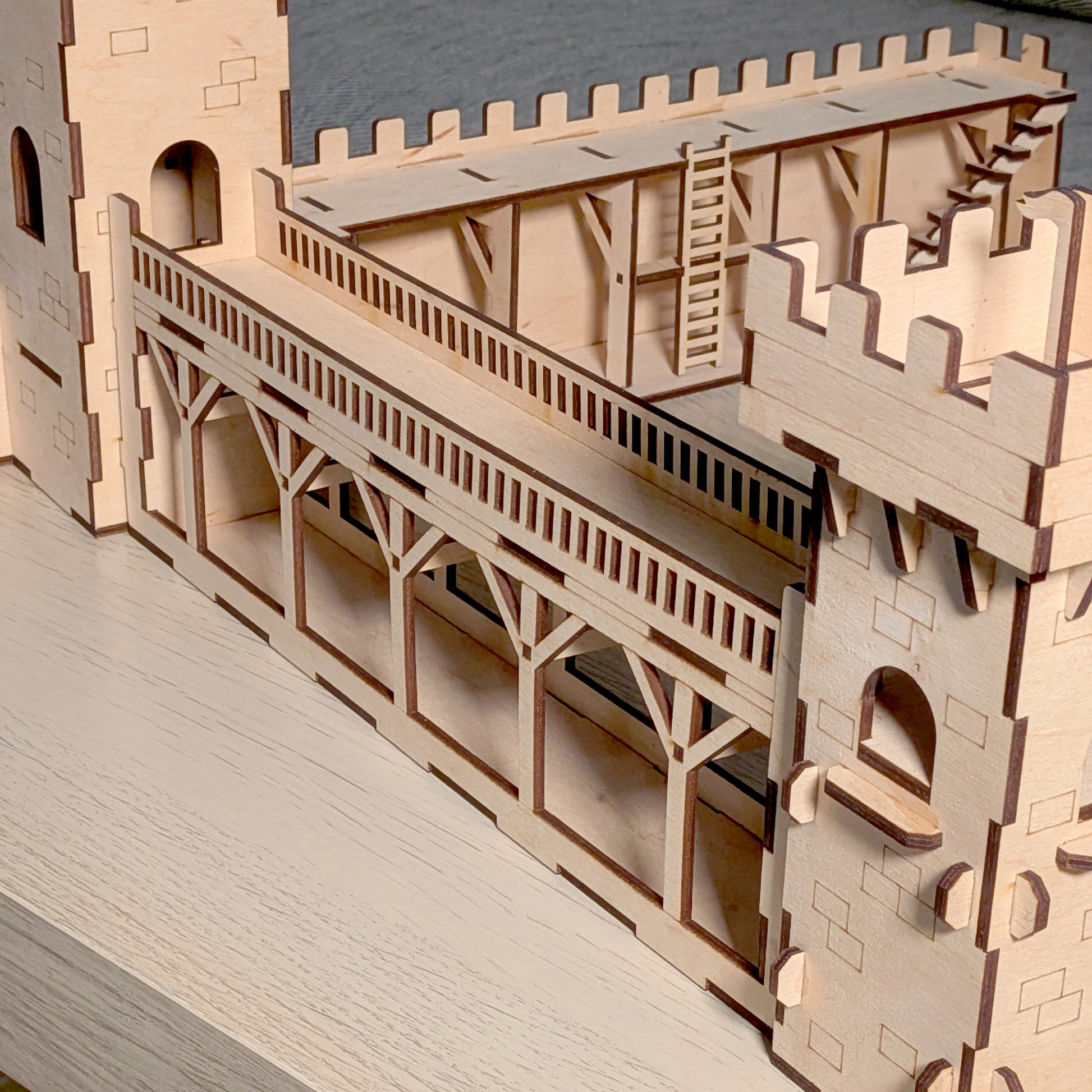

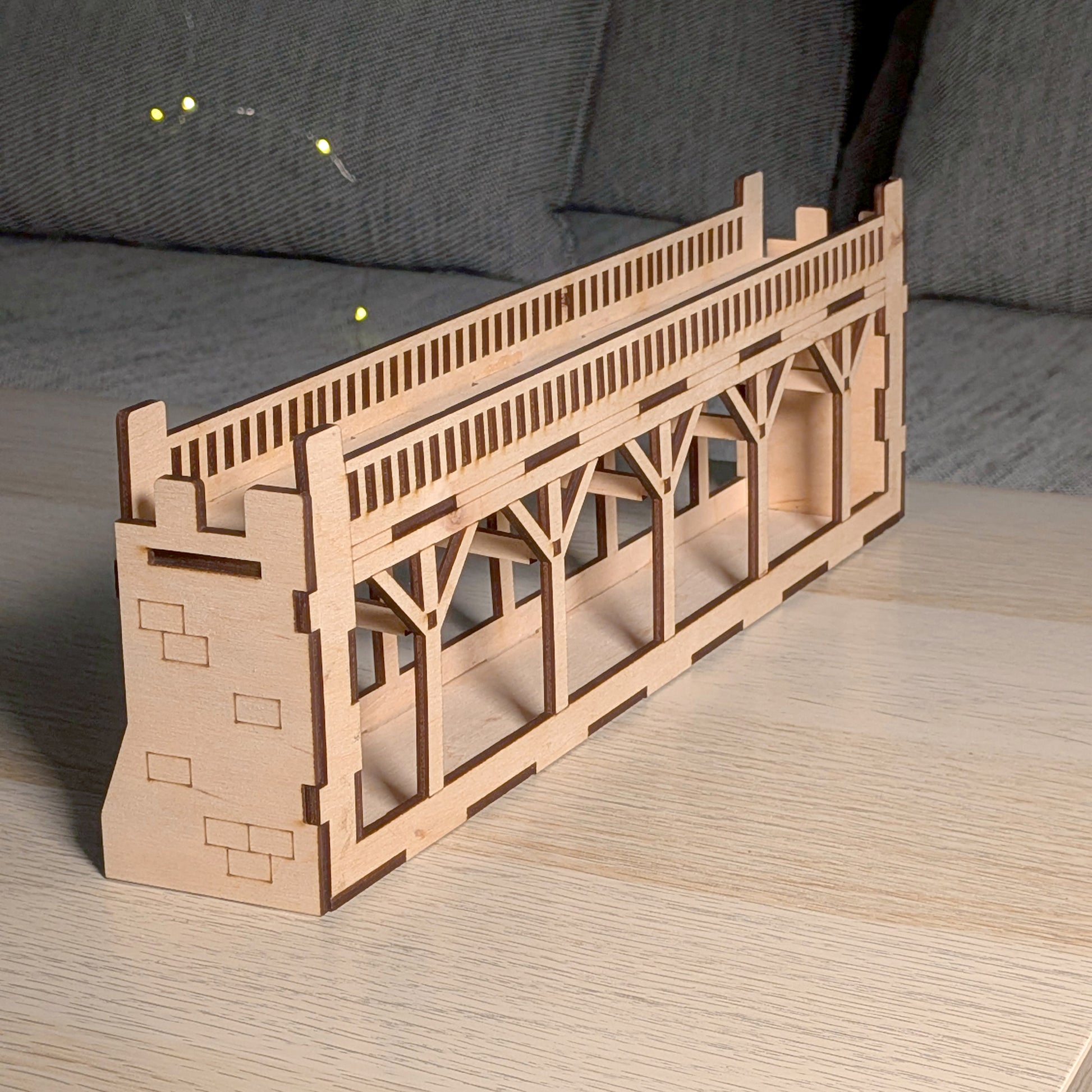

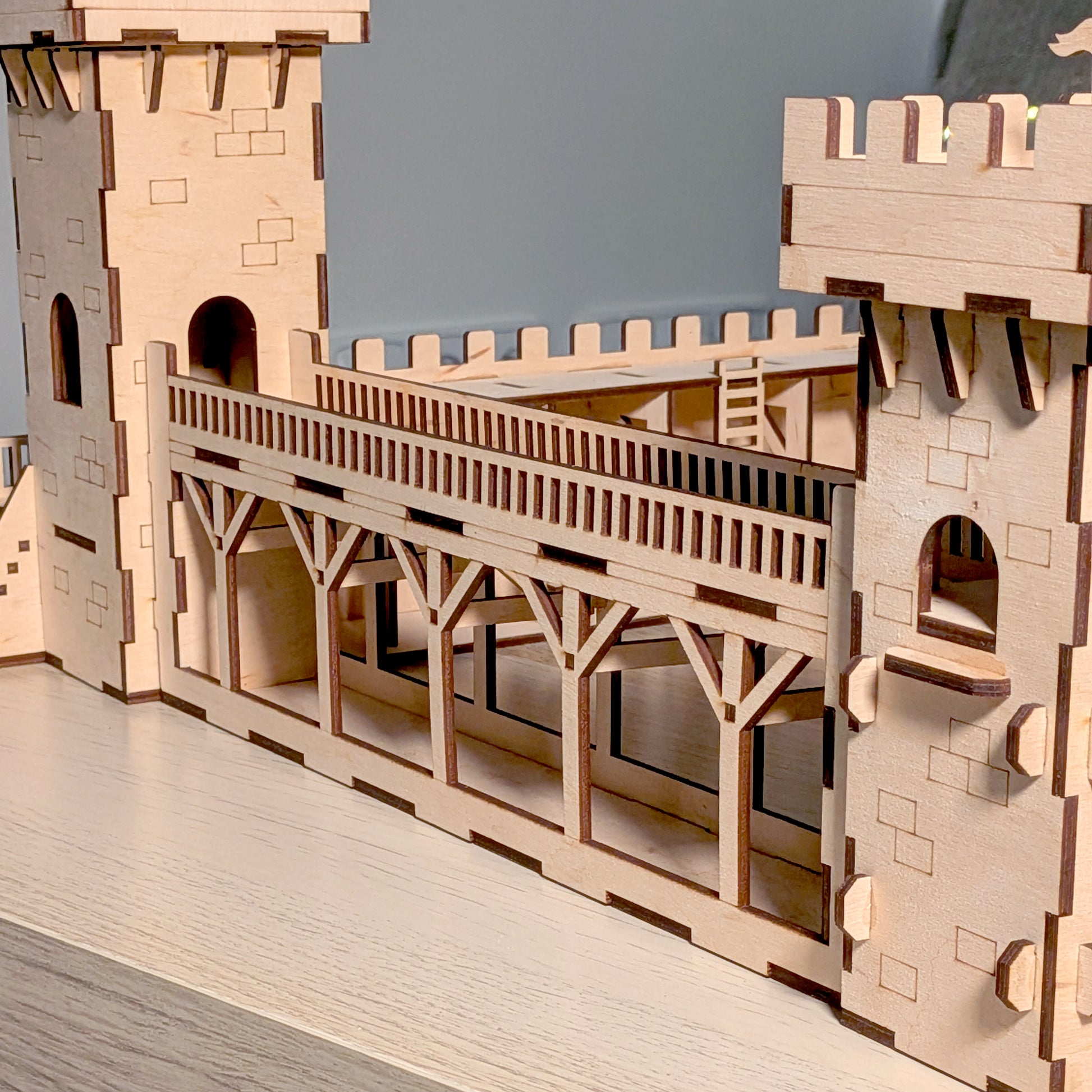

🎨 Laser cut design Bridge of the Castle Set 🎨
DIGITAL FILE for laser cutting machine, paper cutting machines, CNC

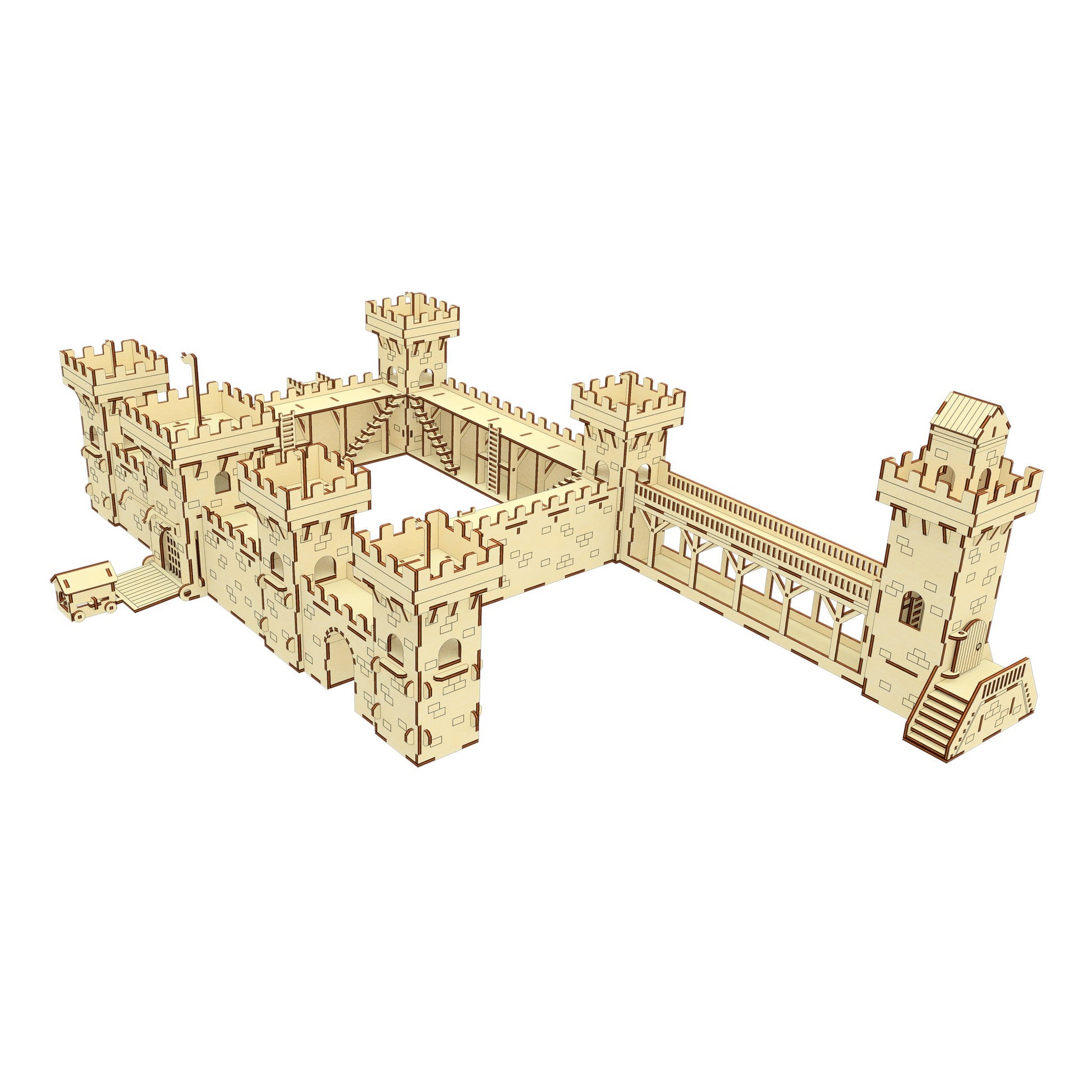

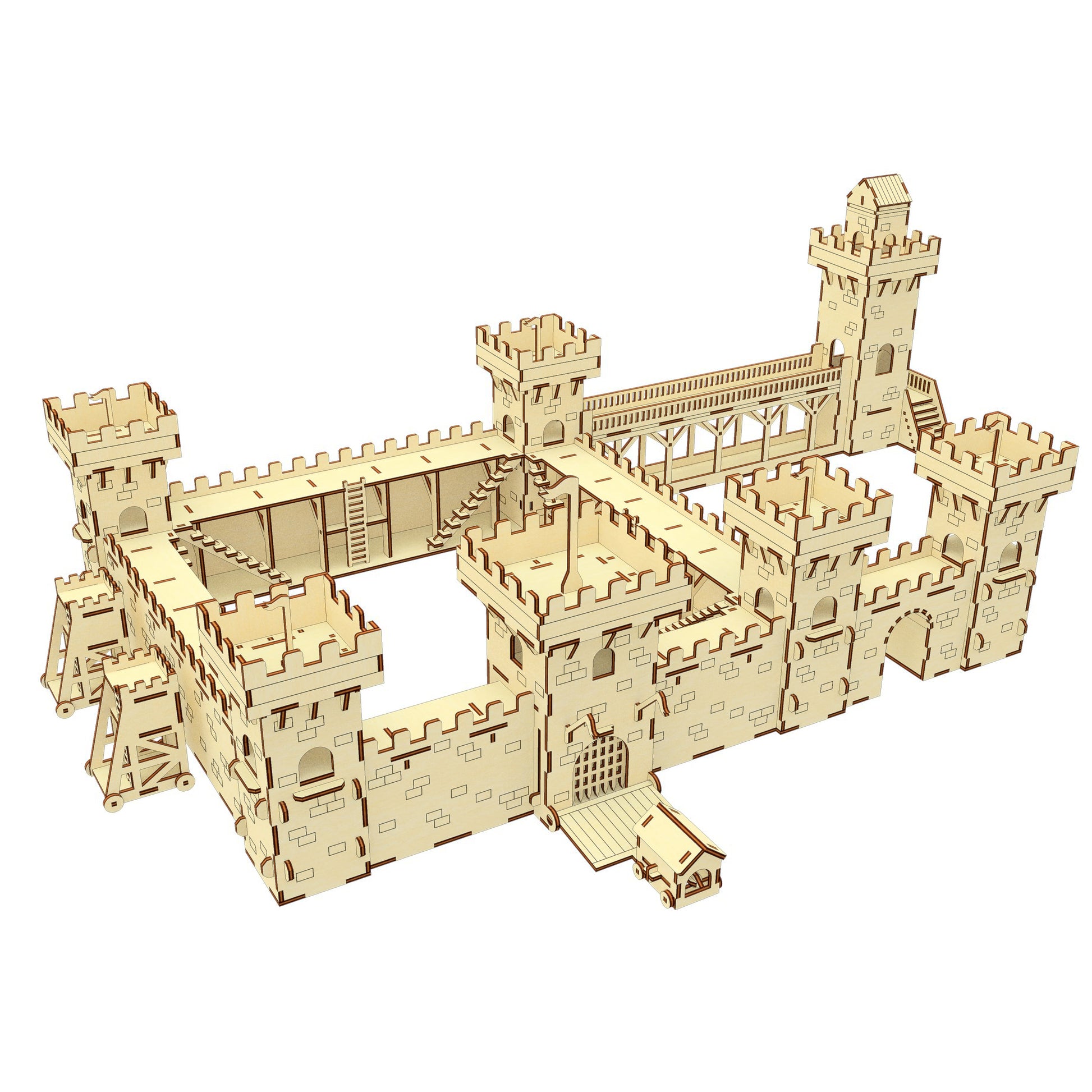

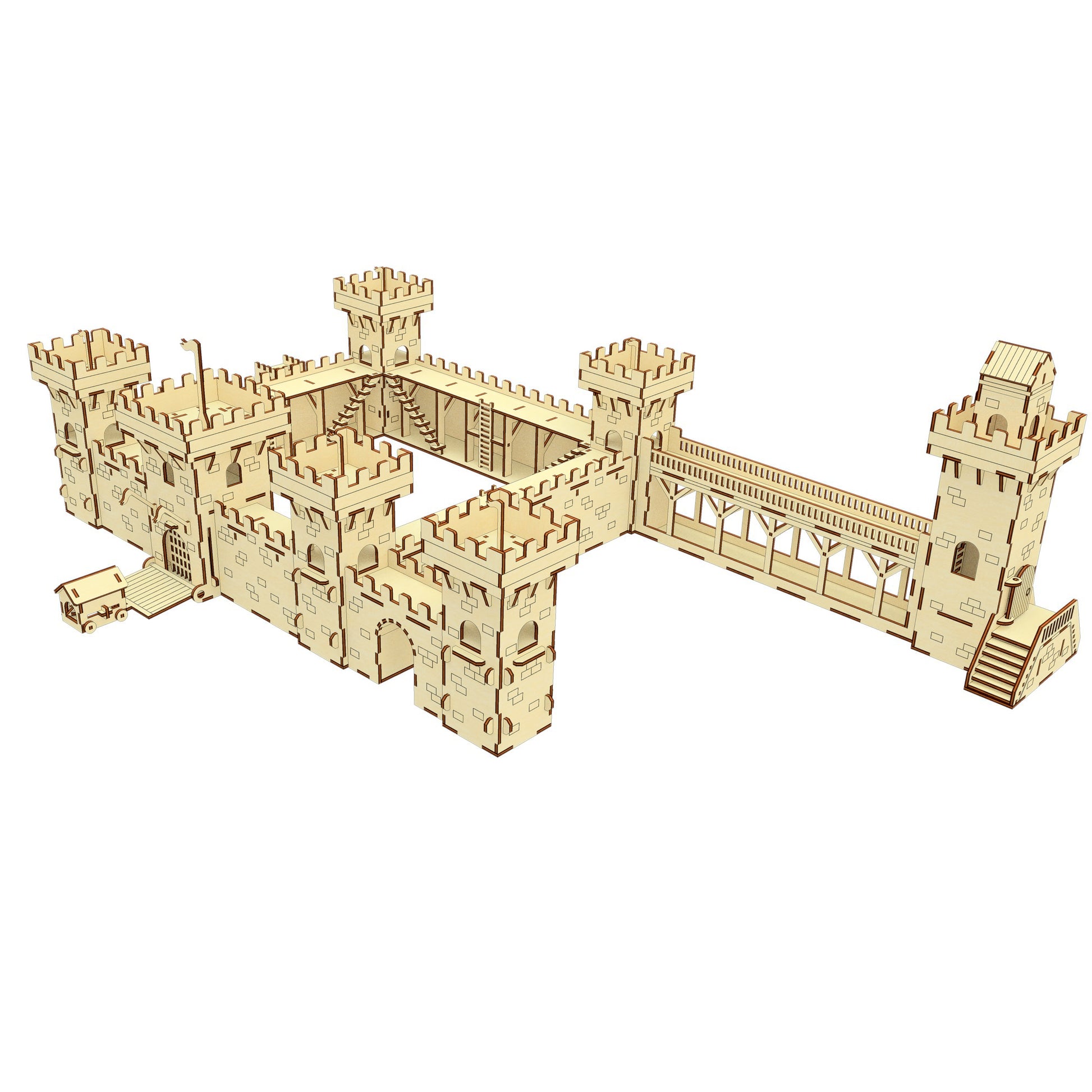

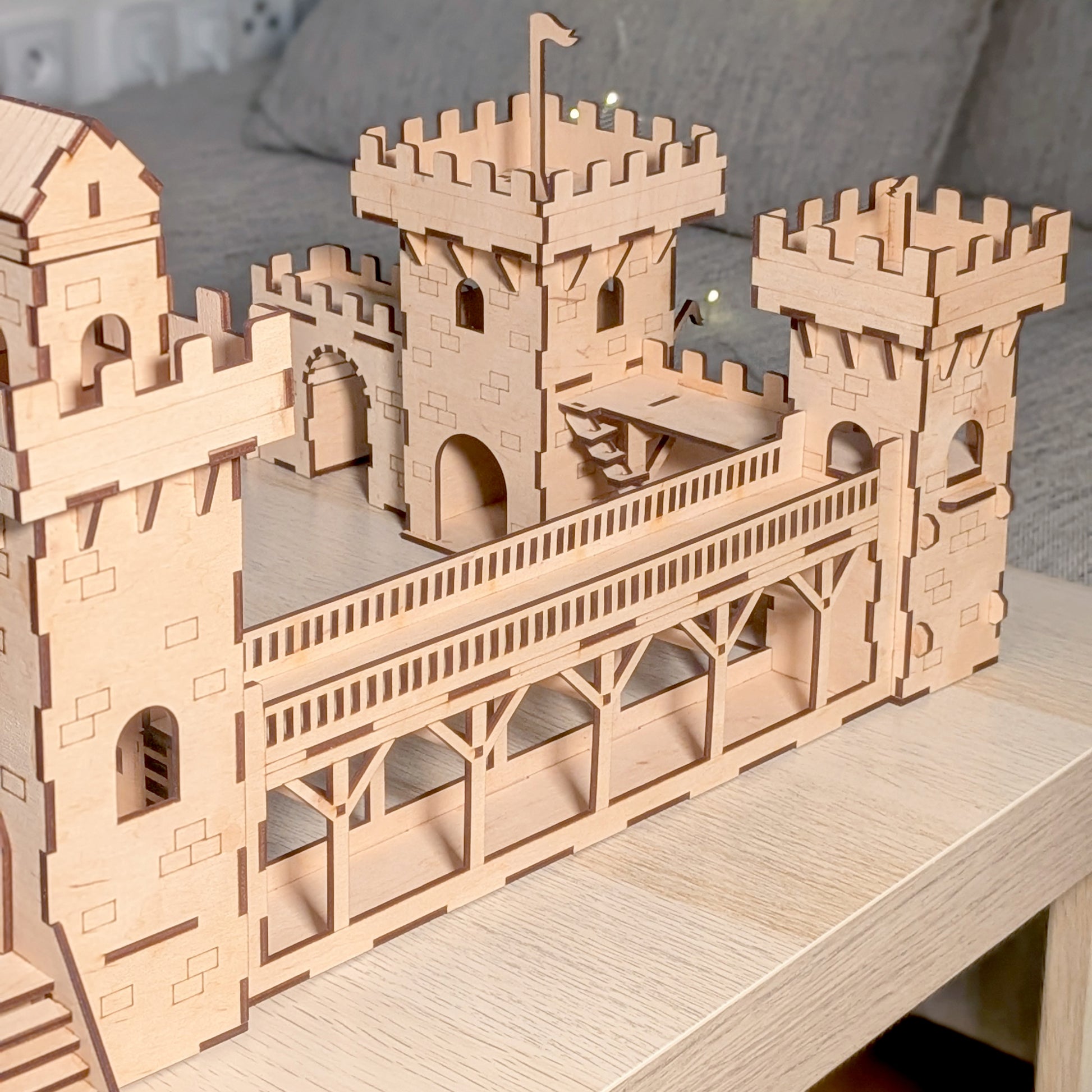

This is one of the blocks of the Castle. In the future, I plan to expand this design and create many additions for it (towers, walls, gates, bridges, etc.) that can be combined with each other.
You will be able to design and connect these blocks to create a wide variety of the castles.
Watch for new additions in my store in a separate category "Castle set" or just text in the search field "Castle" to see everything that is available at the moment
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪
🤏Material thickness (versions of the files): 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

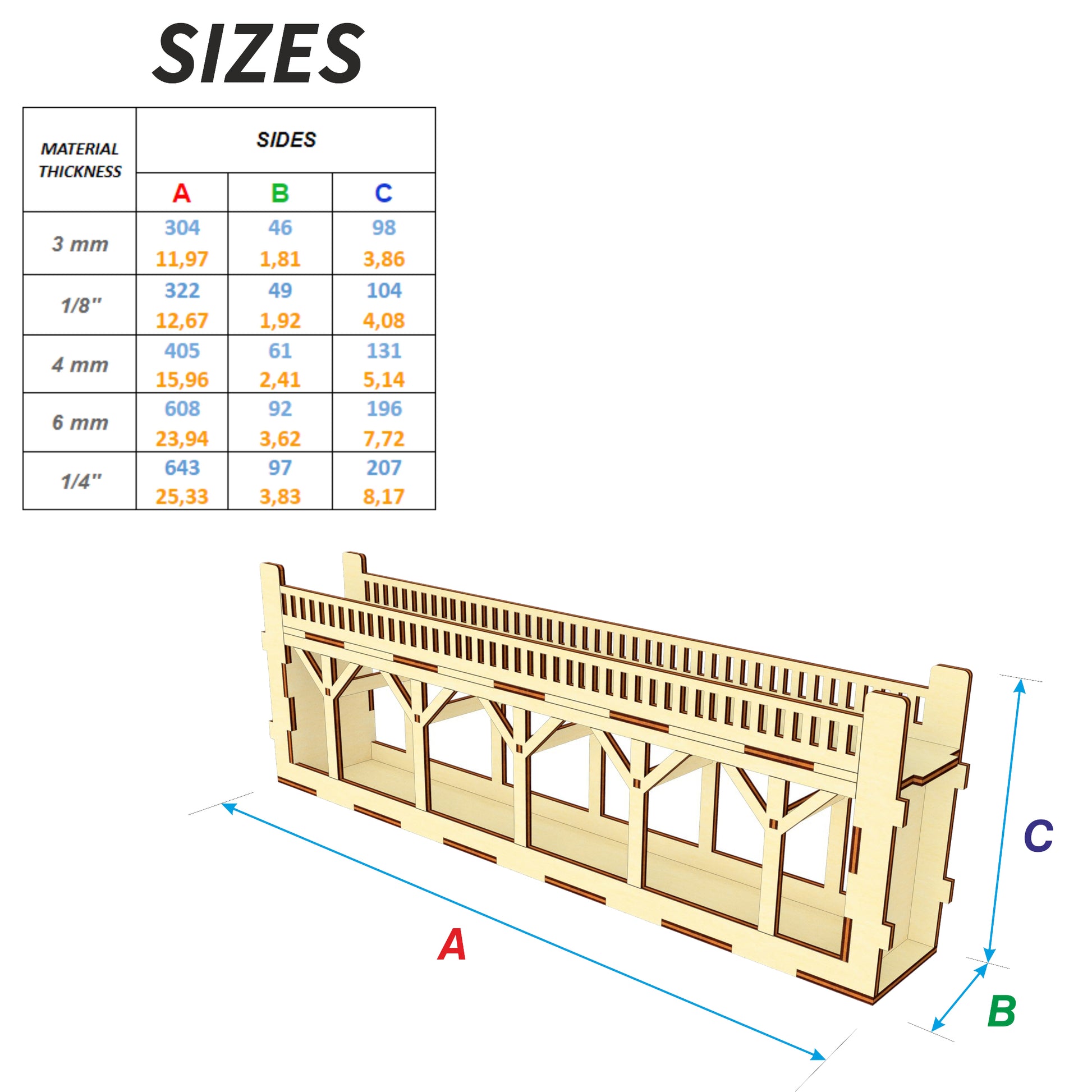

📏 Finished SIZE:
3 mm thickness: 304 x 46 x 98 mm (11,97 x 1,81 x 3,86'')
1/8''(3.175mm) thickness: 322 x 49 x 104 mm (12,67 x 1,92 x 4,08'')
4 mm thickness: 405 x 61 x 131 mm (15,96 x 2,41 x 5,14'')
6 mm thickness: 608 x 92 x 196 mm (23,94 x 3,62 x 7,72'')
1/4''(6.35mm) thickness: 643 x 97 x 207 mm (25,33 x 3,83 x 8,17'')
📐WORK AREA:
3 mm thickness: 354 x 294 mm (13,94 x 11,57'')
1/8''(3.175mm) thickness: 375 x 311 mm (14,75 x 12,25'')
4 mm thickness: 472 x 392 mm (18,58 x 15,43'')
6 mm thickness: 708 x 588 mm (27,87 x 23,15'')
1/4''(6.35mm) thickness: 749 x 622 mm (29,50 x 24,50'')
🟧 LARGEST PART:
3 mm thickness: 304 x 98 mm (11,97 x 3,86'')
1/8''(3.175mm) thickness: 322 x 104 mm (12,67 x 4,08'')
4 mm thickness: 405 x 131 mm (15,96 x 5,14'')
6 mm thickness: 608 x 196 mm (23,94 x 7,72'')
1/4''(6.35mm) thickness: 643 x 207 mm (25,33 x 8,17'')

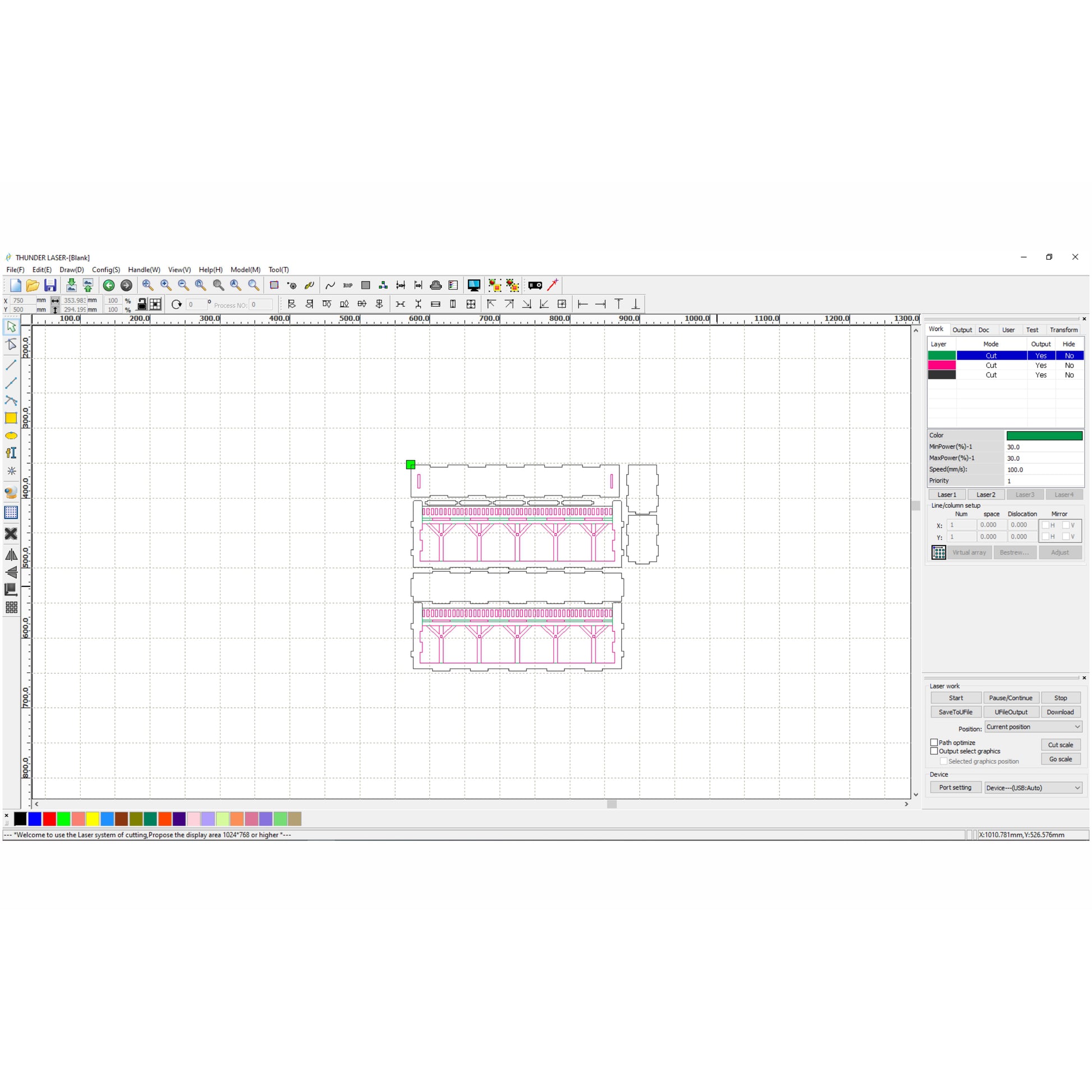

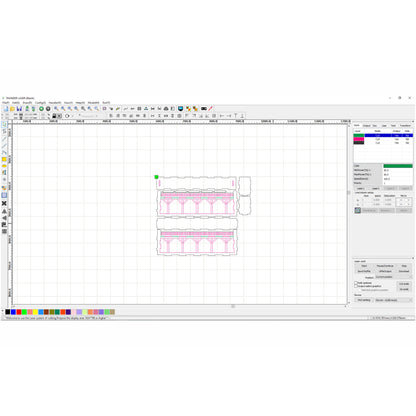

⚙️COLOR MODE SETTING:
green color - draw (cut with little power and big speed)
pink color - cut
black color - cut
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪
