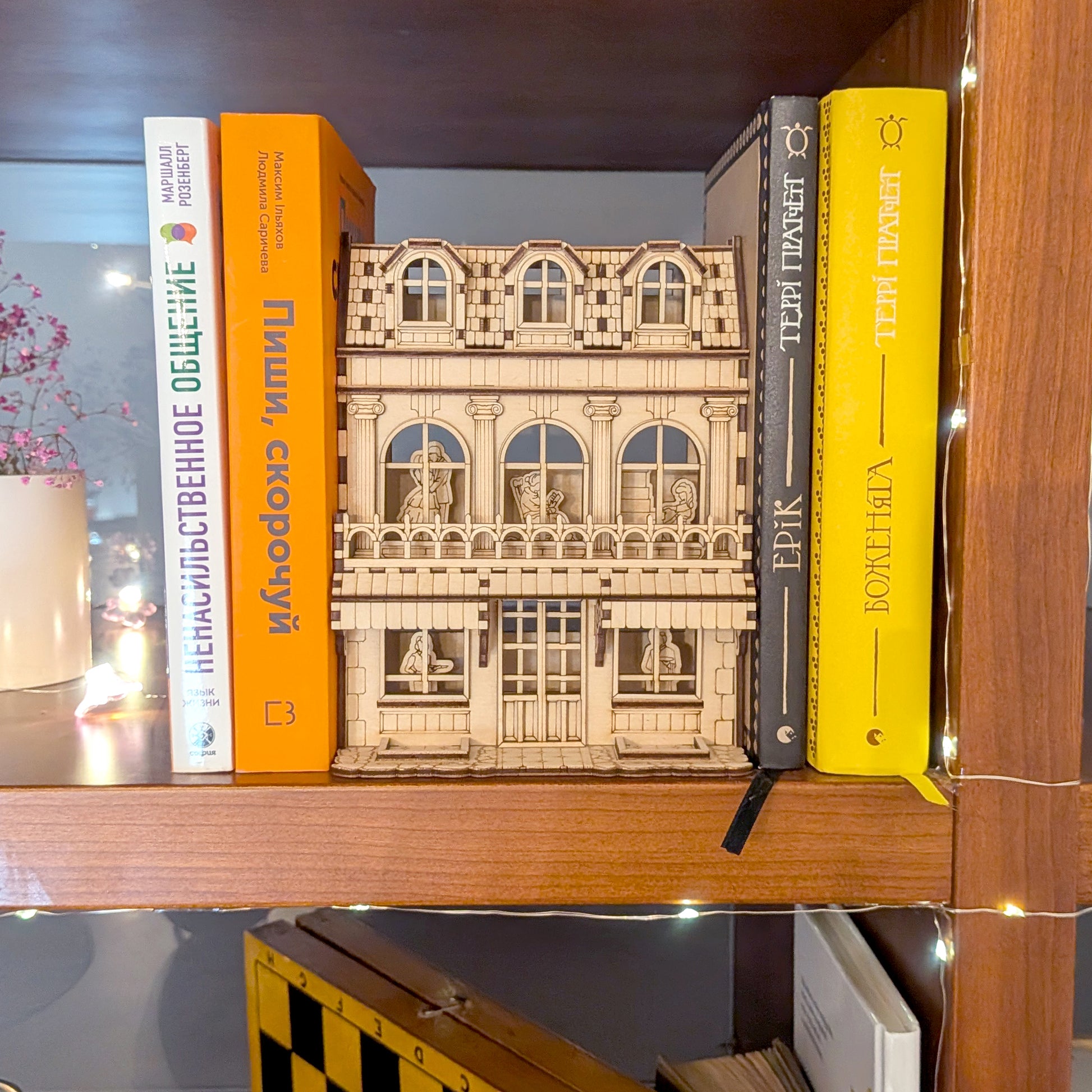

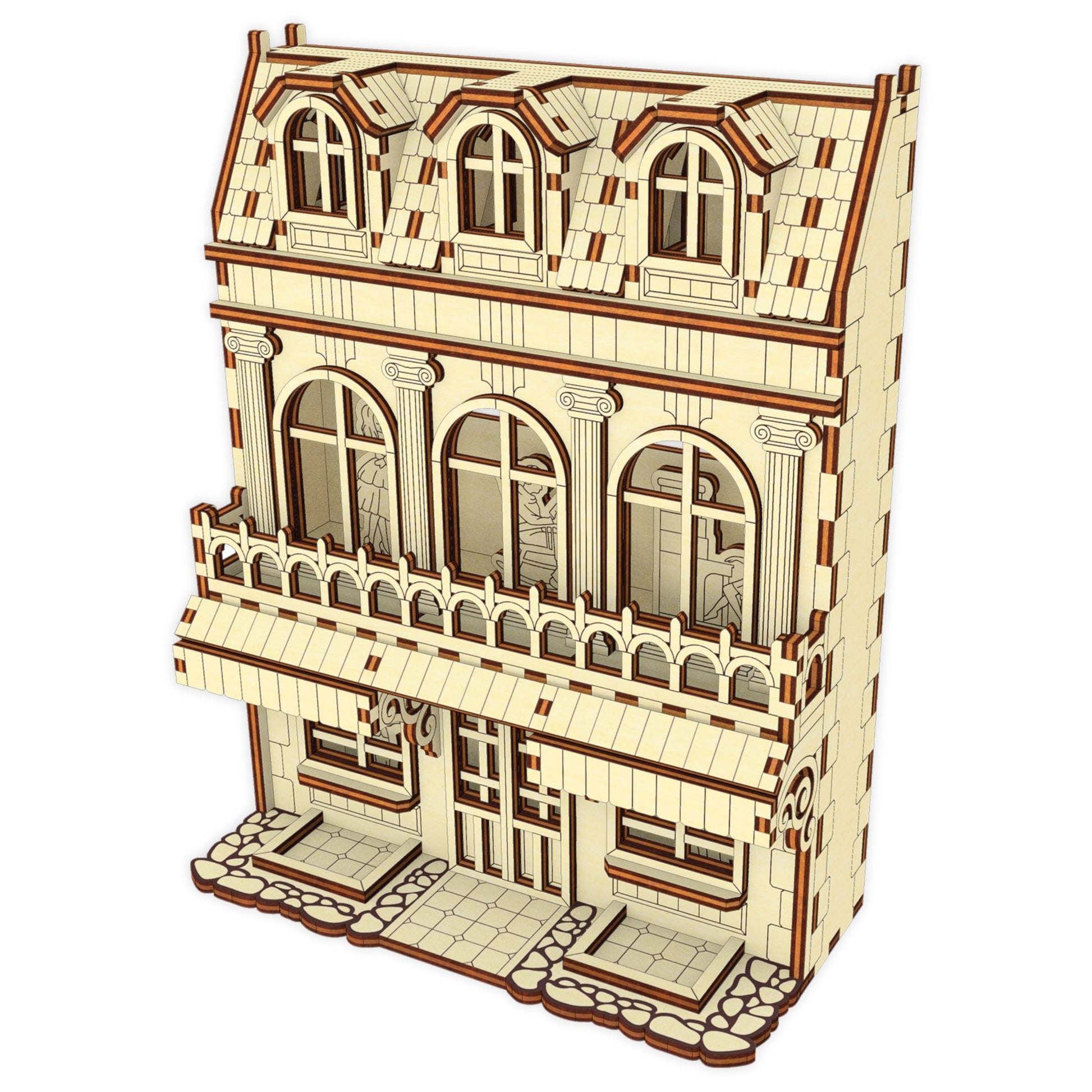

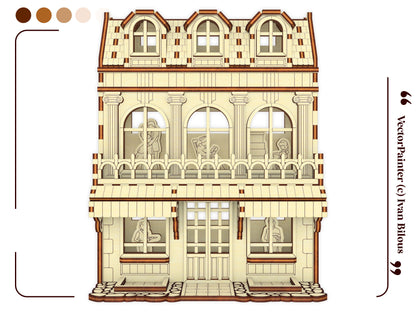

This precision laser-cut file features an expertly designed 2.5D house that combines sophisticated engineering with fabrication excellence. Through strategic layering, the design generates genuine spatial depth and nuanced shadow effects, converting flat substrate materials into an intricately detailed architectural miniature with dimensional complexity.

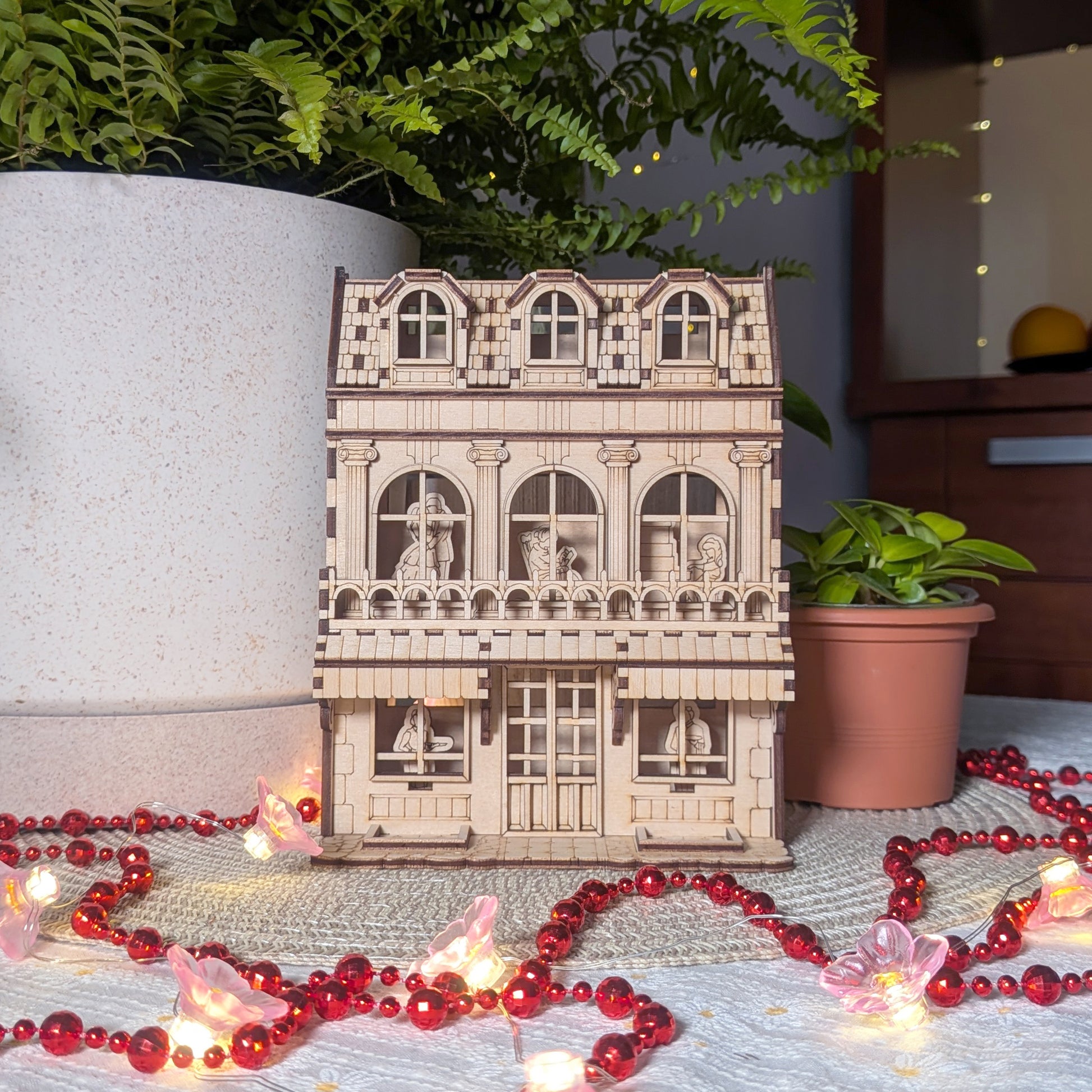

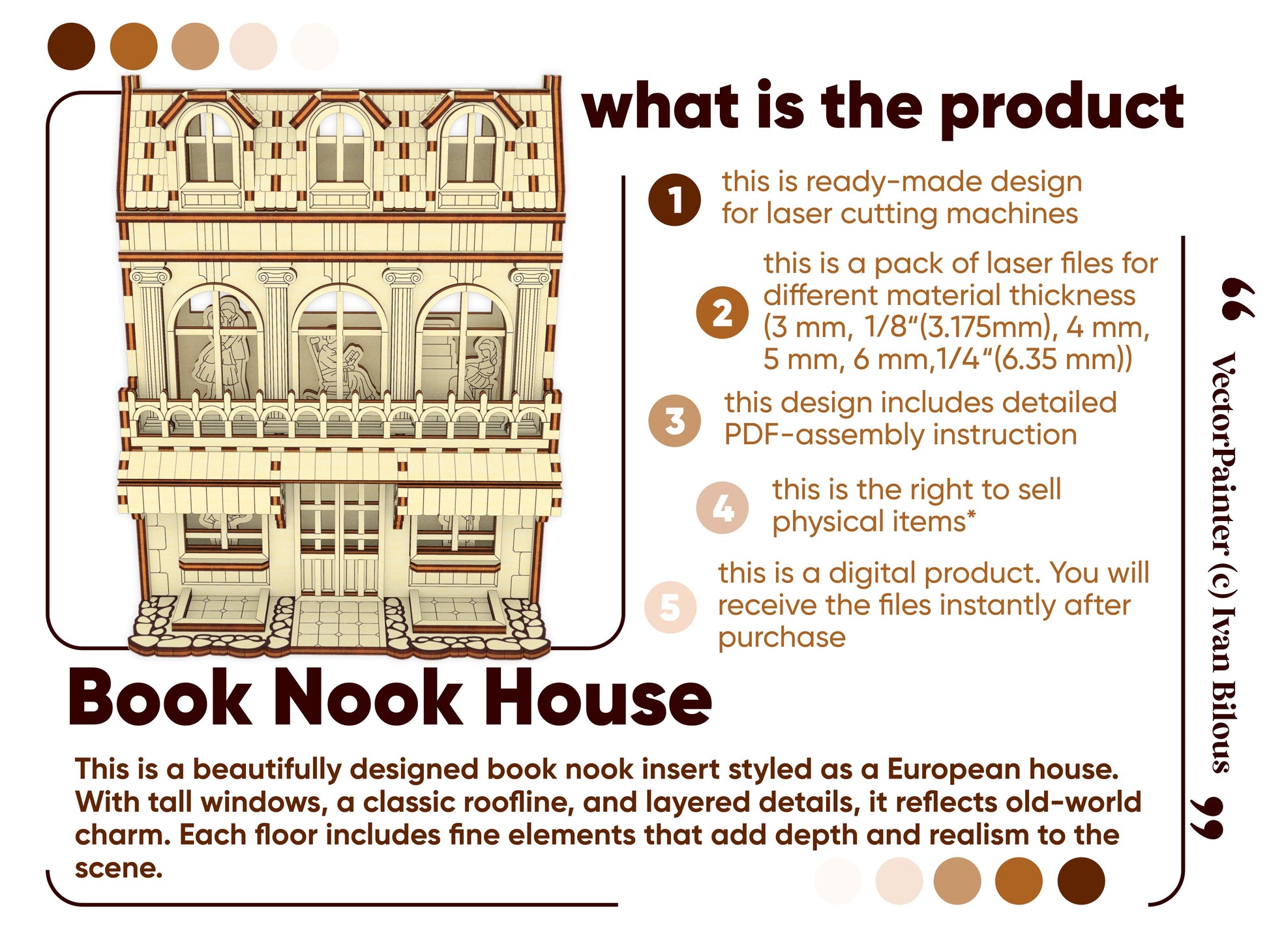

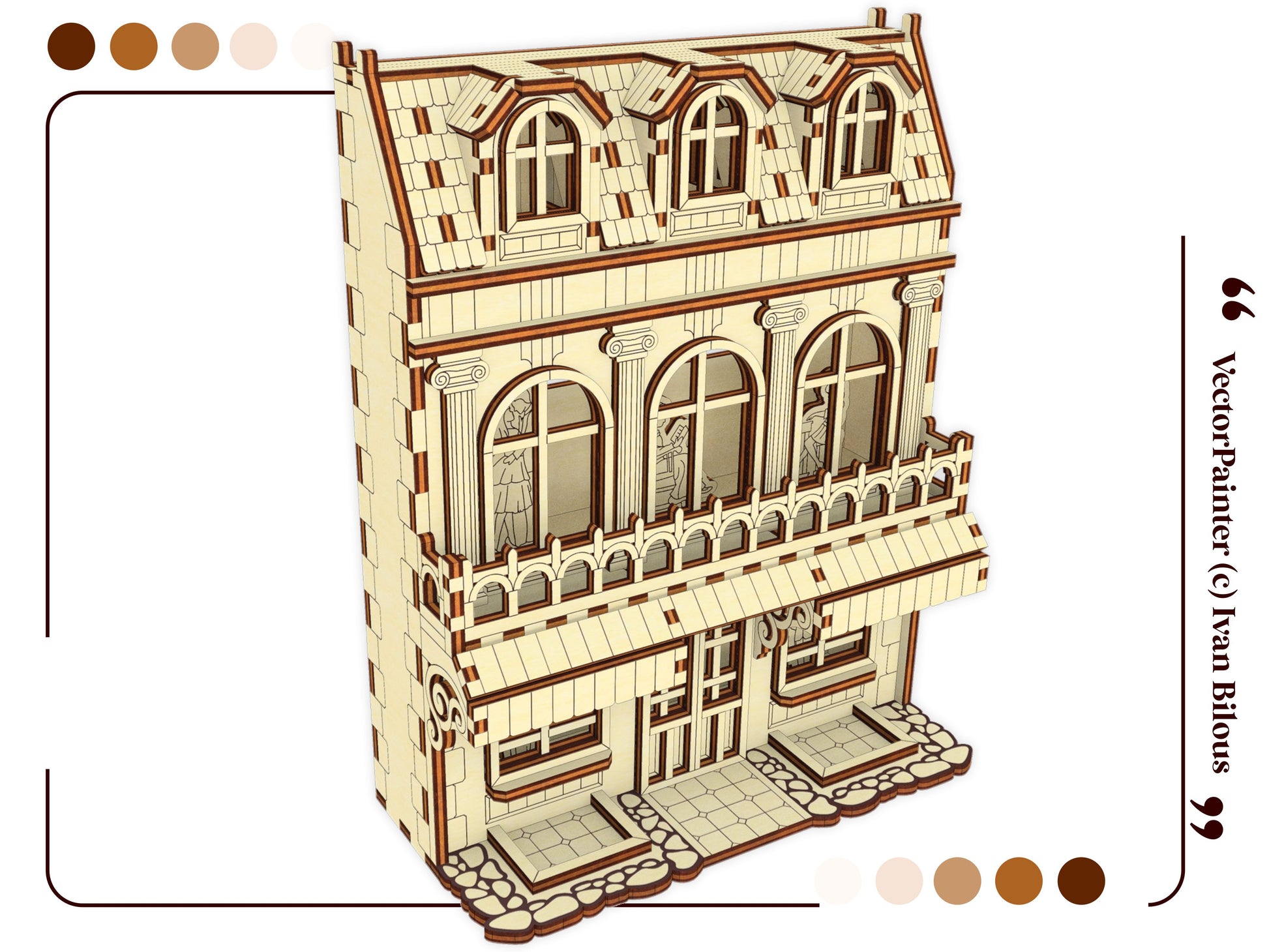

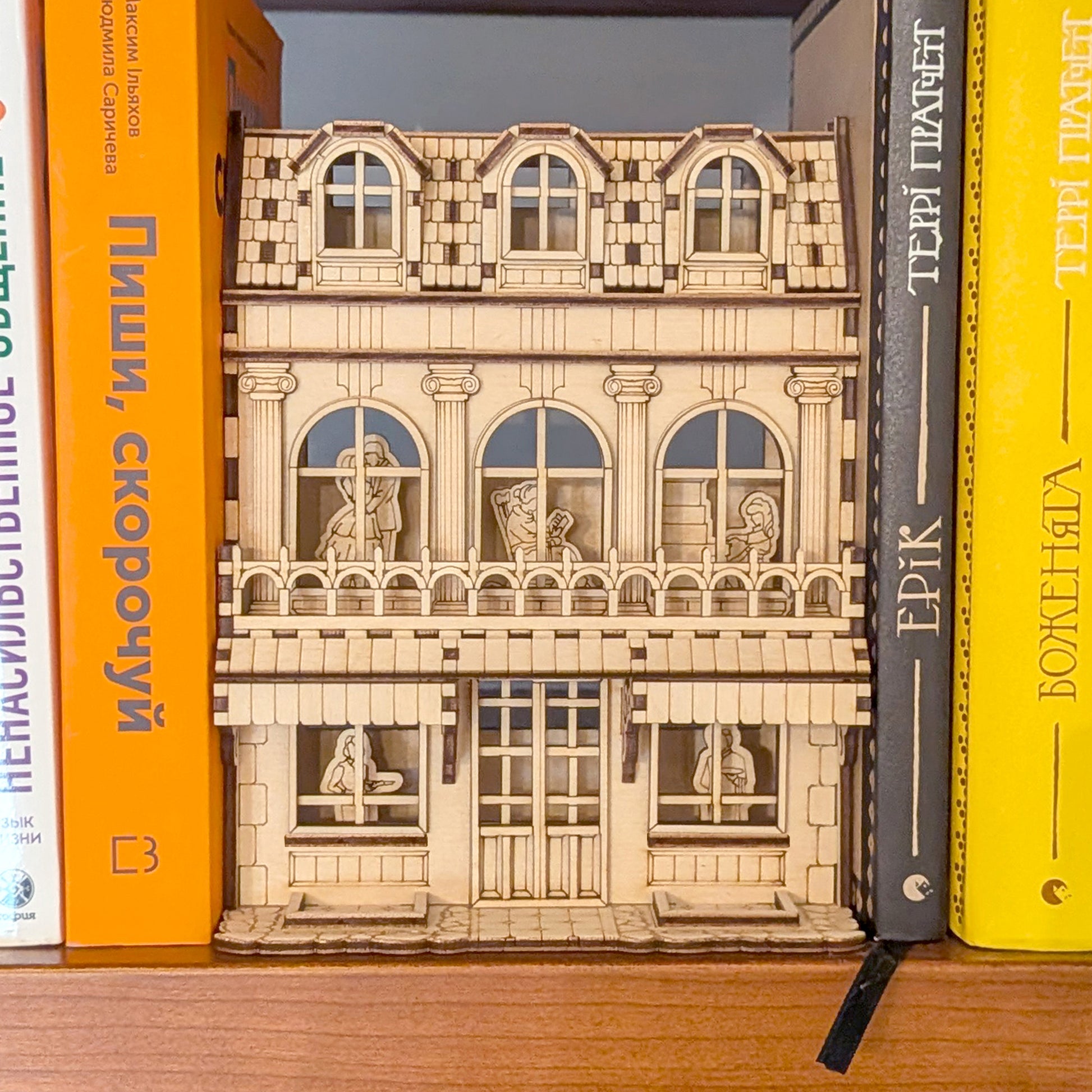

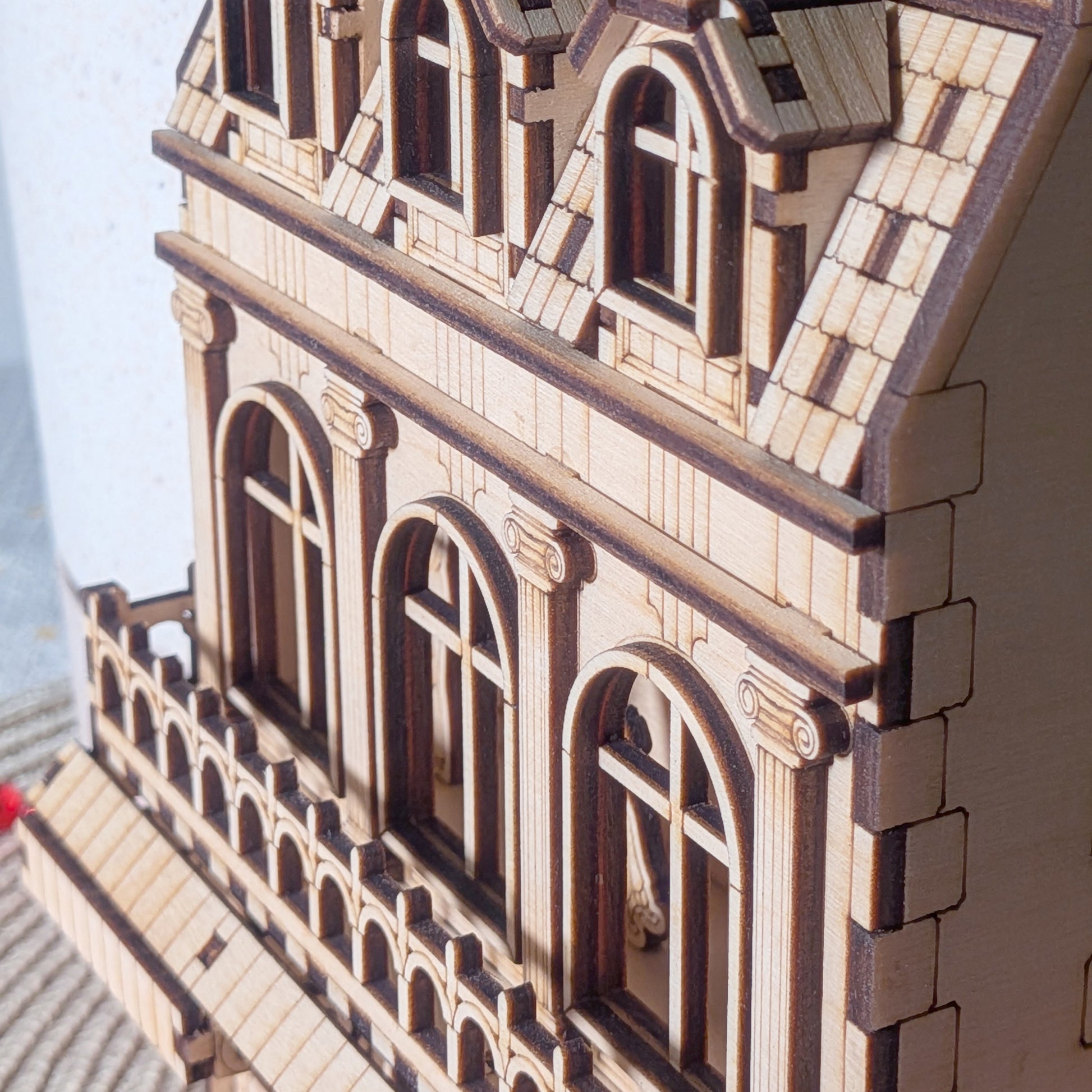

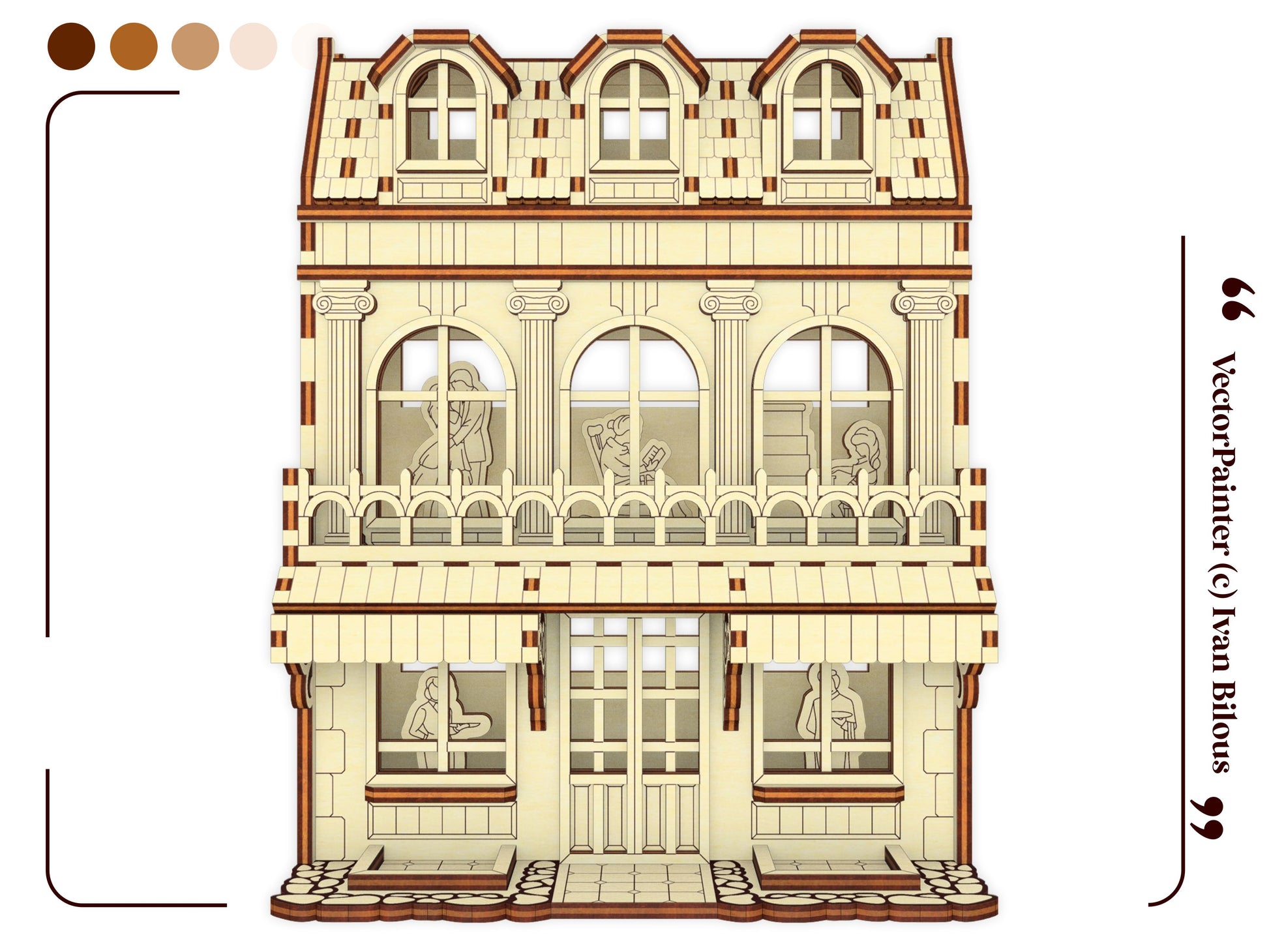

🎨 Laser cut design Book Nook 2.5D House 🎨
DIGITAL FILE for laser cutting machine

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

🤏Material thickness (versions of the files): 3 mm, 1/8'' (3.175 mm), 4 mm, 5 mm, 6 mm, 1/4'' (6.35 mm)

Level of assembly difficulty: ⚫⚫⚫⚪⚪
⚠️ Contains small parts
⚠️ Some parts are glued

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

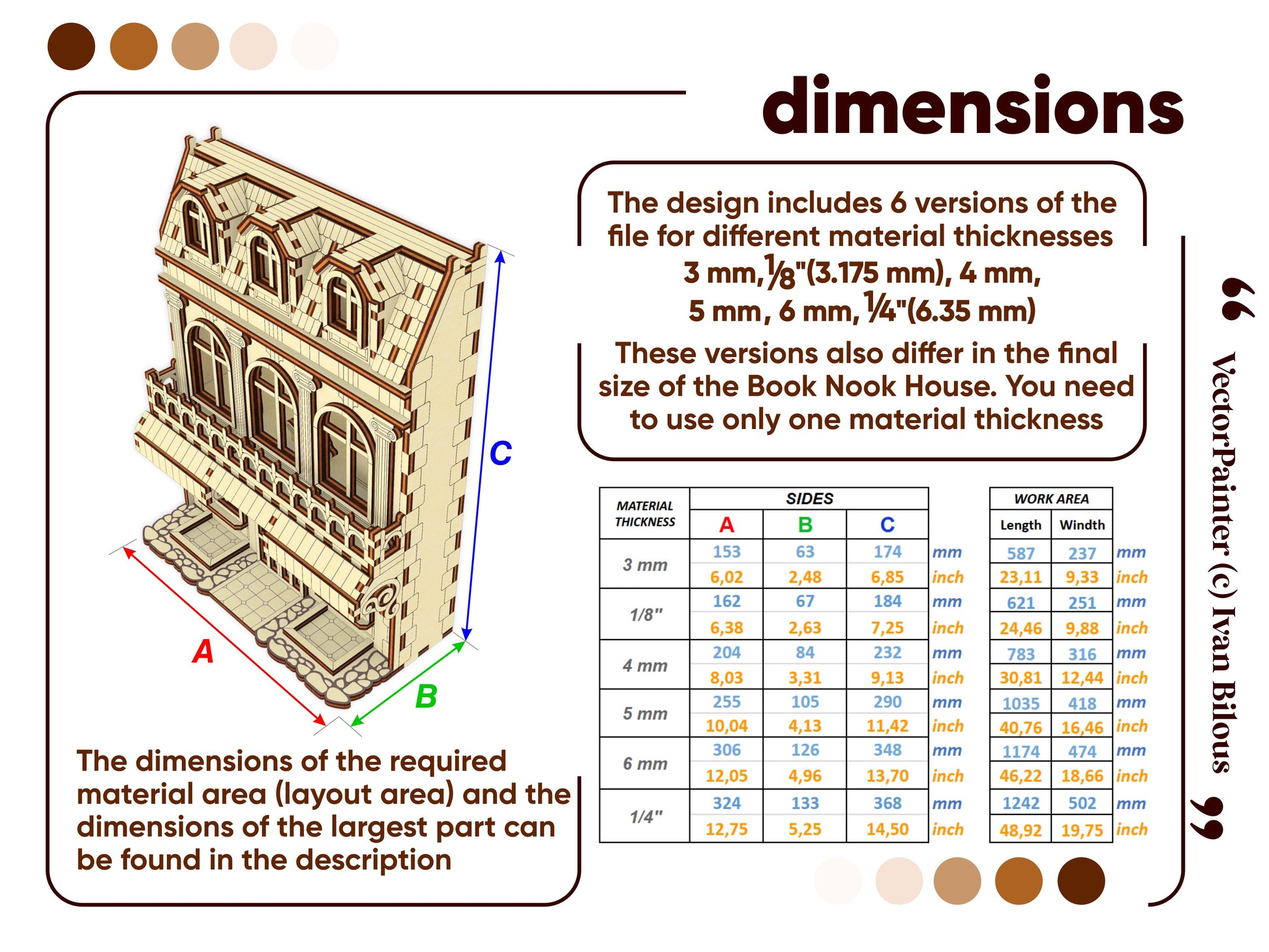

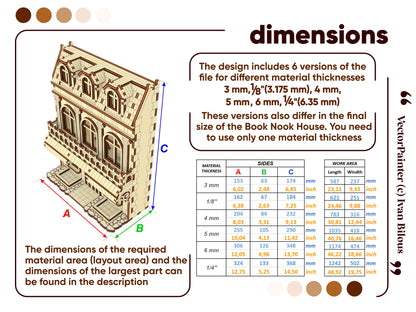

📏 Finished SIZE
3 mm thickness: 153 x 63 x 174 mm (6,02 x 2,48 x 6,85'')
1/8''(3.175mm) thickness: 162 x 67 x 184 mm (6,38 x 2,63 x 7,25'')
4 mm thickness: 204 x 84 x 232 mm (8,03 x 3,31 x 9,13'')
5 mm thickness: 255 x 105 x 290 mm (10,04 x 4,13 x 11,42'')
6 mm thickness: 306 x 126 x 348 mm (12,05 x 4,96 x 13,70'')
1/4''(6.35mm) thickness: 324 x 133 x 368 mm (12,75 x 5,25 x 14,50'')

📐WORK AREA - total area of wood required for cutting
3 mm thickness: 587 x 237 mm (23,11 x 9,33'')
1/8''(3.175mm) thickness: 621 x 251 mm (24,46 x 9,88'')
4 mm thickness: 783 x 316 mm (30,81 x 12,44'')
5 mm thickness: 1035 x 418 mm (40,76 x 16,46'')
6 mm thickness: 1174 x 474 mm (46,22 x 18,66'')
1/4''(6.35mm) thickness: 1242 x 502 mm (48,92 x 19,75'')

🟧 LARGEST PART
3 mm thickness: 135 x 170 mm (5,31 x 6,69'')
1/8''(3.175mm) thickness: 143 x 180 mm (5,63 x 7,08'')
4 mm thickness: 180 x 227 mm (7,09 x 8,92'')
5 mm thickness: 238 x 300 mm (9,38 x 11,81'')
6 mm thickness: 270 x 340 mm (10,63 x 13,39'')
1/4''(6.35mm) thickness: 286 x 360 mm (11,25 x 14,17'')

⚠️ If you are using wood whose thickness is not included in the design, you can easily scale the file.
1) Import a file that is thicker than the thickness of your wood.
2) Multiply the width and length of the file by your actual thickness and divide by the thickness of the wood in the file.

For example, your wood is 4.5 mm thick.
Import the file for 5 mm. Multiply the width and length of the imported file by 4.5 and divide by 5.
This will give you a 4.5 mm file.

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

🛒WHAT YOU RECEIVE

🟢 ready made cutting files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) material thickness

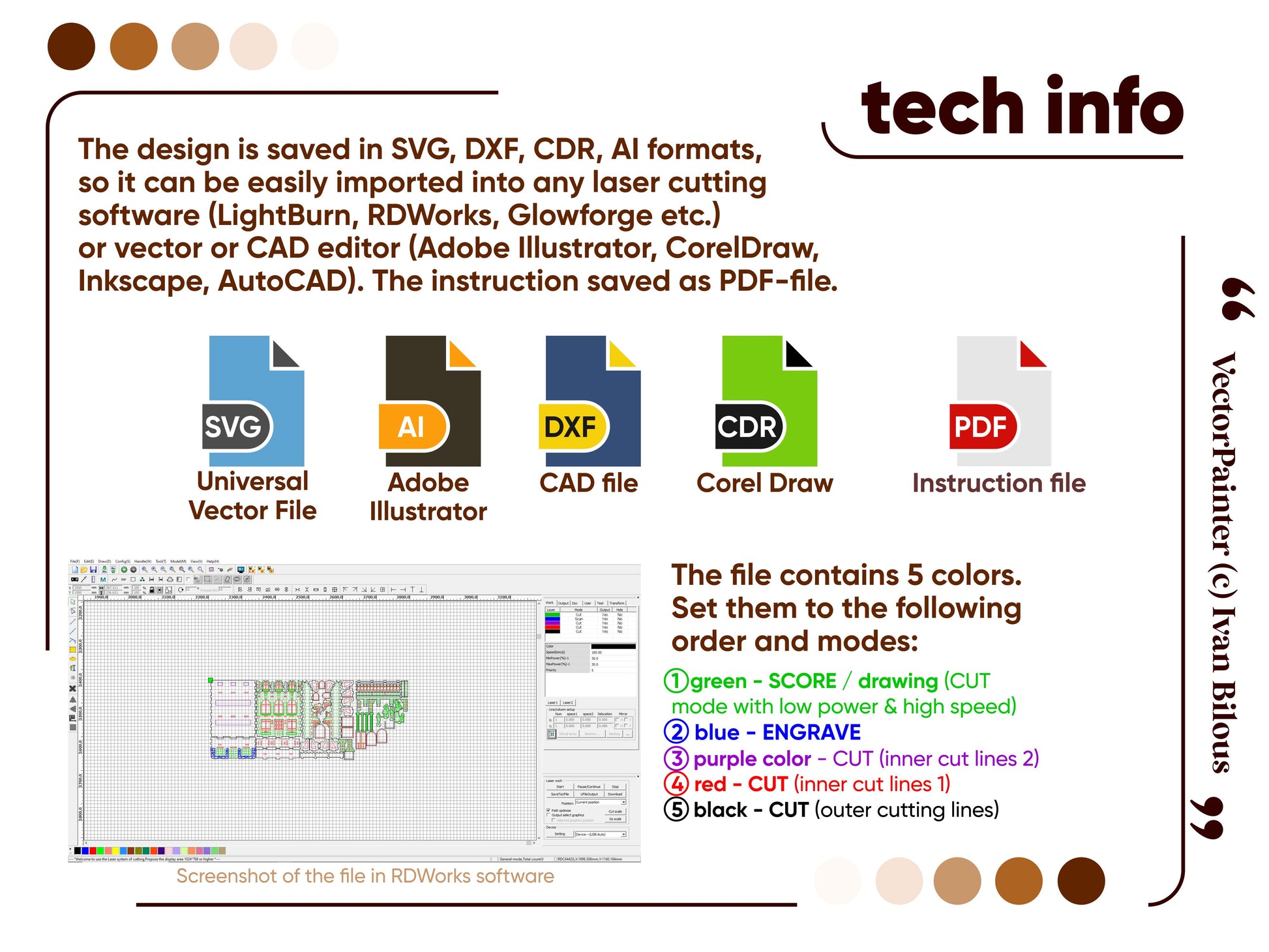

🟢 each file is saved in SVG, DXF, CDR, AI formats

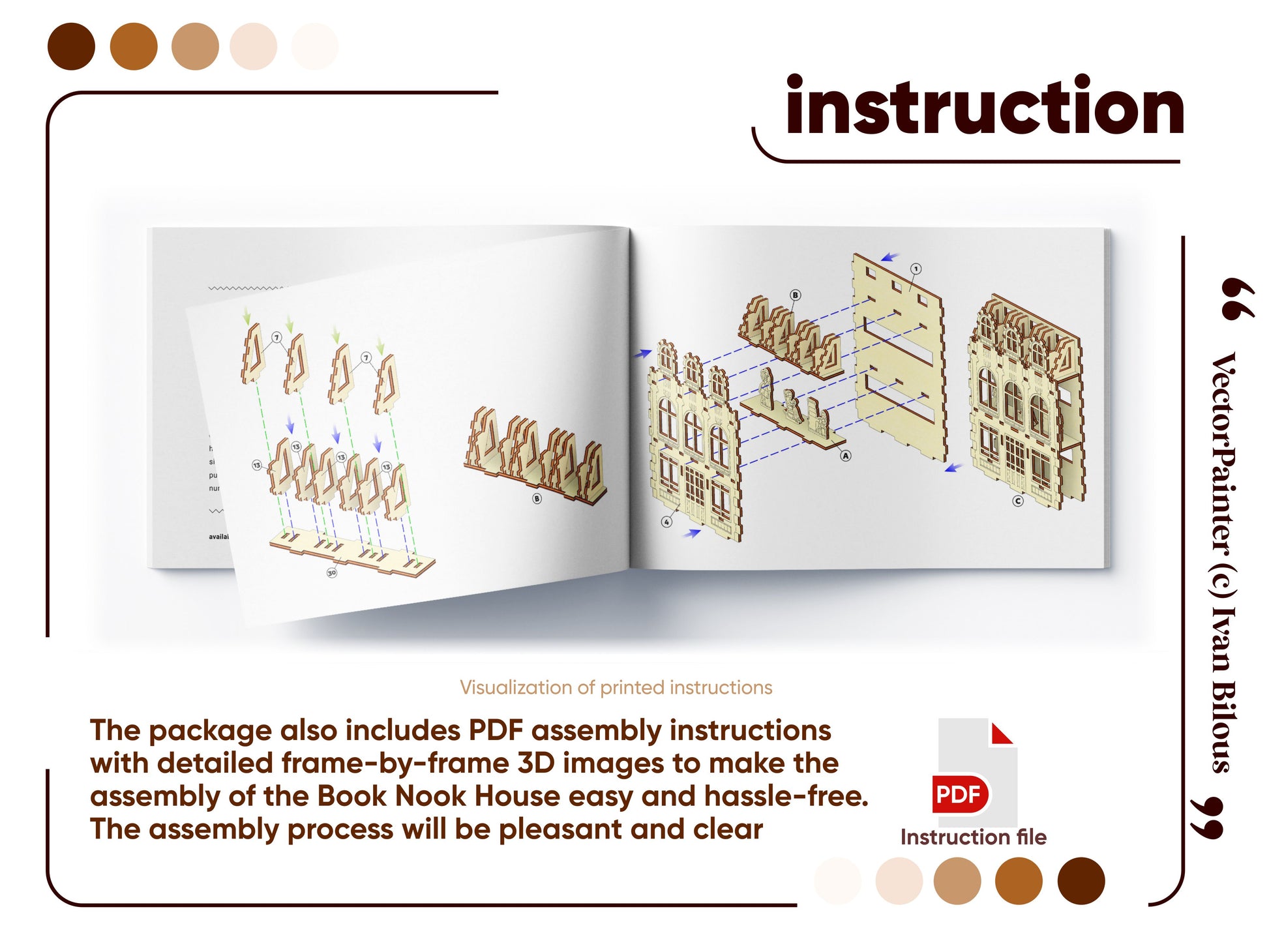

🟢 detailed PDF-instructions with 3D pictures
🟢 discounts on future purchases
🟢 free support consultations and small adjustments
🟢 wholesale prices when buying multiple files

📥The download link will be automatically sent to your email after purchase.

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

🎁WHOLESALE DICSOUNTS🎁

Use promocodes for discount

3 files - WHOLESALE3 - 15%
5 files - WHOLESALE5 - 20%
10 files - WHOLESALE10 - 30%

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

📧Feel free to contact me if you have any questions
😊 I always happy to help you

This model also available on Etsy here
