Description

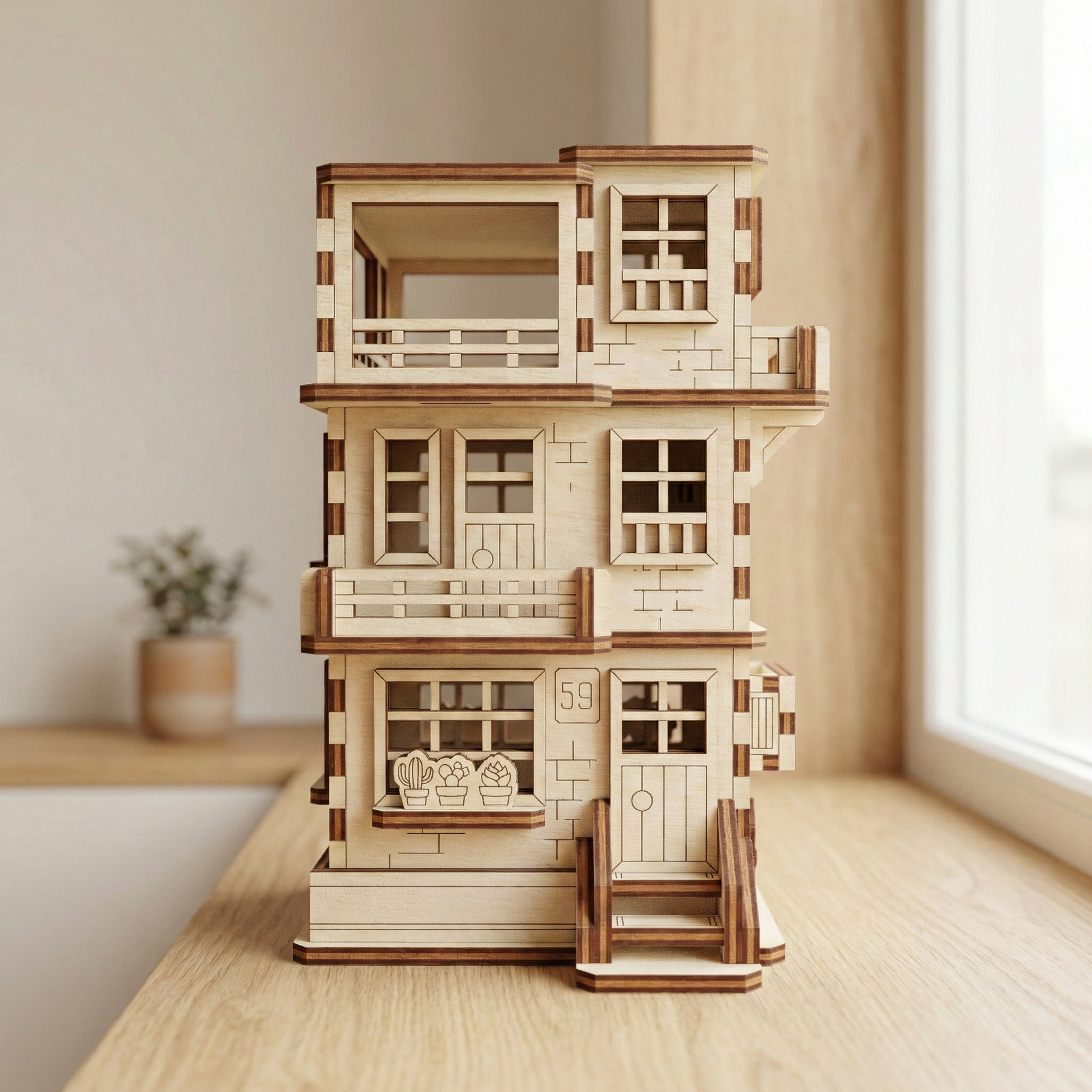

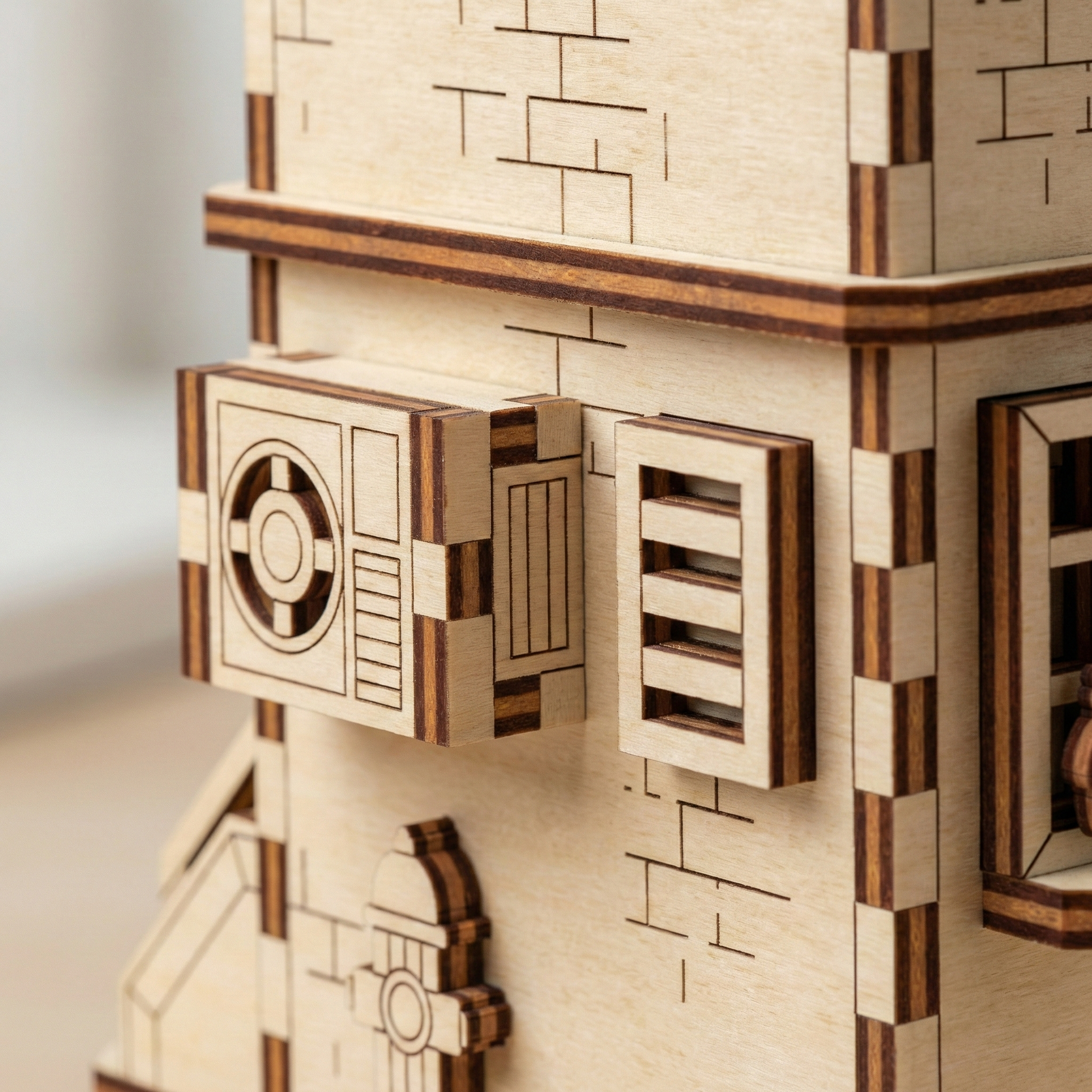

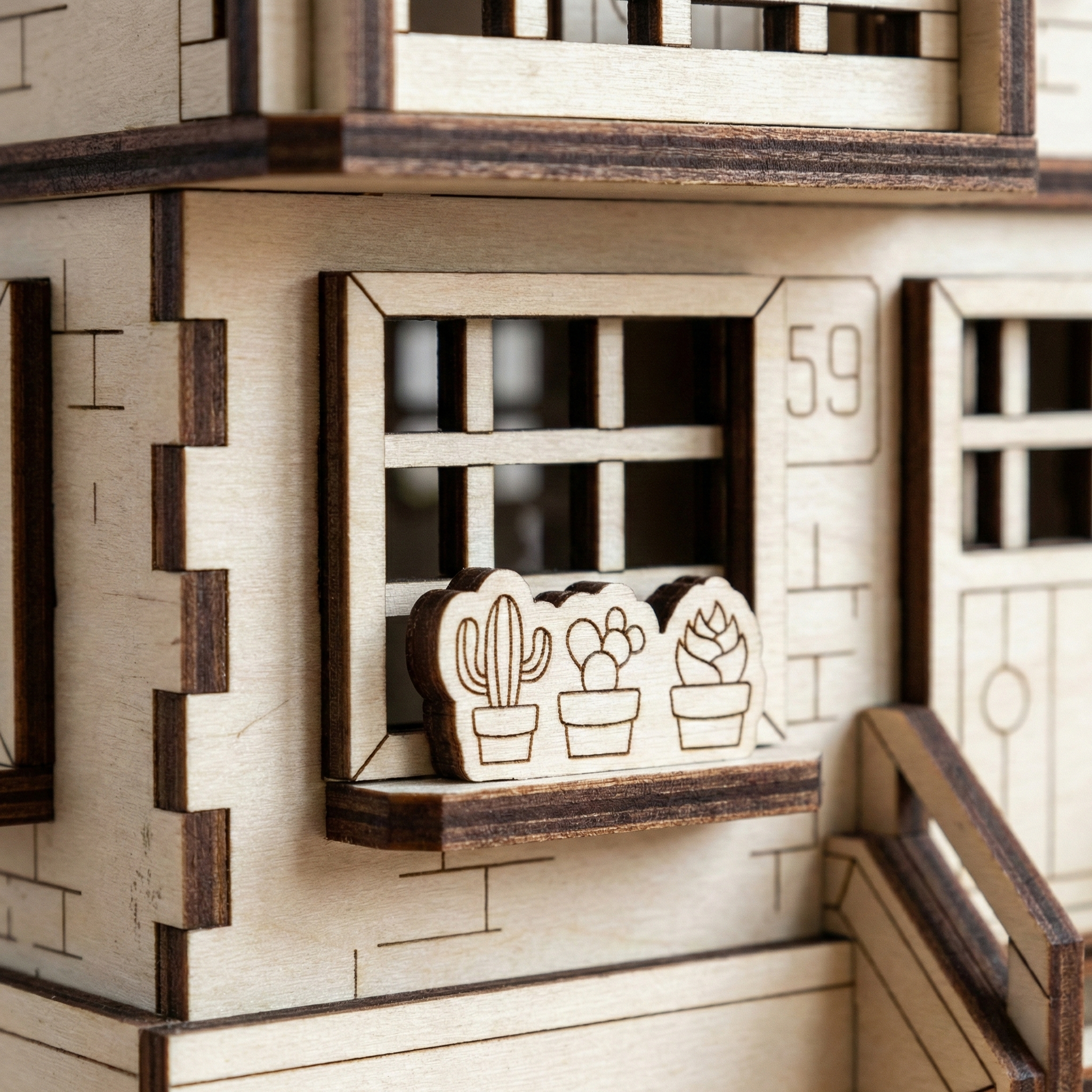

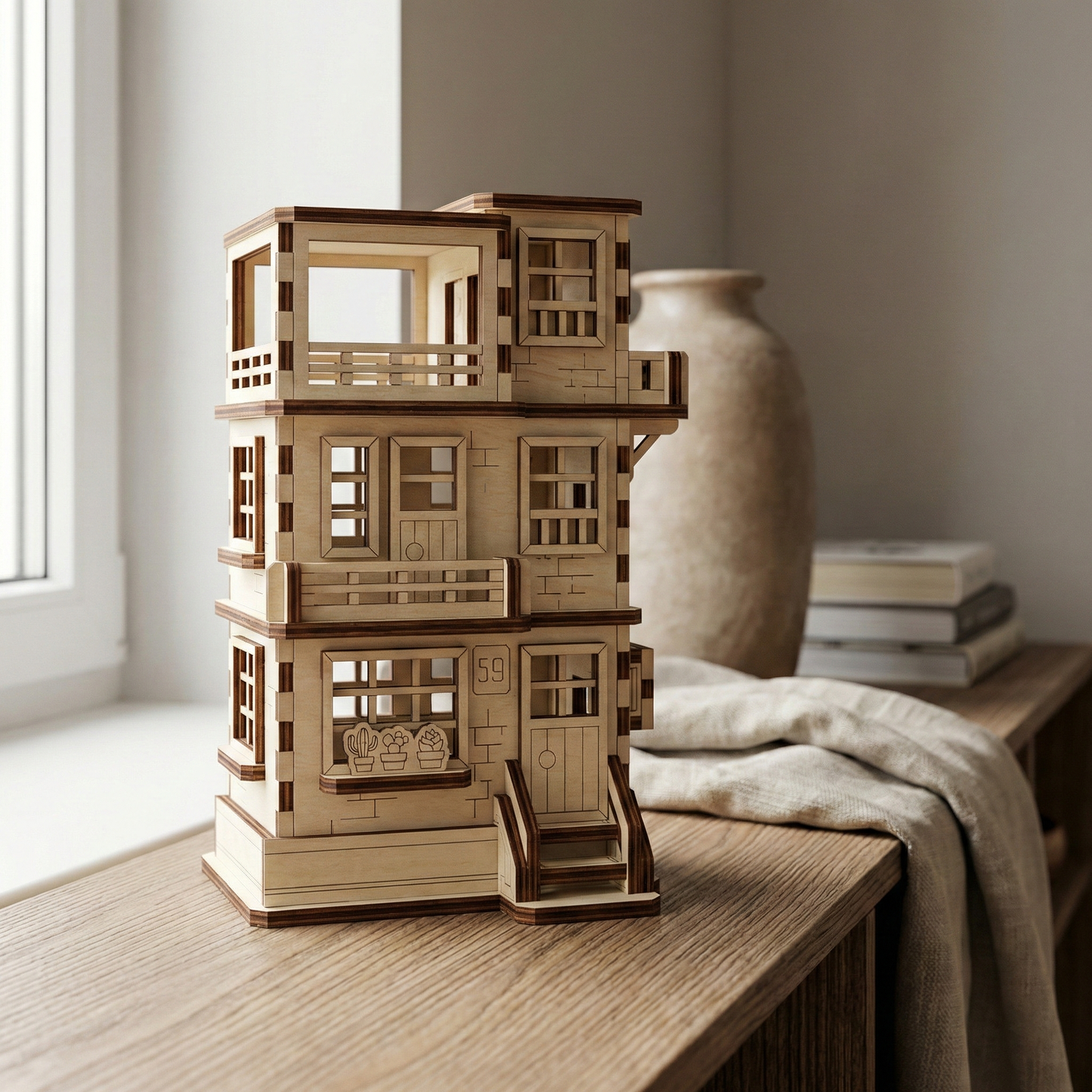

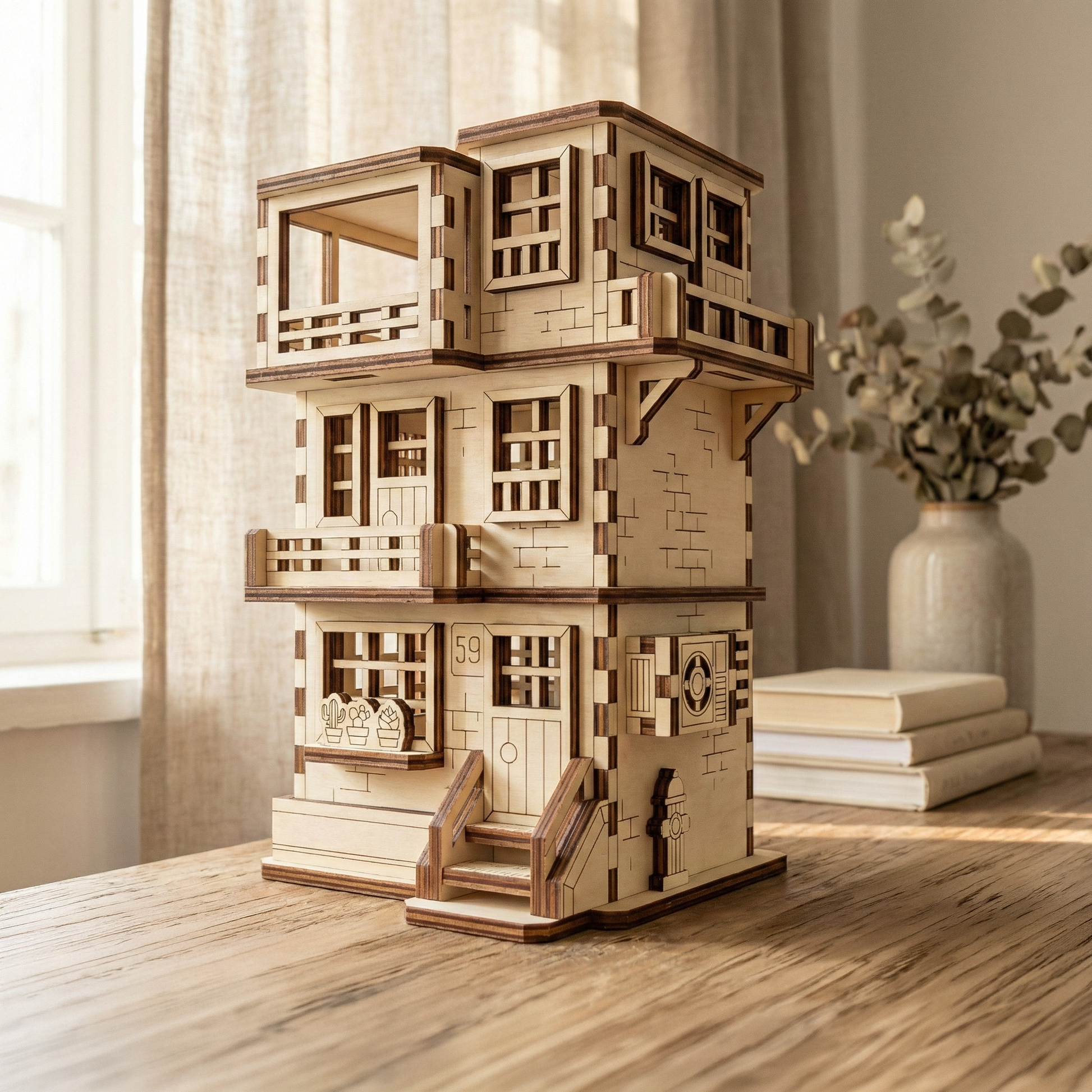

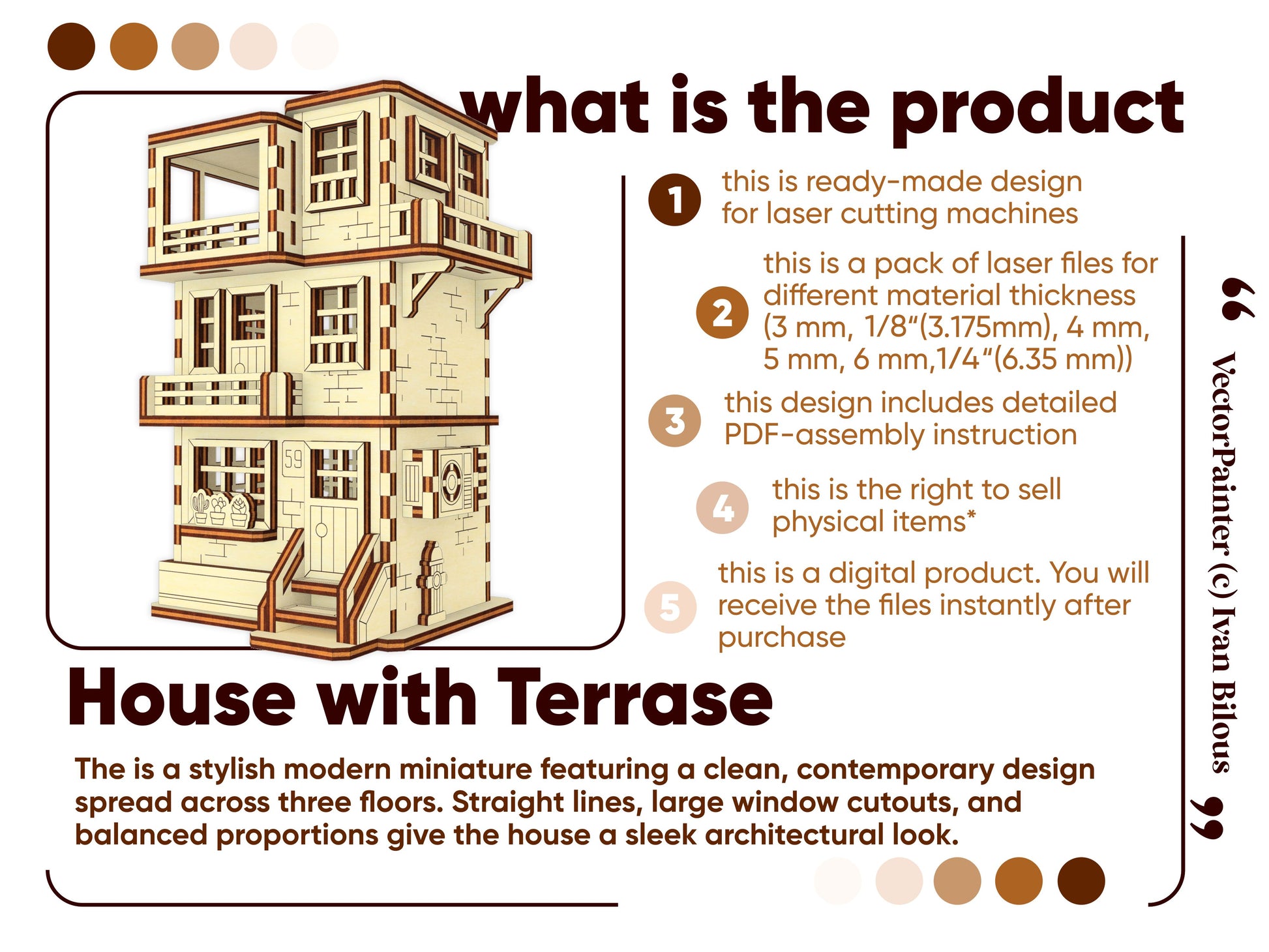

Elevate your laser cutting portfolio with this stunning Urban Townhouse project. This laser cut pattern features precise joinery and detailed engravings, including window frames, balconies, and brick textures. A perfect file for testing your machine's precision and creating a masterpiece from standard plywood sheet

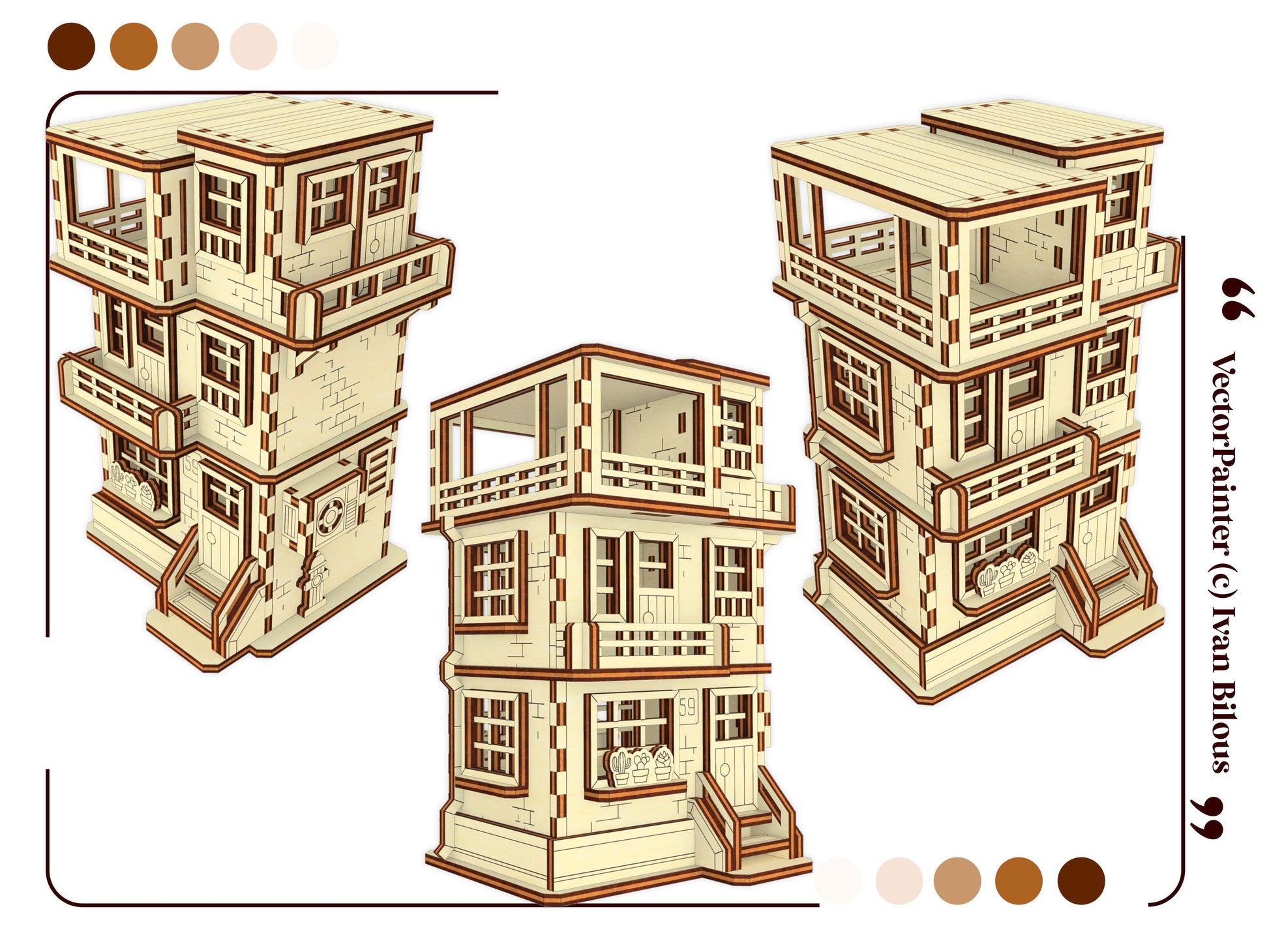

🎨 Laser cut design Modern Townhouse
DIGITAL FILE for laser cutting machine
🤏Material thickness (versions of the files): 3 mm, 1/8'' (3.175 mm), 4 mm, 5 mm, 6 mm, 1/4'' (6.35 mm)
Level of assembly difficulty: ⚫⚫⚫⚪⚪
⚠️ Contains small parts
⚠️ Some parts are glued
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

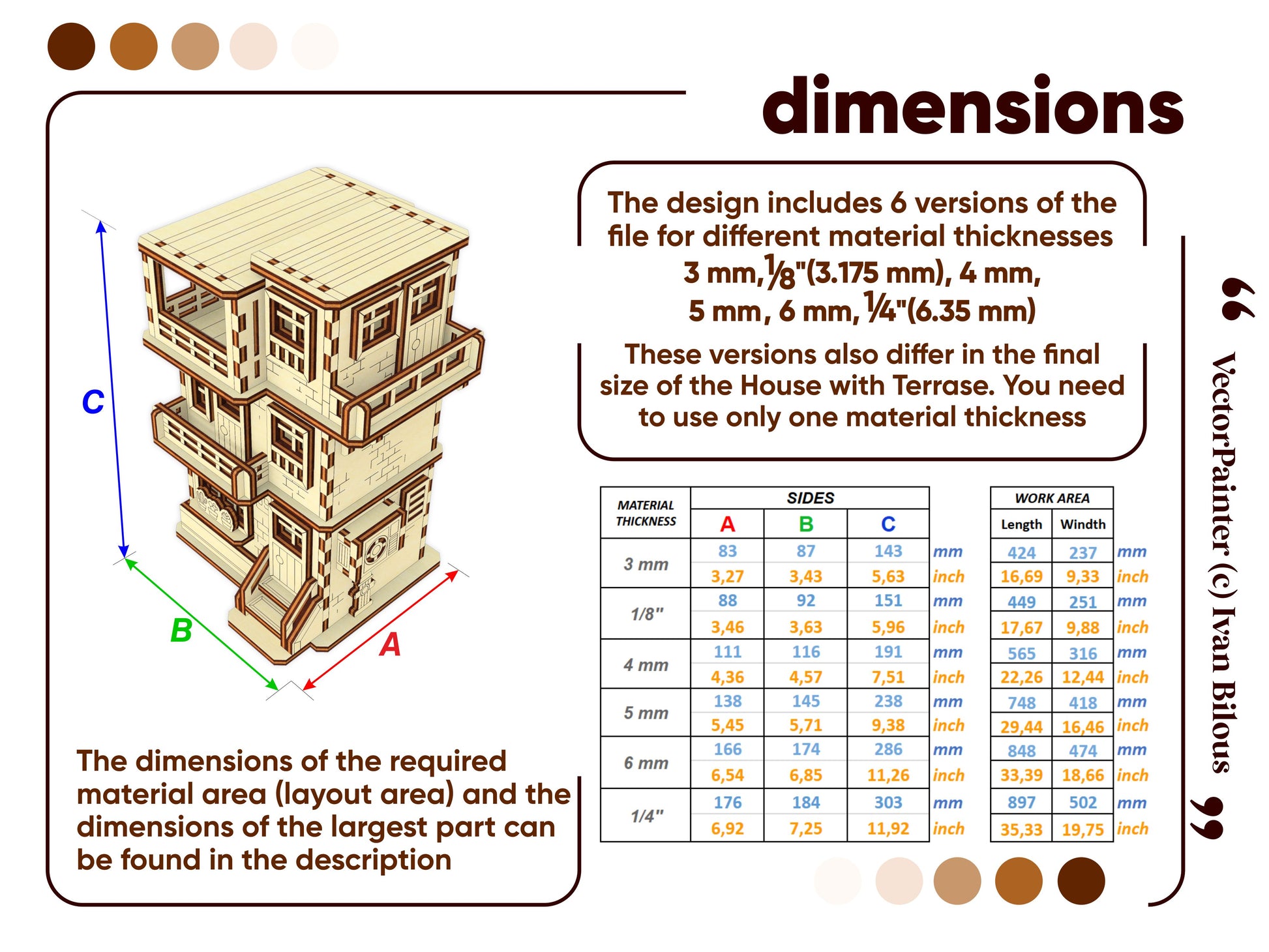

📏 FINISHED SIZE OF THE MODEL
3 mm thickness: 83 x 87 x 143 mm (3,27 x 3,43 x 5,63'')
1/8''(3.175mm) thickness: 88 x 92 x 151 mm (3,46 x 3,63 x 5,96'')
4 mm thickness: 111 x 116 x 191 mm (4,36 x 4,57 x 7,51'')
5 mm thickness: 138 x 145 x 238 mm (5,45 x 5,71 x 9,38'')
6 mm thickness: 166 x 174 x 286 mm (6,54 x 6,85 x 11,26'')
1/4''(6.35mm) thickness: 176 x 184 x 303 mm (6,92 x 7,25 x 11,92'')
📐CUT FILE LAYOUT DIMENSIONS
3 mm thickness: 424 x 237 mm (16,69 x 9,33'')
1/8''(3.175mm) thickness: 449 x 251 mm (17,67 x 9,88'')
4 mm thickness: 565 x 316 mm (22,26 x 12,44'')
5 mm thickness: 748 x 418 mm (29,44 x 16,46'')
6 mm thickness: 848 x 474 mm (33,39 x 18,66'')
1/4''(6.35mm) thickness: 897 x 502 mm (35,33 x 19,75'')
🟧 LARGEST PART
3 mm thickness: 92 x 84 mm (3,62 x 3,31'')
1/8''(3.175mm) thickness: 97 x 89 mm (3,83 x 3,50'')
4 mm thickness: 123 x 112 mm (4,83 x 4,41'')
5 mm thickness: 162 x 148 mm (6,39 x 5,83'')
6 mm thickness: 184 x 168 mm (7,24 x 6,61'')
1/4''(6.35mm) thickness: 195 x 178 mm (7,67 x 7,00'')
⚠️ If you are using wood whose thickness is not included in the design, you can easily scale the file.
1) Import a file that is thicker than the thickness of your wood.
2) Multiply the width and length of the file by your actual thickness and divide by the thickness of the wood in the file.
For example, your wood is 4.5 mm thick.
Import the file for 5 mm. Multiply the width and length of the imported file by 4.5 and divide by 5.
This will give you a 4.5 mm file.
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪
🛒WHAT YOU RECEIVE
🟢 ready made cutting files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) material thickness

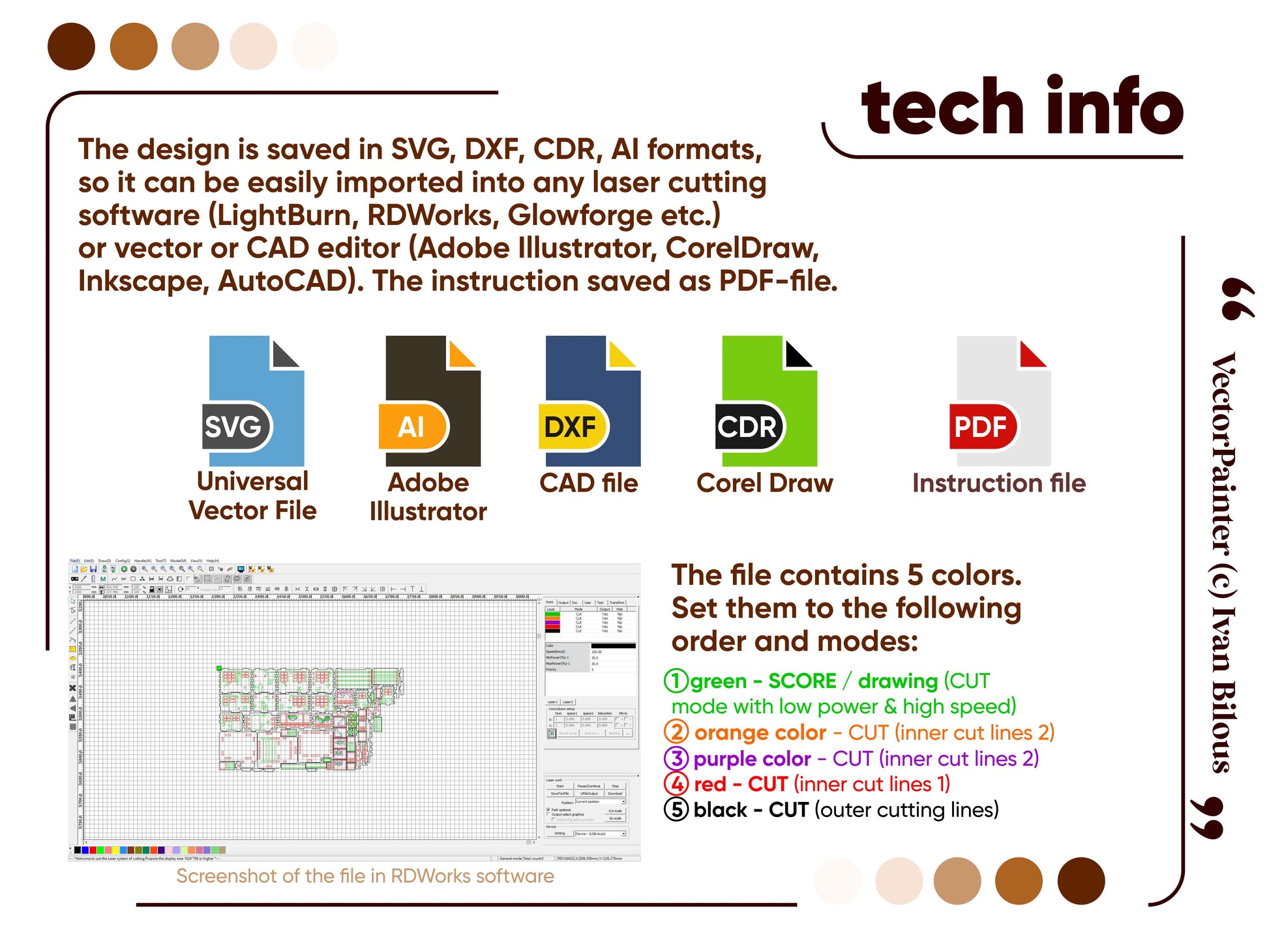

🟢 each file is saved in SVG, DXF, CDR, AI formats

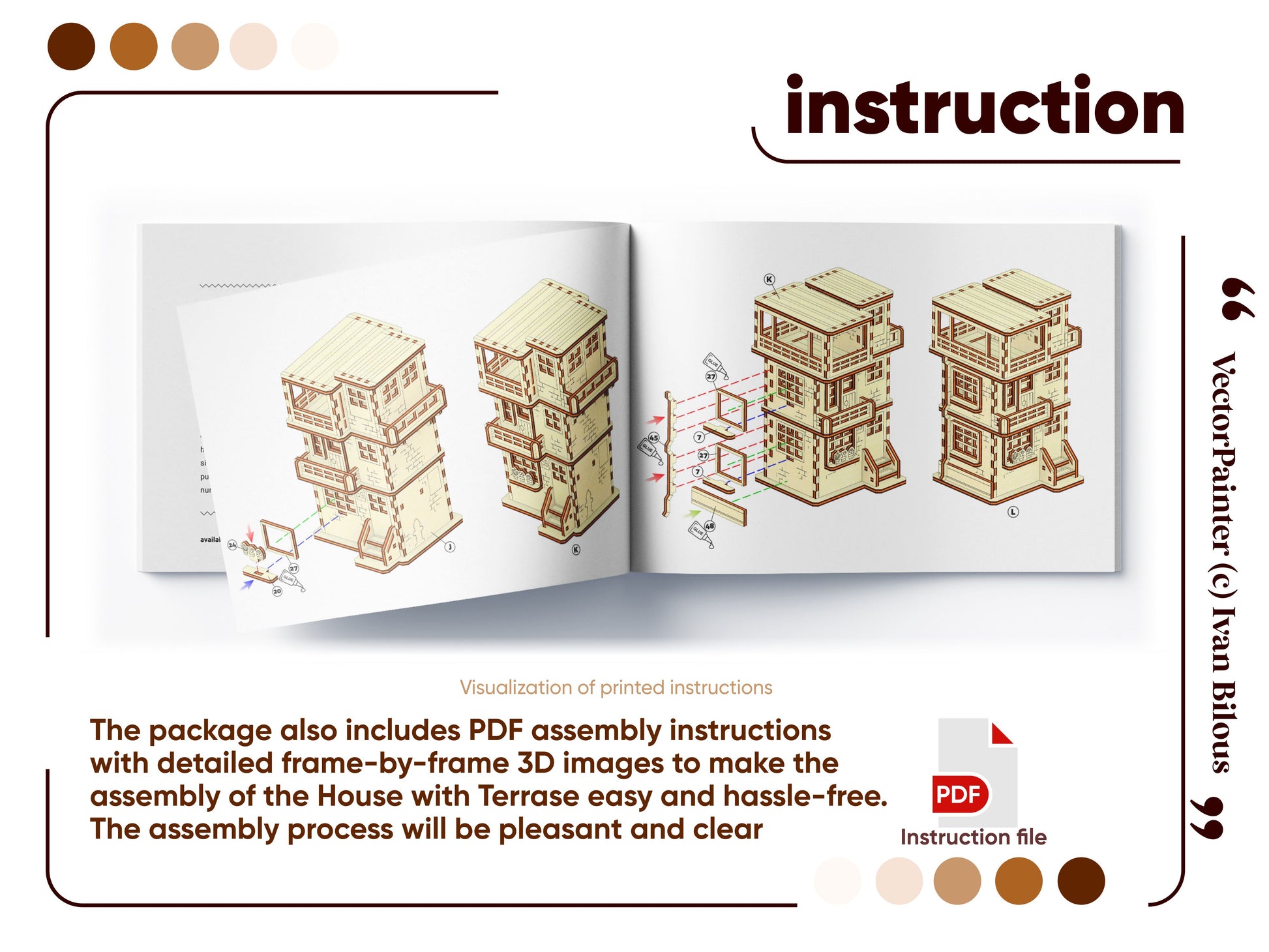

🟢 detailed PDF-instructions with 3D pictures
🟢 discounts on future purchases
🟢 free support consultations and small adjustments
🟢 wholesale prices when buying multiple files
📥The download link will be automatically sent to your email after purchase.
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪
🎁WHOLESALE DICSOUNTS🎁
Use promocodes for discount
3 files - WHOLESALE3 - 15%
5 files - WHOLESALE5 - 20%
10 files - WHOLESALE10 - 30%
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪
📧Feel free to contact me if you have any questions
😊 I always happy to help you
