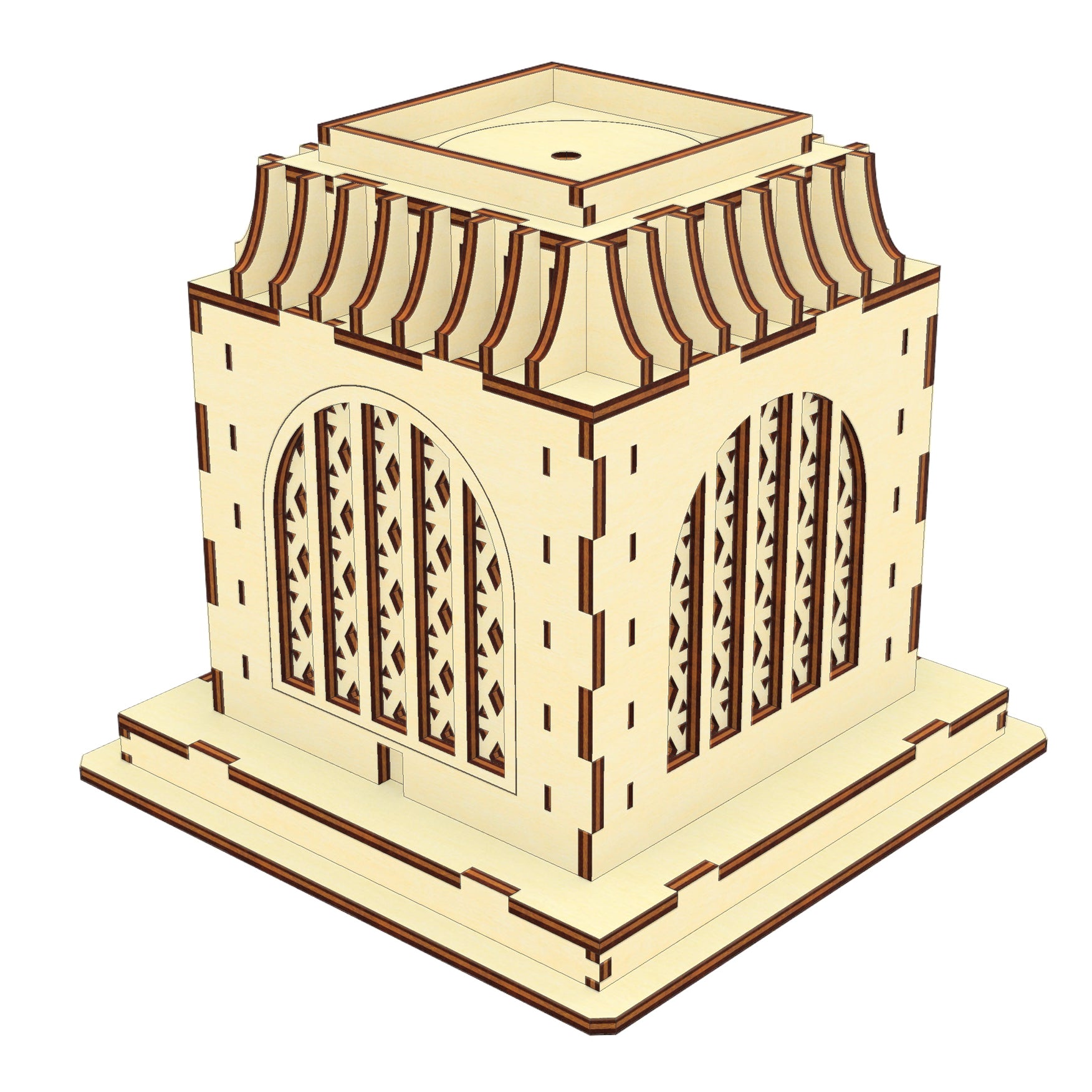

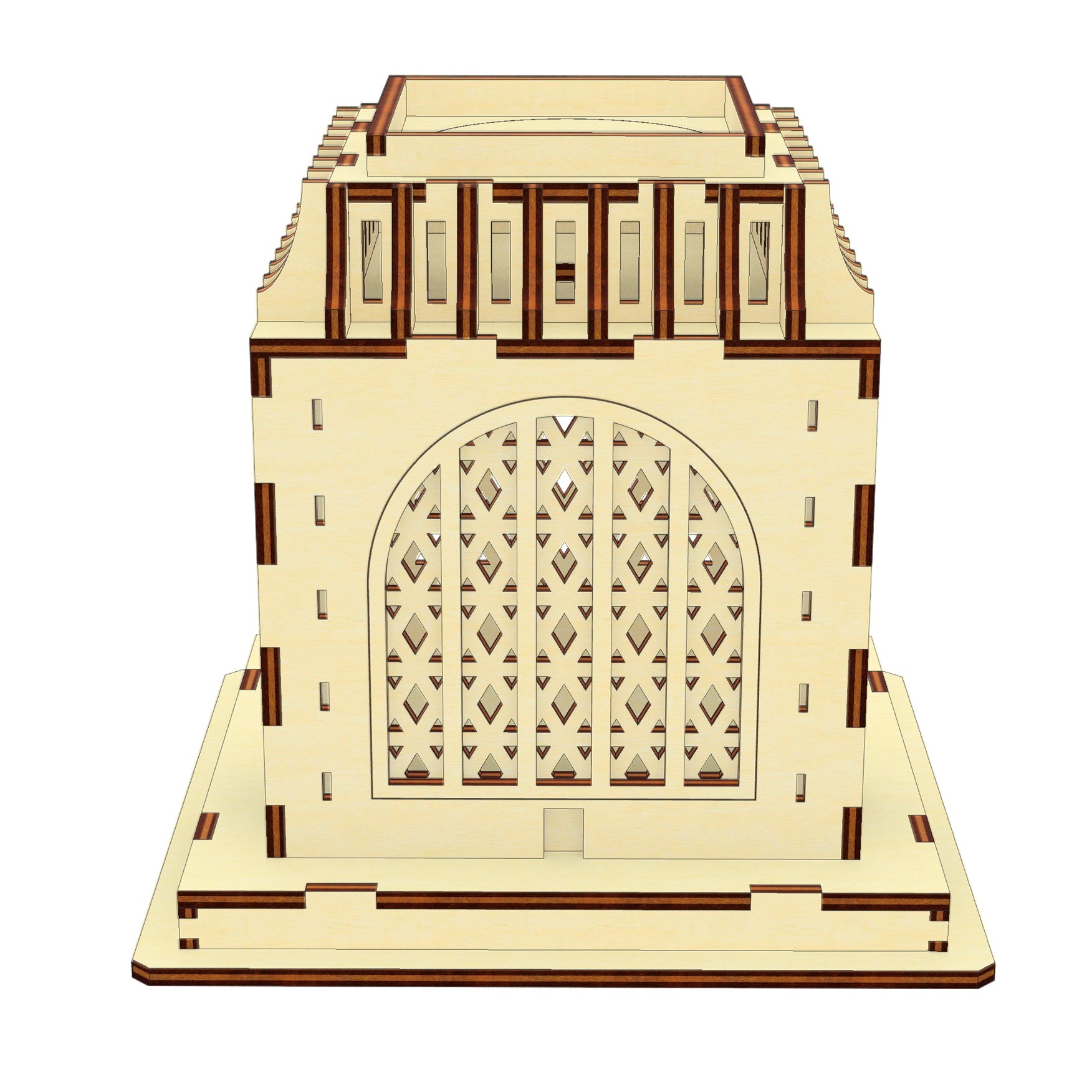

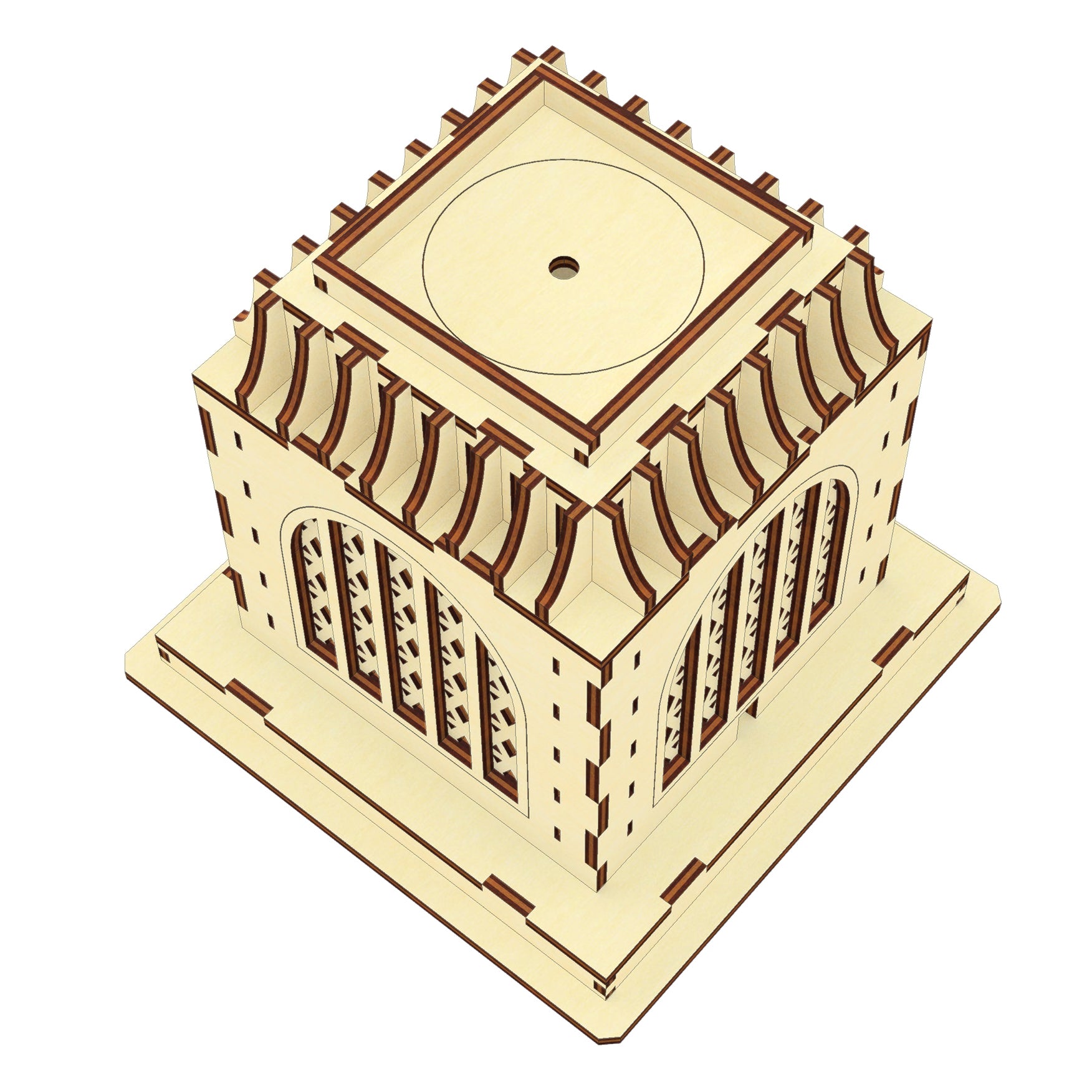

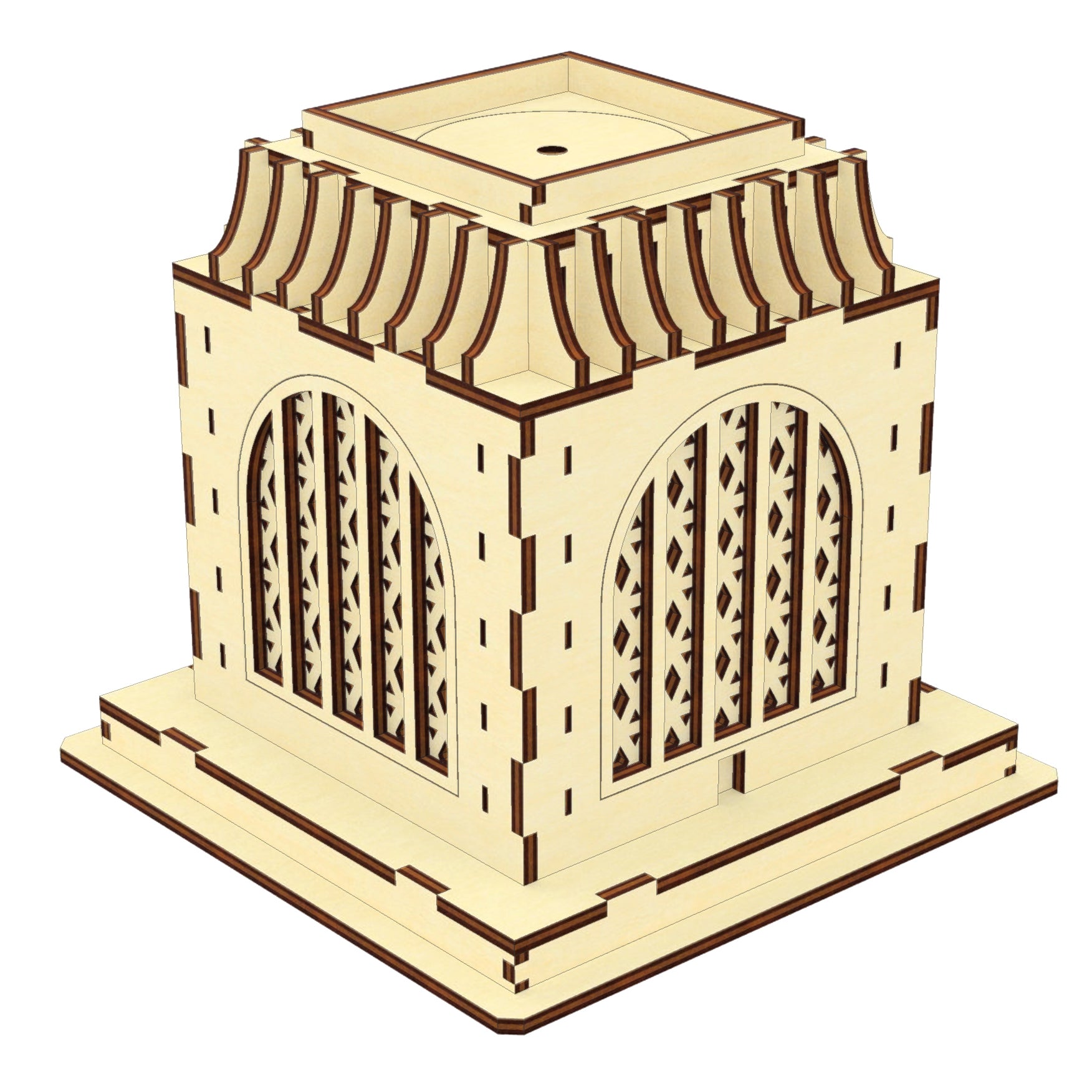

Voortrekker monument Laser cut file for CNC laser machines in DXF CDR AI SVG
Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

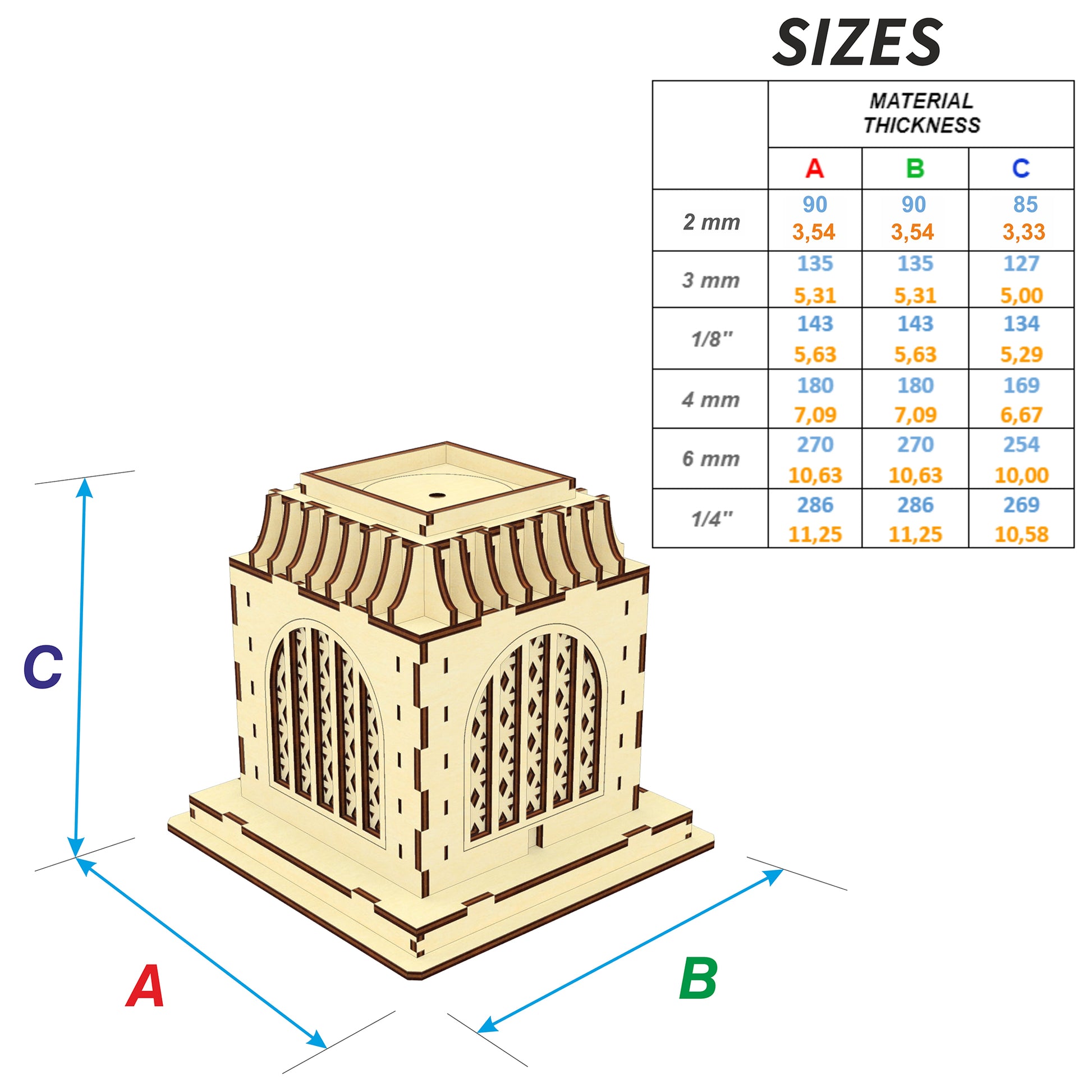

Sizes:
3 mm thickness: 135 x 135 x 127 mm (5,31 x 5,31 x 5,00'')
1/8''(3.175mm) thickness: 143 x 143 x 134 mm (5,63 x 5,63 x 5,29'')
4 mm thickness: 180 x 180 x 169 mm (7,09 x 7,09 x 6,67'')
6 mm thickness: 270 x 270 x 254 mm (10,63 x 10,63 x 10,00'')
1/4''(6.35mm) thickness: 286 x 286 x 269 mm (11,25 x 11,25 x 10,58'')

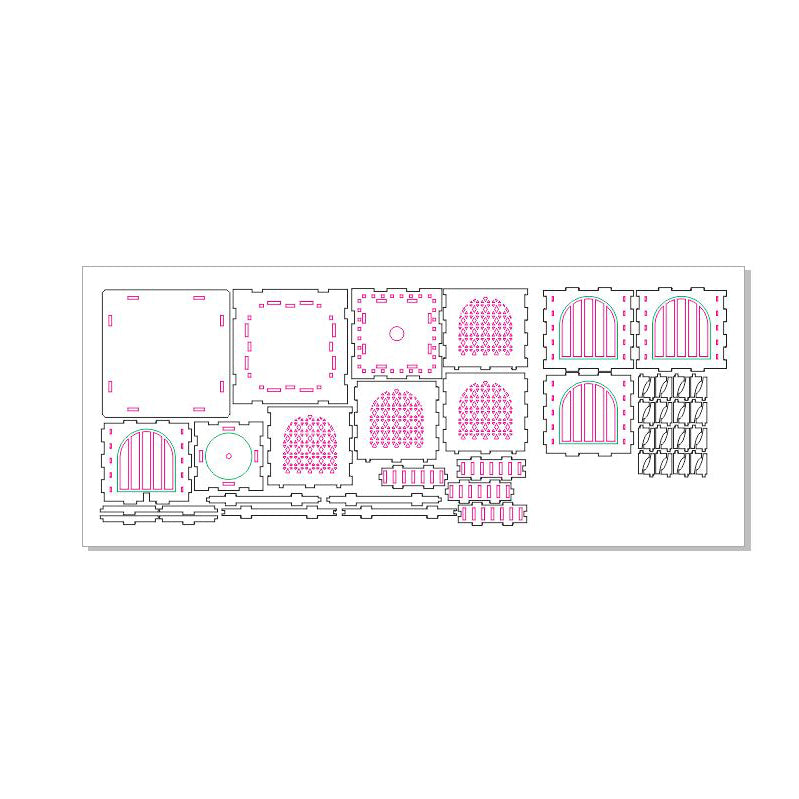

Work area:
3 mm thickness: 662 x 251 mm (26,06 x 9,88'')
1/8''(3.175mm) thickness: 701 x 266 mm (27,58 x 10,46'')
4 mm thickness: 883 x 335 mm (34,75 x 13,18'')
6 mm thickness: 1324 x 502 mm (52,13 x 19,76'')
1/4''(6.35mm) thickness: 1401 x 531 mm (55,17 x 20,92'')
Biggest part:
3 mm thickness: 135 x 135 mm (5,31 x 5,31'')
1/8''(3.175mm) thickness: 143 x 143 mm (5,63 x 5,63'')
4 mm thickness: 180 x 180 mm (7,09 x 7,09'')
6 mm thickness: 270 x 270 mm (10,63 x 10,63'')
1/4''(6.35mm) thickness: 286 x 286 mm (11,25 x 11,25'')

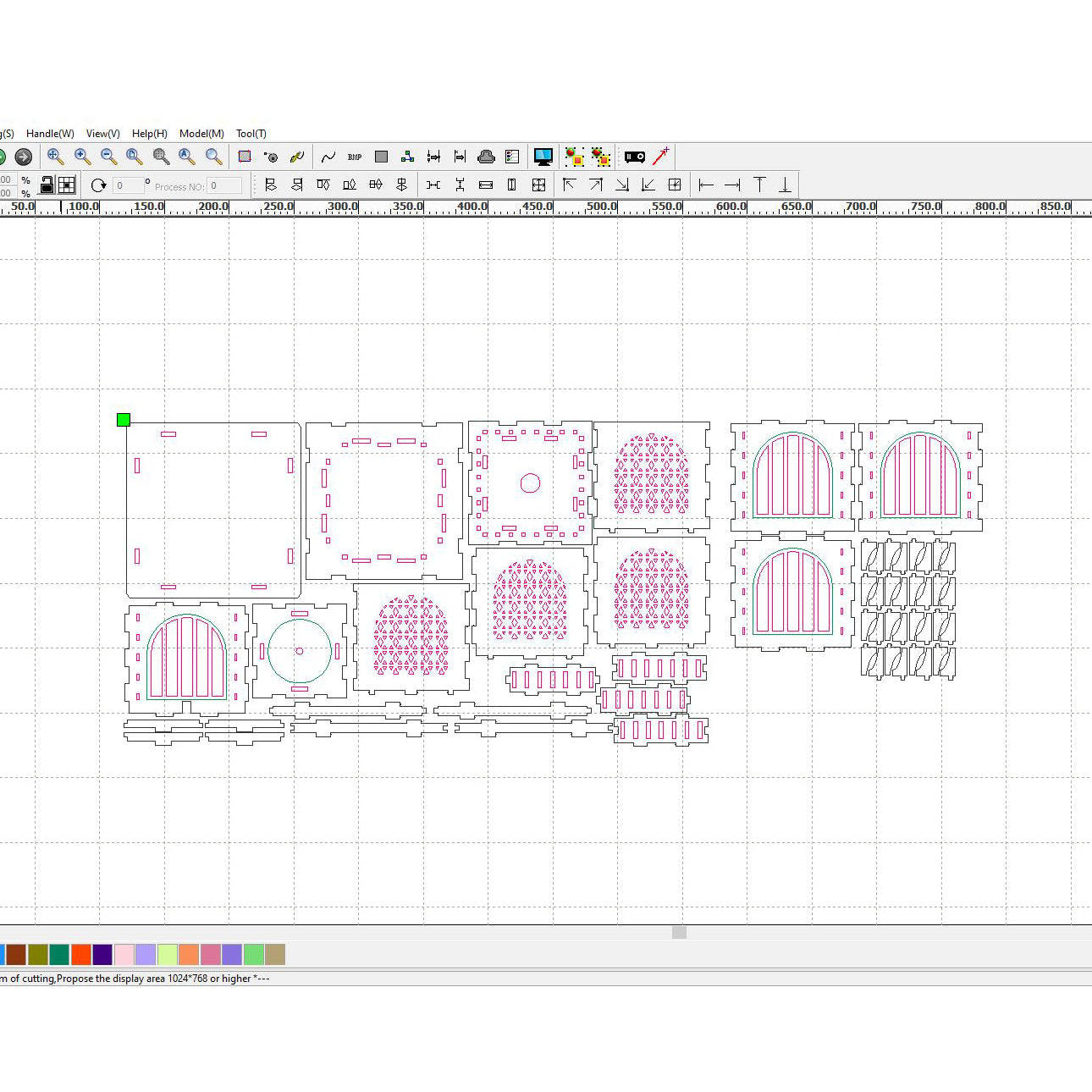

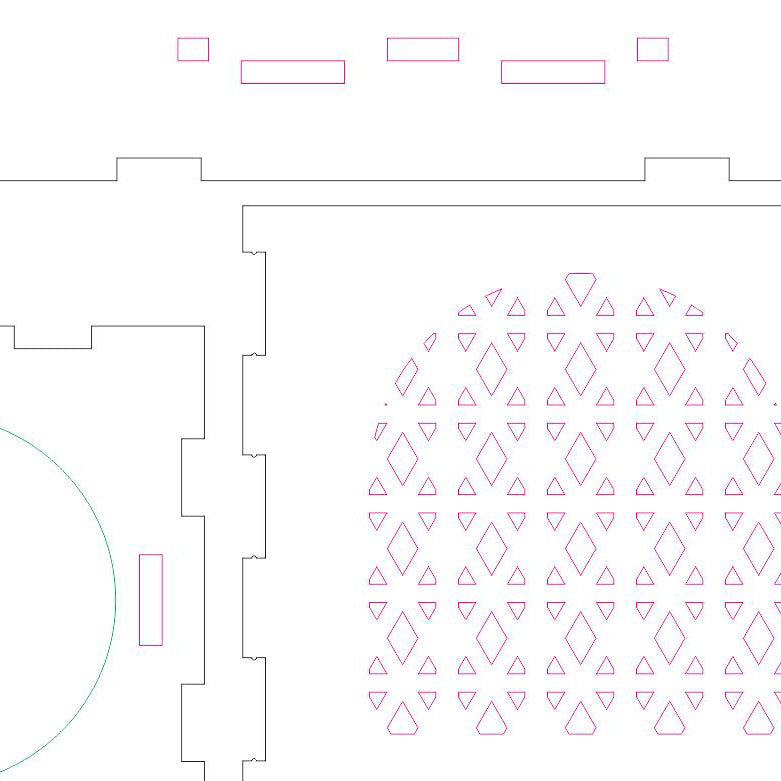

In the file:
green color - score / draw
pink color - cut (inner cut lines)
black color - cut (outer cut lines)
What you receive:
You will download 1 ZIP file containing the following:
the CDR, DXF, AI, SVG files with drawing for material thinkness 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) and PDF-assembly instruction
If you have any quastions feel free to contact us.
These files are vector-based and compatible with all laser cut software, milling machine, CNC plasma cutting machine, glowforge machines.
This is an Instant Digital Download
The item is non-refundable because it's not physical.
YOU CAN use the files for personal purposes and for your small business.
YOU CANNOT share, redistribute or resell the files.
Copyright is not transferable with the sale.
