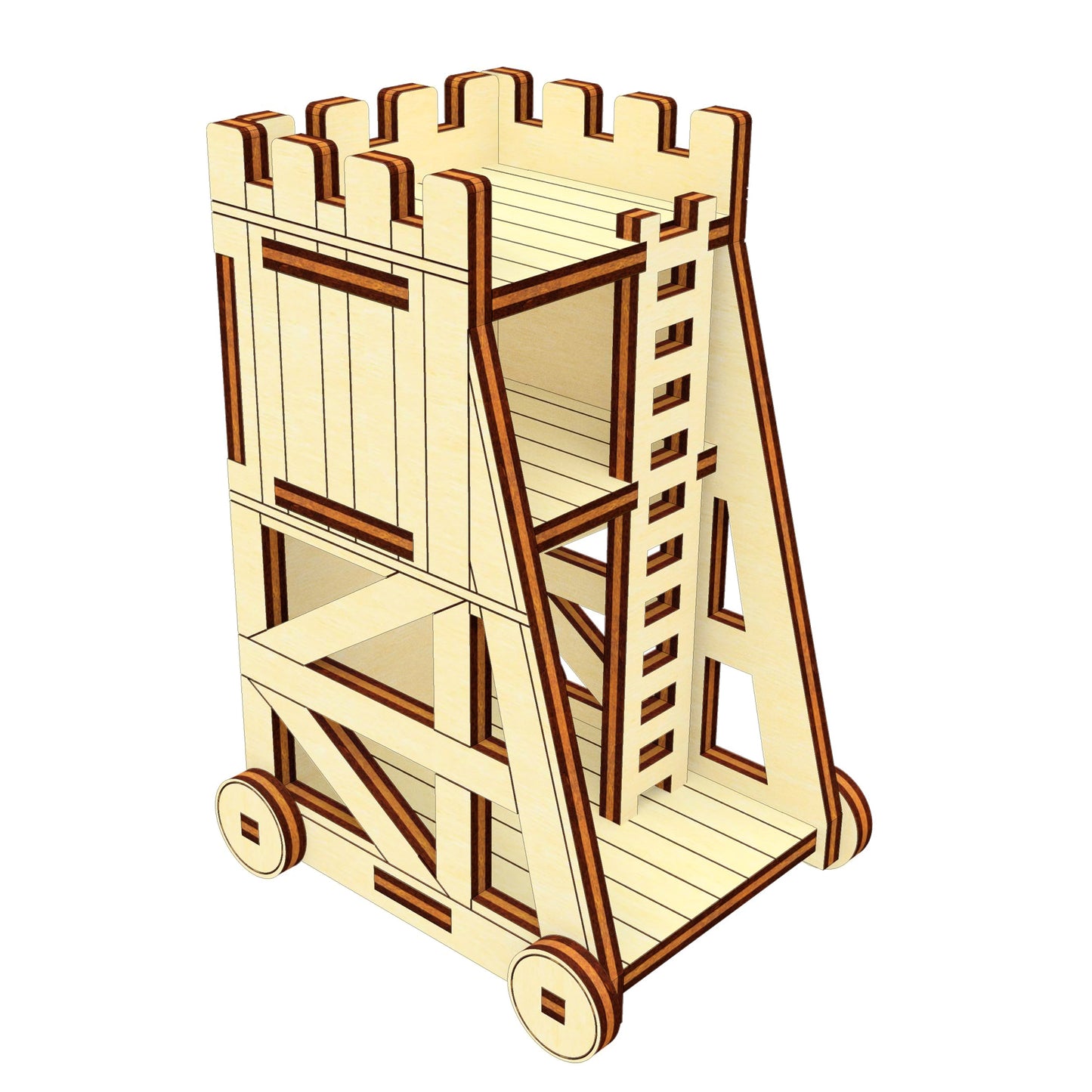

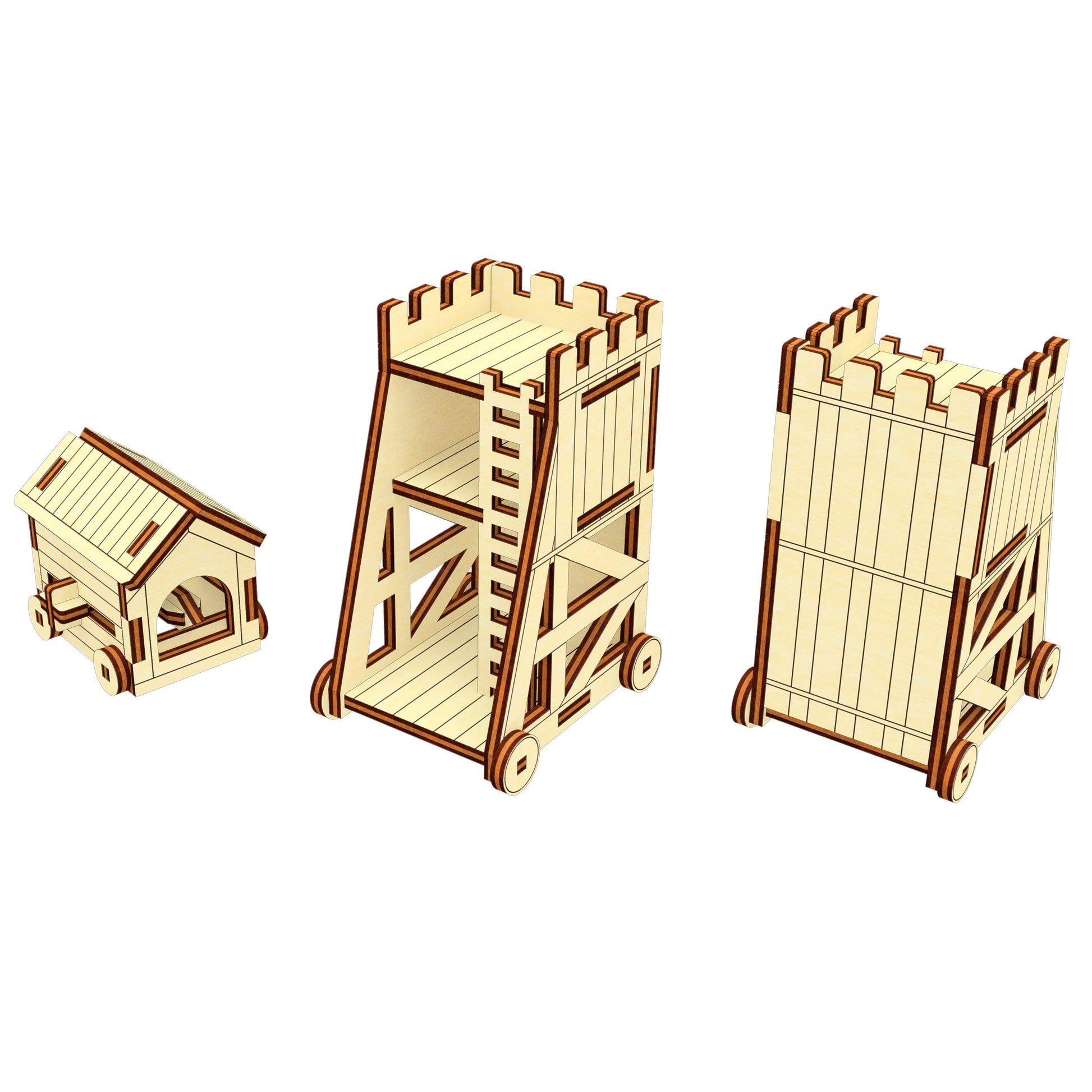

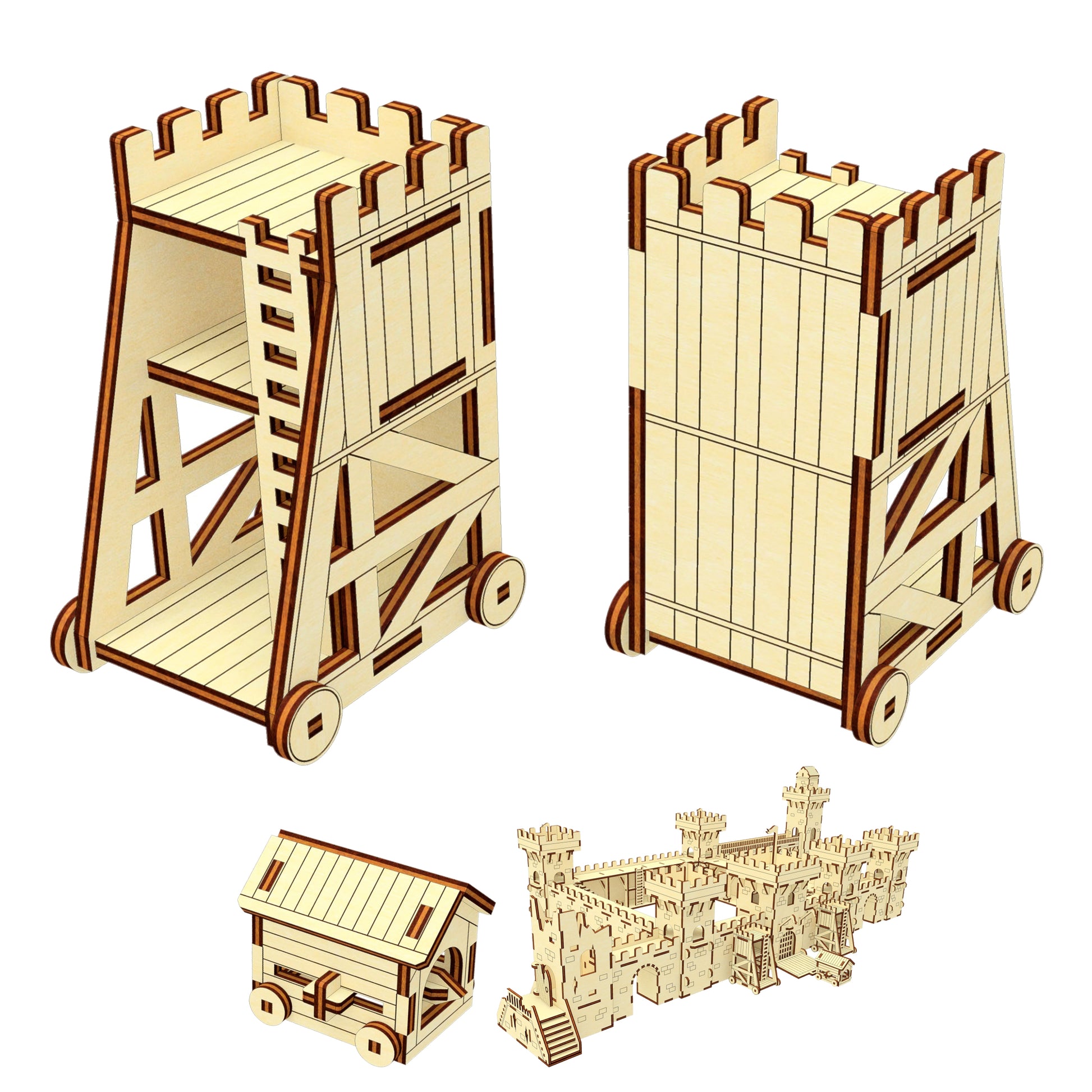

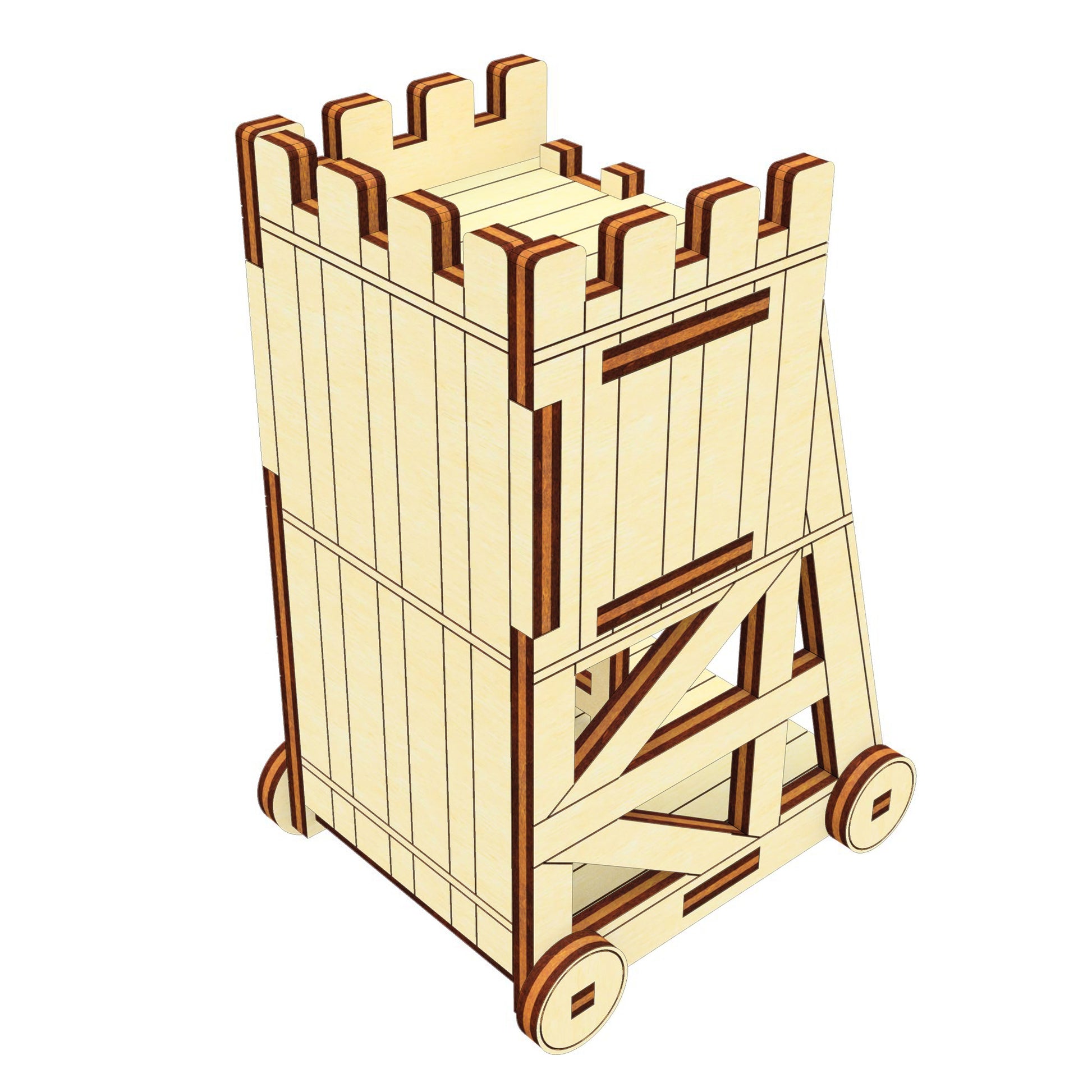

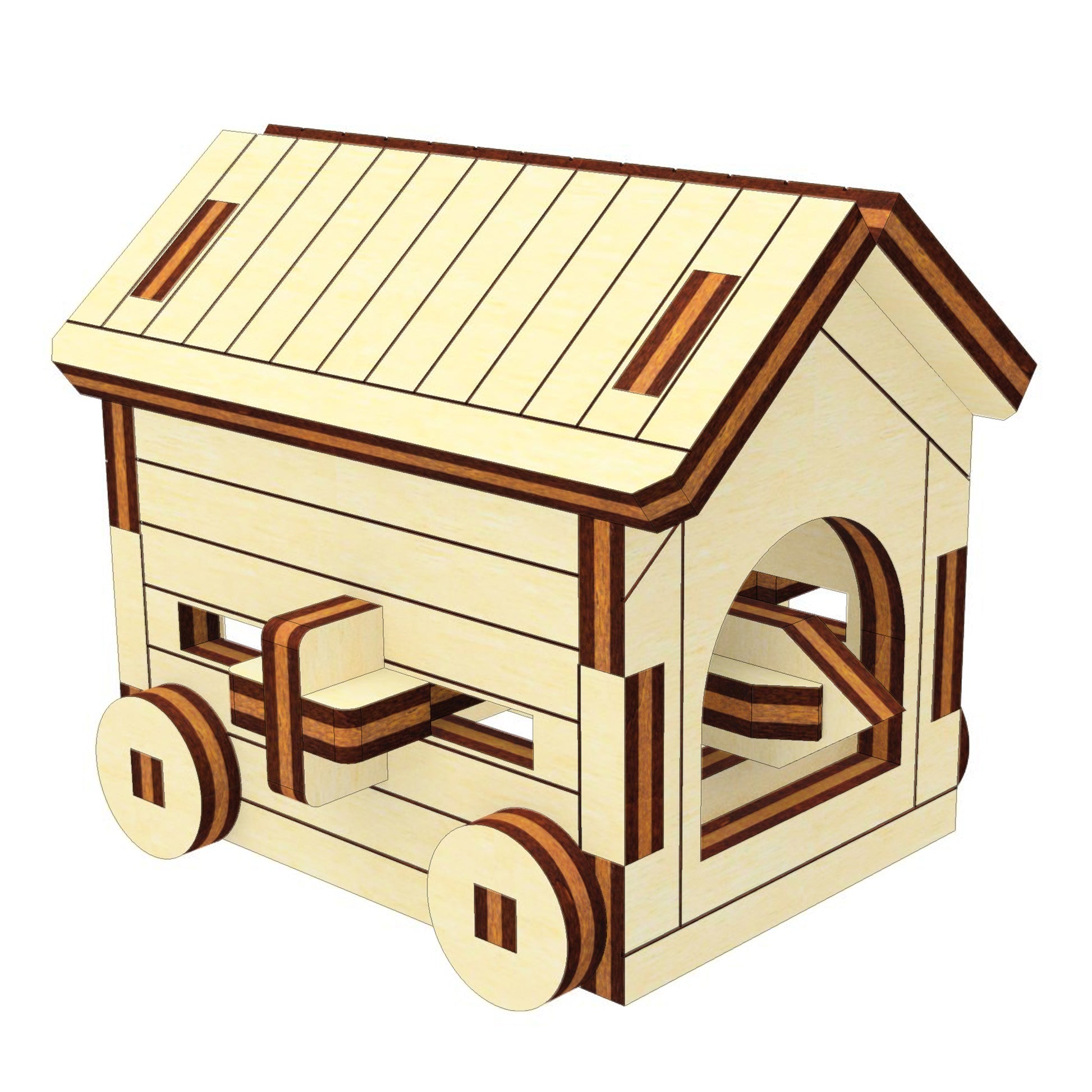

Siege weapons (Siege tower & ram) of the Castle Set

Regular price
$3.50
Sale price
$3.50
Regular price
Sold out
Unit price
per

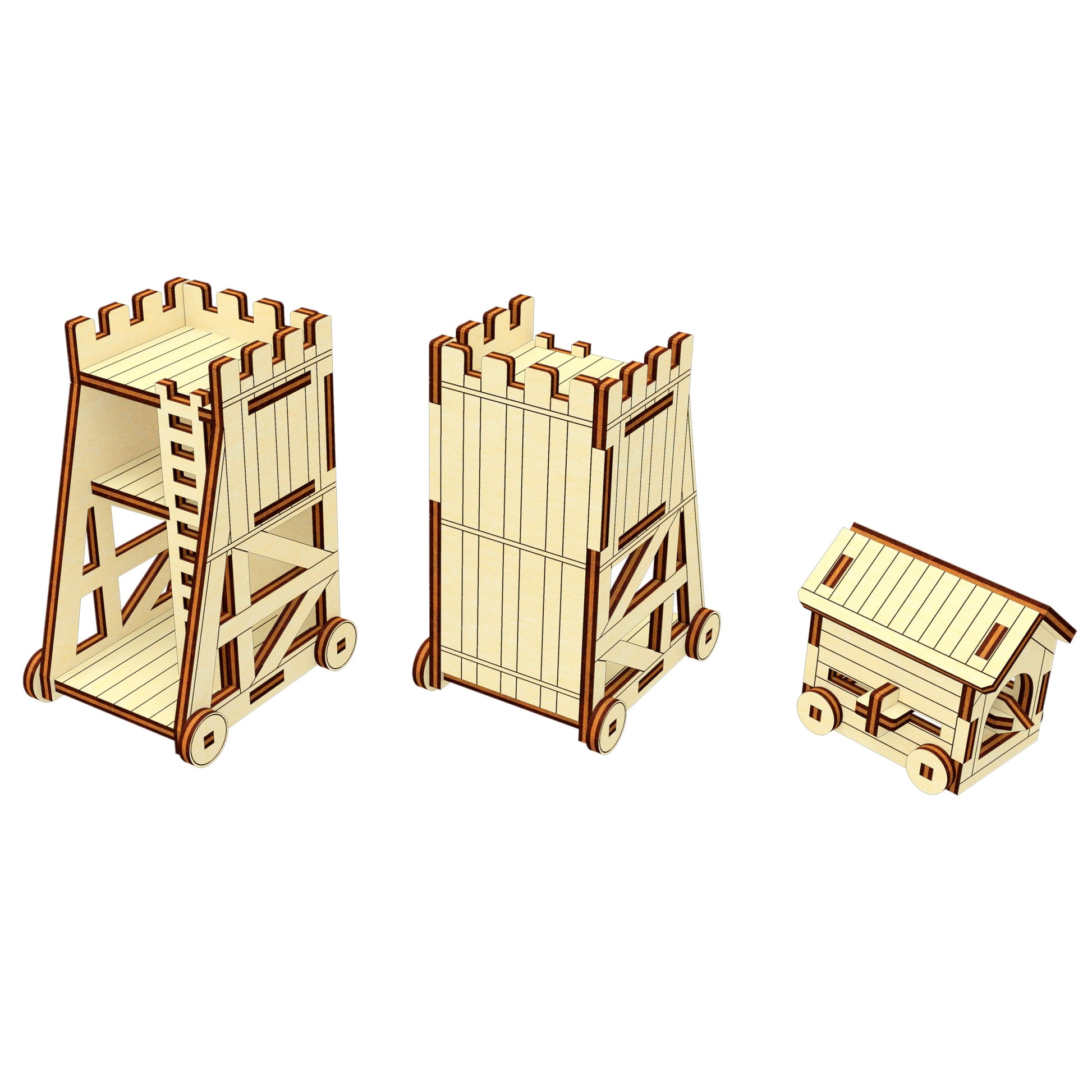

Siege weapons (Siege tower & ram) of the Castle Set Laser cut file for CNC laser machines in DXF CDR AI SVG

This is one of the blocks of the Castle. In the future, I plan to expand this design and create many additions for it (towers, walls, gates, bridges, etc.) that can be combined with each other.
You will be able to design and connect these blocks to create a wide variety of the castles.
Watch for new additions in my store in a separate category "Castle set" or just text in the search field "Castle" to see everything that is available at the moment

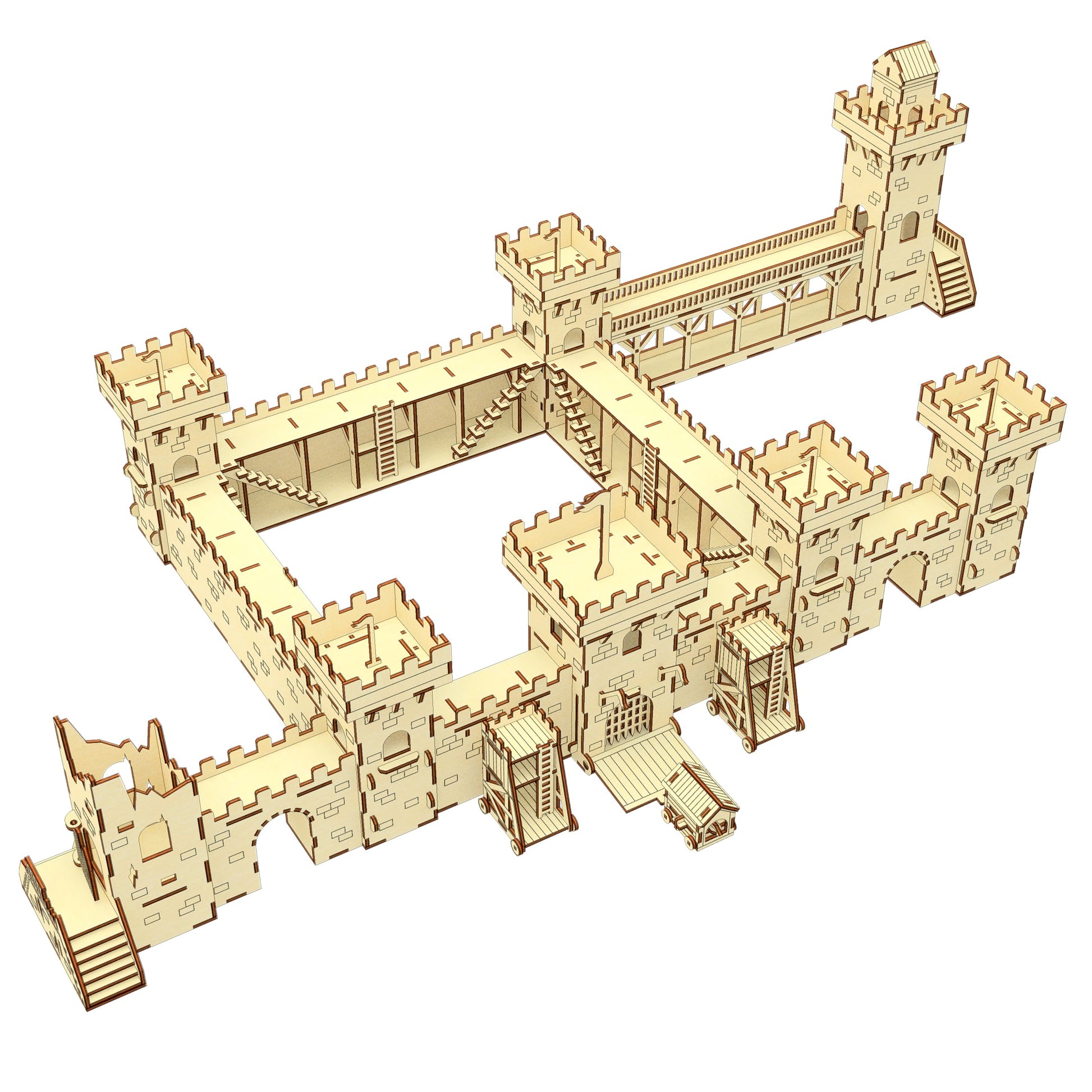

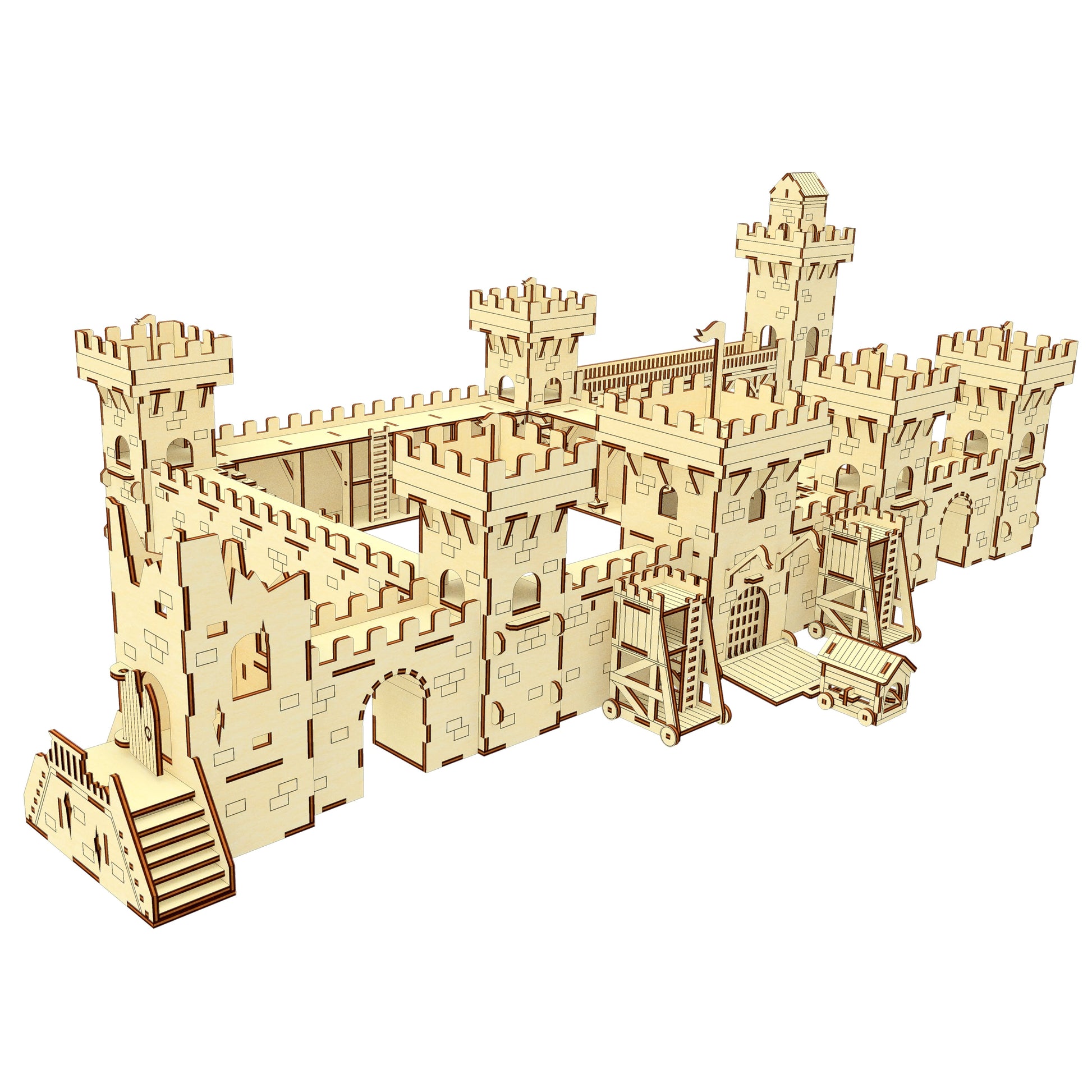

Also you can see full blocks of the Castle designs by this link

Material thickness (versions of the files): 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

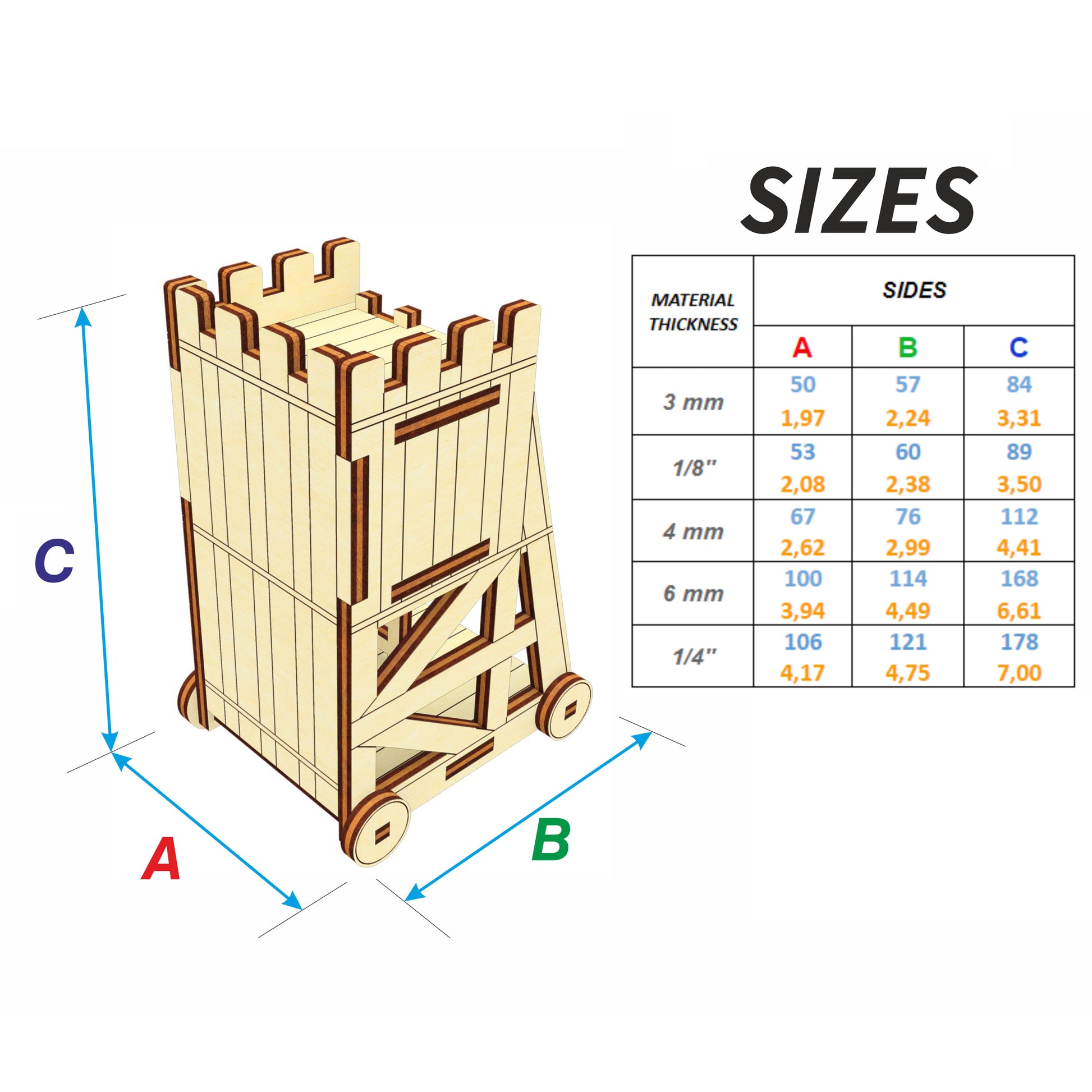

Sizes:
3 mm thickness: 50 x 57 x 84 mm (1,97 x 2,24 x 3,31'')
1/8''(3.175mm) thickness: 53 x 60 x 89 mm (2,08 x 2,38 x 3,50'')
4 mm thickness: 67 x 76 x 112 mm (2,62 x 2,99 x 4,41'')
6 mm thickness: 100 x 114 x 168 mm (3,94 x 4,49 x 6,61'')
1/4''(6.35mm) thickness: 106 x 121 x 178 mm (4,17 x 4,75 x 7,00'')

Work area:
3 mm thickness: 387 x 83 mm (15,24 x 3,27'')
1/8''(3.175mm) thickness: 410 x 88 mm (16,13 x 3,46'')
4 mm thickness: 516 x 111 mm (20,31 x 4,36'')
6 mm thickness: 774 x 166 mm (30,47 x 6,54'')
1/4''(6.35mm) thickness: 819 x 176 mm (32,25 x 6,92'')

Biggest part:
3 mm thickness: 53 x 81 mm (2,09 x 3,19'')
1/8''(3.175mm) thickness: 56 x 86 mm (2,21 x 3,38'')
4 mm thickness: 71 x 108 mm (2,78 x 4,25'')
6 mm thickness: 106 x 162 mm (4,17 x 6,38'')
1/4''(6.35mm) thickness: 112 x 171 mm (4,42 x 6,75'')

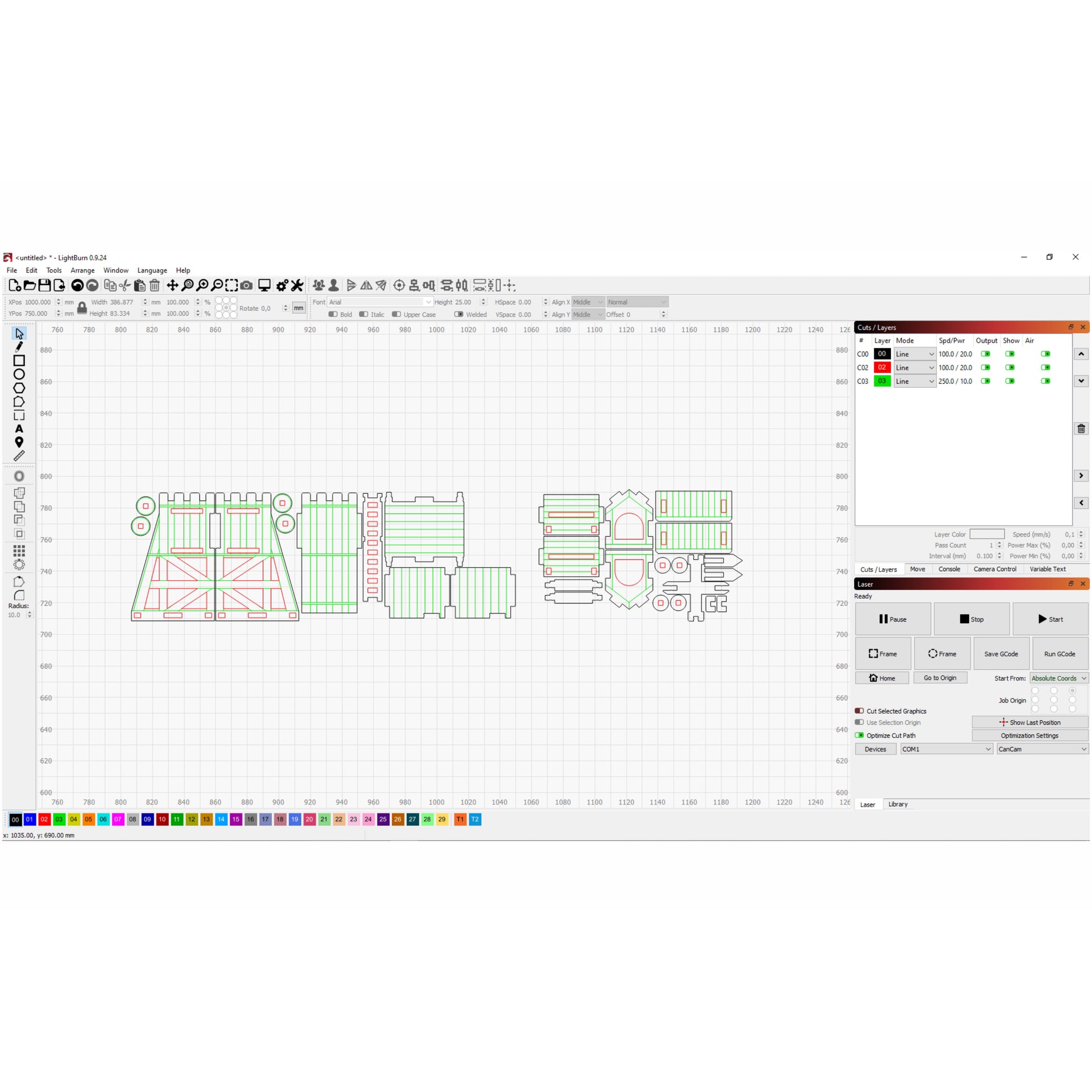

In the file:
green color - draw (cut with little power and big speed)
red color - cut
black color - cut

What you receive:
You will download 1 ZIP file containing the following:

the CDR, DXF, AI, SVG files with drawing for material thinkness 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) and PDF-assembly instruction

If you have any quastions feel free to contact us.

These files are vector-based and compatible with all laser cut software, milling machine, CNC plasma cutting machine, glowforge machines.

This is an Instant Digital Download

The item is non-refundable because it's not physical.
YOU CAN use the files for personal purposes and for your small business.
YOU CANNOT share, redistribute or resell the files.

Copyright is not transferable with the sale.
