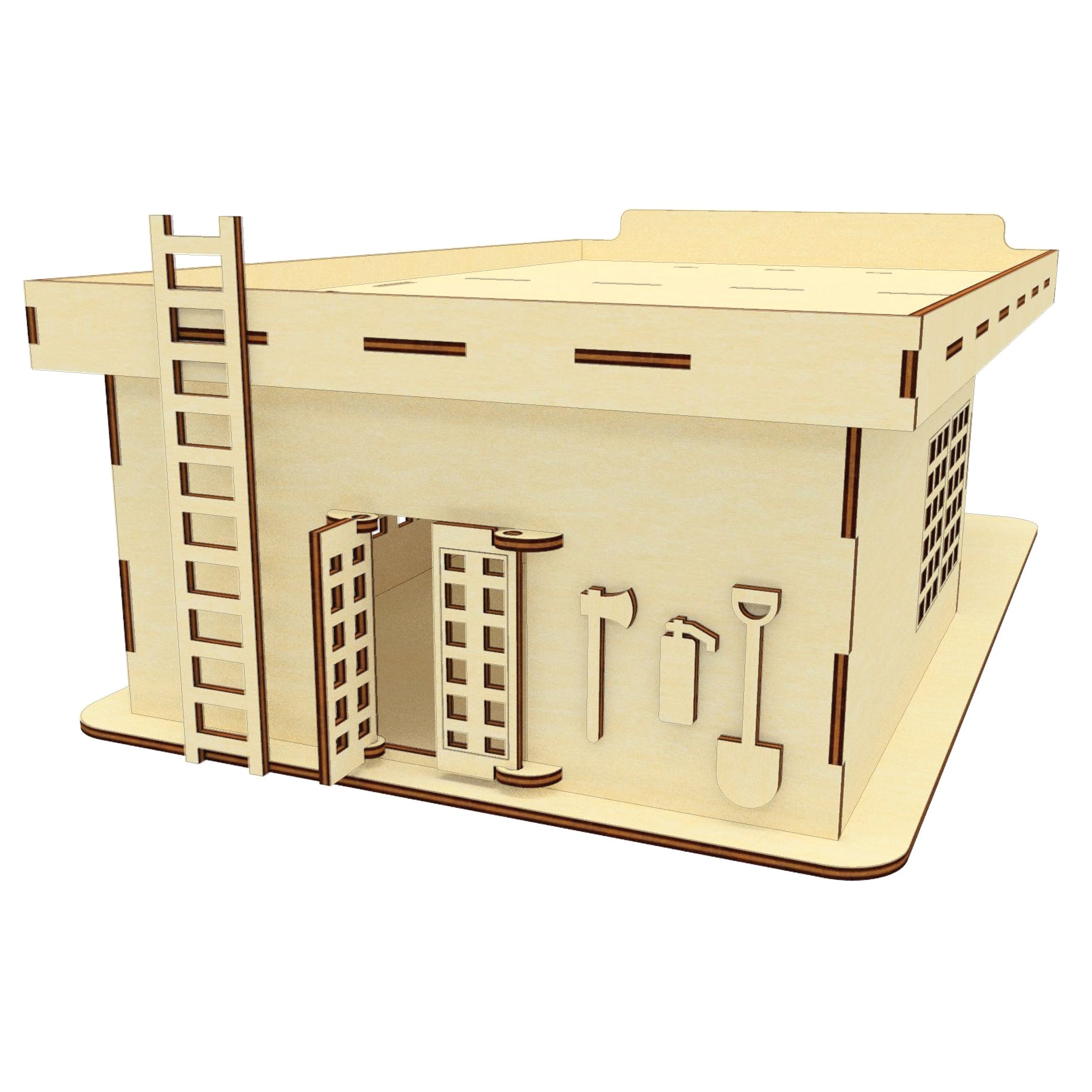

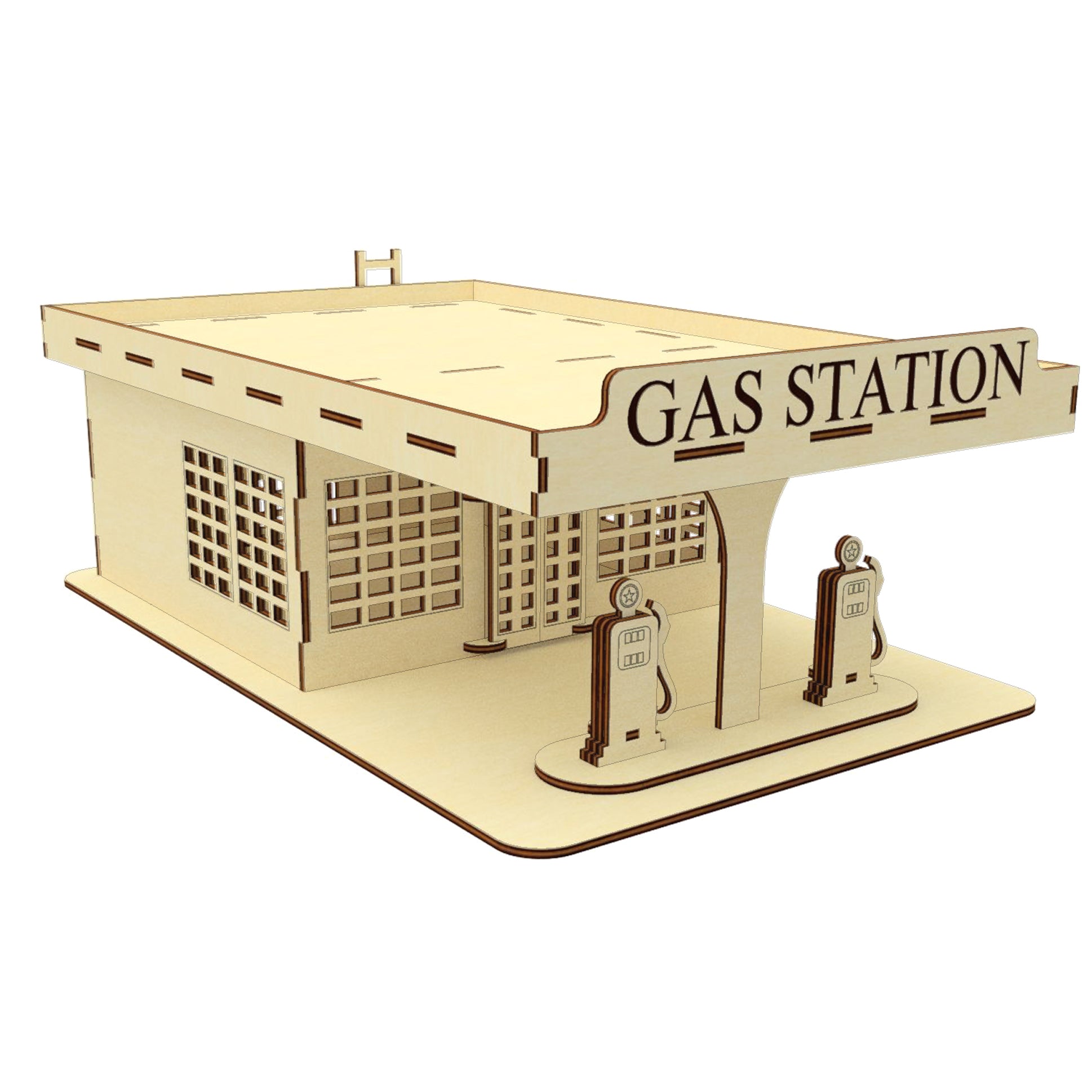

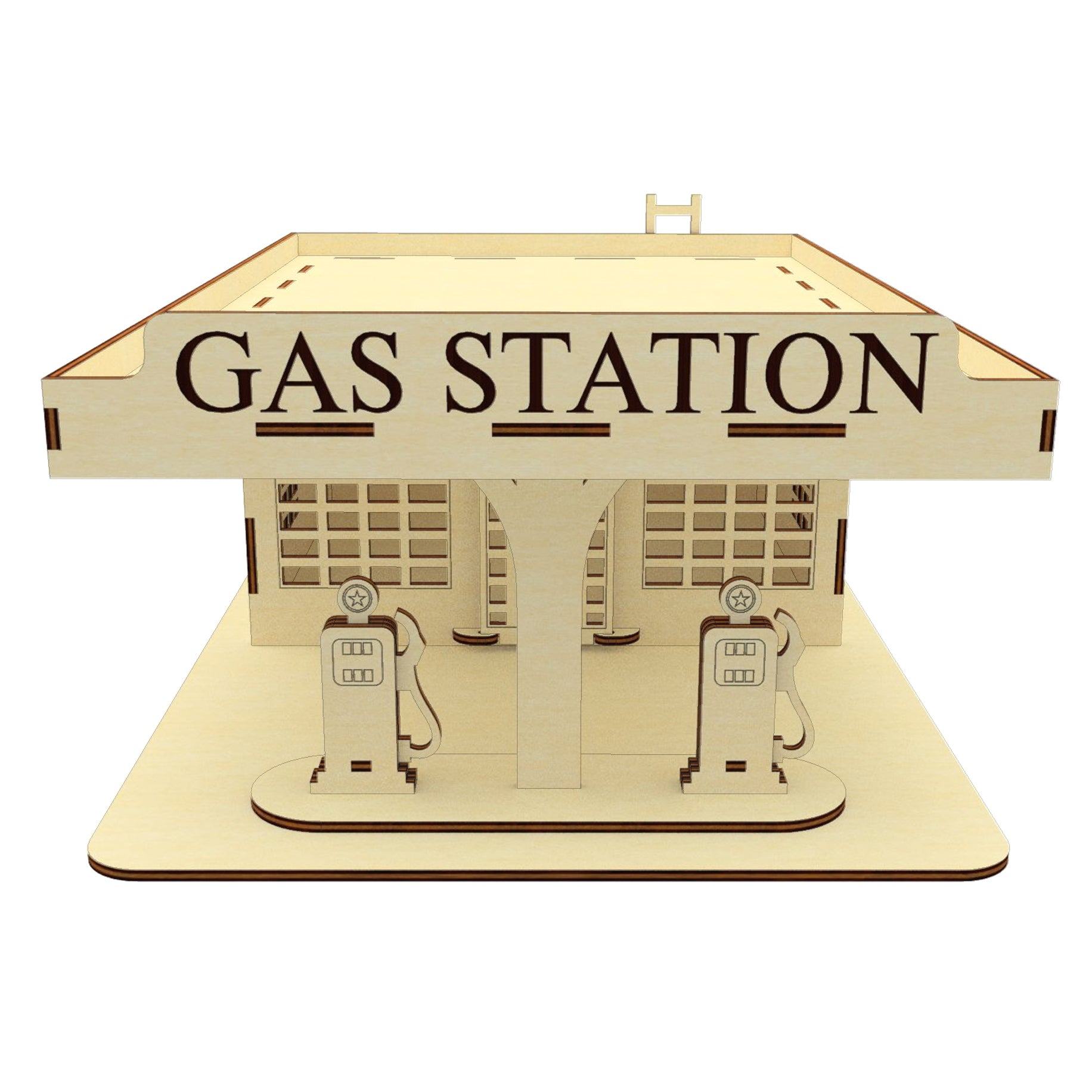

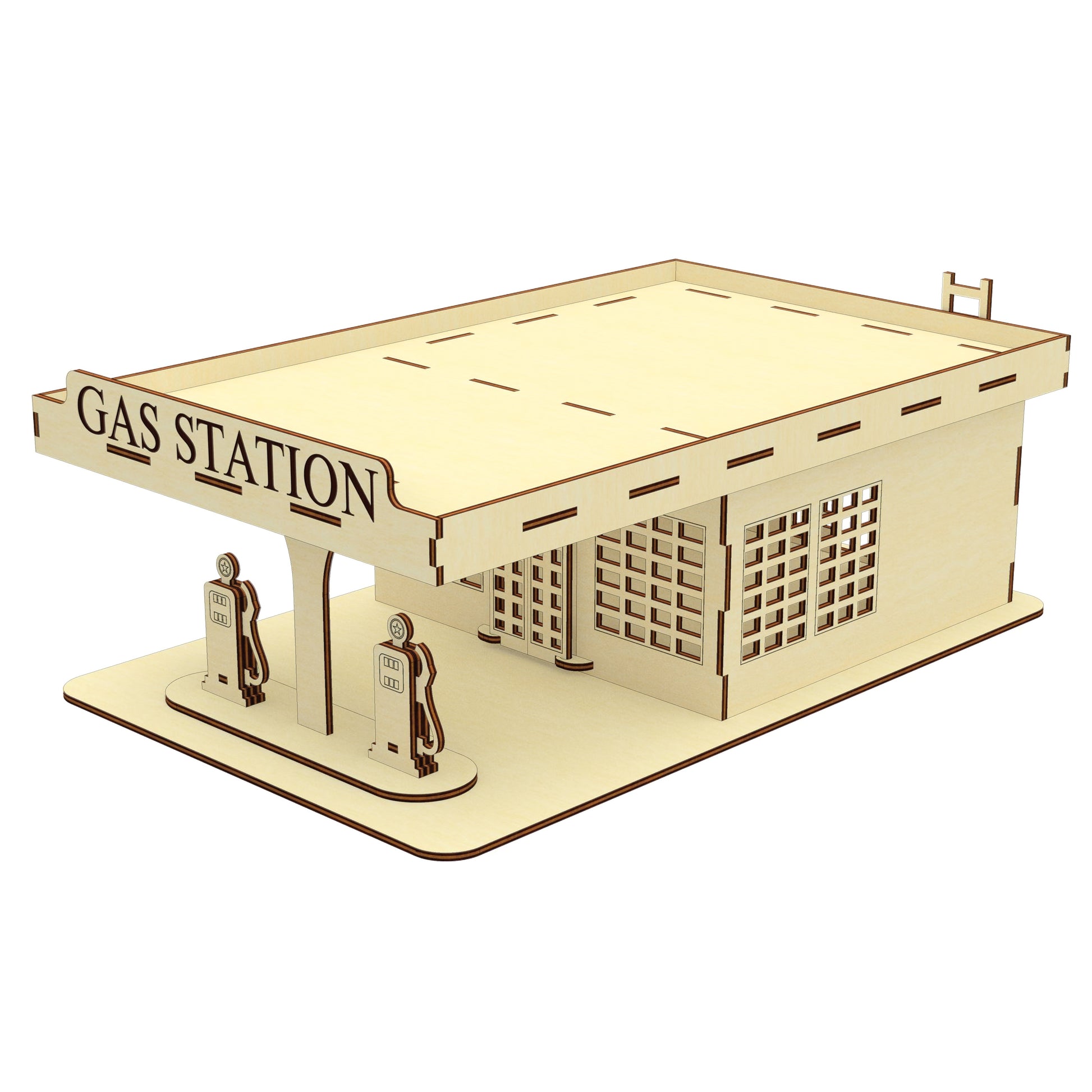

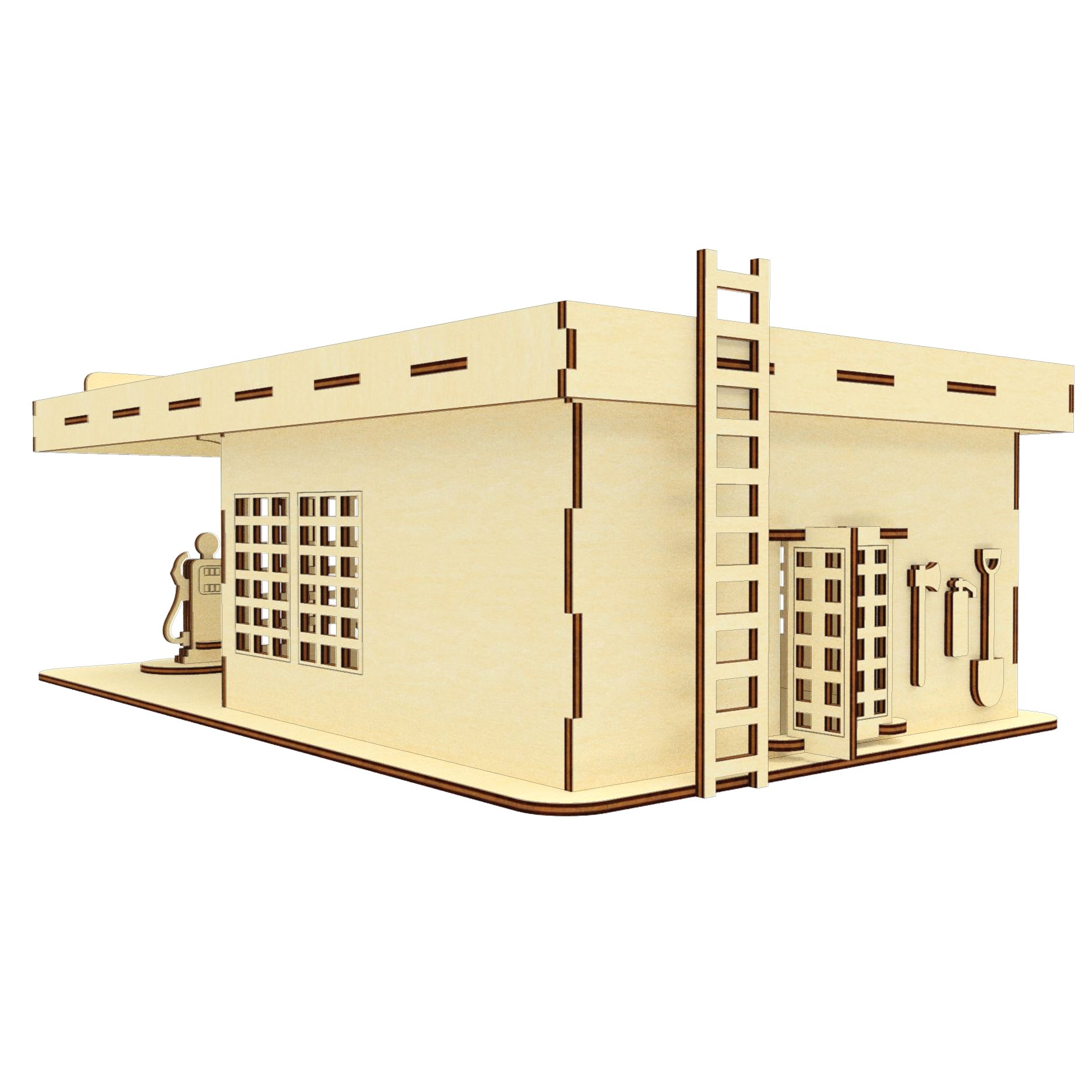

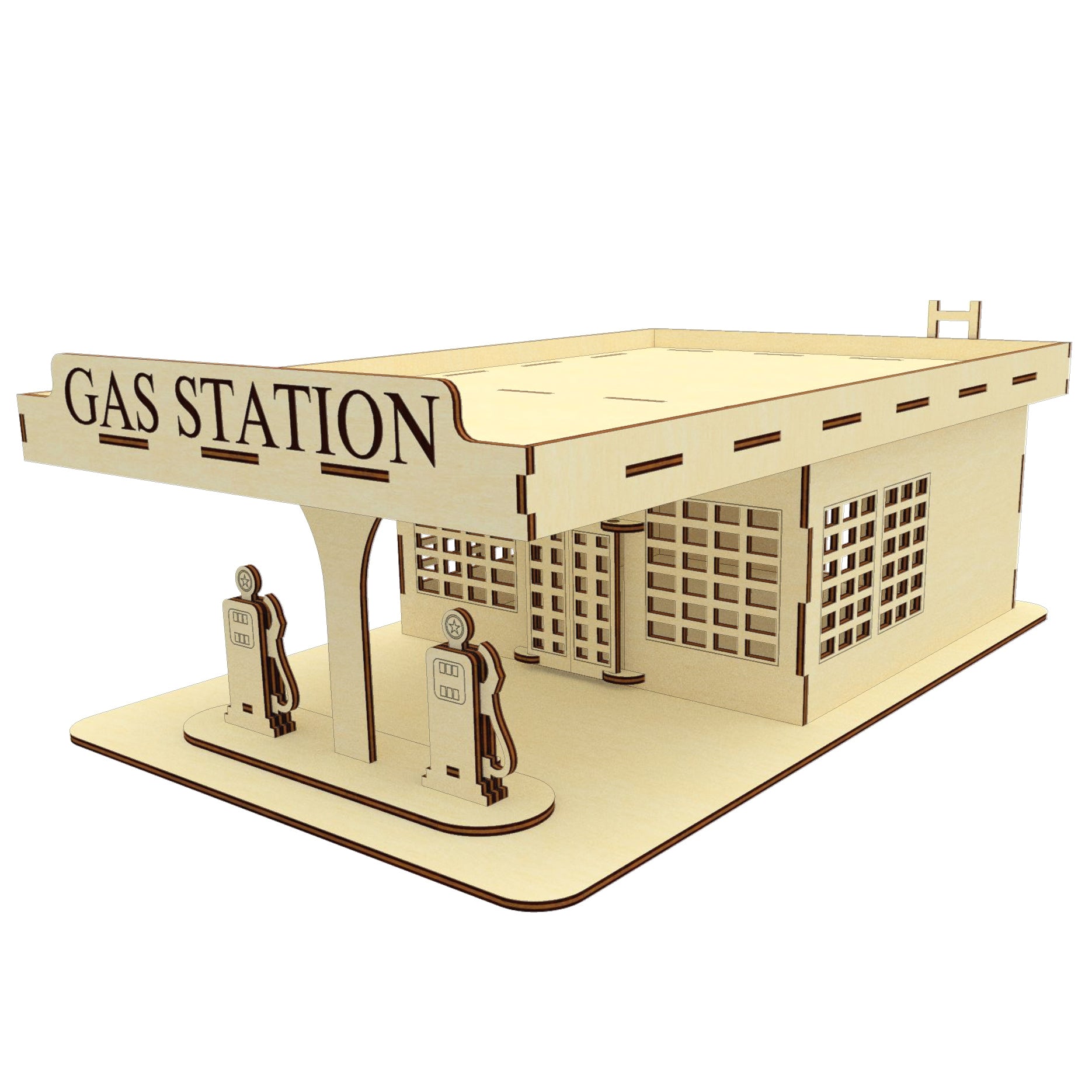

Old style gas station Laser cut file for CNC laser machines in DXF CDR AI SVG

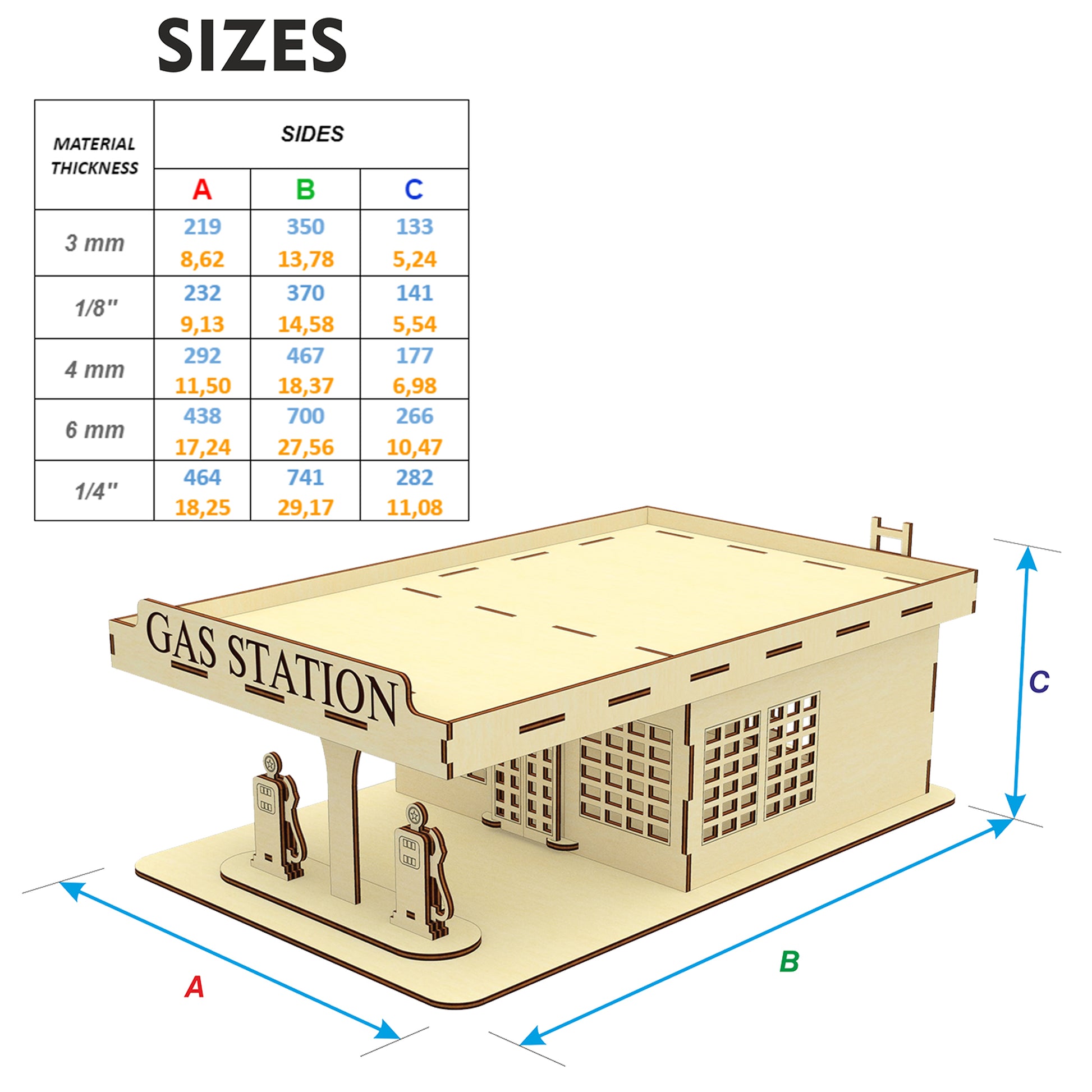

Sizes:
3 mm thickness: 219 x 350 x 133 mm (8,62 x 13,78 x 5,24'')
1/8''(3.175mm) thickness: 232 x 370 x 141 mm (9,13 x 14,58 x 5,54'')
4 mm thickness: 292 x 467 x 177 mm (11,50 x 18,37 x 6,98'')
6 mm thickness: 438 x 700 x 266 mm (17,24 x 27,56 x 10,47'')
1/4''(6.35mm) thickness: 464 x 741 x 282 mm (18,25 x 29,17 x 11,08'')
Work area:
3 mm thickness: 833 x 453 mm (32,80 x 17,83'')
1/8''(3.175mm) thickness: 882 x 479 mm (34,71 x 18,88'')
4 mm thickness: 1111 x 604 mm (43,73 x 23,78'')
6 mm thickness: 1666 x 906 mm (65,59 x 35,67'')
1/4''(6.35mm) thickness: 1763 x 959 mm (69,42 x 37,75'')
Biggest part:
3 mm thickness: 350 x 219 mm (13,78 x 8,62'')
1/8''(3.175mm) thickness: 370 x 232 mm (14,58 x 9,13'')
4 mm thickness: 467 x 292 mm (18,37 x 11,50'')
6 mm thickness: 700 x 438 mm (27,56 x 17,24'')
1/4''(6.35mm) thickness: 741 x 464 mm (29,17 x 18,25'')

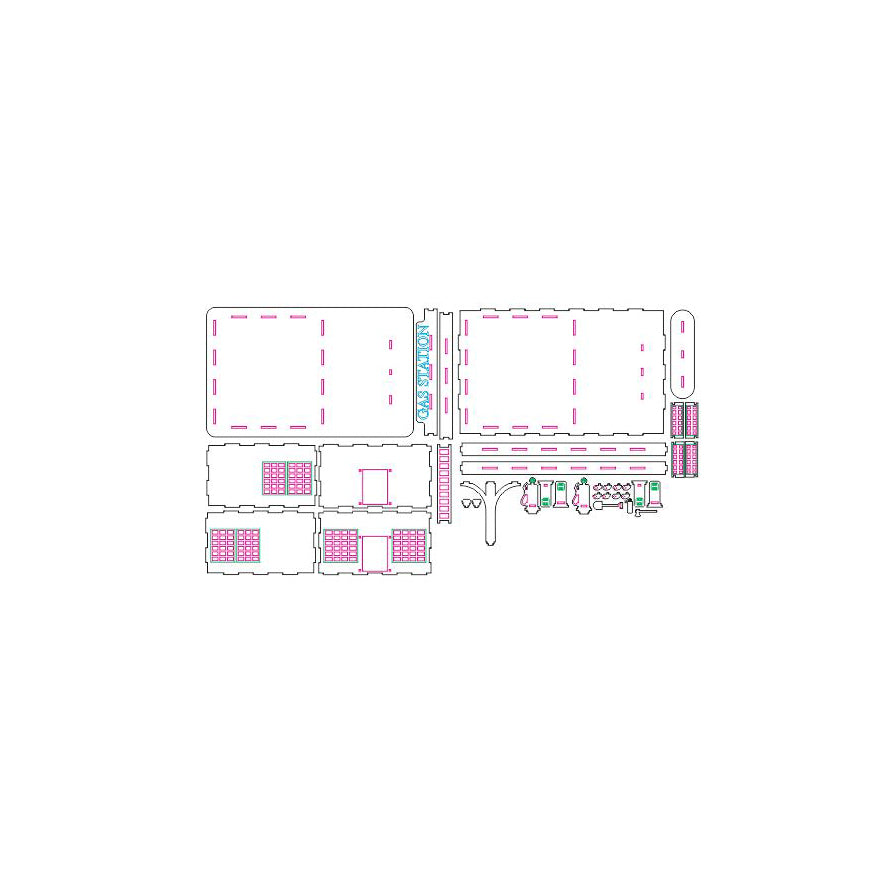

In the file:
blue color - engrave
pink color - cut
black color - cut
What you receive:
You will download 1 ZIP file containing the following:
the CDR, DXF, AI, SVG files with drawing for material thinkness 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) and PDF-assembly instruction
If you have any quastions feel free to contact us.
These files are vector-based and compatible with all laser cut software, milling machine, CNC plasma cutting machine, glowforge machines.
This is an Instant Digital Download
The item is non-refundable because it's not physical.
YOU CAN use the files for personal purposes and for your small business.
YOU CANNOT share, redistribute or resell the files.
Copyright is not transferable with the sale.
Wholesale cheaper
Use promocodes for discount
3 files - WHOLESALE3 - 15%
5 files - WHOLESALE5 - 20%
10 files - WHOLESALE10 - 30%
This model also available on Etsy here
