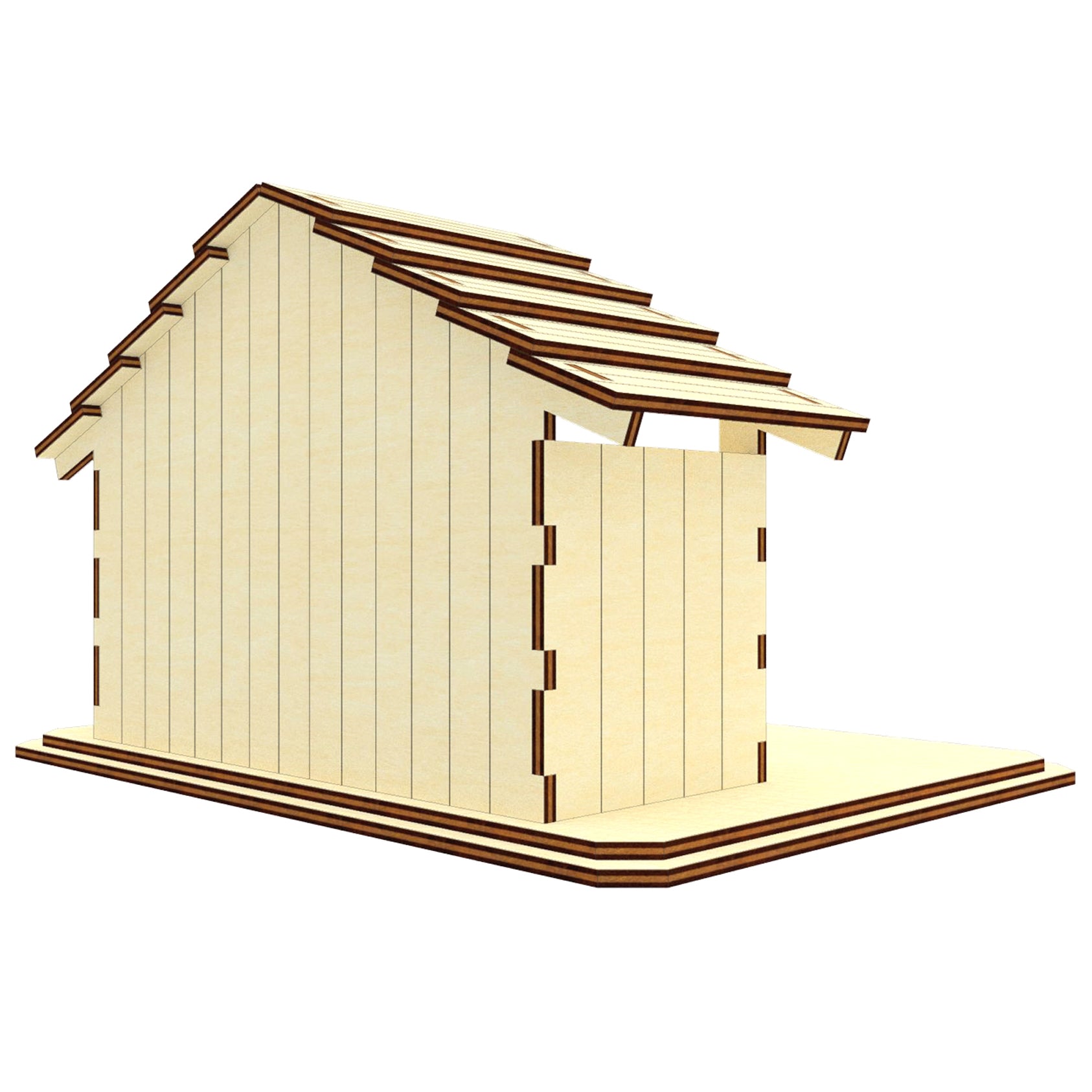

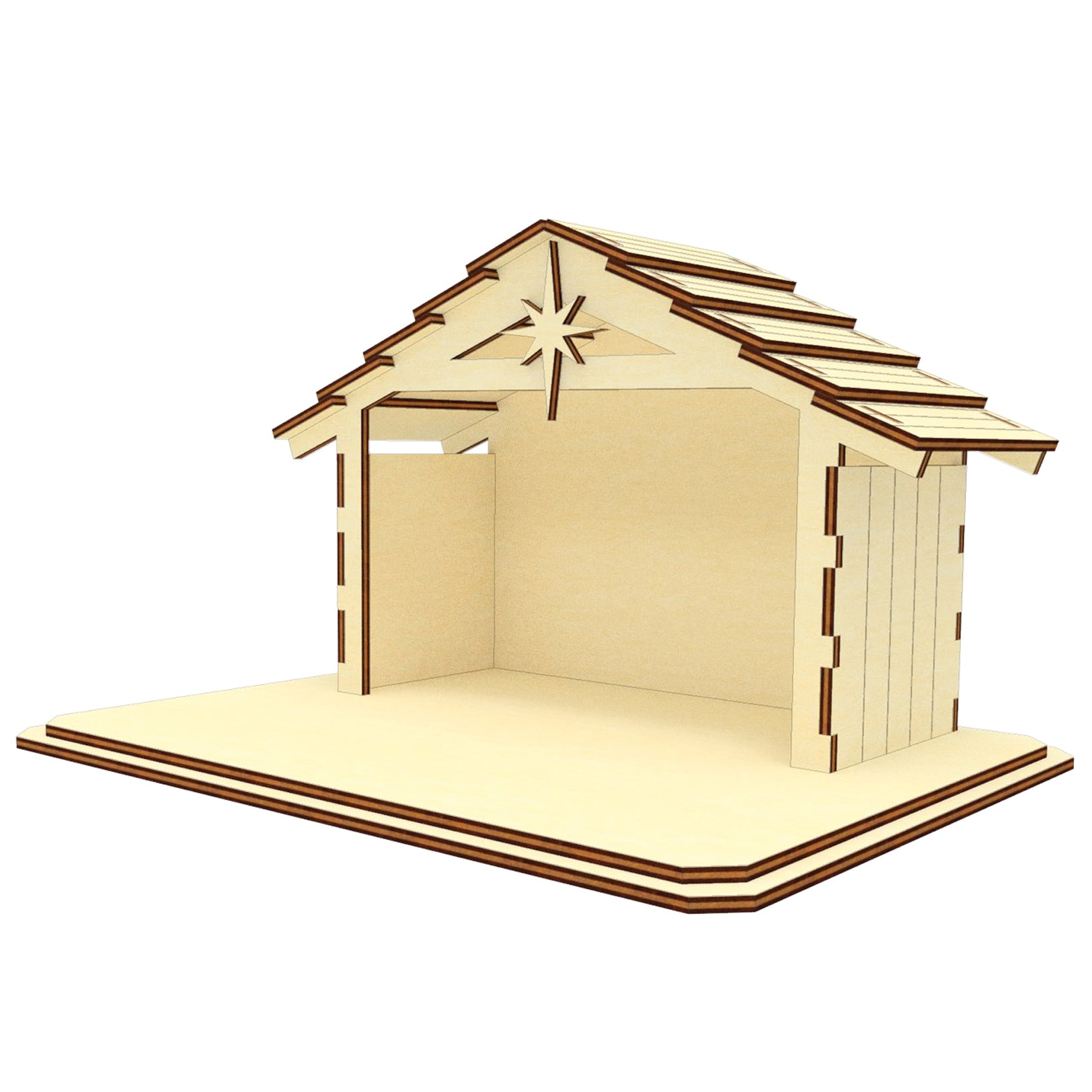

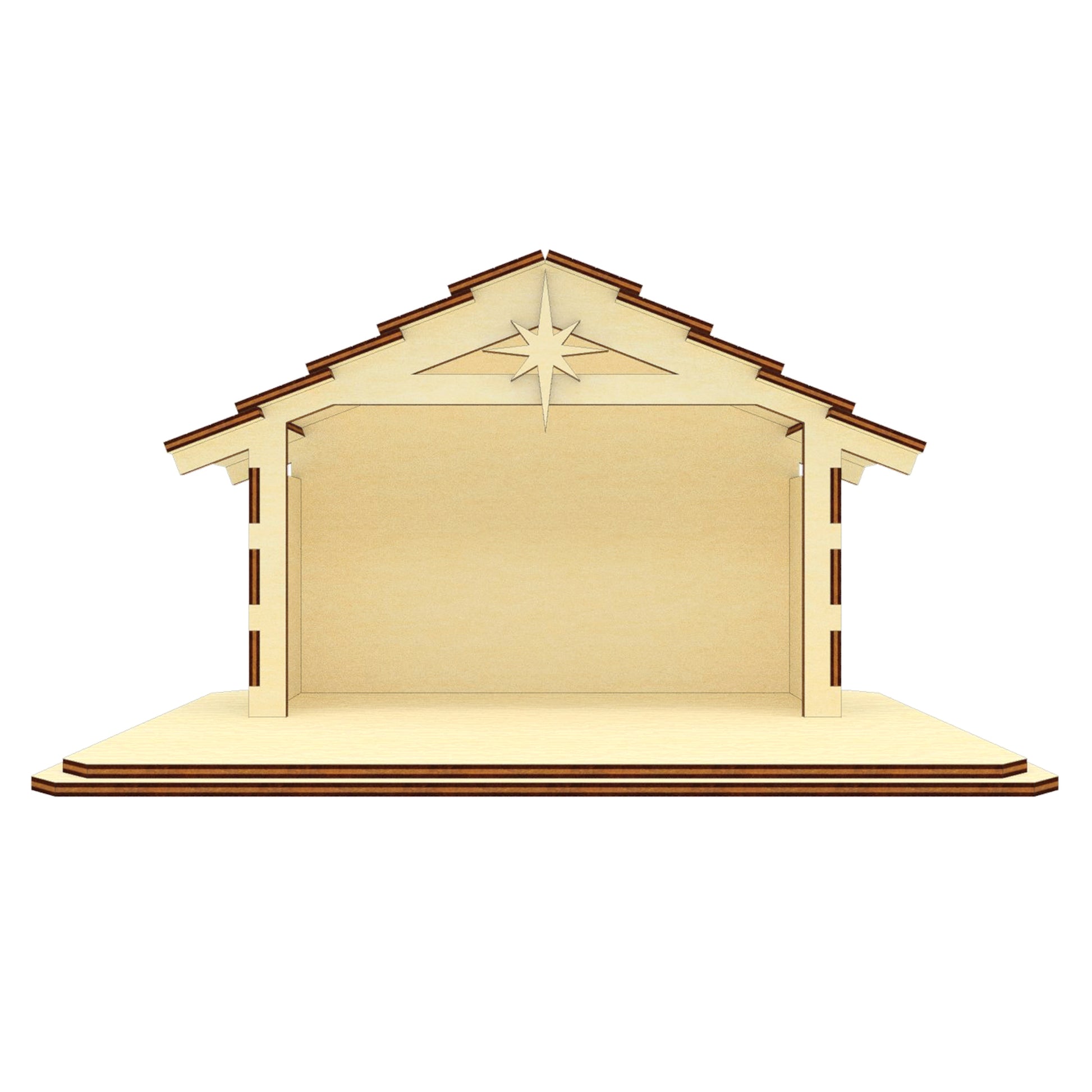

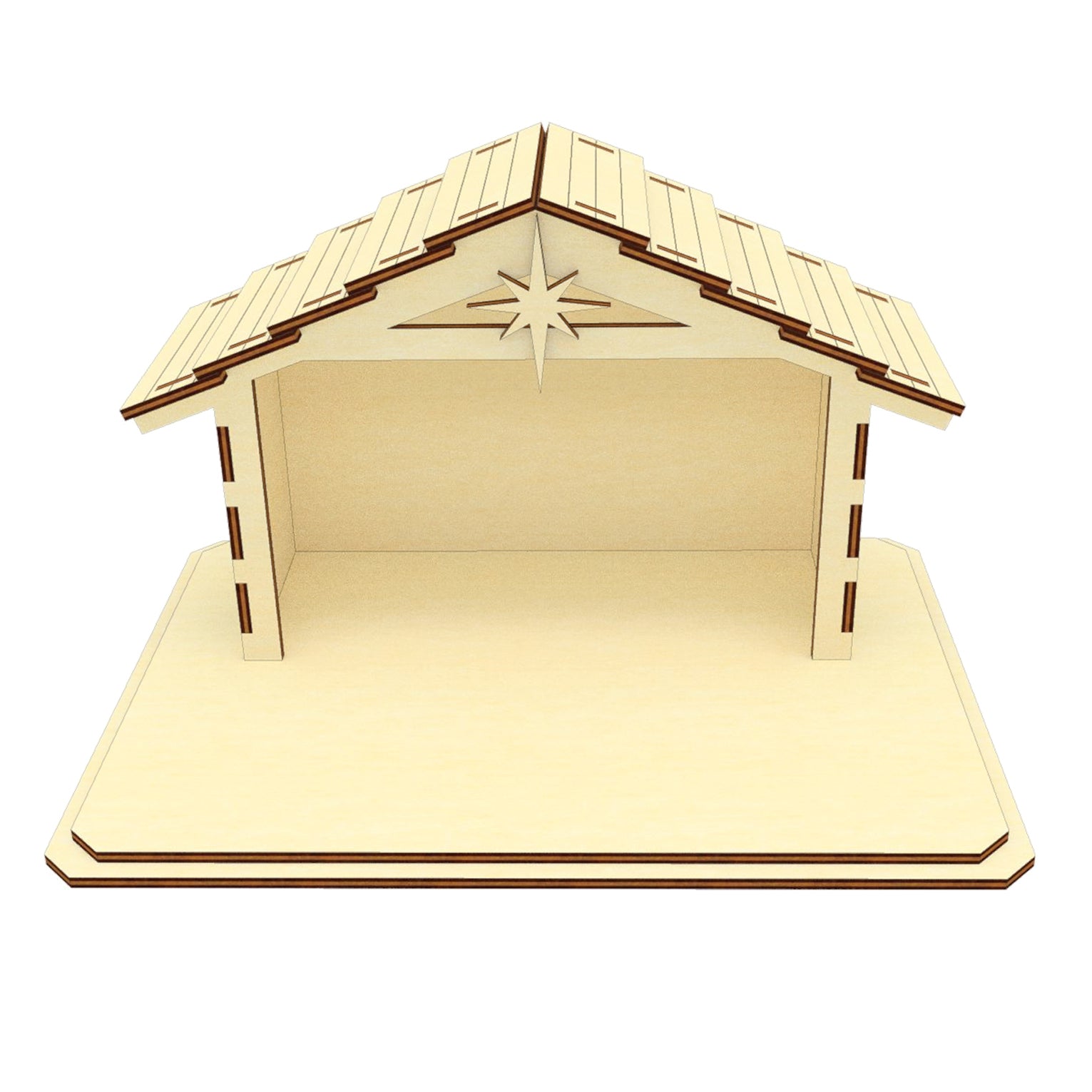

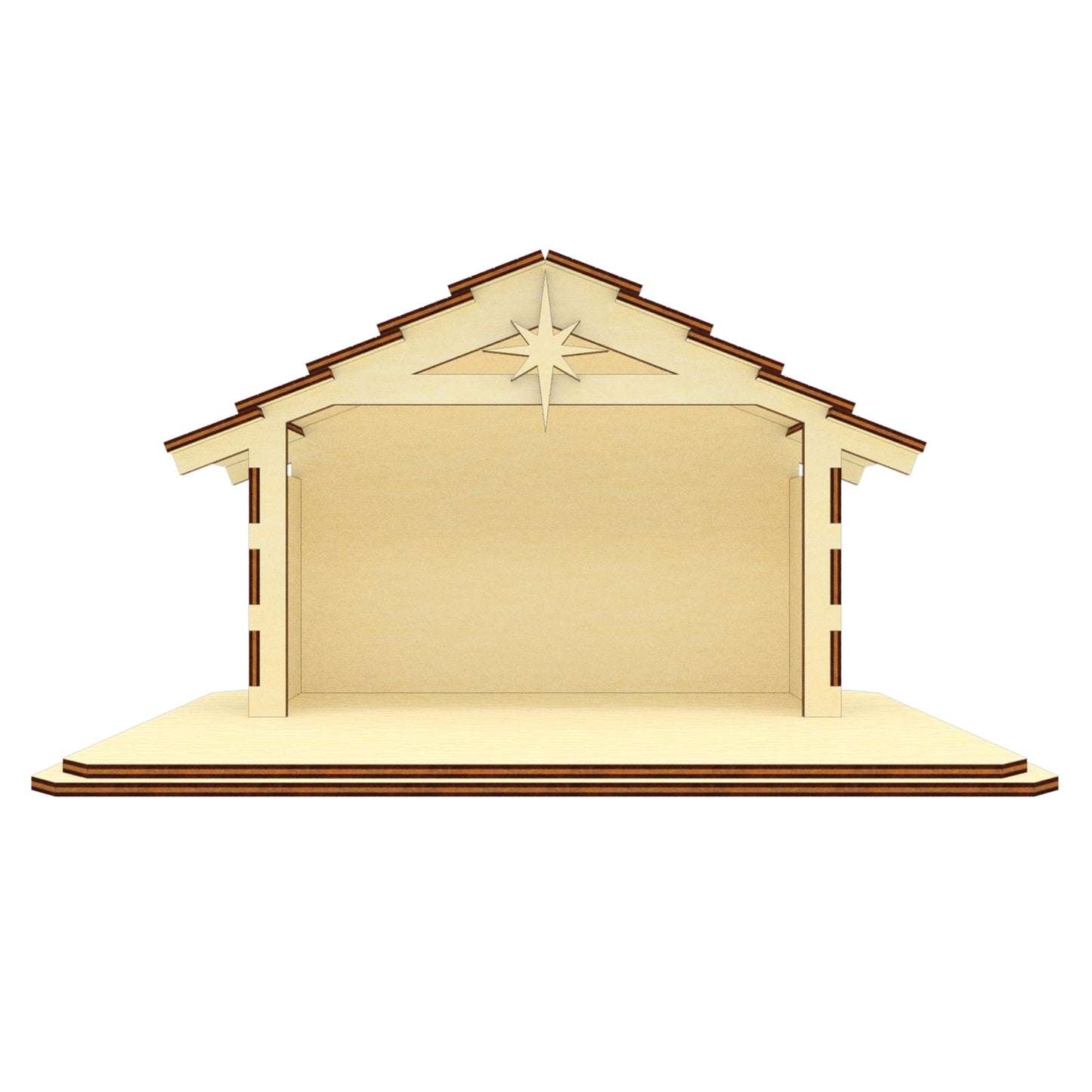

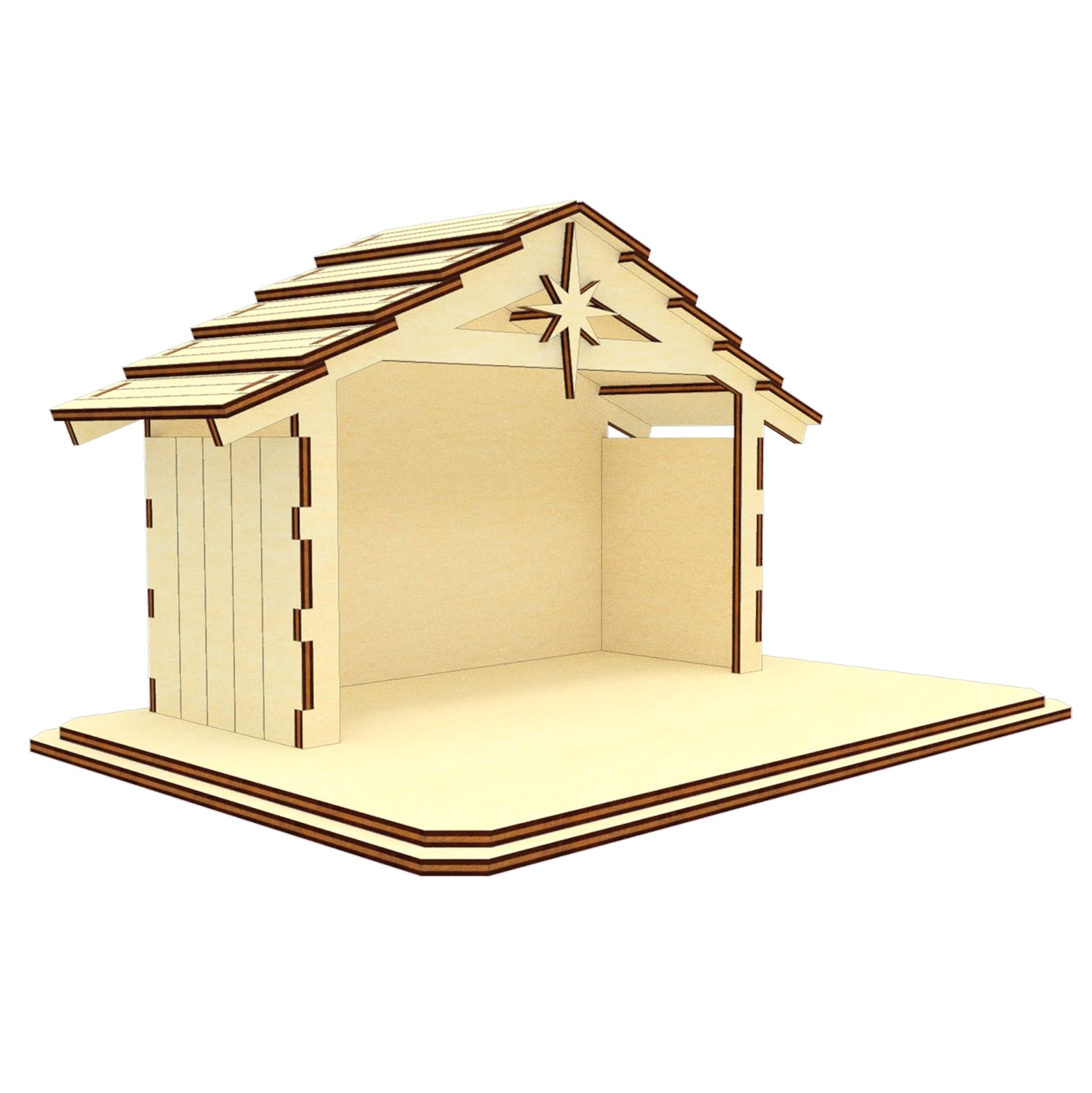

Nativity barn #2 Laser cut file for CNC laser machines in DXF CDR AI SVG
Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

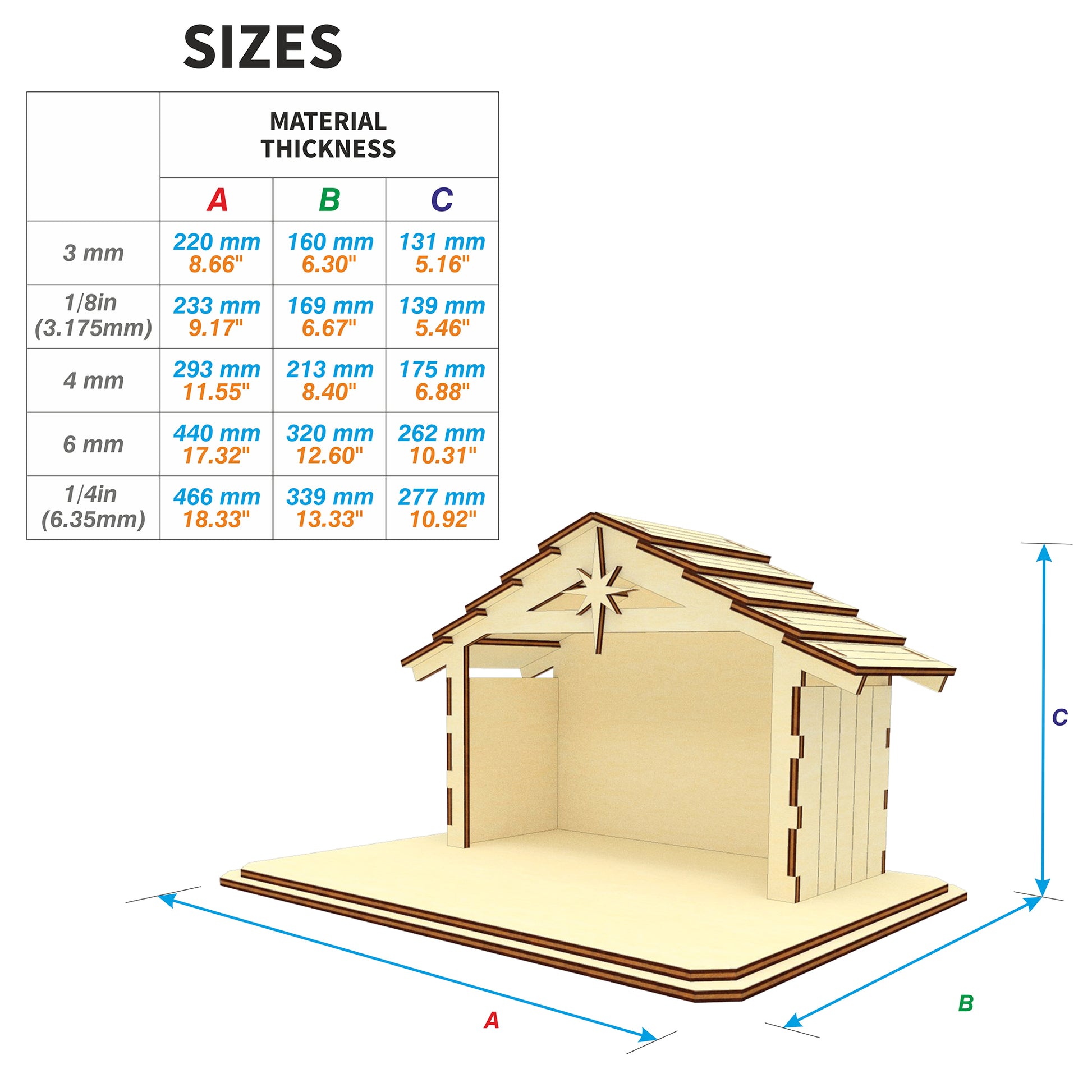

Sizes:
3 mm thickness: 220 x 160 x 131 mm (8,66 x 6,30 x 5,16'')
1/8''(3.175mm) thickness: 233 x 169 x 139 mm (9,17 x 6,67 x 5,46'')
4 mm thickness: 293 x 213 x 175 mm (11,55 x 8,40 x 6,88'')
6 mm thickness: 440 x 320 x 262 mm (17,32 x 12,60 x 10,31'')
1/4''(6.35mm) thickness: 466 x 339 x 277 mm (18,33 x 13,33 x 10,92'')
Work area:
3 mm thickness: 425 x 355 mm (16,73 x 13,98'')
1/8''(3.175mm) thickness: 450 x 376 mm (17,71 x 14,79'')
4 mm thickness: 567 x 473 mm (22,31 x 18,64'')
6 mm thickness: 850 x 710 mm (33,46 x 27,95'')
1/4''(6.35mm) thickness: 900 x 751 mm (35,42 x 29,58'')
Biggest part:
3 mm thickness: 160 x 220 mm (6,30 x 8,66'')
1/8''(3.175mm) thickness: 169 x 233 mm (6,67 x 9,17'')
4 mm thickness: 213 x 293 mm (8,40 x 11,55'')
6 mm thickness: 320 x 440 mm (12,60 x 17,32'')
1/4''(6.35mm) thickness: 339 x 466 mm (13,33 x 18,33'')

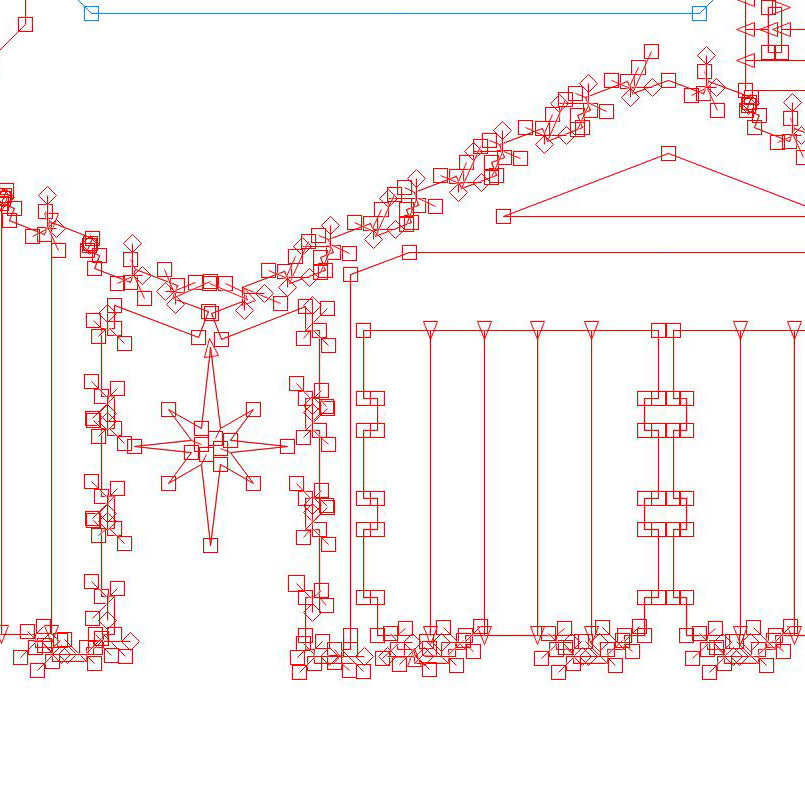

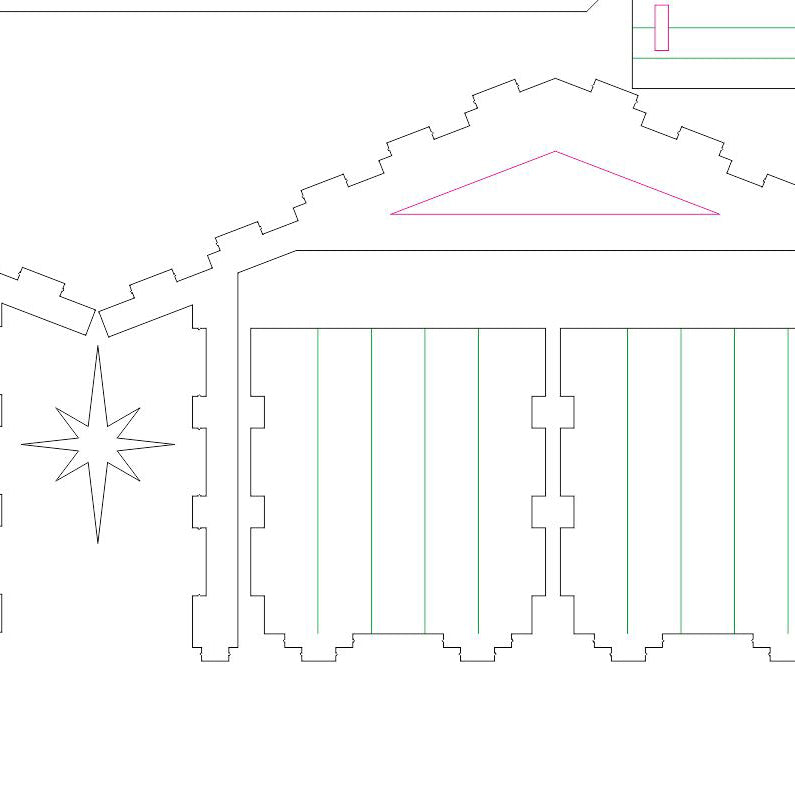

In the file:
green color - draw (cut with little power and big speed)
pink color - cut
black color - cut
What you receive:
You will download 1 ZIP file containing the following:
the CDR, DXF, AI, SVG files with drawing for material thinkness 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) and PDF-assembly instruction
If you have any quastions feel free to contact us.
These files are vector-based and compatible with all laser cut software, milling machine, CNC plasma cutting machine, glowforge machines.
This is an Instant Digital Download
The item is non-refundable because it's not physical.
YOU CAN use the files for personal purposes and for your small business.
YOU CANNOT share, redistribute or resell the files.
Copyright is not transferable with the sale.
