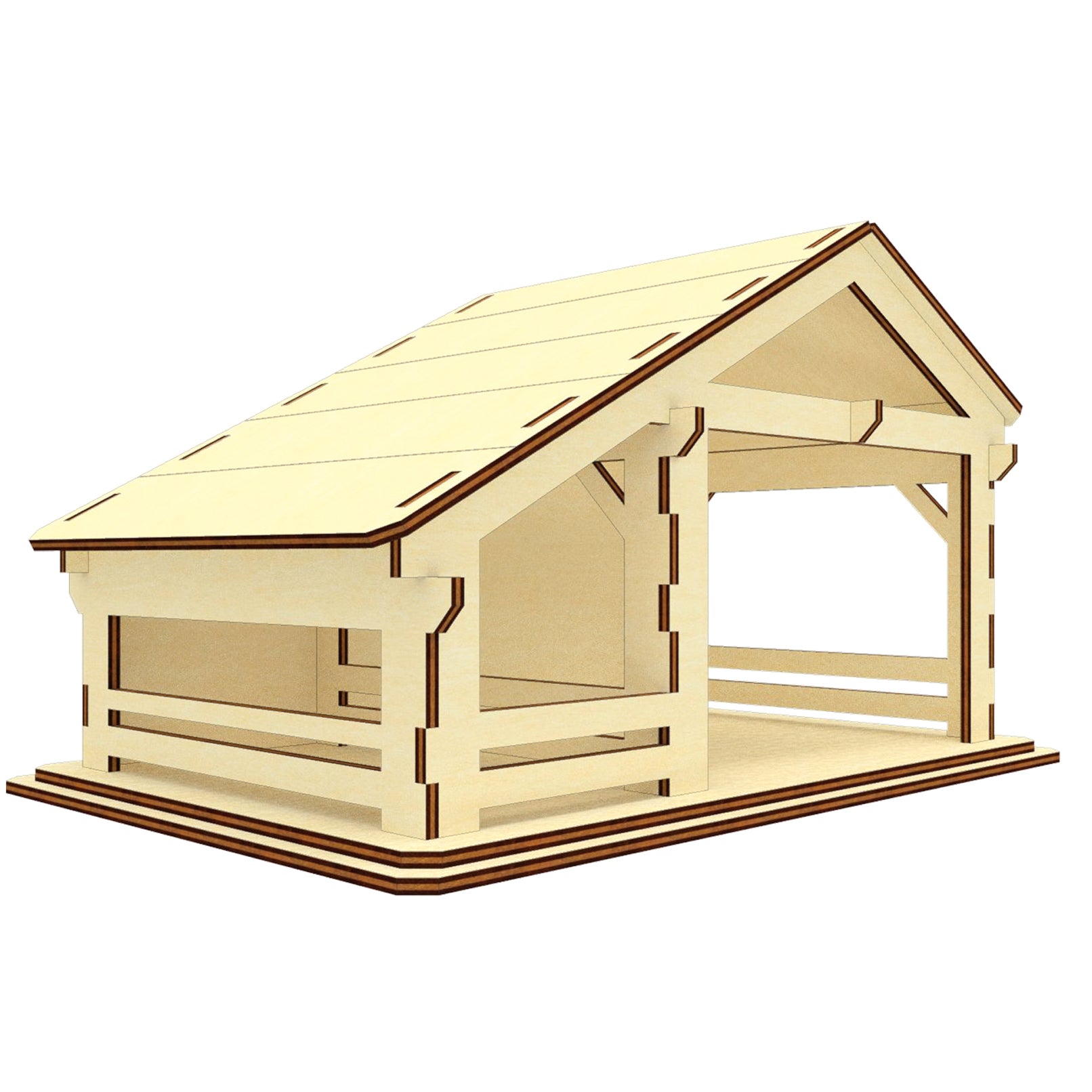

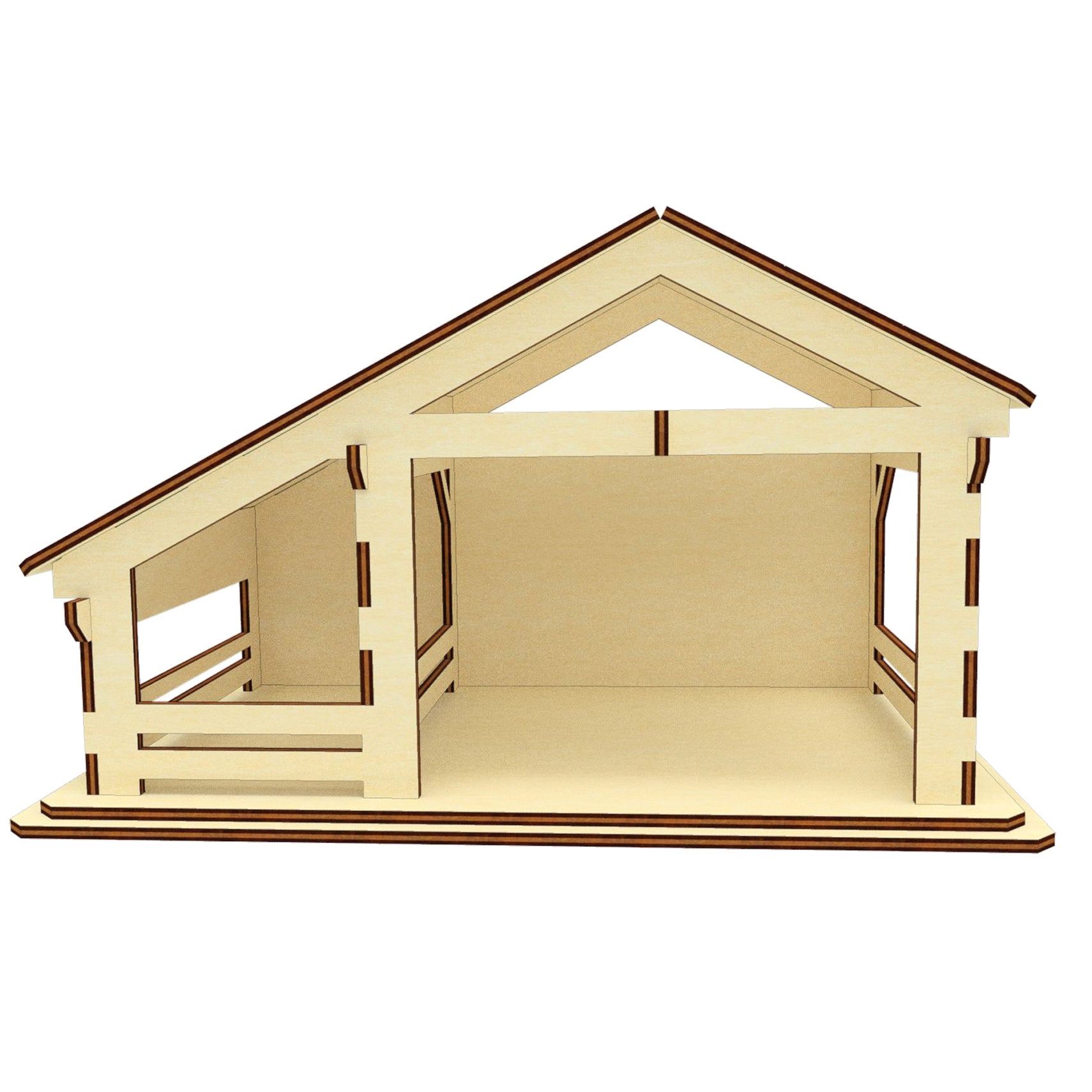

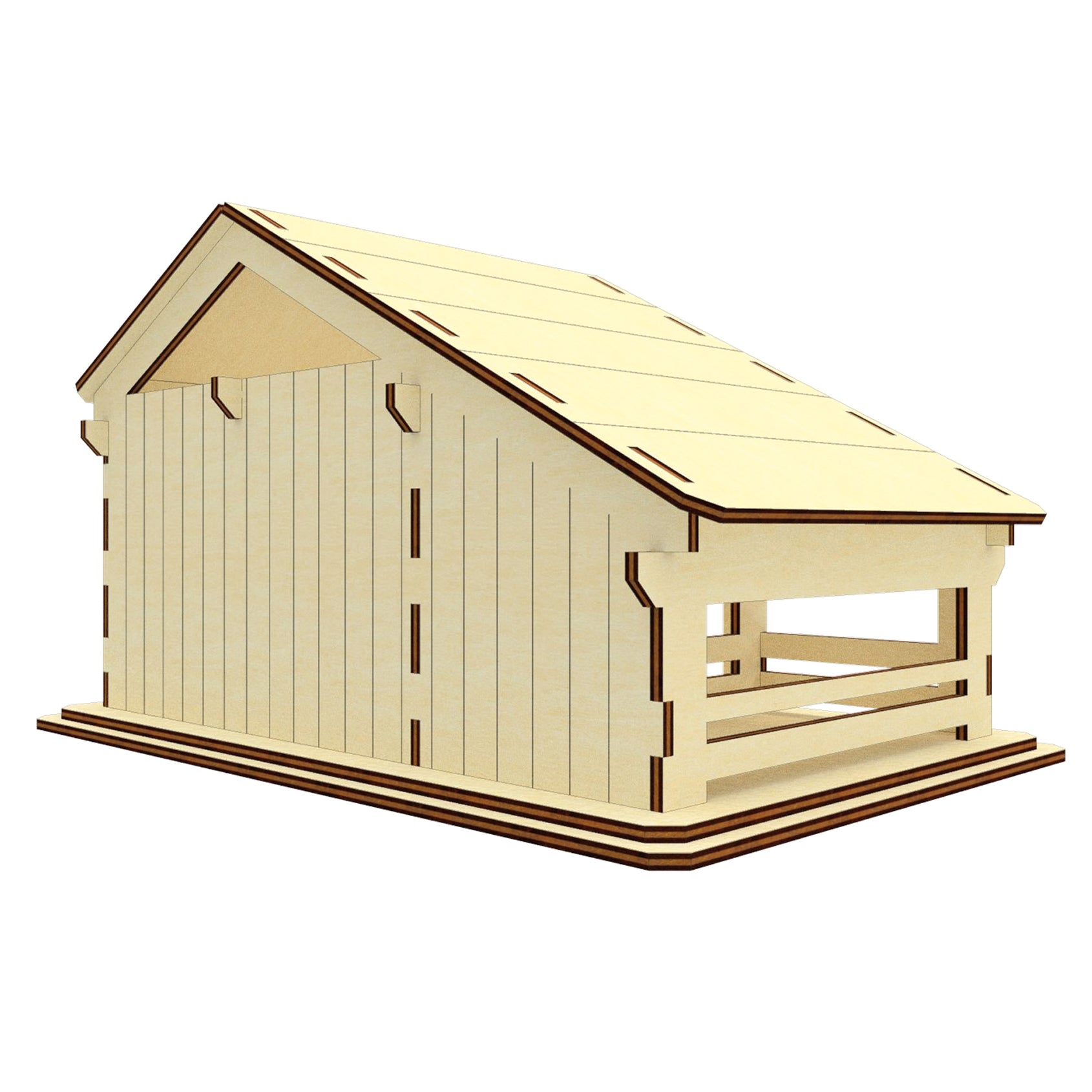

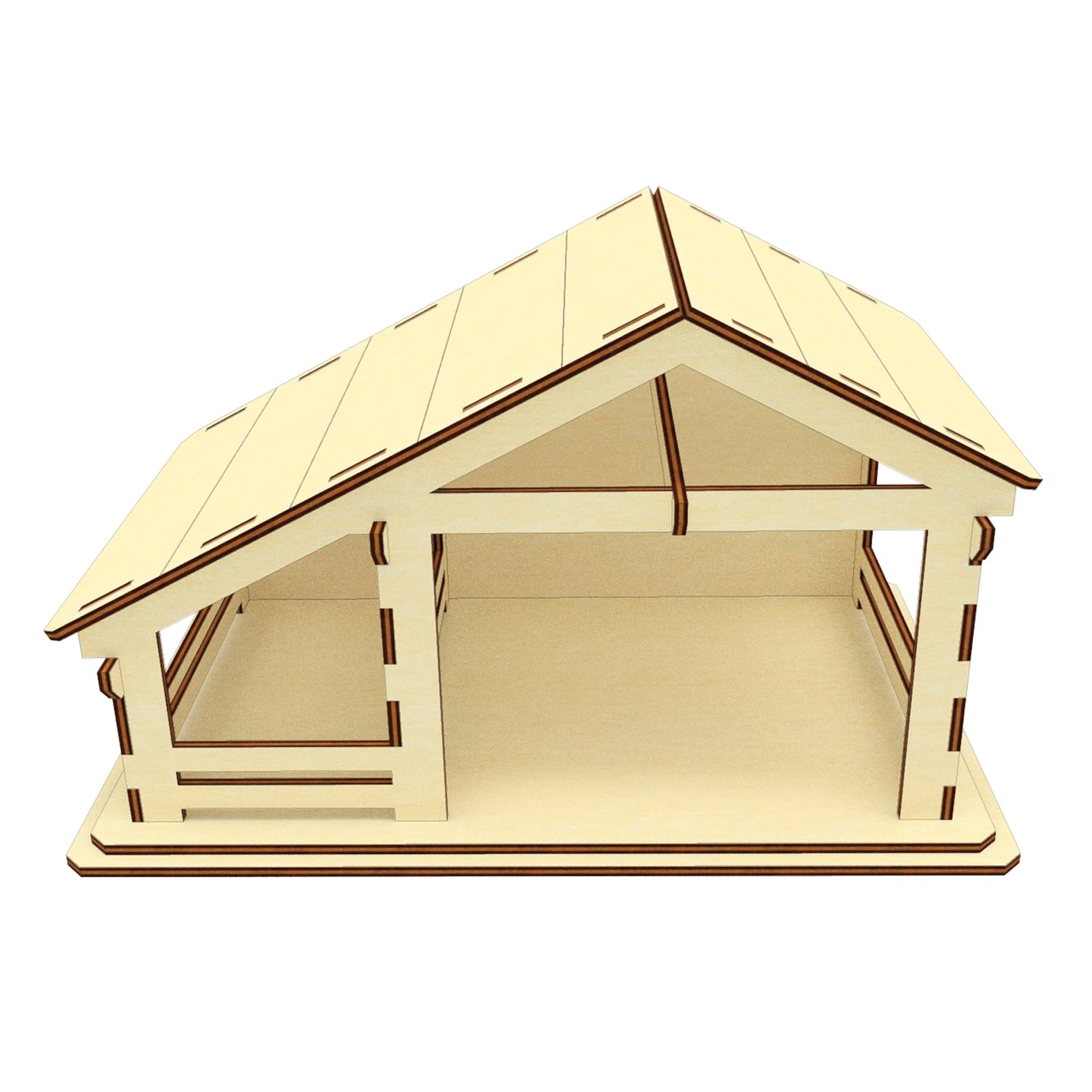

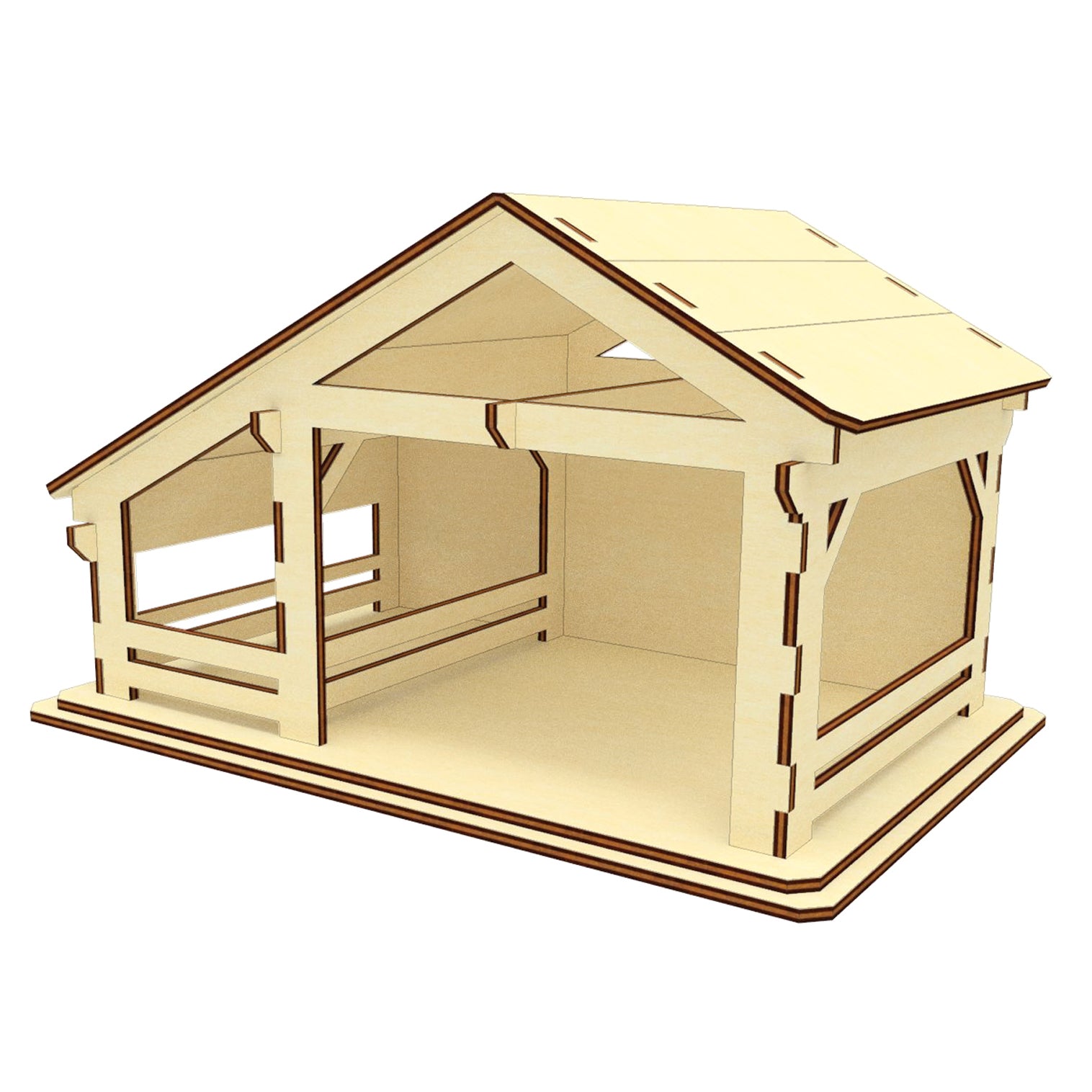

Nativity barn #1 Laser cut file for CNC laser machines in DXF CDR AI SVG
Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

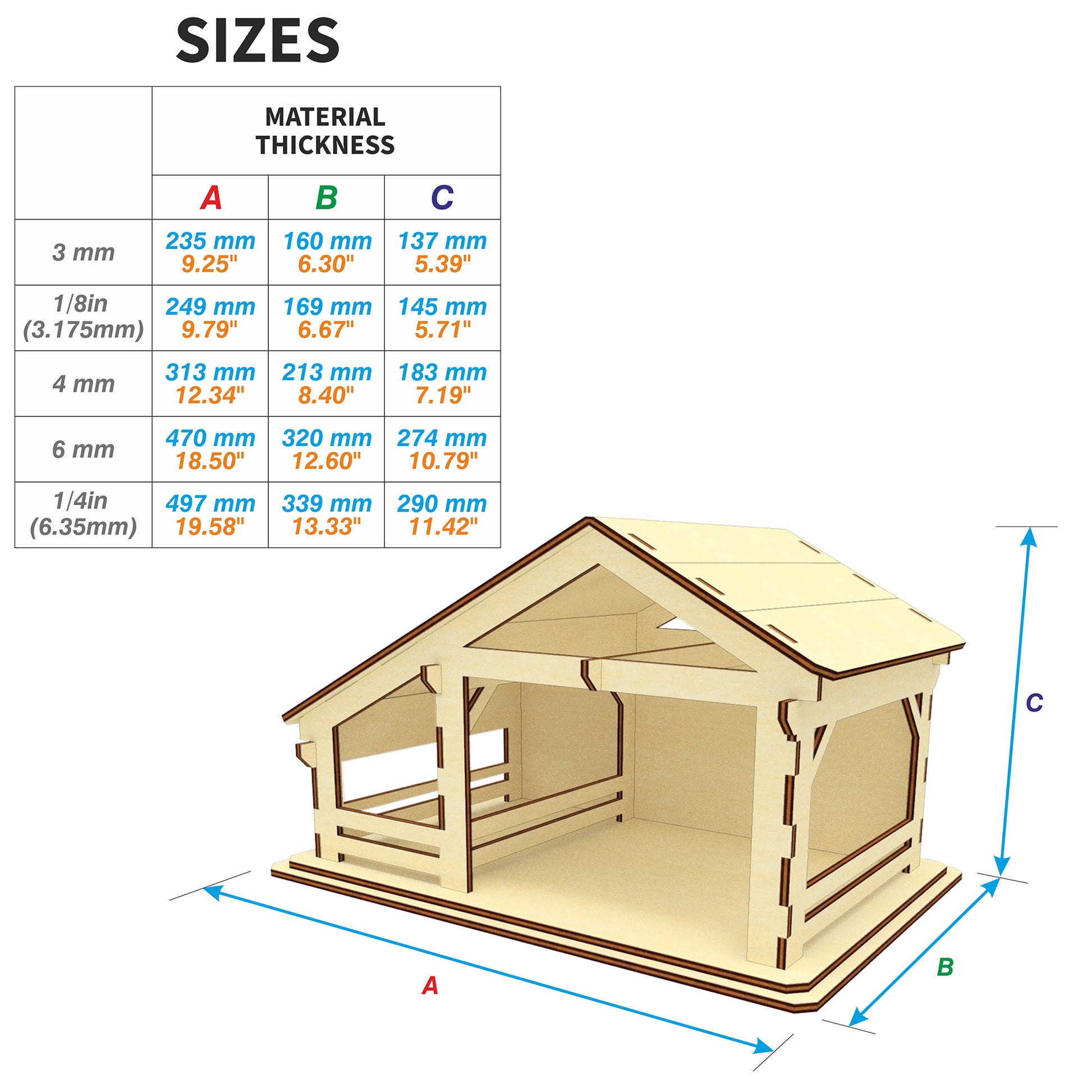

Sizes:
3 mm thickness: 235 x 160 x 137 mm (9,25 x 6,30 x 5,39'')
1/8''(3.175mm) thickness: 249 x 169 x 145 mm (9,79 x 6,67 x 5,71'')
4 mm thickness: 313 x 213 x 183 mm (12,34 x 8,40 x 7,19'')
6 mm thickness: 470 x 320 x 274 mm (18,50 x 12,60 x 10,79'')
1/4''(6.35mm) thickness: 497 x 339 x 290 mm (19,58 x 13,33 x 11,42'')
Work area:
3 mm thickness: 733 x 309 mm (28,86 x 12,17'')
1/8''(3.175mm) thickness: 776 x 327 mm (30,54 x 12,88'')
4 mm thickness: 977 x 412 mm (38,48 x 16,22'')
6 mm thickness: 1466 x 618 mm (57,72 x 24,33'')
1/4''(6.35mm) thickness: 1552 x 654 mm (61,08 x 25,75'')
Biggest part:
3 mm thickness: 235 x 160 mm (9,25 x 6,30'')
1/8''(3.175mm) thickness: 249 x 169 mm (9,79 x 6,67'')
4 mm thickness: 313 x 213 mm (12,34 x 8,40'')
6 mm thickness: 470 x 320 mm (18,50 x 12,60'')
1/4''(6.35mm) thickness: 497 x 339 mm (19,58 x 13,33'')

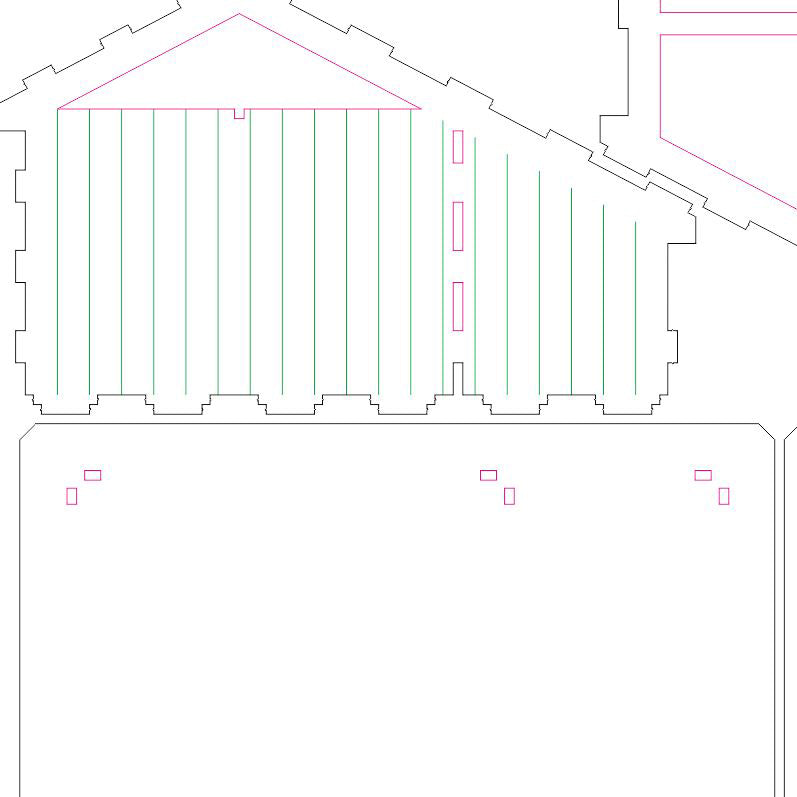

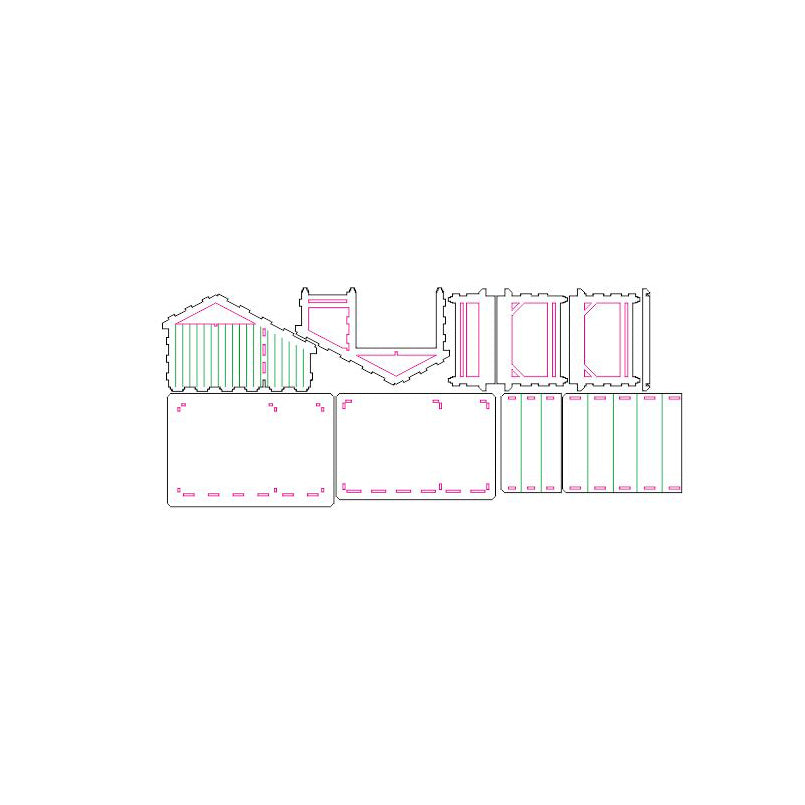

In the file:
green color - draw (cut with little power and big speed)
pink color - cut
black color - cut
What you receive:
You will download 1 ZIP file containing the following:
the CDR, DXF, AI, SVG files with drawing for material thinkness 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) and PDF-assembly instruction
If you have any quastions feel free to contact us.
These files are vector-based and compatible with all laser cut software, milling machine, CNC plasma cutting machine, glowforge machines.
This is an Instant Digital Download
The item is non-refundable because it's not physical.
YOU CAN use the files for personal purposes and for your small business.
YOU CANNOT share, redistribute or resell the files.
Copyright is not transferable with the sale.
Wholesale cheaper
Use promocodes for discount
3 files - WHOLESALE3 - 15%
5 files - WHOLESALE5 - 20%
10 files - WHOLESALE10 - 30%
This model also available on Etsy here
