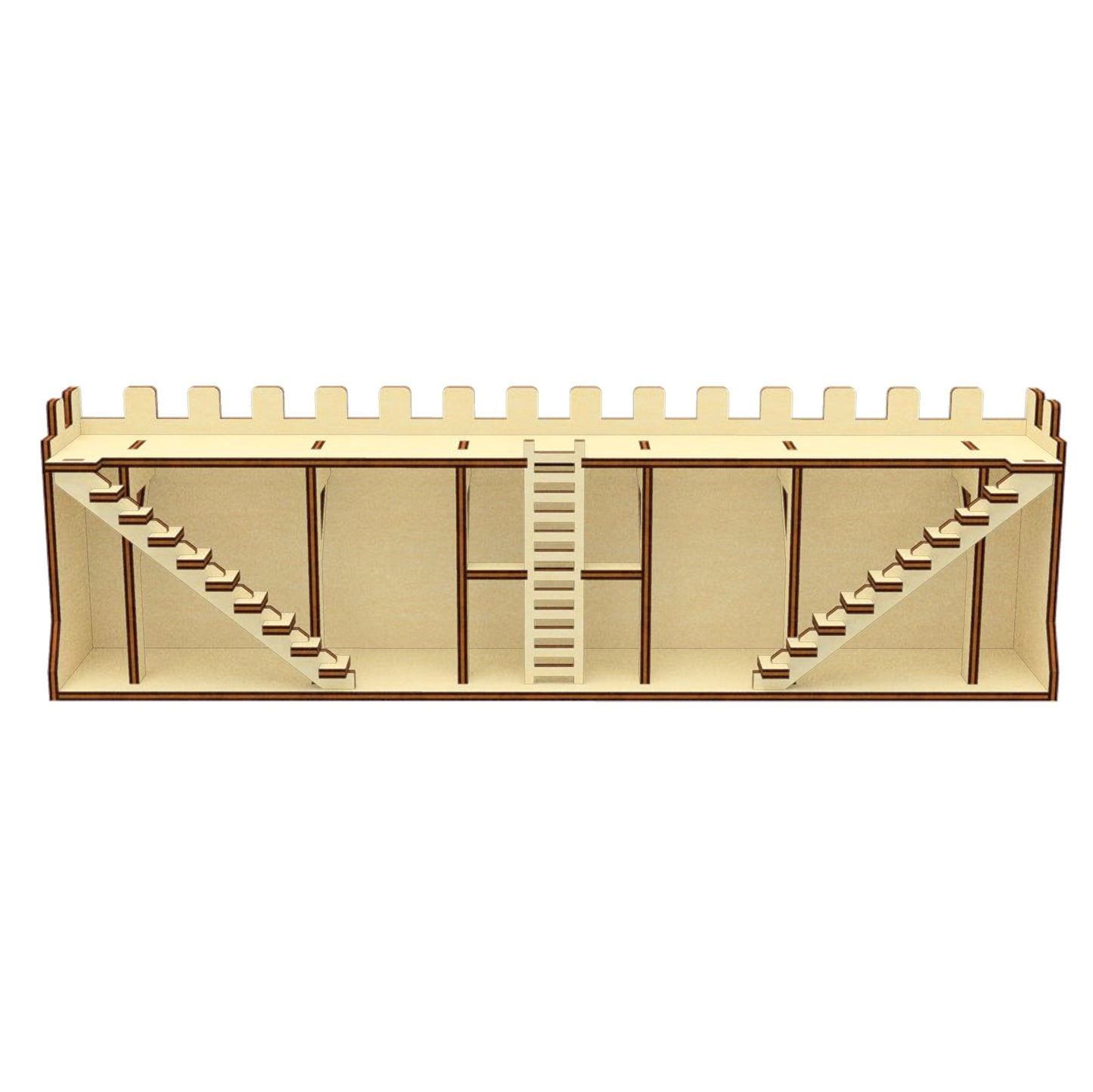

Long wall of the Castle Laser cut file for CNC laser machines in DXF CDR AI SVG

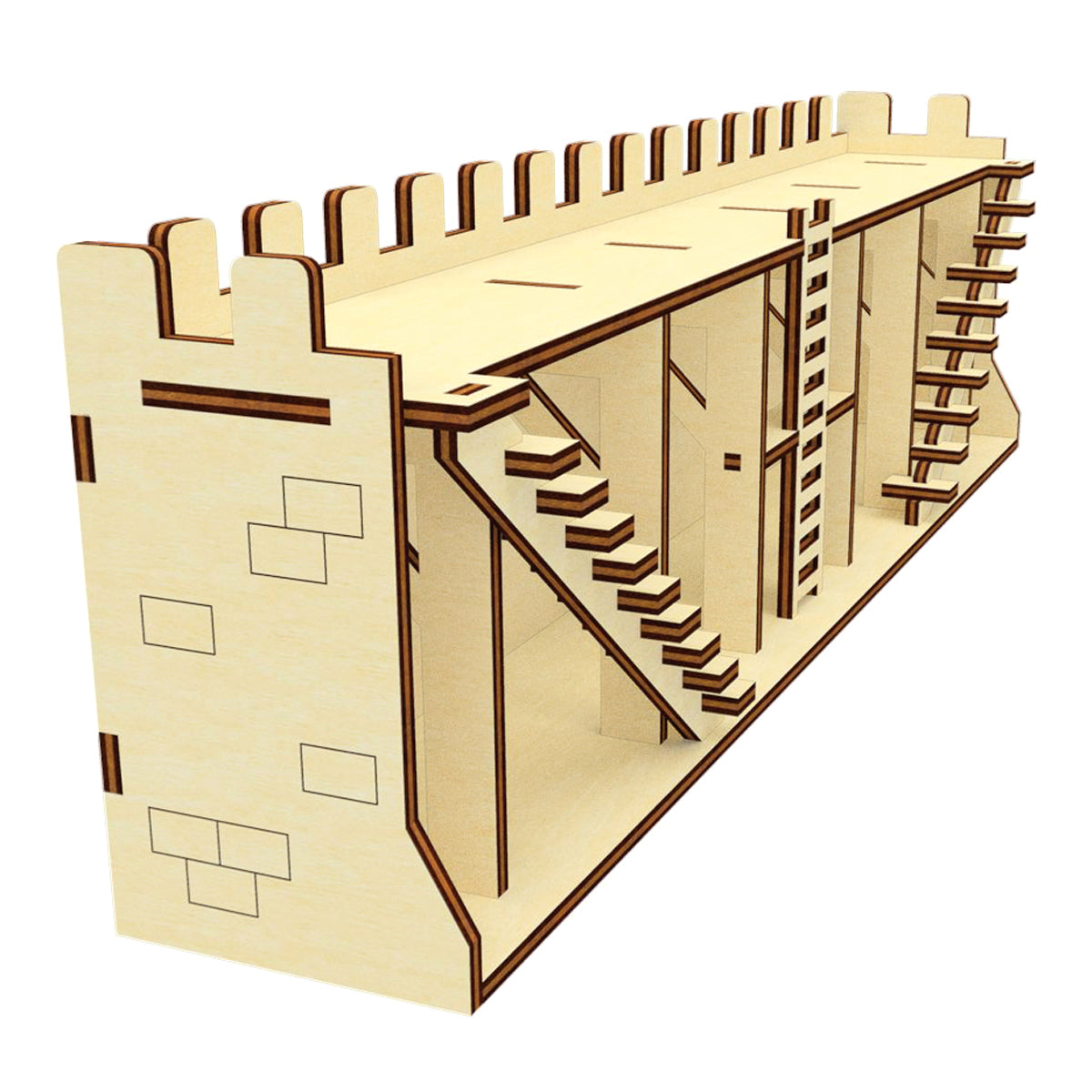

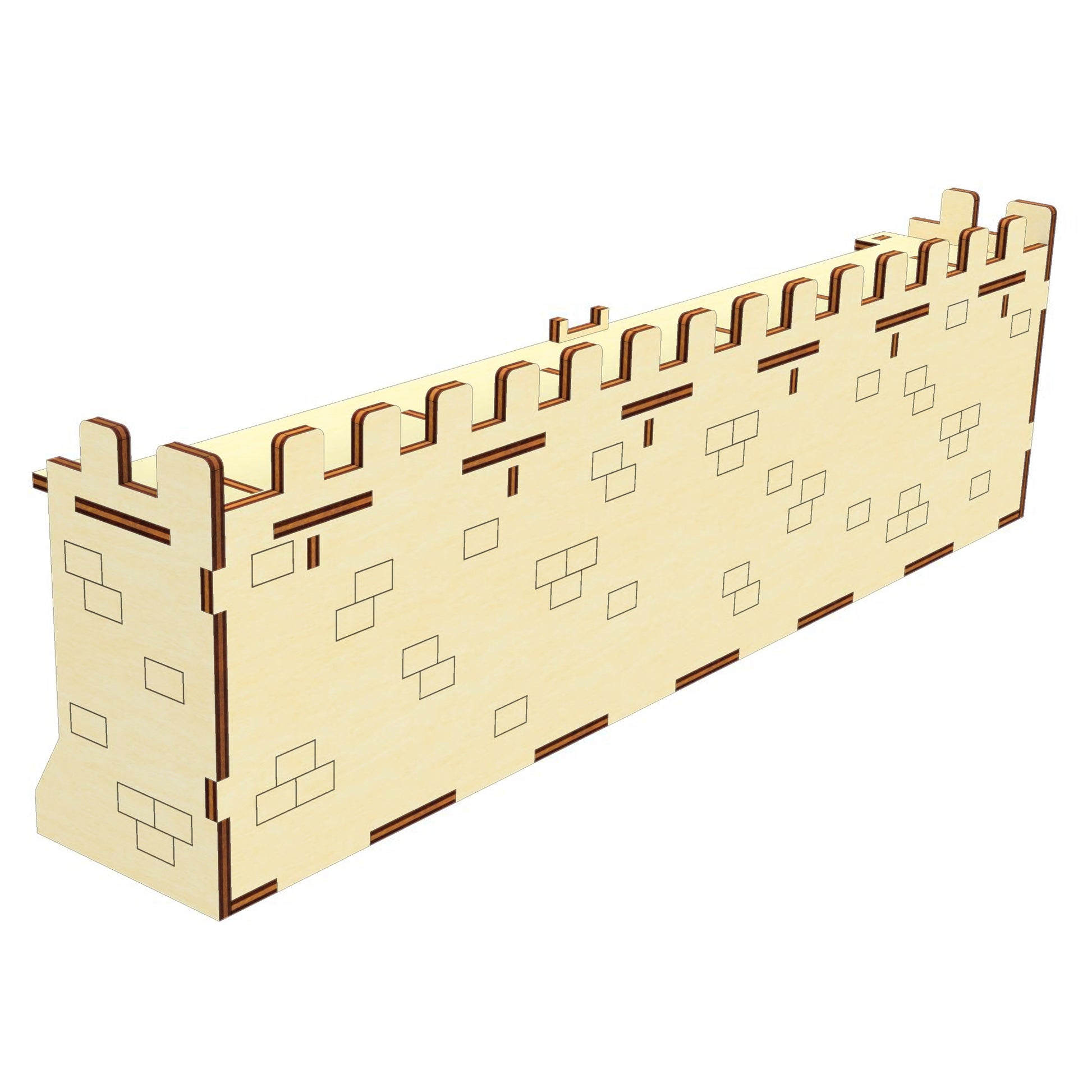

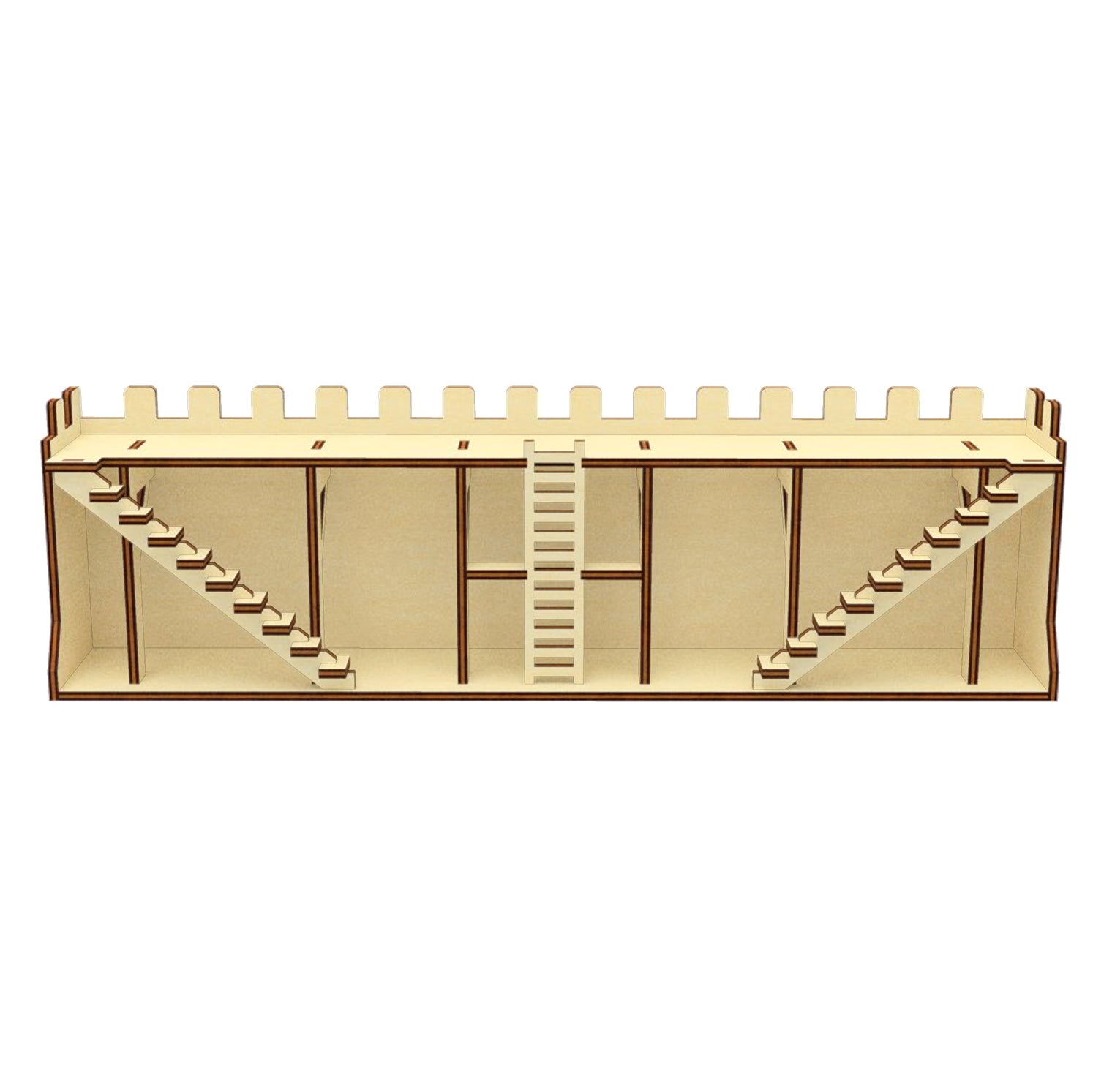

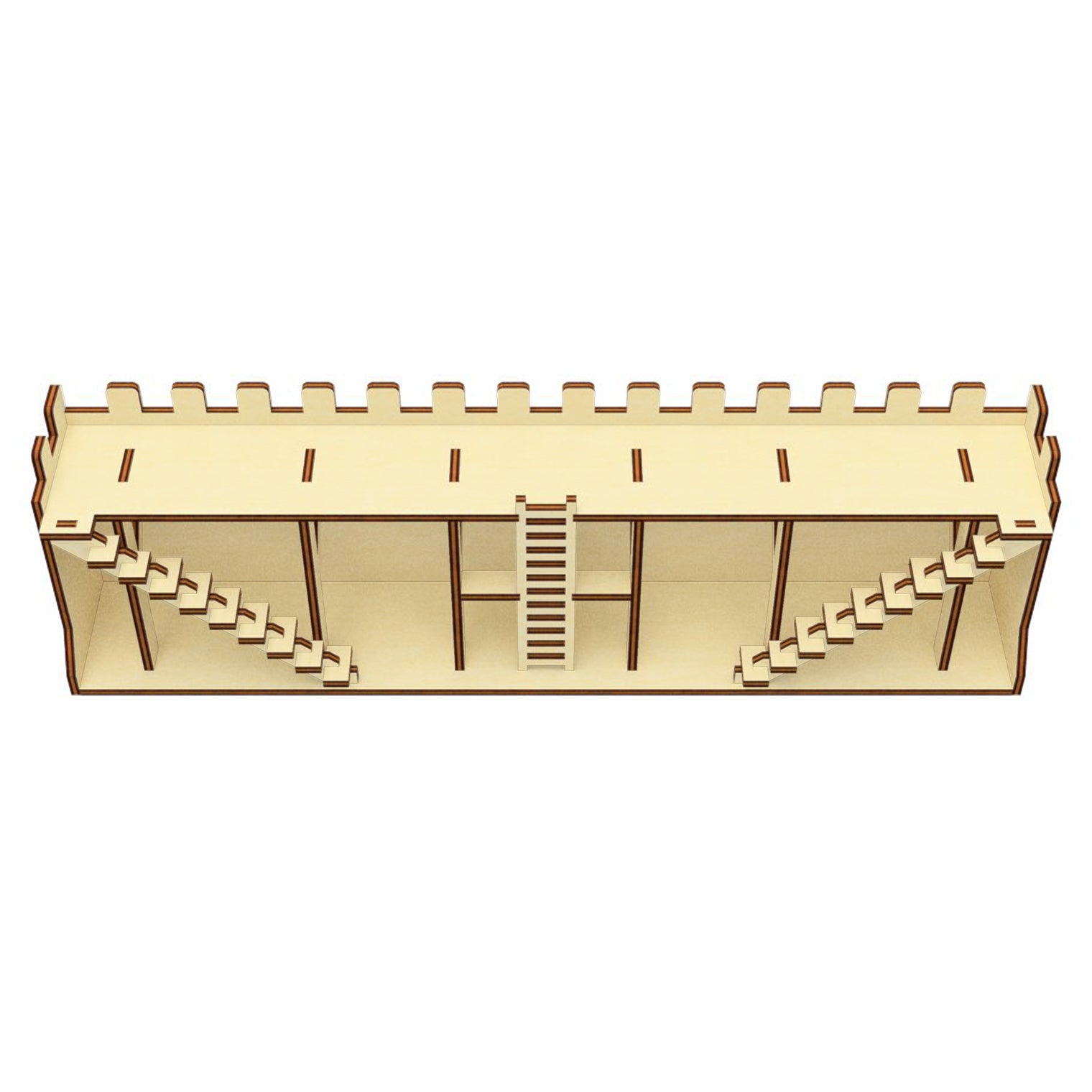

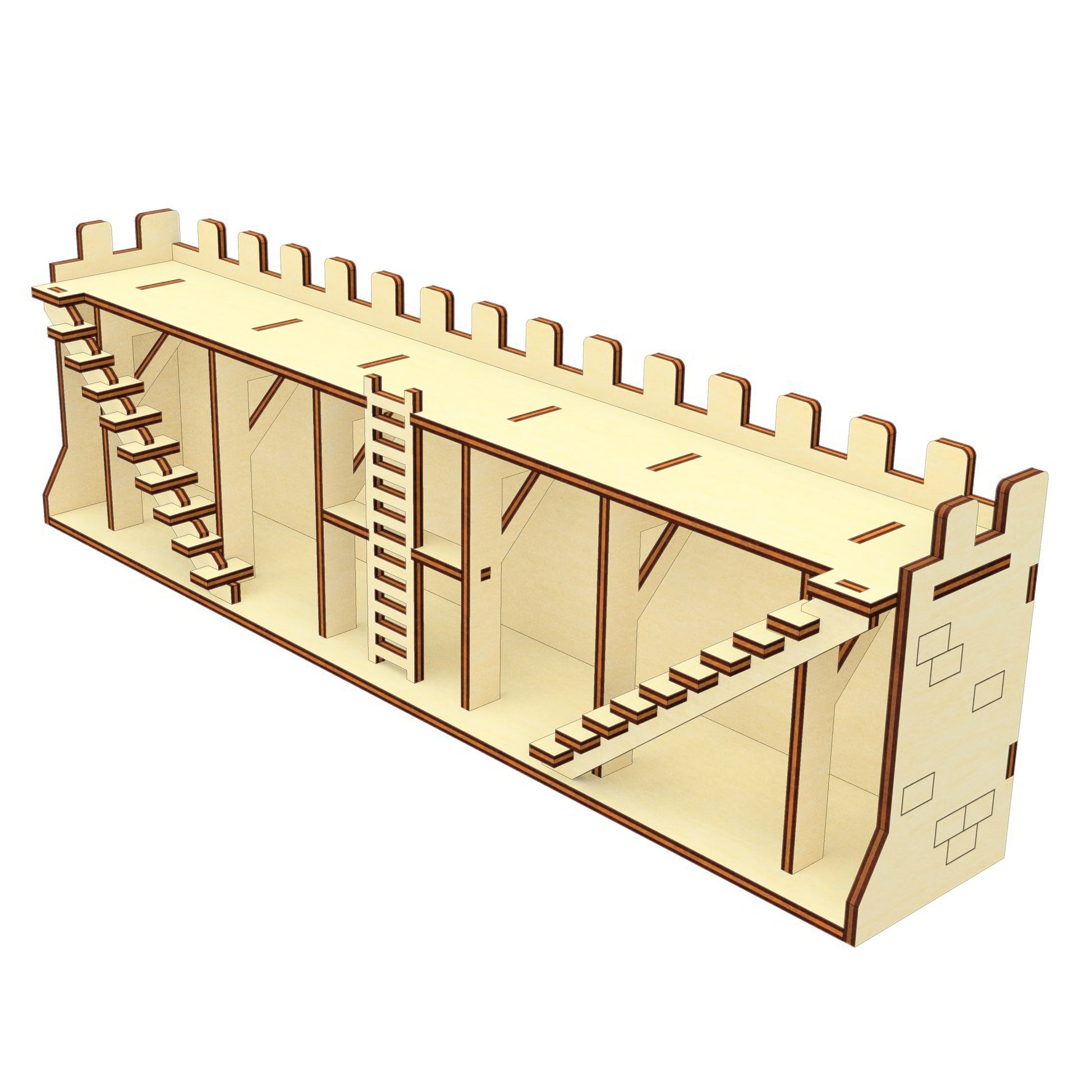

This is one of the blocks of the Castle.

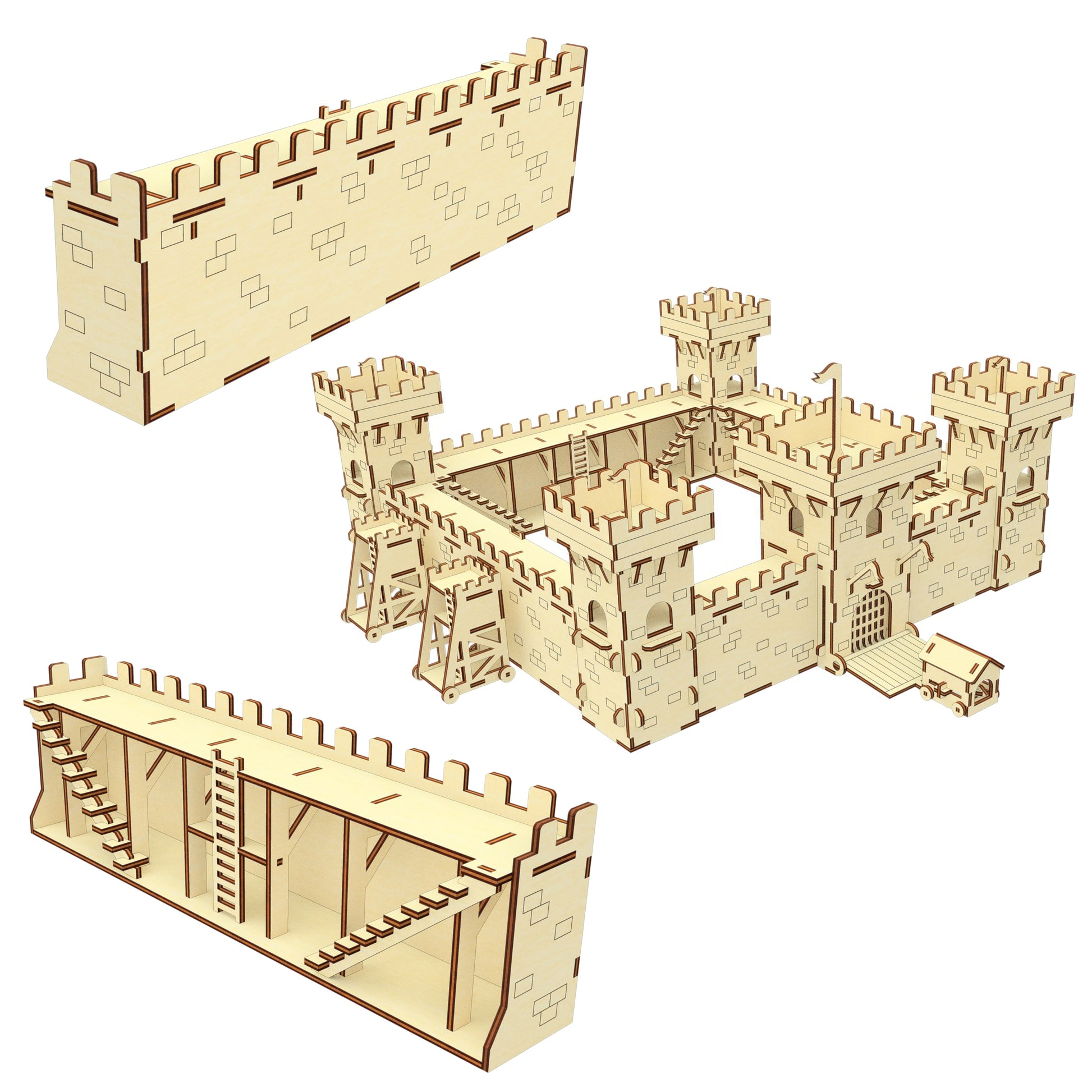

In the future, I plan to expand this design and create many additions for it (towers, walls, gates, bridges, etc.) that can be combined with each other.
You will be able to design and connect these blocks to create a wide variety of the castles.
Watch for new additions in my store in a separate category "Castle set" or just text in the search field "Castle" to see everything that is available at the moment
Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)
Sizes:
3 mm thickness: 304 x 55 x 88 mm (11,97 x 2,17 x 3,46'')
1/8''(3.175mm) thickness: 322 x 58 x 93 mm (12,67 x 2,29 x 3,67'')
4 mm thickness: 405 x 73 x 117 mm (15,96 x 2,89 x 4,62'')
6 mm thickness: 608 x 110 x 176 mm (23,94 x 4,33 x 6,93'')
1/4''(6.35mm) thickness: 643 x 116 x 186 mm (25,33 x 4,58 x 7,33'')
Work area:
3 mm thickness: 419 x 235 mm (16,50 x 9,25'')
1/8''(3.175mm) thickness: 443 x 249 mm (17,46 x 9,79'')
4 mm thickness: 559 x 313 mm (21,99 x 12,34'')
6 mm thickness: 838 x 470 mm (32,99 x 18,50'')
1/4''(6.35mm) thickness: 887 x 497 mm (34,92 x 19,58'')
Biggest part:
3 mm thickness: 304 x 88 mm (11,97 x 3,46'')
1/8''(3.175mm) thickness: 322 x 93 mm (12,67 x 3,67'')
4 mm thickness: 405 x 117 mm (15,96 x 4,62'')
6 mm thickness: 608 x 176 mm (23,94 x 6,93'')
1/4''(6.35mm) thickness: 643 x 186 mm (25,33 x 7,33'')

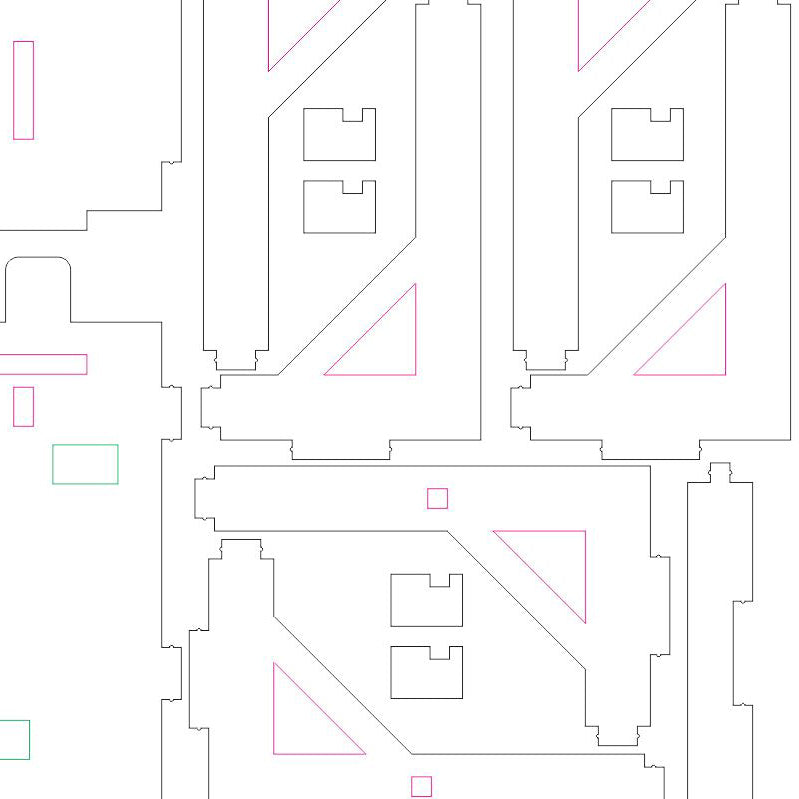

In the file:
green color - draw (cut with low power and high speed)
pink color - cut
black color - cut
What you receive:
You will download 1 ZIP file containing the following:
the CDR, DXF, AI, SVG files with drawing for material thinkness 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) and PDF-assembly instruction
If you have any quastions feel free to contact us.
These files are vector-based and compatible with all laser cut software, milling machine, CNC plasma cutting machine, glowforge machines.
This is an Instant Digital Download
The item is non-refundable because it's not physical.
YOU CAN use the files for personal purposes and for your small business.
YOU CANNOT share, redistribute or resell the files.
Copyright is not transferable with the sale.
