Vector Painter

Subway Train Car

$10.00 USD

Sale Sold out

Instant digital download.

This is a digital product that will be automatically sent to your email address after purchase

License Starter Commercial License (up to 30) Personal License Commercial License (up to 100) Extended Commercial License (unlimited)

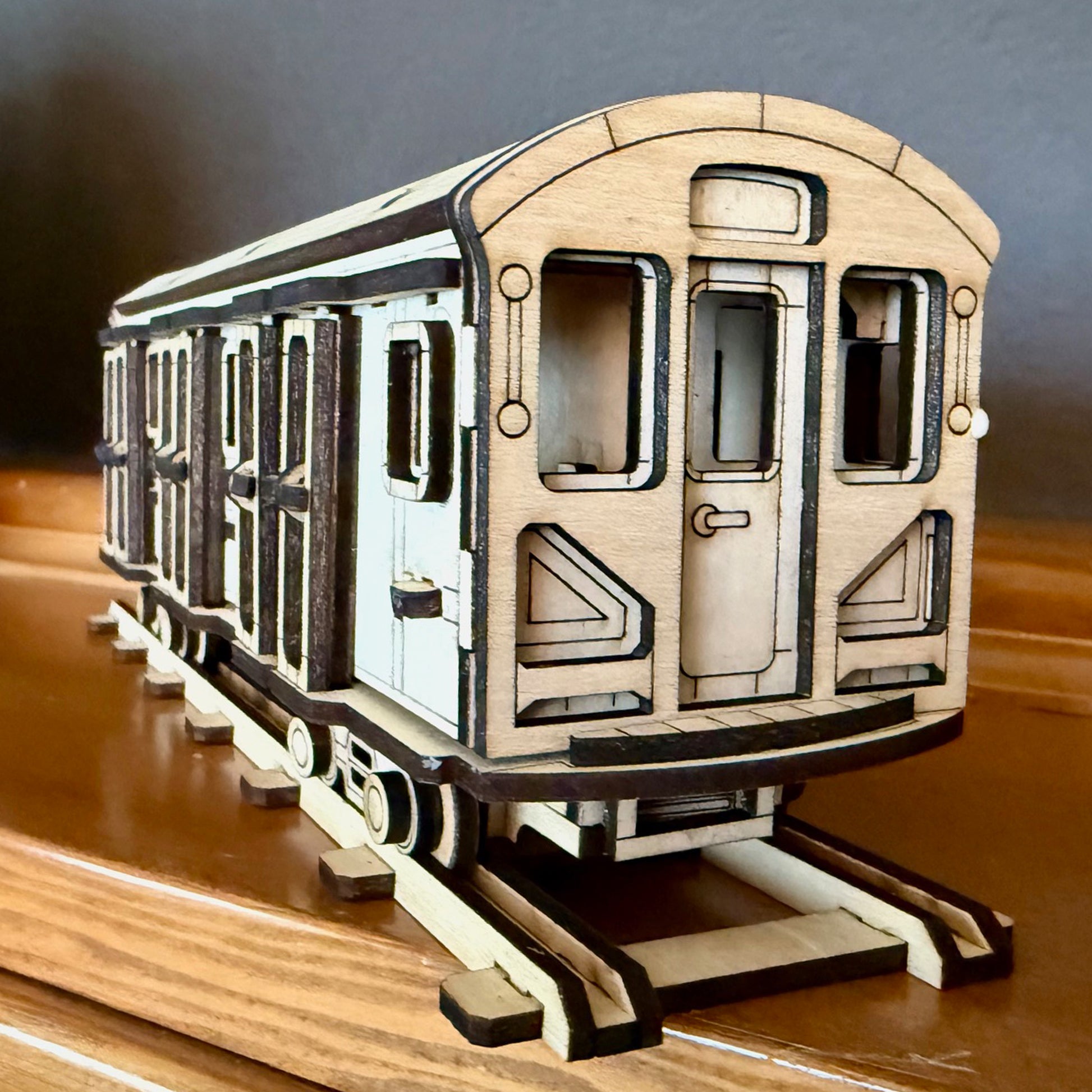

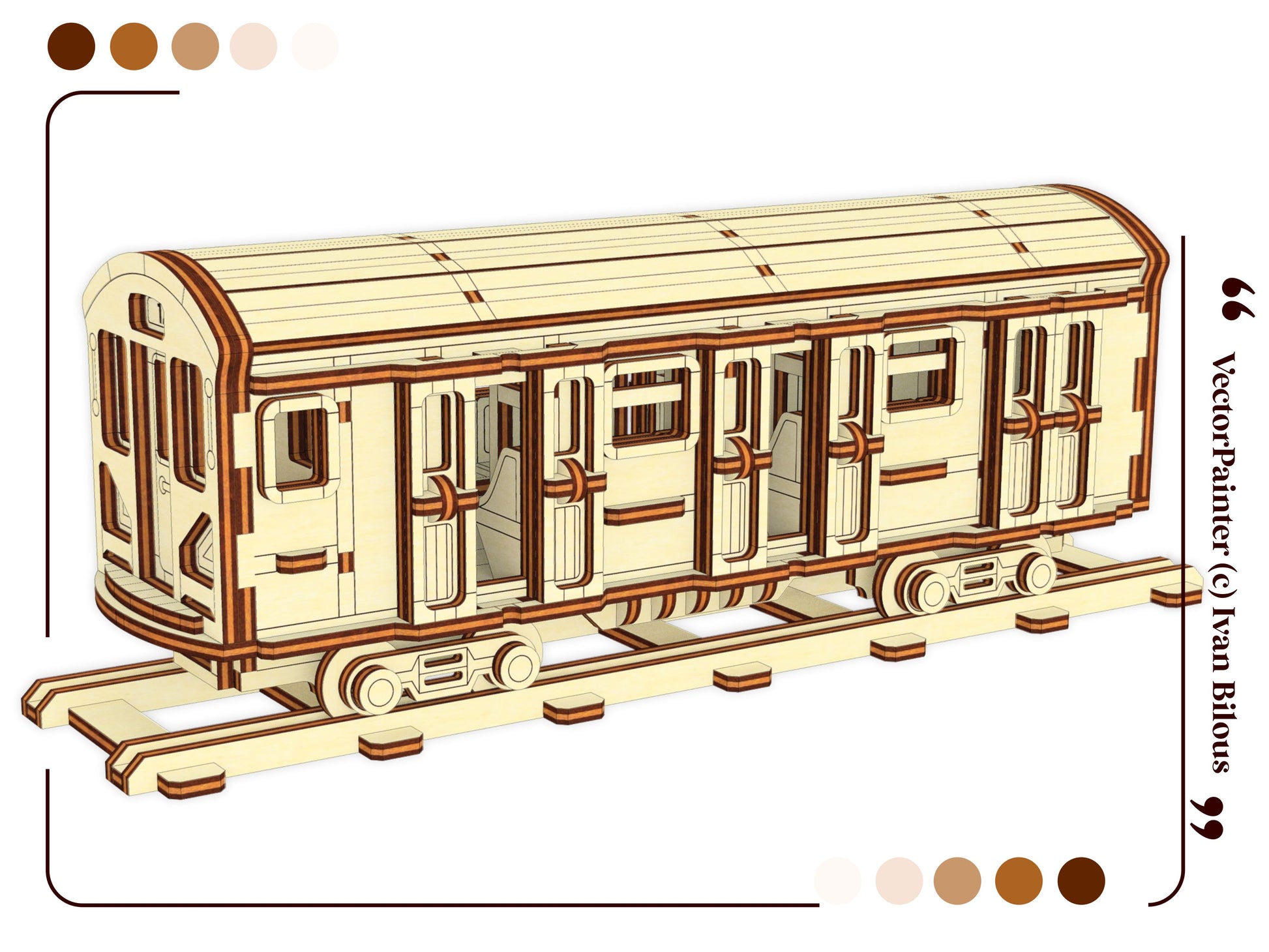

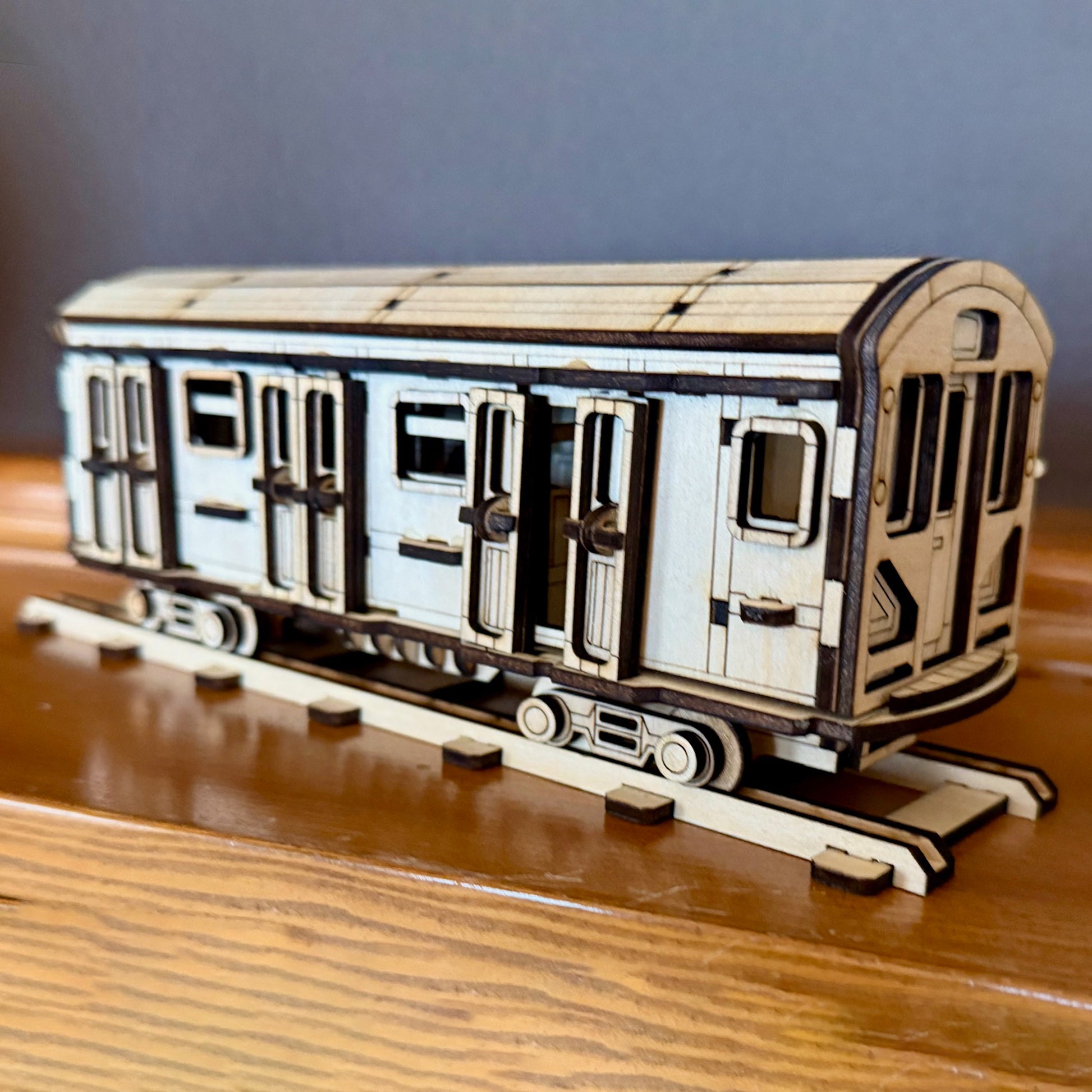

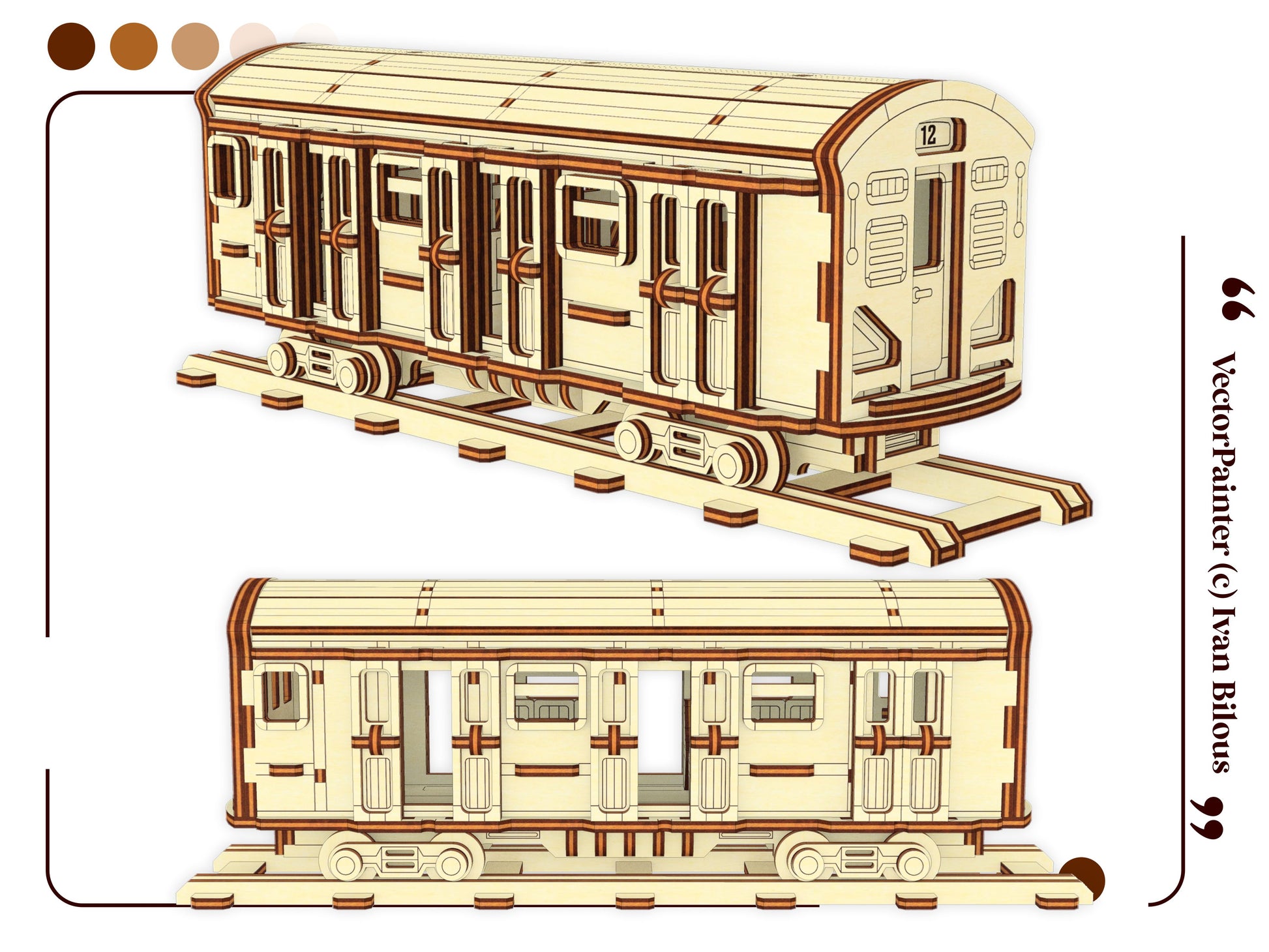

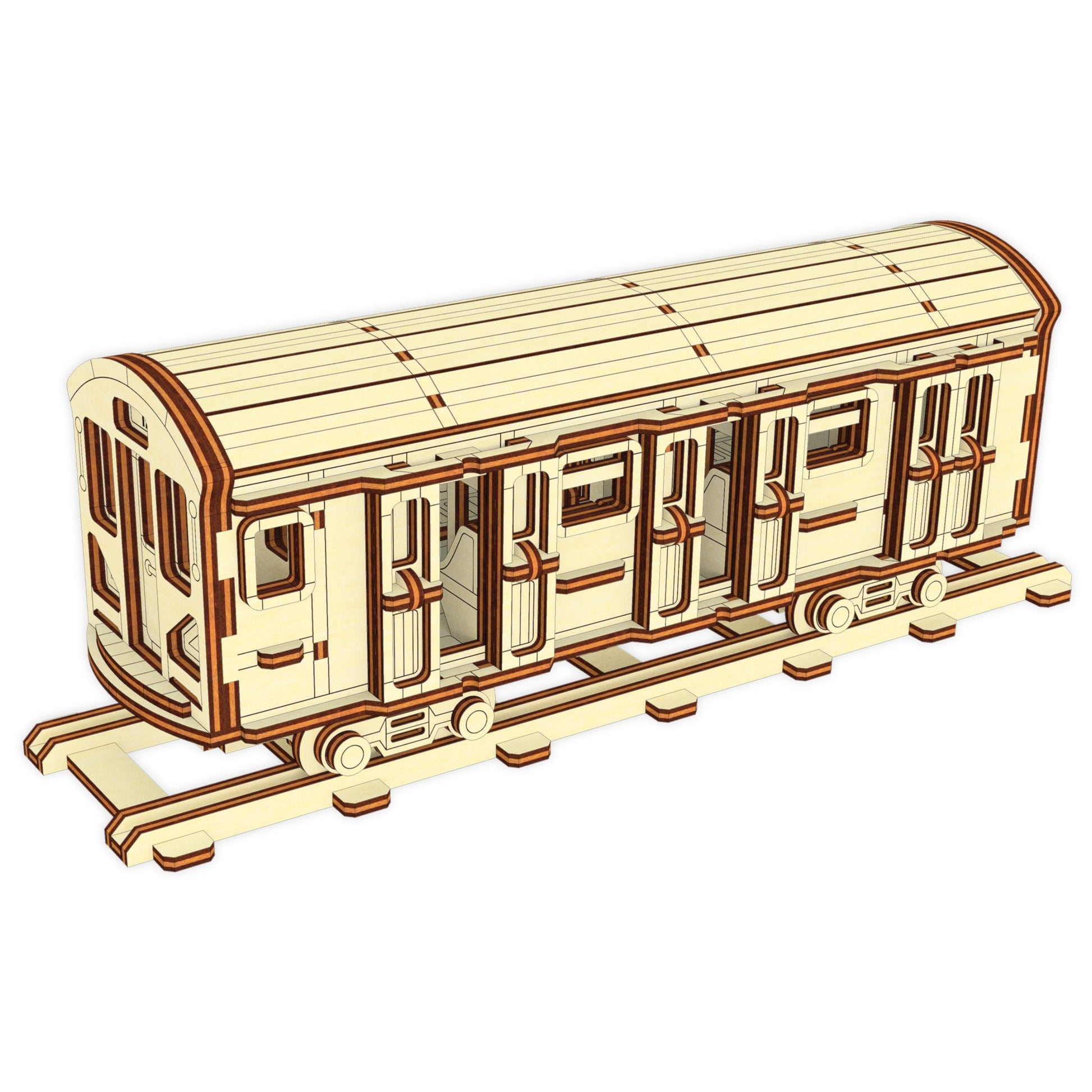

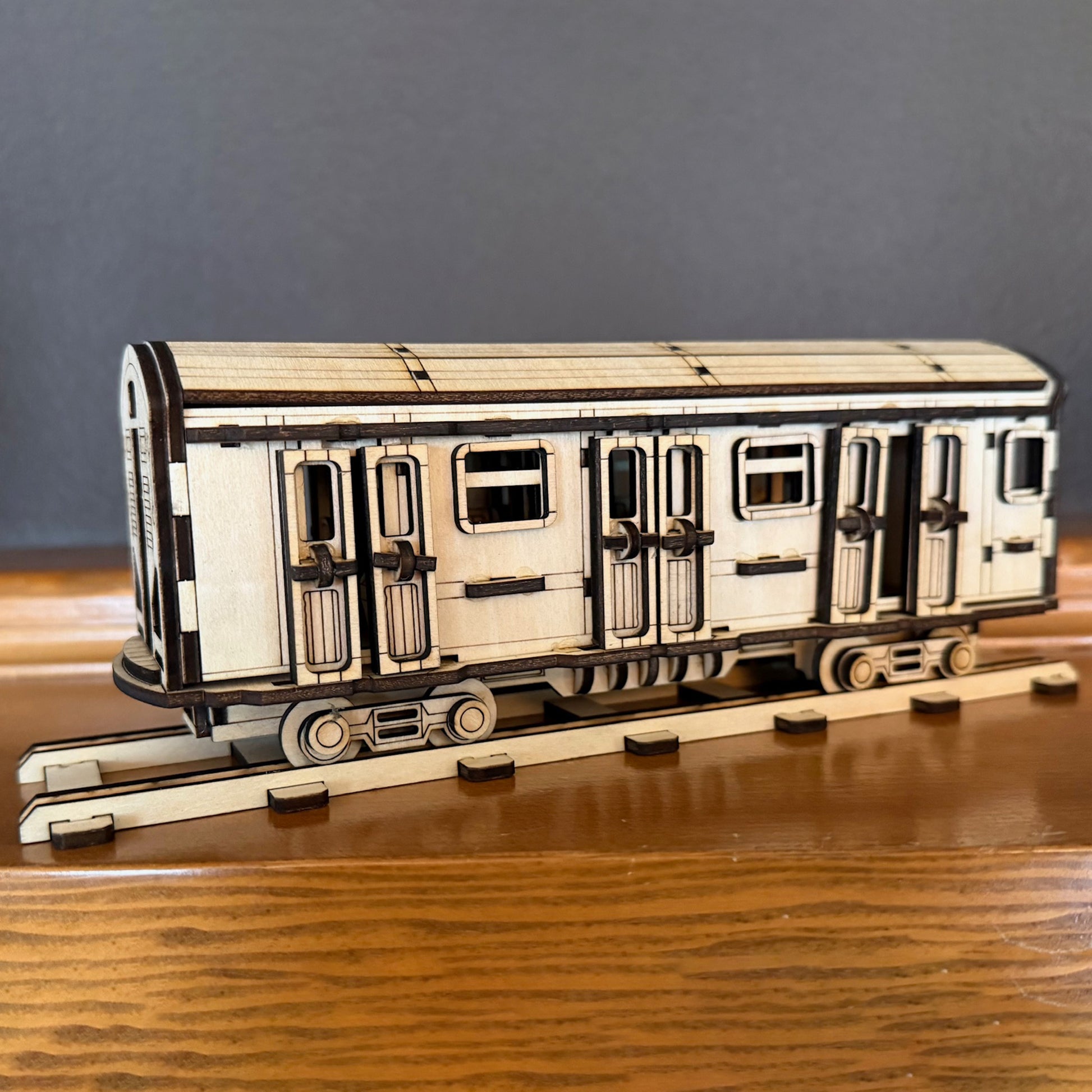

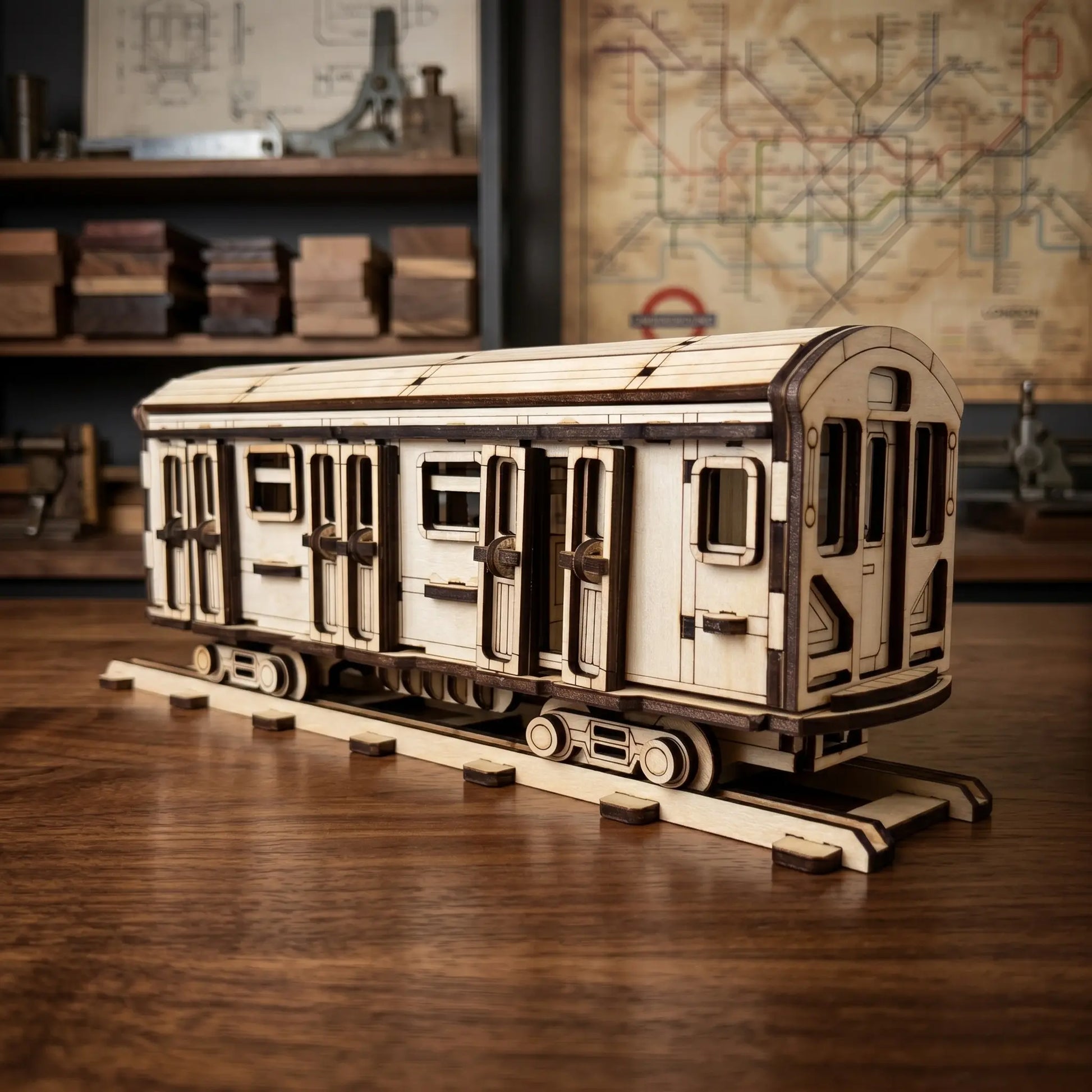

Design your own urban miniature with this Subway Train Car Laser Cut File. This detailed SVG and DXF template is perfect for creating a sleek, modern rail car from plywood or MDF. Whether used in a model railway scene, educational project, or as a unique decor piece, the design is easy to cut and assemble with most laser machines. Great for hobbyists, collectors, and cityscape lovers.

🎨 Laser cut design Subway car 🎨
DIGITAL FILE for laser cutting machine

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

🤏Material thickness (versions of the files): 3 mm, 1/8'' (3.175 mm), 4 mm, 5 mm, 6 mm, 1/4'' (6.35 mm)

Level of assembly difficulty: ⚫⚫⚫⚫⚫
⚠️ Contains small parts
⚠️ Some parts are glued
⚠️ Contains fragile parts

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

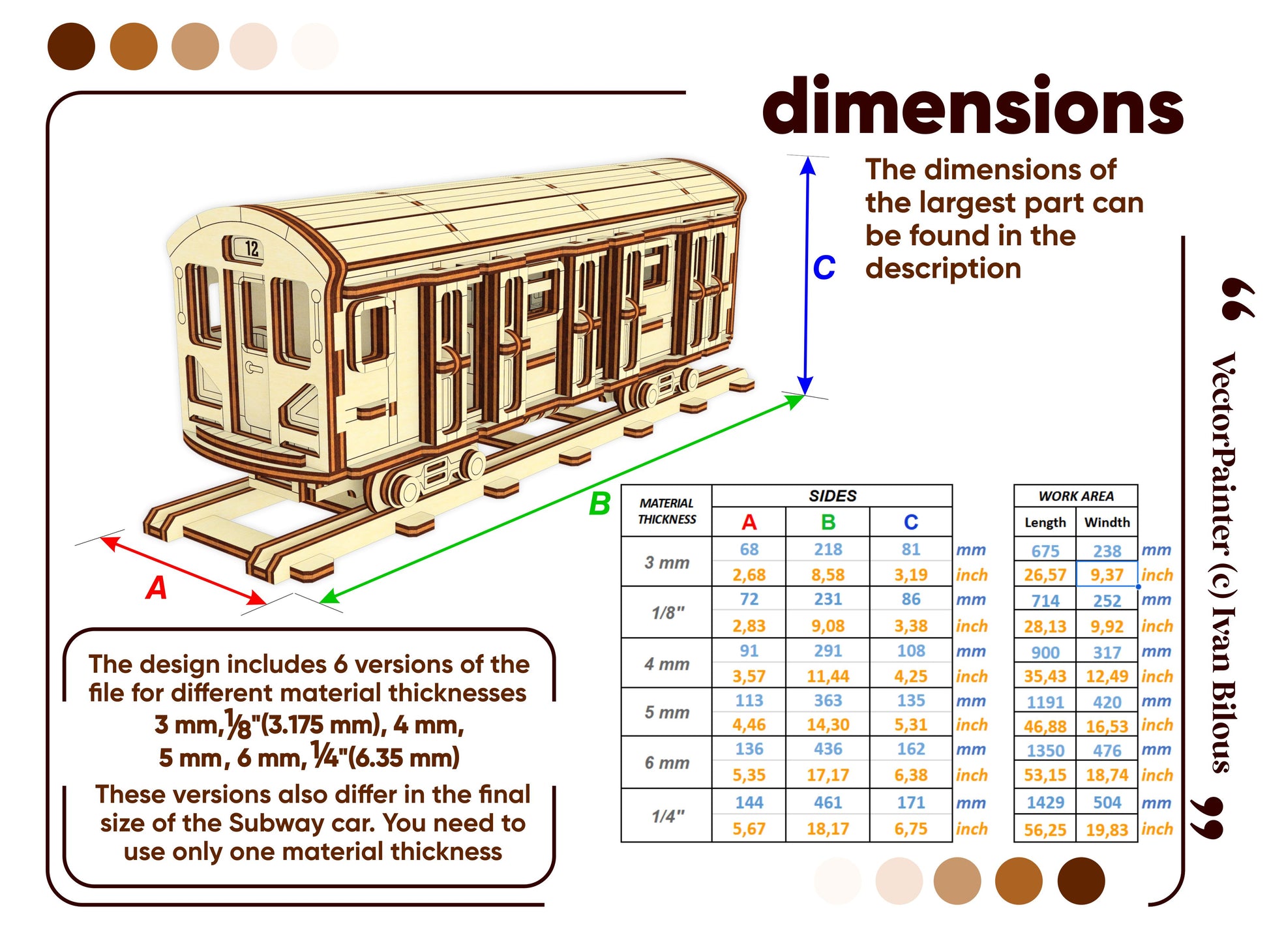

📏 Finished SIZE
3 mm thickness: 68 x 218 x 81 mm (2,68 x 8,58 x 3,19'')
1/8''(3.175mm) thickness: 72 x 231 x 86 mm (2,83 x 9,08 x 3,38'')
4 mm thickness: 91 x 291 x 108 mm (3,57 x 11,44 x 4,25'')
5 mm thickness: 113 x 363 x 135 mm (4,46 x 14,30 x 5,31'')
6 mm thickness: 136 x 436 x 162 mm (5,35 x 17,17 x 6,38'')
1/4''(6.35mm) thickness: 144 x 461 x 171 mm (5,67 x 18,17 x 6,75'')

📐WORK AREA - total area of wood required for cutting
3 mm thickness: 675 x 238 mm (26,57 x 9,37'')
1/8''(3.175mm) thickness: 714 x 252 mm (28,13 x 9,92'')
4 mm thickness: 900 x 317 mm (35,43 x 12,49'')
5 mm thickness: 1191 x 420 mm (46,88 x 16,53'')
6 mm thickness: 1350 x 476 mm (53,15 x 18,74'')
1/4''(6.35mm) thickness: 1429 x 504 mm (56,25 x 19,83'')

🟧 LARGEST PART
3 mm thickness: 218 x 67 mm (8,58 x 2,64'')
1/8''(3.175mm) thickness: 231 x 71 mm (9,08 x 2,79'')
4 mm thickness: 291 x 89 mm (11,44 x 3,52'')
5 mm thickness: 385 x 118 mm (15,14 x 4,65'')
6 mm thickness: 436 x 134 mm (17,17 x 5,28'')
1/4''(6.35mm) thickness: 461 x 142 mm (18,17 x 5,58'')

⚠️ If you are using wood whose thickness is not included in the design, you can easily scale the file.

1) Import a file that is thicker than the thickness of your wood.

2) Multiply the width and length of the file by your actual thickness and divide by the thickness of the wood in the file.

For example, your wood is 4.5 mm thick.

Import the file for 5 mm. Multiply the width and length of the imported file by 4.5 and divide by 5.

This will give you a 4.5 mm file.

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

🛒WHAT YOU RECEIVE

🟢 ready made cutting files for 3 mm, 1/8'' (3.175 mm), 4mm, 5 mm, 6 mm, 1/4'' (6.35 mm) material thickness

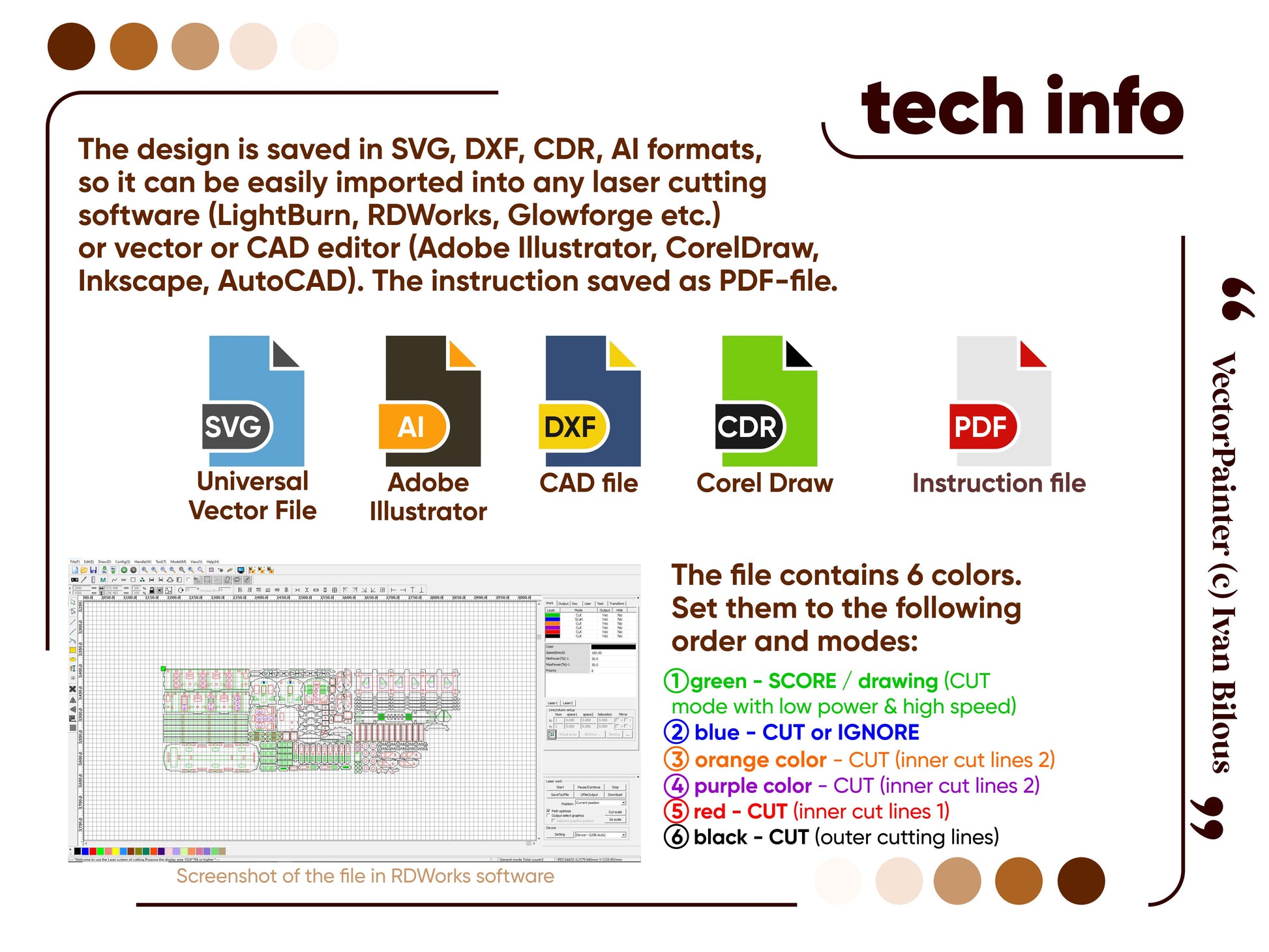

🟢 each file is saved in SVG, DXF, CDR, AI formats

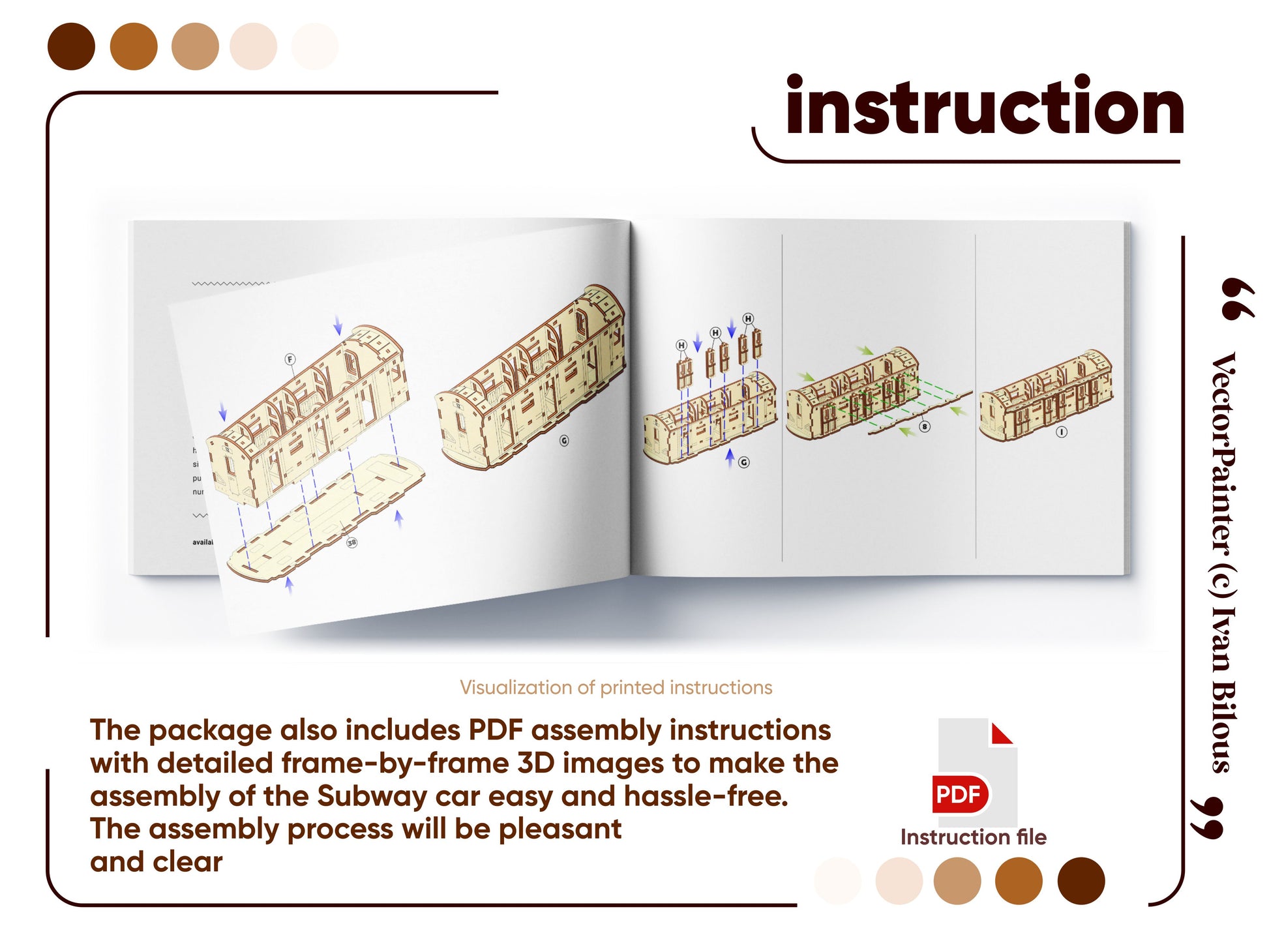

🟢 detailed PDF-instructions with 3D pictures

🟢 discounts on future purchases
