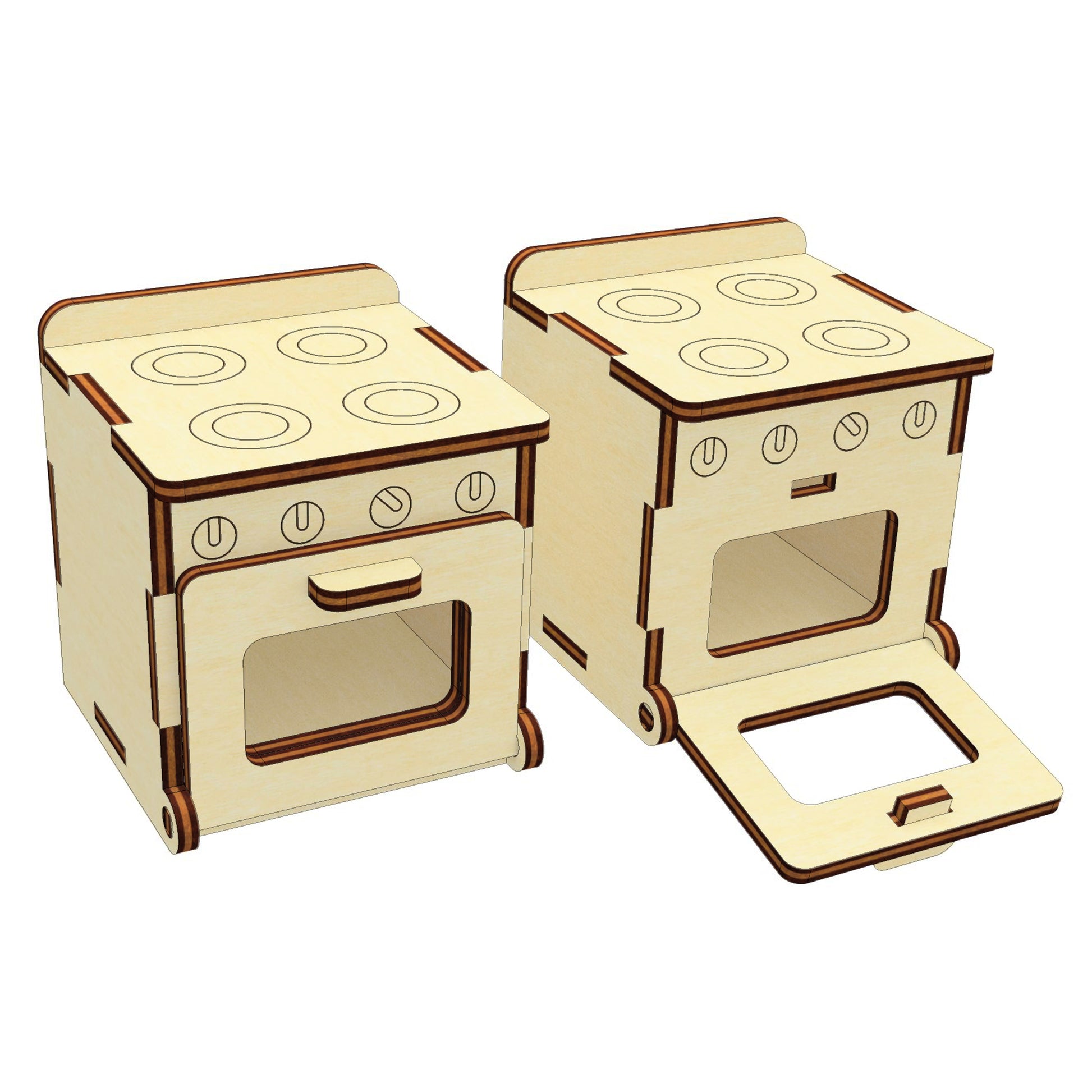

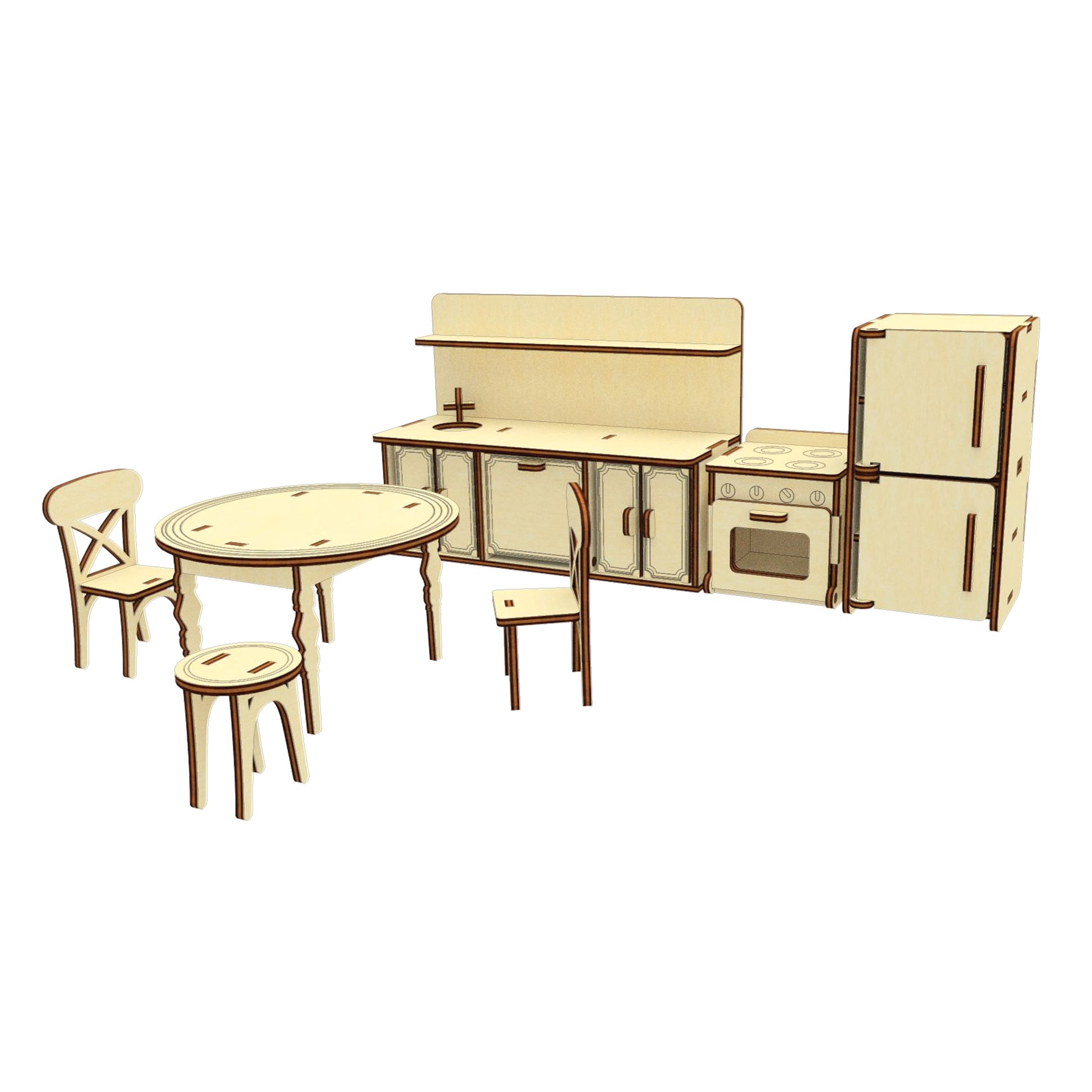

Kitchen Laser cut file for CNC laser machines in DXF CDR AI SVG
Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

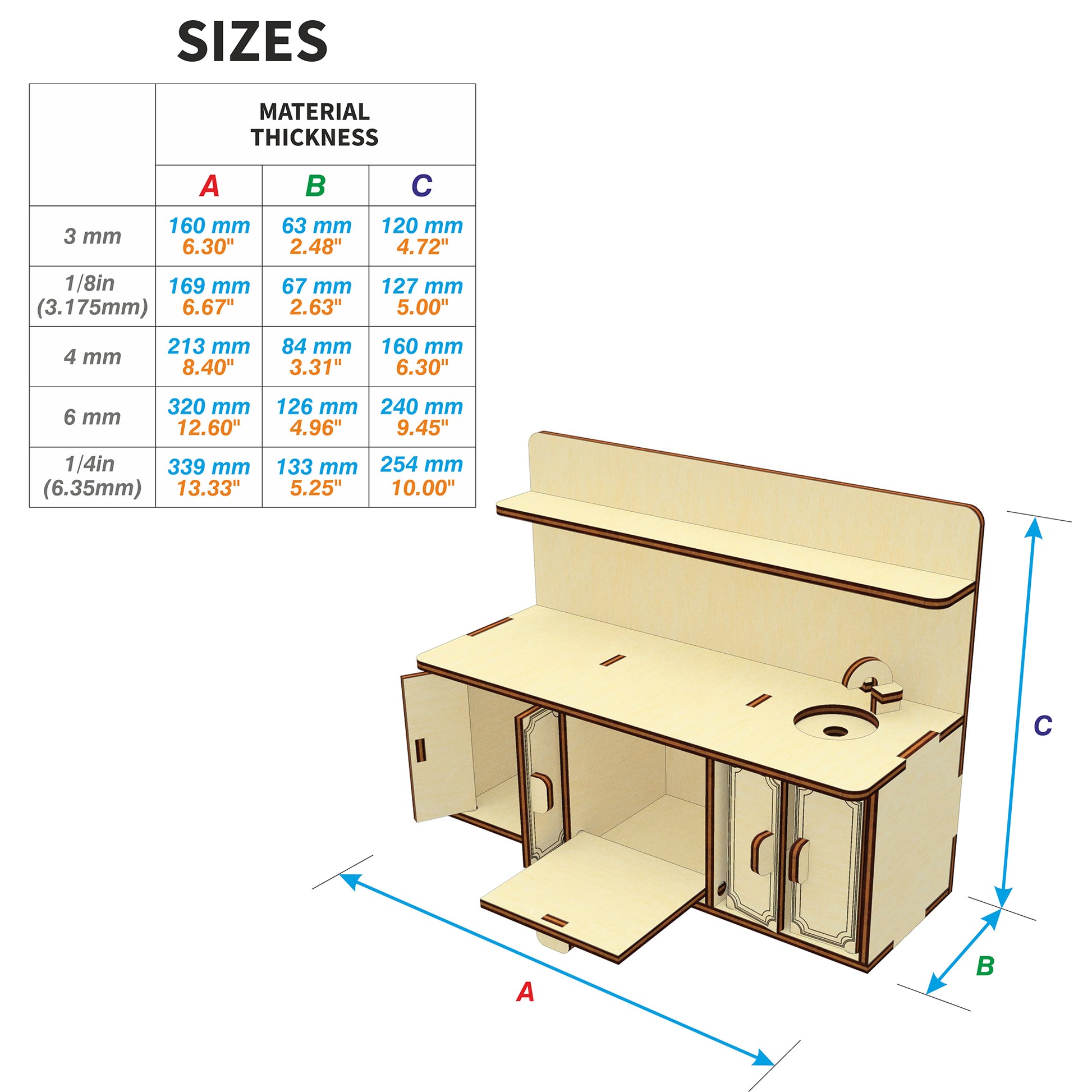

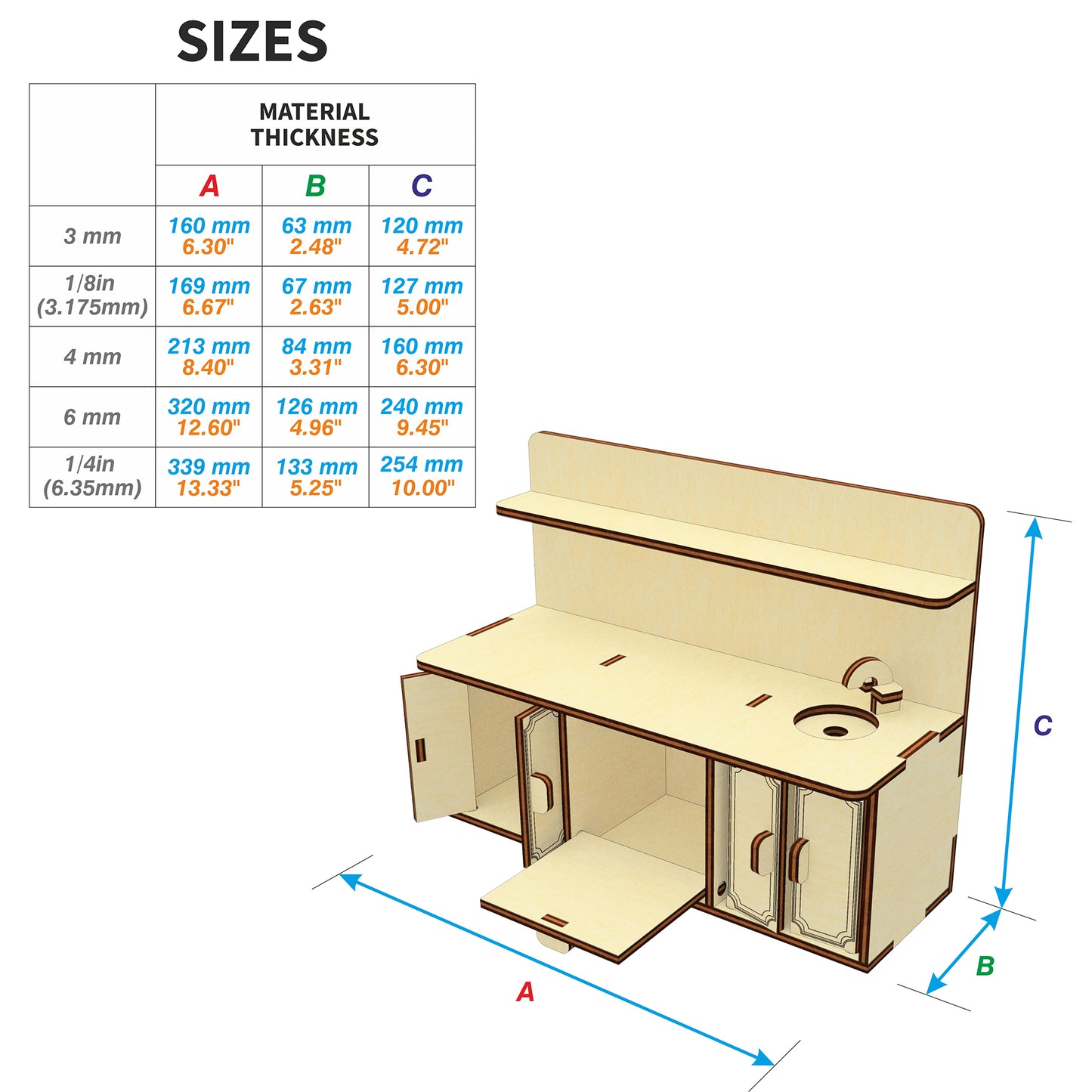

Size of the biggest furniture (Tabletop):
3 mm thickness: 160 x 63 x 120 mm (6,30 x 2,48 x 4,72'')
1/8''(3.175mm) thickness: 169 x 67 x 127 mm (6,67 x 2,63 x 5,00'')
4 mm thickness: 213 x 84 x 160 mm (8,40 x 3,31 x 6,30'')
6 mm thickness: 320 x 126 x 240 mm (12,60 x 4,96 x 9,45'')
1/4''(6.35mm) thickness: 339 x 133 x 254 mm (13,33 x 5,25 x 10,00'')
Work area of the biggest furniture (Tabletop):
3 mm thickness: 494 x 178 mm (19,45 x 7,01'')
1/8''(3.175mm) thickness: 523 x 188 mm (20,58 x 7,42'')
4 mm thickness: 659 x 237 mm (25,93 x 9,34'')
6 mm thickness: 988 x 356 mm (38,90 x 14,02'')
1/4''(6.35mm) thickness: 1046 x 377 mm (41,17 x 14,83'')
Biggest part of the biggest furniture (Tabletop):
3 mm thickness: 160 x 120 mm (6,30 x 4,72'')
1/8''(3.175mm) thickness: 169 x 127 mm (6,67 x 5,00'')
4 mm thickness: 213 x 160 mm (8,40 x 6,30'')
6 mm thickness: 320 x 240 mm (12,60 x 9,45'')
1/4''(6.35mm) thickness: 339 x 254 mm (13,33 x 10,00'')
In the file:
pink color - cut
black color - cut
What you receive:
You will download 1 ZIP file containing the following:
the CDR, DXF, AI, SVG files with drawing for material thinkness 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) and PDF-assembly instruction
If you have any quastions feel free to contact us.
These files are vector-based and compatible with all laser cut software, milling machine, CNC plasma cutting machine, glowforge machines.
This is an Instant Digital Download
The item is non-refundable because it's not physical.
YOU CAN use the files for personal purposes and for your small business.
YOU CANNOT share, redistribute or resell the files.
Copyright is not transferable with the sale.
