Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

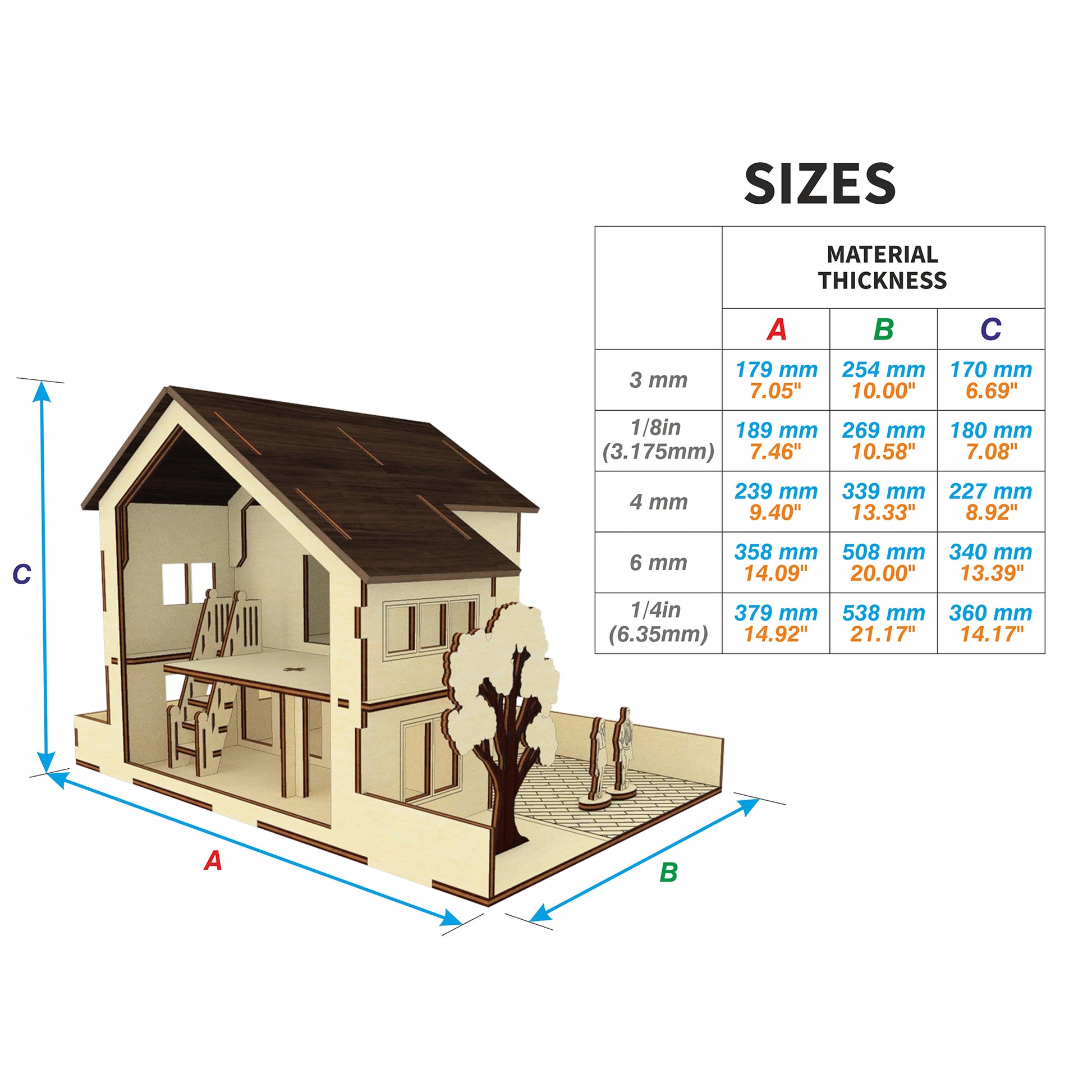

Sizes:
3 mm thickness: 179 x 254 x 170 mm (7,05 x 10,00 x 6,69'')
1/8''(3.175mm) thickness: 189 x 269 x 180 mm (7,46 x 10,58 x 7,08'')
4 mm thickness: 239 x 339 x 227 mm (9,40 x 13,33 x 8,92'')
6 mm thickness: 358 x 508 x 340 mm (14,09 x 20,00 x 13,39'')
1/4''(6.35mm) thickness: 379 x 538 x 360 mm (14,92 x 21,17 x 14,17'')
Work area:
3 mm thickness: 128 x 87 mm (5,04 x 3,43'')
1/8''(3.175mm) thickness: 135 x 92 mm (5,33 x 3,63'')
4 mm thickness: 171 x 116 mm (6,72 x 4,57'')
6 mm thickness: 256 x 174 mm (10,08 x 6,85'')
1/4''(6.35mm) thickness: 271 x 184 mm (10,67 x 7,25'')
Biggest part:
3 mm thickness: 170 x 254 mm (6,69 x 10,00'')
1/8''(3.175mm) thickness: 180 x 269 mm (7,08 x 10,58'')
4 mm thickness: 227 x 339 mm (8,92 x 13,33'')
6 mm thickness: 340 x 508 mm (13,39 x 20,00'')
1/4''(6.35mm) thickness: 360 x 538 mm (14,17 x 21,17'')

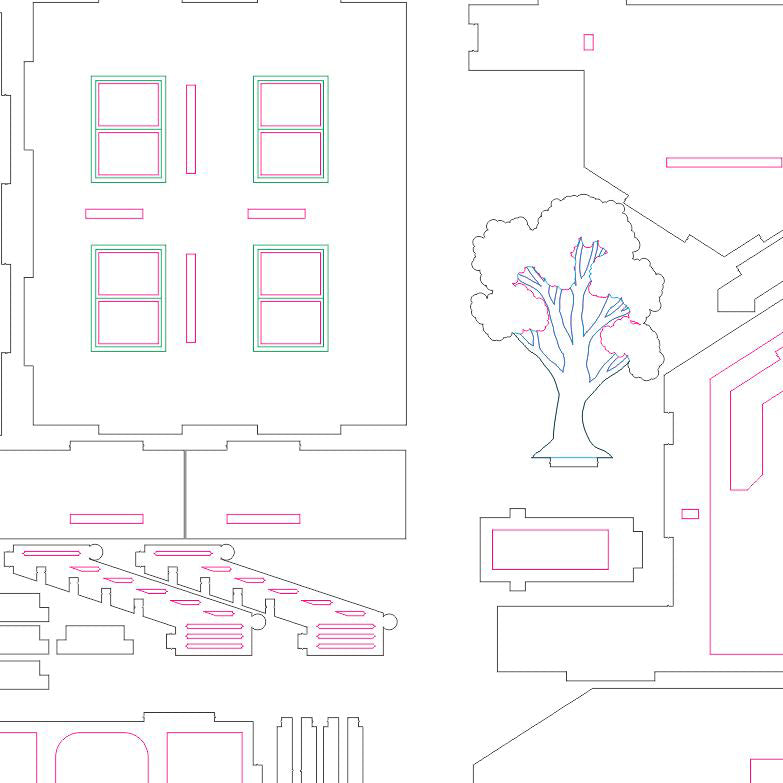

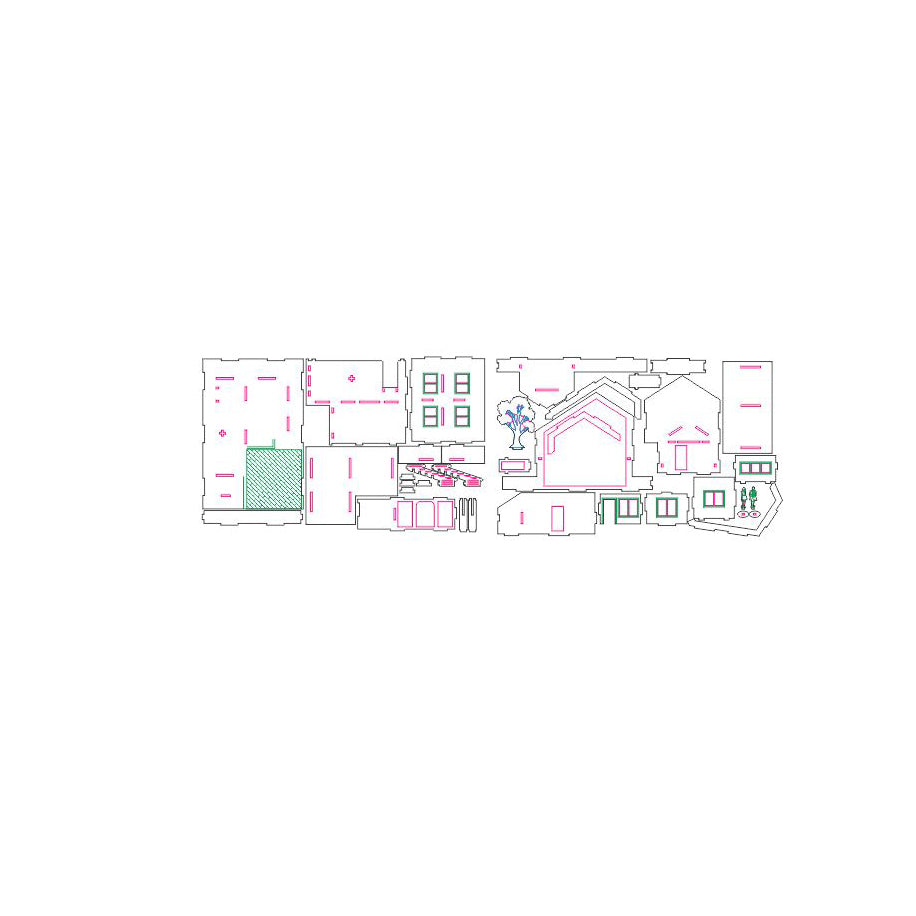

In the file:
blue color - engrave
green color - draw (cut with little power and big speed)
pink color - cut
black color - cut
What you receive:
You will download 1 ZIP file containing the following:
the CDR, DXF, AI, SVG files with drawing for material thinkness 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) and PDF-assembly instruction
If you have any quastions feel free to contact us.

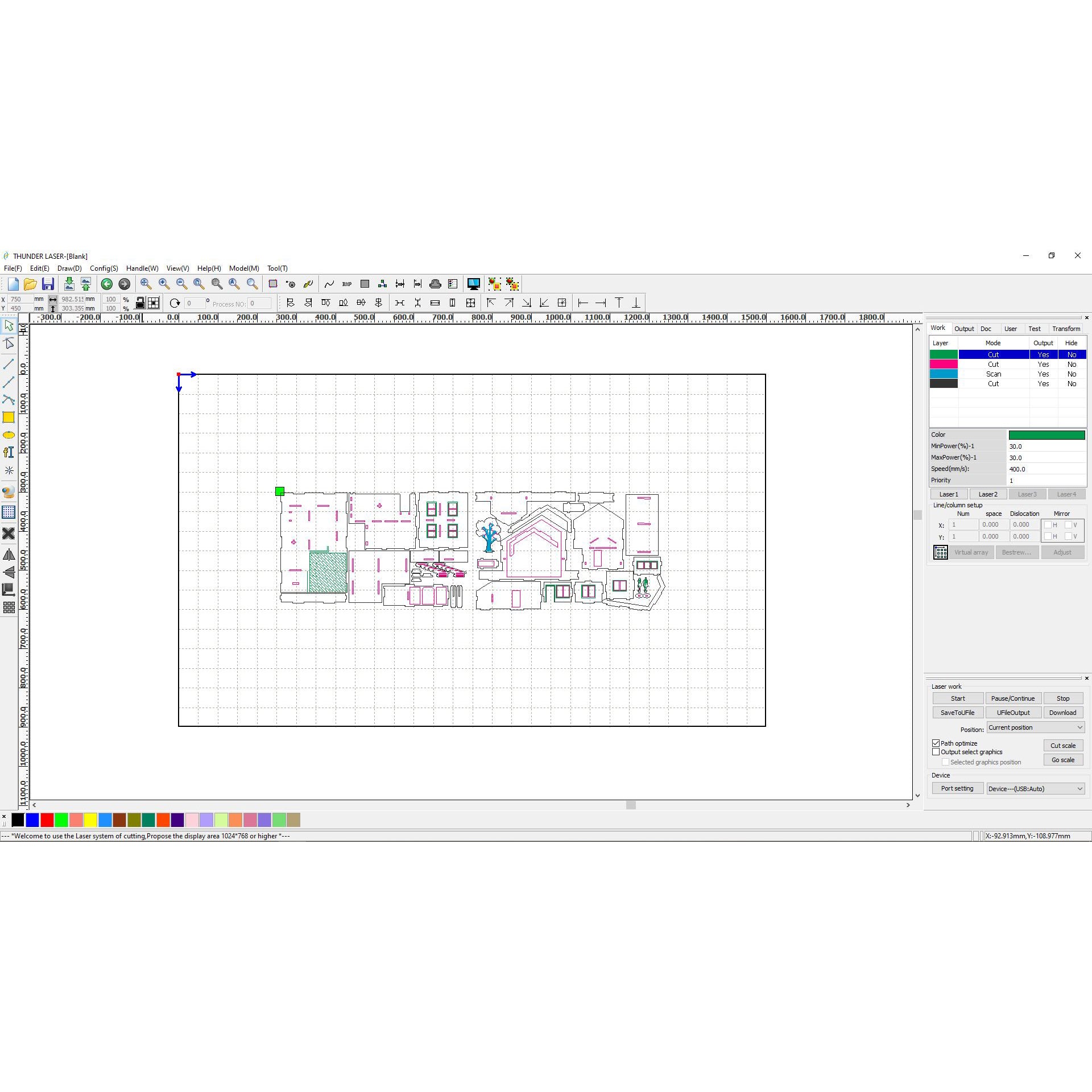

These files are vector-based and compatible with all laser cut software, milling machine, CNC plasma cutting machine, glowforge machines.
This is an Instant Digital Download
The item is non-refundable because it's not physical.
YOU CAN use the files for personal purposes and for your small business.
YOU CANNOT share, redistribute or resell the files.
Copyright is not transferable with the sale.
Wholesale cheaper
Use promocodes for discount
3 files - WHOLESALE3 - 15%
5 files - WHOLESALE5 - 20%
10 files - WHOLESALE10 - 30%
This model also available on Etsy here
