Biplane

Regular price
$13.00
Sale price
$13.00
Regular price
Sold out
Unit price
per

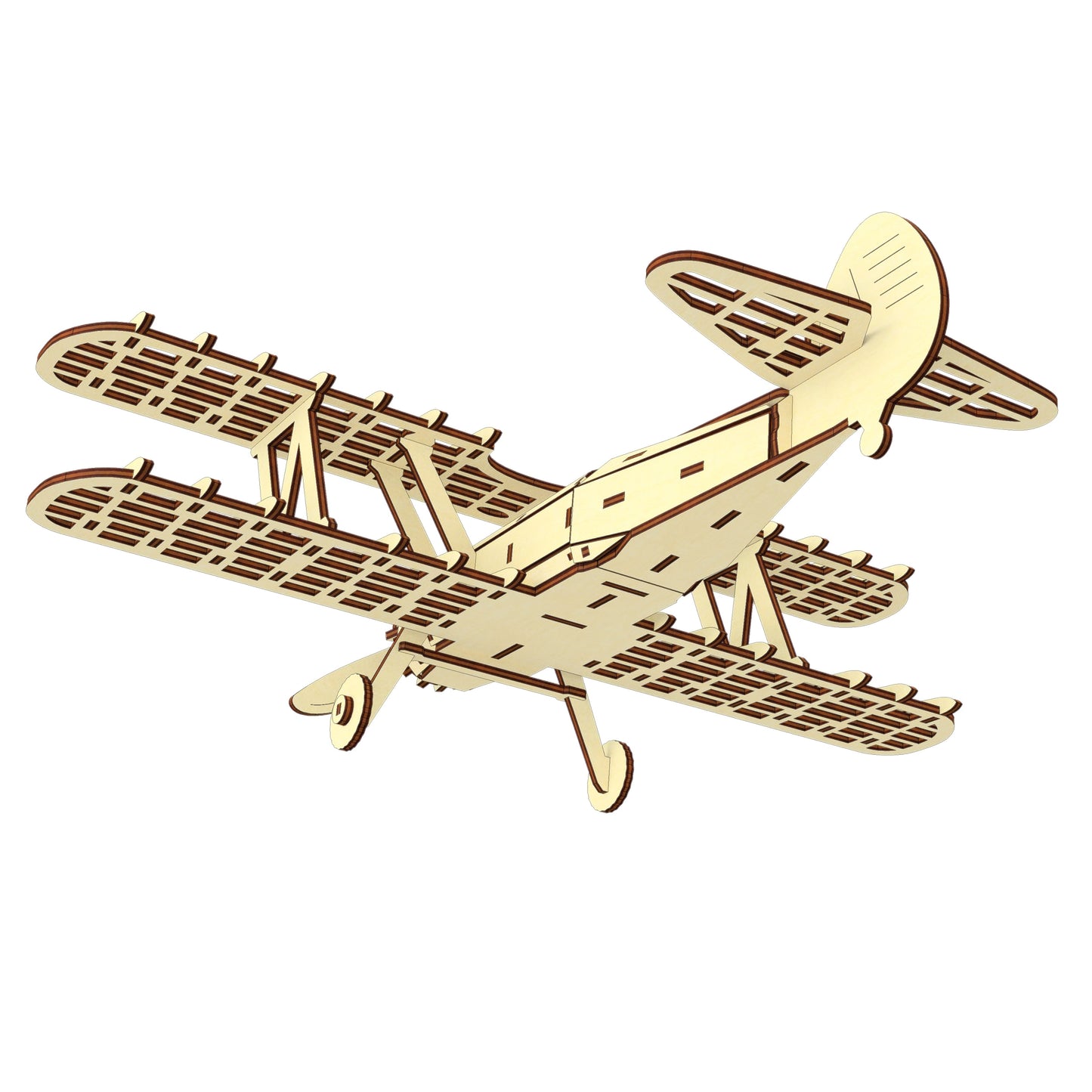

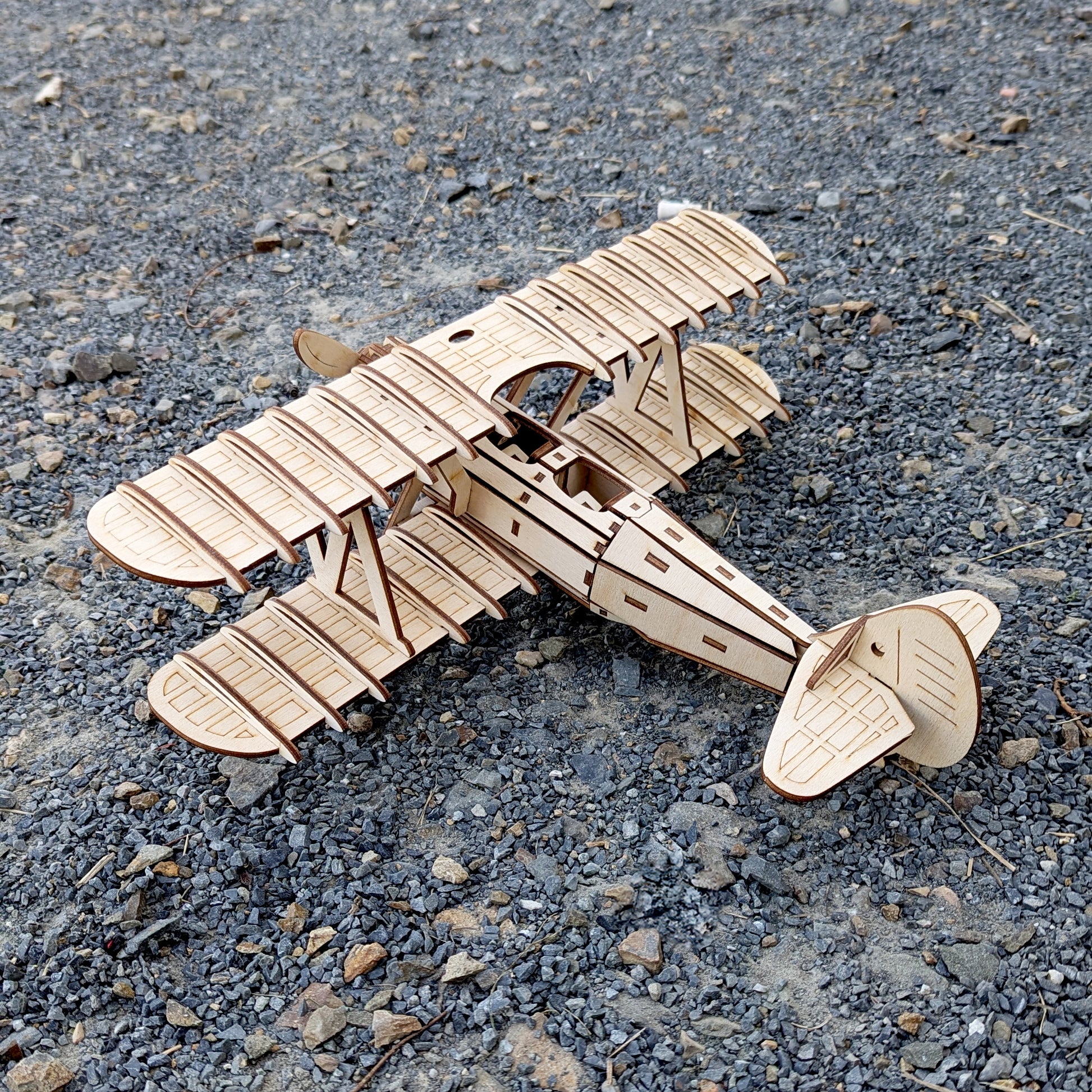

Biplane Laser cut file for CNC laser machines in DXF CDR AI SVG

Material thickness: 3mm, 1/8''(3.175mm) - 3 versions, 4mm, 6mm, 1/4''(6.35mm))

Sizes:
3 mm thickness: 311 x 343 x 113 mm (12,24 x 13,50 x 4,45'')
1/8''(3.175mm) thickness: 329 x 363 x 120 mm (12,96 x 14,29 x 4,71'')
4 mm thickness: 415 x 457 x 151 mm (16,33 x 18,01 x 5,93'')
6 mm thickness: 622 x 686 x 226 mm (24,49 x 27,01 x 8,90'')
1/4''(6.35mm) thickness: 658 x 726 x 239 mm (25,92 x 28,58 x 9,42'')

Work area:
3 mm thickness: 738 x 236 mm (29,06 x 9,29'')
1/8''(3.175mm) thickness: 781 x 250 mm (30,75 x 9,83'') - 2 Glowforge sheets
4 mm thickness: 984 x 315 mm (38,74 x 12,39'')
6 mm thickness: 1476 x 472 mm (58,11 x 18,58'')
1/4''(6.35mm) thickness: 1562 x 500 mm (61,50 x 19,67'')

Biggest part:
3 mm thickness: 343 x 129 mm (13,50 x 5,08'')
1/8''(3.175mm) thickness: 363 x 137 mm (14,29 x 5,38'')
4 mm thickness: 457 x 172 mm (18,01 x 6,77'')
6 mm thickness: 686 x 258 mm (27,01 x 10,16'')
1/4''(6.35mm) thickness: 726 x 273 mm (28,58 x 10,75'')

In the file:
green color - cut or score
pink color - cut
black color - cut

What you receive:
You will download 1 ZIP file containing the following:

the CDR, DXF, AI, SVG files with drawing for material thinkness 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) and PDF-assembly instruction

If you have any quastions feel free to contact us.

These files are vector-based and compatible with all laser cut software, milling machine, CNC plasma cutting machine, glowforge machines.

This is an Instant Digital Download

The item is non-refundable because it's not physical.
YOU CAN use the files for personal purposes and for your small business.
YOU CANNOT share, redistribute or resell the files.

Copyright is not transferable with the sale.

Wholesale cheaper
Use promocodes for discount

3 files - WHOLESALE3 - 15%
5 files - WHOLESALE5 - 20%
10 files - WHOLESALE10 - 30%

This model also available on Etsy here
