Barrel

Regular price
$3.00
Sale price
$3.00
Regular price
Sold out
Unit price
per
This is a digital product that will be automatically sent to your email address after purchase

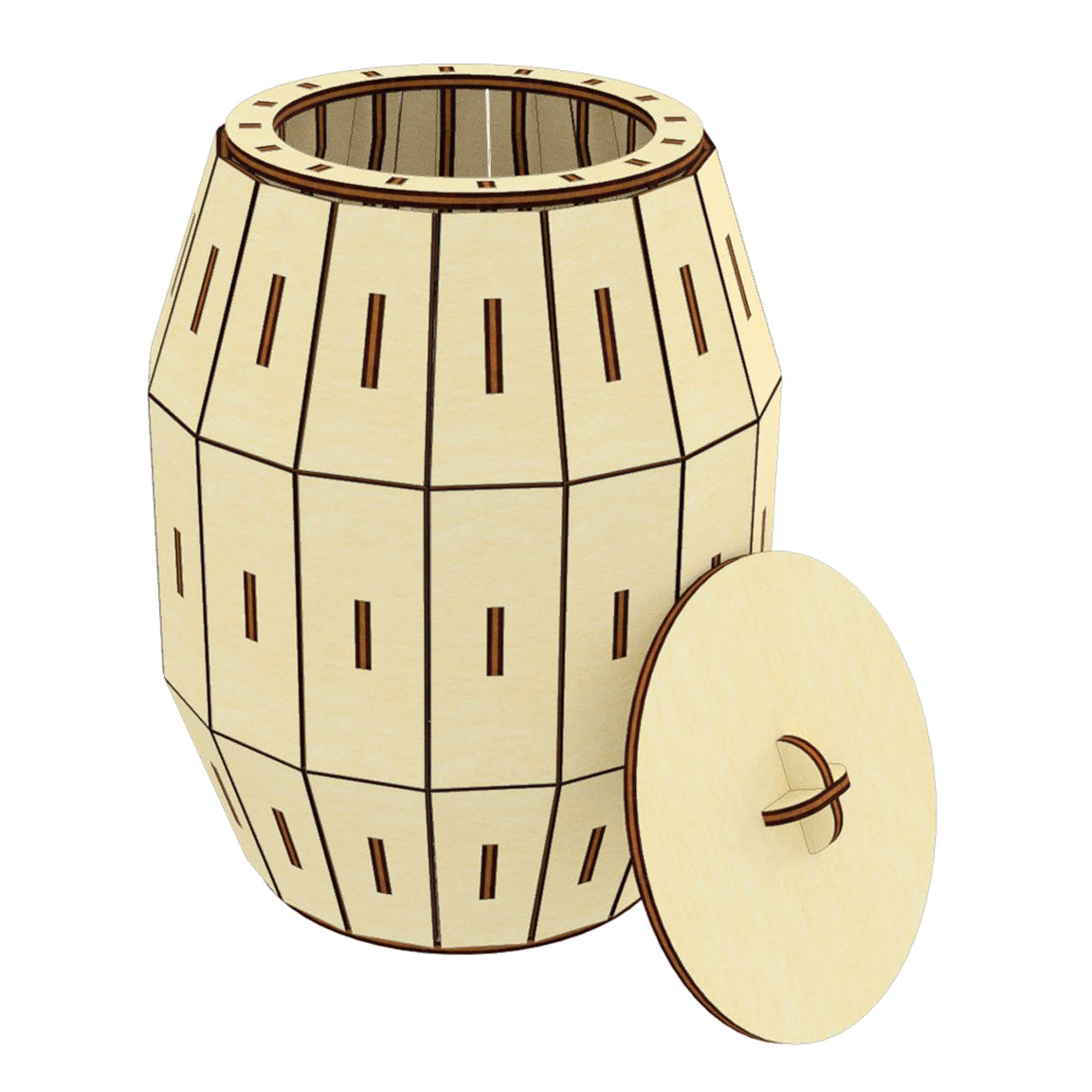

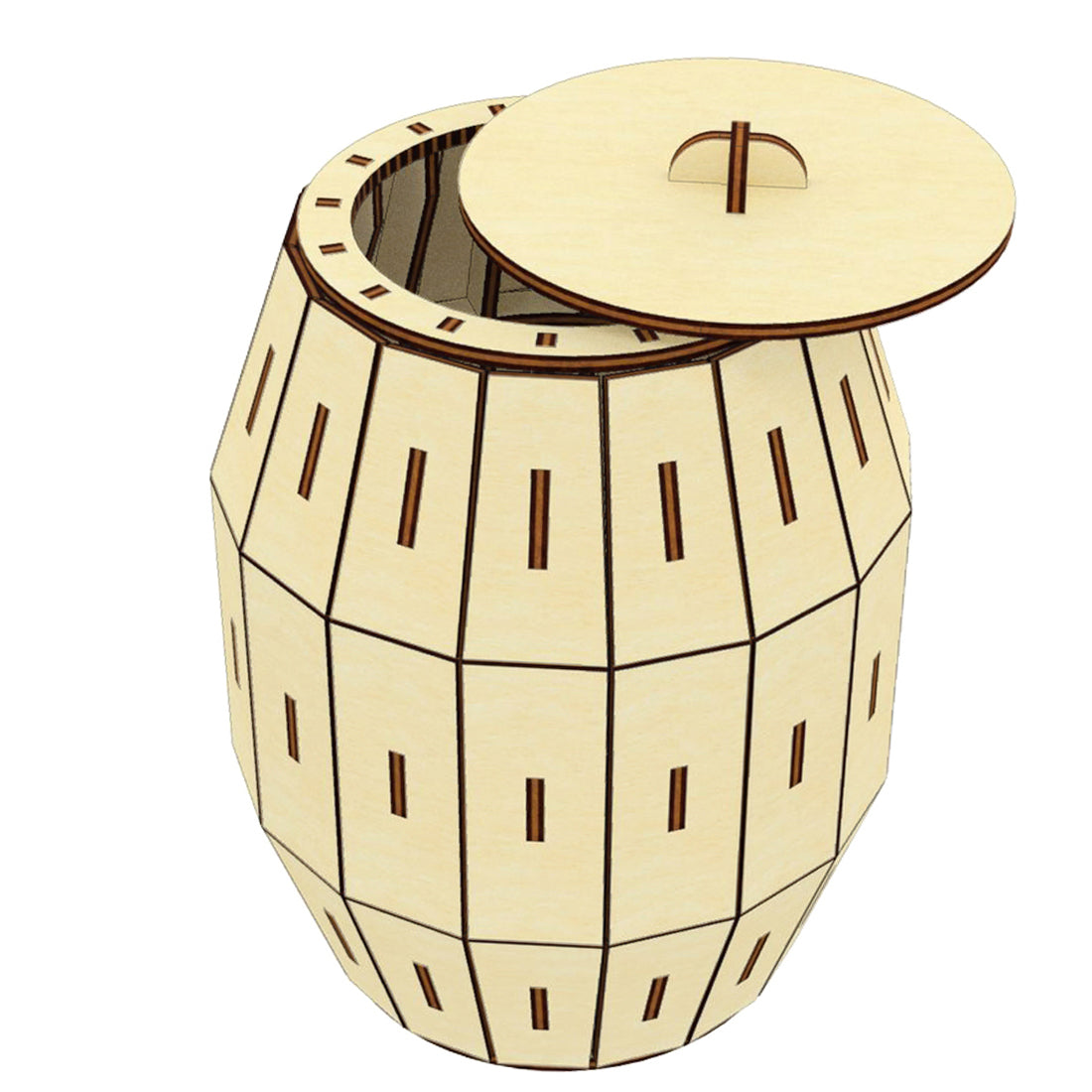

Barrel Laser cut file for CNC laser machines in DXF CDR AI SVG

Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

Sizes:
3 mm thickness: 121 x 121 x 167 mm (4,76 x 4,76 x 6,57'')
1/8''(3.175mm) thickness: 128 x 128 x 177 mm (5,04 x 5,04 x 6,96'')
4 mm thickness: 161 x 161 x 223 mm (6,35 x 6,35 x 8,77'')
6 mm thickness: 242 x 242 x 334 mm (9,53 x 9,53 x 13,15'')
1/4''(6.35mm) thickness: 256 x 256 x 353 mm (10,08 x 10,08 x 13,92'')

Work area:
3 mm thickness: 474 x 354 mm (18,66 x 13,94'')
1/8''(3.175mm) thickness: 502 x 375 mm (19,75 x 14,75'')
4 mm thickness: 632 x 472 mm (24,88 x 18,58'')
6 mm thickness: 948 x 708 mm (37,32 x 27,87'')
1/4''(6.35mm) thickness: 1003 x 749 mm (39,50 x 29,50'')

Biggest part:
3 mm thickness: 24 x 156 mm (0,94 x 6,14'')
1/8''(3.175mm) thickness: 25 x 165 mm (1,00 x 6,50'')
4 mm thickness: 32 x 208 mm (1,26 x 8,19'')
6 mm thickness: 48 x 312 mm (1,89 x 12,28'')
1/4''(6.35mm) thickness: 51 x 330 mm (2,00 x 13,00'')

In the file:
pink color - cut
black color - cut

What you receive:
You will download 1 ZIP file containing the following:

the CDR, DXF, AI, SVG files with drawing for material thinkness 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) and PDF-assembly instruction

If you have any quastions feel free to contact us.

These files are vector-based and compatible with all laser cut software, milling machine, CNC plasma cutting machine, glowforge machines.

This is an Instant Digital Download

The item is non-refundable because it's not physical.
YOU CAN use the files for personal purposes and for your small business.
YOU CANNOT share, redistribute or resell the files.

Copyright is not transferable with the sale.

Wholesale cheaper
Use promocodes for discount

3 files - WHOLESALE3 - 15%
5 files - WHOLESALE5 - 20%
10 files - WHOLESALE10 - 30%

This model also available on Etsy here
