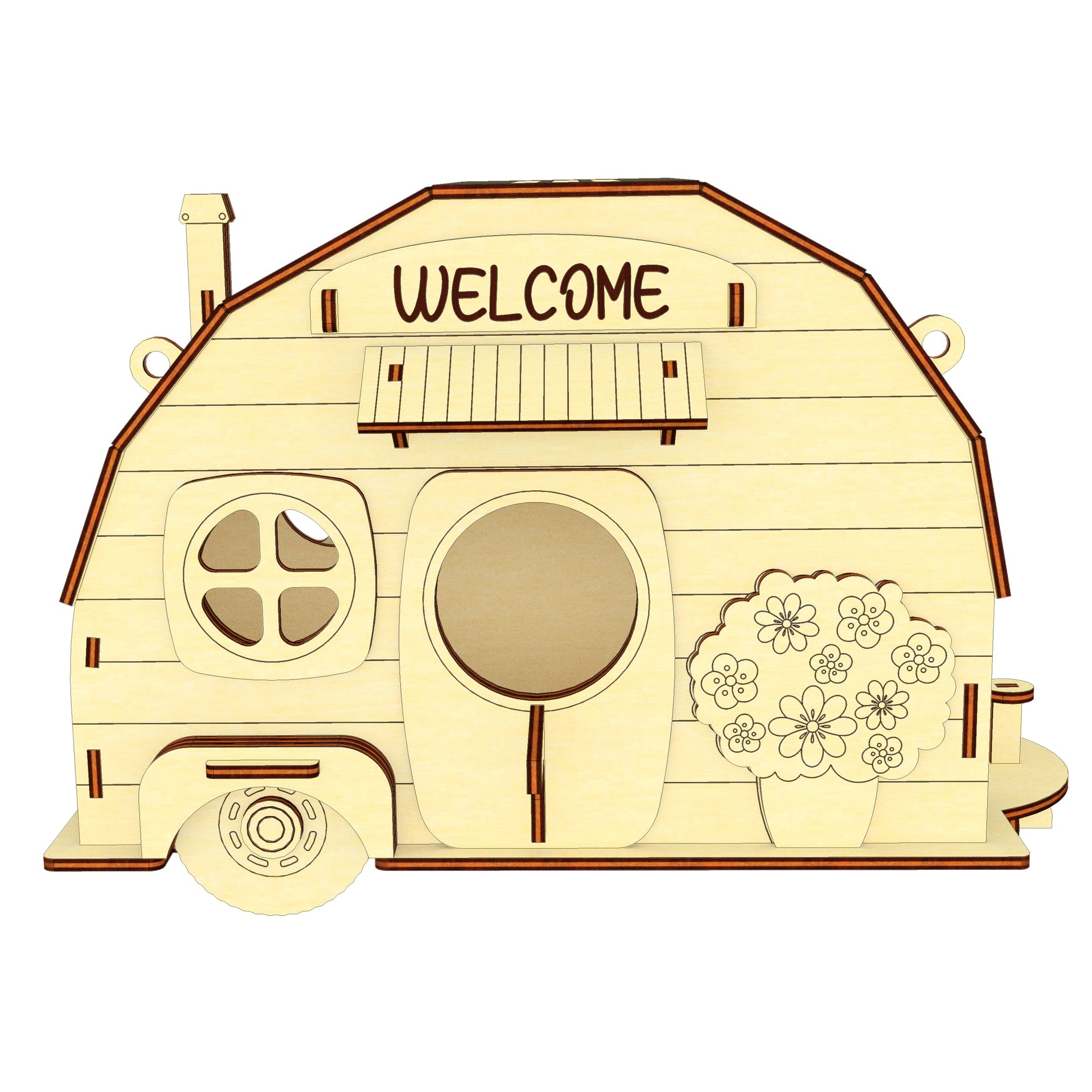

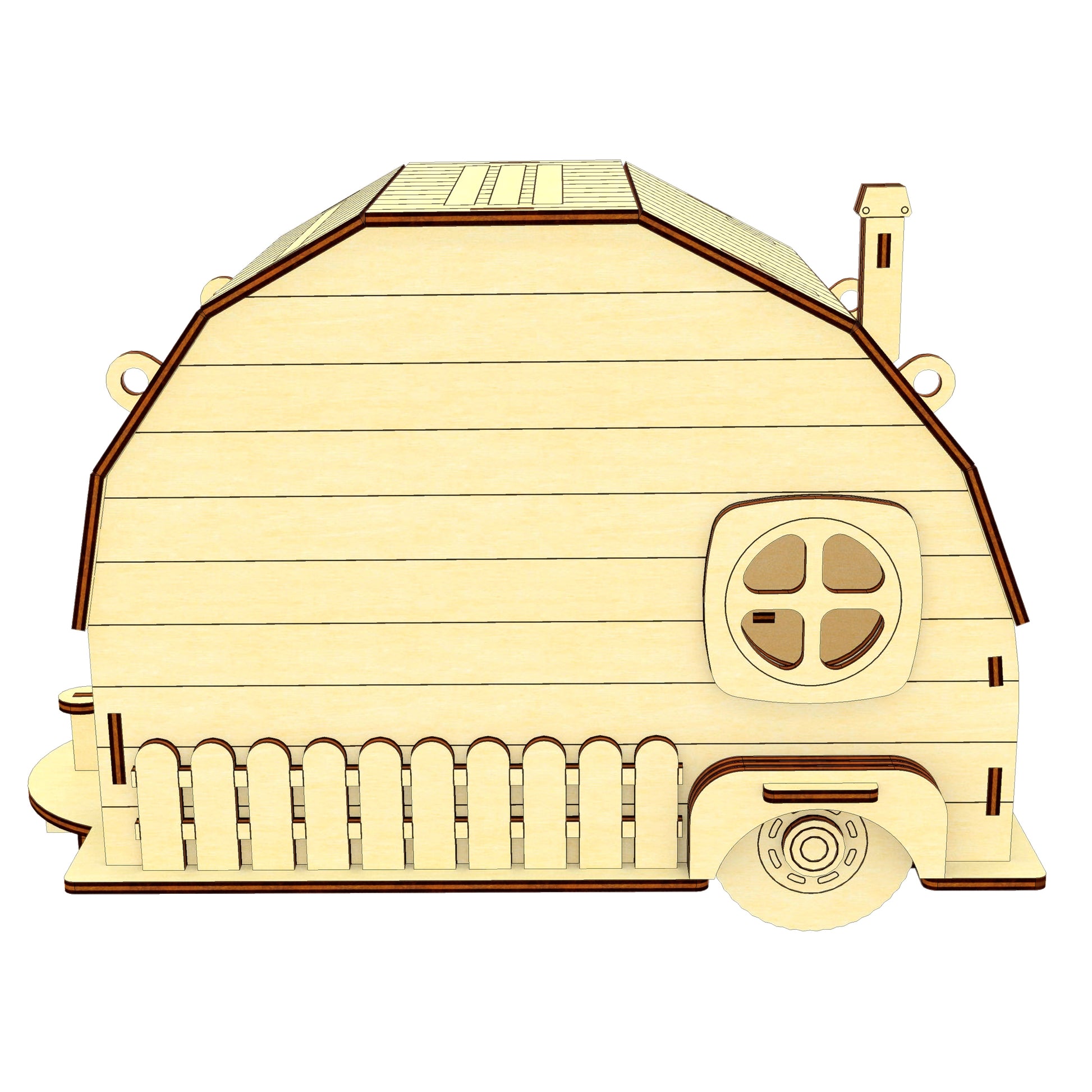

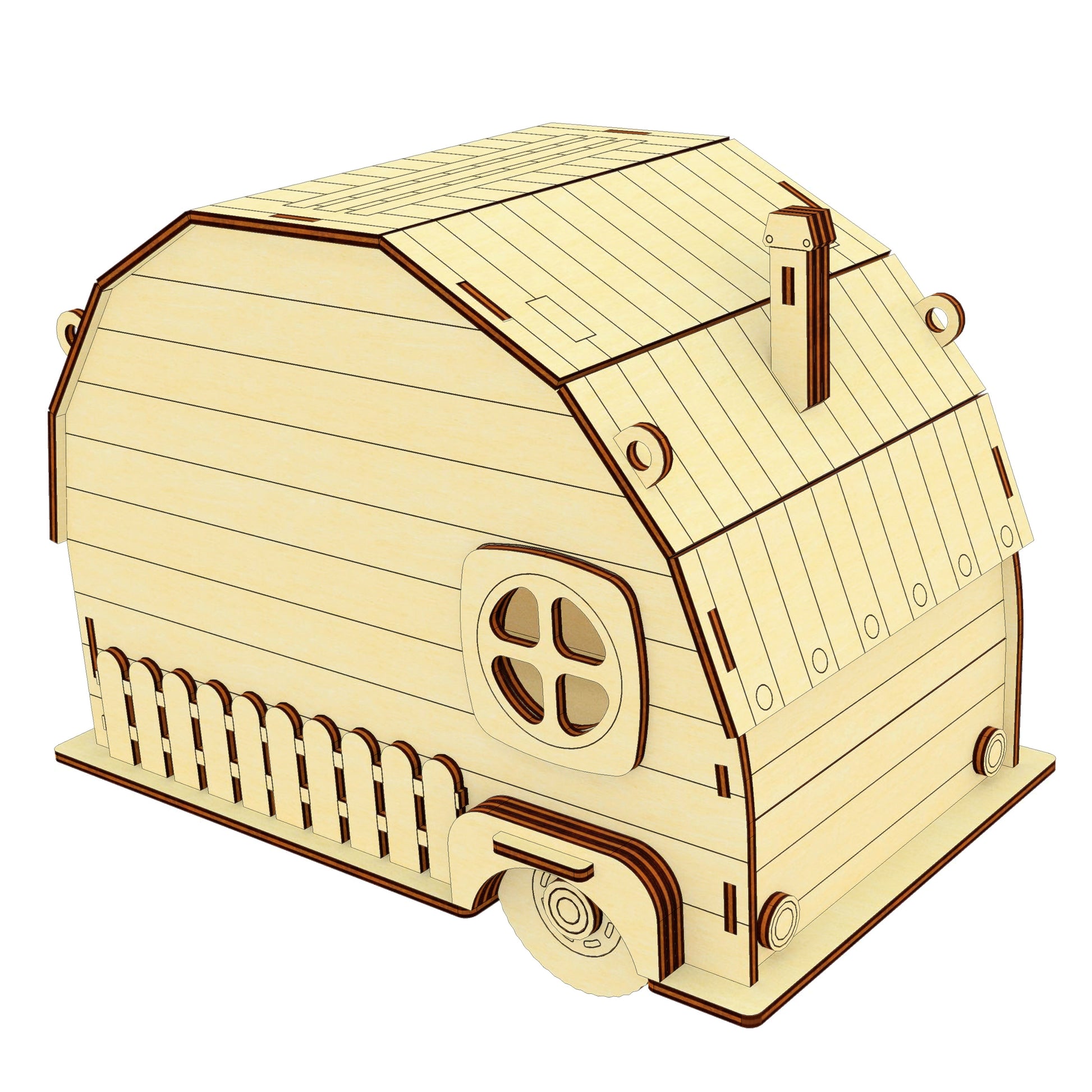

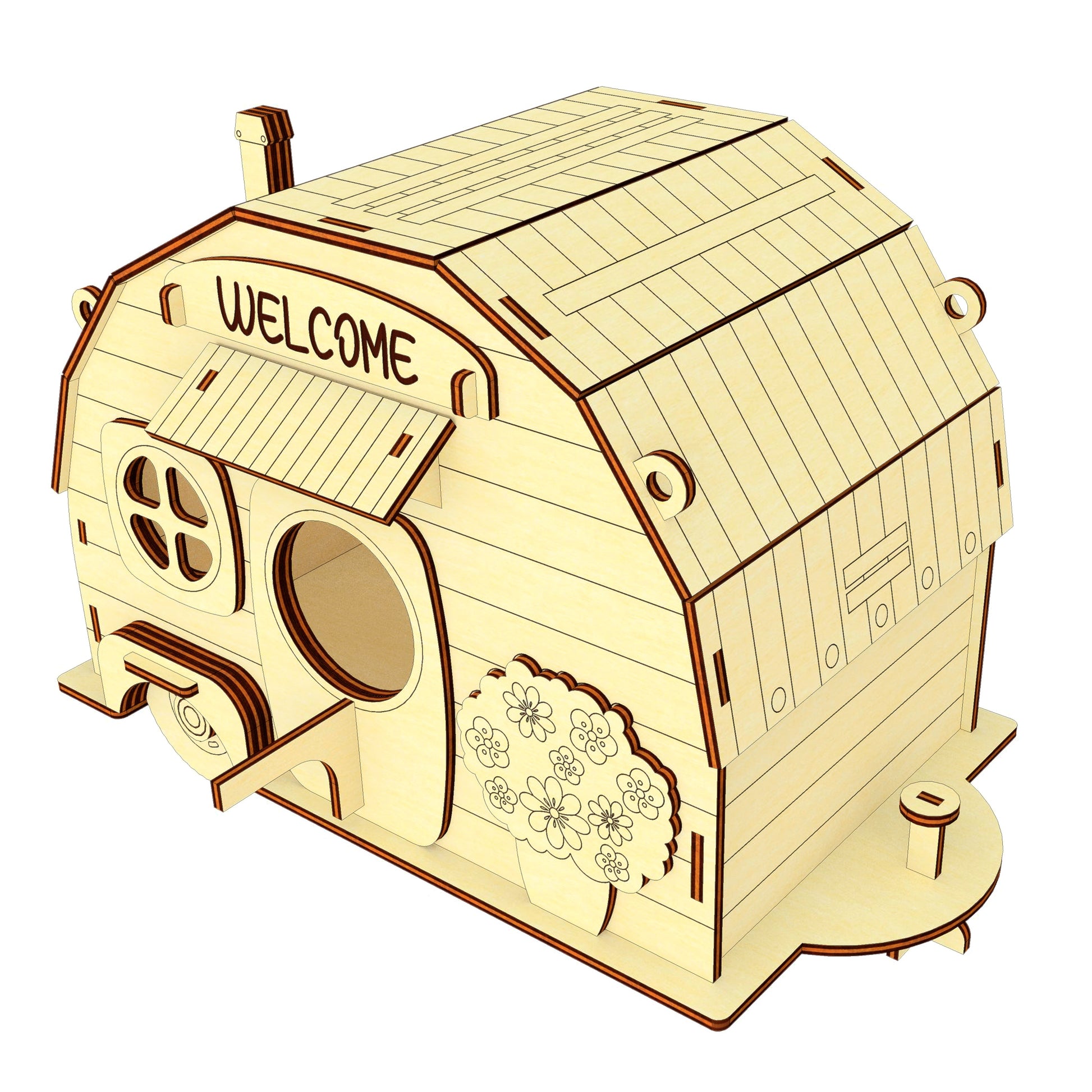

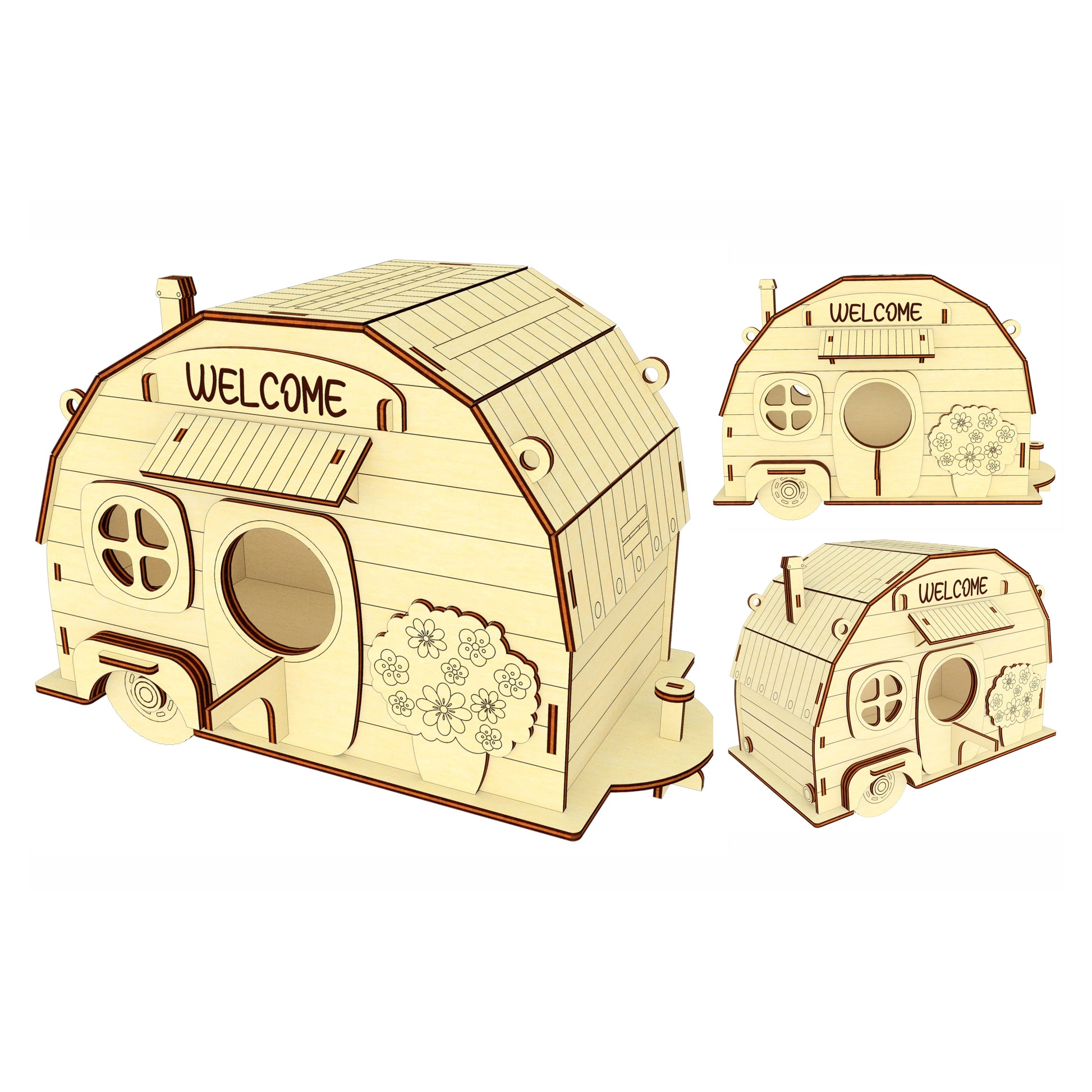

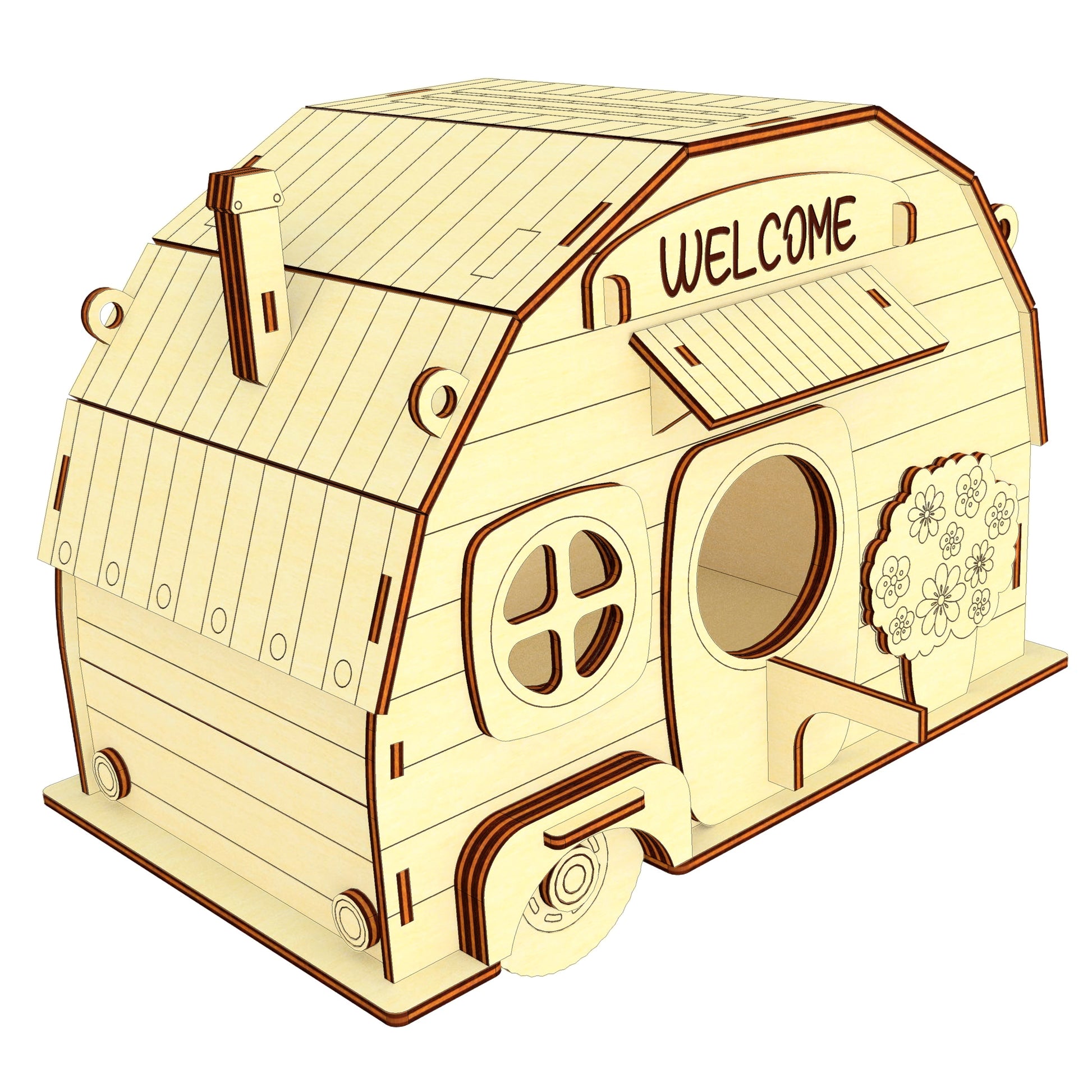

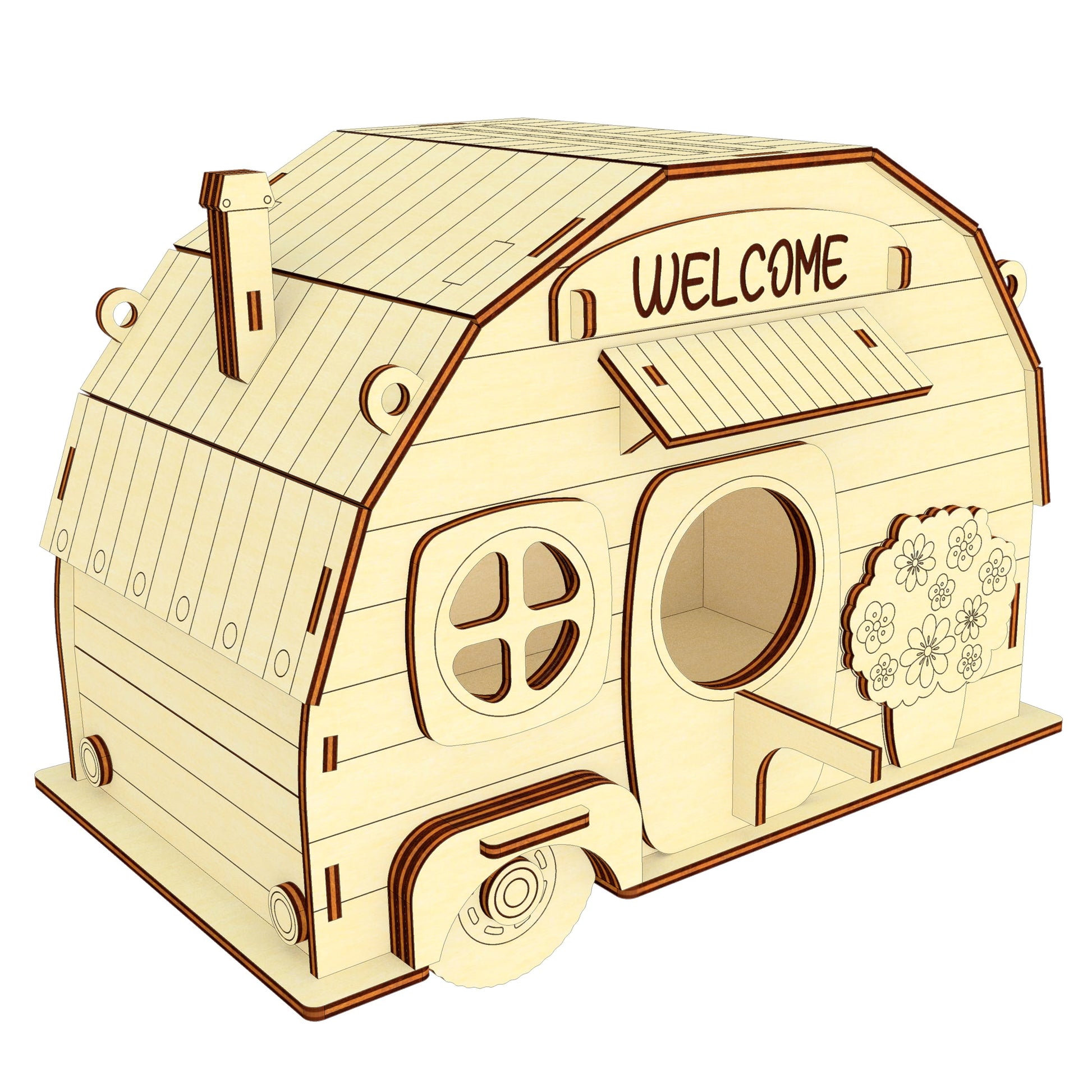

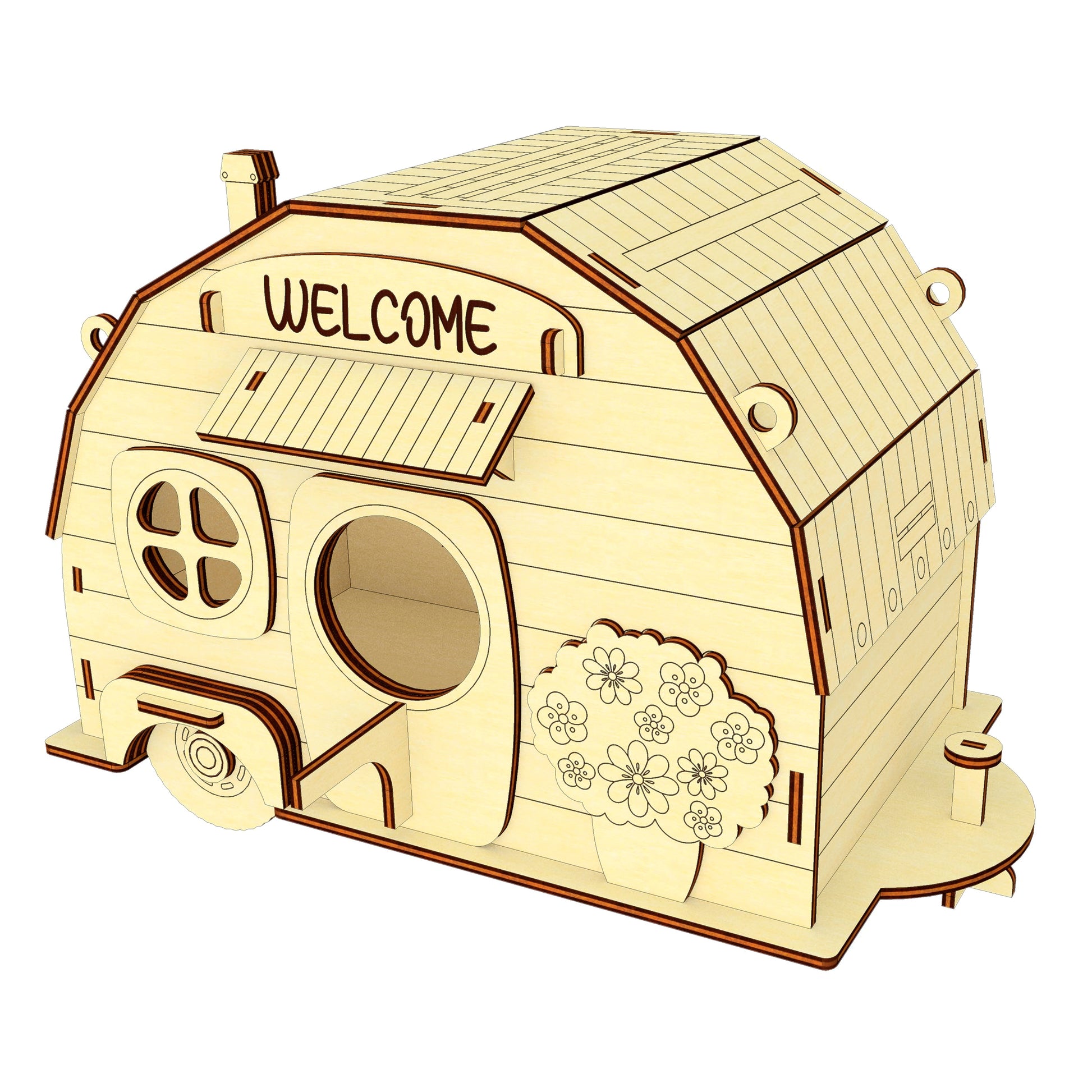

Camper Birdhouse #2 Laser cut file for CNC laser machines in DXF CDR AI SVG
Material thickness (versions of the files): 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

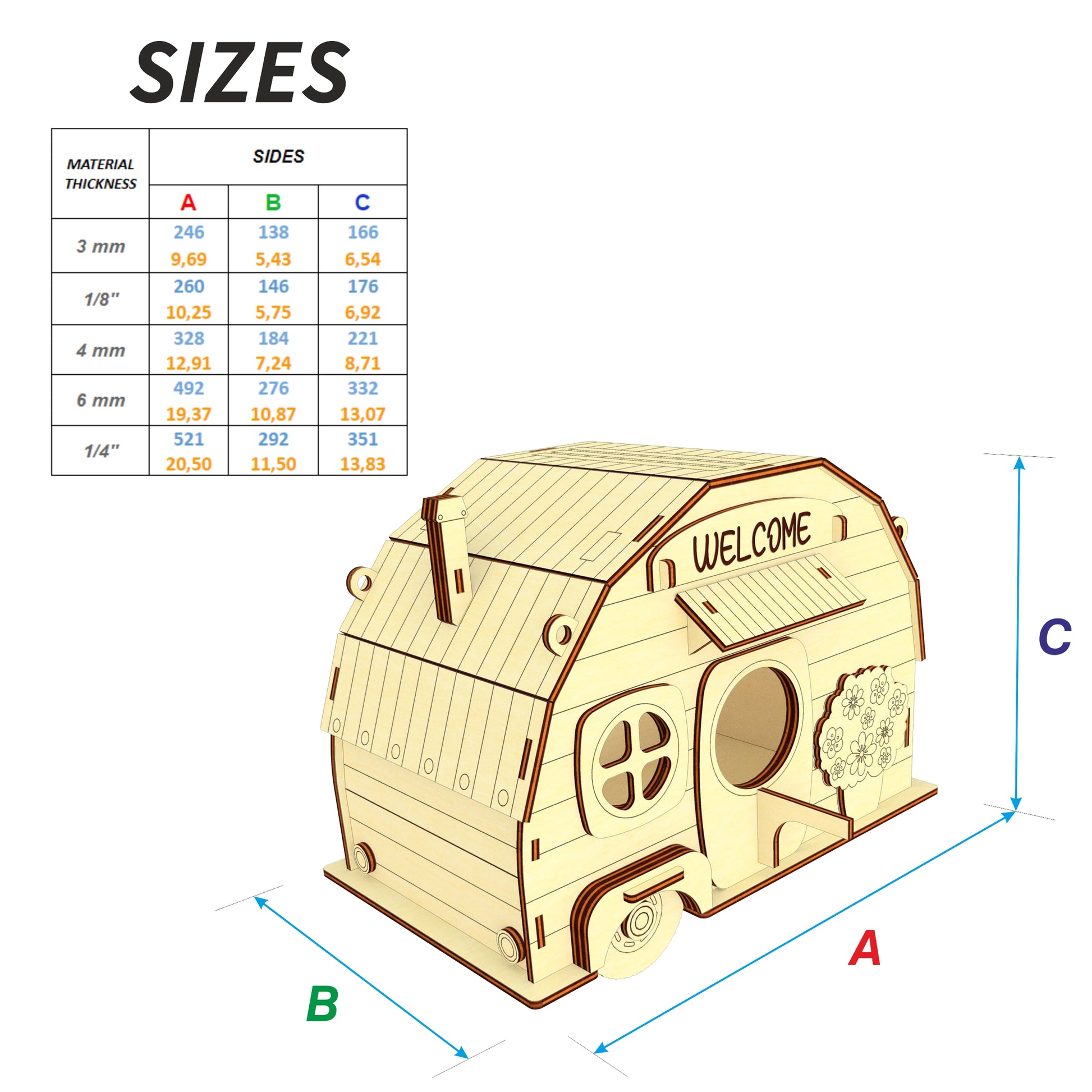

Sizes:
3 mm thickness: 246 x 138 x 166 mm (9,69 x 5,43 x 6,54'')
1/8''(3.175mm) thickness: 260 x 146 x 176 mm (10,25 x 5,75 x 6,92'')
4 mm thickness: 328 x 184 x 221 mm (12,91 x 7,24 x 8,71'')
6 mm thickness: 492 x 276 x 332 mm (19,37 x 10,87 x 13,07'')
1/4''(6.35mm) thickness: 521 x 292 x 351 mm (20,50 x 11,50 x 13,83'')
Work area:
3 mm thickness: 430 x 475 mm (16,93 x 18,70'')
1/8''(3.175mm) thickness: 455 x 503 mm (17,92 x 19,79'')
4 mm thickness: 573 x 633 mm (22,57 x 24,93'')
6 mm thickness: 860 x 950 mm (33,86 x 37,40'')
1/4''(6.35mm) thickness: 910 x 1005 mm (35,83 x 39,58'')
Biggest part:
3 mm thickness: 246 x 138 mm (9,69 x 5,43'')
1/8''(3.175mm) thickness: 260 x 146 mm (10,25 x 5,75'')
4 mm thickness: 328 x 184 mm (12,91 x 7,24'')
6 mm thickness: 492 x 276 mm (19,37 x 10,87'')
1/4''(6.35mm) thickness: 521 x 292 mm (20,50 x 11,50'')

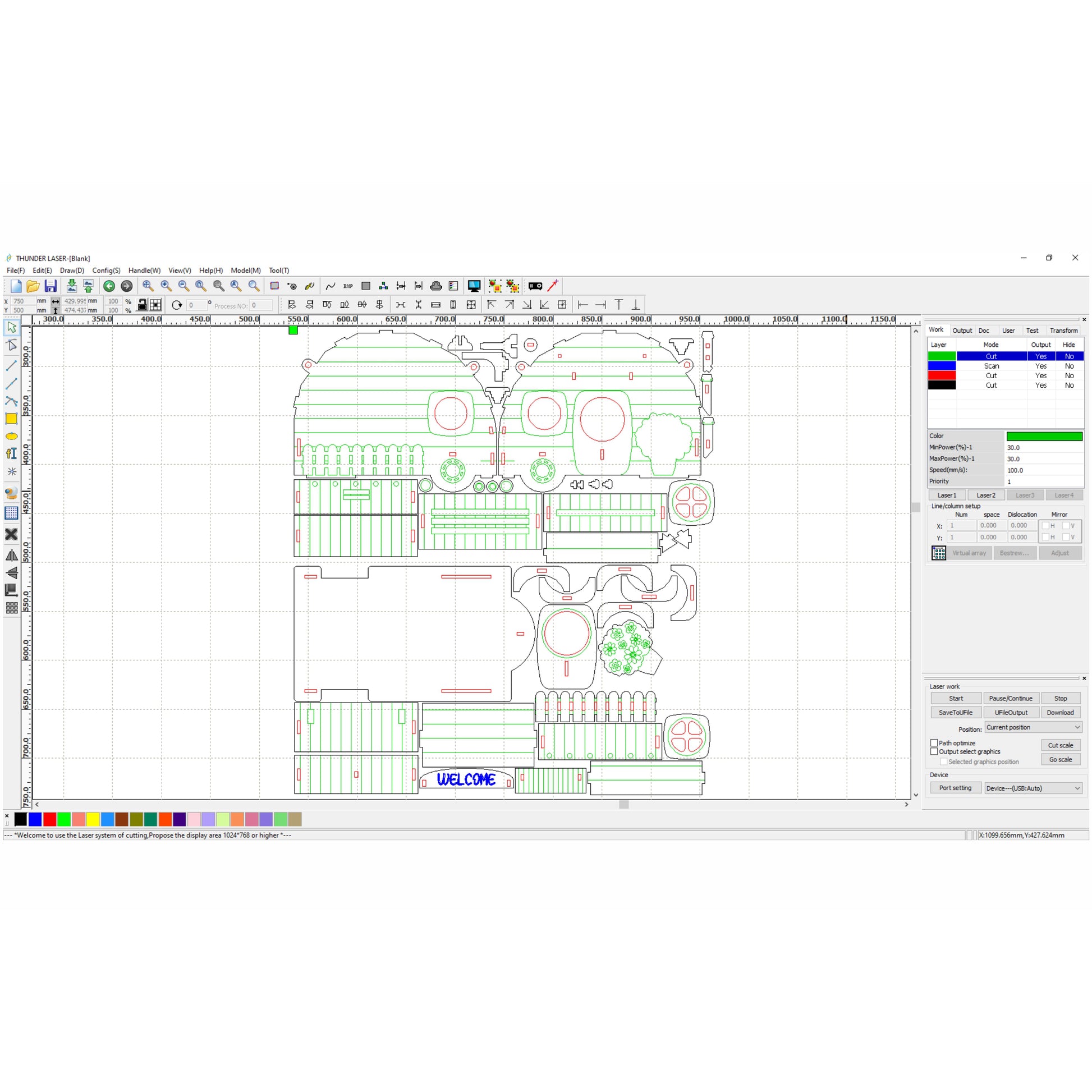

In the file:
green color - score (cut with low power and high speed)
blue color - engrave
pink color - cut (inner cut lines)
black color - cut (outer cut lines)
What you receive:
You will download 1 ZIP file containing the following:
the CDR, DXF, AI, SVG files with drawing for material thinkness 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) and PDF-assembly instruction
If you have any quastions feel free to contact us.
These files are vector-based and compatible with all laser cut software, milling machine, CNC plasma cutting machine, glowforge machines.
This is an Instant Digital Download
The item is non-refundable because it's not physical.
YOU CAN use the files for personal purposes and for your small business.
YOU CANNOT share, redistribute or resell the files.
Copyright is not transferable with the sale.
Wholesale cheaper
Use promocodes for discount
3 files - WHOLESALE3 - 15%
5 files - WHOLESALE5 - 20%
10 files - WHOLESALE10 - 30%
This model also available on Etsy here
