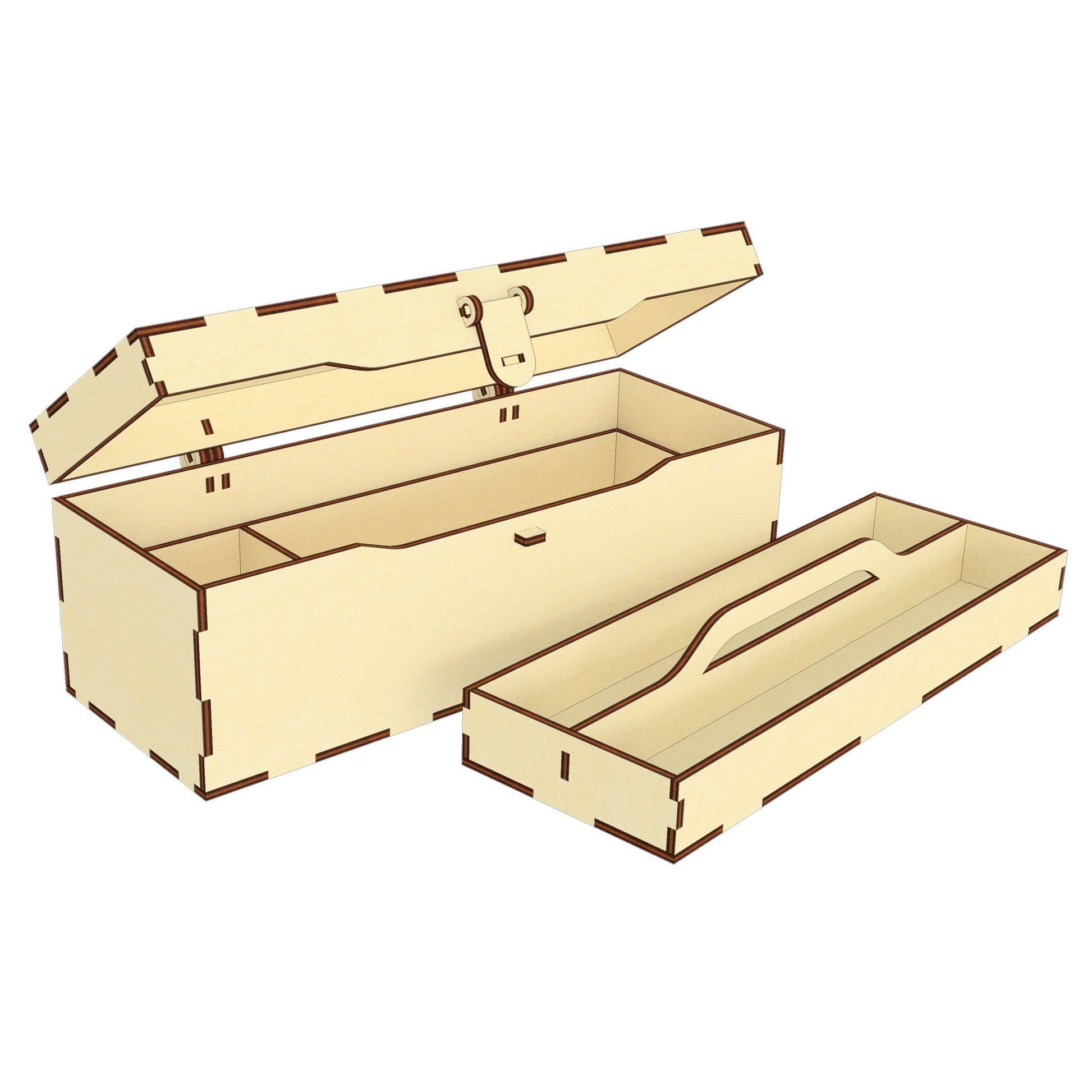

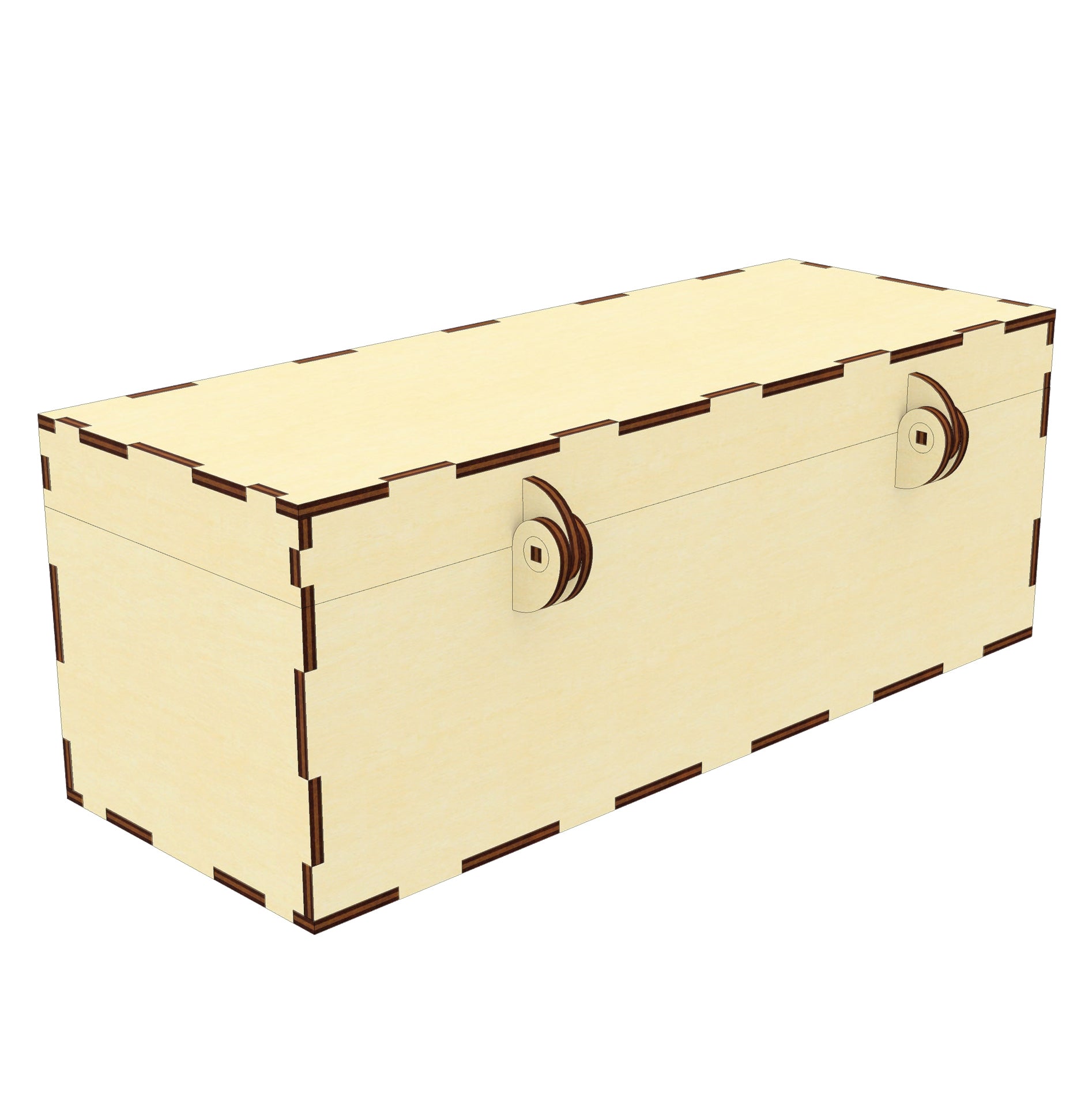

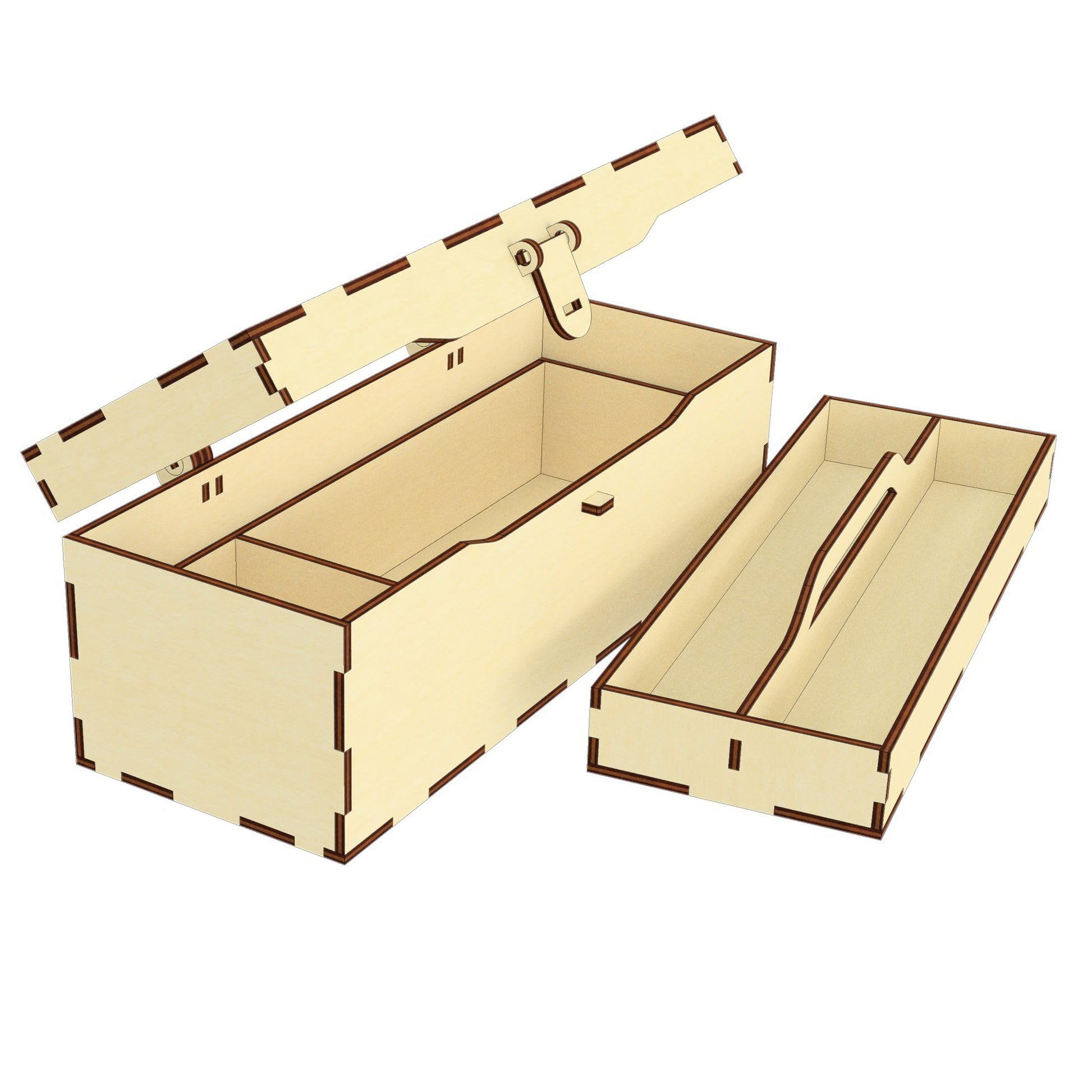

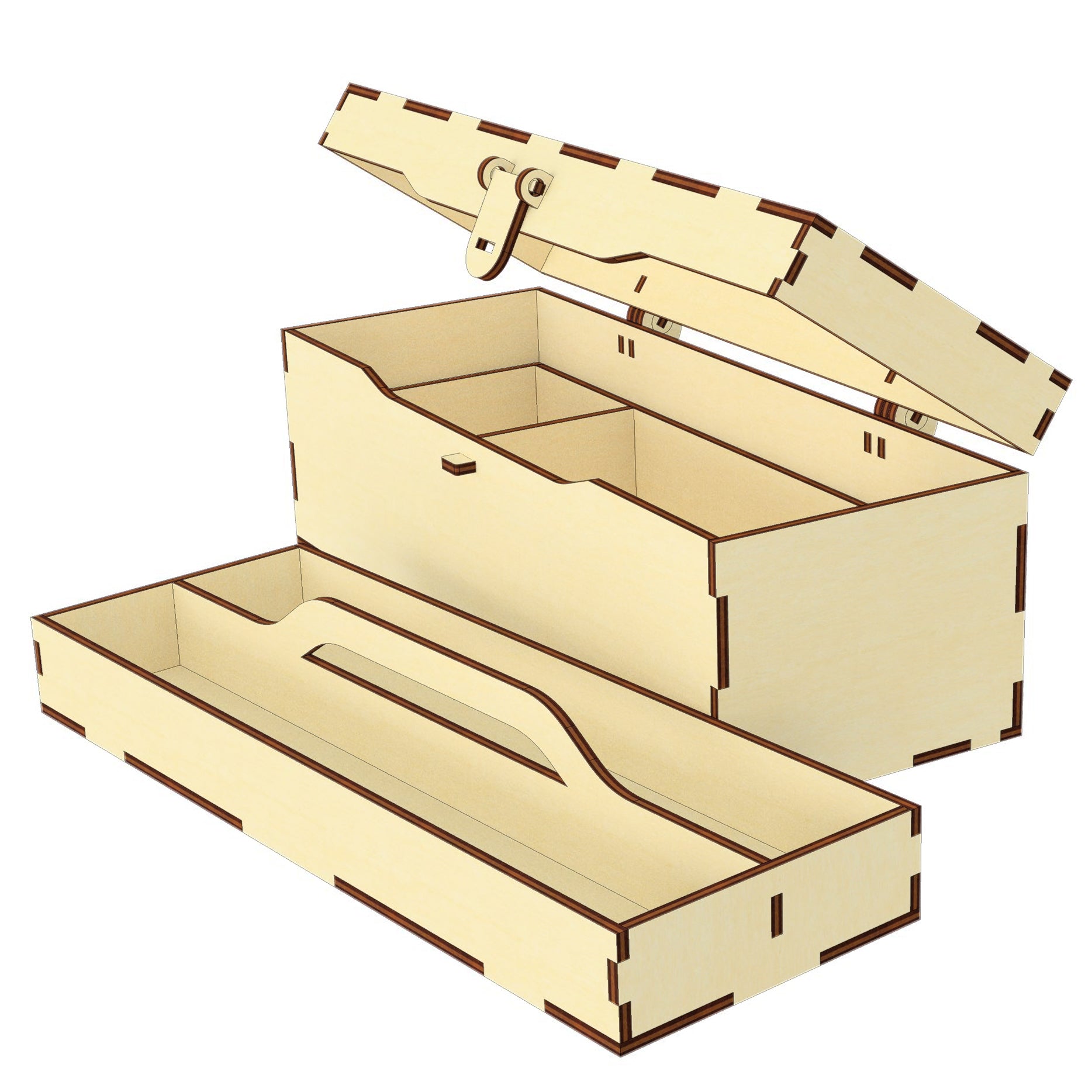

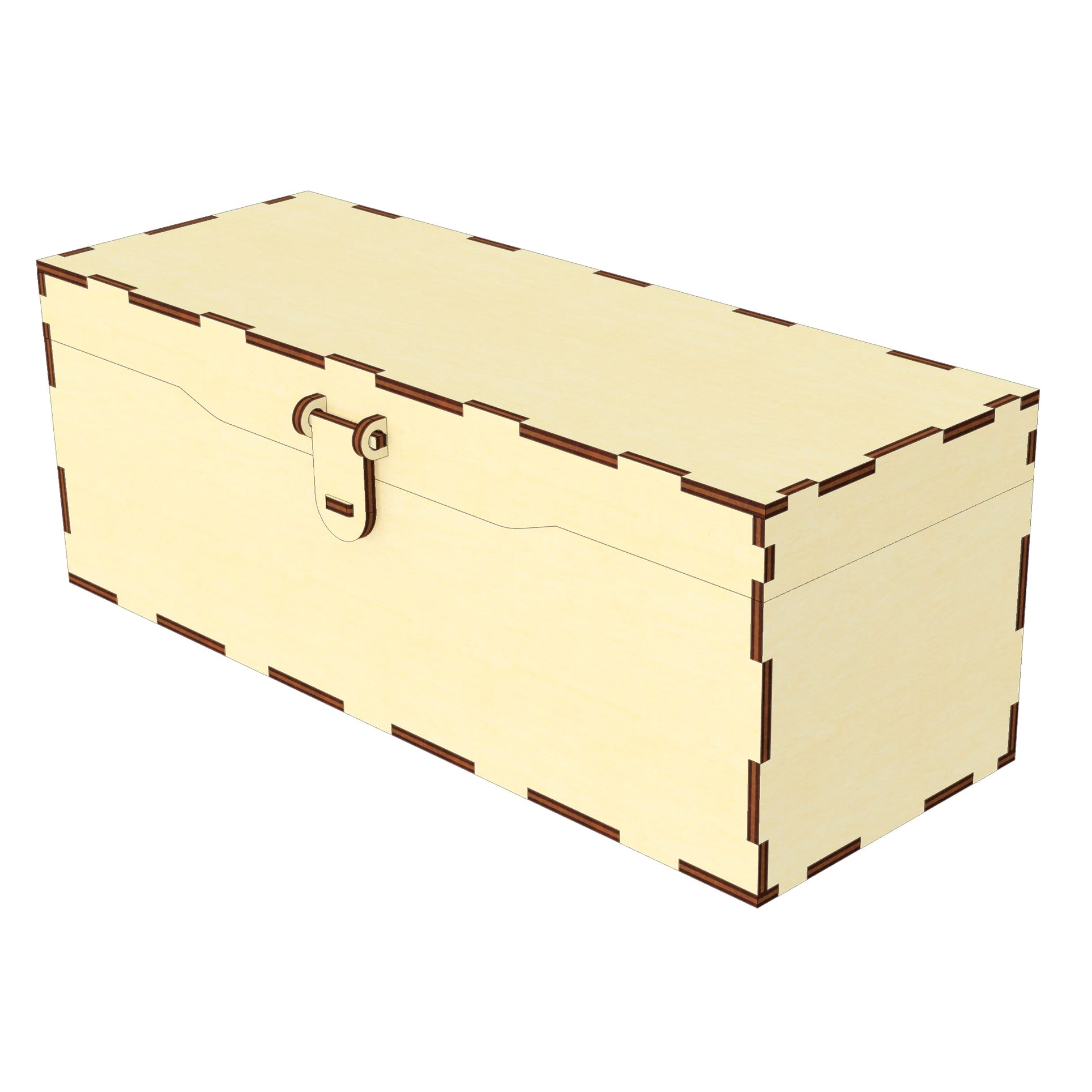

Tool Box Laser cut file for CNC laser machines in DXF CDR AI SVG
Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

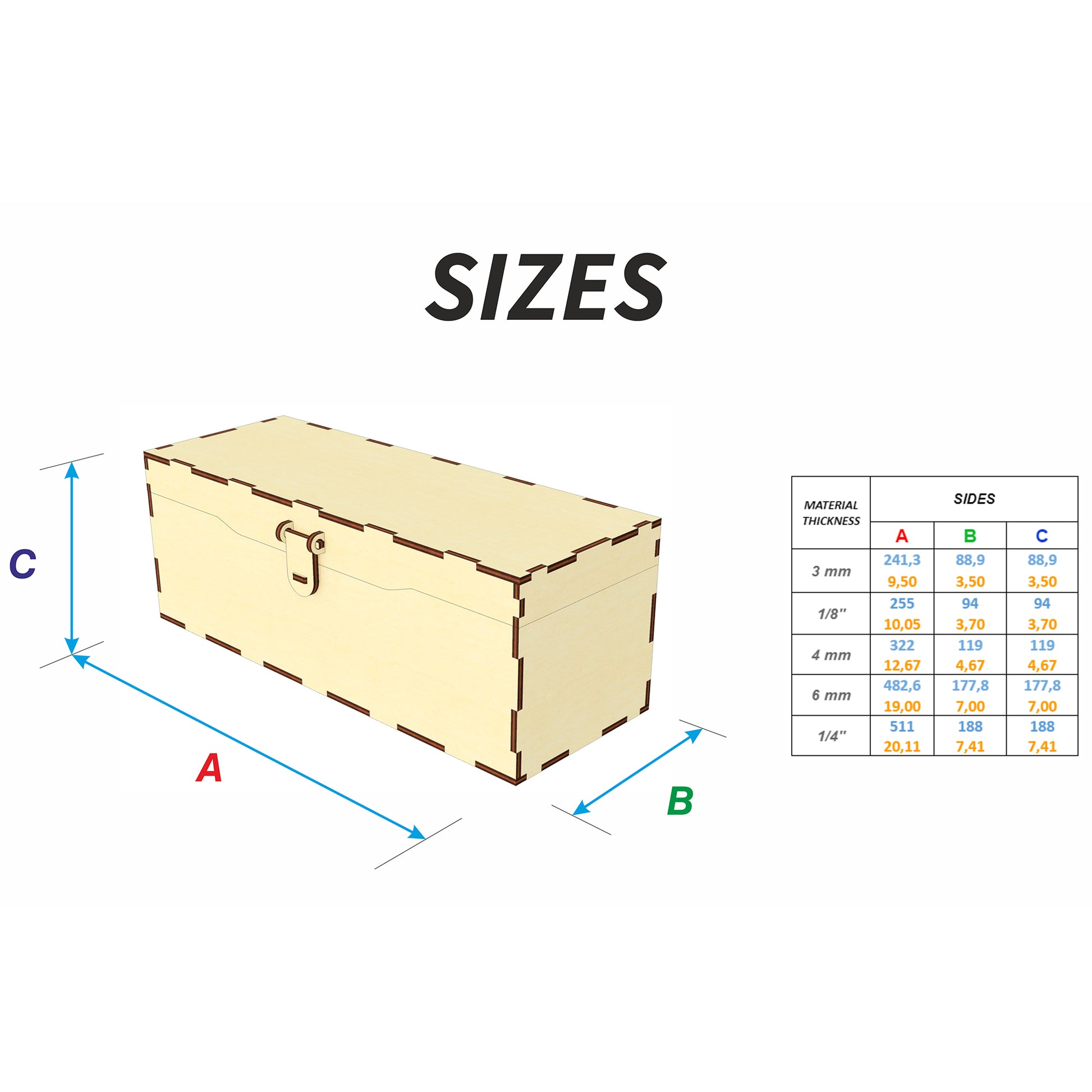

Sizes:
3 mm thickness: 241 x 89 x 89 mm (9,50 x 3,50 x 3,50'')
1/8''(3.175mm) thickness: 255 x 94 x 94 mm (10,05 x 3,70 x 3,70'')
4 mm thickness: 322 x 119 x 119 mm (12,67 x 4,67 x 4,67'')
6 mm thickness: 483 x 178 x 178 mm (19,00 x 7,00 x 7,00'')
1/4''(6.35mm) thickness: 511 x 188 x 188 mm (20,11 x 7,41 x 7,41'')
Work area:
3 mm thickness: 835 x 237 mm (32,87 x 9,33'')
1/8''(3.175mm) thickness: 884 x 251 mm (34,79 x 9,88'') - 2 Glowforge sheets
4 mm thickness: 1113 x 316 mm (43,83 x 12,44'')
6 mm thickness: 1670 x 474 mm (65,75 x 18,66'')
1/4''(6.35mm) thickness: 1767 x 502 mm (69,58 x 19,75'')
Biggest part:
3 mm thickness: 241 x 89 mm (9,50 x 3,50'')
1/8''(3.175mm) thickness: 255 x 94 mm (10,05 x 3,70'')
4 mm thickness: 322 x 119 mm (12,67 x 4,67'')
6 mm thickness: 483 x 178 mm (19,00 x 7,00'')
1/4''(6.35mm) thickness: 511 x 188 mm (20,11 x 7,41'')

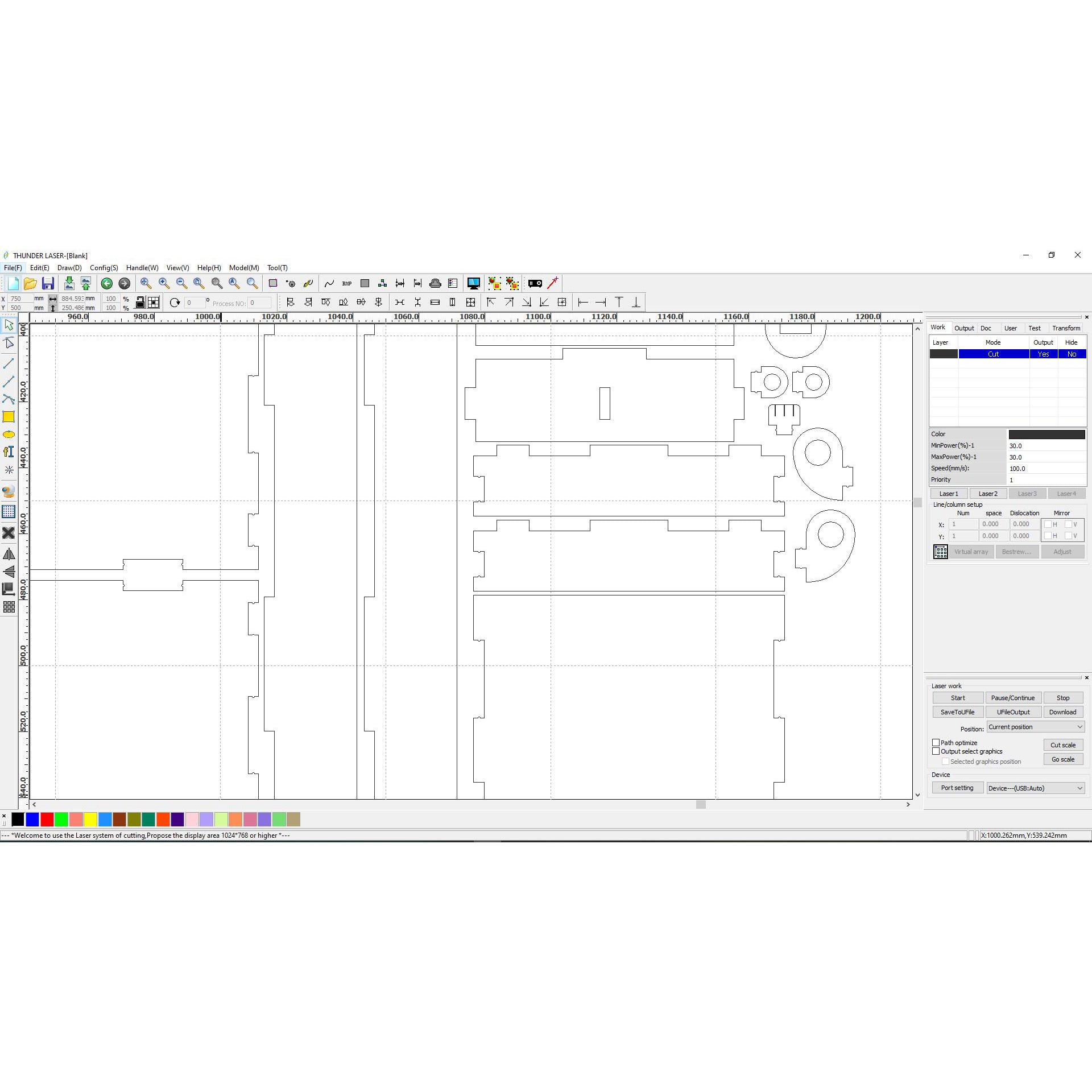

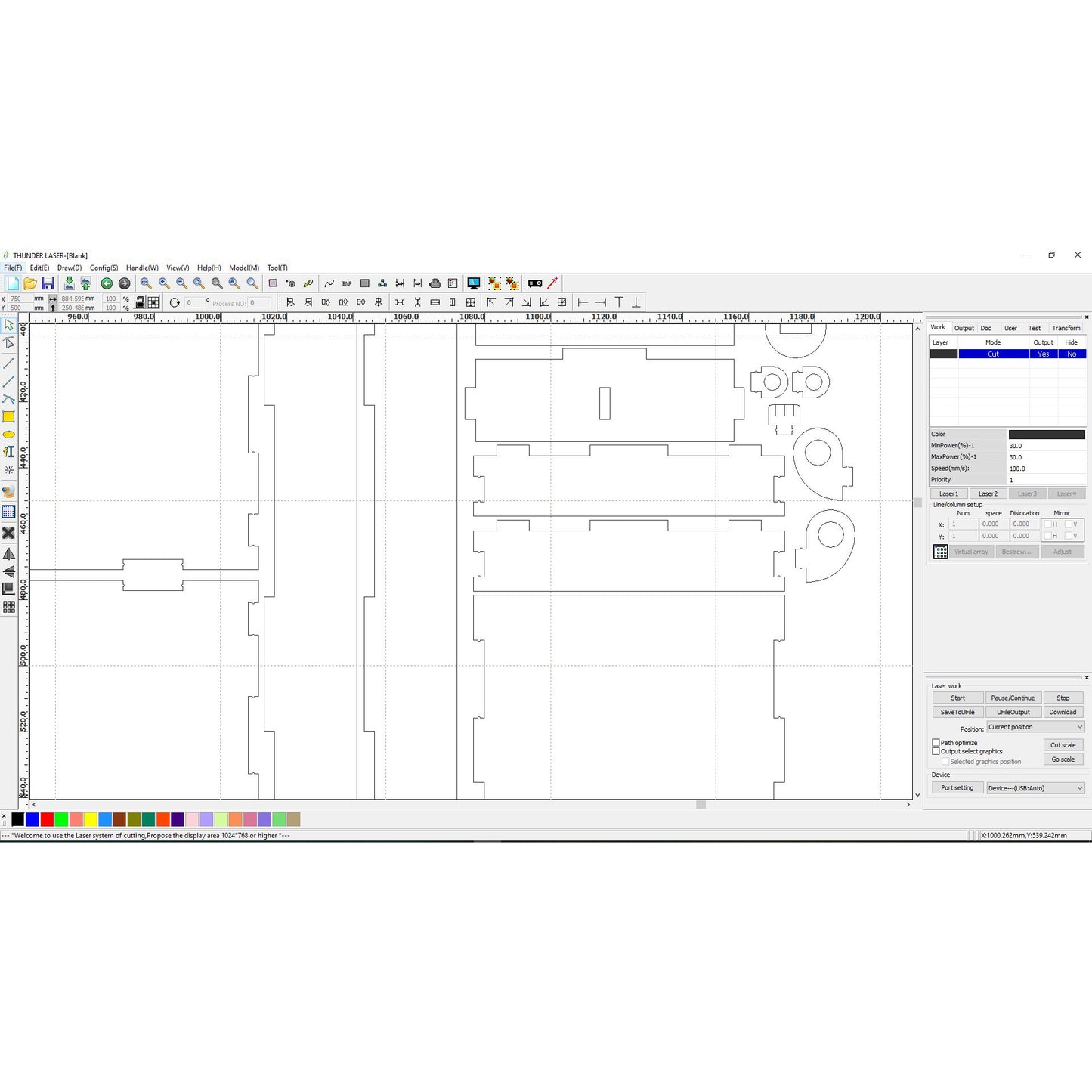

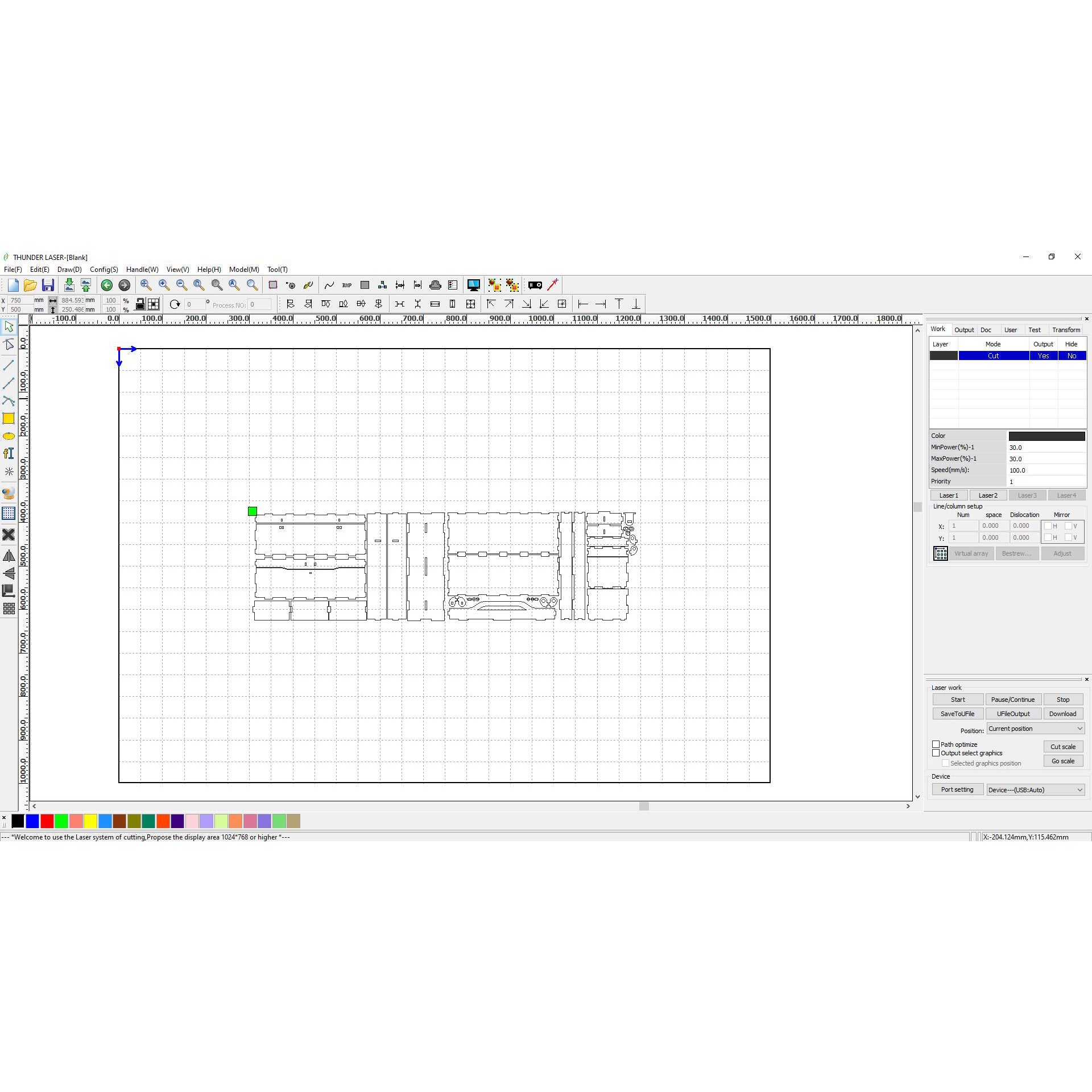

In the file:
black color - cut
What you receive:
You will download 1 ZIP file containing the following:
the CDR, DXF, AI, SVG files with drawing for material thinkness 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) and PDF-assembly instruction
If you have any quastions feel free to contact us.
These files are vector-based and compatible with all laser cut software, milling machine, CNC plasma cutting machine, glowforge machines.
This is an Instant Digital Download
The item is non-refundable because it's not physical.
YOU CAN use the files for personal purposes and for your small business.
YOU CANNOT share, redistribute or resell the files.
Copyright is not transferable with the sale.
