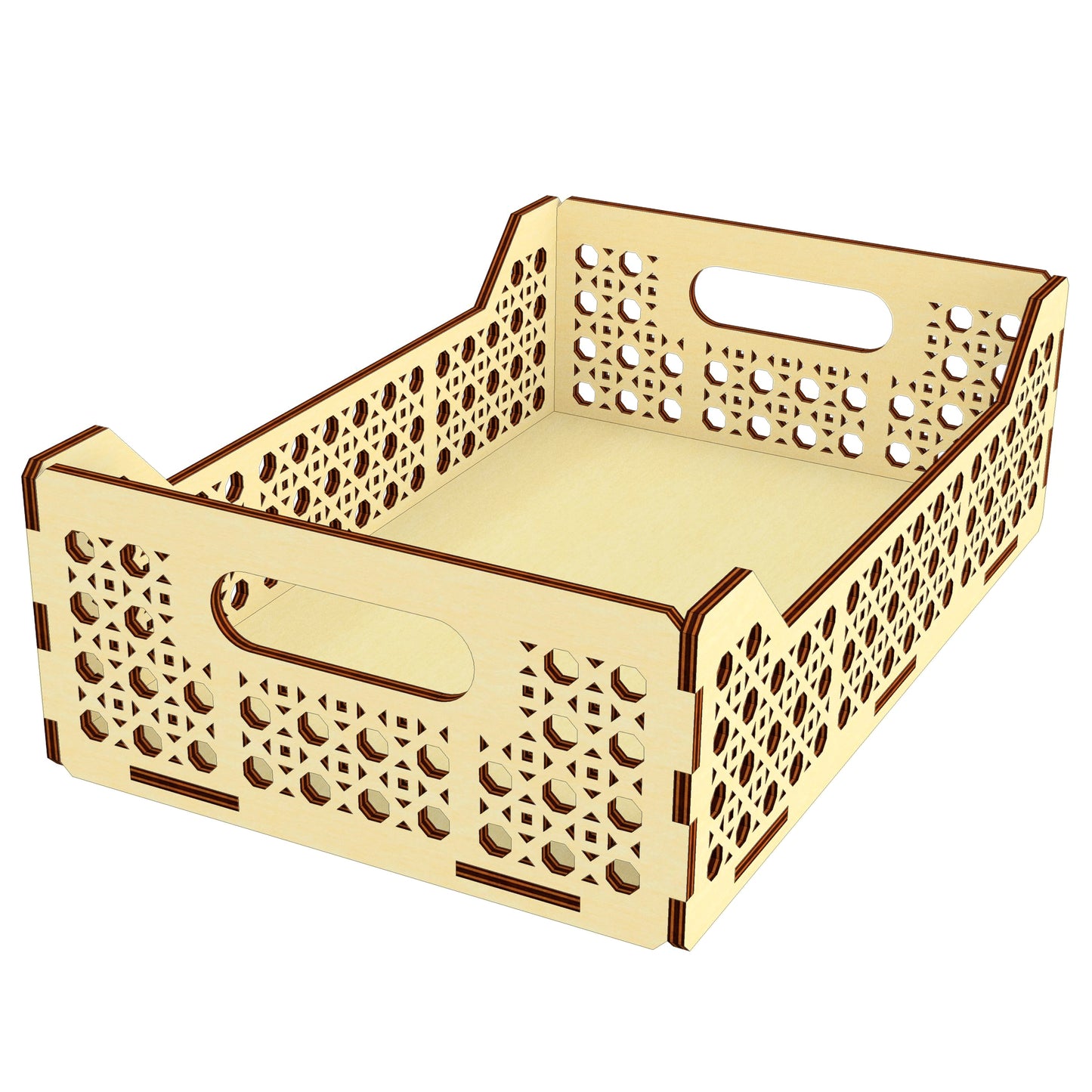

Tray with pattern Laser cut file for CNC laser machines in DXF CDR AI SVG
Material thickness (versions of the files): 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)
Sizes:
3 mm thickness: 400 x 259 x 123 mm (15,75 x 10,20 x 4,84'')
1/8''(3.175mm) thickness: 423 x 274 x 130 mm (16,67 x 10,79 x 5,13'')
4 mm thickness: 400 x 259 x 123 mm (15,75 x 10,20 x 4,84'')
6 mm thickness:400 x 259 x 123 mm (15,75 x 10,20 x 4,84'')
1/4''(6.35mm) thickness: 423 x 274 x 130 mm (16,67 x 10,79 x 5,13'')
Work area:
3 mm thickness: 811 x 502 mm (31,93 x 19,76'')
1/8''(3.175mm) thickness: 858 x 531 mm (33,79 x 20,92'')
4 mm thickness: 811 x 502 mm (31,93 x 19,76'')
6 mm thickness: 811 x 502 mm (31,93 x 19,76'')
1/4''(6.35mm) thickness: 858 x 531 mm (33,79 x 20,92'')
Biggest part:
3 mm thickness: 400 x 259 mm (15,75 x 10,20'')
1/8''(3.175mm) thickness: 423 x 274 mm (16,67 x 10,79'')
4 mm thickness: 400 x 259 mm (15,75 x 10,20'')
6 mm thickness: 400 x 259 mm (15,75 x 10,20'')
1/4''(6.35mm) thickness: 423 x 274 mm (16,67 x 10,79'')
What you receive:
You will download 1 ZIP file containing the following:
the CDR, DXF, AI, SVG files with drawing for material thinkness 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) and PDF-assembly instruction
If you have any quastions feel free to contact us.
These files are vector-based and compatible with all laser cut software, milling machine, CNC plasma cutting machine, glowforge machines.
This is an Instant Digital Download
The item is non-refundable because it's not physical.
YOU CAN use the files for personal purposes and for your small business.
YOU CANNOT share, redistribute or resell the files.
Copyright is not transferable with the sale.
Wholesale cheaper
Use promocodes for discount
3 files - WHOLESALE3 - 15%
5 files - WHOLESALE5 - 20%
10 files - WHOLESALE10 - 30%
This model also available on Etsy here
